TQ6BTHF361Bluetooth Handsfree Speaker

BTHF361 2 Declaration: Without written permission from original manufacturer, reproduction, transfer, distribution or storage of part or all of the contents in this document in any form is prohibited. The company reserves rights to make any changes and improvements to the product described in this document without prior notice. Notice ： Please make sure your mobile phone supports Bluetooth profiles and network operator supports the functions described in this manual, otherwise the relative functions cannot be realized on this Handsfree device. Safety z Use the charger that comes with package. z Caution, risk of explosion if battery is replaced by an incorrect type. z Check the laws and regulations on the use of mobile phones and handsfree equipment in the areas where you drive. Always give full attention to driving and pull off the road and park before making or answering a call if driving conditions require. z Do not allow children to play with your Bluetooth Handsfree Speaker since it contains small parts that could become detached and create a choking hazard. z This device contains a Li-polymer battery. Please keep it away from fire anytime (including discarding the device) or the battery may explode. z The Handsfree Speaker, especially the embedded battery must be properly disposed or may be recycled, contacts your local recycling centers for disposal methods. BTHF361 3 Certification and Safety Approvals This product has been tested and found to comply with Bluetooth BQB requirements, part 15 of FCC rules, R&TTE Directive（99/5/EC） or CE marked requirements. Users should not make changes or modify the device in any way. Changes or modifications without expressly approved by the party responsible for compliance could void the user’s authority to operate the device. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/ TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. RF exposure warning · This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. CE command： ETSI EN 301 489-1 V1.6.1(2005-09); ETSI EN 301 489-17 V1.2.2(2002-08); ETSI EN 300 328 V1.6.1(2004-11); IEC 60950-1:2001,EN 60950-1:2001+A11:2004 BTHF361 4 Contents： 1. INTRODUCTION .................................................................................................5 1.1 BLUETOOTH TECHNOLOGY..............................................................................5 1.2 B LUETOOTH HANDSFREE SPEAKER.................................................................5 1.3 PRODUCT FEATURES.......................................................................................5 1.4 P ACKAGE CONTENTS......................................................................................6 1.5 OVERVIEW......................................................................................................6 2. USING YOUR HANDSFREE...............................................................................8 2.1 B ATTERY CHARGING AND USAGE.....................................................................8 2.1.1 Battery Charging ................................................................................8 2.1.2 Battery Information.............................................................................9 2.2 M OUNTING YOUR HANDSFREE.........................................................................9 2.3 TURNING ON/OFF HANDSFREE......................................................................10 2.4 P AIRING/CONNECTING YOUR HANDSFREE WITH BLUETOOTH EQUIPMENT.......10 2.4.1 Pairing your Handsfree with Bluetooth handset ...............................10 2.4.2 Connecting your Handsfree with Bluetooth Equipment ....................11 2.5 CALL FUNCTIONS..........................................................................................11 2.5.1 Basic Call Operations.......................................................................11 2.5.2 Voice Dialing ....................................................................................12 2.5.3 Transferring Calls to/from your Handset ..........................................12 2.5.4 Volume Adjustment ......................................…

Text truncated - open the document above for the full version.

Authorization Letter I , Dawen Yang of Shanghai Flaircomm Technologies hereby appoint and authorize Zhengdong Sha to the representative who has take responsibility for the general item in regard to the certificate application as below: Product Name: Bluetooth Handsfree Speaker Model No.: BTHF361 FCC ID: TQ6BTHF361 Brand Name: Flaircomm

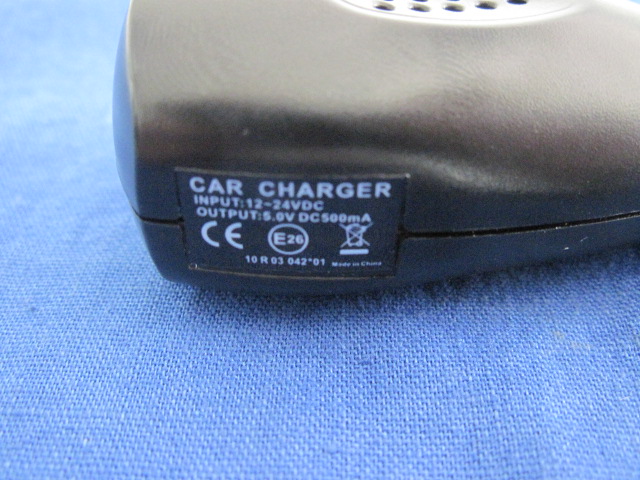

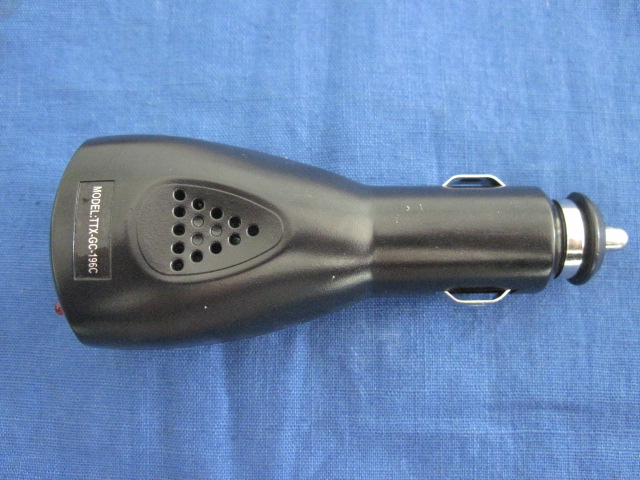

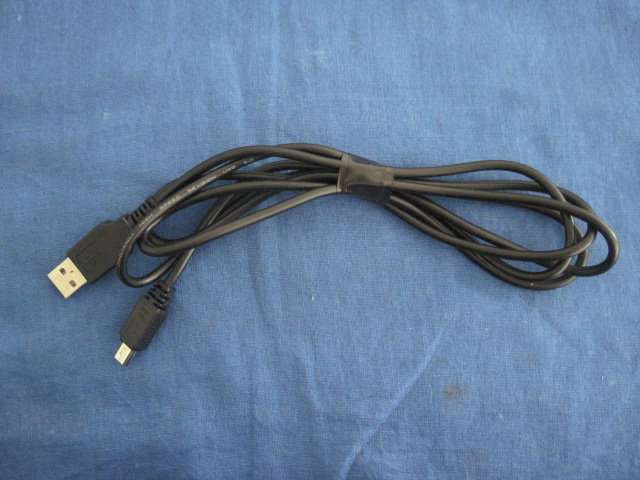

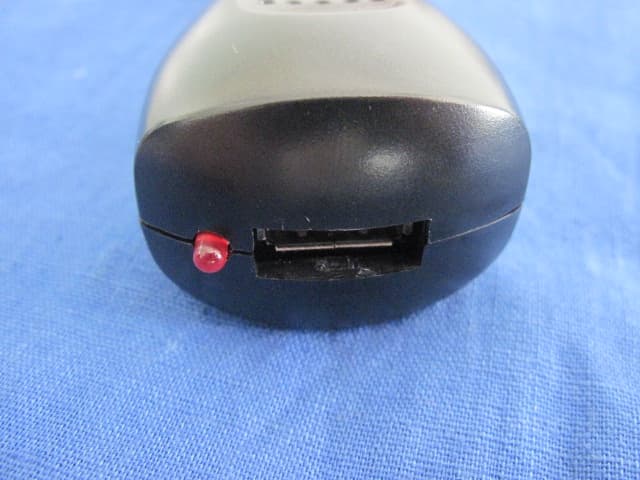

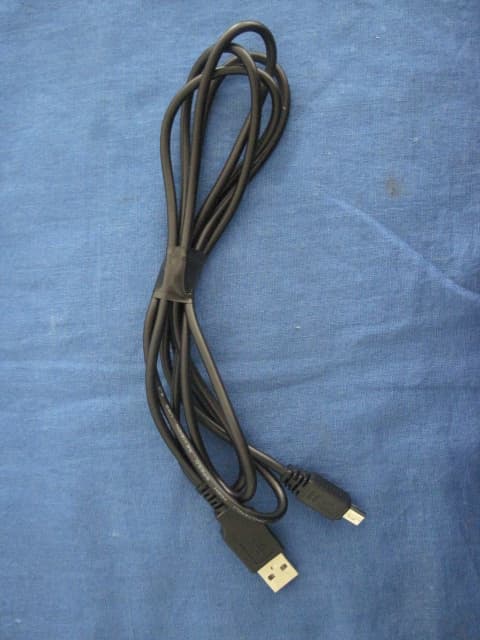

Bluetooth Handsfree Speaker (M/N: BTHF361) EUT Photograph-External Photographs ¾ EUT Photograph (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo

Visor Speakerphone with Headset (M/N: BTHF361) EUT Photograph-Internal Photographs ¾ EUT Photograph (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo (10) EUT Photo (11) EUT Photo (12) EUT Photo (13) EUT Photo (14) EUT Photo (15) EUT Photo

RF Exposure Statement 1. Standard Applicable According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner t hat ensure t hat the public is not e xposed to radi o frequency energy level in excess of the Commission’s guideline. Thi s i s a mobile device. 2. Measurement Result: This a portable device and the max peak output power is 5.83 dBm = (0.004 W). Lower that low threshold 60/f GHz mW = (24.19 mW), d <2.5 cm general population category. The SAR/MPE measurement is not necessary.

Test Report Industry Canada RSS-Gen Issue 2/RSS-210 Issue 7 FCC Part15 Subpart C Product Name : Bluetooth Handsfree Speaker Model No. : BTHF361 FCC ID : TQ6BTHF361 Applicant ： Flaircomm Technologies Inc Address ： No. 5, Bibo Rd, Keyuan Building, 4F, Zhangjiang Hi-Tech Park. Shanghai, 201203 P.R. China Date of Receipt ： Jun. 24, 2010 Test Date ： Jun. 24, 2010 ~ Jun. 30, 2010 Issued Date ： Jul. 01, 2010 Report No. ： 106S051R-RF-US-P06V01 Report Version ： V1.1 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, NVLAP or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 106S051R-RF-US-P06V01 Page: 2 of 85 Test Report Certification Issued Date : Jul. 01, 2010 Report No. : 106S051R-RF-US-P06V01 Product Name : Bluetooth Handsfree Speaker Applicant : Flaircomm Technologies Inc Address : No. 5, Bibo Rd, Keyuan Building, 4F, Zhangjiang Hi-Tech Park. Shanghai, 201203 P.R. China Manufacturer : Flaircomm Technologies Inc Address : No. 5, Bibo Rd, Keyuan Building, 4F, Zhangjiang Hi-Tech Park. Shanghai, 201203 P.R. China Model No. : BTHF361 FCC ID : TQ6BTHF361 EUT Voltage : DC 3.7V Trade Name : Flaircomm Applicable Standard : FCC CFR Title 47 Part 15 Subpart C: 2008 ANSI C63.4: 2003 RSS-Gen Issue 2/RSS-210 Issue 7 Test Result : Complied Performed Location : SuZhou EMC laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392, IC Lab Code: 4075B Documented By : ( Engineering ADM: Alice Ni ) Reviewed By : ( Engineering Supervisor: Marlin Chen ) Approved By : ( Engineering Manager: Dream Cao ) Report No： 106S051R-RF-US-P06V01 Page: 3 of 85 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site : http://www.quietek.com/tw/emc/accreditations/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No. 5-22, Ruei-Shu Valley, Ruei-Ping Tsuen, Lin-Kou Shiang, Taipei, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou (China) Testing Laboratory : No. 99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou,China. TEL : +86-512-6251-5088 / FAX : +86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI Report No： 106S051R-RF-US-P06V01 Page: 4 of 85 TABLE OF CONTENTS Description Page 1. General Information....................................................................................................7 1.1. EUT Description .........................................................................................................7 1.2. Mode of Operation.....................................................................................................9 1.3. Tested System Details..............................................................................................10 1.4. Configuration of Tested System ...............................................................................11 1.5. EUT Exercise Software ............................................................................................12 2. Technical Test...........................................................................................................13 2.1. Summary of Test Result ...........................................................................................13 2.2. Test Environment .....................................................................................................14 3. Conducted Emission................................................................................................15 3.1. Test Equipment ........................................................................................................15 3.2. Test Setup ................................................................................................................15 3.3. Limit..........................................................................................................................16 3.4. T est Procedure .........................................................................................................16 3.5. Uncertainty ...............................................................................................................16 3.6. Test Result ...............................................................................................................17 4. Radiated Emission...................................................................................................19 4.1. Test Equipment ........................................................................................................19 4.2. Test Setup ................................................................................................................20 4.3. Limit...............................................…

Text truncated - open the document above for the full version.

Bluetooth Handsfree Speaker (M/N: BTHF361) Test Photograph for Conducted Emission Description: Front View of Conducted Emission Test Setup Description: Back View of Conducted Emission Test Setup Description: Radiated Emission Test Setup for Below 1GHz Description: Radiated Emission Test Setup for 1~18GHz Description: Radiated Emission Test Setup for Above 18GHz
