TQ6BTMDC751Bluetooth Module

FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 Shanghai Flaircomm Technologies (October 10, 2010) To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: TQ6BTMDC751 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematic - OPERATIONAL DESCRIPTION The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely,

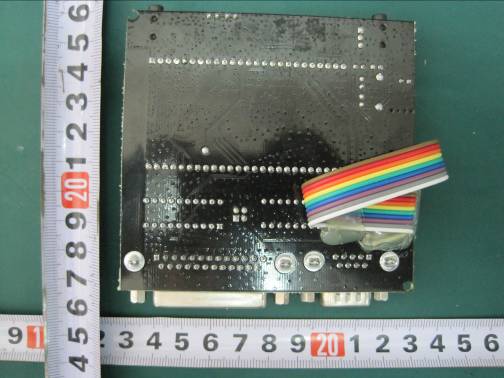

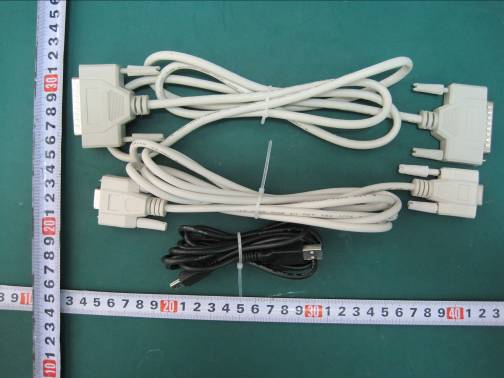

Title: RF Test Report for Bluetooth Module Model: BTMDC8751, BTMDC751 To: FCC 15.247:2010 Serial#: 1002913-FCC Issue Date: 27 September 2010 Page: 45 of 68 www.siemic.com.cn Annex B. EUT AND TEST SETUP PHOTOGRAPHS Annex B.i. Photograph: EUT Photo Front View of EUT Rear View of EUT Antenna Title: RF Test Report for Bluetooth Module Model: BTMDC8751, BTMDC751 To: FCC 15.247:2010 Serial#: 1002913-FCC Issue Date: 27 September 2010 Page: 46 of 68 www.siemic.com.cn Front View of System Mainboard Rear View of System Mainboard Title: RF Test Report for Bluetooth Module Model: BTMDC8751, BTMDC751 To: FCC 15.247:2010 Serial#: 1002913-FCC Issue Date: 27 September 2010 Page: 47 of 68 www.siemic.com.cn Front View of Communication Cable

FCC ID: TQ6BTMDC751

Label Location

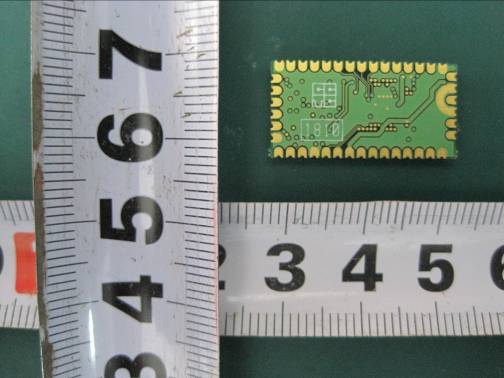

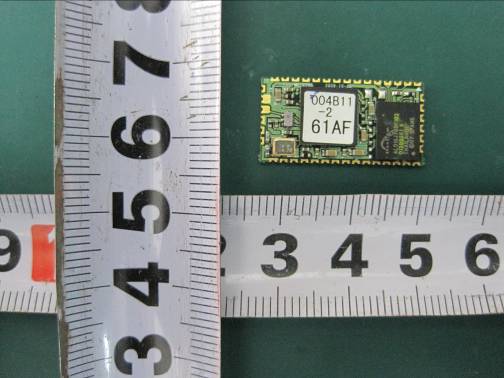

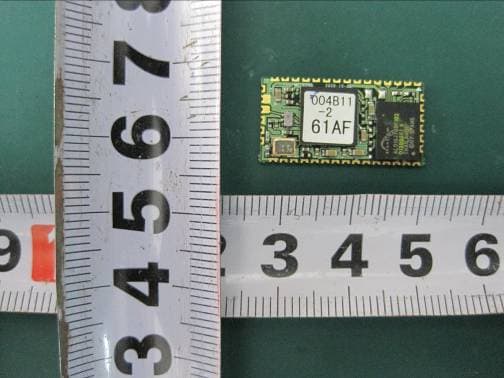

Title: RF Test Report for Bluetooth Module Model: BTMDC8751, BTMDC751 To: FCC 15.247:2010 Serial#: 1002913-FCC Issue Date: 27 September 2010 Page: 45 of 68 www.siemic.com.cn Annex B. EUT AND TEST SETUP PHOTOGRAPHS Annex B.i. Photograph: EUT Photo Front View of EUT Rear View of EUT

MPE Calculation For Shanghai Flaircomm Technologies; Model: BTMDC8751, BTMDC751 FCC ID: TQ6BTMDC751 RF Exposure Requirements: 47CFR§1.1307(b) RF Radiation Exposure Limits: 47CFR§1.1310 RF Radiation Exposure Guidelines: 47CFR§2.1091 EUT Frequency Band: 2402 – 2480MHz Limits for General Population/Uncontrolled Exposure in the band of: 1500 – 100000MHz Power Density Limit: 1.0mW/cm 2 ; Equation: S=PG/4PiR 2 Where, S=Power Density P=Power Input to Antenna G=Antenna Gain R=distance to the center of radiated antenna Low Channel (2402MHz): Power=3.33dBm, Antenna Gain=0.54dBi, Prediction distance 20cm S=(2.15*1.13)/(4*3.14*20 2 )=0.0005 mW/cm 2 Result The above result had shown that device complied with 1.0mW/cm 2 Power density requirement for distance of 20 cm. Completed By: Peter Cai Data: October 11, 2010

Shanghai Flaircomm Technologies Bluetooth Module Model: BTMDC8751, BTMDC751 27 September 2010 Report No.: 1002913-FCC (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Peter Cai Test Engineer Will yang Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Test Report for Bluetooth Module Model: BTMDC8751, BTMDC751 To: FCC 15.247:2010 Serial#: 1002913-FCC Issue Date: 27 September 2010 Page: 2 of 74 www.siemic.com.cn Laboratory Introduction ATION SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . Accreditations for Conformity Assessment Country/RegionAccreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFT EMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom Title: RF Test Report for Bluetooth Module Model: BTMDC8751, BTMDC751 To: FCC 15.247:2010 Serial#: 1002913-FCC Issue Date: 27 September 2010 Page: 3 of 74 www.siemic.com.cn This page has been left blank intentionally. Title: RF Test Report for Bluetooth Module Model: BTMDC8751, BTMDC751 To: FCC 15.247:2010 Serial#: 1002913-FCC Issue Date: 27 September 2010 Page: 4 of 74 www.siemic.com.cn CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION.............................................................................................................5 2 TECHNICAL DETAILS..................................................................................................................................................6 3 MODIFICATION............................................................................................................................................................7 4 TEST SUMMARY..........................................................................................................................................................8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS........................................................................................9 ANNEX A. TEST INSTRUMENT & METHOD........................................................................................................................47 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS...........................................................................................................51 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT...................................................................................................56 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST.......................................................................60 ANNEX E. SIEMIC ACCREDITATION CERTIFICATES..........................................................................................................61 Title: RF Test Report for Bluetooth Module Model: BTMDC8751, BTMDC751 To: FCC 15.247:2010 Serial#: 1002913-FCC Issue Date: 27 September 2010 Page: 5 of 74 www.siemic.com.cn 1 Executive Summary & EUT information The purpose of this test programme was to demonstrate compliance of the Shanghai Flaircomm Technologies, Bluetooth Module, and model: BTMDC8751, BTMDC751 against the current Stipulated Standards. The Bluetooth Module has demonstrated compliance with the FCC 15.247:2010. EUT Information EUT Description : Bluetooth Module Model No : BTMDC8751, BTMDC751 (Note) Serial No : N/A Input Power : 3.3v port: 2.7 – 3.6V DC Classification Per Stipulated Test Standard : Spread Spectrum System/Device Note: difference is only the PCB board material Title: RF Test Report for Bluetooth Module Model: BTMDC8751, BTMDC751 To: FCC 15.247:2010 Serial#: 1002913-FCC Issue Date: 27 September 2010 Page: 6 of 74 www.siemic.com.cn 2 TECHNICAL DETAILS Purpose Compliance testing of Bluetooth Module with stipulated standard Applicant / Client Shanghai Flaircomm Technologies 4F Keyuan Bldg, No.5 Bibo Rd., Zhangjiang High-Tech Park, Shanghai 201203 Manufacturer Shanghai Flaircomm Technologies 4F Keyuan Bldg, No.5 Bibo Rd., Zhangjiang High-Tech Park, Shanghai 201203 Laboratory performing the tests SIEMIC Nanjing (China) Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email:[email protected] Test report reference number 1002913-FCC Date EUT received 20 September 2010 Standard applied FCC 15.247:2010 Dates of test (from – to) 20 September to 27 September 2010 No of Units : #1 Equipment Category : Spread Spectrum System/Device Trade Name : Flaircomm Model : BTMDC8751, BTMDC751 RF Operating Frequency (ies) : 2402 - 2480MHz Number of Channels : 79 Modulation : GFSK; PI/4-DQPSK; 8DPSK FCC ID : TQ6BTMDC751 Port : N/A Title: RF Test Report for Bluetooth Module Model: BTMDC8751, BTMDC751 To: FCC 15.247:2010 Serial#: 1002913-FCC Issue Date: 27 September 2010 Page: 7 of 74 www.siemic.com.cn 3 MODIFICATION NONE Title: RF Te…

Text truncated - open the document above for the full version.

Title: RF Test Report for Bluetooth Module Model: BTMDC8751, BTMDC751 To: FCC 15.247:2010 Serial#: 1002913-FCC Issue Date: 27 September 2010 Page: 48 of 68 www.siemic.com.cn Annex B.ii. Photograph: Test Setup Photo Front View of Radiated Emission Test Setup below 1GHz Front View of Radiated Emission Test Setup above 1GHz Title: RF Test Report for Bluetooth Module Model: BTMDC8751, BTMDC751 To: FCC 15.247:2010 Serial#: 1002913-FCC Issue Date: 27 September 2010 Page: 49 of 68 www.siemic.com.cn Front View of Conducted Emission Test Setup Side View of Conducted Emission Test Setup
