TRI8209ARC Car

1:10 BMW Z4 Coupe M (Model: 8209) Nissan fairlady Super GT (Model: 8210) Mini Cooper S (Model: 8211) User Manual Thank you for purchasing this remote control toy car. In order to gain a thorough understanding of the product and a safe, trouble-free operation, please read the following instructions carefully before use. I. Specifications and Features: This toy car has forward and reverse functions as well as right and left steering and stop functions. II. Installing the batteries and antenna and charging the batteries: 1. Gun style remote control unit: Remove the battery compartment cover, insert one 9V 6F22, battery into the battery compartment. Ensure that the battery is inserted properly by matching the + and - symbols on the inside of the battery compartment. Close the compartment cover. Turn the power switch to “On”, the remote control unit is now powered on and a red power indicator light comes on. 2. Insert the antenna into the small hole on the top of the remote control unit; screw it in tightly by turning it in a clockwise direction. You can unscrew and remove it by turning it in an anti- clockwise direction. 3. Remote control car: Remove the battery compartment cover on the back of the car. Connect the plug of the battery cable to the power port of the car (matching the plug to the port). Insert the battery pack into the battery compartment of the car and close the compartment cover. Turn the power switch to “On” to power the car on. The remote control car should remain motionless. 4. Charging the battery: (parental supervision is recommended) Insert the plug of the battery cable into the port of the battery charger (matching the plug to the port). Then connect the plug of the battery charger to AC power outlet. Charging should start. Charging takes about 4~6 hours to complete (it is not advisable to charge the battery for an excessive length of time). Before using the charged battery after charging, first unplug the battery charger from the power outlet and then press lightly on the rear part of the battery charger to release it from the ports. 5 Do not mix old and new batteries. 6 Do not mix alkaline,standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries. III. Operation 1. Turn the power switch of the remote control car and the remote control unit to the “On” position and then place the car on the ground. 2. Operate the gun style remote control unit. When the trigger is pulled back half way, the remote control car will move forward at a low speed. When the trigger is pulled back fully, the remote control car will move forward at a high speed. When the trigger is pushed forward, the remote control car will reverse. When the direction steering wheel of the remote control unit is turned clockwise, the remote control car will steer to the right and when it is turned anti-clockwise, the car will steer to the left (the correct method of operation is to hold the remote control unit with the left hand and use the fingers of the left hand to operate the trigger; use the right hand to operate the steering wheel). 3. If the remote control car fails to run in a straight line, adjust the direction adjustment rod on the back of the car by moving it slightly to the right/left until the straightest position is achieved. 4. When the antenna is pulled out to a certain length, the remote control operating distance of the remote control car will be increased accordingly. 5. When the remote control car is not in use, switch the power off on both the remote control unit and the remote control car. IV Points to Note 1. In order to achieve the best performance of the remote control car, charge the battery fully before using it. 2. Do not operate the remote control car in crowded areas or on the street to avoid any possible danger. When using the car outdoors do so on safe ground under adult supervision. 3. If you experience any interference in the radio wave signals in the location where you are using the car, the remote control car may fail to function and lose control. In such a case, choose another location. 4. Do not use the car on waterlogged or sandy ground to avoid any damage to the electronic circuit. 5. When using the remote control car indoors, refrain from operating it immediately if there is a thunderstorm. 6. Do not bend or break the antenna because the sharp edges of a broken antenna may cause harm and a broken antenna will also lose its function. 7. When the wheels of the car are in motion, do not touch them with your hands and avoid getting your hair or clothes tangled in the wheels. 8. Do not steer the remote control car at people; do not throw or crash the car recklessly. 9. When the power of the battery of the remote control car or the remote control unit is running low, the speed of the remote control car will slow down noticeably or it may lose control. In such a case, change the battery. 10. If the remote control car is not to be used for a long period of time, remove the battery to avoid it being damaged or any leakage of fluid from the battery. It is also important not to short circuit the battery to avoid any possible danger. When removing the battery, do not pull it out forcibly. 11. The battery will become hot immediately after use, it should only be recharged after it has cooled down. The 9V battery in the remote control cannot be recharged. 12. Do not throw the remote control car and the batteries into water or fire. Do not disassemble the remote control car or carry out any dismantling of or modification to the circuit board. 13. Store the remote control car in a place that is away from fire, high temperatures or high humidity. 14. Dispose of the packaging material properly to avoid any pollution to the environment. Warning: the toy is composed of small parts which are not suitable for children under the age of three. The recommended age is above 3 years (36 months) of age. Warning: Changes or modifications to this unit not expressly approved by the party resp…

Text truncated - open the document above for the full version.

External Photos

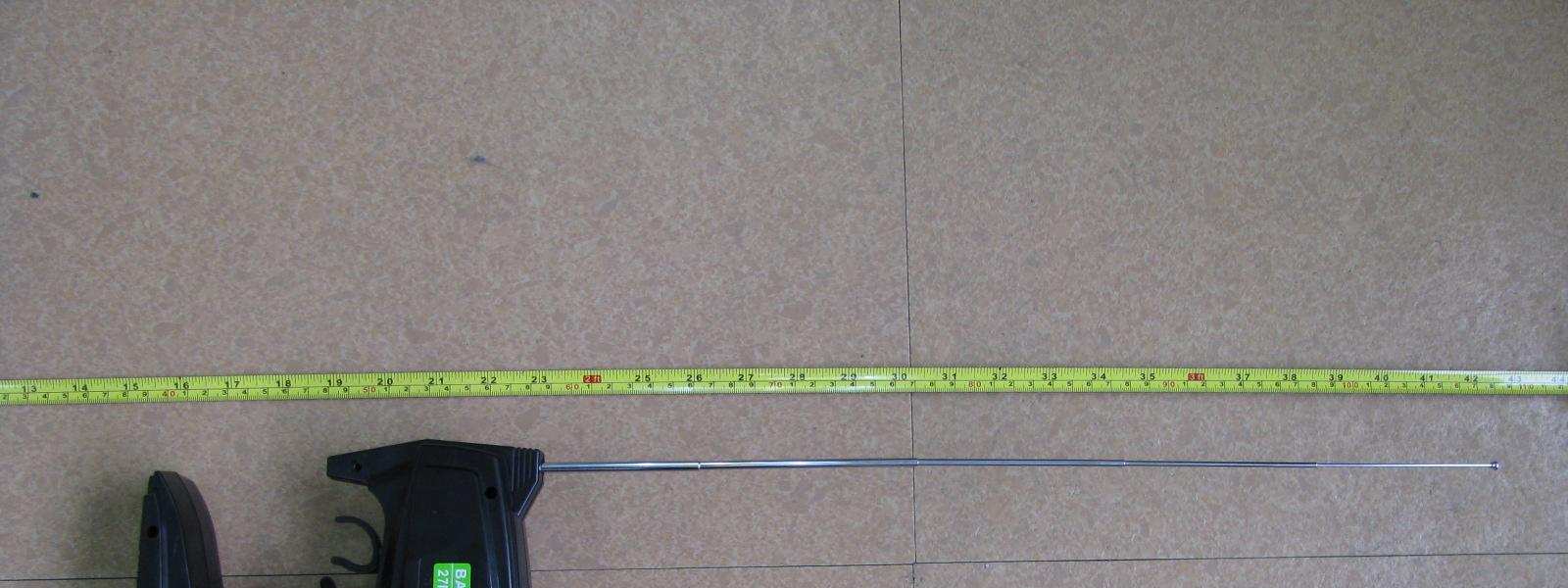

TRI8209A TRI8209A 1:10 BMW Z4 Coupe M 8209 27MHz TX

Internal Photos

FCC ID: TRI8209A Technical Description : The brief circuit description is listed as follows : - X1, Q2 and associated circuit act as 27.145 MHz Oscillator. - Q1 and associated circuit act as Modulator and RF amplifier. - IC1 acts as Encoder. - K2 ~ K5 act as Control Keys. Antenna Used : An extendable antenna has been used.

MEIJIAXIN TOYS CO., LTD. DRAWNBY Li Zong R eviewe d by Date 1:10 BMW Z4 Coupe M 8209 27.145MHz TRANSMITTER 8209

FCC ID :TRI8209A January 26 2008 MEIJIAXIN Toys CO, LTD Rm. 1021, 10/F., Beverley Commercial Centre 87-105 Chatham Road, Tsim Sha Tsui, Kowloon, Hong Kong Dear Zhaohan Cai, Enclosed you will find your file copy of a Part 15 Certification (FCC ID: TRI8209A). For your reference, review normally take 1 week. Approval will then be granted when no query is sorted. Please contact me if you have any questions regarding the enclosed material. Sincerely, Shawn Xing Assistant Manager Enclosure • The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Shenzhen Ltd. Guangzhou Branch • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Shenzhen Ltd. Guangzhou Branch 1~8th floor, Block E2, 11 Cai Pin Road, Science city, Guangzhou Economic Development Zone, Guangzhou, P. R. China Tel: (8620) 8213 9688 Fax: (8620) 3205 7538 FCC ID : TRI8209A MEIJIAXIN Toys CO, LTD Application For Certification (FCC ID: TRI8209A) Transmitter Sample Description : BMW Z4 Coupe M Model : 8209 Additional Model : 8210, 8211, 8202, 8203, 8204, 8205, 8207, 8208, 8223 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [20-9-2007] GZ07120595-1 Billy Li January 26 2008 INTERTEK TESTING SERVICES FCC ID: TRI8209A i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: TRI8209A ii MEASUREMENT/TECHNICAL REPORT MEIJIAXIN Toys CO, LTD - MODEL: 8209 FCC ID: TRI8209A January 26 2008 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [09-20-07 Edition] provision. Report prepared by: Shawn Xing Intertek Testing Services Shenzhen Ltd. Guangzhou Branch 1~8th floor, Block E2, 11 Cai Pin Road, Sciencecity, Guangzhou Economic Development Zone, Guangzhou, P. R.China. Phone: (8620) 8213 9688 Fax: (8620) 3205 7538 INTERTEK TESTING SERVICES FCC ID: TRI8209A iii Table of Contents 1.0 General Description................................................................................................ 2 1.1 Product Description ............................................................................................. 2 1.2 Related Submittal(s) Grants................................................................................. 2 1.3 Test Methodology ................................................................................................ 3 1.4 Test Facility ......................................................................................................... 3 2.0 System Test Configuration..................................................................................... 5 2.1 Justification.......................................................................................................... 5 2.2 EUT Exercising Software ..................................................................................... 5 2.3 Special Accessories ............................................................................................ 5 2.4 Equipment Modification ....................................................................................... 6 2.5 Measurement Uncertainty.................................................................................... 6 2.6 Support Equipment List and Descripition ............................................................ 6 3.0 Emission Results .................................................................................................... 8 3.1 Field Strength Calculation .................................................................................... 9 3.1 Field Strength Calculation (cont’d) ..................................................................... 10 3.2 Radiated Emission Configuration Photograph .................................................... 11 3.3 Radiated Emission Data .................................................................................... 12 4.0 Equipment Photographs....................................................................................... 15 5.0 Product Labelling.................................................................................................. 17 6.0 Technical Specifications....................................................................................... 19 7.0 Instruction Manual................................................................................................ 21 8.0 Miscellaneous Information .................................................................................. 23 8.1 Measured Bandwidth......................................................................................... 24 8.2 Discussion of Pulse Desensitization................................................................... 25 8.3 Calculation of Average Factor............................................................................ 26 8.4 Emission Test Procedures ...........................................................…

Text truncated - open the document above for the full version.

Ref 92 dBμVAtt 20 dB * A TDF PA PS 3DB Center 27.145 MHzSpan 500 kHz50 kHz/ * * RBW 10 kHz VBW 30 kHz SWT 300 ms * AC 1 PK MAXH 0 10 20 30 40 50 60 70 80 90 1 Marker 1 [T1 ] 77.75 dBμV 27.145000000 MHz 2 Marker 2 [T1 ] 40.76 dBμV 26.960000000 MHz 3 Marker 3 [T1 ] 44.61 dBμV 27.280000000 MHz Date: 18.JAN.2008 11:28:30

A TDF PA PS * RBW 3 MHz VBW 3 MHz AC Att 20 dB * Ref 92 dBμV Center 27.145 MHz10 ms/ SWT 100 ms 3DB 1 AP VIEW 0 10 20 30 40 50 60 70 80 90 1 Marker 1 [T1 ] 78.16 dBμV 39.800000 ms 1 Delta 1 [T1 ] 0.39 dB 24.400000 ms Date: 18.JAN.2008 11:23:04 A TDF PA PS * RBW 3 MHz VBW 3 MHz AC Att 20 dB * Ref 92 dBμV Center 27.145 MHz4 ms/ SWT 40 ms * 3DB 1 AP VIEW 0 10 20 30 40 50 60 70 80 90 1 Marker 1 [T1 ] 78.56 dBμV 4.520000 ms 1 Delta 1 [T1 ] 0.04 dB 24.360000 ms Date: 18.JAN.2008 11:24:27 A TDF PA PS * RBW 3 MHz VBW 3 MHz AC Att 20 dB * Ref 92 dBμV Center 27.145 MHz4 ms/ SWT 40 ms * 3DB 1 AP VIEW 0 10 20 30 40 50 60 70 80 90 1 Marker 1 [T1 ] 78.56 dBμV 4.520000 ms 1 Delta 1 [T1 ] -0.10 dB 680.000000 μs Date: 18.JAN.2008 11:24:48 A TDF PA PS * RBW 3 MHz VBW 3 MHz AC Att 20 dB * Ref 92 dBμV Center 27.145 MHz4 ms/ SWT 40 ms * 3DB 1 AP VIEW 0 10 20 30 40 50 60 70 80 90 1 Marker 1 [T1 ] 77.83 dBμV 20.760000 ms 1 Delta 1 [T1 ] 0.85 dB 2.040000 ms Date: 18.JAN.2008 11:25:47
