TTI-SL24G-US-02SINELINK 24G Point-to-Point Radio (HP5-120100)

150Mbps High-speed Radio Link Operation manual PLEASE READ THIS MANUAL BEFORE USING THE REPEATER Caution: Changes or modifications not expressly approved by Hitachi Kokusai Electric Inc. could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Using this product close to radio or television receivers may cause receive failures. Use the receiver correctly in accordance with the user's manual. z Use the receiver correctly in accordance with the user's manual. z The specifications for this product are for use in America. The product cannot be used in other countries. z Please be advised that Hitachi Kokusai Electric is in no way responsible for losses caused by lost opportunities such as lost communication, or pure economic losses such as the loss of data registered in the product, as a result of external causes such as product breakage, malfunction, problems, or power outages. Please keep a separate record of the data registered in this product. z Never disassemble or modify this product. z Use this product as a general wireless communication device. Please be advised that Hitachi Kokusai Electric is in no way responsible for damage that occurs as a result of using this product for applications other than a general wireless communication device. ‚ Do not use this product for applications that require a high level of safety, such as medical equipment or systems that directly or indirectly affect human life. ‚ If you do use this product in applications such as devices and computer systems that require a higher degree of reliability than a general wireless communication device, ensure that you have thoroughly implemented adequate measures regarding failures and safety design for the system that you are using. z References made in this manual to the products of other companies are intended to be references only. They are not intended to enforce use of the mentioned products. z The contents of this manual were created with the utmost of care. However, if you are unsure about the content, or if you find errors or omissions, please contact Hitachi Kokusai Electric or the representative that sold you the product. z The product manual, hardware, software, and external appearance are subject to change without notice for the purpose of improvements. As a result, they may differ slightly from the product that you have purchased. z Liability for damages, based on a default on a debt or illegal activity attributed to this product, shall be limited to the purchase price of this product or equivalent, unless Hitachi Kokusai Electric is found to have acted in bad faith or to have been grossly negligent. z The copyright for this manual belongs to Hitachi Kokusai Electric. Reprinting, duplicating, or modifying all or part of this manual without permission from Hitachi Kokusai Electric is not permitted. z SINELINK is a trademark of Hitachi Kokusai Electric. Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and other countries. Java Script is a trademark or registered trademark of Oracle Corporation and its subsidiaries and partner companies in the USA and other countries. All company names and product names mentioned in this manual are trademarks or registered trademarks of their respective companies. The ™, ®, and © symbols are not used in this manual. 1 For safe and correct operation Before using the repeater, read this manual thoroughly to ensure proper operation. After reading the manual, store it carefully in an easily accessible location so that it can be referenced at any time. About the Symbols This manual uses a range of symbols intended to ensure the safe and correct use of this product, and to prevent financial losses and injury to you and others. The symbols and their meanings are explained below. It is important to understand these symbols before reading the rest of this manual. Warning This symbol highlights instructions that, if ignored or handled incorrectly, may result in death or serious injury. Caution This symbol highlights instructions that, if ignored or handled incorrectly, may result in injury or physical damage. Examples of Symbols U symbol indicates information that is a warning (including dangers and warnings). Specific warning information is provided within the symbol. The symbol on the left is an electric shock warning. symbol indicates prohibited actions. Specific warning information is provided within the symbol or near the symbol. The symbol on the left indicates that disassembly is prohibited. symbol indicates instructions that require an action. Specific instruction information is provided within the symbol. The symbol on the left indicates that you must connect a grounding wire. 2 Warning Strict compliance Please comply with the following requirements regarding PoE power supply equipment. z Always use IEEE802.3af-compliant PoE (Power over Ethernet) power supply equipment (sold separately). Using other power supply equipment may cause fire, electric shock, or equipment failure. z Connect PoE power supply equipment to the power source specified in the user's manual for that equipment. Connecting to other power sources may cause fire, electric shock, or equipment failure. z Do not exceed wiring device standards. Excess current will generate heat and may cause fire or equipment f…

Text truncated - open the document above for the full version.

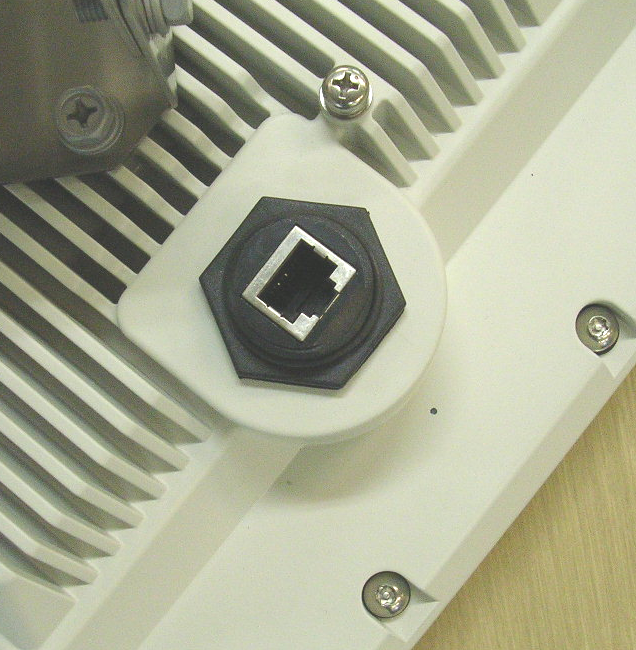

SINELINK24G (1/4) External photos June 29, 2011 Hitachi Kokusai Electric Inc. Product Name : SINELINK 24G Model No :HP5-120100 1. External photo 1 Photo.1 Front view SINELINK 24G Direction Adjustment Scope SINELINK24G (2/4) 2. External photo 2 Photo.2 Rear view Mount bracket Direction Adjustment Scope Zoom LAN connecter GND (FG) Terminal SINELINK24G (3/4) 3. External photo 3 Photo.3 Side view SINELINK24G (4/4) 4. External figure 1 (mm) (mm)

SINELINK24G (1/2) Product Markings Product Name : SINELINK 24G Model No :HP5-120100 1. FCC ID Label Location FCCID Label (mm) (mm) FCC ID Label Location SINELINK24G (2/2) 2. Label (1) FCC ID Number (2) IC Number (3) ETL Control Nubmer (1) (2) (3)

SINELINK24G (1/4) Internal photos August 28, 2011 Hitachi Kokusai Electric Inc. Product Name : SINELINK 24G Model No :HP5-120100 1. Internal photos explanation 1 Planer Antenna [ ANT Unit ] Fig.1 SINELINK24G (2/4) 2. Internal photos explanation 2 CONT Unit PD Unit Fig.2 Rear Case SINELINK24G (3/4) 3. Internal photo explanation 3 ANT Unit Fig.3 RF Unit SINELINK24G (4/4) 4. Internal photo explanation 4 Radome RF Unit ANT Unit Rear Case PD Unit CONT Unit Fig.4

This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Emissions Report for Hitachi Kokusai Electric America, Ltd. on the HP5-120100 Page 1 of 75 EMISSIONS TEST REPORT Report Number: 100442884BOX-005 Project Number: G100442884 Report Issue Date: 11/30/2011 Product Designation: SINELINK 24G Point-to-Point Radio, Model: HP5-120100 Standards: CFR47 “Telecommunications” FCC Part 15 Subpart C “Intentional Radiators” 15.249 CFR47 “Telecommunications” FCC Part 15 Subpart B “Unintentional Radiators” IC RSS-210 Issue 8 December 2010 “Licence-exempt Radio Apparatus (All Frequency Bands): Category I Equipment” Annex 12 “Fixed Point-to-Point Systems in the Band 24.05-24.25 GHz” IC RSS-Gen Issue 3 December 2010 “General Requirements and Information for the Certification of Radio Apparatus” Tested by: Tested at the request of: Intertek Testing Services NA, Inc. 70 Codman Hill Road Boxborough, MA 01719 Hitachi Kokusai Electric America, Ltd. 150 Crossways Park Drive Woodbury, NY 11797 Applicant: Hitachi Kokusai Electric Inc. 4-14-1 Sotokanda, Chiyoda-ku, Tokyo 101-8980, Japan Report prepared by Reviewer Report reviewed by Nicholas Abbondante/Staff Engineer Kouma Sinn/Senior Project Engineer Intertek Report Number: 100442884BOX-005 Issued: 11/30/2011 Emissions Report for Hitachi Kokusai Electric America, Ltd. on the HP5-120100 Page 2 of 75 1 Introduction and Conclusion The tests indicated in section 2.0 were performed on the product constructed as described in section 3.0. The remaining test sections are the verbatim text from the actual data sheets used during the investigation. These test sections include the test name, the specified test Method, a list of the actual Test Equipment Used, documentation Photos, Results and raw Data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested complies with the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. 2 Test Summary Section Test full name Result 3 Client Information 4 Description of Equipment Under Test 5 System Setup and Method 6 Fundamental Field Strength (FCC Part 15 Subpart C 15.249(b)(1); IC RSS-210 Annex 12(a)) Pass 7 Occupied Bandwidth (FCC Part 15 Subpart C 15.215 and IC RSS- Gen Section 4.6) Pass 8 Transmitter Radiated Emissions, 30 MHz – 40 GHz (FCC Part 15 Subpart C 15.249(d), IC RSS-210 Annex 12(d)) Pass 9 Transmitter Radiated Emissions, 40-100 GHz (FCC Part 15 Subpart C 15.249(d), IC RSS-210 Annex 12(d)) Pass 10 Receiver Radiated Emissions (FCC Part 15 Subpart B 15.109, IC RSS-Gen Section 6.0) Pass 11 Frequency Stability (FCC Part 15 Subpart C 15.249(b)(2), IC RSS- 210 Annex 12(b)) Pass 12 AC Mains Conducted Emissions (FCC Part 15 Subpart C 15.207, IC RSS-Gen Section 7.2.4) Pass 13 Revision History Intertek Report Number: 100442884BOX-005 Issued: 11/30/2011 Emissions Report for Hitachi Kokusai Electric America, Ltd. on the HP5-120100 Page 3 of 75 3 Client Information This EUT was tested at the request of: Company: Hitachi Kokusai Electric America, Ltd. 150 Crossways Park Drive Woodbury, NY 11797 Contact: Mr. Yoshiya Hashimoto Telephone: (516) 682-4428 Fax: (516) 496-3718 Email: [email protected] This testing was performed on the behalf of the applicant: Company: Hitachi Kokusai Electric Inc. 4-14-1 Sotokanda, Chiyoda-ku, Tokyo 101-8980, Japan Contact: Mr. Shigeto Takada Telephone: +81-3-6734-9502 Fax: +81-3-5209-5942 Email: [email protected] 4 Description of Equipment Under Test Equipment Under Test Description Manufacturer Model Number Serial Number SINELINK 24GHz Point- to-Point Radio Hitachi Kokusai Electric America, Ltd. HP5-120100 CS001 SINELINK 24GHz Point- to-Point Radio Hitachi Kokusai Electric America, Ltd. HP5-120100 CS006 Receive Date: 07/08/2011 Received Condition: Good Type: Production Description of Equipment Under Test (provided by client) The SINELINK 24G is a 24 GHz point-to-point radio with an integral Patch antenna used to transfer data. It utilizes QPSK, QAM16, and QAM64 modulation. It is powered over the Ethernet from a Power-over- Ethernet (PoE) device. Equipment Under Test Power Configuration Rated Voltage Rated Current Rated Frequency Number of Phases 3.3V PoE Not Labeled DC None Operating modes of the EUT: No. Descriptions of EUT Exercising using SL24GTT Test Tool 1 During transmit mode testing, the transmitter was operated with a modulated carrier. During pretesting, QPSK modulation was determined to be the worst-case. The EUT was powered from the PoE support equipment, which was powered from 120V/60Hz 2 During receive mode testing, the transmitter was placed in receive mode. The EUT was powered from the PoE support equipment, which was powered from 120V/60Hz 3 For frequency stability testing, a CW carrier was utilized. The EUT was powered from the PoE support equipment, which was powered from 120V/60Hz. Voltage variations were performed on the AC input to the PoE device. Intertek Report Number: 100442884BOX-005 Issued: 11/30/2011 Emissions Report for Hi…

Text truncated - open the document above for the full version.

SINELINK24G 1 Test Report August 28, 2011 Hitachi Kokusai Electric Inc. Pre-shipment test result Product Name : SINELINK 24G Model No :HP5-120100 1. Radiated emission Frequency Field Strength Limits (dBuV/m) Serial No.: CS004 (dBuV/m) Serial No. CS005 (dBuV/m) Serial No.: CS006 (dBuV/m) 30-88MHz 40 Less than 40 Less than 40 Less than 40 88-216MHz 43 Less than 40 Less than 40 Less than 40 216-960MHz 46 Less than 46 Less than 46 Less than 46 960-1000MHz 53 Less than 53 Less than 53 Less than 53 Please refer to Appendix 1 and Appendix 2. 2. Field strength of an operational frequency. Serial No. CH1: 24.08GHz <128dBuV/m CH4: 24.14GHz <128dBuV/m CH8: 24.22GHz <128dBuV/m CS004 127.5127.6127.1 CS005 127.6127.5127.3 CS006 127.1127.4127.1 The average field strength is reduced by 3 dB from the measurement value of the continuous CW mode. SINELINK24G 2 3. Frequency tolerance 3-1. Variation depending on ambient temperature Serial No. -20 degrees <10ppm +25 degrees <10ppm +50 degrees <10ppm CS004 Less than 1.5ppmLess than 1.0ppmLess than 1.0ppm CS005 Less than 1.0ppmLess than 1.0ppmLess than 1.0ppm CS006 Less than 1.0ppmLess than 1.0ppmLess than 1.0ppm 3-2. Variation depending on supplied voltage Serial No. Supply voltage DC36V <10ppm Supply voltage DC48V <10ppm Supply voltage DC57V <10ppm CS004 Less than 1.0ppmLess than 1.0ppmLess than 1.0ppm CS005 Less than 1.0ppmLess than 1.0ppmLess than 1.0ppm CS006 Less than 1.0ppmLess than 1.0ppmLess than 1.0ppm SINELINK24G meets IEEE802.3af class 0. 4. Antenna Serial No. Gain >33dBi Beam widths <3.5degrees CS004 34.52.6 CS005 34.42.6 CS006 34.42.6 Please refer to Appendix 3. SINELINK24G 3 Appendix 1-1 S/N: CS004 株式会社日立国際電気27 August,2011 17:11<<>> 限度値 : FCC Part.15 Class B 3mモデル : シリアル番号 : オペレータ : AC電源 : 温度、湿度 : 備考１: 備考２: 備考３: 備考４: 30.001000.0050.00100.00500.00 0 100 10 20 30 40 50 60 70 80 90 周波数 レベル [MHz] [dB(μV/m)] <FCC B> 限度値(QP) <New Data> 水平偏波 妨害波候補(H) 株式会社日立国際電気27 August,2011 17:11<<>> 限度値 : FCC Part.15 Class B 3mモデル : シリアル番号 : オペレータ : AC電源 : 温度、湿度 : 備考１: 備考２: 備考３: 備考４: 30.001000.0050.00100.00500.00 0 100 10 20 30 40 50 60 70 80 90 周波数 レベル [MHz] [dB(μV/m)] <FCC B> 限度値(QP) <New Data> 垂直偏波 妨害波候補(V) Horizontal Limit Pol : Horizontal Frequency Field Strength Ve rti c a l Limit Pol : Vertical Frequency Field Strength SINELINK24G 4 S/N: CS004 株式会社日立国際電気27 August,2011 14:55<<>> 限度値 : FCC Class B GHz 3mモデル : シリアル番号 : オペレータ : AC電源 : 温度、湿度 : 備考１: 備考２: 備考３: 備考４: 1000.006000.002000.003000.00 4000.00 5000.00 0 100 10 20 30 40 50 60 70 80 90 周波数 レベル [MHz] [dB(μV/m)] <FCC B GHz 3m> 限度値(AV) 限度値(PK) <New Data> 水平偏波 妨害波候補(H) 株式会社日立国際電気27 August,2011 14:55<<>> 限度値 : FCC Class B GHz 3mモデル : シリアル番号 : オペレータ : AC電源 : 温度、湿度 : 備考１: 備考２: 備考３: 備考４: 1000.006000.002000.003000.00 4000.00 5000.00 0 100 10 20 30 40 50 60 70 80 90 周波数 レベル [MHz] [dB(μV/m)] <FCC B GHz 3m> 限度値(AV) 限度値(PK) <New Data> 垂直偏波 妨害波候補(V) Horizontal L i m i t ( AV) Pol : Horizontal Frequency Limit (PK) Field Strength Ve rti ca l L i m i t ( AV) Pol : Vertical Frequency Limit (PK) Field Strength SINELINK24G 5 Appendix 1-2 S/N: CS005 株式会社日立国際電気27 August,2011 17:54<<>> 限度値 : FCC Part.15 Class B 3mモデル : シリアル番号 : オペレータ : AC電源 : 温度、湿度 : 備考１: 備考２: 備考３: 備考４: 30.001000.0050.00100.00500.00 0 100 10 20 30 40 50 60 70 80 90 周波数 レベル [MHz] [dB(μV/m)] <FCC B> 限度値(QP) <New Data> 水平偏波 妨害波候補(H) 株式会社日立国際電気27 August,2011 17:54<<>> 限度値 : FCC Part.15 Class B 3mモデル : シリアル番号 : オペレータ : AC電源 : 温度、湿度 : 備考１: 備考２: 備考３: 備考４: 30.001000.0050.00100.00500.00 0 100 10 20 30 40 50 60 70 80 90 周波数 レベル [MHz] [dB(μV/m)] <FCC B> 限度値(QP) <New Data> 垂直偏波 妨害波候補(V) Horizontal Limit Pol : Horizontal Frequency Field Strength Ve rti c a l Limit Pol : Vertical Frequency Field Strength SINELINK24G 6 S/N: CS005 株式会社日立国際電気27 August,2011 13:23<<>> 限度値 : FCC Class B GHz 3mモデル : シリアル番号 : オペレータ : AC電源 : 温度、湿度 : 備考１: 備考２: 備考３: 備考４: 1000.006000.002000.003000.00 4000.00 5000.00 0 100 10 20 30 40 50 60 70 80 90 周波数 レベル [MHz] [dB(μV/m)] <FCC B GHz 3m> 限度値(AV) 限度値(PK) <New Data> 水平偏波 妨害波候補(H) 株式会社日立国際電気27 August,2011 13:23<<>> 限度値 : FCC Class B GHz 3mモデル : シリアル番号 : オペレータ : AC電源 : 温度、湿度 : 備考１: 備考２: 備考３: 備考４: 1000.006000.002000.003000.00 4000.00 5000.00 0 100 10 20 30 40 50 60 70 80 90 周波数 レベル [MHz] [dB(μV/m)] <FCC B GHz 3m> 限度値(AV) 限度値(PK) <New Data> 垂直偏波 妨害波候補(V) Horizontal L i m i t ( AV) Pol : Horizontal Frequency Limit (PK) Field Strength Ve rti ca l L i m i t ( AV) Pol : Vertical Frequency Limit (PK) Field Strength SINELINK24G 7 Appendix 1-3 S/N: CS006 株式会社日立国際電気27 August,2011 17:31<<>> 限度値 : FCC Part.15 Class B 3mモデル : シリアル番号 : オペレータ : AC電源 : 温度、湿度 : 備考１: 備考２: 備考３: 備考４: 30.001000.0050.00100.00500.00 0 100 10 20 30 40 50 60 70 80 90 周波数 レベル [MHz] [dB(μV/m)] <FCC B> 限度値(QP) <New Data> 水平偏波 妨害波候補(H) 株式会社日立国際電気27 August,2011 17:31<<>> 限度値 : FCC Part.15 Class B 3mモデル : シリアル番号 : オペレータ : AC電源 : 温度、湿度 : 備考１: 備考２: 備考３: 備考４: 30.001000.0050.00100.00500.00 0 100 10 20 30 40 50 60 70 80 90 周波数 レベル [MHz] [dB(μV/m)] <FCC B> 限度値(QP) <New Data> 垂直偏波 妨害波候補(V) Horizontal Limit Pol : Horizontal Frequency Field Strength Ve rti c a l Limit Pol : Vertical Frequency Field Strength SINELINK24G 8 S/N: CS006 株式会社日立国際電気27 August,2011 14:29<<>> 限度値 : FCC Class B GHz 3mモデル : シリアル番号 : オペレータ : AC電源 : 温度、湿度 : 備考１: 備考２: 備考３: 備考４: 1000.006000.002000.003000.00 4000.00 5000.00 0 100 10 20 30 40 50 60 70 80 90 周波数 レベル [MHz] [dB(μV/m)] <FCC B GHz 3m> 限度値(AV) 限度値(PK) <New Data> 水平偏波 妨害波候補(H) 株式会社日立国際電気27 August,2011 14:29<<>> 限度値 : FCC Class B GHz 3mモデル : シリアル番号 : オペレータ : AC電源 : 温度、湿度 : 備考１: 備考２: 備考３: 備考４: 1000.006000.002000.003000.00 4000.00 5000.00 0 100 10 20 30 40 50 60 70 80 90 周波数 レベル [MHz] [dB(μV/m)] <FCC B GHz 3m> 限度値(AV) 限度値(PK) <New Data> 垂直偏波 妨害波候補(V) Horizontal L i m i t ( AV) Pol : Horizontal Frequency Limit (PK) Field Strength Ve rti ca l L i m i t ( AV) Pol : Vertical Frequency Limit (PK) Field Strength SINELINK24G 9 Appendix 2 We couldn't detect radiated emission (1-50GHz) by a measuring antenna despite making the measuring antenna close to EUT. For your reference, the followings are the value…

Text truncated - open the document above for the full version.

Intertek Report Number: 100442884BOX-005 Issued: 11/30/2011 Emissions Report for Hitachi Kokusai Electric America, Ltd. on the HP5-120100 Page 8 of 75 6.4 Setup Photographs: Intertek Report Number: 100442884BOX-005 Issued: 11/30/2011 Emissions Report for Hitachi Kokusai Electric America, Ltd. on the HP5-120100 Page 9 of 75 Intertek Report Number: 100442884BOX-005 Issued: 11/30/2011 Emissions Report for Hitachi Kokusai Electric America, Ltd. on the HP5-120100 Page 24 of 75 7.4 Setup Photographs: Intertek Report Number: 100442884BOX-005 Issued: 11/30/2011 Emissions Report for Hitachi Kokusai Electric America, Ltd. on the HP5-120100 Page 25 of 75 Intertek Report Number: 100442884BOX-005 Issued: 11/30/2011 Emissions Report for Hitachi Kokusai Electric America, Ltd. on the HP5-120100 Page 32 of 75 8.4 Setup Photographs: 30-1000 MHz Intertek Report Number: 100442884BOX-005 Issued: 11/30/2011 Emissions Report for Hitachi Kokusai Electric America, Ltd. on the HP5-120100 Page 33 of 75 30-1000 MHz Intertek Report Number: 100442884BOX-005 Issued: 11/30/2011 Emissions Report for Hitachi Kokusai Electric America, Ltd. on the HP5-120100 Page 34 of 75 1-18 GHz Intertek Report Number: 100442884BOX-005 Issued: 11/30/2011 Emissions Report for Hitachi Kokusai Electric America, Ltd. on the HP5-120100 Page 35 of 75 1-18 GHz Intertek Report Number: 100442884BOX-005 Issued: 11/30/2011 Emissions Report for Hitachi Kokusai Electric America, Ltd. on the HP5-120100 Page 36 of 75 18-40 GHz Intertek Report Number: 100442884BOX-005 Issued: 11/30/2011 Emissions Report for Hitachi Kokusai Electric America, Ltd. on the HP5-120100 Page 37 of 75 18-40 GHz Intertek Report Number: 100442884BOX-005 Issued: 11/30/2011 Emissions Report for Hitachi Kokusai Electric America, Ltd. on the HP5-120100 Page 49 of 75 9.4 Setup Photographs: 40-60 GHz Intertek Report Number: 100442884BOX-005 Issued: 11/30/2011 Emissions Report for Hitachi Kokusai Electric America, Ltd. on the HP5-120100 Page 50 of 75 60-90 GHz Intertek Report Number: 100442884BOX-005 Issued: 11/30/2011 Emissions Report for Hitachi Kokusai Electric America, Ltd. on the HP5-120100 Page 51 of 75 90-100 GHz Intertek Report Number: 100442884BOX-005 Issued: 11/30/2011 Emissions Report for Hitachi Kokusai Electric America, Ltd. on the HP5-120100 Page 56 of 75 10.4 Setup Photographs: 30-1000 MHz Intertek Report Number: 100442884BOX-005 Issued: 11/30/2011 Emissions Report for Hitachi Kokusai Electric America, Ltd. on the HP5-120100 Page 57 of 75 30-1000 MHz Intertek Report Number: 100442884BOX-005 Issued: 11/30/2011 Emissions Report for Hitachi Kokusai Electric America, Ltd. on the HP5-120100 Page 58 of 75 1-18 GHz Intertek Report Number: 100442884BOX-005 Issued: 11/30/2011 Emissions Report for Hitachi Kokusai Electric America, Ltd. on the HP5-120100 Page 59 of 75 1-18 GHz Intertek Report Number: 100442884BOX-005 Issued: 11/30/2011 Emissions Report for Hitachi Kokusai Electric America, Ltd. on the HP5-120100 Page 60 of 75 18-40 GHz Intertek Report Number: 100442884BOX-005 Issued: 11/30/2011 Emissions Report for Hitachi Kokusai Electric America, Ltd. on the HP5-120100 Page 61 of 75 18-40 GHz Intertek Report Number: 100442884BOX-005 Issued: 11/30/2011 Emissions Report for Hitachi Kokusai Electric America, Ltd. on the HP5-120100 Page 67 of 75 11.4 Setup Photographs: Intertek Report Number: 100442884BOX-005 Issued: 11/30/2011 Emissions Report for Hitachi Kokusai Electric America, Ltd. on the HP5-120100 Page 68 of 75 Intertek Report Number: 100442884BOX-005 Issued: 11/30/2011 Emissions Report for Hitachi Kokusai Electric America, Ltd. on the HP5-120100 Page 72 of 75 12.4 Setup Photographs: Intertek Report Number: 100442884BOX-005 Issued: 11/30/2011 Emissions Report for Hitachi Kokusai Electric America, Ltd. on the HP5-120100 Page 73 of 75

SINELINK24G 1 Test Report August 28, 2011 Hitachi Kokusai Electric Inc. Pre-shipment test result Product Name : SINELINK 24G Model No :HP5-120100 1. Radiated emission Frequency Field Strength Limits (dBuV/m) Serial No.: CS004 (dBuV/m) Serial No. CS005 (dBuV/m) Serial No.: CS006 (dBuV/m) 30-88MHz 40 Less than 40 Less than 40 Less than 40 88-216MHz 43 Less than 40 Less than 40 Less than 40 216-960MHz 46 Less than 46 Less than 46 Less than 46 960-1000MHz 53 Less than 53 Less than 53 Less than 53 Please refer to Appendix 1 and Appendix 2. 2. Field strength of an operational frequency. Serial No. CH1: 24.08GHz <128dBuV/m CH4: 24.14GHz <128dBuV/m CH8: 24.22GHz <128dBuV/m CS004 127.5127.6127.1 CS005 127.6127.5127.3 CS006 127.1127.4127.1 The average field strength is reduced by 3 dB from the measurement value of the continuous CW mode. SINELINK24G 2 3. Frequency tolerance 3-1. Variation depending on ambient temperature Serial No. -20 degrees <10ppm +25 degrees <10ppm +50 degrees <10ppm CS004 Less than 1.5ppmLess than 1.0ppmLess than 1.0ppm CS005 Less than 1.0ppmLess than 1.0ppmLess than 1.0ppm CS006 Less than 1.0ppmLess than 1.0ppmLess than 1.0ppm 3-2. Variation depending on supplied voltage Serial No. Supply voltage DC36V <10ppm Supply voltage DC48V <10ppm Supply voltage DC57V <10ppm CS004 Less than 1.0ppmLess than 1.0ppmLess than 1.0ppm CS005 Less than 1.0ppmLess than 1.0ppmLess than 1.0ppm CS006 Less than 1.0ppmLess than 1.0ppmLess than 1.0ppm SINELINK24G meets IEEE802.3af class 0. 4. Antenna Serial No. Gain >33dBi Beam widths <3.5degrees CS004 34.52.6 CS005 34.42.6 CS006 34.42.6 Please refer to Appendix 3. SINELINK24G 3 Appendix 1-1 S/N: CS004 株式会社日立国際電気27 August,2011 17:11<<>> 限度値 : FCC Part.15 Class B 3mモデル : シリアル番号 : オペレータ : AC電源 : 温度、湿度 : 備考１: 備考２: 備考３: 備考４: 30.001000.0050.00100.00500.00 0 100 10 20 30 40 50 60 70 80 90 周波数 レベル [MHz] [dB(μV/m)] <FCC B> 限度値(QP) <New Data> 水平偏波 妨害波候補(H) 株式会社日立国際電気27 August,2011 17:11<<>> 限度値 : FCC Part.15 Class B 3mモデル : シリアル番号 : オペレータ : AC電源 : 温度、湿度 : 備考１: 備考２: 備考３: 備考４: 30.001000.0050.00100.00500.00 0 100 10 20 30 40 50 60 70 80 90 周波数 レベル [MHz] [dB(μV/m)] <FCC B> 限度値(QP) <New Data> 垂直偏波 妨害波候補(V) Horizontal Limit Pol : Horizontal Frequency Field Strength Ve rti c a l Limit Pol : Vertical Frequency Field Strength SINELINK24G 4 S/N: CS004 株式会社日立国際電気27 August,2011 14:55<<>> 限度値 : FCC Class B GHz 3mモデル : シリアル番号 : オペレータ : AC電源 : 温度、湿度 : 備考１: 備考２: 備考３: 備考４: 1000.006000.002000.003000.00 4000.00 5000.00 0 100 10 20 30 40 50 60 70 80 90 周波数 レベル [MHz] [dB(μV/m)] <FCC B GHz 3m> 限度値(AV) 限度値(PK) <New Data> 水平偏波 妨害波候補(H) 株式会社日立国際電気27 August,2011 14:55<<>> 限度値 : FCC Class B GHz 3mモデル : シリアル番号 : オペレータ : AC電源 : 温度、湿度 : 備考１: 備考２: 備考３: 備考４: 1000.006000.002000.003000.00 4000.00 5000.00 0 100 10 20 30 40 50 60 70 80 90 周波数 レベル [MHz] [dB(μV/m)] <FCC B GHz 3m> 限度値(AV) 限度値(PK) <New Data> 垂直偏波 妨害波候補(V) Horizontal L i m i t ( AV) Pol : Horizontal Frequency Limit (PK) Field Strength Ve rti ca l L i m i t ( AV) Pol : Vertical Frequency Limit (PK) Field Strength SINELINK24G 5 Appendix 1-2 S/N: CS005 株式会社日立国際電気27 August,2011 17:54<<>> 限度値 : FCC Part.15 Class B 3mモデル : シリアル番号 : オペレータ : AC電源 : 温度、湿度 : 備考１: 備考２: 備考３: 備考４: 30.001000.0050.00100.00500.00 0 100 10 20 30 40 50 60 70 80 90 周波数 レベル [MHz] [dB(μV/m)] <FCC B> 限度値(QP) <New Data> 水平偏波 妨害波候補(H) 株式会社日立国際電気27 August,2011 17:54<<>> 限度値 : FCC Part.15 Class B 3mモデル : シリアル番号 : オペレータ : AC電源 : 温度、湿度 : 備考１: 備考２: 備考３: 備考４: 30.001000.0050.00100.00500.00 0 100 10 20 30 40 50 60 70 80 90 周波数 レベル [MHz] [dB(μV/m)] <FCC B> 限度値(QP) <New Data> 垂直偏波 妨害波候補(V) Horizontal Limit Pol : Horizontal Frequency Field Strength Ve rti c a l Limit Pol : Vertical Frequency Field Strength SINELINK24G 6 S/N: CS005 株式会社日立国際電気27 August,2011 13:23<<>> 限度値 : FCC Class B GHz 3mモデル : シリアル番号 : オペレータ : AC電源 : 温度、湿度 : 備考１: 備考２: 備考３: 備考４: 1000.006000.002000.003000.00 4000.00 5000.00 0 100 10 20 30 40 50 60 70 80 90 周波数 レベル [MHz] [dB(μV/m)] <FCC B GHz 3m> 限度値(AV) 限度値(PK) <New Data> 水平偏波 妨害波候補(H) 株式会社日立国際電気27 August,2011 13:23<<>> 限度値 : FCC Class B GHz 3mモデル : シリアル番号 : オペレータ : AC電源 : 温度、湿度 : 備考１: 備考２: 備考３: 備考４: 1000.006000.002000.003000.00 4000.00 5000.00 0 100 10 20 30 40 50 60 70 80 90 周波数 レベル [MHz] [dB(μV/m)] <FCC B GHz 3m> 限度値(AV) 限度値(PK) <New Data> 垂直偏波 妨害波候補(V) Horizontal L i m i t ( AV) Pol : Horizontal Frequency Limit (PK) Field Strength Ve rti ca l L i m i t ( AV) Pol : Vertical Frequency Limit (PK) Field Strength SINELINK24G 7 Appendix 1-3 S/N: CS006 株式会社日立国際電気27 August,2011 17:31<<>> 限度値 : FCC Part.15 Class B 3mモデル : シリアル番号 : オペレータ : AC電源 : 温度、湿度 : 備考１: 備考２: 備考３: 備考４: 30.001000.0050.00100.00500.00 0 100 10 20 30 40 50 60 70 80 90 周波数 レベル [MHz] [dB(μV/m)] <FCC B> 限度値(QP) <New Data> 水平偏波 妨害波候補(H) 株式会社日立国際電気27 August,2011 17:31<<>> 限度値 : FCC Part.15 Class B 3mモデル : シリアル番号 : オペレータ : AC電源 : 温度、湿度 : 備考１: 備考２: 備考３: 備考４: 30.001000.0050.00100.00500.00 0 100 10 20 30 40 50 60 70 80 90 周波数 レベル [MHz] [dB(μV/m)] <FCC B> 限度値(QP) <New Data> 垂直偏波 妨害波候補(V) Horizontal Limit Pol : Horizontal Frequency Field Strength Ve rti c a l Limit Pol : Vertical Frequency Field Strength SINELINK24G 8 S/N: CS006 株式会社日立国際電気27 August,2011 14:29<<>> 限度値 : FCC Class B GHz 3mモデル : シリアル番号 : オペレータ : AC電源 : 温度、湿度 : 備考１: 備考２: 備考３: 備考４: 1000.006000.002000.003000.00 4000.00 5000.00 0 100 10 20 30 40 50 60 70 80 90 周波数 レベル [MHz] [dB(μV/m)] <FCC B GHz 3m> 限度値(AV) 限度値(PK) <New Data> 水平偏波 妨害波候補(H) 株式会社日立国際電気27 August,2011 14:29<<>> 限度値 : FCC Class B GHz 3mモデル : シリアル番号 : オペレータ : AC電源 : 温度、湿度 : 備考１: 備考２: 備考３: 備考４: 1000.006000.002000.003000.00 4000.00 5000.00 0 100 10 20 30 40 50 60 70 80 90 周波数 レベル [MHz] [dB(μV/m)] <FCC B GHz 3m> 限度値(AV) 限度値(PK) <New Data> 垂直偏波 妨害波候補(V) Horizontal L i m i t ( AV) Pol : Horizontal Frequency Limit (PK) Field Strength Ve rti ca l L i m i t ( AV) Pol : Vertical Frequency Limit (PK) Field Strength SINELINK24G 9 Appendix 2 We couldn't detect radiated emission (1-50GHz) by a measuring antenna despite making the measuring antenna close to EUT. For your reference, the followings are the value…

Text truncated - open the document above for the full version.
