TTQEZAV-PEBBLEDigital Audio Player

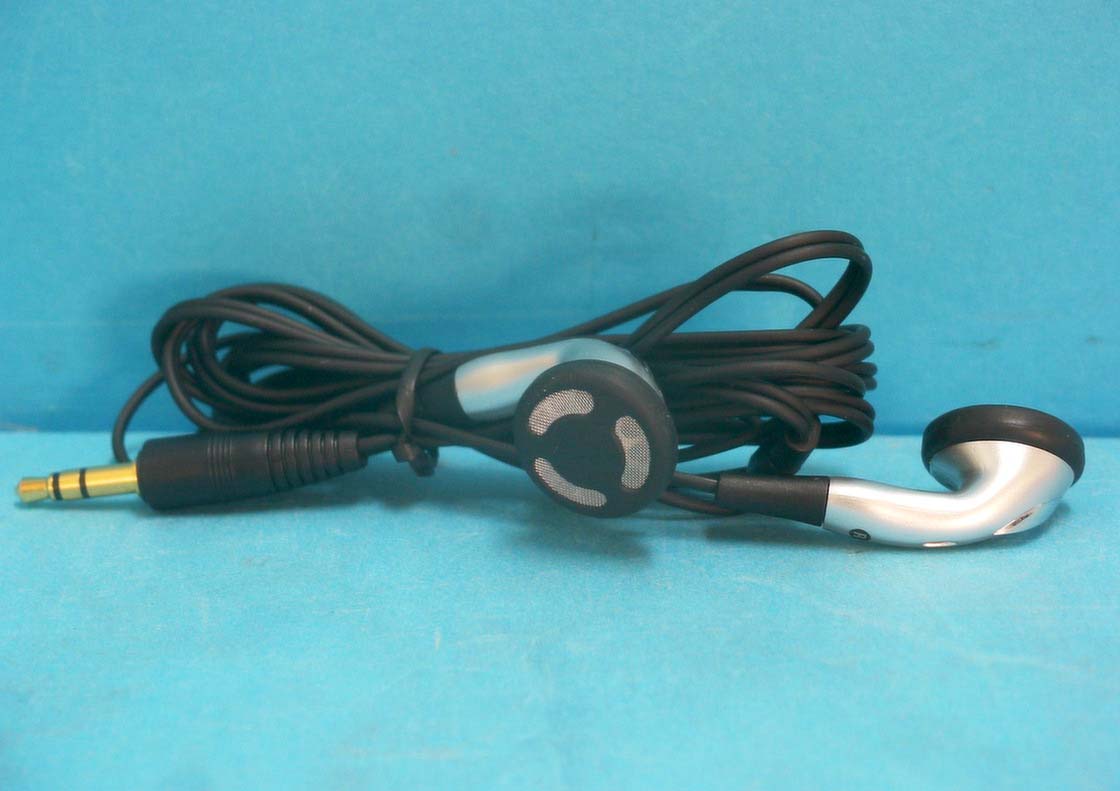

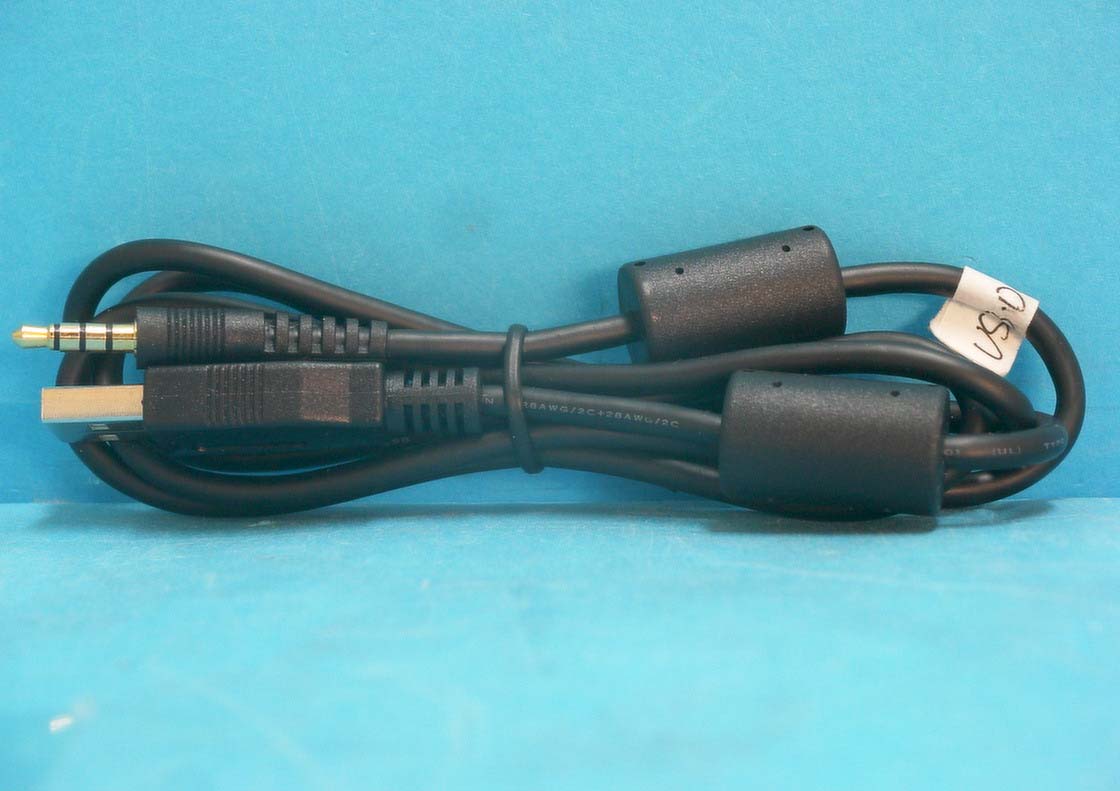

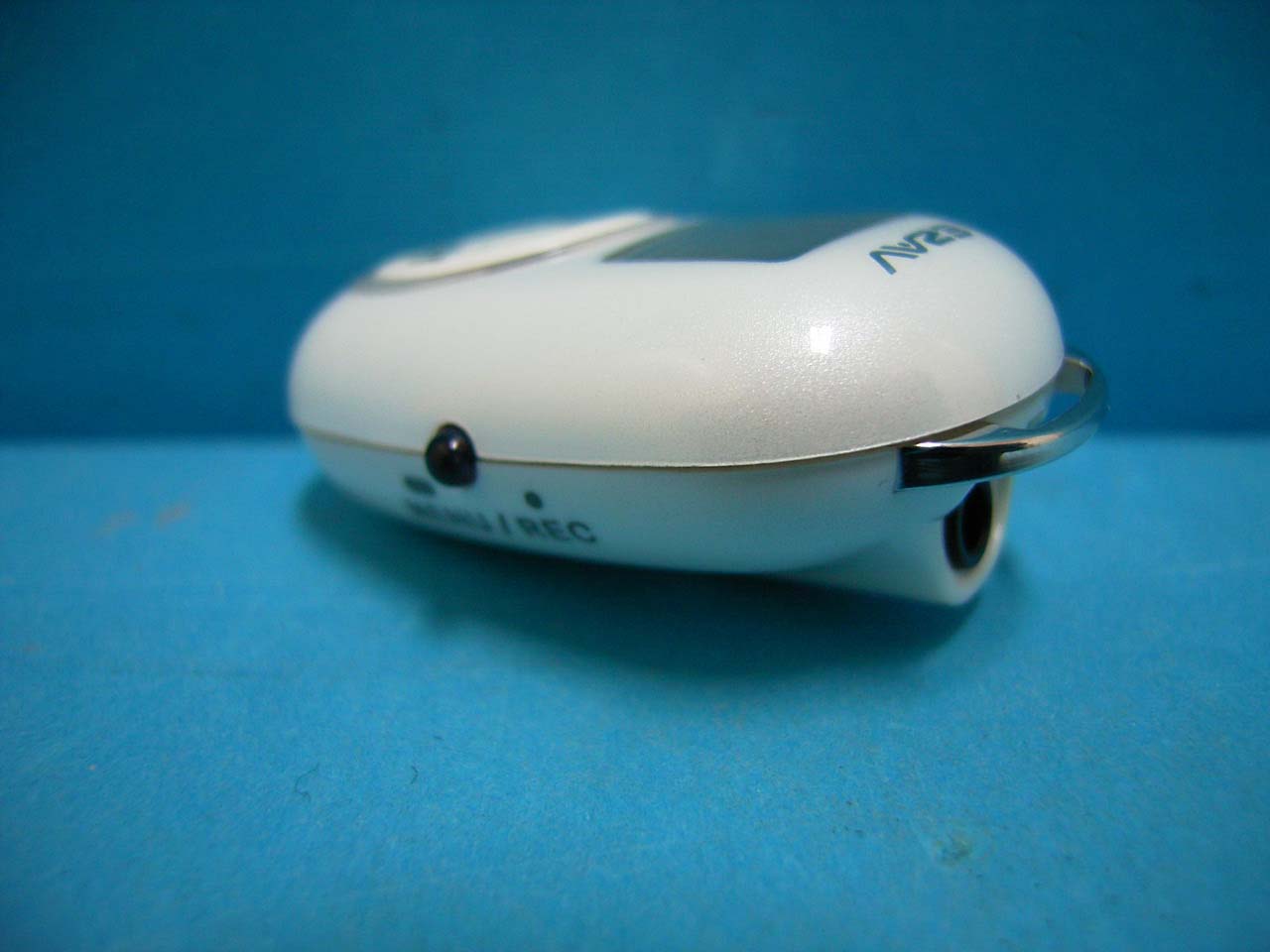

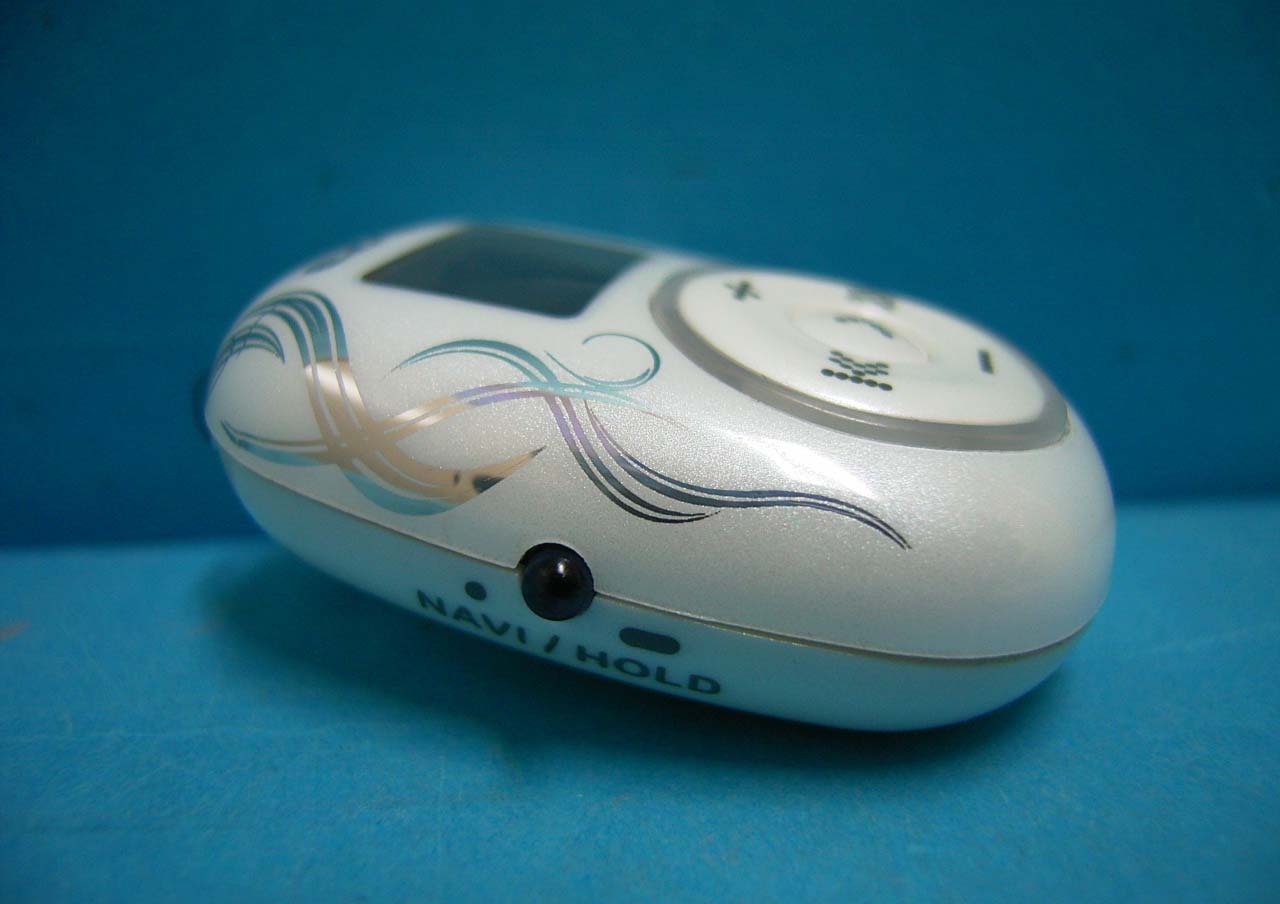

1 Content | Preparation | 1. Basic Component List1 2. Product Features 2 3. Name of Each Part 3 4. Menu Structure 4 | Using Function | 1. Connecting to the computer5 2. Playing music file, deleting file 7 3. Listening to FM Radio/Recording FM Radio8 4. Voice Recording 9 5. Playlist Function 9 6. Resume Function in seconds 10 7. Time Step Function 10 8. SLEEP Function 11 9. Play Speed Control Function 11 10. Temporary Pause Function for Recording11 11. File INTRO Function 11 | Using Menu | 1. MODE12 2. SET 12 1) PLAY 12 2) DISPLAY 13 3) RECORD 13 4) GENERAL 14 3. FORMAT 14 4. INFORM 15 | Using Music Friend | 1. Installing MusicFriend16 2. Text editing Function(Possible only in pc)18 3. Image Edit Function 19 4. Using the Media sync 21 | Customer Service | 1. Specifications28 2. Warranty 29 3. Notice 30 Basic Component List Pebble Set, User’s Manual/Warranty, Music Friend CD, USB Cable, Earphone, Necklace 3 Name of each part 2 Product Features Multi-format File Play Function(MPEG1/ 2 /2.5/3 LAYER3, WMA, ASF) - WMA, ASF : 32~192Kbps 64 48 dot OLED Adaption USB 2.0 high speed Support NORMAL, ROCK, JAZZ, CLASSIC, POP, 3D, QBS, DBB, USER1,USER2 EQ Supported FM Radio and Recording Function Voice Recording Function File INTRO Function Section Repeating Play Function Repeating (File, Folder, Shuffle, All) Play Function Media Sync Function Firmware Upgrade Function Portable Storage Device Infinite Folder Function TIME STEP Function PLAY LIST Function LOGO/ICON Editing Function Text Editing Function Sleeping Function Resume Function in seconds Play Speed Control Function Temporary Pause Function for Recording STOP WATCH Function 54 Menu Structure 1. Turn on the power of player. 1) Connect the player to the USB terminal of the computer. 2) “ Removable Disk” will be appeared in My Computer. WINDOWS 2000/XP will generate it without installing additional driver, WINDOWS 98/ME users should install the additional driver to generate “Removable Disk” 3) Copy the wanted file and store it in the Removable Disk 4) Folders can be created in Removable Disk same as PC. 2. Disconnecting from computer 1) Disconnecting the player during file transferring will might cause fatal error. 2) After transferring data, disconnect the player by clicking the icon of “safely remove hardware” on the right bottom of the monitor and stopping the device in case of using Windows2000 /ME/XP. Connecting to the computer 1. Turn on the power by pressing PLAY()BUTTON. 2. Press and hold the MENU/REC BUTTON . 3. Select the item using LEFT/RIGHT() BUTTON. 4. Press the PLAY()BUTTON to select detail item(To go to previous menu, press the MENU/REC BUTTON. To escape the menu,press and hold the MENU/REC BUTTON) 5. Using UP/DOWN(+/-)BUTTON, Confirm seting. How to Menu Control 7 Playing music file, deleting file 6 3.Copy a file to the Removable Disk 1) When “Removable Disk” is generated in My Computer, select the file for copying. 2) There are three copying methods as following. 1. Press the right button of mouse and select [Copy]. Press the right button of mouse and [Paste] in the folder of “Removable Disk”. 2. Drag the mouse then drop the dragged file to the folder of “Removable Disk” for copying. 3. Select the file for copying and press [Ctrl]+[C] of Keyboard. Press [Ctrl]+[V] of Keyboard on the folder of “Removable Disk” for copying. 4.Deleting File/Folder in Removable Disk 1) After “Removable Disk” is generated in My Computer, select the file/folder for deleting. 2) There are three deleting methods as following. 1. Press the right button of mouse and select [Delete] for deleting file/folder. 2. Drag the mouse then drop the dragged file/folder to of “Recycle Bin”. 3. Select the file for deleting then press [Delete] on keyboard deleting file/folder. 5.Creating Folder in Removable Disk 1) “Removable Disk” is generated in My Computer. 2) Creating folder is as following. 1. Press the right button of mouse and select [New Folder], then create the folder. 6.Change name of file/folder in Removable Disk 1) “Removable Disk” is generated in My Computer. 2) Renaming the file/folder is as following. 1. Press the right button of mouse and select [Rename], then change the name by keyboard. Connecting to Computer(Continued) 1. Power On 1) Pressing PLAY() BUTTON will turn on the power. 2. Play/Stop 1) Pressing PLAY() BUTTON will play the music. 2) Pressing PLAY() BUTTON again, will be stop 3. Deleting File 1) Press the NAVI/HOLD BUTTON on stop mode. 2) Select the file to delete using UP/DOWN(+/-) BUTTON. 3) Press MENU/REC BUTTON. 4) Select the “ERASE FILE” using UP/DOWN(+/-) BUTTON and then press the PLAY() BUTTON 5) Select the “YES” using UP/DOWN(+/-) BUTTON and then press the PLAY() BUTTON to delete. 4. Power Off 1) Press and hold the PLAY() BUTTON on stop mode to turn off the power 2) The power automatically turns off when the player is not in use for the set time of power off in stop mode. 5. Song Selecting and Searching 1) Pressing LEFT/RIGHT() BUTTON will move to the previous song/next song. - Pressing LEFT() BUTTON before 5 seconds after play will play to the previous song, pressing it after 5 seconds will play to the begining of the present song. 6. Adjusting the Volume 1) Adjust the volume using the UP/DOWN(+/-) BUTTON. 7. Section Repeat 1) During the Play, pressing MENU/REC button will set the start of section repetition And “A>” will blink on LCD. - Press again will set the end of section repeating and will repeat the play within the section. 2) During the repetition, Pressing MENU/REC button will clear the section repetition. 98 Listening FM Radio/Recording FM Radio 1. Go to FM Mode 1) Press and hold the MENU/REC BUTTON to move on MODE, and then press PLAY( ) BUTTON. 2) Select the FM using LEFT/RIGHT() BUTTON, and then press PLAY( ) BUTTON. 2. Tuning the Radio manually 1) Move the LEFT/RIGHT() BUTTON to left/right and search the radio frequency.(No PRESET number is the status of manual) 2) If you briefly press the LEFT/RIGHT() BUTTON, frequency …

Text truncated - open the document above for the full version.

LCD (UG-6448AL BAT01) KEY MATRIX U11 MICOM (SKYLARK∥) U10 CODEC (WM8750L) EAR-PHONE MIC U16 FLASH MEMORY (K9K2G08UOM) U9 FM MODULE (GRP-301S) DATA BUS BLOCK DIAGRAM BLOCK DIAGRAM EZAV-PEBBLE EZAV-PEBBLE X-TAL (CLOKK :12MHz) U3 USB CONTROLLER (PP2366)

ID Label Sample & Location Information

IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 05-IST-0389 1 of 24 Certification of Compliance CFR 47 Part 15 Subpart B Test Report File No. : 05-IST-0389 Date of Issue : December 26, 2005 FCC ID : TTQEZAV-PEBBLE Model(s) : EZAV-PEBBLE ■ Basic □ Alternate Kind of Product : Digital Audio Player Applicant : EZAV Co., Ltd. Address : KyungBin Bldg 2F, #517-18, Dogok-dong, Kangnam-ku, Seoul, Korea Manufacturer : EZAV Co., Ltd. Address : KyungBin Bldg 2F, #517-18, Dogok-dong, Kangnam-ku, Seoul, Korea Test Result ■ Positive □ Negative Reviewed By Approved By Comment(s) - Investigations requested : Measurement to the relevant clauses of FCC rules and regulations Part 15 Subpart B – Unintentional Radiators, Class B. - The test report with appendix consists of 24 pages. - The test result only responds to the tested sample. - It is not allowed to copy this report even partly without the allowance of IST EMC Laboratory. - This equipment as for has been shown to be capable of continued compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4 2003. S.J.Cho / EMC Group Manager J.H.Lee / Chief IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 05-IST-0389 2 of 24 TABLE OF CONTENTS Table of contents 2 Information of test laboratory, Environmental conditions, Power supply system used, Product information 3 Descriptions of test Conducted Emission 4 Radiated Emission 5 Measurement Uncertainty Calculations 6 Equipment Under Test 7 Test Set-Up (Figure) 8 Summary 9 ■ Test Conditions and Data – Emissions ◆ Conducted Emissions 0.15MHz- 30MHz Applicable Test Conditions / Data and Plots 10-12 ◆ Radiated Emissions 30MHz - 1GHz Applicable Test Conditions / Data and Plots 13-18 Appendix A. The Photos of Test Setup 19-22 B. The Photos of Equipment Under Test 23-24 Note: IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 05-IST-0389 3 of 24 INFORMATIONS OF TEST LABORATORY EMC LABORATORY of IST Co., Ltd. (FCC Filing Lab.) San 21-8, Goan-Ri, Baekam-Myun, Yongin-City Kyonggi-Do, 449-860, Korea TEL : +82 31 333 4093 FAX : +82 31 333 4094 ENVIRONMENTAL CONDITIONS Temperature 18.1 °C Humidity 39 % Atmospheric pressure 1012 mbar POWER SUPPLY SYSTEM USED Power supply system Li-ION battery (Refer to the product information) PRODUCT INFORMATION File Support MPEG 1/2/2.5/3 Layer3, WMA, ASF Channel Stereo Frequency Range 20Hz~20KHz Earphone Output 20mW(L)+20mW:16Ω, Maximum Volume AUDIO S/N Ratio Over 90dB(With 20KHz LPF) Frequency Range 87.5MHz~108MHz(Korea/USA/Europe) 76MHz~108MHz(Japan) Earphone Output 20mW(L)+20mW:16Ω, Maximum Volume S/N Ratio Over 55dB(With 20KHz LPF) FM Radio Receiver Type Earphone Cord Antenna 256MB(Up to 36hours(16kbps)) Record Voice recording time 512MB(Up to 72hours(16kbps) Decode Format MP3, WMA, ASF Format Encode Format MP3 PC Interface System OS Windows98/ME/2000/XP/MAC OS(Over 9.0) Power Supply Rechargeable Li-ION Battery Dimension 35 x 68 x 16(mm) Weights about 24g(battery included) - EMC suppression device is not used during the test . - Please refer to user’s manual. IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 05-IST-0389 4 of 24 < Concept Drawing > 215 >150 >40 80 Receiver EUT LISN 80 ≥ 80 80 40 ≥ 80 Measuring apparatus Mains Filter Mains Rear side Equipment under test Coaxial cable Artificial mains networ k Screened room Non-metallic support 80 DESCRIPTIONS OF TEST Conducted Emissions: The measurement were performed over the frequency range of 0.15MHz to 30MHz using a 50 Ω /50uH LISN as the input transducer to a Spectrum Analyzer or a Field Intensity Meter. The measurements were made with the detector set for "Peak" amplitude within a bandwidth of 10KHz or for "quasi-peak" & “Average” within a bandwidth of 9KHz. - Procedure of Test The line-conducted facility is located inside a shielded room No.1. A 1m X 1.5m wooden table 80cm height is placed 40cm away from the vertical wall and 1.5m away from the other wall of the shielded room. The R/S 3725/2 and Hyup-Rip KNW-407 LISN are bonded to bottom of the shielded room. The EUT is located on the wooden table with distance more than 80cm from the LISN and powered from the LISN .The peripheral equipment is powered from the other LISN. Power to the LISNs are filtered by a noise cut power line filters. All electrical cables are shielded by braided tinned steel tubing with inner φ 1.2cm. If the EUT is a DC-powered device, power will be derived from the source power supply it normally will be powered from and this supply lines will be connected to the EMCO LISN. All interconnecting cables more than 1m were shortened by non-inductive bundling to a 1m length. Sufficient time for the EUT, support equipment, and test equipment was allowed in order for them to warm up to their normal operating conditions. The RF output of the LISN was connected to the R/S receiver to determine the frequency producing the maximum emission from the EUT. The frequency producing the maximum level was reexamined using Quasi-Peak mode by manual measurement, after scanned by automatic Peak mode for frequency range from 0.15 to 30MHz. The bandwidth of the receiver was set to 10kHz. The EUT, peripheral equipment, and interconnecting cables were arranged and manipulated to maximize each EME emission. < Side View > IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 05-IST-0389 5 of 24 DESCRIPTION OF TEST Radiated Emissions: The measurement was performed over the frequency range of 30MHz to 1GHz using antenna as the input transducer to a Spectrum analyzer or a Field Intensity Meter. The measurement was made with the detector set for "quasi-peak" within a bandwidth of 120KHz. - Procedure of Test Preliminary measurements were made at 3 meter using bi-conical and log-periodic antennas, and spectrum analyzer to determine the frequency producing the max. emission in anechoic chamber. Appropriate precaution was taken to ensure that all emission from the EUT were maximized and investigated. The s…
