TV7C52-5AXD2AXDhAP ax2

EN - English - Quick Guide: This Quick Guide covers the model: C52iG-5HaxD2HaxD-TC. This is a wireless network device. You can find the product model name on the case label (ID). Please visit the user manual page on for the full up-to-date user manual. Or scan the QR code with your mobile phone. https://mt.lv/um The most relevant technical specifications for this product can be found on the last page of this Quick Guide. Technical specifications, brochures, and more info about products are at https://mikrotik.com/products Configuration manual for software in your language with additional information can be found at https://mt.lv/help If you need help with configuration, please seek a consultant https://mikrotik.com/consultants First steps: Make sure your Internet service provider is allowing hardware change and will issue an automatic IP address; Connect the device to the power source; Open network connections on your computer and search for MikroTik wireless network - connect to it; The configuration can be done through the wireless network using a web browser or mobile app. Alternatively, you can use a WinBox configuration tool https:// ;mt.lv/winbox Open in your web browser to start configuration, user name: a and there is no password by defaulthttps://192.168.88.1dmin (or, for some models, check user and wireless passwords on the sticker); Click the (Check for updates) button and update your RouterOS software to the latest version; Choose your country, to apply country regulation settings; Set up your wireless network password; Set up your router password; Safety Information: Before you work on any MikroTik equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing accidents. The installer should be familiar with network structures, terms, and concepts. Use only the power supply and accessories approved by the manufacturer, and which can be found in the original packaging of this product. This equipment is to be installed by trained and qualified personnel, as per these installation instructions. The installer is responsible for making sure, that the Installation of the equipment is compliant with local and national electrical codes. Do not attempt to disassemble, repair, or modify the device. This product is intended to be installed indoors. Keep this product away from water, fire, humidity, or hot environments. We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your own risk! This is a Class A product. In a domestic environment, this product might cause radio interference in which case the user might be required to take adequate measures. In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power adapter from the power outlet. Exposure to Radio Frequency Radiation: This MikroTik equipment complies with the FCC, IC, and European Union radiation exposure limits set forth for an uncontrolled environment. This MikroTik device should be installed and operated no closer than 38 centimeters from your body, occupational user, or the general public. Manufacturer: Mikrotikls SIA, Brivibas gatve 214i Riga, Latvia, LV1039. BG - Български. Бързо ръководство: Това кратко ръководство обхваща модела: C52iG-5HaxD2HaxD-TC. Това е устройство за безжична мрежа.Можете да намерите името на модела на продукта на етикета на регистъра (ID). Моля, посетете страницата с ръководството за потребителя на за пълното актуализирано ръководство за употреба.https://mt.lv/um-bg Или сканирайте QR кода с мобилния си телефон. Най-важните технически спецификации за този продукт могат да бъдат намерени на последната страница на това Кратко ръководство. Технически спецификации, брошури и повече информация за продуктите на https://mikrotik.com/products Ръководство за конфигуриране на софтуер на вашия език с допълнителна информация можете да намерите наhttps://mt.lv/help-bg Ако имате нужда от помощ при конфигуриране, моля, потърсете консултант https://mikrotik.com/consultants Първи стъпки: This device needs to be upgraded to RouterOS v7.3 or the latest stable version, to ensure compliance with local authority regulations! It is the end users' responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling requirements, and Dynamic Frequency Selection (DFS) requirements. All MikroTik radio devices must be installed according to instructions. Това устройство трябва да бъде надстроено до RouterOS v7.3 или най-новата стабилна версия, за да се гарантира спазването на местните наредби! Крайните потребители са отговорни да спазват местните разпоредби, включително работа в рамките на законни честотни канали, изходна мощност, изисквания за окабеляване и изисквания за динамичен избор на честота (DFS). Всички радиоустройства MikroTik трябва да бъдат инсталирани съгласно инструкциите. Уверете се, че вашият доставчик на интернет услуги позволява промяна на хардуера и ще издаде автоматичен IP адрес; Свържете устройството към източника на захранване; Отворете мрежовите връзки на вашия компютър и потърсете безжична мрежа MikroTik - свържете се към нея; Конфигурацията трябва да се извърши през безжичната мрежа с помощта на уеб браузър или мобилно приложение; Като алтернатива можете да използвате инструмент за конфигуриране на WinBox ;https://mt.lv/winbox отвореноhttps://192.168.88.1във вашия уеб браузър за стартиране на конфигурация, потребителско име: adminи няма парола по подразбиране (или, за някои модели, проверете потребителските и безжичните пароли на стикера); Когато използвате мобилно приложение, изберете Бърза настройка и то ще ви преведе през цялата необходима конфигурация в шест лесни стъпки; Щракнете върху бутона (Check for updates) и актуализирайте софтуера на RouterOS до най-новата версия; Изберете вашата страна, за да приложите настройките за регули…

Text truncated - open the document above for the full version.

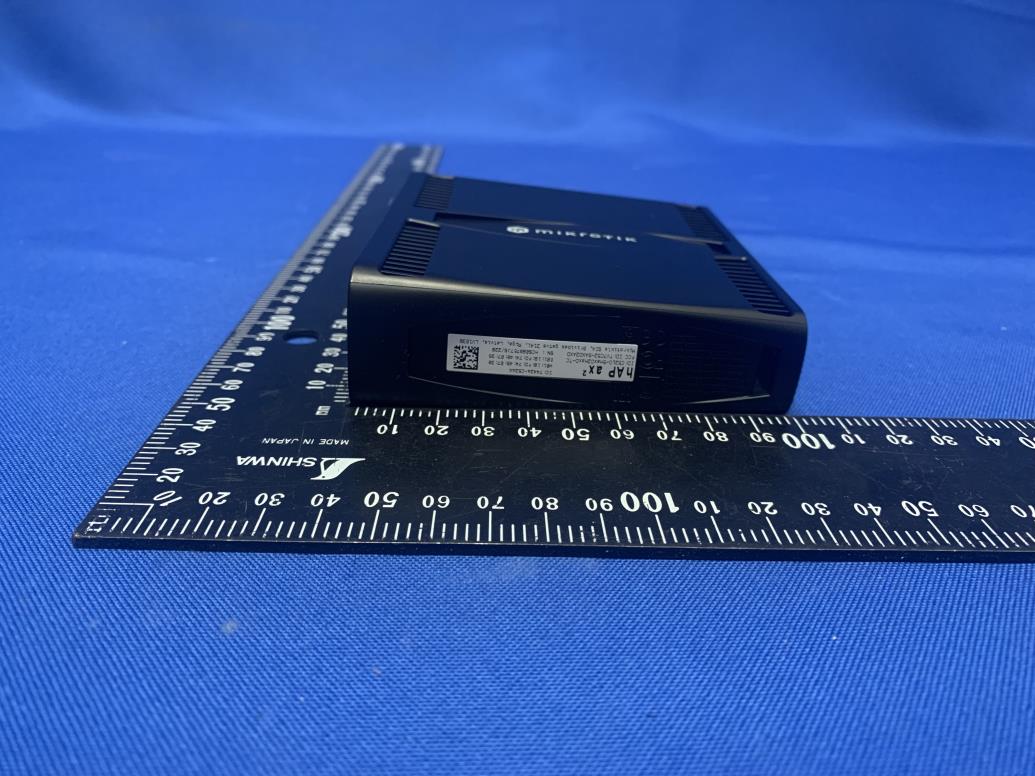

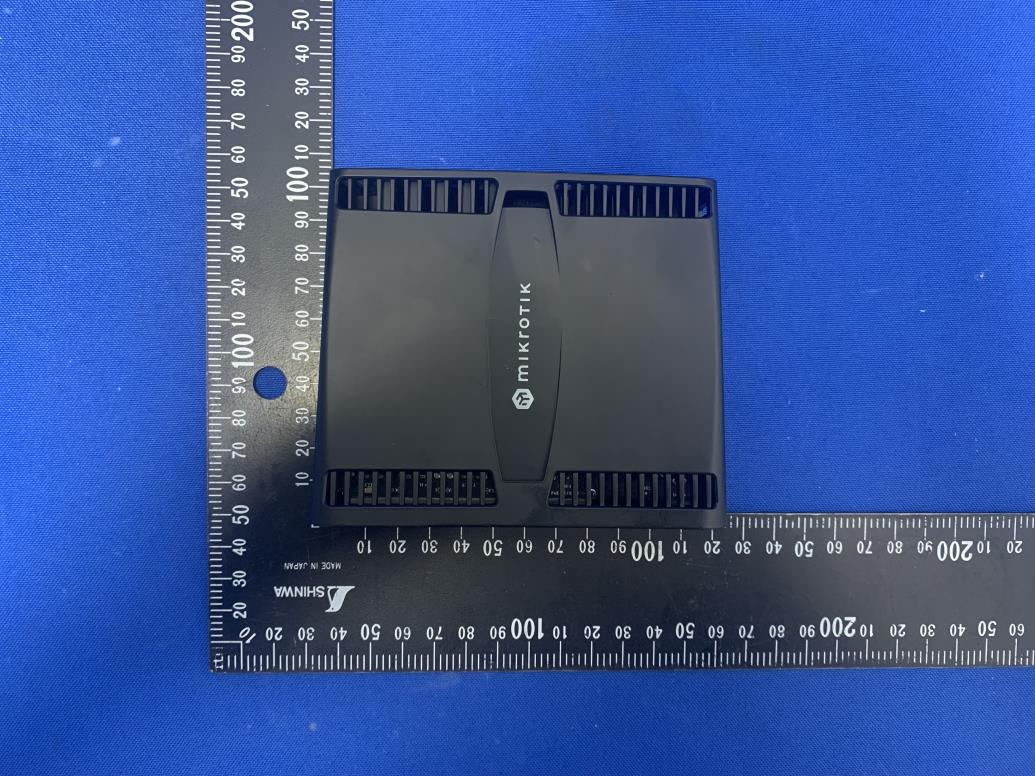

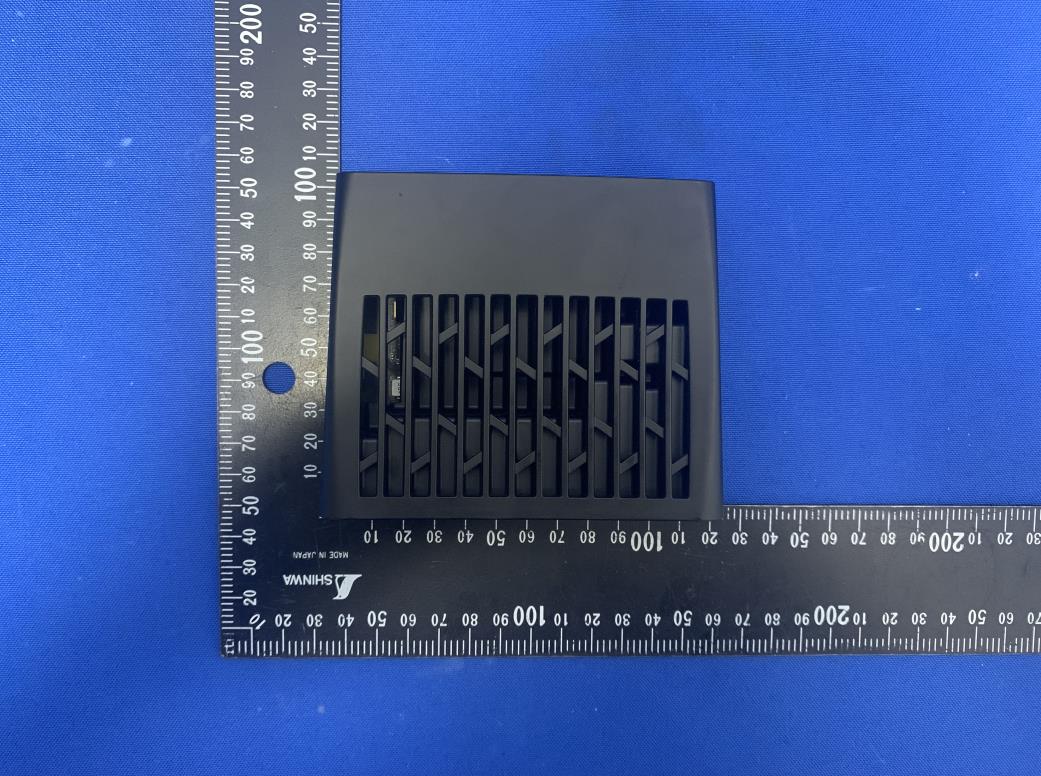

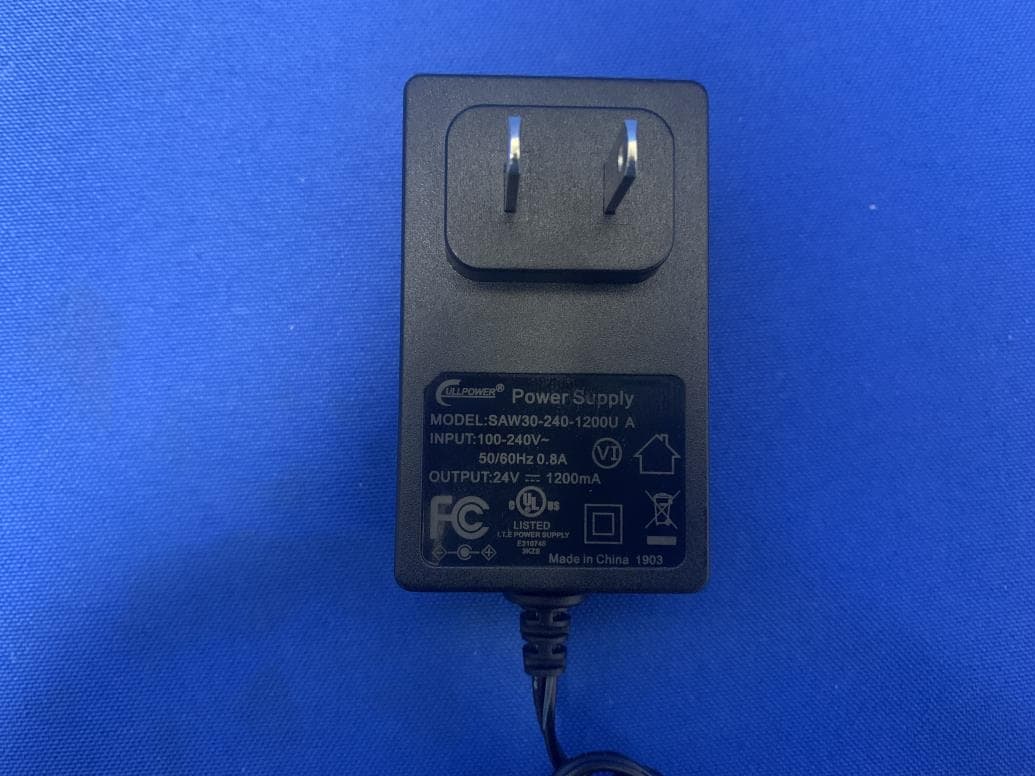

Report No.: 2206RSU048-UE 1 of 4 EUT External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2206RSU048-UE 2 of 4 (3) EUT Photo (4) EUT Photo Report No.: 2206RSU048-UE 3 of 4 (5) EUT Photo (6) EUT Photo Report No.: 2206RSU048-UE 4 of 4 (7) EUT Photo (8) EUT Photo

Label and its location hAP ax² ID: C52iG-5HaxD2HaxD-TC FCC ID: TV7C52-5AXD2AXD IC: 7442A-C52AX E01: xxx W01: xxx SN : xxx hAP ax² ID: C52iG-5HaxD2HaxD-TC-US FCC ID: TV7C52-5AXD2AXD IC: 7442A-C52AX E01: xxx W01: xxx SN : xxx 1. CE label 2. FCC/IC label Label

Report No.: 2206RSU048-UE 1 of 5 EUT Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2206RSU048-UE 2 of 5 (3) EUT Photo (4) EUT Photo Report No.: 2206RSU048-UE 3 of 5 (5) EUT Photo (6) EUT Photo Report No.: 2206RSU048-UE 4 of 5 (7) EUT Photo (8) EUT Photo Report No.: 2206RSU048-UE 5 of 5 (9) EUT Photo (10) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 2206RSU048-U4 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 2022-09-17 Template Version:0.0 1 of 8 RF Exposure Evaluation Declaration FCC ID: TV7C52-5AXD2AXD Applicant: Mikrotikls SIA Product: hAP ax 2 Model No.: C52iG-5HaxD2HaxD-TC-US Brand Name: MikroTik FCC Classification: Digital Transmission System (DTS) Unlicensed National Information Infrastructure (NII) FCC Rule Part(s): Part15 Subpart C (Section 15.247) Result: Complies Reviewed By: Vincent Yu Approved By: Robin Wu The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2206RSU048-U4 2 of 8 Revision History Report No. Version Description Issue Date Note 2206RSU048-U4 Rev. 01 Initial Report 2022-09-17 Valid Report No.: 2206RSU048-U4 3 of 8 CONTENTS Description Page 1. General Information ................................................................................................................................ 4 1.1. Applicant ........................................................................................................................................ 4 1.2. Manufacturer ................................................................................................................................. 4 1.3. Testing Facility ............................................................................................................................... 4 1.4. Product Information ....................................................................................................................... 5 1.5. Antenna Details ............................................................................................................................. 5 1.6. Device Classification ..................................................................................................................... 6 2. RF Exposure Evaluation ......................................................................................................................... 7 2.1. Test Limits ..................................................................................................................................... 7 2.2. Test Result ..................................................................................................................................... 8 Report No.: 2206RSU048-U4 4 of 8 1. General Information 1.1. Applicant Mikrotikls SIA Brivibas gatve 214i, Riga, LV-1039 LATVIA 1.2. Manufacturer Mikrotikls SIA Brivibas gatve 214i, Riga, LV-1039 LATVIA 1.3. Testing Facility Test Site – MRT Suzhou Laboratory Laboratory Location (Suzhou - Wuzhong) D8 Building, No.2 Tian’edang Rd., Wuzhong Economic Development Zone, Suzhou, China Laboratory Location (Suzhou - SIP) 4b Building, Liando U Valley, No.200 Xingpu Rd., Shengpu Town, Suzhou Industrial Park, China Laboratory Accreditations A2LA: 3628.01 CNAS: L10551 FCC: CN1166 ISED: CN0001 VCCI: R-20025 G-20034 C-20020 T-20020 R-20141 G-20134 C-20103 T-20104 Test Site – MRT Shenzhen Laboratory Laboratory Location (Shenzhen) 1G, Building A, Junxiangda Building, Zhongshanyuan Road West, Nanshan District, Shenzhen, China Laboratory Accreditations A2LA: 3628.02 CNAS: L10551 FCC: CN1284 ISED: CN0105 Test Site – MRT Taiwan Laboratory Laboratory Location (Taiwan) No. 38, Fuxing 2nd Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) Laboratory Accreditations TAF: L3261-190725 FCC: 291082, TW3261 ISED: TW3261 Report No.: 2206RSU048-U4 5 of 8 1.4. Product Information Product Name hAP ax 2 Model No. C52iG-5HaxD2HaxD-TC-US Wi-Fi Specification 802.11a/b/g/n/ac/ax, VHT Hardware Version r3 Software Version RouterOS v7 Antenna Information Refer to section 1.5 Working Voltage Range 12~28VDC (24VDC Nominal) Working Temperature 0 ~ 50°C Accessory Adapter Model: SAW30-240-1200U A Input: 100-240V ~ 50//60Hz 0.8A Output: 24.0V ⎓ 1200mA Remark: The information of EUT was provided by the manufacturer, and the accuracy of the information shall be the responsibility of the manufacturer. 1.5. Antenna Details Antenna Type Frequency Band (MHz) Number of spatial streams Max Peak Gain (dBi) CDD Directional Gain (dBi) For Power For PSD Wi-Fi Antenna (2*2 MIMO) PCB Antenna 2.400 ~ 2483.5 1 5.50 5.50 8.51 5150 ~ 5250 1 3.20 3.20 6.21 5250 ~ 5350 4.20 4.20 7.21 5470 ~ 5725 5.20 5.20 8.21 5725 ~ 5850 5.00 5.00 8.01 Note: The EUT supports Cyclic Delay Diversity (CDD) mode, and CDD signals are correlated. For CDD transmissions, directional gain is calculated as follows, N ANT = 2, N SS = 1. If all antennas have the same gain, G ANT , Directional gain = G ANT + Array Gain, where Array Gain is as follows. • For power spectral density (PSD) measurements on all devices, Array Gain = 10 log (N ANT / N SS ) dB = 3.01; • For power measurements on IEEE 802.11 devices, Array Gain = 0 dB for N ANT ≤ 4; Report No.: 2206RSU048-U4 6 of 8 1.6. Device Classification According to the user manual, the antenna of this device is at least 38 cm away from the body of the user, this device is classified as a Mobile Device. So, the RF exposure evaluation requirements of § 2.1091 for mobile device exposure conditions subject to MPE limits. Report No.: 2206RSU048-U4 7 of 8 2. RF Exposure Evaluation 2.1. Test Limits According to FCC Part 2.1091, A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 cm is normally maintained between the RF source's radiating structure(s) and the body of the user or nearby persons. According to FCC Part 1.1307(b)(3)(i)(C), for the exemption in Table 1 to apply, R must be at least λ/2π, where λ is the free-space operatin…

Text truncated - open the document above for the full version.

MRT Technology (Suzhou) Co., Ltd Report No.: 2206RSU048-U2 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 2022-09-16 Template Version:0.0 1 of 284 RF MEASUREMENT REPORT FCC ID: TV7C52-5AXD2AXD Applicant: Mikrotikls SIA Product: hAP ax 2 Model No.: C52iG-5HaxD2HaxD-TC-US Brand Name: MikroTik FCC Classification: Unlicensed National Information Infrastructure (NII) FCC Rule Part(s): Part 15 Subpart E (Section 15.407) Result: Complies Test Date: 2022-07-19 ~ 2022-08-24 Reviewed By: Vincent Yu Approved By: Robin Wu The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB789033. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2206RSU048-U2 2 of 284 Revision History Report No. Version Description Issue Date Note 2206RSU048-U2 Rev. 01 Initial Report 2022-09-16 Valid Report No.: 2206RSU048-U2 3 of 284 CONTENTS Description Page 1. General Information ................................................................................................................................ 6 1.1. Applicant ..................................................................................................................................... 6 1.2. Manufacturer............................................................................................................................... 6 1.3. Testing Facility ............................................................................................................................ 6 1.4. Product Information .................................................................................................................... 7 1.5. Radio Specification under Test ................................................................................................... 7 1.6. Working Frequencies .................................................................................................................. 8 1.7. Antenna Details .......................................................................................................................... 9 2. Test Configuration ................................................................................................................................. 10 2.1. Test Mode ................................................................................................................................. 10 2.2. Test System Connection Diagram ............................................................................................ 10 2.3. Test Software ............................................................................................................................. 11 2.4. Applied Standards ..................................................................................................................... 11 2.5. Test Environment Condition ....................................................................................................... 11 3. Antenna Requirements ......................................................................................................................... 12 4. Measuring Instrument ........................................................................................................................... 13 5. Decision Rules and Measurement Uncertainty .................................................................................. 14 5.1. Decision Rules .......................................................................................................................... 14 5.2. Measurement Uncertainty ........................................................................................................ 14 6. Test Result .............................................................................................................................................. 15 6.1. Summary .................................................................................................................................. 15 6.2. 26dB & 99% Bandwidth Measurement ..................................................................................... 16 6.2.1. Test Limit ................................................................................................................................... 16 6.2.2. Test Procedure ......................................................................................................................... 16 6.2.3. Test Setting ............................................................................................................................... 16 6.2.4. Test Setup ................................................................................................................................. 17 6.2.5. Test Result ................................................................................................................................ 17 6.3. 6dB Bandwidth Measurement .................................................................................................. 18 6.3.1. Test Limit ................................................................................................................................... 18 6.3.2. Test Procedure ......................................................................................................................... 18 6.3.3. Test Setting ............................................................................................................................... 18 6.3.4. Test Setup ................................................................................................................................. 18 6.3.5. Test Result ......................................................................................…

Text truncated - open the document above for the full version.

Report No.: 2206RSU048-U2 48 of 284 802.11ax-HE40 26dB & 99% Bandwidth Channel 151 (5755MHz) Channel 159 (5795MHz) Report No.: 2206RSU048-U2 49 of 284 802.11ax-HE80 26dB & 99% Bandwidth Channel 42 (5210MHz) Channel 58 (5290MHz) Channel 106 (5530MHz) Channel 122 (5610MHz) Channel 138 (5690MHz) Channel 155 (5775MHz) Report No.: 2206RSU048-U2 50 of 284 A.3 6dB Bandwidth Test Result Test Site WZ-SR5 Test Engineer Lynn Yang Test Date 2022-07-24 ~ 2022-07-25 Test Mode Data Rate/ MCS Channel No. Frequency (MHz) 6dB Bandwidth (MHz) Limit (MHz) 11a 6Mbps 149 5745 15.70 ≥0.5 11a 6Mbps 157 5785 16.05 ≥0.5 11a 6Mbps 165 5825 15.48 ≥0.5 11ac-VHT20 MCS0 149 5745 15.96 ≥0.5 11ac-VHT20 MCS0 157 5785 16.02 ≥0.5 11ac-VHT20 MCS0 165 5825 17.04 ≥0.5 11ac-VHT40 MCS0 151 5755 35.73 ≥0.5 11ac-VHT40 MCS0 159 5795 35.75 ≥0.5 11ac-VHT80 MCS0 155 5775 74.11 ≥0.5 11ax-HE20 MCS0 149 5745 17.87 ≥0.5 11ax-HE20 MCS0 157 5785 18.10 ≥0.5 11ax-HE20 MCS0 165 5825 18.21 ≥0.5 11ax-HE40 MCS0 151 5755 37.77 ≥0.5 11ax-HE40 MCS0 159 5795 37.81 ≥0.5 11ax-HE80 MCS0 155 5775 76.62 ≥0.5 Report No.: 2206RSU048-U2 51 of 284 802.11a 6dB Bandwidth Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 2206RSU048-U2 52 of 284 802.11ac-VHT20 6dB Bandwidth Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) 802.11ac-VHT40 6dB Bandwidth Channel 151 (5755MHz) Channel 159 (5795MHz) Report No.: 2206RSU048-U2 53 of 284 802.11ac-VHT80 6dB Bandwidth Channel 155 (5775MHz) 802.11ax-HE20 6dB Bandwidth Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 2206RSU048-U2 54 of 284 802.11ac-VHT40 6dB Bandwidth Channel 151 (5755MHz) Channel 159 (5795MHz) 802.11ax-HE80 6dB Bandwidth Channel 155 (5775MHz) Report No.: 2206RSU048-U2 55 of 284 A.4 Output Power Test Result Test Site WZ-SR5 Test Engineer Lynn Yang Test Date 2022-07-23 Test Mode Data Rate MCS Channel No. Freq. (MHz) Average Power (dBm) Total Average Power (dBm) Average Power Limit (dBm) Ant 0 Ant 1 11a 6Mbps 36 5180 23.02 24.12 26.62 ≤ 30.00 11a 6Mbps 44 5220 24.70 25.51 28.13 ≤ 30.00 11a 6Mbps 48 5240 24.37 25.13 27.78 ≤ 30.00 11a 6Mbps 52 5260 17.74 18.68 21.25 ≤ 23.98 11a 6Mbps 60 5300 17.36 18.03 20.72 ≤ 23.98 11a 6Mbps 64 5320 16.90 17.58 20.26 ≤ 23.98 11a 6Mbps 100 5500 16.66 16.26 19.47 ≤ 23.98 11a 6Mbps 116 5580 17.62 16.52 20.12 ≤ 23.98 11a 6Mbps 140 5700 16.99 15.00 19.12 ≤ 23.98 11a 6Mbps 144 5720 16.63 15.98 19.33 ≤ 22.83 11a 6Mbps 149 5745 23.42 22.15 25.84 ≤ 30.00 11a 6Mbps 157 5785 22.72 21.62 25.22 ≤ 30.00 11a 6Mbps 165 5825 23.23 22.78 26.02 ≤ 30.00 11ac-VHT20 MCS0 36 5180 23.67 25.13 27.47 ≤ 30.00 11ac-VHT20 MCS0 44 5220 24.67 25.55 28.14 ≤ 30.00 11ac-VHT20 MCS0 48 5240 24.19 25.13 27.70 ≤ 30.00 11ac-VHT20 MCS0 52 5260 17.52 18.21 20.89 ≤ 23.98 11ac-VHT20 MCS0 60 5300 17.99 18.89 21.47 ≤ 23.98 11ac-VHT20 MCS0 64 5320 17.59 18.28 20.96 ≤ 23.98 11ac-VHT20 MCS0 100 5500 17.44 16.92 20.20 ≤ 23.98 11ac-VHT20 MCS0 116 5580 17.61 16.50 20.10 ≤ 23.98 11ac-VHT20 MCS0 140 5700 17.40 15.88 19.72 ≤ 23.98 11ac-VHT20 MCS0 144 5720 17.39 16.11 19.81 ≤ 22.85 11ac-VHT20 MCS0 149 5745 24.23 22.05 26.29 ≤ 30.00 11ac-VHT20 MCS0 157 5785 24.33 22.47 26.51 ≤ 30.00 11ac-VHT20 MCS0 165 5825 24.07 22.78 26.48 ≤ 30.00 Report No.: 2206RSU048-U2 56 of 284 Test Mode Data Rate MCS Channel No. Freq. (MHz) Average Power (dBm) Total Average Power (dBm) Average Power Limit (dBm) Ant 0 Ant 1 11ac-VHT40 MCS0 38 5190 21.67 22.85 25.31 ≤ 30.00 11ac-VHT40 MCS0 46 5230 24.52 24.25 27.40 ≤ 30.00 11ac-VHT40 MCS0 54 5270 20.08 20.94 23.54 ≤ 23.98 11ac-VHT40 MCS0 62 5310 20.13 21.32 23.78 ≤ 23.98 11ac-VHT40 MCS0 102 5510 19.82 19.34 22.60 ≤ 23.98 11ac-VHT40 MCS0 110 5550 21.05 19.61 23.40 ≤ 23.98 11ac-VHT40 MCS0 134 5670 20.53 19.59 23.10 ≤ 23.98 11ac-VHT40 MCS0 142 5710 19.24 18.39 21.85 ≤ 23.98 11ac-VHT40 MCS0 151 5755 23.84 21.70 25.91 ≤ 30.00 11ac-VHT40 MCS0 159 5795 24.04 22.29 26.26 ≤ 30.00 11ac-VHT80 MCS0 42 5210 20.69 21.95 24.38 ≤ 30.00 11ac-VHT80 MCS0 58 5290 19.91 21.12 23.57 ≤ 23.98 11ac-VHT80 MCS0 106 5530 21.12 20.22 23.70 ≤ 23.98 11ac-VHT80 MCS0 122 5610 20.68 19.37 23.08 ≤ 23.98 11ac-VHT80 MCS0 138 5690 21.29 19.50 23.50 ≤ 23.98 11ac-VHT80 MCS0 155 5775 22.66 20.70 24.80 ≤ 30.00 11ax-HE20 MCS0 36 5180 22.72 23.91 26.37 ≤ 30.00 11ax-HE20 MCS0 44 5220 24.47 25.36 27.95 ≤ 30.00 11ax-HE20 MCS0 48 5240 25.07 25.84 28.48 ≤ 30.00 11ax-HE20 MCS0 52 5260 18.40 19.22 21.84 ≤ 23.98 11ax-HE20 MCS0 60 5300 17.86 18.77 21.35 ≤ 23.98 11ax-HE20 MCS0 64 5320 17.60 18.24 20.94 ≤ 23.98 11ax-HE20 MCS0 100 5500 17.22 16.79 20.02 ≤ 23.98 11ax-HE20 MCS0 116 5580 17.66 16.33 20.06 ≤ 23.98 11ax-HE20 MCS0 140 5700 18.34 16.71 20.61 ≤ 23.98 11ax-HE20 MCS0 144 5720 18.52 16.82 20.76 ≤ 23.00 11ax-HE20 MCS0 149 5745 24.16 21.95 26.20 ≤ 30.00 11ax-HE20 MCS0 157 5785 24.20 22.25 26.34 ≤ 30.00 11ax-HE20 MCS0 165 5825 23.82 22.62 26.27 ≤ 30.00 Report No.: 2206RSU048-U2 57 of 284 Test Mode Data Rate MCS Channel No. Freq. (MHz) Average Power (dBm) Total Average Power (dBm) Average Power Limit (dBm) Ant 0 Ant 1 11ax-HE40 MCS0 38 5190 21.29 22.54 24.97 ≤ 30.00 11ax-HE40 MCS0 46 5230 24.22 25.10 27.69 ≤ 30.00 11ax-HE40 MCS0 54 5270 19.71 20.56 23.17 ≤ 23.98 11ax-HE40 MCS0 62 5310 19.76 20.91 23.38 ≤ 23.98 11ax-HE40 MCS0 102 5510 20.61 19.52 23.11 ≤ 23.98 11ax-HE40 MCS0 110 5550 20.68 19.17 23.00 ≤ 23.98 11ax-HE40 MCS0 134 5670 20.22 19.35 22.82 ≤ 23.98 11ax-HE40 MCS0 142 5710 21.73 19.79 23.88 ≤ 23.98 11ax-HE40 MCS0 151 5755 23.57 21.37 25.62 ≤ 30.00 11ax-HE40 MCS0 159 5795 23.76 21.79 25.90 ≤ 30.00 11ax-HE80 MCS0 42 5210 20.45 21.82 24.20 ≤ 30.00 11ax-HE80 MCS0 58 5290 19.77 20.98 23.43 ≤ 23.98 11ax-HE80 MCS0 106 5530 20.99 20.19 23.62 ≤ 23.98 11ax-HE80 MCS0 122 5610 21.54 20.07 23.88 ≤ 23.98 11ax-HE80 MCS0 138 5690 21.18 19.34 23.37 ≤ 23.98 11ax-HE80 MCS0 155 5775 22.55 20.46 24.64 ≤ 30.00 Note 1: Total Average Power (dBm) = 10*log {10 (Ant 0 Average Power /10) + 10 (Ant 1 Average Power /10) }. Note 2: For 5250-5350MHz & 5470-5725MHz, the conducted power limit is as below. 802.11a:…

Text truncated - open the document above for the full version.

Report No.: 2206RSU048-U2 68 of 284 802.11ax-HE20 Power Spectral Density - Ant 0 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) Channel 52 (5260MHz) Channel 60 (5300MHz) Channel 64 (5320MHz) Channel 100 (5500MHz) Channel 116 (5580MHz) Report No.: 2206RSU048-U2 69 of 284 802.11ax-HE20 Power Spectral Density - Ant 0 Channel 140 (5700MHz) Channel 144(5720MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 2206RSU048-U2 70 of 284 802.11ax-HE40 Power Spectral Density - Ant 0 Channel 38 (5190MHz) Channel 46 (5230MHz) Channel 54 (5270MHz) Channel 62 (5310MHz) Channel 102 (5510MHz) Channel 110 (5550MHz) Channel 134 (5670MHz) Channel 142(5710MHz) Report No.: 2206RSU048-U2 71 of 284 802.11ax-HE40 Power Spectral Density - Ant 0 Channel 151 (5755MHz) Channel 159 (5795MHz) Report No.: 2206RSU048-U2 72 of 284 802.11ax-HE80 Power Spectral Density - Ant 0 Channel 42 (5210MHz) Channel 58 (5290MHz) Channel 106 (5530MHz) Channel 122 (5610MHz) Channel 138 (5690MHz) Channel 155 (5775MHz) Report No.: 2206RSU048-U2 73 of 284 802.11a Power Spectral Density - Ant 1 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) Channel 52 (5260MHz) Channel 60 (5300MHz) Channel 64 (5320MHz) Channel 100 (5500MHz) Channel 116 (5580MHz) Report No.: 2206RSU048-U2 74 of 284 802.11a Power Spectral Density - Ant 1 Channel 140 (5700MHz) Channel 144(5720MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 2206RSU048-U2 75 of 284 802.11ac-VHT20 Power Spectral Density - Ant 1 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) Channel 52 (5260MHz) Channel 60 (5300MHz) Channel 64 (5320MHz) Channel 100 (5500MHz) Channel 116 (5580MHz) Report No.: 2206RSU048-U2 76 of 284 802.11ac-VHT20 Power Spectral Density - Ant 1 Channel 140 (5700MHz) Channel 144(5720MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 2206RSU048-U2 77 of 284 802.11ac-VHT40 Power Spectral Density - Ant 1 Channel 38 (5190MHz) Channel 46 (5230MHz) Channel 54 (5270MHz) Channel 62 (5310MHz) Channel 102 (5510MHz) Channel 110 (5550MHz) Channel 134 (5670MHz) Channel 142(5710MHz) Report No.: 2206RSU048-U2 78 of 284 802.11ac-VHT40 Power Spectral Density - Ant 1 Channel 151 (5755MHz) Channel 159 (5795MHz) Report No.: 2206RSU048-U2 79 of 284 802.11ac-VHT80 Power Spectral Density - Ant 1 Channel 42 (5210MHz) Channel 58 (5290MHz) Channel 106 (5530MHz) Channel 122 (5610MHz) Channel 138 (5690MHz) Channel 155 (5775MHz)

Report No.: 2206RSU048-U2 80 of 284 802.11ax-HE20 Power Spectral Density - Ant 1 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) Channel 52 (5260MHz) Channel 60 (5300MHz) Channel 64 (5320MHz) Channel 100 (5500MHz) Channel 116 (5580MHz) Report No.: 2206RSU048-U2 81 of 284 802.11ax-HE20 Power Spectral Density - Ant 1 Channel 140 (5700MHz) Channel 144(5720MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 2206RSU048-U2 82 of 284 802.11ax-HE40 Power Spectral Density - Ant 1 Channel 38 (5190MHz) Channel 46 (5230MHz) Channel 54 (5270MHz) Channel 62 (5310MHz) Channel 102 (5510MHz) Channel 110 (5550MHz) Channel 134 (5670MHz) Channel 142(5710MHz) Report No.: 2206RSU048-U2 83 of 284 802.11ax-HE40 Power Spectral Density - Ant 1 Channel 151 (5755MHz) Channel 159 (5795MHz) Report No.: 2206RSU048-U2 84 of 284 802.11ax-HE80 Power Spectral Density - Ant 1 Channel 42 (5210MHz) Channel 58 (5290MHz) Channel 106 (5530MHz) Channel 122 (5610MHz) Channel 138 (5690MHz) Channel 155 (5775MHz) Report No.: 2206RSU048-U2 85 of 284 A.6 Frequency Stability Test Result Test Site WZ-TR3 Test Engineer Lynn Yang Test Date 2022-07-26 Test Mode 5180MHz (Carrier Mode) Voltage (%) Power (VAC) Temp (°C) Frequency Tolerance (ppm) 0 minutes 2 minutes 5 minutes 10 minutes 100 120 0 19.305 17.375 19.305 16.409 + 10 18.340 19.305 17.375 19.305 + 20 13.514 17.375 9.653 19.305 + 30 9.653 9.653 9.653 7.722 + 40 7.722 5.792 3.861 7.722 + 50 11.583 3.861 1.931 9.653 115 138 + 20 15.444 19.305 19.305 11.583 85 102 + 20 17.375 17.375 11.583 13.514 Note: Frequency Tolerance (ppm) = {[Measured Frequency (Hz) - Declared Frequency (Hz)] / Declared Frequency (Hz)} *10 6 . Report No.: 2206RSU048-U2 86 of 284 A.7 Radiated Spurious Emission Test Result Test Site WZ-AC1 Test Engineer Edith Yu Test Date 2022-07-20~2022-07-21 Test Mode 802.11a – Channel 36 Remark 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB/m) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization * 8777.5 35.9 10.1 46.0 68.2 -22.2 Peak Horizontal * 10358.5 37.6 12.7 50.3 68.2 -17.9 Peak Horizontal 10936.5 35.7 12.9 48.6 74.0 -25.4 Peak Horizontal 12500.5 38.0 11.8 49.8 74.0 -24.2 Peak Horizontal * 8854.0 35.4 10.3 45.7 68.2 -22.5 Peak Vertical * 10358.5 37.7 12.7 50.4 68.2 -17.8 Peak Vertical 11616.5 36.4 12.2 48.6 74.0 -25.4 Peak Vertical 12279.5 36.3 12.1 48.4 74.0 -25.6 Peak Vertical Note 1: “*” is not in restricted band, its limit is -27dBm/MHz. At a distan…

Text truncated - open the document above for the full version.
