TV7CPG52XcAP ax

EN - English - Quick Guide: This Quick Guide covers the model: cAPGi-5HaxD2HaxD (cAP ax). This is a wireless network device. You can find the product model name on the case label (ID). Please visit the user manual page on for the full up-to-date user manual. Or scan the QR code with your mobile phone. https://mt.lv/um The most important technical specifications for this product can be found on the last page of this Quick Guide. Technical specifications, brochures, and more info about products are at https://mikrotik.com/products Configuration manual for software in your language with additional information can be found at https://mt.lv/help If you need help with configuration, please seek a consultant https://mikrotik.com/consultants First steps: Make sure your Internet service provider is allowing hardware change and will issue an automatic IP address; Connect the device to the power source; Open network connections on your computer and search for MikroTik wireless network - connect to it; The configuration can be done through the wireless network using a web browser or mobile app. Alternatively, you can use a WinBox configuration tool https:// ;mt.lv/winbox Open in your web browser to start configuration, user name: a and there is no password by default https://192.168.88.1dmin(or, for some models, check user and wireless passwords on the sticker); Click the (Check for updates) button and update your RouterOS software to the latest version; Choose your country, to apply country regulation settings; Set up your wireless network password; Set up your router password; Safety Information: Before you work on any MikroTik equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing accidents. The installer should be familiar with network structures, terms, and concepts. Use only the power supply and accessories approved by the manufacturer, which can be found in the original packaging of this product. This equipment is to be installed by trained and qualified personnel, as per these installation instructions. The installer is responsible for making sure, that the Installation of the equipment is compliant with local and national electrical codes. Do not attempt to disassemble, repair, or modify the device. This product is intended to be installed indoors. Keep this product away from water, fire, humidity, or hot environments. We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your own risk! The socket-outlet shall be installed near the equipment and shall be easily accessible. In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power adapter from the power outlet. To avoid contamination of the environment, separate the device from household waste and dispose of it in a safe manner, for example, in designated areas. Become familiar with procedures for properly transporting the equipment to designated collection points in your area. This MikroTik equipment complies with the European Union radiation exposure limits set forth for an uncontrolledExposure to Radio Frequency Radiation: environment. This MikroTik device should be installed and operated no closer than 30 centimeters from your body, occupational user, or the general public. Manufacturer: Mikrotikls SIA, Brivibas gatve 214i Riga, Latvia, LV1039. BG - Български. Бързо ръководство: Това кратко ръководство обхваща модел: cAPGi-5HaxD2HaxD (cAP ax). Tова е устройство за безжична мрежа. Можете да намерите името на модела на продукта върху етикета на кутията (ID). Моля, посетете страницата с ръководството за потребителя на за пълното актуализирано ръководство за употреба.https://mt.lv/um-bg Или сканирайте QR кода с мобилния си телефон. Технически спецификации, брошури и повече информация за продуктите на https://mikrotik.com/products Най-подходящите технически спецификации за този продукт могат да бъдат намерени на последната страница на това Кратко ръководство. Ръководство за конфигуриране на софтуер на вашия език с допълнителна информация можете да намерите наhttps://mt.lv/help-bg Ако имате нужда от помощ при конфигуриране, моля, потърсете консултант https://mikrotik.com/consultants Първи стъпки: This device needs to be upgraded to RouterOS v7.4.1 or the latest stable version, to ensure compliance with local authority regulations! It is the end users' responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling requirements, and Dynamic Frequency Selection (DFS) requirements. All MikroTik radio devices must be installed according to instructions. Това устройство трябва да бъде надстроено до RouterOS v7.4.1 или най-новата стабилна версия, за да се гарантира спазването на местните наредби! Крайните потребители са отговорни да спазват местните разпоредби, включително работа в рамките на законни честотни канали, изходна мощност, изисквания за окабеляване и изисквания за динамичен избор на честота (DFS). Всички радиоустройства MikroTik трябва да бъдат инсталирани съгласно инструкциите. Уверете се, че вашият доставчик на интернет услуги позволява промяна на хардуера и ще издаде автоматичен IP адрес; Свържете устройството към източника на захранване; Отворете мрежовите връзки на вашия компютър и потърсете безжична мрежа MikroTik - свържете се към нея; Конфигурацията трябва да се извърши през безжичната мрежа с помощта на уеб браузър или мобилно приложение; Като алтернатива можете да използвате инструмент за конфигуриране на WinBox ;https://mt.lv/winbox отвореноhttps://192.168.88.1във вашия уеб браузър за стартиране на конфигурация, потребителско име: adminи няма парола по подразбиране (или, за някои модели, проверете потребителските и безжичните пароли на стикера); Когато използвате мобилно приложение, изберете Бърза настройка и то ще ви преведе през цялата необходима…

Text truncated - open the document above for the full version.

Mikrotikls SIA (SIA "Mikrotīkls") Address: Brivibas gatve 214i, Rīga, LV-1039, Latvia Phone: +371 67317700 Fax: +371 67317701 Email: [email protected] Letter of Declaration on Indoor Access Point Operation Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 FCC ID: TV7CPG52X To Whom It May Concern: We, Mikrotikls SIA, attest that this device under FCC ID: TV7CPG52X complies with below operational restrictions: a. Operation shall be limited to indoor use only; b. This device is supplied power from a wired connection, has an integrated antenna, is not battery-powered, and does not have a weatherized enclosure. Signature, _________________ Name: Edmunds Zvegincevs Title: Engineer, R&D Email: [email protected] Phone: +371 67317700 Date: 2022-12-23

Mikrotikls SIA (SIA "Mikrotīkls") Address: Brivibas gatve 214i, Rīga, LV-1039, Latvia Phone: +371 67317700 Fax: +371 67317701 Email: [email protected] Declaration of Authorization We Name: Mikrotikls SIA Address: Brivibas gatve 214i, Riga, LV-1039 LATVIA Declare that: Name Representative of agent:Marlin Chen Agent Company name:MRT Technology (Suzhou) Co., Ltd Address:D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone City:Suzhou Country:China is authorized to apply for Certification of the following product(s): Product:cAP ax FCC ID:TV7CPG52X Model No.:cAPGi-5HaxD2HaxD-US Sincerely, ________________ Name: Edmunds Zvegincevs Title: Engineer, R&D Email: [email protected] Phone: +371 67317700 Date: 2022-11-28

Mikrotikls SIA (SIA "Mikrotīkls") Address: Brivibas gatve 214i, Rīga, LV-1039, Latvia Phone: +371 67317700 Fax: +371 67317701 Email: [email protected] Attestation Letter Federal Communications Commission Authorization and Evaluation Division We Name: Mikrotikls SIA Address: Brivibas gatve 214i, Riga, LV-1039 LATVIA Declare that the device does not support channel 12 ~ 13 in 2.4GHz band and any non-US channels in all the operational mode(s) for the following product. Product:cAP ax FCC ID:TV7CPG52X Model No.:cAPGi-5HaxD2HaxD-US Sincerely, _________________ Name: Edmunds Zvegincevs Title: Engineer, R&D Email: [email protected] Phone: +371 67317700 Date: 2022-10-27

Mikrotikls SIA (SIA "Mikrotīkls") Address: Brivibas gatve 214i, Rīga, LV-1039, Latvia Phone: +371 67317700 Fax: +371 67317701 Email: [email protected] Declaration of Conformity Federal Communications Commission Authorization and Evaluation Division FCC ID: FCC ID: TV7CPG52X TV7CPG52X Please be notified that we, the undersigned, Mikrotikls SIA declares that the product which bears the above FCC ID is also compliant with the FCC requirements for sDOC. And the sDOC procedure shall be carried out prior to marketing the device in the US. Sincerely, _________________ Name: Edmunds Zvegincevs Title: Engineer, R&D Email: [email protected] Phone: +371 67317700 Date: 2022-10-27

MikroTik (SIA "Mikrotīkls") VAT# LV40003286799 Billing addr.: Aizkraukles iela 23, Rīga, LV-1006, Latvia Office addr.: Pērnavas iela 46, Rīga, LV-1009, Latvia Phone: +371 67317700 Fax: +371 67317701 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: November 03, 2022 Subject; Request for Confidentiality FCC ID: TV7CPG52X To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Edmunds Zvegincevs Title: Compliance Engineer

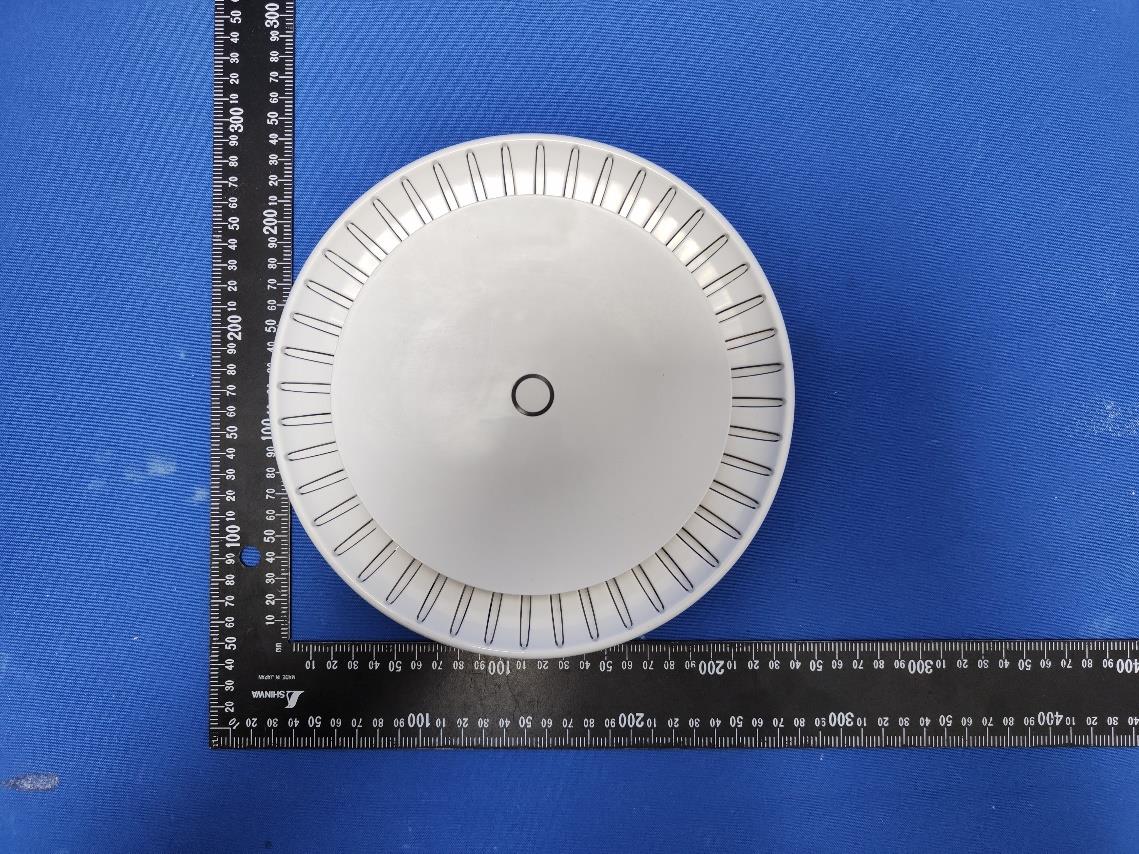

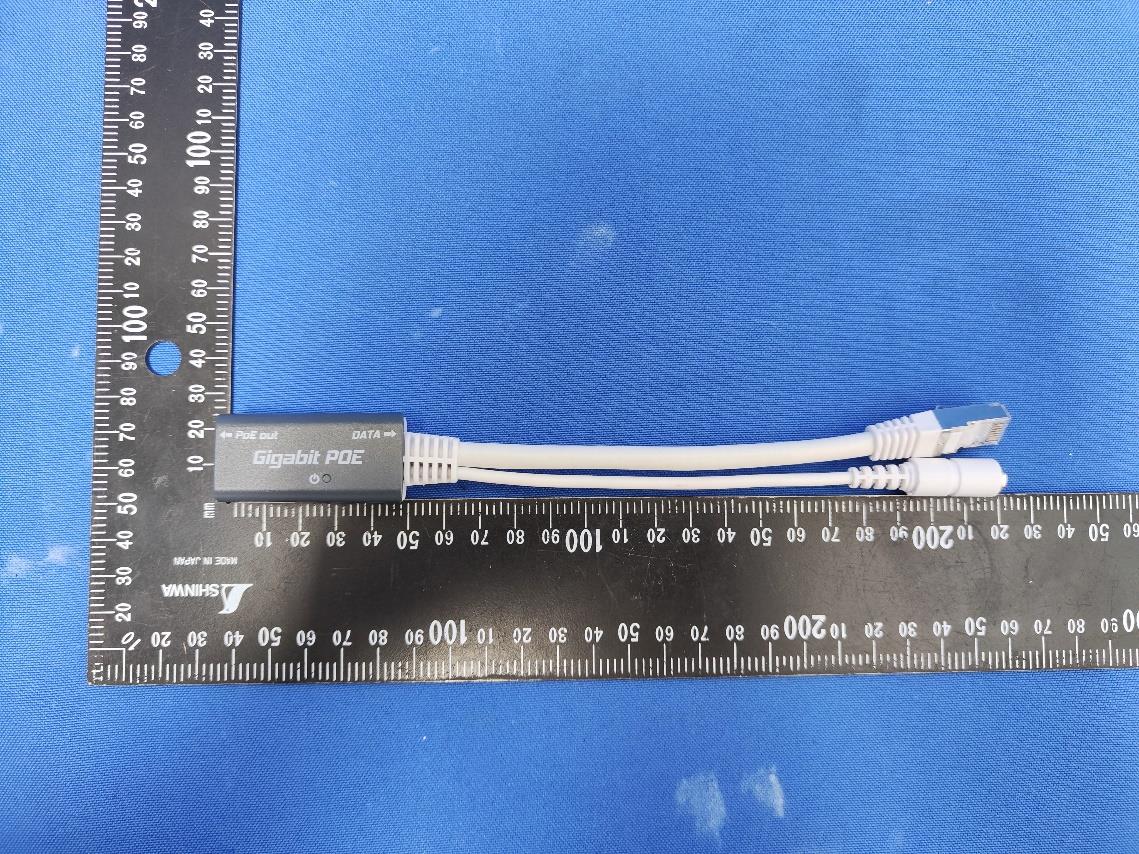

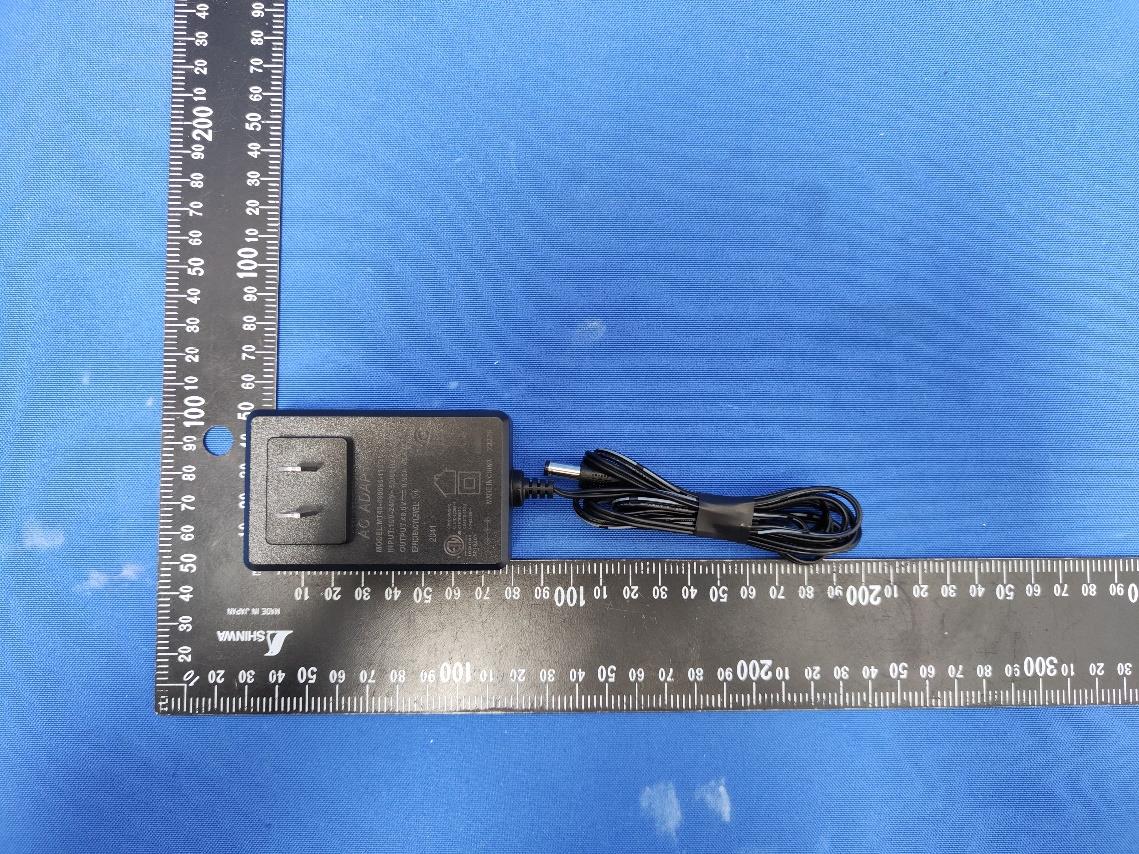

Report No.: 2209RSU050-UE 1 of 8 EUT External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2209RSU050-UE 2 of 8 (3) EUT Photo (4) EUT Photo Report No.: 2209RSU050-UE 3 of 8 (5) EUT Photo (6) EUT Photo Report No.: 2209RSU050-UE 4 of 8 (7) EUT Photo (8) EUT Photo Report No.: 2209RSU050-UE 5 of 8 (9) EUT Photo Report No.: 2209RSU050-UE 6 of 8 (10) EUT Photo (Adapter #1) Report No.: 2209RSU050-UE 7 of 8 (11) EUT Photo (Adapter #2) Report No.: 2209RSU050-UE 8 of 8 (12) EUT Photo (PoE Injector)

cAP ax ID: cAPGi-5HaxD2HaxD FCCID: TV7CPG52X IC: 7442A-CAPAX E01:XXX W01:XXX SN: XXX This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1)this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Manufacturer: Mikrotikls SIA, Brivibas gatve 214i, Riga, Latvia, LV1039 cAP ax ID: cAPGi-5HaxD2HaxD-US FCCID: TV7CPG52X IC: 7442A-CAPAX E01:XXX W01:XXX SN: XXX This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1)this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Manufacturer: Mikrotikls SIA, Brivibas gatve 214i, Riga, Latvia, LV1039 CE Label FCC/IC Label User: XXX Wifi key: XXXX Password: XXXX User: XXX Wifi key: XXXX Password: XXXX Indoor Label Indoor Label Indoor Use Only

Report No.: 2209RSU050-UE 1 of 9 EUT Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2209RSU050-UE 2 of 9 (3) EUT Photo (4) EUT Photo Report No.: 2209RSU050-UE 3 of 9 (5) EUT Photo (6) EUT Photo Report No.: 2209RSU050-UE 4 of 9 (7) EUT Photo (8) EUT Photo Report No.: 2209RSU050-UE 5 of 9 (9) EUT Photo (10) EUT Photo Report No.: 2209RSU050-UE 6 of 9 (11) EUT Photo (12) EUT Photo Report No.: 2209RSU050-UE 7 of 9 (13) EUT Photo (14) EUT Photo Report No.: 2209RSU050-UE 8 of 9 (15) EUT Photo (16) EUT Photo Report No.: 2209RSU050-UE 9 of 9 (17) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 2209RSU050-U4 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 2022-11-26 Template Version:0.0 1 of 8 RF Exposure Evaluation Declaration FCC ID: TV7CPG52X Applicant: Mikrotikls SIA Product: cAP ax Model No.: cAPGi-5HaxD2HaxD-US Brand Name: MikroTik FCC Classification: Digital Transmission System (DTS) Unlicensed National Information Infrastructure (NII) FCC Rule Part(s): Part15 Subpart C (Section 15.247) Result: Complies Reviewed By: Vincent Yu Approved By: Robin Wu The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2209RSU050-U4 2 of 8 Revision History Report No. Version Description Issue Date Note 2209RSU050-U4 Rev. 01 Initial Report 2022-11-26 Valid Report No.: 2209RSU050-U4 3 of 8 CONTENTS Description Page 1. General Information ................................................................................................................................ 4 1.1. Applicant ........................................................................................................................................ 4 1.2. Manufacturer ................................................................................................................................. 4 1.3. Testing Facility ............................................................................................................................... 4 1.4. Product Information ....................................................................................................................... 5 1.5. Antenna Details ............................................................................................................................. 6 1.6. Device Classification ..................................................................................................................... 6 2. RF Exposure Evaluation ......................................................................................................................... 7 2.1. Test Limits ..................................................................................................................................... 7 2.2. Test Result ..................................................................................................................................... 8 Report No.: 2209RSU050-U4 4 of 8 1. General Information 1.1. Applicant Mikrotikls SIA Brivibas gatve 214i, Riga, LV-1039 LATVIA 1.2. Manufacturer Mikrotikls SIA Brivibas gatve 214i, Riga, LV-1039 LATVIA 1.3. Testing Facility Test Site – MRT Suzhou Laboratory Laboratory Location (Suzhou - Wuzhong) D8 Building, No.2 Tian’edang Rd., Wuzhong Economic Development Zone, Suzhou, China Laboratory Location (Suzhou - SIP) 4b Building, Liando U Valley, No.200 Xingpu Rd., Shengpu Town, Suzhou Industrial Park, China Laboratory Accreditations A2LA: 3628.01 CNAS: L10551 FCC: CN1166 ISED: CN0001 VCCI: R-20025 G-20034 C-20020 T-20020 R-20141 G-20134 C-20103 T-20104 Test Site – MRT Shenzhen Laboratory Laboratory Location (Shenzhen) 1G, Building A, Junxiangda Building, Zhongshanyuan Road West, Nanshan District, Shenzhen, China Laboratory Accreditations A2LA: 3628.02 CNAS: L10551 FCC: CN1284 ISED: CN0105 Test Site – MRT Taiwan Laboratory Laboratory Location (Taiwan) No. 38, Fuxing 2nd Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) Laboratory Accreditations TAF: L3261-190725 FCC: 291082, TW3261 ISED: TW3261 Report No.: 2209RSU050-U4 5 of 8 1.4. Product Information Product Name cAP ax Model No. cAPGi-5HaxD2HaxD-US EUT Identification No. 20220920Sample#03 Wi-Fi Specification 802.11a/b/g/n/ac/ax, VHT Hardware Version r2 Software Version RouterOS v7 Antenna Information Refer to Section 1.7 Operating Temp. 0 ~ 40°C Operating Environment Indoor Use Accessories Adapter #1 Model: SAW36-240-1500U Input: 100-240V ~ 50/60Hz, 1.3A Output: 24V, 1.5A Adapter #2 Model: MT48-480095-11SGU Input: 100-240V ~ 50/60Hz, 1.0A Max Output: 48V, 0.95A PoE Injector Gigabit PoE Input Power: 18 - 57VDC Remark: The information of EUT was provided by the manufacturer, and the accuracy of the information shall be the responsibility of the manufacturer. Report No.: 2209RSU050-U4 6 of 8 1.5. Antenna Details Antenna Type Frequency Band (MHz) Max Peak Gain (dBi) CDD Directional Gain (dBi) For Power For PSD Wi-Fi Antenna (2*2 MIMO) Internal; Semi-directional Antenna 2.400 ~ 2483.5 5.90 5.90 8.91 5150 ~ 5250 5.45 5.45 8.46 5250 ~ 5350 5.35 5.35 8.36 5470 ~ 5725 6.20 6.20 9.21 5850 ~ 5895 5.60 5.60 8.61 Note: The EUT supports Cyclic Delay Diversity (CDD) mode, and CDD signals are correlated. For CDD transmissions, directional gain is calculated as follows, N ANT = 2, N SS = 1. If all antennas have the same gain, G ANT , Directional gain = G ANT + Array Gain, where Array Gain is as follows. • For power spectral density (PSD) measurements on all devices, Array Gain = 10 log (N ANT / N SS ) dB = 3.01; • For power measurements on IEEE 802.11 devices, Array Gain = 0 dB for N ANT ≤ 4; 1.6. Device Classification According to the user manual, the antenna of this device is at least 30 cm away from the body of the user, this device is classified as a Mobile Device. So, the RF exposure evaluation requirements of § 2.1091 for mobile device exposure conditions subject to MPE limits. Report No.: 2209RSU050-U4 7 of 8 2. RF Exposure Evaluation 2.1. Test Limits According to FCC Part 2.1091, A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 cm is normally maintained between the RF source's radiating structure(s) and the body of the user or nearby persons. Ac…

Text truncated - open the document above for the full version.

Mikrotikls SIA (SIA "Mikrotīkls") Address: Brivibas gatve 214i, Rīga, LV-1039, Latvia Phone: +371 67317700 Fax: +371 67317701 Email: [email protected] Antenna Specifications - cAPGi-5HaxD2HaxD Table of Contents Antenna System Description................................................................................................................2 Antenna Peak Gain information...........................................................................................................2 Return Loss Results..............................................................................................................................3 Test Setup for Radiation Pattern Measurement....................................................................................5 Radiation Pattern Results.....................................................................................................................6 1 Mikrotikls SIA (SIA "Mikrotīkls") Address: Brivibas gatve 214i, Rīga, LV-1039, Latvia Phone: +371 67317700 Fax: +371 67317701 Email: [email protected] Antenna System Description Frequency range2400~2500 MHz / 5150~5850 MHz Impedance50 Ohm Nominal RadiationSemi-directional Antenna System Beamwidth~180° Antenna Peak Gain information Frequency Band (MHz) Ant 1, dbiAnt 2, dbiAnt 3 , dbiAnt 4, dbi 2.4 GHz / ch02.4 GHz / ch15 GHz / ch05 GHz / ch1 2400~25005.95.9-- 5150~5250--5.455.45 5250~5350--5.355.35 5470~5725--6.26.2 5725~5850--66 5850~5895--5.65.6 2 Mikrotikls SIA (SIA "Mikrotīkls") Address: Brivibas gatve 214i, Rīga, LV-1039, Latvia Phone: +371 67317700 Fax: +371 67317701 Email: [email protected] Return Loss Results Antenna 1 (2.4 GHz / ch0) Antenna 2 (2.4 GHz / ch1) 3 Mikrotikls SIA (SIA "Mikrotīkls") Address: Brivibas gatve 214i, Rīga, LV-1039, Latvia Phone: +371 67317700 Fax: +371 67317701 Email: [email protected] Antenna 3 (5 GHz / ch0) Antenna 4 (5 GHz / ch1) 4 Mikrotikls SIA (SIA "Mikrotīkls") Address: Brivibas gatve 214i, Rīga, LV-1039, Latvia Phone: +371 67317700 Fax: +371 67317701 Email: [email protected] Test Setup for Radiation Pattern Measurement System diagram Test setup picture 5 Z Y X Mikrotikls SIA (SIA "Mikrotīkls") Address: Brivibas gatve 214i, Rīga, LV-1039, Latvia Phone: +371 67317700 Fax: +371 67317701 Email: [email protected] Radiation Pattern Results Antenna 1 (ch0), Antenna 2 (ch1) 6 +X (0°) +Y (90°) -X (180°) -Y (-90°)-19 -17 -15 -13 -11 -9 -7 -5 -3 -1 1 3 XY-Plane 2412_ch0 2472_ch0 2412_ch1 2472_ch1 +Z (0°) +X (90°) -Z (180°) -X (-90°)-14 -13 -12 -11 -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 0 1 2 3 4 5 XZ-Plane 2412_ch0 2412_ch1 2472_ch0 2472_ch1 +Z (0°) +Y (90°) -Z (180°) -Y (-90)-14 -12 -10 -8 -6 -4 -2 0 2 4 6 YZ-Plane 2412_ch0 2412_ch1 2472_ch0 2472_ch1 Mikrotikls SIA (SIA "Mikrotīkls") Address: Brivibas gatve 214i, Rīga, LV-1039, Latvia Phone: +371 67317700 Fax: +371 67317701 Email: [email protected] Antenna 3 (ch0), Antenna 4 (ch1) 7 +X (0°) +Y (90°) -X (180°) -Y (-90°)-23 -21 -19 -17 -15 -13 -11 -9 -7 -5 -3 -1 1 3 5 XY-Plane 5180_ch0 5500_ch0 5825_ch0 +X (0°) +Y (90°) -X (180°) -Y (-90°)-22 -19 -16 -13 -10 -7 -4 -1 2 5 XY-Plane 5180_ch1 5500_ch1 5825_ch1 +Z (0°) +X (90°) -Z (180°) -X (-90°)-23 -21 -19 -17 -15 -13 -11 -9 -7 -5 -3 -1 1 3 5 XZ-Plane 5180_ch0 5500_ch0 5825_ch0 +Z (0°) +X (90°) -Z (180°) -X (-90°)-15 -13 -11 -9 -7 -5 -3 -1 1 3 XZ-Plane 5180_ch1 5500_ch1 5825_ch1 Mikrotikls SIA (SIA "Mikrotīkls") Address: Brivibas gatve 214i, Rīga, LV-1039, Latvia Phone: +371 67317700 Fax: +371 67317701 Email: [email protected] --- END --- _________________ Name: Edmunds Zvegincevs Title: MikroTik Engineer, R&D Email: [email protected] Phone: +371 67317700 Date: 2022-08-20 8 +Z (0°) +Y (90°) -Z (180°) -Y (-90)-13 -11 -9 -7 -5 -3 -1 1 3 5 7 YZ-Plane 5180_ch0 5500_ch0 5825_ch0 +Z (0°) +Y (90°) -Z (180°) -Y (-90)-12 -10 -8 -6 -4 -2 0 2 4 YZ-Plane 5180_ch1 5500_ch1 5825_ch1

MRT Technology (Suzhou) Co., Ltd Report No.: 2209RSU050-U3 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 2022-11-26 Template Version:0.0 1 of 141 DFS MEASUREMENT REPORT FCC ID: TV7CPG52X Applicant: Mikrotikls SIA Product: cAP ax Model No.: cAPGi-5HaxD2HaxD-US Brand Name: MikroTik FCC Classification: Unlicensed National Information Infrastructure (NII) FCC Rule Part(s): Part 15 Subpart E (Section 15.407) Result: Complies Test Date: 2022-09-27 ~ 2022-09-29 Reviewed By: Vincent Yu Approved By: Robin Wu The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 905462. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2022RSU0050-U3 2 of 141 Revision History Report No. Version Description Issue Date Note 2209RSU050-U3 Rev. 01 Initial Report 2022-11-26 Valid Report No.: 2022RSU0050-U3 3 of 141 CONTENTS Description Page 1. General Information ................................................................................................................................ 5 1.1. Applicant ...................................................................................................................................... 5 1.2. Manufacturer ................................................................................................................................ 5 1.3. Testing Facility ............................................................................................................................. 5 1.4. Product Information ...................................................................................................................... 6 1.5. Radio Specification under Test .................................................................................................... 6 1.6. Working Frequencies ................................................................................................................... 7 1.7. Antenna Details ............................................................................................................................ 8 1.8. TPC Power ................................................................................................................................... 8 2. Test Configuration ................................................................................................................................... 9 2.1. Test Mode ..................................................................................................................................... 9 2.2. Test Channel ................................................................................................................................ 9 2.3. Applied Standards ........................................................................................................................ 9 2.4. Test Environment Condition ......................................................................................................... 9 3. DFS Detection Thresholds and Radar Test Waveforms .................................................................... 10 3.1. Applicability ................................................................................................................................ 10 3.2. DFS Devices Requirements........................................................................................................ 11 3.3. DFS Detection Threshold Values ............................................................................................... 13 3.4. Parameters of DFS Test Signals ................................................................................................ 14 3.5. Conducted Test Setup ................................................................................................................ 17 4. Measuring Instrument ........................................................................................................................... 18 5. Test Result .............................................................................................................................................. 19 5.1. Summary .................................................................................................................................... 19 5.2. Radar Waveform Calibration Measurement............................................................................... 20 5.2.1. Calibration Setup ....................................................................................................................... 20 5.2.2. Calibration Procedure ................................................................................................................ 20 5.2.3. Calibration & Channel Loading Result ....................................................................................... 20 5.3. NII Detection Bandwidth Measurement ..................................................................................... 21 5.3.1. Test Limit .................................................................................................................................... 21 5.3.2. Test Procedure ........................................................................................................................... 21 5.3.3. Test Result ................................................................................................................................. 22 5.4. Initial Channel Availability Check Time Measurement ............................................................... 23 5.4.1. Test Limit .................................................................................................................................... 23 5.4.2. Test…

Text truncated - open the document above for the full version.

MRT Technology (Suzhou) Co., Ltd Report No.: 2209RSU050-U2 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 2022-11-26 Template Version:0.0 1 of 289 RF MEASUREMENT REPORT FCC ID: TV7CPG52X Applicant: Mikrotikls SIA Product: cAP ax Model No.: cAPGi-5HaxD2HaxD-US Brand Name: MikroTik FCC Classification: Unlicensed National Information Infrastructure (NII) FCC Rule Part(s): Part 15 Subpart E (Section 15.407) Result: Complies Test Date: 2022-09-29 ~ 2022-10-17 Reviewed By: Vincent Yu Approved By: Robin Wu The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB789033. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2209RSU050-U2 2 of 289 Revision History Report No. Version Description Issue Date Note 2209RSU050-U2 Rev. 01 Initial Report 2022-11-26 Valid Report No.: 2209RSU050-U2 3 of 289 CONTENTS Description Page 1. General Information ........…

Text truncated - open the document above for the full version.
