TV7CPGI52XLcAP XL ac

EN - English - Quick Guide: This "cAP XL ac" series Quick Guide covers models: RBcAPGi-5acD2nD-XL (cAP XL ac). This is a wireless network device. You can find the product model name on the case label (ID). Please visit the user manual page on for the full up-to-date user manual. Or scan the QR code with your mobile phone. https://mt.lv/um Technical specifications, brochures, and more info about products at https://mikrotik.com/products The most relevant technical specifications for this product can be found on the last page of this Quick Guide. Configuration manual for software in your language with additional information can be found at https://mt.lv/help If you need help with configuration, please seek a consultant https://mikrotik.com/consultants First steps: Make sure your Internet service provider is allowing hardware change and will issue an automatic IP address; Connect the device to the power source; Open network connections on your computer and search for MikroTik wireless network - connect to it; The configuration can be done through the wireless network using a web browser or mobile app. Alternatively, you can use a WinBox configuration tool https:// ;mt.lv/winbox Open in your web browser to start configuration, user name: a and there is no password by default;https://192.168.88.1dmin Click the (Check for updates) button and update your RouterOS software to the latest version; Choose your country, to apply country regulation settings; Set up your wireless network password; Set up your router password; Safety Information: Before you work on any MikroTik equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing accidents. The installer should be familiar with network structures, terms, and concepts. Use only the power supply and accessories approved by the manufacturer, and which can be found in the original packaging of this product. This equipment is to be installed by trained and qualified personnel, as per these installation instructions. The installer is responsible for making sure, that the Installation of the equipment is compliant with local and national electrical codes. Do not attempt to disassemble, repair, or modify the device. This product is intended to be installed indoors. Keep this product away from water, fire, humidity, or hot environments. We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your own risk! In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power adapter from the power outlet. To avoid contamination of the environment, separate the device from household waste and dispose of it in a safe manner, for example, in designated areas. Become familiar with procedures for properly transporting the equipment to designated collection points in your area. This MikroTik equipment complies with the FCC, IC, and European Union radiation exposure limits set forth for anExposure to Radio Frequency Radiation: uncontrolled environment. This MikroTik device should be installed and operated no closer than 20 centimeters from your body, occupational user, or the general public. Manufacturer: Mikrotikls SIA, Brivibas gatve 214i Riga, Latvia, LV1039. BG - Български. Бързо ръководство: Това серия "cAP XL ac" Бързо ръководство обхваща модели: RBcAPGi-5acD2nD-XL (cAP XL ac). Моля, посетете страницата с ръководството за потребителя на за пълното актуализирано ръководство за употреба.https://mt.lv/um-bg Или сканирайте QR кода с мобилния си телефон. Технически спецификации, брошури и повече информация за продуктите на https://mikrotik.com/products Най-подходящите технически спецификации за този продукт могат да бъдат намерени на последната страница на това Кратко ръководство. Ръководство за конфигуриране на софтуер на вашия език с допълнителна информация можете да намерите наhttps://mt.lv/help-bg Ако имате нужда от помощ при конфигуриране, моля, потърсете консултант https://mikrotik.com/consultants Първи стъпки: Уверете се, че вашият доставчик на интернет услуги позволява промяна на хардуера и ще издаде автоматичен IP адрес; Свържете устройството към източника на захранване; Отворете мрежовите връзки на вашия компютър и потърсете безжична мрежа MikroTik - свържете се към нея; Конфигурацията трябва да се извърши през безжичната мрежа с помощта на уеб браузър или мобилно приложение; This device needs to be upgraded to RouterOS v6.48.2 or the latest stable version, to ensure compliance with local authority regulations! It is the end users' responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling requirements, and Dynamic Frequency Selection (DFS) requirements. All MikroTik radio devices must be installed according to instructions. Това устройство трябва да бъде надстроено до RouterOS v6.48.2 или най-новата стабилна версия, за да се гарантира спазването на местните наредби! Крайните потребители са отговорни да спазват местните разпоредби, включително работа в рамките на законни честотни канали, изходна мощност, изисквания за окабеляване и изисквания за динамичен избор на честота (DFS). Всички радиоустройства MikroTik трябва да бъдат инсталирани съгласно инструкциите. Конфигурацията трябва да се извърши през безжичната мрежа с помощта на уеб браузър или мобилно приложение; Като алтернатива можете да използвате инструмент за конфигуриране на WinBox ;https://mt.lv/winbox отвореноhttps://192.168.88.1във вашия уеб браузър за стартиране на конфигурация, потребителско име: adminи няма парола по подразбиране; Когато използвате мобилно приложение, изберете Бърза настройка и то ще ви преведе през цялата необходима конфигурация в шест лесни стъпки; Щракнете върху бутона (Check for updates) и актуализирайте софтуера на RouterOS до най-новата версия; Изберете вашата страна, за да приложите настройките за…

Text truncated - open the document above for the full version.

Mikrotikls SIA Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2021-06-29 Subject; Request for Long Term Confidentiality FCC ID: TV7CPGI52XL To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES BOM It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Edmunds Zvegincevs Title: engineer, R&D

Mikrotikls SIA Letter of Authorization Company: Mikrotikls SIA Address: Brivibas gatve 214i, Riga, LV-1039, Latvia Product Name: cAP XL ac Model Number: RBcAPGi-5acD2nD-XL-US FCC Identifier: TV7CPGI52XL We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Edmunds Zvegincevs Date: 2021-06-29 Title: engineer, R&D

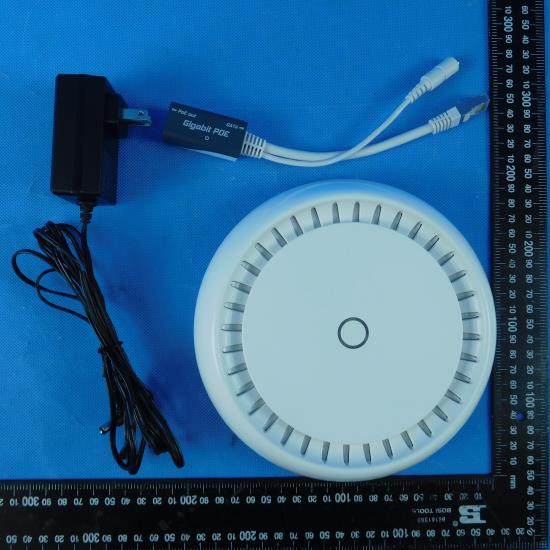

7.EXTERANAL AND INTERNAL PHOTOS EXTERANAL PHOTOS M odel：RBcAPGi-5acD2nD-XL-US

c A P X L a c F C C I D : T V 7 C P G I 5 2 X L I C : 7 4 4 2 A - C P G I 5 2 X L L a b e l RBcAPGi-5acD2nD-XL-US - Label and location ID: RBcAPGi-5acD2nD-XL-US

INTERNAL PHOTOS Model：RBcAPGi-5acD2nD-XL-US

FCC ID: TV7CPGI52XL RF Exposure Evaluation LIMIT The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 - - f/300 6 1500–100,000 - - 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 - - f/1500 30 1500–100,000 - - 1.0 30 Note: f = frequency in MHz EVALUATION METHOD Transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW, G = gain of antenna in linear scale; Pi = 3.1416, R = distance between observation point and center of the radiator in cm TEST RESULT Passed Not Applicable FCC ID: TV7CPGI52XL Frequency range (MHz) Type Conducted Average Power (dBm) Maximum Tune up (dBm) Power Density (mW/cm2) Limit (mW/cm2) Result 2412-2462 802.11b 15.42 - 16.00 0.02810 1.0000 Pass 2412-2462 802.11g 15.17 16.00 0.02810 1.0000 Pass 2412-2462 802.11n(HT20) 14.58 15.00 0.02232 1.0000 Pass 2422-2452 802.11n(HT40) 14.74 15.00 0.02232 1.0000 Pass 5180-5240 802.11a/n/ac 17.11 18.00 0.04454 1.0000 Pass 5745-5825 802.11a/n/ac 17.26 18.00 0.04454 1.0000 Pass Note: 1) The maximum antenna gain is 5.5dBi 2) The exposure evaluation safety distance is 20cm.

Project No.: SHT2104006201EW Radio Specification: WIFI 5G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 1 of 95 APPENDIX REPORT Project No. SHT2104006201EW Radio Specification WIFI 5G Test sample No. YPHT21040062001 Model No. RBcAPGi-5acD2nD-XL Start test date 2021-04-28 Finish date 2021-04-28 Temperature 23.9°C Humidity 32% Test Engineer Hailey Chen Auditor Appendix clause Test item Result A Maximum Conducted Output Power PASS B Maximum Power Spectral Density PASS C 26 dB Bandwidth PASS D 99% Occupy bandwidth PASS E 6 dB Bandwidth PASS F Band edge PASS G Frequency stability PASS Project No.: SHT2104006201EW Radio Specification: WIFI 5G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 2 of 95 Appendix A：Maximum Conducted Output Power Band Band width (MHz) Type Channel Reading (dBm) Duty cycle (%) Duty cycle factor（dB） Conducted Output Power (dBm) Total Power (dBm) Limit (dBm) Result Antenna 0 Antenna 1 Antenna 0 Antenna 1 Antenna 0 Antenna 1 Antenna 0 Antenna 1 I 20 802. 11ac CH L 12.59 12.32 94.67 93.41 0.24 0.30 12.83 12.62 15.71 30.00 Pass CH M 12.65 12.85 93.41 93.81 0.30 0.28 12.95 13.13 16.06 CH H 12.50 13.19 92.63 94.20 0.33 0.26 12.83 13.45 16.17 802. 11n CH L 13.36 13.09 94.65 92.93 0.24 0.32 13.60 13.41 16.51 30.00 Pass CH M 13.57 13.61 94.18 94.58 0.26 0.24 13.83 13.85 16.86 CH H 13.31 13.98 91.82 94.65 0.37 0.24 13.68 14.22 16.97 802. 11a CH L 15.94 15.31 92.70 93.80 0.33 0.28 16.27 15.59 -- 30.00 Pass CH M 15.89 15.90 93.37 92.28 0.30 0.35 16.19 16.25 -- CH H 15.69 16.16 94.55 93.06 0.24 0.31 15.93 16.47 -- 40 802. 11ac CH L 11.91 12.31 88.96 89.70 0.51 0.47 12.42 12.78 15.61 30.00 Pass CH H 11.99 12.67 84.74 89.02 0.72 0.51 12.71 13.18 15.97 802. 11n CH L 12.96 13.93 94.53 91.98 0.24 0.36 13.20 14.29 16.80 30.00 Pass CH H 12.51 13.15 94.47 87.43 0.25 0.58 12.76 13.73 16.28 80 802. 11ac CH M 12.85 12.97 77.26 74.97 1.12 1.25 13.97 14.22 17.11 30.00 Pass Band Band width (MHz) Type Channel Reading (dBm) Duty cycle (%) Duty cycle factor（dB） Conducted Output Power (dBm) Total Power (dBm) Limit (dBm) Result Antenna 0 Antenna 1 Antenna 0 Antenna 1 Antenna 0 Antenna 1 Antenna 0 Antenna 1 IV 20 802. 11ac CH L 12.92 13.61 93.86 93.41 0.28 0.30 13.20 13.91 16.57 30.00 Pass CH M 13.07 12.92 92.24 92.18 0.35 0.35 13.42 13.27 16.36 CH H 13.88 13.41 93.02 93.41 0.31 0.30 14.19 13.71 16.97 802. 11n CH L 12.94 13.60 92.99 93.78 0.32 0.28 13.26 13.88 16.62 30.00 Pass CH M 13.61 13.84 94.65 93.78 0.24 0.28 13.85 14.12 17.01 CH H 13.56 13.97 93.38 93.38 0.30 0.30 13.86 14.27 17.11 802. 11a CH L 16.06 16.66 92.70 94.18 0.33 0.26 16.39 16.92 -- 30.00 Pass CH M 16.70 16.85 94.23 93.80 0.26 0.28 16.96 17.13 -- CH H 16.89 16.96 94.17 93.37 0.26 0.30 17.15 17.26 -- 40 802. 11ac CH L 12.59 12.96 89.75 85.41 0.47 0.68 13.06 13.64 16.37 30.00 Pass CH H 13.06 13.47 86.09 92.10 0.65 0.36 13.71 13.83 16.78 802. 11n CH L 12.43 12.78 88.93 90.43 0.51 0.44 12.94 13.22 16.06 30.00 Pass CH H 12.59 12.82 88.93 88.93 0.51 0.51 13.10 13.33 16.21 80 802. 11ac CH M 12.68 12.10 82.21 78.44 0.85 1.05 13.53 13.15 16.35 30.00 Pass NOTE: duty cycle factor =10LOG(1/ duty cycle ) Project No.: SHT2104006201EW Radio Specification: WIFI 5G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 3 of 95 Appendix B：Maximum Power Spectral Density Band Band width (MHz) Type Channel Reading (dBm) Duty cycle (%) Duty cycle factor（dB） Power Spectral Density (dBm/MHz) Total PSD (dBm/ MHz) Limit (dBm/ MHz) Result Antenna 0 Antenna 1 Antenna 0 Antenna 1 Antenna 0 Antenna 1 Antenna 0 Antenna 1 I 20 802. 11ac CH L 2.92 3.07 94.67 93.41 0.24 0.30 3.16 3.37 6.28 14.50 Pass CH M 2.46 2.94 93.41 93.81 0.30 0.28 2.76 3.22 6.01 CH H 2.59 3.51 92.63 94.20 0.33 0.26 2.92 3.77 6.38 802. 11n CH L 3.61 4.37 94.65 92.93 0.24 0.32 3.85 4.69 7.30 14.50 Pass CH M 3.84 4.16 94.18 94.58 0.26 0.24 4.10 4.40 7.26 CH H 3.76 4.82 91.82 94.65 0.37 0.24 4.13 5.06 7.63 802. 11a CH L 6.31 5.73 92.70 93.80 0.33 0.28 6.64 6.01 -- 14.50 Pass CH M 6.55 6.35 93.37 92.28 0.30 0.35 6.85 6.70 -- CH H 6.18 6.63 94.55 93.06 0.24 0.31 6.42 6.94 -- 40 802. 11ac CH L -0.03 -1.05 88.96 89.70 0.51 0.47 0.48 -0.58 2.99 14.50 Pass CH H -1.06 -0.72 84.74 89.02 0.72 0.51 -0.34 -0.21 2.74 802. 11n CH L 1.09 1.18 94.53 91.98 0.24 0.36 1.33 1.54 4.45 14.50 Pass CH H 0.06 0.49 94.47 87.43 0.25 0.58 0.31 1.07 3.72 80 802. 11ac CH M -3.22 -2.88 77.26 74.97 1.12 1.25 -2.10 -1.63 1.15 14.50 Pass Band Bandwidth (MHz) Type Channel Reading (dBm) Duty cycle (%) Duty cycle factor（dB） Power Spectral Density (dBm/500kHz) Total PSD (dBm/ MHz) Limit (dBm/ 500 KHz) Result Antenna 0 Antenna 1 Antenna 0 Antenna 1 Antenna 0 Antenna 1 Antenna 0 Antenna 1 IV 20 802.11ac CH L 1.54 2.10 93.86 93.41 0.28 0.30 1.82 2.40 5.13 27.50 Pass CH M 1.13 1.98 92.24 92.18 0.35 0.35 1.48 2.33 4.33 CH H 2.35 1.93 93.02 93.41 0.31 0.30 2.66 2.23 5.46 802.11n CH L 1.67 2.24 92.99 93.78 0.32 0.28 1.99 2.52 5.27 27.50 Pass CH M 2.36 2.47 94.65 93.78 0.24 0.28 2.60 2.75 5.69 CH H 2.08 2.78 93.38 93.38 0.30 0.30 2.38 3.08 5.75 802.11a CH L 4.52 5.28 92.70 94.18 0.33 0.26 4.85 5.54 -- 27.50 Pass CH M 4.36 5.30 94.23 93.80 0.26 0.28 4.62 5.58 -- CH H 4.88 4.72 94.17 93.37 0.26 0.30 5.14 5.02 -- 40 802.11ac CH L -1.91 -1.56 89.75 85.41 0.47 0.68 -1.44 -0.88 1.86 27.50 Pass CH H -1.95 -1.42 86.09 92.10 0.65 0.36 -1.30 -1.06 2.51 802.11n CH L -2.08 -1.66 88.93 90.43 0.51 0.44 -1.57 -1.22 1.62 27.50 Pass CH H -2.13 -2.11 88.93 88.93 0.51 0.51 -1.62 -1.60 1.40 80 802.11ac CH M -4.87 -5.68 82.21 78.44 0.85 1.05 -4.02 -4.63 1.29 27.50 Pass Project No.: SHT2104006201EW Radio Specification: WIFI 5G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 4 of 95 Test plot as follows: Band I 802.11ac (HT20) Antenna 0 CH L Date: 25.APR.2021 15:07:49 CH M Date: 25.APR.2021 15:11:20 CH H Date: 25.APR.2021 15:24:40 Project No.: SHT2104006201EW Radio Specification: WIFI 5G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report…

Text truncated - open the document above for the full version.

Project No.: SHT2104006201EW Radio Specification: WIFI 5G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 51 of 95 Band I 802.11n (HT40) Antenna 1 CH L Date: 26.APR.2021 10:21:54 CH H Date: 25.APR.2021 14:51:29 Band I 802.11ac (HT80) Antenna 1 CH M Date: 25.APR.2021 16:27:26 Project No.: SHT2104006201EW Radio Specification: WIFI 5G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 52 of 95 Band IV 802.11ac (HT20) Antenna 1 CH L Date: 25.APR.2021 18:39:38 CH M Date: 25.APR.2021 18:44:18 CH H Date: 25.APR.2021 18:56:27 Project No.: SHT2104006201EW Radio Specification: WIFI 5G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 53 of 95 Band IV 802.11n (HT20) Antenna 1 CH L Date: 25.APR.2021 18:01:37 CH M Date: 25.APR.2021 18:04:28 CH H Date: 25.APR.2021 17:57:33 Project No.: SHT2104006201EW Radio Specification: WIFI 5G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 54 of 95 Band IV 802.11a Antenna 1 CH L Date: 25.APR.2021 17:12:19 CH M Date: 25.APR.2021 17:14:55 CH H Date: 25.APR.2021 17:10:14 Project No.: SHT2104006201EW Radio Specification: WIFI 5G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 55 of 95 Band IV 802.11ac (HT40) Antenna 1 CH L Date: 25.APR.2021 19:22:39 CH H Date: 25.APR.2021 19:14:50 Project No.: SHT2104006201EW Radio Specification: WIFI 5G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 56 of 95 Band IV 802.11n (HT40) Antenna 1 CH L Date: 25.APR.2021 19:38:05 CH H Date: 25.APR.2021 19:40:28 Band IV 802.11ac (HT80) Antenna 1 CH M Date: 25.APR.2021 19:29:20 Project No.: SHT2104006201EW Radio Specification: WIFI 5G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 57 of 95 Appendix E：6dB Bandwidth Band Bandwidth (MHz) Type Channel 6dB bandwith (MHz) Result Antenna 0 Antenna 1 IV 20 802.11ac CH L 17.64 17.64 Pass CH M 17.64 17.64 CH H 17.64 17.64 802.11n CH L 17.64 17.61 Pass CH M 17.61 17.64 CH H 17.64 17.64 802.11a CH L 16.38 16.38 Pass CH M 16.38 16.41 CH H 16.38 16.38 40 802.11ac CH L 35.46 35.46 Pass CH H 35.88 36.18 802.11n CH L 35.39 35.39 Pass CH H 35.39 35.39 80 802.11ac CH M 76.08 75.48 Pass Project No.: SHT2104006201EW Radio Specification: WIFI 5G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 58 of 95 Band IV 802.11ac (HT20) Antenna 0 CH L Date: 25.APR.2021 18:36:41 CH M Date: 25.APR.2021 18:48:21 CH H Date: 25.APR.2021 18:53:13 Project No.: SHT2104006201EW Radio Specification: WIFI 5G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 59 of 95 Band IV 802.11n (HT20) Antenna 0 CH L Date: 25.APR.2021 17:47:03 CH M Date: 25.APR.2021 17:50:00 CH H Date: 25.APR.2021 17:52:19 Project No.: SHT2104006201EW Radio Specification: WIFI 5G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 60 of 95 Band IV 802.11a Antenna 0 CH L Date: 25.APR.2021 17:03:35 CH M Date: 25.APR.2021 17:06:04 CH H Date: 25.APR.2021 17:07:26 Project No.: SHT2104006201EW Radio Specification: WIFI 5G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 61 of 95 Band IV 802.11ac (HT40) Antenna 0 CH L Date: 25.APR.2021 19:01:38 CH H Date: 25.APR.2021 19:18:37 Project No.: SHT2104006201EW Radio Specification: WIFI 5G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 62 of 95 Band IV 802.11n (HT40) Antenna 0 CH L Date: 25.APR.2021 18:12:46 CH H Date: 25.APR.2021 18:15:58 Project No.: SHT2104006201EW Radio Specification: WIFI 5G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 63 of 95 Band IV 802.11ac (HT80) Antenna 0 CH M Date: 25.APR.2021 19:33:14 Project No.: SHT2104006201EW Radio Specification: WIFI 5G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 64 of 95 Band IV 802.11ac (HT20) Antenna 1 CH L Date: 25.APR.2021 18:39:54 CH M Date: 25.APR.2021 18:45:20 CH H Date: 25.APR.2021 18:57:05 Project No.: SHT2104006201EW Radio Specification: WIFI 5G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 65 of 95 Band IV 802.11n (HT20) Antenna 1 CH L Date: 25.APR.2021 18:01:49 CH M Date: 25.APR.2021 18:04:43 CH H Date: 25.APR.2021 17:57:49 Project No.: SHT2104006201EW Radio Specification: WIFI 5G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 66 of 95 Band IV 802.11a Antenna 1 CH L Date: 25.APR.2021 17:12:32 CH M Date: 25.APR.2021 17:15:05 CH H Date: 25.APR.2021 17:10:24 Project No.: SHT2104006201EW Radio Specification: WIFI 5G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 67 of 95 Band IV 802.11ac (HT40) Antenna 1 CH L Date: 25.APR.2021 19:22:50 CH H Date: 25.APR.2021 19:15:18 Project No.: SHT2104006201EW Radio Specification: WIFI 5G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 68 of 95 Band IV 802.11n (HT40) Antenna 1 CH L Date: 25.APR.2021 19:38:15 CH H Date: 25.APR.2021 19:40:39 Project No.: SHT2104006201EW Radio Specification: WIFI 5G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 69 of 95 Band IV 802.11ac (HT80) Antenna 1 CH M Date: 25.APR.2021 19:29:29 Project No.: SHT2104006201EW Radio Specification: WIFI 5G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 70 of 95 Appendix F：Band edge Band I 802.11a Antenna 0 CH L Date: 25.APR.2021 13:41:58 CH H Date: 25.APR.2021 13:50:27 Project No.: SHT2104006201EW Radio Specification: WIFI 5G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 71 of 95 Band I 802.11n (HT20) Antenna 0 CH L Date: 25.APR.2021 14:18:17 CH H Date: 25.APR.2021 14:24:48 Project No.: SHT2104006201EW Radio Specification: WIFI 5G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 72 of 95 Band I 802.11 n(HT40) Antenna 0 CH L Date: 25.APR.2021 14:45:57 CH H Date: 25.APR.2021 14:50:02 Project…

Text truncated - open the document above for the full version.

Page: 1 of 30 TEST REPORT Report No. ...................................... : CHTEW21050090 Report Verification: Project No.................................： SHT2104006201EW FCC ID ............................................. : TV7CPGI52XL Applicant’s name ........................... : Mikrotikls SIA Address ............................................. : Brivibas gatve 214i, Riga, LV-1039, Latvia Test item description .................... : cAP XL ac Trade Mark ....................................... : MikroTik Model/Type reference ....................... : RBcAPGi-5acD2nD-XL-US Listed Model(s) ................................. : - Standard ......................................... : FCC CFR Title 47 Part 15 Subpart E Section 15.407 Date of receipt of test sample..........: Apr. 13, 2021 Date of testing.............................: Apr. 14, 2021- May. 17, 2021 Date of issue...............................: May. 18, 2021 Result .................. ........................: PASS Compiled by ( Position+Printed name+Signature): File administrator Silvia Li Supervised by (Position+Printed name+Signature): Project Engineer Aaron Fang Approved by (Position+Printed name+Signature): RF Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW21050090 Page: 2 of 30 Issued: 2021-05-18 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) Contents 1. TEST S T AN D AR D S A N D R E P O R T V E R S I O N 3 1.1. Test Standards 3 1.2. Report version 3 2. TEST DESCRIPTION 4 3. SUMMARY 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Radio Specification Description 5 3.4. Testing Laboratory Information 6 4. TEST CONFIGURATION 7 4.1. Test frequency list 7 4.2. Descriptions of Test mode 7 4.3. Test mode 7 4.4. Support unit used in test configuration and system 8 4.5. Testing environmental condition 8 4.6. Measurement uncertainty 8 4.7. Equipment Used during the Test 9 5. TEST CONDITIONS AND RESULTS 11 5.1. Antenna Requirement 11 5.2. AC Conducted Emission 12 5.3. Maximum Conducted Output Power 15 5.4. Power Spectral Density 16 5.5. 26dB bandwidth and 99% Occupy bandwidth 18 5.6. 6dB Bandwidth 19 5.7. Band edge 20 5.8. Radiated Spurious Emissions 23 5.9. Frequency stability 28 6. TEST SETUP PHOTOS 29 7. EXTERANAL AND INTERNAL PHOTOS 30 8. APPENDIX REPORT 30 Report No.: CHTEW21050090 Page: 3 of 30 Issued: 2021-05-18 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 1. TEST STAND ARDS AND REPORT VERSION 1.1. Test Standards The tests were performed according to following standards: ‒ FCC Rules Part 15.407: General technical requirements. ‒ ANSI C63.10:2013: American National Standard for Testing Unlicensed Wireless Devices ‒ KDB789033 D02 v02r01: GUIDELINES FOR COMPLIANCE TESTING OF UNLICENSED NATIONAL INFORMATION INFRASTRUCTURE (U-NII) DEVICES PART 15, SUBPART E ‒ KDB662911 D01 Multiple Transmitter Output v02r01: Emissions Testing of Transmitters with Multiple Outputs in the Same Band (e.g., MIMO, Smart Antenna, etc) ‒ KDB662911 D02 MIMO with Cross-Polarized Antennas v01: MIMO with Cross-Polarized Antenna 1.2. Report version Revision No. Date of issue Description N/A 2021-05-18 Original Report No.: CHTEW21050090 Page: 4 of 30 Issued: 2021-05-18 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 2. TEST DESCRIPTION Report clause Test Items Standard Requirement Result 5.1 Antenna Requirement 15.203/15.247(c) PASS 5.2 AC Conducted Emission 15.207 PASS 5.3 Maximum Conducted Output Power 15.407(a) PASS 5.4 Maximum Power Spectral Density 15.407(a) PASS 5.5 26dB Bandwidth and 99% Ocuppy bandwith 15.407(a) PASS 5.6 6dB Bandwidth 15.407(a) PASS 5.7 Band edge 15.407(b) PASS 5.8 Radiated Spurious Emissions 15.209 PASS 5.9 Frequency Stability 15.407(g) PASS Note: ‒ The measurement uncertainty is not included in the test result. Report No.: CHTEW21050090 Page: 5 of 30 Issued: 2021-05-18 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 3. SUMMARY 3.1. Client Information Applicant: Mikrotikls SIA Address: Brivibas gatve 214i, Riga, LV-1039, Latvia Manufacturer: Mikrotikls SIA Address: Brivibas gatve 214i, Riga, LV-1039, Latvia 3.2. Product Description Name of EUT: cAP XL ac Trade Mark: MikroTik Model No.: RBcAPGi-5acD2nD-XL-US Listed Model(s): - Power supply: DC 24V Hardware version: r4 Software version: RouterOS 6.48.1 3.3. Radio Specification Description Support type *1 802.11a 802.11n(HT20) 802.11n(HT40) 802.11ac(HT20) 802.11ac(HT40) 802.11ac(HT80) Function: Outdoor AP Indoor AP Fixed P2P Client Modulation: BPSK, QPSK, 16QAM, 64QAM Operation frequency: Band I: 5180MHz~5240MHz Band IV: 5745MHz~5825MHz Supported Bandwidth 20MHz: 802.11ac,802.11n, 802.11a 40MHz: 802.11ac,802.11n 80MHz: 802.11ac Antenna type: PCB patch Antenna Antenna gain: 5.5dBi Note: *1: only show the RF function associated with this report. Report No.: CHTEW21050090 Page: 6 of 30 Issued: 2021-05-18 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 3.4. Testing Laboratory Information Laboratory Name Shenzhen Huatongwei International Inspection Co., Ltd.…

Text truncated - open the document above for the full version.

FCC Software Configuration Control Declaration Rev1.1.docx Mikrotikls SIA FCC Software Configuration Control Declaration Date: July 2, 2021 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product/ Model Number: Regarding FCC Country Code Selection guidelines identified in KDB 594280v02r01. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Edmunds Zvegincevs Date: 2021-06-29 Title: engineer, R&D Signature of applicant

6.TEST SETUP PHOTOS Radiated Emission M odel：RBcAPGi-5acD2nD-XL-US AC Conducted Emission
