See www.routerboard.com for more information. Contact [email protected] for support questions. 16-May-2012 RouterBOARD Metal 2SHPN Quick Setup Guide and Warranty Information The RouterBOARD Metal 2SHPN is a solid, waterproof outdoor device with a high power wireless transmitter (2GHz, 802.11b/g/n, N-‐Male antenna connector), and one 10/100 Ethernet connector which supports MDI-‐X auto detection. The device is packaged with a 24V power adapter, a PoE injector and two mounting loops. First use 1. Connect the antenna to the N-‐Male connector 2. Use the latches to open the product case, to reveal the Ethernet connector 3. Use the provided round rubber insulator to put on the Ethernet cable, and push it into the case opening, so that the opening is tightly closed. To put the cable though the insulator, you have to put in the cable first, and only then clamp on the Ethernet connector. If the connector is already on the cable, you can cut the insulator on one side, to clamp it around the cable, but this sacrifices waterproofness. 4. The Metal accepts 12-‐28V Passive PoE from a PoE injector (please compensate voltage for loss due to cable length) 5. The default IP address from Ether1 is 192.168.88.1 for configuration Username is admin and there is no password 6. Depending on the antenna used, you must set its gain in the RouterOS software to ensure that EIRP meets the limit set by authorities. This is done in the Wireless menu. Powering The board accepts powering from the Ethernet port (Passive PoE): • Ethernet port accepts passive Power over Ethernet 12-28V DC. Package contains a 24V adapter and a PoE injector. Maximum power consumption of the device is 12W at 24V. Booting process Connect to wireless SSID “MikroTik” and open 192.168.88.1 in your web browser. Username is admin and there is no password. In case IP connection is not available, Winbox can be used to connect to the MAC address of the device. More information here: http://wiki.mikrotik.com/wiki/First_time_startup In case you wish to boot the device from network, for example to use MikroTik Netinstall, hold the RESET button of the device when starting it until the LED light turns off, and Metal will start to look for Netinstall servers. Mounting To tighten the Metal to a pole, use the provided mounting loops. The Metal comes bundled with two plastic and two metallic mounting loops (choose either) -‐ guide the loops around the Metal though the provided edge markings, and around the pole where it will be mounted. You should avoid connecting a loose Ethernet cable to the Ethernet port -‐ secure the cable to a wall or the pole, so that the cable weight is not pulling the port. It is recommended to secure the Ethernet cable less than 2m from the Metal device. This is to ensure that the cable doesn't damage the port by its weight, or doesn't fall out. See www.routerboard.com for more information. Contact [email protected] for support questions. 16-May-2012 Expansion Slots and Ports • Built in 2GHz 802.11b/g/n wireless, 1x1 MIMO, station mode (AP mode for Metal A-2SHPN) • One 10/100 Ethernet port, supporting automatic cross/straight cable correction (Auto MDI/X), so you can use either straight or cross-over cable for connecting to other network devices. The Ethernet port accepts 8-30V DC powering from a passive PoE injector. Buttons and Jumpers • RouterOS reset jumper hole (no direct access, board has to be removed from case) – resets RouterOS software to defaults. Must short circuit the metallic sides of the hole (with a screwdriver, for example) and boot the device. Hold screwdriver in place until RouterOS configuration is cleared. • RouterBOOT reset button (access through the door) has two functions: o Hold this button during boot time until LED light starts flashing, release the button to reset RouterOS configuration (same result as with reset hole) o Hold this button during boot time longer, until LED turns off, then release it to make the device look for Netinstall servers. Operating System Support Currently tested operating system is MikroTik RouterOS (starting from version v5.16). Copyright and Trademarks Copyright MikroTikls SIA. This manual contains information protected by copyright law. No part of it may be reproduced or transmitted in any form without prior written permission from the copyright holder. RouterBOARD, RouterOS, RouterBOOT and MikroTik are trademarks of MikroTikls SIA. All trademarks and registered trademarks appearing in this manual are the property of their respective holders. Hardware. MikroTik warrants all RouterBOARD series equipment for the term of fifteen (15) months from the shipping date to be free of defects in materials and workmanship under normal use and service, except in case of damage caused by mechanical, electrical or other accidental or intended damages caused by improper use or due to wind, rain, fire or other acts of nature. To return failed units to MikroTik, you must perform the following RMA (Return Merchandise Authorization) procedure. Follow the instructions below to save time, efforts, avoid costs, and improve the speed of the RMA process. 1. If you have purchased your product from a MikroTik Reseller, please contact the Reseller company regarding all warranty and repair issues, the following instructions apply ONLY if you purchased your equipment directly from MikroTik in Latvia. 2. We do not offer repairs for products that are not covered by warranty. Exceptions can be made for RB1000, RB1100 and RB1200. 3. Out-‐of-‐warranty devices and devices not covered by warranty sent to Mikrotikls will be returned to the sender at sender's cost. RMA Instructions are located on our webpage here: http://rma.mikrotik.com Manual. This manual is provided “as is” without a warranty of any kind, expressed or implied, including, but not limited to, the implied warranty of merchantability and fitness for a particular purpose. The manufacturer has made every effort to ensure the accuracy of the…

Text truncated - open the document above for the full version.

Cover Letter(s)

June 1, 2012 Timco Engineering, Inc. 849 NW State Road 45 P.O. Box 370 Newberry, Florida 32669 Re.: Professional Installation Attestation Equipment: FCC: TVMETL2SHPN To Whom It May Concern: MIKROTIK addresses the following items to ensure that the above referenced equipment is professionally installed: 1. The TVMETL2SHPN will only be sold by MIKROTIK or one of its authorized dealers. MIKROTIK and its authorized dealers will be under strict marketing control and will only market and sell the TVMETL2SHPN to professionals. 2. Professional installation is required for the TVMETL2SHPN and will be performed only by someone knowledgeable of its use. MIKROTIK will ensure that the TVMETL2SHPN is only marketed and sold to professionals. 3. The TVMETL2SHPN can be paired with a variety of antennas and cables, the Antenna Gain, Cable Loss, and Output Power fields are provided to the professional installer to assist in meeting regulatory requirements. 4.The TVMETL2SHPN is not sold to the general public and is sold only for industrial or commercial use by professional installers. Sincerely, Edmunds Zvegincevs Mikrotikls SIA

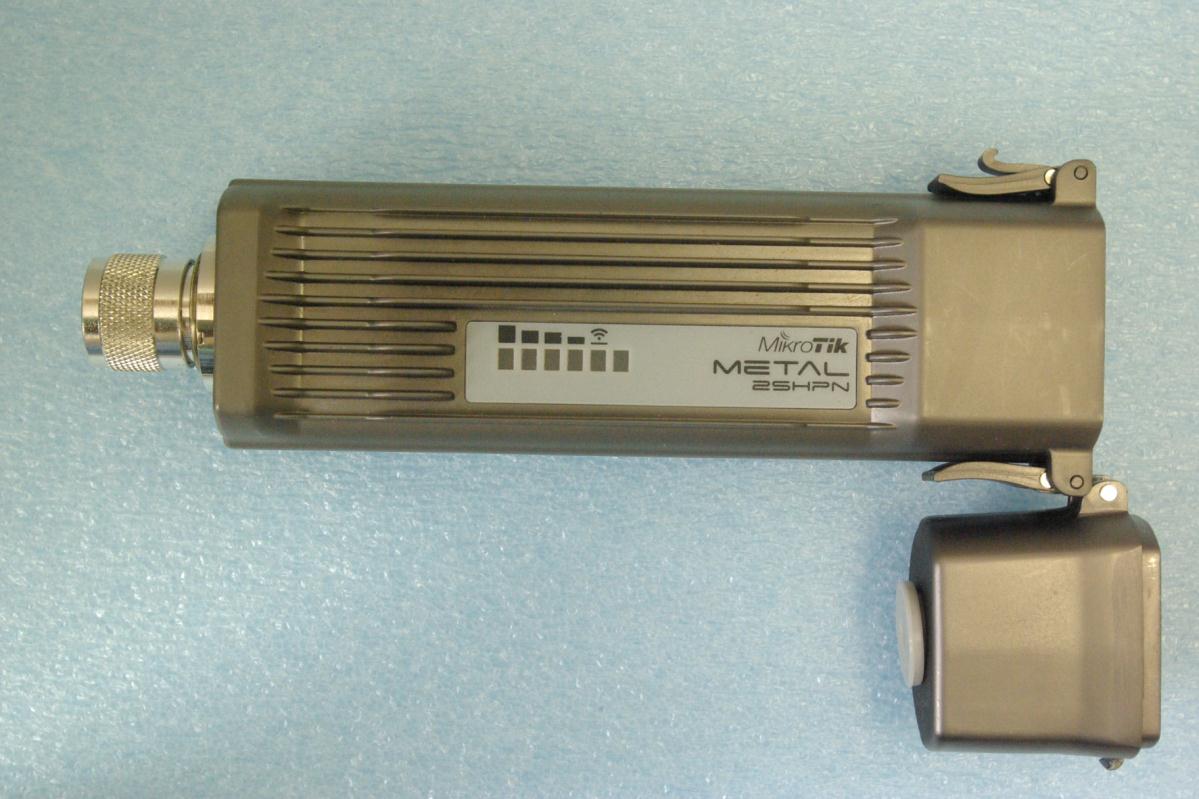

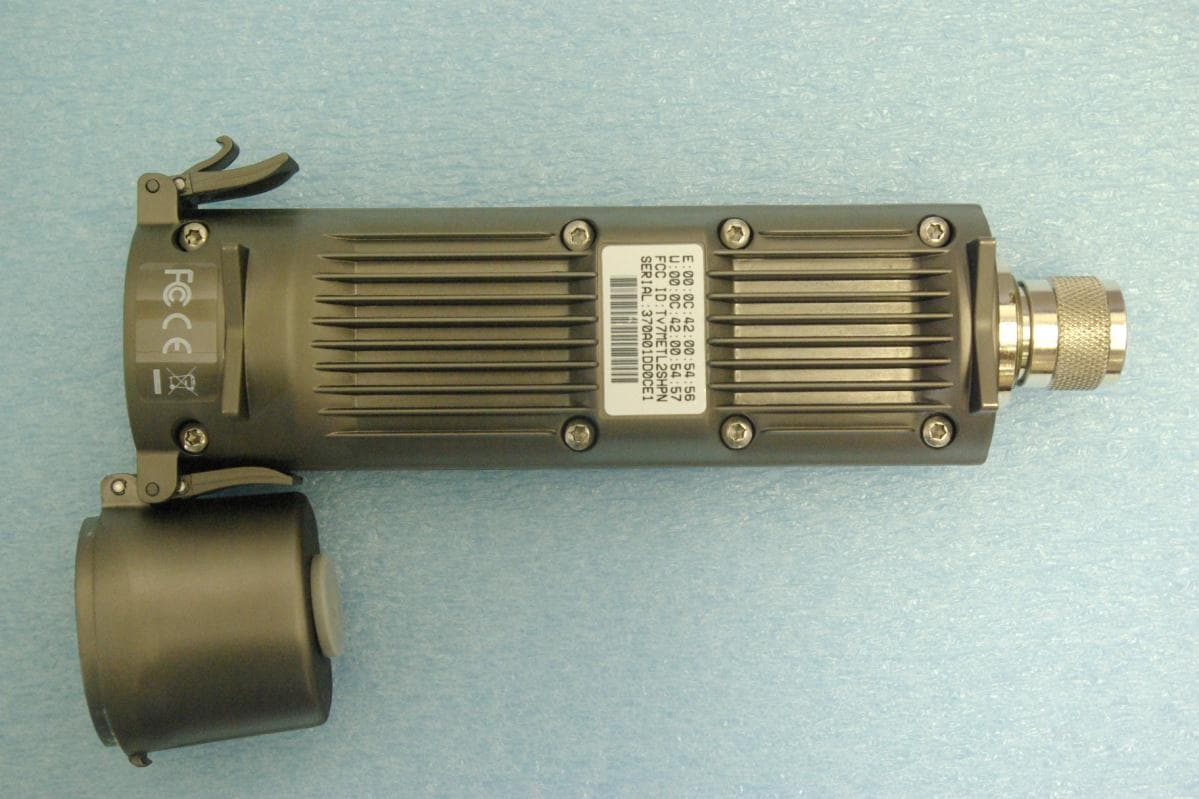

External Photos

Internal Photos

RF Exposure Info

Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: Metal 2SHPn FCC ID#: TV7METL2SHPN Louisburg, KS 66053 Test #: 120424 SN: 370A01DD0CE1 Phone/Fax: (913) 837-3214 Test to: FCC (15.247) Date: May 16, 2012 Revision 1 File: RFExp METL2SHPN Page 1 of 1 MikrotikModel: Metal 2SHPnTest Number:120424 MPE CalculatorMPE uses EIRP for calculation. EIRP is based on TX power added to the antenna gain in dBi. dBi = dB gain compared to an isotropic radiator. S = power density in mW/cm^2 Antenna Gain (dBi)24 Output PowerdBd + 2.17 = dBidBi to dBd2.2 Tx Frequency (MHz)2437Maximum (Watts)1.000000Antenna Gain (dBd)21.83 Cable Loss (dB)0.0(dBm)30.00Antenna minus cable (dBi)24.00 Calculated ERP (mw)152405.275EIRP = Po(dBM) + Gain (dB) Calculated EIRP (mw)251188.643Radiated (EIRP) dBm54.000 ERP = EIRP - 2.17 dB Occupational Limit Radiated (ERP) dBm51.830 5.00000mW/cm 2 50.00000W/m 2 General Public Limit 1.00000mW/cm 2 10.00000W/m 2 Frequency (MHz)Occupational LimitPublic Limit 300-1,500f/300f/1500 1,500-10,00051 Frequency (MHz)Occupational LimitPublic Limit 300-1,500 (mW/cm2)8.1233333331.624666667 300-1,500 (W/m2)81.2333333316.24666667 1,500-10,000 (mW/cm2)51 1,500-10,000 (W/m2)5010 EIRPSSDistanceDistanceDistanceDistance milliwatts mW/cm 2 W/m 2 cmmeterinchesFeet 251188.6430.079960.79956500.005.00196.850.42 251188.6430.124931.24931400.004.00157.480.33 251188.6430.222102.22100300.003.00118.110.25 251188.6430.499724.99724200.002.0078.740.17 251188.6430.652706.52701175.001.7568.900.15 251188.6430.888408.88398150.001.5059.060.13 251188.6430.991329.91319142.001.4255.910.12 251188.6431.3881213.88122120.001.2047.240.10 251188.6431.6519816.51980110.001.1043.310.09 251188.6431.7137317.13731108.001.0842.520.09 251188.6431.8130618.13057105.001.0541.340.09 251188.6431.9212819.21276102.001.0240.160.09 251188.6431.9989019.98896100.001.0039.370.08 251188.6433.5535935.5359275.000.7529.530.06 251188.6435.0362750.3627063.000.6324.800.05 251188.6435.5524955.5248860.000.6023.620.05 251188.64322.20995222.0995230.000.3011.810.03 Frequency (MHz) Occupational Limit minimum Distance (meters) Occupational Limit minimum Distance (cm / inches) Public Limit minimum distance (meters) Public Limit minimum distance (cm / inches) 300-1,500N/AN/AN/AN/A 1,500-10,0000.6363 / 24.81.42142 / 55.9 FCC radio frequency radiation exposure limits per 1.1310 (mW/cm2) FCC radio frequency radiation exposure limits per 1.1310 Power density (S) EIRP -------= mW/cm^2 4 p r^2 r (cm) EIRP (mW)

Test Report

NVLAP Lab Code 200087-0 Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: Metal 2SHPn SN: 370A01DD0CE1 Louisburg, KS 66053 Test #: 120424 FCC ID#: TV7METL2SHPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: May 30, 2012 Revision 1 File: Mikrotikls METL2SHPn TstRpt 120424 Page 1 of 55 SUBMITTAL APPLICATION REPORT FOR GRANT OF CERTIFICATION FOR Model: Metal 2SHPn 2412-2462 MHz Broadband Digital Transmission System FCC ID: TV7METL2SHPN FOR MIKROTIKLS SIA Pernavas 46 Riga, Latvia LV-1009 Test Report Number: 120424 Authorized Signatory: Scot D. Rogers NVLAP Lab Code 200087-0 Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: Metal 2SHPn SN: 370A01DD0CE1 Louisburg, KS 66053 Test #: 120424 FCC ID#: TV7METL2SHPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: May 30, 2012 Revision 1 File: Mikrotikls METL2SHPn TstRpt 120424 Page 2 of 55 Engineering Test Report For Application of Grant of Certification FOR CFR 47, PART 15C - Intentional Radiators CFR 47 Paragraph 15.247 License Exempt Intentional Radiator For MIKROTIKLS SIA Pernavas 46 Riga, Latvia LV-1009 Broadband Digital Transmission System Model: Metal 2SHPn Frequency Range 2412-2462 MHz FCC ID#: TV7METL2SHPN Test Date: April 24, 2012 Certifying Engineer: Scot D. Rogers Rogers Labs, Inc. 4405 West 259 th Terrace Louisburg, KS 66053 Telephone/Facsimile: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP, NIST, or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: Metal 2SHPn SN: 370A01DD0CE1 Louisburg, KS 66053 Test #: 120424 FCC ID#: TV7METL2SHPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: May 30, 2012 Revision 1 File: Mikrotikls METL2SHPn TstRpt 120424 Page 3 of 55 Table Of Contents TABLE OF CONTENTS .................................................................................................. 3 FORWARD ..................................................................................................................... 6 OPINION / INTERPRETATION OF RESULTS ............................................................... 6 ENVIRONMENTAL CONDITIONS.................................................................................. 6 EQUIPMENT TESTED .................................................................................................... 6 APPLICATION FOR CERTIFICATION ........................................................................... 7 APPLICABLE STANDARDS & TEST PROCEDURES .................................................. 8 EQUIPMENT FUNCTION AND CONFIGURATION........................................................ 8 Equipment Configuration.................................................................................................................................... 9 TEST SITE LOCATIONS ................................................................................................ 9 UNITS OF MEASUREMENTS ........................................................................................ 9 TEST PROCEDURES ................................................................................................... 10 AC Line Conducted Emission Test Procedure ................................................................................................ 10 Radiated Emission Test Procedure ................................................................................................................... 10 LIST OF TEST EQUIPMENT ........................................................................................ 11 INTENTIONAL RADIATORS ........................................................................................ 12 Antenna Requirements ...................................................................................................................................... 12 Restricted Bands of Operation .......................................................................................................................... 12 General Radiated Emissions in Restricted Bands Data (worst-case) ................................................................. 12 Harmonic Radiated Emissions in Restricted Bands Data (15 dBi Omni, WLO-2450-15) ................................ 13 Harmonic Radiated Emissions in Restricted Bands Data (13 dBi Omni, HP, ODH 24-13) .............................. 14 Harmonic Radiated Emissions in Restricted Bands Data (20 dBi Panel, WLP-2450-20) ................................. 15 Harmonic Radiated Emissions in Restricted Bands Data (17 dBi Sector, SA 24-90-17-WB) .......................... 16 Harmonic Radiated Emissions in Restricted Bands Data (24 dBi Dish, DC 24-HD-PFIP)............................... 17 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: Metal 2SHPn SN: 370A01DD0CE1 Louisburg, KS 66053 Test #: 120424 FCC ID#: TV7METL2SHPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: May 30, 2012 Revision 1 File: Mikrotikls METL2SHPn TstRpt 120424 Page 4 of 55 Summary of Results for Radiated Emissions in Restricted Bands ................................................................ 17 AC Line Conducted Emissions Procedure ....................................................................................................... 18 Figure 1 AC Line Conducted Emissions Line 1 ................................................................................................ 19 Figure 2 AC Line Conducted Emissions Line 2 ................................................................................................ 19 AC Line Conducted Emissions Data (Highest Emissions) ................................................................................ 20 Summary of Results for AC Line Conducted Emiss…

Text truncated - open the document above for the full version.

Test Setup Photos

Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: Metal 2SHPn SN: 370A01DD0CE1 Louisburg, KS 66053 Test #: 120424 FCC ID#: TV7METL2SHPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: May 30, 2012 Revision 1 File: TSup METL2SHPN Page 1 of 6 Test setup photographs AC Line Conducted Emissions Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: Metal 2SHPn SN: 370A01DD0CE1 Louisburg, KS 66053 Test #: 120424 FCC ID#: TV7METL2SHPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: May 30, 2012 Revision 1 File: TSup METL2SHPN Page 2 of 6 Radiated Emissions Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: Metal 2SHPn SN: 370A01DD0CE1 Louisburg, KS 66053 Test #: 120424 FCC ID#: TV7METL2SHPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: May 30, 2012 Revision 1 File: TSup METL2SHPN Page 3 of 6 Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: Metal 2SHPn SN: 370A01DD0CE1 Louisburg, KS 66053 Test #: 120424 FCC ID#: TV7METL2SHPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: May 30, 2012 Revision 1 File: TSup METL2SHPN Page 4 of 6 Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: Metal 2SHPn SN: 370A01DD0CE1 Louisburg, KS 66053 Test #: 120424 FCC ID#: TV7METL2SHPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: May 30, 2012 Revision 1 File: TSup METL2SHPN Page 5 of 6 Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: Metal 2SHPn SN: 370A01DD0CE1 Louisburg, KS 66053 Test #: 120424 FCC ID#: TV7METL2SHPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: May 30, 2012 Revision 1 File: TSup METL2SHPN Page 6 of 6

Contact Information

Applicant

Edmunds Zvegincevs(engineer, R&D)

[email protected]+371 67317700Fax: +371 67317701

Test Firm

Rogers Labs, Inc.Scot Rogers

[email protected]913-837-3214Fax: 913-837-3214

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15C	2.42 GHz - 2.45 GHz	900.00 mW

Confidentiality

Long Term

Grant Notes

Power listed is conducted output power. Professional Installation is required. This device is supplied with specific antennas as described in this filing including installation in a point-to-point application on outdoor permanent structures The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and Installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Device is operating in a 1x1 Spatial Multiplexing MIMO configuration. When operating in the 40 MHz mode, the operating frequency segment is limited to 2422 to 2452 MHz.
