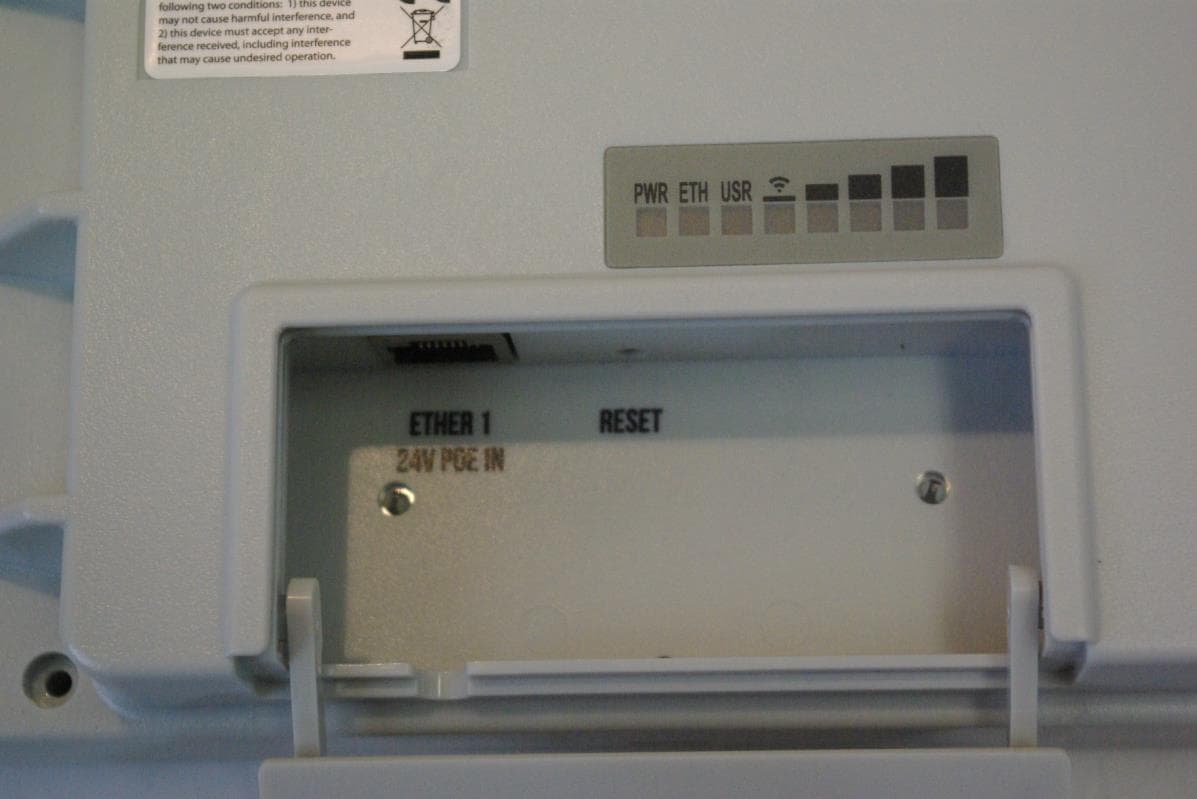

See www.routerboard.com for more information. Contact [email protected] for support questions.21/08/13 RouterBOARD QRTG-­‐2SHPnD Quick Setup Guide and Warranty Information The RouterBOARD QRT comes as a complete kit. It includes a built in 802.11b/g/n dual chain wireless device, and a dual polarization 17dBi antenna. It has one Gigabit Ethernet connector which supports MDI-­‐X auto detection. First use 1. Connect an Ethernet cable to the port behind the small plastic door 2. The QRT accepts 24V Passive PoE from a PoE injector 3. The default IP address from LAN is 192.168.88.1 for configuration from a web browser 4. Username is admin and there is no password Powering The device accepts powering from the Ethernet port (Passive PoE) 8-­‐30V DC. Package contains a 24V adapter. Maximum power consumption of the device is 21W @ 24V. s Booting process Initial connection has to be done via the Ethernet cable. Open 192.168.88.1 in your web browser. Username is admin and there is no password. In case IP connection is not available, Winbox can be used to connect to the MAC address of the device. More information here: http://wiki.mikrotik.com/wiki/First_time_startup In case you wish to boot the device from network, for example to use MikroTik Netinstall, hold the RESET button of the device when starting it until the LED light turns off, and Metal will start to look for Netinstall servers. Mounting The QRT box contains several parts that need to be assembled. Please follow this process: Start by attaching the two pole brackets (A) to the swivel adjuster (B), by using the four provided screws (use a PH1 screwdriver). A B See www.routerboard.com for more information. Contact [email protected] for support questions.21/08/13 Next, put the two U-­‐bolts (C) around the mast or pole, and guide them through the holes on the swivel adjuster (D). Then, tighten the U-­‐bolts, each with one regular washer, one spring washer, and one nut, as shown in the image to the right. All nuts need to be tightened using a size 10 (3/8 in) wrench. Now take the mounting bracket (E), and put it on to the back of the antenna. Use one rubber ring, one washer, and one nut for each of the built-­‐in bolts (in that order). Finally, attach the swivel adjuster to the mounting bracket. Use the long bolt in the position (F). Put one regular washer, and one spring washer onto the shorter screws, then put them in positions (G). Do not tighten too much, as you need to adjust the antenna now. Once antenna level and angle are adjusted according to the wireless signal in software, tighten all nuts. Note the degrees of angle for future reference. CD F E G G See www.routerboard.com for more information. Contact [email protected] for support questions.21/08/13 ButtonsandJumpers �RouterOS reset jumper hole (access through the plastic door) – resets RouterOS software to defaults. Must short circuit the metallic sides of the hole (with a screwdriver, for example) and boot the device. Hold screwdriver in place until RouterOS configuration is cleared. �RouterBOOT reset button (access through the plastic door) has two functions: üHold this button during boot time until LED light starts flashing, release the button to reset RouterOS configuration (same result as with reset hole) üHold this button during boot time longer, until LED turns off, and then release it to make the device look for Netinstall servers. Operating System Support Currently tested operating system is MikroTik RouterOS (starting from version v5.20). Copyright and Warranty Information Copyright and Trademarks. Copyright MikroTikls SIA. This manual contains information protected by copyright law. No part of it may be reproduced or transmitted in any form without prior written permission from the copyright holder. RouterBOARD, RouterOS, RouterBOOT and MikroTik are trademarks of MikroTikls SIA. All trademarks and registered trademarks appearing in this manual are the property of their respective holders. Hardware. MikroTikls SIA warrants all RouterBOARD series equipment for the term of fifteen (15) months from the shipping date to be free of defects in materials and workmanship under normal use and service, except in case of damage caused by mechanical, electrical or other accidental or intended damages caused by improper use or due to wind, rain, fire or other acts of nature. If you have purchased your product from a MikroTik Reseller, please contact the Reseller company regarding all warranty and repair issues, the following instructions apply ONLY if you purchased your equipment directly from MikroTik Latvia To return failed unit or units to MikroTikls you must perform the following RMA (Return Material Authorization) procedure. Follow the instructions below to save time, efforts, avoid costs, and improve the speed of the RMA process. Instructions are located on our webpage here: http://rma.mikrotik.com Manual. This manual is provided “as is” without a warranty of any kind, expressed or implied, including, but not limited to, the implied warranty of merchantability and fitness for a particular purpose. The manufacturer has made every effort to ensure the accuracy of the contents of this manual; however, it is possible that it may contain technical inaccuracies, typographical or other errors. No liability is assumed for any inaccuracy found in this publication, nor for direct or indirect, incidental, consequential or other damages that may result from such an inaccuracy, including, but not limited to, loss of data or profits. Please report any inaccuracies found to [email protected] Federal Communication Commission Interference Statement (FCC ID: TV7QRTG2SHPND) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency…
