TV7R2SHPNBroadband Digital Transmission System Module

Federal Communication Commission Interference Statement (FCC ID: TV7R2SHPN) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. IMPORTANT: Exposure to Radio Frequency Radiation. The maximum permissible exposure report has been created for this module, which shows the minimum distances for public use as 142 cm when using a 24-dBi gain antenna. Under such configuration, the FCC radiation exposure limits set forth for a general population/uncontrolled environment can be satisfied. OEM statement. This product is intended for OEM installations only. As such the OEM integrator is responsible for ensuring that the end-user has no manual instructions to remove install or modify the device. This product is limited to installations in mobile or fixed applications. OEM integrators may utilize antennas of like and equal or lesser gain as appearing in the table below (reference 47 CFR, paragraph 15.204(c)(4) for further information on this topic. The MikroTik OEM product complies with Part 15 of the FCC rules and regulations. OEM product have been authorized by the FCC for use when placed inside computer enclosure. Additional testing or approval may be required for other operating configurations including portable configurations with respect to 47CFR paragraph 2.1093 and different antenna configurations. The OEM is required to comply with all 47CFR labeling instructions and requirements for the finished products. Changes or modifications not expressly approved by MikroTik could void the authority to install or operate the equipment. OEMs must test their final product to comply with unintentional radiators (FCC section 15.107 and 15.109) before declaring compliance of their final product to Part 15 of the FCC Rules. WARNING: the OEM must ensure that the FCC labeling requirements are met. Labeling and text information should be of a size and of type large enough to be readily legible, consistent with the dimensions of the equipment and the label. WARNING: This device has been tested with a MMCX connector and antennas as listed in the table below. When integrated into the OEM products, these fixed antennas require professional installation. Preventing end users from replacing them with non-compliant antennas. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna must not be co-located or operation in conjunction with any other antenna or transmitter. List of approved antennas:  Omni Directional, 130K-D-1131-150K(WS), 2dBi;  Omni Directional, WLO-2450-15, 15 dBi;  Omni Directional HP, ODH 24-13, 13dBi;  Panel, WLP-2450-20, 20 dBi;  Sector, SA-24-90-17-WB, 17 dBi;  Dish, DC 24-HD-PFIP, 24 dBi; Antennas of same type and lower gain than those listed above may be used in compliance with certification. Antenna Installation WARNING: It is installer's responsibility to ensure that when using the authorized antennas in the United States (or where FCC rules apply); only those antennas certified with the product are used. The use of any antenna other than those certified with the product is expressly forbidden in accordance to FCC rules CFR47 part 15.204. The installer should configure the output power level of antennas, according to country regulations and per antenna type. Professional installation is required of equipment with connectors to ensure compliance with health and safety issues. For transmitter settings when using the above listed antennas it is important to include the additional reduction of cable loss. Antenna Model Gain (dBi) Maximum Transmit Power Setting (dBm) Gain antenna below 6 dBi 130K-D-1131- 150K(WS) 2 28 Omni Directional WLO-2450-15 15 25 Omni Directional HP ODH 24-13 13 26 Panel WLP-2450-20 20 23 Sector SA 24-90-17-WB 17 24 Dish DC 24-HD-PFIP 24 22

November 23, 2011 Federal Communications Commission Equipment Approval Services Post Office Box 358315 Pittsburgh, Pennsylvania 15215-5315 To Whom It May Concern: Please be advised that SIA "Mikrotikls" has authorized Scot Rogers of Rogers Labs, Inc. to act on behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters and submittals. All acts carried out by Rogers Labs, Inc. on our behalf shall have the same effects as our own. Rogers Labs, Inc. is authorized to receive and exchange data between our company and the Commission. This Authorization is made pursuant to Paragraph 2.911 of FCC Rules CFR 47. This Authorization is in effect until otherwise notified in writing. Name: Edmunds Zvegincevs Title: Project Engineer Signature of applicant: SIA "Mikrotīkls" VAT # LV40003286799 Billing addr.: Aizkraukles iela 23, LV-1006, Rīga Office addr.: Pērnavas iela 46, LV-1009, Rīga Phone: +371 7317700 Fax: +371 7317701

March 27, 2014 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Office of Engineering and Technology Federal Communications Commission Columbia, MD 21046 Applicant: Mikrotikls SIA Pernavas 46 Riga, Latvia LV-1009 Re: Confidentiality for submittal information regarding FCC ID number TV7R2SHPN PRODUCT: Broadband Digital Transmission System operating under CFR47 part 15.247 Dear Sirs: Mikrotikls SIA requests that the material in the Schematics, Block Diagram, and Operational Description be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. In support of this request, Mikrotikls submits the following: Long Term Confidential Files Include Schematics File Name Conf Schem R2SHPN.pdf Block diagram File Name Conf BlkDia R2SHPN.pdf Operational Description File Name Conf OpDes R2SHPN.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set forth in the Operational Description, block diagram, and Schematics, which are segregated from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: TV7R2SHPN 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, (schematic diagrams) and any detail Parts List. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Mikrotik engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Mikrotikls SIA 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Mikrotikls SIA and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RouterBOARD R2SHPn SN: 3796FFFC1C29/221 Louisburg, KS 66053 Test #: 140320 FCC ID#: TV7R2SHPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: April 1, 2014 Revision 1 File: ExtPho R2SHPn Page 1 of 2 External photographs of equipment under test Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RouterBOARD R2SHPn SN: 3796FFFC1C29/221 Louisburg, KS 66053 Test #: 140320 FCC ID#: TV7R2SHPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: April 1, 2014 Revision 1 File: ExtPho R2SHPn Page 2 of 2

Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RouterBOARD R2SHPn SN: 3796FFFC1C29/221 Louisburg, KS 66053 Test #: 140320 FCC ID#: TV7R2SHPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: April 1, 2014 Revision 1 File: LabelSmpl R2SHPn Page 1 of 2 Label and Placement Label Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RouterBOARD R2SHPn SN: 3796FFFC1C29/221 Louisburg, KS 66053 Test #: 140320 FCC ID#: TV7R2SHPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: April 1, 2014 Revision 1 File: LabelSmpl R2SHPn Page 2 of 2 Label

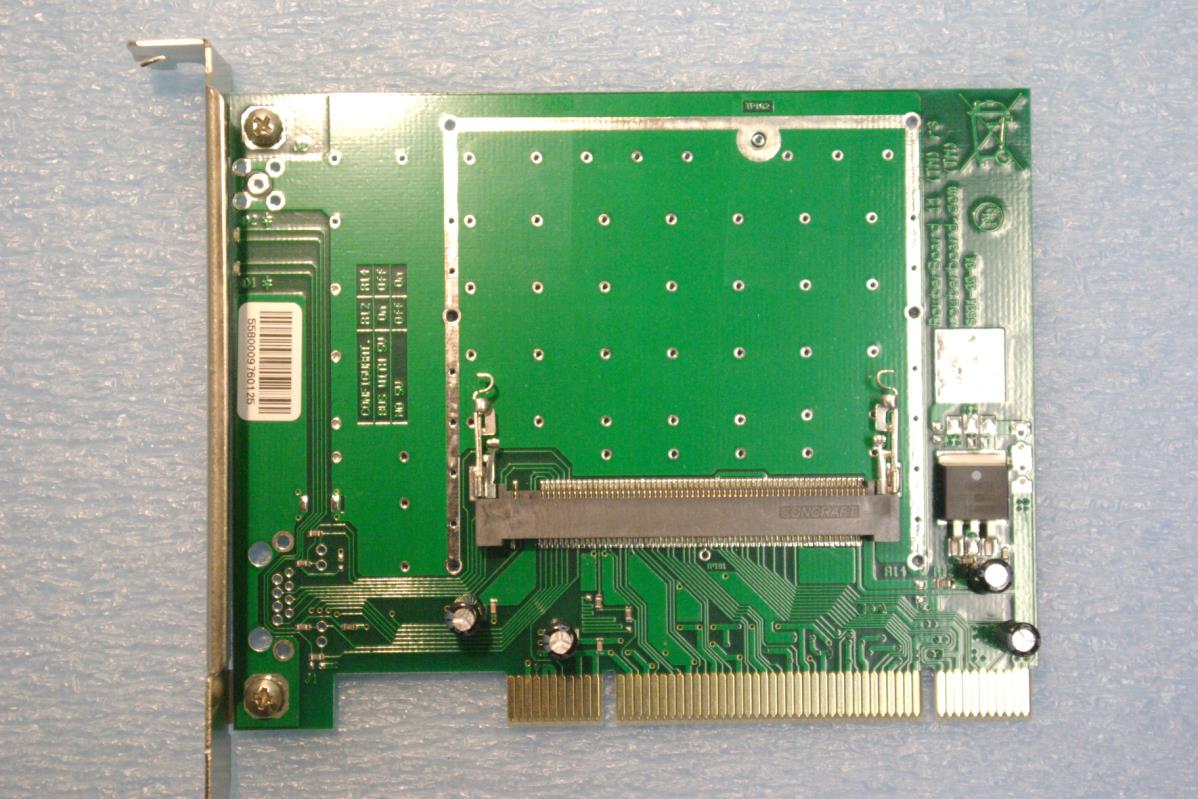

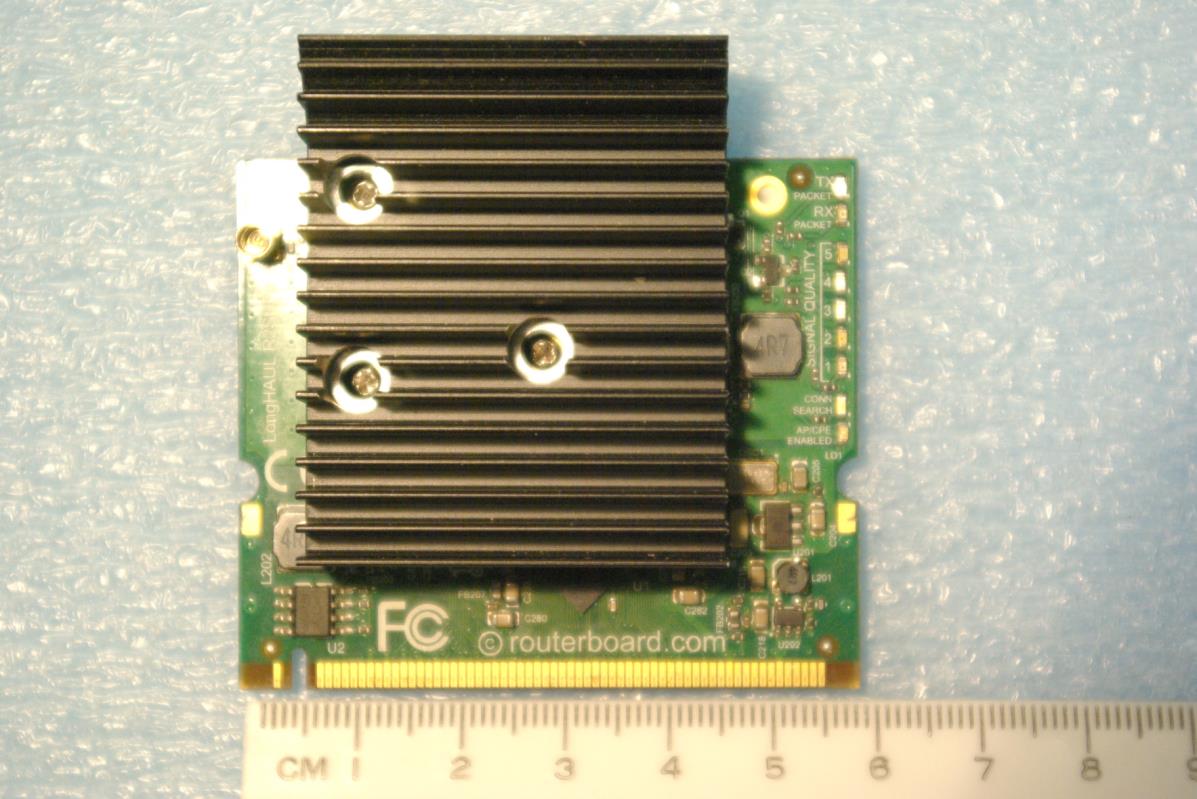

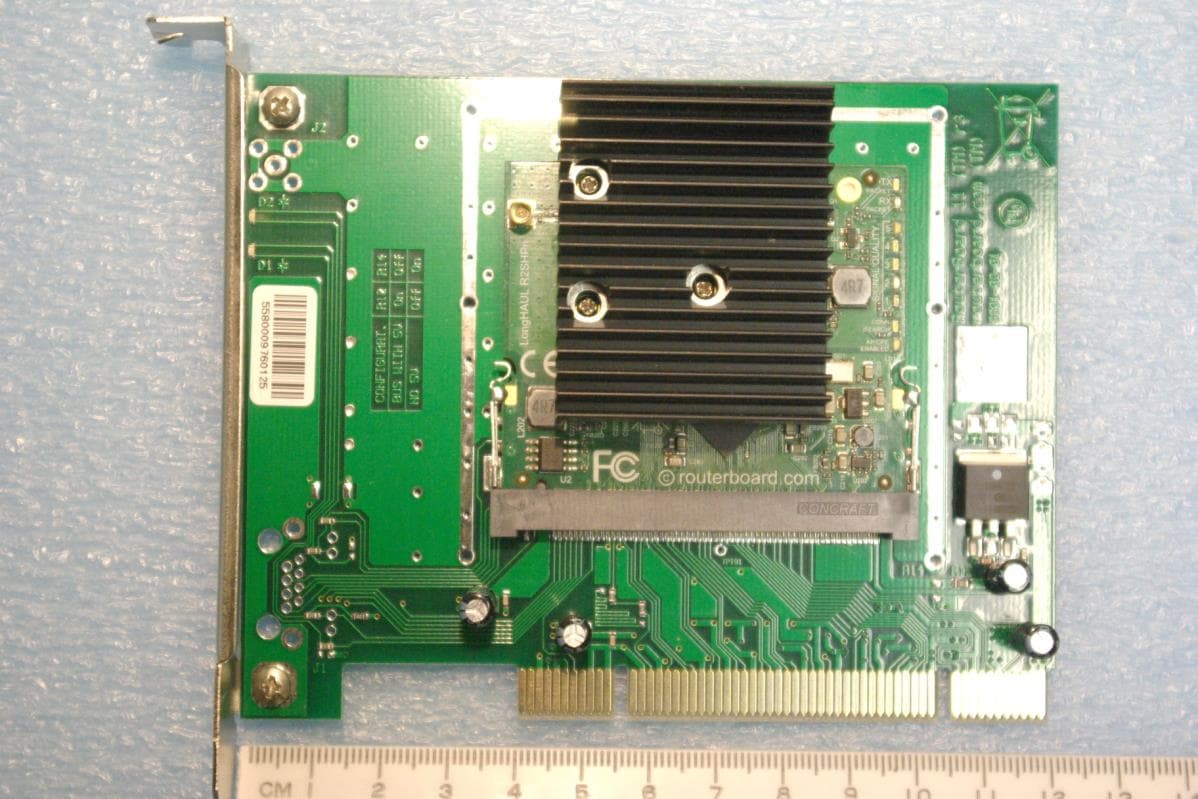

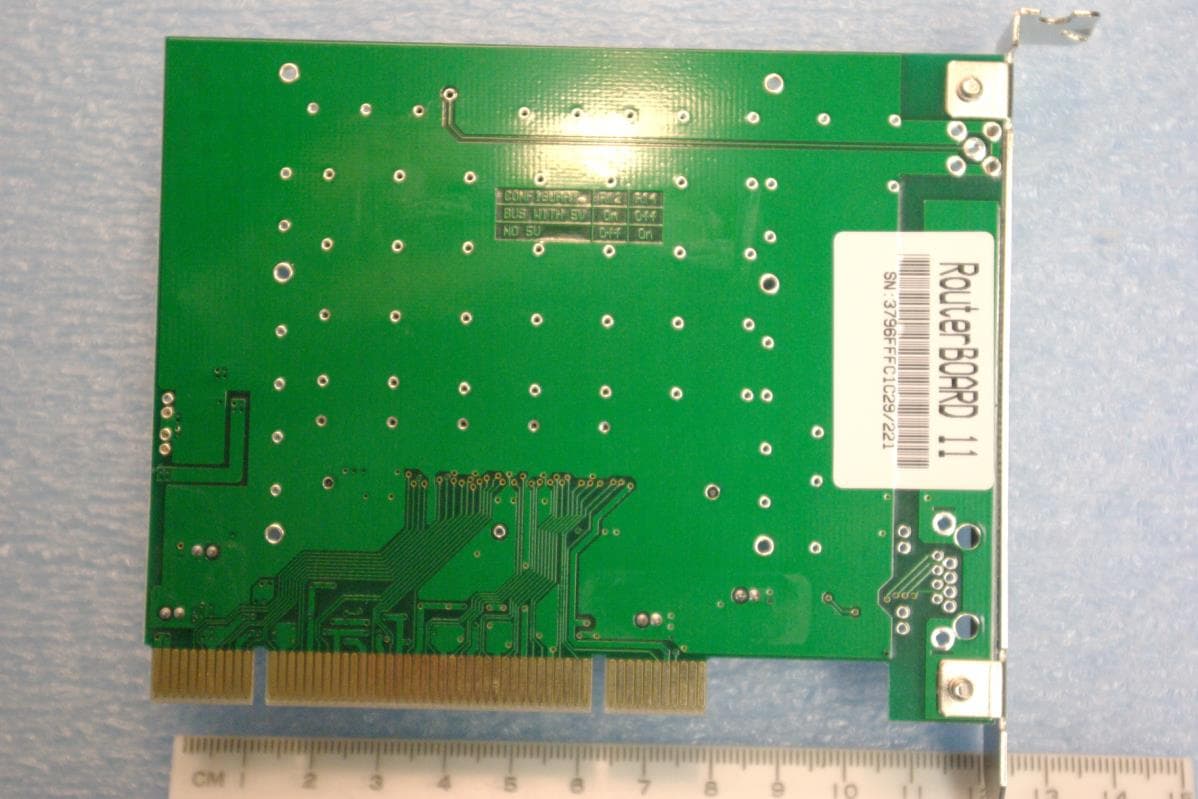

Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RouterBOARD R2SHPn SN: 3796FFFC1C29/221 Louisburg, KS 66053 Test #: 140320 FCC ID#: TV7R2SHPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: March 27, 2014 Revision 1 File: IntPho R2SHPn Page 1 of 4 Internal photographs of equipment under test EUT installed in computer Transmitter in place on support PCI interface board Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RouterBOARD R2SHPn SN: 3796FFFC1C29/221 Louisburg, KS 66053 Test #: 140320 FCC ID#: TV7R2SHPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: March 27, 2014 Revision 1 File: IntPho R2SHPn Page 2 of 4 PCI Support interface board Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RouterBOARD R2SHPn SN: 3796FFFC1C29/221 Louisburg, KS 66053 Test #: 140320 FCC ID#: TV7R2SHPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: March 27, 2014 Revision 1 File: IntPho R2SHPn Page 3 of 4 Transmitter board with heat sink removed for photograph Transmitter board with Shield and heat sink removed for photograph Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RouterBOARD R2SHPn SN: 3796FFFC1C29/221 Louisburg, KS 66053 Test #: 140320 FCC ID#: TV7R2SHPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: March 27, 2014 Revision 1 File: IntPho R2SHPn Page 4 of 4

Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RouterBOARD R2SHPn SN: 3796FFFC1C29/221 Louisburg, KS 66053 Test #: 140320 FCC ID#: TV7R2SHPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: March 27, 2014 Revision 1 File: TunPro R2SHPn Page 1 of 1 Tune-up Procedure Each unit is tested during unit production for performance and functionality against pass/fail criteria. The unit is then given pass/fail status based on measured functionality parameters. The pass/fail threshold is determined by engineering during product development. Compliant samples continue through production and non-compliant units are removed.

Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RouterBOARD R2SHPn SN: 3796FFFC1C29/221 Louisburg, KS 66053 Test #: 140320 FCC ID#: TV7R2SHPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: March 27, 2014 Revision 1 File: RFExp R2SHPn Page 1 of 1

NVLAP Lab Code 200087-0 Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RouterBOARD R2SHPn SN: 3796FFFC1C29/221 Louisburg, KS 66053 Test #: 140320 FCC ID#: TV7R2SHPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: April 1, 2014 Revision 1 File: Mikrotikls R2SHPn TstRpt 140320 Page 1 of 39 Submittal Application Report FOR GRANT OF CERTIFICATION FOR Model: RouterBOARD R2SHPn 2412-2462 MHz Single Input Single Output Broadband Digital Transmission System FCC ID: TV7R2SHPN FOR MIKROTIKLS SIA Pernavas 46 Riga, Latvia LV-1009 Test Report Number: 140320 Authorized Signatory: Scot D. Rogers NVLAP Lab Code 200087-0 Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RouterBOARD R2SHPn SN: 3796FFFC1C29/221 Louisburg, KS 66053 Test #: 140320 FCC ID#: TV7R2SHPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: April 1, 2014 Revision 1 File: Mikrotikls R2SHPn TstRpt 140320 Page 2 of 39 Engineering Test Report for Grant of Certification Application FOR CFR 47, PART 15C - Intentional Radiators CFR 47 Paragraph 15.247 License Exempt Intentional Radiator For MIKROTIKLS SIA Pernavas 46 Riga, Latvia LV-1009 SISO Broadband Digital Transmission System Model: RouterBOARD R2SHPn Frequency Range 2412-2462 MHz FCC ID#: TV7R2SHPN Test Date: March 20, 2013 Certifying Engineer: Scot D. Rogers Rogers Labs, Inc. 4405 West 259 th Terrace Louisburg, KS 66053 Telephone/Facsimile: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP, NIST, or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RouterBOARD R2SHPn SN: 3796FFFC1C29/221 Louisburg, KS 66053 Test #: 140320 FCC ID#: TV7R2SHPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: April 1, 2014 Revision 1 File: Mikrotikls R2SHPn TstRpt 140320 Page 3 of 39 Table Of Contents TABLE OF CONTENTS .................................................................................................. 3 REVISIONS ..................................................................................................................... 4 FORWARD ..................................................................................................................... 5 OPINION / INTERPRETATION OF RESULTS ............................................................... 5 EQUIPMENT TESTED .................................................................................................... 5 Equipment Function ............................................................................................................................................ 6 Equipment Configuration.................................................................................................................................... 6 APPLICATION FOR CERTIFICATION ........................................................................... 7 APPLICABLE STANDARDS & TEST PROCEDURES .................................................. 8 EQUIPMENT TESTING PROCEDURES ........................................................................ 8 AC Line Conducted Emission Test Procedure .................................................................................................. 8 Radiated Emission Test Procedure ..................................................................................................................... 8 Diagram 1 Test arrangement for Conducted emissions ....................................................................................... 9 Diagram 2 Test arrangement for radiated emissions of tabletop equipment ...................................................... 10 Diagram 3 Test arrangement for radiated emissions tested on Open Area Test Site (OATS) ........................... 11 TEST SITE LOCATIONS .............................................................................................. 11 LIST OF TEST EQUIPMENT ........................................................................................ 12 UNITS OF MEASUREMENTS ...................................................................................... 13 ENVIRONMENTAL CONDITIONS................................................................................ 13 INTENTIONAL RADIATORS ........................................................................................ 13 Antenna Requirements ...................................................................................................................................... 13 Restricted Bands of Operation .......................................................................................................................... 14 Table 1 General Radiated Emissions in Restricted Bands Data ........................................................................ 14 Table 2 Harmonic Radiated Emissions in Restricted Bands Data (130K-D-1131-150K(WS)) ........................ 15 Table 3 Harmonic Radiated Emissions in Restricted Bands Data (ODH 24-13) ............................................... 15 Table 4 Harmonic Radiated Emissions in Restricted Bands Data (WLO-2450-15) .......................................... 16 Table 5 Harmonic Radiated Emissions in Restricted Bands Data (SA 24-90-17-WB) ..................................... 16 Table 6 Harmonic Radiated Emissions in Restricted Bands Data (WLP-2450-20) ........................................... 17 Table 7 Harmonic Radiated Emissions in Restricted Bands Data (DC-24-HD-PFIP) ...................................... 17 Summary of Results for Radiated Emissions in Restricted Bands ................................................................ 18 AC Line Conducted Emissions Procedure ....................................................................................................... 18 Figure 1 AC Li…
