TV7R52HNWLAN 802.11a/b/g/n MiniPCI module

WLAN 802.11a/b/g/n MiniPCI module User Manual Version: 1.0 Nov 2009 1 Copyright Statement No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording or otherwise without the prior writing of the publisher. Windows ™ XP/Vista are trademarks of Microsoft ® Corp. Pentium is trademark of Intel. All copyright reserved. 2 FCC STATEMENT: Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. This device is going to be operated in 5.15~5.25GHz frequency range, it is restricted in indoor environment only. 3 IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be available in the users manual: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX FCC ID: TV7R52HN ". If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device 4 must accept any interference received, including interference that may cause undesired operation. 5 Table of Contents 1. Introduction 6 2. Driver/Utility Installation / Uninstallation 7 2.1 INSTALLATION ..................................................................................... 7 2.2 ADDITIONAL SETUP PROCESSES ........................................................ 13 2.3 UNINSTALLATION .............................................................................. 14 3. Connecting to an Existing Network 17 4. Creating an Ad Hoc New Network 23 5. Modifying a Wireless Network 26 5.1 INFRASTRUCTURE MODE AND AD HOC MODE .................................. 26 5.2 MODIFYING A WIRELESS NETWORK .................................................. 27 5.3 DEFAULT SETTINGS WINDOWS XP ZERO-CONFIGURATION ............... 35 Appendix A: FAQ about WLAN 36 6 1. Introduction Thank you for purchasing the WLAN a/b/g/n mini-card Module that provides the easiest way to wireless networking. This User Manual contains detailed instructions in the operation of this product. Please keep this manual for future reference. System Requirements z A laptop PC contains: - 50 MB of free hard disk space (minimum) - 256 MB of RAM or later (recommended) - 900 MHz processor or higher z Microsoft ® Win™ 2000/XP/Vista 7 2. Driver/Utility Installation / Uninstallation 2.1 Installation Note! The Installation Section in thi…

Text truncated - open the document above for the full version.

Page No. : 21 Limited Module Approval Request Letter Subject: Limited Module Approval Date: 2009/12/30 FCC ID: TV7R52HN Dear Reviewer, We, Sporton International Inc., are authorized by Wistron NeWeb Corporation to have their state-of-the-art WLAN 802.11a/b/g/n MiniPCI module approved under limited module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip AR922x. 3. The requirement of power supply regulation: The part number of the power regulator is RT8010. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

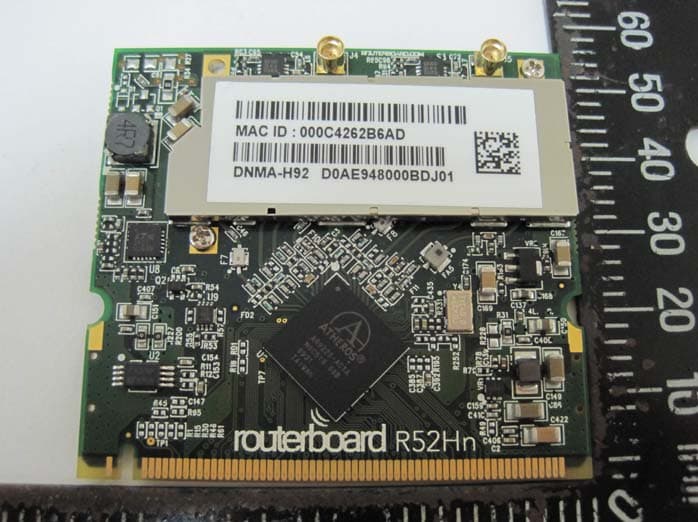

SPORTON International Inc. PAGE NUMBER : A1 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 14, 2009 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 14, 2009 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 14, 2009 FAX : 886-2-2696-2255

mm mm

SPORTON International Inc. PAGE NUMBER : A1 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 14, 2009 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 14, 2009 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 14, 2009 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 14, 2009 FAX : 886-2-2696-2255

Report No.: FR9N1919 FCC ID: TV7R52HN Page No. : C1 of C3 Appendix C. Maximum Permissible Exposure Report No.: FR9N1919 FCC ID: TV7R52HN Page No. : C2 of C3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.25 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.25m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR9N1919 FCC ID: TV7R52HN Page No. : C3 of C3 1.3. Calculated Result and Limit <For 5GHz Band>: 5GHz ISM Band- Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11a Ant. A+Ant. B : 29.72 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.5 1.7783 29.7201 937.5936 0.331868 1 Complies 5GHz UNII Band- Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11a Ant. A+Ant. B : 23.94 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.5 1.7783 23.9353 247.4749 0.087595 1 Complies <For 2.4GHz Band>: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11g Ant. A + Ant. B : 29.84 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2 1.5849 29.8377 963.3102 0.303890 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC Dynamic Frequency Selection Test Report Applicant’s company Mikrotikls SIA Applicant Address Pernavas 46, Riga LV-1009, LATVIA FCC ID TV7R52HN Manufacturer’s company Mikrotikls SIA Manufacturer Address Pernavas 46, Riga LV-1009, LATVIA Product Name WLAN 802.11a/b/g/n MiniPCI module Brand Name RouterBOARD Model Name R52Hn Test Standard(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5250~5350 / 5470~5725 Received Date Nov. 20, 2009 Final Test Date Nov. 23, 2009 Submission Type Original Equipment Operating Mode Client (without radar detection function) Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in FCC OET Order 06-96A (2006) and 47 CFR FCC Part 15 Subpart E § 15.407. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FZ9N1919 Report Format Version: 01 Page No. : i of ii FCC ID: TV7R52HN Issued Date : Dec. 14, 2009 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Standard Requirement .......................................................................................................................................................................3 3.2. Product Specification Table................................................................................................................................................................3 3.3. Accessories .........................................................................................................................................................................................5 3.4. Table for DFS Band Carrier Frequencies .............................................................................................................................................6 3.5. Antenna Information on DFS Band......................................................................................................................................................7 4. DFS DETECTION THRESHOLDS AND RADAR TEST WAVEFORMS ............................................................................. 8 4.1. Interference Threshold values, Master or Client incorporating In-Service Monitoring.........................................................................8 4.2. DFS Response requirement values......................................................................................................................................................8 4.3. Radar Test Waveforms Minimum Step.................................................................................................................................................9 4.4. Short Pulse Radar Test Waveforms ......................................................................................................................................................9 4.5. Long Pulse Radar Test Waveform......................................................................................................................................................10 4.6. Frequency Hopping Radar Test Waveform.......................................................................................................................................12 4.7. Conducted Calibration Setup ..........................................................................................................................................................14 4.8. Radar Waveform Calibration Procedure ..........................................................................................................................................14 4.9. Calibration Deviation........................................................................................................................................................................14 4.10. Radar Waveform Calibration Result .................................................................................................................................................15 5. TEST SETUP AND TEST RESULT............................................................................................................................ 17 5.1. Test setup ..........................................................................................................................................................................................17 5.2. In-Service Monitoring for Channel Move Time, Channel Closing Transmission Time and Non-Occupancy Period Measurement...23 6. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 32 7. TEST LOCATION.............................................................................................................................................. 33 8. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 34 APPENDIX A. PHOTOGRAPHS OF EUT.......................................................................................................... A1 ~ A6 Report No.: FZ9N1919 Report Format Version: 01 Page No. : ii of ii FCC ID: TV7R52HN …

Text truncated - open the document above for the full version.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Mikrotikls SIA Applicant Address Pernavas 46, Riga LV-1009, LATVIA FCC ID TV7R52HN Manufacturer’s company Mikrotikls SIA Manufacturer Address Pernavas 46, Riga LV-1009, LATVIA Product Name WLAN 802.11a/b/g/n MiniPCI module Brand Name RouterBOARD Model Name R52Hn Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5350MHz / 5470 ~ 5725MHz Received Date Nov. 20, 2009 Final Test Date Dec. 07, 2009 Submission Type Original Equipment Statement Test result included is for the 802.11n and 802.11a (5150 ~ 5350MHz / 5470 ~ 5725MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart E. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR9N1919AA Report Format Version: 01 Page No. : i of ii FCC ID: TV7R52HN Issued Date : Dec. 14, 2009 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................6 3.5. Table for Test Modes ...........................................................................................................................................................................7 3.6. Table for Testing Locations..................................................................................................................................................................8 3.7. Table for Supporting Units ...................................................................................................................................................................8 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................9 3.9. Test Configurations ...........................................................................................................................................................................10 4. TEST RESULT ................................................................................................................................................... 13 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................13 4.2. 99% Occupied Bandwidth Measurement ........................................................................................................................................17 4.3. Maximum Conducted Output Power Measurement .........................................................................................................................33 4.4. Power Spectral Density Measurement ..............................................................................................................................................65 4.5. Peak Excursion Measurement ...........................................................................................................................................................81 4.6. Radiated Emissions Measurement ....................................................................................................................................................97 4.7. Band Edge Emissions Measurement ...............................................................................................................................................153 4.8. Frequency Stability Measurement ..................................................................................................................................................163 4.9. Antenna Requirements ...................................................................................................................................................................165 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................. 166 6. TEST LOCATION............................................................................................................................................ 167 7. TAF CERTIFICATE OF ACCREDITATION ........................................................................................................... 168 APPENDIX A. PHOTOGRAPHS OF EUT.....................................…

Text truncated - open the document above for the full version.

Report No.: FR9N1919 FCC ID: TV7R52HN Page No. : 1 of 6 Appendix B. Test Photos Report No.: FR9N1919 FCC ID: TV7R52HN Page No. : 2 of 6 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR9N1919 FCC ID: TV7R52HN Page No. : 3 of 6 2. Photographs of Radiated Emissions Test Configuration 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR9N1919 FCC ID: TV7R52HN Page No. : 4 of 6 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR9N1919 FCC ID: TV7R52HN Page No. : 5 of 6 Above 1GHz FRONT VIEW REAR VIEW Report No.: FR9N1919 FCC ID: TV7R52HN Page No. : 6 of 6 SIDE VIEW
