TV7RB2011-2HND2X2 MIMO BROADBAND DIGITAL TRANSMISSION SYSTEM

See www.routerboard.com for more information. Contact [email protected] for support questions. 23-May-2012 RouterBOARD 2011U series Quick Setup Guide and Warranty Information The RB2011 is a small form factor ethernet router with 5 Gigabit Ethernet ports and 5 Fast Ethernet ports. The RB2011U series includes two models RB2011US-­‐IN (USB, SFP, indoor case) and RB2011US-­‐2HnD-­‐IN (also includes wireless functionality and indoor antennas). First use The device comes preinstalled with RouterOS and is ready to use. RB2011 is compatible with RouterOS v5.9 and newer, if your device comes preinstalled with an earlier version, please upgrade before using it. The Ethernet ports 2-­‐10 have a default IP address for connecting: 192.168.88.1 username is admin and there is no password. Please connect with your web browser to this IP address and choose Webfig to configure it. Ether1 is configured as a DHCP client, for connecting to your ISP. See this page for connection and configuration guides: http://wiki.mikrotik.com/wiki/Category:Manual Powering The device accepts powering from either the power jack, or from the LAN1 Ethernet port: • Direct-­‐input power jack (5.5mm outside and 2mm inside diameter, female, pin positive plug) accepts 8-­‐30V DC (overvoltage protection starts at 30V). • Eth1 port accepts 8-­‐30V DC input (at the board; higher voltage needed to compensate for power loss on long cables) from non-­‐standard (passive) Power over Ethernet injectors. The board does not work with IEEE802.3af compliant 48V power injectors • The IN and RM models include a 110/220V PSU which is already plugged into the power jack inside the case Extension Slots and Ports • Five 10/100/1000 (Gigabit) Ethernet ports (Auto MDI/X) • Five 10/100 (Fast) Ethernet ports (Auto MDI/X) • One 8-­‐30V DC power jack • SFP port for SFP module (module not included) • (on RB2011US-­‐2HnD-­‐IN) built in 2GHz wireless device with external antennas, 802.11 b/g/n modes supported. See www.routerboard.com for more information. Contact [email protected] for support questions. 23-May-2012 Resetting the device In case you wish to return the device to its original configuration, you can use the RESET button (image Reset1). Hold this button during boot time until LED lights start flashing, then release the button to reset RouterOS configuration. You can use this procedure if you have forgotten the password to access the device, or simply wish to return the unit to its default config-­‐ uration state. Buttons and Jumpers • RouterBOOT reset button (back of case) has two functions: ü Hold this button during boot time until LED light starts flashing, release the button to reset RouterOS configuration (same result as with RouterOS reset hole) ü Hold this button during boot time longer, until LED turns off, then release it to make the RouterBOARD look for Netinstall servers. • RouterOS reset jumper hole (inside case) – resets RouterOS software to defaults. Must short circuit the metallic sides of the hole (with a screwdriver, for example) and boot the device. Hold screwdriver in place until RouterOS configuration is cleared. Operating System Support Currently tested operating system is MikroTik RouterOS (starting from version 5.9). Warranty Copyright and Trademarks. Copyright MikroTikls SIA. This manual contains information protected by copyright law. No part of it may be reproduced or transmitted in any form without prior written permission from the copyright holder. Router-­‐ BOARD, RouterOS, RouterBOOT and MikroTik are trademarks of MikroTikls SIA. All trademarks and registered trademarks appearing in this manual are the property of their respective holders. Hardware. MikroTik warrants all RouterBOARD series equipment for the term of fifteen (15) months from the shipping date to be free of defects in materials and workmanship under normal use and service, except in case of damage caused by me-­‐ chanical, electrical or other accidental or intended damages caused by improper use or due to wind, rain, fire or other acts of nature. To return failed units to MikroTik, you must perform the following RMA (Return Merchandise Authorization) procedure. Fol-­‐ low the instructions below to save time, efforts, avoid costs, and improve the speed of the RMA process. 1. If you have purchased your product from a MikroTik Reseller, please contact the Reseller company regarding all war-­‐ ranty and repair issues, the following instructions apply ONLY if you purchased your equipment directly from MikroTik in Latvia. 2. We do not offer repairs for products that are not covered by warranty. Exceptions can be made for RB1000, RB1100 and RB1200. 3. Out-­‐of-­‐warranty devices and devices not covered by warranty sent to Mikrotik will be returned to the sender at sender's cost. RMA Instructions are located on our webpage here: http://rma.mikrotik.com Manual. This manual is provided “as is” without a warranty of any kind, expressed or implied, including, but not limited to, the implied warranty of merchantability and fitness for a particular purpose. The manufacturer has made every effort to en-­‐ sure the accuracy of the contents of this manual, however, it is possible that it may contain technical inaccuracies, typo-­‐ graphical or other errors. No liability is assumed for any inaccuracy found in this publication, nor for direct or indirect, inci-­‐ dental, consequential or other damages that may result from such an inaccuracy, including, but not limited to, loss of data or profits. Please report any inaccuracies found to [email protected] See www.routerboard.com for more information. Contact [email protected] for support questions. 23-May-2012 Federal Communication Commission Interference Statement (FCC ID: TV7RB2011-­‐2HND) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference i…

Text truncated - open the document above for the full version.

November 23, 2011 Federal Communications Commission Equipment Approval Services Post Office Box 358315 Pittsburgh, Pennsylvania 15215-5315 To Whom It May Concern: Please be advised that SIA "Mikrotikls" has authorized Scot Rogers of Rogers Labs, Inc. to act on behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters and submittals. All acts carried out by Rogers Labs, Inc. on our behalf shall have the same effects as our own. Rogers Labs, Inc. is authorized to receive and exchange data between our company and the Commission. This Authorization is made pursuant to Paragraph 2.911 of FCC Rules CFR 47. This Authorization is in effect until otherwise notified in writing. Name: Edmunds Zvegincevs Title: Project Engineer Signature of applicant: SIA "Mikrotīkls" VAT # LV40003286799 Billing addr.: Aizkraukles iela 23, LV-1006, Rīga Office addr.: Pērnavas iela 46, LV-1009, Rīga Phone: +371 7317700 Fax: +371 7317701

May 25, 2012 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Office of Engineering and Technology Federal Communications Commission Columbia, MD 21046 Applicant: Mikrotikls SIA Pernavas 46 Riga, Latvia LV-1009 Re: Confidentiality for submittal information regarding FCC ID number TV7RB2011-2HND PRODUCT: Broadband Digital Transmission System operating under CFR47 part 15.247 Dear Sirs: Mikrotikls SIA requests that the material in the Parts List, Schematics, Block Diagram, and Operational Description be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. In support of this request, Mikrotikls submits the following: Long Term Confidential Files Include Schematics File Name Conf Schem RB20112HnD.pdf Block diagram File Name Conf BlkDia RB20112HnD.pdf Operational Description File Name Conf OpDes RB20112HnD.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set forth in the Operational Description, block diagram, and Schematics, which are segregated from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: TV7RB2011-2HND 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, (schematic diagrams) and any detail Parts List. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Mikrotik engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Mikrotikls SIA 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Mikrotikls SIA and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

May 25, 2012 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Federal Communications Commission Equipment Approval Services P.O. Box 35815 Pittsburgh, PA 15251-3315 Applicant: Mikrotikls SIA Pernavas 46 Riga, Latvia LV-1009 Equipment: FCC ID: TV7RB2011-2HND FCC Rules: Part 15.247 Digital Transmission System approval Men: The form 731 and application have been electronically submitted and any attachments will be up loaded to your site to be used in obtaining grant of certification. Permanent Mikrotikls SIA requests that the material in the Schematics, Operational Description, Block diagram, and parts list be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. Schematics File Name Conf Schem RB20112HnD.pdf Block diagram File Name Conf BlkDia RB20112HnD.pdf Operational Description File Name Conf OpDes RB20112HnD.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RB2011US-2HnD-IN SN: 35A901DD0B69 Louisburg, KS 66053 Test #: 120416 FCC ID#: TV7RB2011-2HND Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: May 25, 2012 Revision 1 File: LabelSmpl RB20112HnD Page 1 of 1 Label and Placement Label

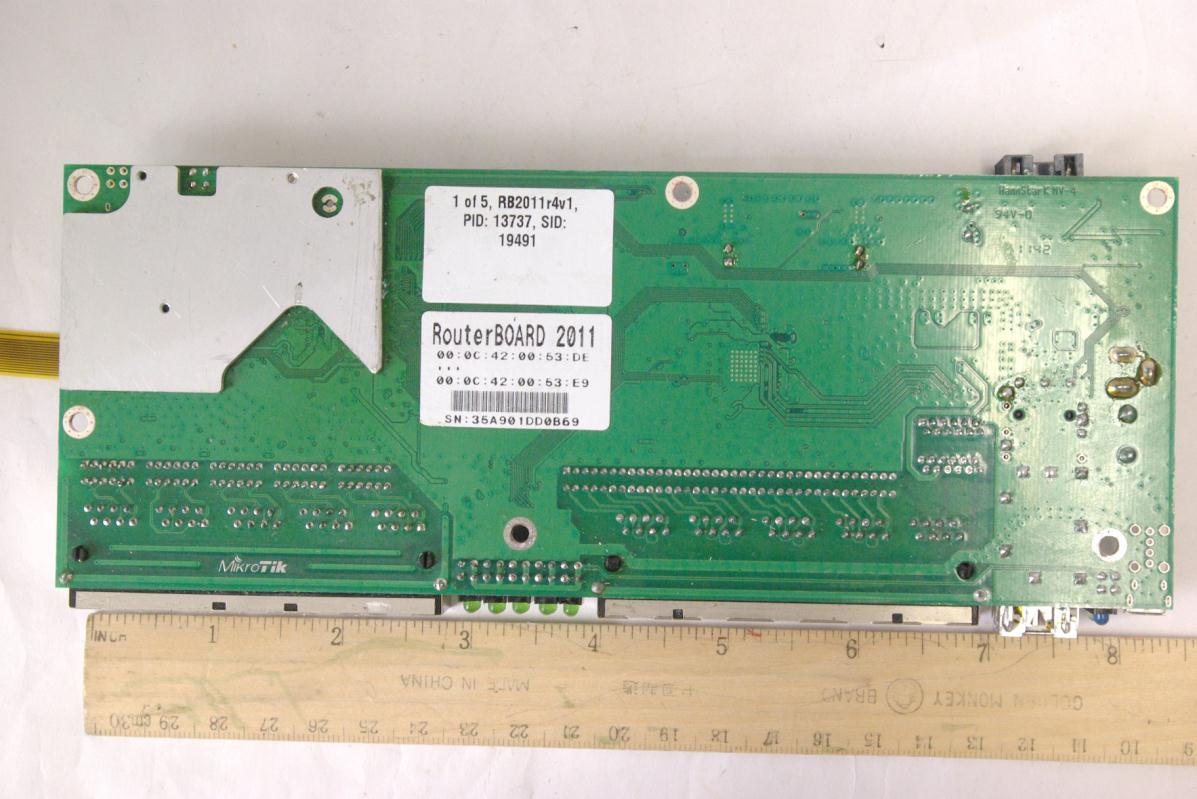

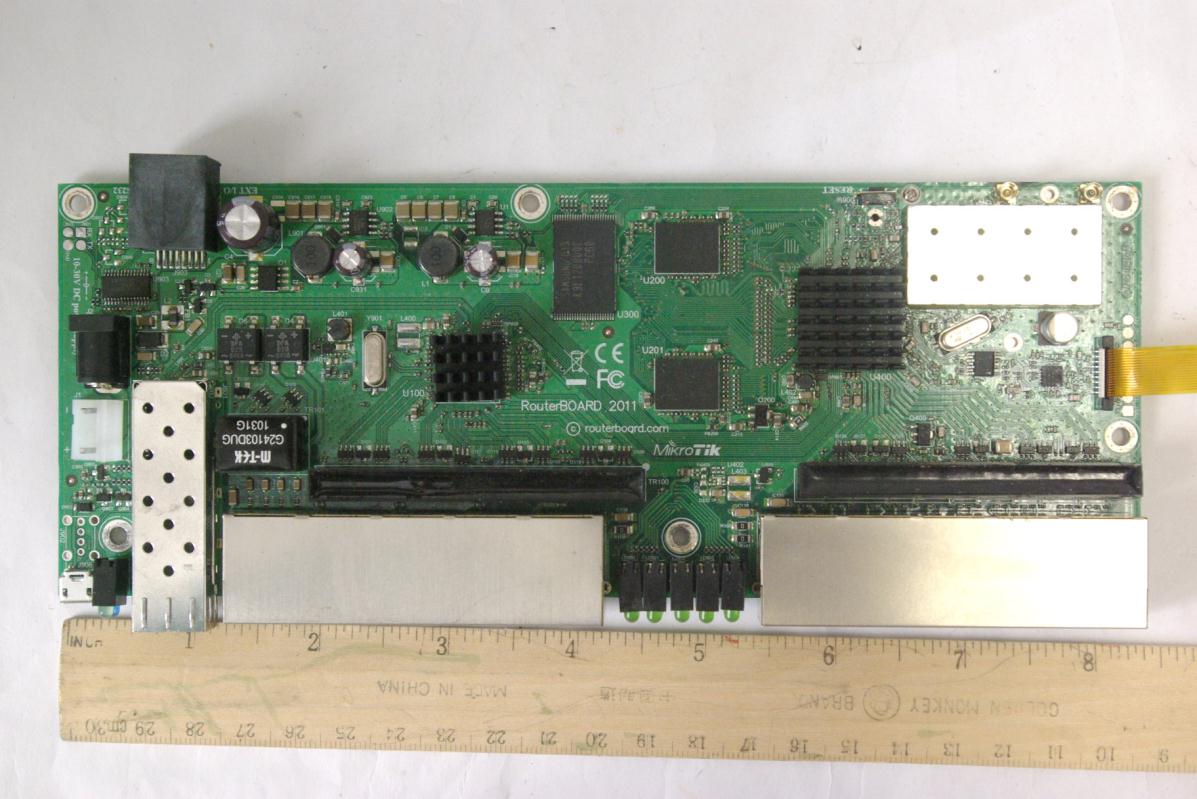

Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RB2011US-2HnD-IN SN: 35A901DD0B69 Louisburg, KS 66053 Test #: 120416 FCC ID#: TV7RB2011-2HND Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: May 25, 2012 Revision 1 File: IntPho RB20112HnD Page 1 of 2 Internal photographs of equipment under test (inside enclosure) Shield removed for photograph Back side of EUT PCB Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RB2011US-2HnD-IN SN: 35A901DD0B69 Louisburg, KS 66053 Test #: 120416 FCC ID#: TV7RB2011-2HND Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: May 25, 2012 Revision 1 File: IntPho RB20112HnD Page 2 of 2 Top side of PCB shields in place

RouterBOARD 2011US – 2HnD - IN 802.11b/g/n WLAN router Tuning procedure Each units TX and RX functionality is tested and judged with a pass/fail criteria during production. Units meeting the criteria continue through production and others are returned for diagnostics.

Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RB2011US-2HnD-IN SN: 35A901DD0B69 Louisburg, KS 66053 Test #: 120416 FCC ID#: TV7RB2011-2HND Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: May 7, 2012 Revision 1 File: RFExp RB20112HnD Page 1 of 1

NVLAP Lab Code 200087-0 Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RB2011US-2HnD-IN SN: 35A901DD0B69 Louisburg, KS 66053 Test #: 120416 FCC ID#: TV7RB2011-2HND Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: May 30, 2012 Revision 1 File: Mikrotikls RB2011US 2HnD TstRpt 120416 Page 1 of 31 SUBMITTAL APPLICATION REPORT FOR GRANT OF CERTIFICATION FOR Model: RB2011US-2HnD-IN 2412-2462 MHz 2x2 MIMO Broadband Digital Transmission System FCC ID: TV7RB2011-2HND FOR MIKROTIKLS SIA Pernavas 46 Riga, Latvia LV-1009 Test Report Number: 120416 Authorized Signatory: Scot D. Rogers NVLAP Lab Code 200087-0 Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RB2011US-2HnD-IN SN: 35A901DD0B69 Louisburg, KS 66053 Test #: 120416 FCC ID#: TV7RB2011-2HND Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: May 30, 2012 Revision 1 File: Mikrotikls RB2011US 2HnD TstRpt 120416 Page 2 of 31 Engineering Test Report For Grant of Certification Application FOR CFR 47, PART 15C - Intentional Radiators CFR 47 Paragraph 15.247 License Exempt Intentional Radiator For MIKROTIKLS SIA Pernavas 46 Riga, Latvia LV-1009 2x2 MIMO Broadband Digital Transmission System Model: RB2011US-2HnD-IN Frequency Range 2412-2462 MHz FCC ID#: TV7RB2011-2HND Test Date: April 16, 2012 Certifying Engineer: Scot D. Rogers Rogers Labs, Inc. 4405 West 259 th Terrace Louisburg, KS 66053 Telephone/Facsimile: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP, NIST, or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RB2011US-2HnD-IN SN: 35A901DD0B69 Louisburg, KS 66053 Test #: 120416 FCC ID#: TV7RB2011-2HND Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: May 30, 2012 Revision 1 File: Mikrotikls RB2011US 2HnD TstRpt 120416 Page 3 of 31 Table Of Contents TABLE OF CONTENTS .................................................................................................. 3 FORWARD ..................................................................................................................... 5 OPINION / INTERPRETATION OF RESULTS ............................................................... 5 ENVIRONMENTAL CONDITIONS.................................................................................. 5 EQUIPMENT TESTED .................................................................................................... 5 APPLICATION FOR CERTIFICATION ........................................................................... 6 APPLICABLE STANDARDS & TEST PROCEDURES .................................................. 7 EQUIPMENT FUNCTION AND CONFIGURATION........................................................ 7 Equipment Configuration.................................................................................................................................... 8 TEST SITE LOCATIONS ................................................................................................ 8 UNITS OF MEASUREMENTS ........................................................................................ 8 TEST PROCEDURES ..................................................................................................... 9 AC Line Conducted Emission Test Procedure .................................................................................................. 9 Radiated Emission Test Procedure ..................................................................................................................... 9 LIST OF TEST EQUIPMENT ........................................................................................ 10 INTENTIONAL RADIATORS ........................................................................................ 11 Antenna Requirements ...................................................................................................................................... 11 Restricted Bands of Operation .......................................................................................................................... 11 General Radiated Emissions in Restricted Bands Data (General) ..................................................................... 12 Harmonic Radiated Emissions in Restricted Bands Data .................................................................................. 12 Summary of Results for Radiated Emissions in Restricted Bands ................................................................ 13 AC Line Conducted Emissions Procedure ....................................................................................................... 13 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RB2011US-2HnD-IN SN: 35A901DD0B69 Louisburg, KS 66053 Test #: 120416 FCC ID#: TV7RB2011-2HND Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: May 30, 2012 Revision 1 File: Mikrotikls RB2011US 2HnD TstRpt 120416 Page 4 of 31 Figure One AC Line Conducted Emissions Line 1 ........................................................................................... 14 Figure Two AC Line Conducted Emissions Line 2 ........................................................................................... 14 AC Line Conducted Emissions Data (Highest Emissions) ................................................................................ 15 Summary of Results for AC Line Conducted Emissions ................................................................................ 15 General Radiated Emissions Procedure ........................................................................................................... 16 General Radiated Emissions from EUT Data (Highest Emissions all antenna options) .................................... 17 Summary of Re…

Text truncated - open the document above for the full version.

Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RB2011US-2HnD-IN SN: 35A901DD0B69 Louisburg, KS 66053 Test #: 120416 FCC ID#: TV7RB2011-2HND Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: May 25, 2012 Revision 1 File: TSup RB20112HnD Page 1 of 2 Test setup photographs AC Line Conducted Emissions Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RB2011US-2HnD-IN SN: 35A901DD0B69 Louisburg, KS 66053 Test #: 120416 FCC ID#: TV7RB2011-2HND Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: May 25, 2012 Revision 1 File: TSup RB20112HnD Page 2 of 2 Radiated Emissions
