TV7RB912G-2HPNDMIMO BROADBAND DIGITAL TRANSMISSION SYSTEM

Mikrotikls SIA

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Aug 21, 2012
Application Purpose: Original Equipment
Date of Application: Aug 21, 2012
Equipment Note: MIMO BROADBAND DIGITAL TRANSMISSION SYSTEM
Frequency Range: 2412.00000000 - 2462.00000000
Company: Mikrotikls SIA
Country: Latvia

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

See www.routerboard.com for more information. Contact [email protected] for support questions. 14-Aug-2012 RouterBOARD 912G-‐2HPnD Quick Setup Guide and Warranty Information RB912G is a dual chain 2GHz 802.11n wireless device with a Gigabit Ethernet port. Two models are available with 2GHz wireless: RB912UAG-‐ 2HPnD (miniPCIe, SIM slot for 3G, USB 2.0 port, 64MB RAM), and RB911G-‐2HPnD (32MB RAM, no SIM, no USB, no MiniPCIe). First use • Connect antenna cables to the built in Wi-‐Fi connectors • Device accepts 8-‐30V with a passive PoE powered Ethernet ca-‐ ble or with a power connector to the Power Jack Powering The board accepts power with the following modes: • With PoE to Ether1 port. It accepts 8-‐30V DC input (at the board; higher voltage needed to compensate for power loss on long cables; at least 18V suggested) from non-‐standard (passive) Power over Ethernet injectors (no power over data lines). The board does not work with IEEE802.3af compliant 48V power injectors. • Direct input to the power jack 8-‐30V Booting process RouterOS is the operating system of all RouterBOARD routers. Please see detailed configuration guide here: http://wiki.mikrotik.com/wiki/Category:Manual#list This device doesn't come fitted with a Serial Port connector, so initial connection has to be done via the Ethernet cable, using the MikroTik Winbox utility. Winbox should be used to connect to the default IP address of 192.168.88.1 with the username admin and no password. In case you wish to boot the device from network, for example to use MikroTik Netinstall, hold the RESET button of the de-‐ vice when starting it until the LED light turns off, and Groove will start to look for Netinstall servers. In case IP connection is not available, Winbox can also be used to connect to the MAC address of the device. More infor-‐ mation here: http://wiki.mikrotik.com/wiki/First_time_startup Extension Slots and Ports • One Gigabit Ethernet port (With Auto MDI/X so you can use either straight or cross-‐over cables for connecting to other network devices). The Ethernet port accepts 8-‐30V DC powering from a passive PoE injector. • Built-‐in 802.11b/g/n WiFi card (AR9342) with two MMCX connectors • Only RB912UAG-‐2HPnD: miniPCI-‐e slot for either a 802.11 Wireless card, or a 3G modem (when a 3G modem is used in miniPCIe slot, USB port will become inactive. In RouterOS you can select which of the 3G modems you want to use, USB or miniPCIe). SIM slot is available for miniPCIe 3G cards. • Only RB912UAG-‐2HPnD: USB 2.0 port See www.routerboard.com for more information. Contact [email protected] for support questions. 14-Aug-2012 Buttons and Jumpers • RouterOS reset jumper hole (Reset2 in above image) – resets RouterOS software to defaults. Must short circuit the metallic sides of the hole (with a screwdriver, for example) and boot the device. Hold screwdriver in place until RouterOS configuration is cleared. • Reset button (Reset1 in above image) – Holding this button during boot time will make the RouterBOARD look for Netinstall servers. Release the button after the LED light goes out. Operating System Support Currently tested operating system is MikroTik RouterOS (starting from version v5.19). Copyright and Warranty Information Copyright and Trademarks. Copyright MikroTikls SIA. This manual contains information protected by copyright law. No part of it may be reproduced or transmitted in any form without prior written permission from the copyright holder. Router-‐ BOARD, RouterOS, RouterBOOT and MikroTik are trademarks of MikroTikls SIA. All trademarks and registered trademarks appearing in this manual are the property of their respective holders. Hardware. MikroTikls SIA warrants all RouterBOARD series equipment for the term of one year from the shipping date to be free of defects in materials and workmanship under normal use and service, except in case of damage caused by mechanical, electrical or other accidental or intended damages caused by improper use or due to wind, rain, fire or other acts of nature. If you have purchased your product from a MikroTik Reseller, please contact the Reseller company regarding all warranty and repair issues, the following instructions apply ONLY if you purchased your equipment directly from MikroTik Latvia To return failed unit or units to MikroTikls you must perform the following RMA (Return Material Authorization) procedure. Follow the instructions below to save time, efforts, avoid costs, and improve the speed of the RMA process. Take into ac-‐ count that all goods have one year warranty. Instructions are located on our webpage here: http://rma.mikrotik.com Manual. This manual is provided “as is” without a warranty of any kind, expressed or implied, including, but not limited to, the implied warranty of merchantability and fitness for a particular purpose. The manufacturer has made every effort to en-‐ sure the accuracy of the contents of this manual, however, it is possible that it may contain technical inaccuracies, typo-‐ graphical or other errors. No liability is assumed for any inaccuracy found in this publication, nor for direct or indirect, inci-‐ dental, consequential or other damages that may result from such an inaccuracy, including, but not limited to, loss of data or profits. Please report any inaccuracies found to [email protected] See www.routerboard.com for more information. Contact [email protected] for support questions. 14-Aug-2012 Federal Communication Commission Interference Statement (FCC ID: TV7RB912G-‐2HPND) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to …

Text truncated - open the document above for the full version.

Cover Letter(s)

November 23, 2011 Federal Communications Commission Equipment Approval Services Post Office Box 358315 Pittsburgh, Pennsylvania 15215-5315 To Whom It May Concern: Please be advised that SIA "Mikrotikls" has authorized Scot Rogers of Rogers Labs, Inc. to act on behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters and submittals. All acts carried out by Rogers Labs, Inc. on our behalf shall have the same effects as our own. Rogers Labs, Inc. is authorized to receive and exchange data between our company and the Commission. This Authorization is made pursuant to Paragraph 2.911 of FCC Rules CFR 47. This Authorization is in effect until otherwise notified in writing. Name: Edmunds Zvegincevs Title: Project Engineer Signature of applicant: SIA "Mikrotīkls" VAT # LV40003286799 Billing addr.: Aizkraukles iela 23, LV-1006, Rīga Office addr.: Pērnavas iela 46, LV-1009, Rīga Phone: +371 7317700 Fax: +371 7317701

Cover Letter(s)

August 16, 2012 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Office of Engineering and Technology Federal Communications Commission Columbia, MD 21046 Applicant: Mikrotikls SIA Pernavas 46 Riga, Latvia LV-1009 Re: Confidentiality for submittal information regarding FCC ID number TV7RB912G-2HPND PRODUCT: Broadband Digital Transmission System operating under CFR47 part 15.247 Dear Sirs: Mikrotikls SIA requests that the material in the Parts List, Schematics, Block Diagram, and Operational Description be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. In support of this request, Mikrotikls submits the following: Long Term Confidential Files Include Schematics File Name Conf Schem RB912G2HPND.pdf Block diagram File Name Conf BlkDia RB912G2HPND.pdf Operational Description File Name Conf OpDes RB912G2HPND.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set forth in the Operational Description, block diagram, and Schematics, which are segregated from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: TV7RB912G-2HPND 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, (schematic diagrams) and any detail Parts List. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Mikrotik engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Mikrotikls SIA 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Mikrotikls SIA and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

Cover Letter(s)

August 15, 2012 Timco Engineering, Inc. 849 NW State Road 45 P.O. Box 370 Newberry, Florida 32669 Re.: Professional Installation Attestation Equipment: FCC: TV7RB912G-2HPND To Whom It May Concern: MIKROTIK addresses the following items to ensure that the above referenced equipment is professionally installed: 1. The TV7RB912G-2HPND will only be sold by MIKROTIK or one of its authorized dealers. MIKROTIK and its authorized dealers will be under strict marketing control and will only market and sell the TV7RB912G-2HPND to professionals. 2. Professional installation is required for the TV7RB912G-2HPND and will be performed only by someone knowledgeable of its use. MIKROTIK will ensure that the TV7RB912G-2HPND is only marketed and sold to professionals. 3. The TV7RB912G-2HPND can be paired with a variety of antennas and cables, the Antenna Gain, Cable Loss, and Output Power fields are provided to the professional installer to assist in meeting regulatory requirements. 4. The TV7RB912G-2HPND is not sold to the general public and is sold only for industrial or commercial use by professional installers. Sincerely, Edmunds Zvegincevs Mikrotikls SIA

Cover Letter(s)

August 16, 2012 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Federal Communications Commission Equipment Approval Services P.O. Box 35815 Pittsburgh, PA 15251-3315 Applicant: Mikrotikls SIA Pernavas 46 Riga, Latvia LV-1009 Equipment: FCC ID: TV7912G-2HPND FCC Rules: Part 15.247 Digital Transmission System approval Men: The form 731 and application have been electronically submitted and any attachments will be up loaded to your site to be used in obtaining grant of certification. Permanent Mikrotikls SIA requests that the material in the Parts List, Schematics, Block Diagram, and Operational Description be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. Schematics File Name Conf Schem RB912G2HPND.pdf Block diagram File Name Conf BlkDia RB912G2HPND.pdf Operational Description File Name Conf OpDes RB912G2HPND.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

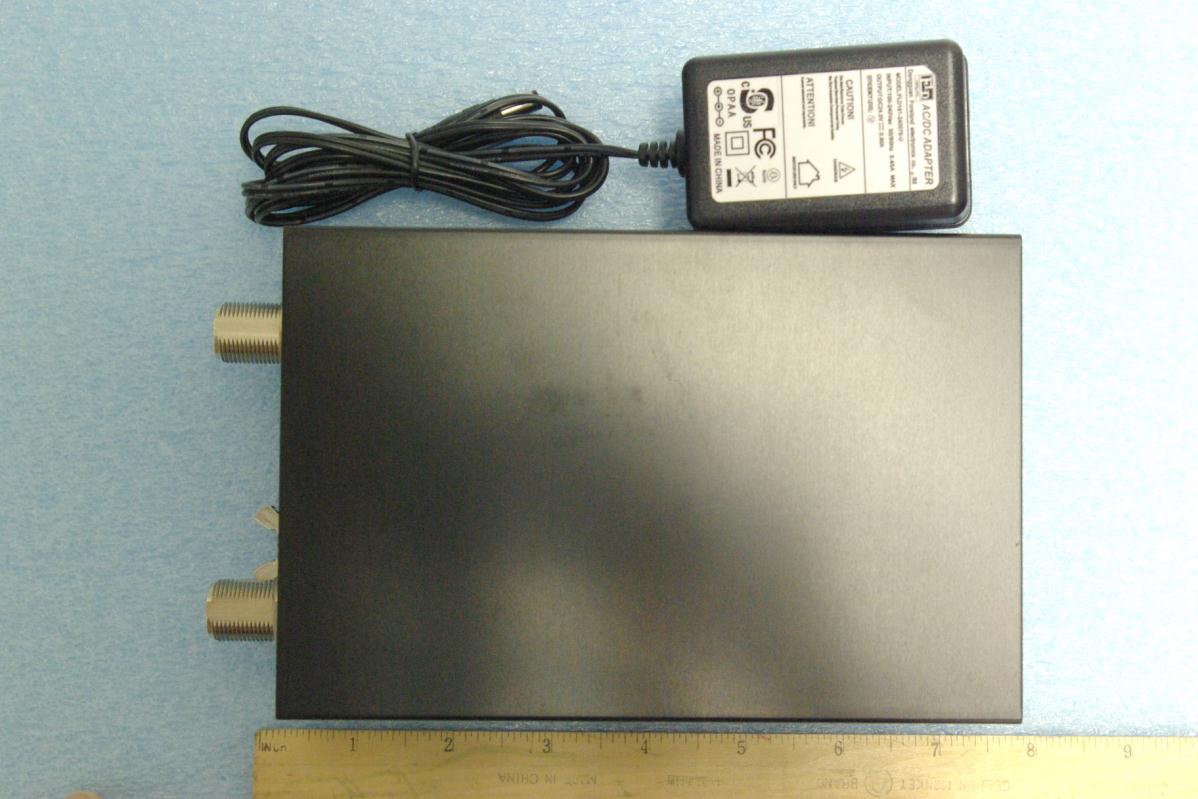

External Photos

ID Label/Location Info

Internal Photos

Parts List/Tune Up Info

RouterBOARD 912G-2HPnD 802.11b/g/n WLAN router Tuning procedure Each units TX and RX functionality is tested and judged with a pass/fail criteria during production. Units meeting the criteria continue through production and others are returned for diagnostics.

RF Exposure Info

Test Report

NVLAP Lab Code 200087-0 Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RB912G-2HPnD SN: 3D640002341D Louisburg, KS 66053 Test #: 120713 FCC ID#: TV7RB912G-2HPND Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: August 21, 2012 Revision 2 File: Mikrotikls RB912G2HPnD TstRpt 120713 r2 Page 1 of 44 SUBMITTAL APPLICATION REPORT FOR GRANT OF CERTIFICATION FOR Model: RB912G-2HPnD 2412-2462 MHz MIMO Broadband Digital Transmission System FCC ID: TV7RB912G-2HPND FOR MIKROTIKLS SIA Pernavas 46 Riga, Latvia LV-1009 Test Report Number: 120713 Authorized Signatory: Scot D. Rogers NVLAP Lab Code 200087-0 Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RB912G-2HPnD SN: 3D640002341D Louisburg, KS 66053 Test #: 120713 FCC ID#: TV7RB912G-2HPND Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: August 21, 2012 Revision 2 File: Mikrotikls RB912G2HPnD TstRpt 120713 r2 Page 2 of 44 Engineering Test Report For Grant of Certification Application FOR CFR 47, PART 15C - Intentional Radiators CFR 47 Paragraph 15.247 License Exempt Intentional Radiator For MIKROTIKLS SIA Pernavas 46 Riga, Latvia LV-1009 2x2 MIMO Broadband Digital Transmission System Model: RB912G-2HPnD Frequency Range 2412-2462 MHz FCC ID#: TV7RB912G-2HPND Test Date: July 13, 2012 Certifying Engineer: Scot D. Rogers Rogers Labs, Inc. 4405 West 259 th Terrace Louisburg, KS 66053 Telephone/Facsimile: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP, NIST, or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RB912G-2HPnD SN: 3D640002341D Louisburg, KS 66053 Test #: 120713 FCC ID#: TV7RB912G-2HPND Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: August 21, 2012 Revision 2 File: Mikrotikls RB912G2HPnD TstRpt 120713 r2 Page 3 of 44 Table Of Contents TABLE OF CONTENTS .................................................................................................. 3 REVISIONS ..................................................................................................................... 4 FORWARD ..................................................................................................................... 5 OPINION / INTERPRETATION OF RESULTS ............................................................... 5 EQUIPMENT TESTED .................................................................................................... 5 APPLICATION FOR CERTIFICATION ........................................................................... 6 APPLICABLE STANDARDS & TEST PROCEDURES .................................................. 7 EQUIPMENT FUNCTION AND CONFIGURATION........................................................ 7 Equipment Configuration.................................................................................................................................... 8 TEST SITE LOCATIONS ................................................................................................ 8 UNITS OF MEASUREMENTS ........................................................................................ 8 TEST PROCEDURES ..................................................................................................... 9 AC Line Conducted Emission Test Procedure .................................................................................................. 9 Test arrangement for Conducted emissions ....................................................................................................... 10 Radiated Emission Test Procedure ................................................................................................................... 11 Test arrangement for radiated emissions of tabletop equipment ....................................................................... 11 Test arrangement for radiated emissions of tabletop equipment ....................................................................... 12 ENVIRONMENTAL CONDITIONS................................................................................ 13 LIST OF TEST EQUIPMENT ........................................................................................ 13 INTENTIONAL RADIATORS ........................................................................................ 14 Antenna Requirements ...................................................................................................................................... 14 Restricted Bands of Operation .......................................................................................................................... 14 General Radiated Emissions in Restricted Bands Data (General Worst-case) .................................................. 15 Harmonic Radiated Emissions in Restricted Bands Data (Omni, ODH 24-13, 13 dBi) .................................... 15 Harmonic Radiated Emissions in Restricted Bands Data (Omni, WLO-2450-15, 15 dBi) ............................... 16 Harmonic Radiated Emissions in Restricted Bands Data (Sector, SA-24-90-17-WB, 17 dBi) ......................... 16 Harmonic Radiated Emissions in Restricted Bands Data (Panel, WLP-24450-20, 20 dBi) .............................. 17 Harmonic Radiated Emissions in Restricted Bands Data (Dish, DC 24-HD-PFIP, 24 dBi).............................. 17 Summary of Results for Radiated Emissions in Restricted Bands ................................................................ 18 AC Line Conducted Emissions Procedure ....................................................................................................... 18 Figure One AC Line Conducted Emissions Line 1 ........................................................................................... 19 Figure Two AC Line Conducted Emiss…

Text truncated - open the document above for the full version.

Test Setup Photos

Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RB912G-2HPnD SN: 3D640002341D Louisburg, KS 66053 Test #: 120713 FCC ID#: TV7RB912G-2HPND Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: August 15, 2012 Revision 1 File: TSup RB912G2HPnD Page 1 of 6 Test setup photographs AC Line Conducted Emissions Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RB912G-2HPnD SN: 3D640002341D Louisburg, KS 66053 Test #: 120713 FCC ID#: TV7RB912G-2HPND Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: August 15, 2012 Revision 1 File: TSup RB912G2HPnD Page 2 of 6 Radiated Emissions Grid Dish Antenna Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RB912G-2HPnD SN: 3D640002341D Louisburg, KS 66053 Test #: 120713 FCC ID#: TV7RB912G-2HPND Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: August 15, 2012 Revision 1 File: TSup RB912G2HPnD Page 3 of 6 Sector antenna Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RB912G-2HPnD SN: 3D640002341D Louisburg, KS 66053 Test #: 120713 FCC ID#: TV7RB912G-2HPND Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: August 15, 2012 Revision 1 File: TSup RB912G2HPnD Page 4 of 6 Horizontal bar Omni antenna Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RB912G-2HPnD SN: 3D640002341D Louisburg, KS 66053 Test #: 120713 FCC ID#: TV7RB912G-2HPND Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: August 15, 2012 Revision 1 File: TSup RB912G2HPnD Page 5 of 6 Omni directional antenna Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RB912G-2HPnD SN: 3D640002341D Louisburg, KS 66053 Test #: 120713 FCC ID#: TV7RB912G-2HPND Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: August 15, 2012 Revision 1 File: TSup RB912G2HPnD Page 6 of 6 Panel antenna

Contact Information

Applicant

Edmunds Zvegincevs(engineer, R&D)

[email protected]+371 67317700Fax: +371 67317701

Test Firm

Rogers Labs, Inc.Scot Rogers

[email protected]913-837-3214Fax: 913-837-3214

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.41 GHz - 2.46 GHz	1 W

Confidentiality

Long Term

Grant Notes

Power listed is conducted 500 mW per chain with one Watt total output. Professional Installation is required. This device is supplied with specific antennas as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and Installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Device is capable of operating in a 2x2 Spatial Multiplexing/Cyclic Delay Diversity MIMO configurations and single-stream legacy modes. The unit may be configured to transmit on both chains at the same time or choose a single chain (without automatic switching between chains). The unit may listen on a single or both chains as described in this filing. This device has a 20 MHz and 40 MHz bandwidth mode.
