TV7RB912G-5HPNDMIMO BROADBAND DIGITAL TRANSMISSION SYSTEM

Mikrotikls SIA

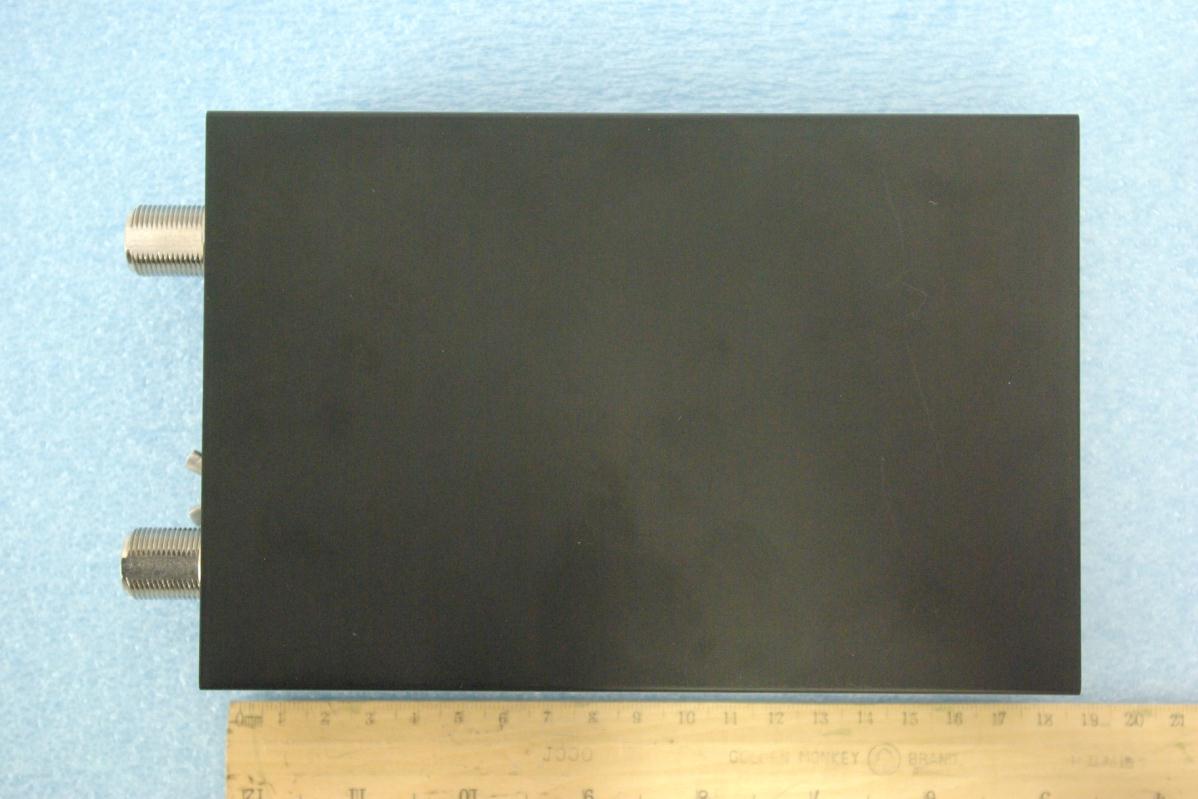

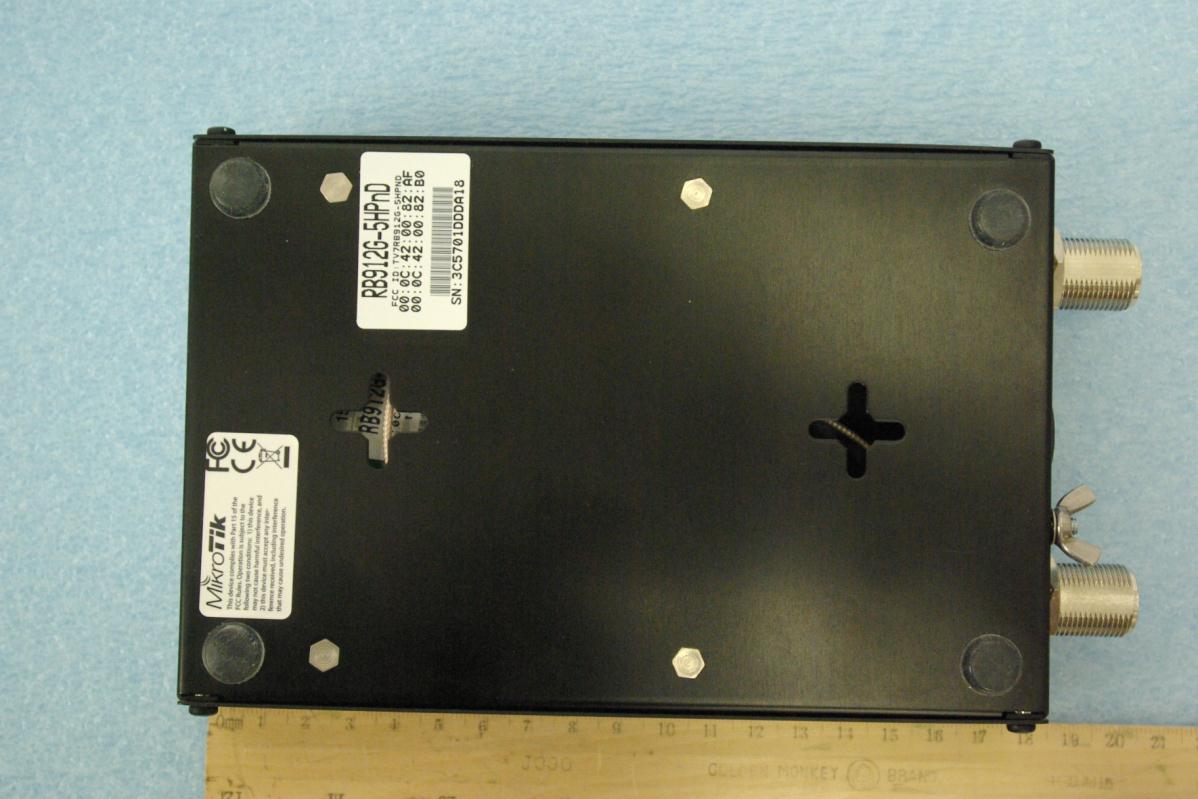

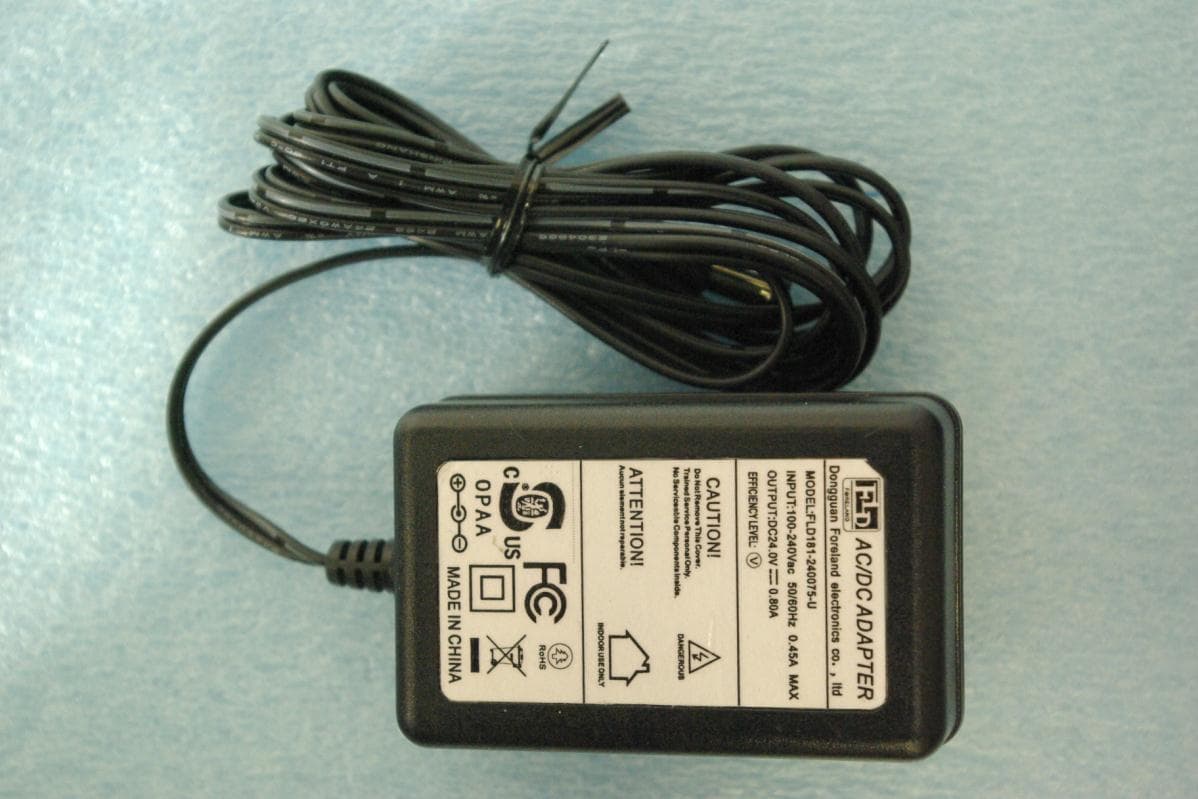

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Apr 15, 2013
Application Purpose: Original Equipment
Date of Application: Apr 15, 2013
Equipment Note: MIMO BROADBAND DIGITAL TRANSMISSION SYSTEM
Frequency Range: 5740.00000000 - 5830.00000000
Company: Mikrotikls SIA
Country: Latvia

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

See www.routerboard.com for more information. Contact [email protected] for support questions. 21-Aug-2012 RouterBOARD 912G-‐5HPnD Quick Setup Guide and Warranty Information RB912G is a dual chain 2GHz 802.11n wireless device with a Gigabit Ethernet port. Two models are available with 2GHz wireless: RB912UAG-‐ 2HPnD (miniPCIe, SIM slot for 3G, USB 2.0 port, 64MB RAM), and RB911G-‐2HPnD (32MB RAM, no SIM, no USB, no MiniPCIe). First use • Connect antenna cables to the built in Wi-‐Fi connectors • Device accepts 8-‐30V with a passive PoE powered Ethernet ca-‐ ble or with a power connector to the Power Jack Powering The board accepts power with the following modes: • With PoE to Ether1 port. It accepts 8-‐30V DC input (at the board; higher voltage needed to compensate for power loss on long cables; at least 18V suggested) from non-‐standard (pas-‐ sive) Power over Ethernet injectors (no power over data lines). The board does not work with IEEE802.3af compliant 48V power injectors. • Direct input to the power jack 8-‐30V Booting process RouterOS is the operating system of all RouterBOARD routers. Please see detailed configuration guide here: http://wiki.mikrotik.com/wiki/Category:Manual#list This device doesn't come fitted with a Serial Port connector, so initial connection has to be done via the Ethernet cable, using the MikroTik Winbox utility. Winbox should be used to connect to the default IP address of 192.168.88.1 with the username admin and no password. In case you wish to boot the device from network, for example to use MikroTik Netinstall, hold the RESET button of the de-‐ vice when starting it until the LED light turns off, and Groove will start to look for Netinstall servers. In case IP connection is not available, Winbox can also be used to connect to the MAC address of the device. More infor-‐ mation here: http://wiki.mikrotik.com/wiki/First_time_startup Extension Slots and Ports • One Gigabit Ethernet port (With Auto MDI/X so you can use either straight or cross-‐over cables for connecting to other network devices). The Ethernet port accepts 8-‐30V DC powering from a passive PoE injector. • Built-‐in 802.11b/g/n WiFi card (AR9342) with two MMCX connectors • Only RB912UAG-‐2HPnD: miniPCI-‐e slot for either a 802.11 Wireless card, or a 3G modem (when a 3G modem is used in miniPCIe slot, USB port will become inactive. In RouterOS you can select which of the 3G modems you want to use, USB or miniPCIe). SIM slot is available for miniPCIe 3G cards. • Only RB912UAG-‐2HPnD: USB 2.0 port See www.routerboard.com for more information. Contact [email protected] for support questions. 21-Aug-2012 Buttons and Jumpers • RouterOS reset jumper hole (Reset2 in above image) – resets RouterOS software to defaults. Must short circuit the metallic sides of the hole (with a screwdriver, for example) and boot the device. Hold screwdriver in place until RouterOS configuration is cleared. • Reset button (Reset1 in above image) – Holding this button during boot time will make the RouterBOARD look for Netinstall servers. Release the button after the LED light goes out. Operating System Support Currently tested operating system is MikroTik RouterOS (starting from version v5.19). Copyright and Warranty Information Copyright and Trademarks. Copyright MikroTikls SIA. This manual contains information protected by copyright law. No part of it may be reproduced or transmitted in any form without prior written permission from the copyright holder. Router-‐ BOARD, RouterOS, RouterBOOT and MikroTik are trademarks of MikroTikls SIA. All trademarks and registered trademarks appearing in this manual are the property of their respective holders. Hardware. MikroTikls SIA warrants all RouterBOARD series equipment for the term of one year from the shipping date to be free of defects in materials and workmanship under normal use and service, except in case of damage caused by mechanical, electrical or other accidental or intended damages caused by improper use or due to wind, rain, fire or other acts of nature. If you have purchased your product from a MikroTik Reseller, please contact the Reseller company regarding all warranty and repair issues, the following instructions apply ONLY if you purchased your equipment directly from MikroTik Latvia To return failed unit or units to MikroTikls you must perform the following RMA (Return Material Authorization) procedure. Follow the instructions below to save time, efforts, avoid costs, and improve the speed of the RMA process. Take into ac-‐ count that all goods have one year warranty. Instructions are located on our webpage here: http://rma.mikrotik.com Manual. This manual is provided “as is” without a warranty of any kind, expressed or implied, including, but not limited to, the implied warranty of merchantability and fitness for a particular purpose. The manufacturer has made every effort to en-‐ sure the accuracy of the contents of this manual, however, it is possible that it may contain technical inaccuracies, typo-‐ graphical or other errors. No liability is assumed for any inaccuracy found in this publication, nor for direct or indirect, inci-‐ dental, consequential or other damages that may result from such an inaccuracy, including, but not limited to, loss of data or profits. Please report any inaccuracies found to [email protected] See www.routerboard.com for more information. Contact [email protected] for support questions. 21-Aug-2012 Federal Communication Commission Interference Statement (FCC ID: TV7RB912G-‐5HPND) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference…
