TV7RB922-5HPACTDIGITAL TRANSMISSION SYSTEM

See www.routerboard.com for more information. Contact [email protected] for support questions. 19-May-14 NetMetal series Quick Setup Guide and Warranty Information The NetMetal is a solid and waterproof outdoor device based on the RB92x wireless router model. It has high power wireless, and one Gigabit Ethernet connector, which support MDI-X auto detection. The device has two or three RP-SMA connectors for connecting external antennas (depends on model). The device is packaged with a 24V power adapter, a PoE injector and two mounting loops. There are four models available – two Three-chain devices (with miniPCIe slot and without), and two Dual-chain models (with miniPCIe slot and without). Extra places for more RP-SMA connectors are available on the unit in this case. First use 1. Remove the lid, and connect the antenna to the RP-SMA connectors. Bend the cable with a large radius, so that it will be able to exit through the cable openings in the bottom of the lid. Put the lid back 2. Open the product bottom door, to reveal the Ethernet connector 3. The device accepts 12-28V Passive PoE from a PoE injector (please compensate voltage for loss due to cable length) 4. The default IP address from Ether1 is 192.168.88.1 for configuration Username is admin and there is no password 5. Depending on the antenna used, you must set its gain in the RouterOS software to ensure that EIRP meets the limit set by authorities. This is done in the Wireless menu. Powering The board accepts powering from the Ethernet port (Passive PoE): • Ethernet port accepts passive Power over Ethernet 12-28V DC. Package contains a 24V adapter and a PoE injector. Maximum power consumption of the device is 23W at 24V. Booting process Connect to wireless SSID “MikroTik” and open 192.168.88.1 in your web browser. Username is admin and there is no password. In case IP connection is not available, Winbox can be used to connect to the MAC address of the device. In case your SSID is password protected, use the serial number as the wireless password. More information here: http://wiki.mikrotik.com/wiki/First_time_startup In case you wish to boot the device from network, for example to use MikroTik Netinstall, hold the RESET button of the device when starting it until the LED light turns off, and Metal will start to look for Netinstall servers. Mounting To tighten the device to a pole, use the provided metal hose clamp. Guide the loop around the device through the provided holes, and around the pole where it will be mounted. You should avoid connecting a loose Ethernet cable to the Ethernet port - secure the cable to a wall or the pole, so that the cable weight is not pulling the port. It is recommended to secure the Ethernet cable less than 2m from the device. This is to ensure that the cable doesn't damage the port by its weight, or doesn't fall out. It is possible to connect grounding wires to the PCB board mounting holes, but to do this, you must remove the PCB from the case. Expansion Slots and Ports • Built in 5GHz 802.11ac wireless, AP/station/bridge modes supported • One 10/100/1000 Gigabit Ethernet port, supporting automatic cross/straight cable correction (Auto MDI/X), so you can use either straight or crossover cable for connecting to other network devices. The Ethernet port accepts 8-30V DC powering from a passive PoE injector. See www.routerboard.com for more information. Contact [email protected] for support questions. 19-May-14 Buttons and Jumpers • RouterOS reset jumper hole (no direct access, board has to be removed from case) – resets RouterOS software to defaults. Must short circuit the metallic sides of the hole (with a screwdriver, for example) and boot the device. Hold screwdriver in place until RouterOS configuration is cleared. • RouterBOOT reset button (access through the door) has two functions: o Hold this button during boot time until LED light starts flashing, release the button to reset RouterOS configuration (same result as with reset hole) o Hold this button during boot time longer, until LED turns off, then release it to make the device look for Netinstall servers. Operating System Support Currently tested operating system is MikroTik RouterOS (starting from version 6.13). Copyright and Warranty information Copyright MikroTikls SIA. This document contains information protected by copyright law. No part of it may be reproduced or transmitted in any form without prior written permission from the copyright holder. RouterBOARD, RouterOS, RouterBOOT and MikroTik are trademarks of MikroTikls SIA. All trademarks and registered trademarks appearing in this document are the property of their respective holders. Hardware. MikroTik warrants all RouterBOARD series equipment for the term of twelve (12) months from the shipping date to be free of defects in materials and workmanship under normal use and service, except in case of damage caused by mechanical, electrical or other accidental or intended damages caused by improper use or due to wind, rain, fire or other acts of nature. To return failed units to MikroTik, you must perform the following RMA (Return Merchandise Authorization) procedure. Follow the instructions below to save time, efforts, avoid costs, and improve the speed of the RMA process. 1. If you have purchased your product from a MikroTik Reseller, please contact the Reseller company regarding all warranty and repair issues, the following instructions apply ONLY if you purchased your equipment directly from MikroTik in Latvia. 2. MikroTik does not offer repairs for products that are not covered by warranty. Exceptions can be made for: CCR1016-12G, CCR1016-12G-BU, CCR1036-12G-4S, RB1100, RB1100AH, RB1100AHx2, RB1200, RB600, RB600A and RB800 as a paid service (fees apply). 3. Out-of-warranty devices and devices not covered by warranty sent to Mikrotik will be returned to the sender at sender's cost. If the customer has not organized return of such rejected devices within 12 months from the day…

Text truncated - open the document above for the full version.

November 23, 2011 Federal Communications Commission Equipment Approval Services Post Office Box 358315 Pittsburgh, Pennsylvania 15215-5315 To Whom It May Concern: Please be advised that SIA "Mikrotikls" has authorized Scot Rogers of Rogers Labs, Inc. to act on behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters and submittals. All acts carried out by Rogers Labs, Inc. on our behalf shall have the same effects as our own. Rogers Labs, Inc. is authorized to receive and exchange data between our company and the Commission. This Authorization is made pursuant to Paragraph 2.911 of FCC Rules CFR 47. This Authorization is in effect until otherwise notified in writing. Name: Edmunds Zvegincevs Title: Project Engineer Signature of applicant: SIA "Mikrotīkls" VAT # LV40003286799 Billing addr.: Aizkraukles iela 23, LV-1006, Rīga Office addr.: Pērnavas iela 46, LV-1009, Rīga Phone: +371 7317700 Fax: +371 7317701

June 30, 2014 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Office of Engineering and Technology Federal Communications Commission Columbia, MD 21046 Applicant: Mikrotikls SIA Pernavas 46 Riga, Latvia LV-1009 Re: Confidentiality for submittal information regarding FCC ID number TV7RB922-5HPACT PRODUCT: Broadband Digital Transmission System operating under CFR47 part 15.247 Dear Sirs: Mikrotikls SIA requests that the material in the Schematics, Block Diagram, and Operational Description be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. In support of this request, Mikrotikls submits the following: Long Term Confidential Files Include Schematics File Name Conf Schem RB922UAGS5HPACTNM.pdf Block diagram File Name Conf BlkDia RB922UAGS5HPACTNM.pdf Operational Description File Name Conf OpDes RB922UAGS5HPACTNM.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set forth in the Operational Description, block diagram, and Schematics, which are segregated from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: TV7RB922-5HPACT 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, (schematic diagrams) and any detail Parts List. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Mikrotikls SIA engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Mikrotikls SIA. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Mikrotikls SIA and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

June 30, 2014 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Federal Communications Commission Equipment Approval Services P.O. Box 35815 Pittsburgh, PA 15251-3315 Applicant: Mikrotikls SIA Pernavas 46 Riga, Latvia LV-1009 Equipment: FCC ID: TV7RB922-5HPACT FCC Rules: Part 15.247 Digital Transmission System Men: The form 731 and application have been electronically submitted and any attachments will be provided to your site to be used in processing for and obtaining grant of authorization. Permanent Confidential Requested Mikrotikls SIA requests that the material in the Schematics, Block Diagram, and Operational Description be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. In support of this request, Mikrotikls SIA submits the following files to hold in long-term confidential status. Schematics File Name Conf Schem RB922UAGS5HPACTNM.pdf Block diagram File Name Conf BlkDia RB922UAGS5HPACTNM.pdf Operational Description File Name Conf OpDes RB922UAGS5HPACTNM.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

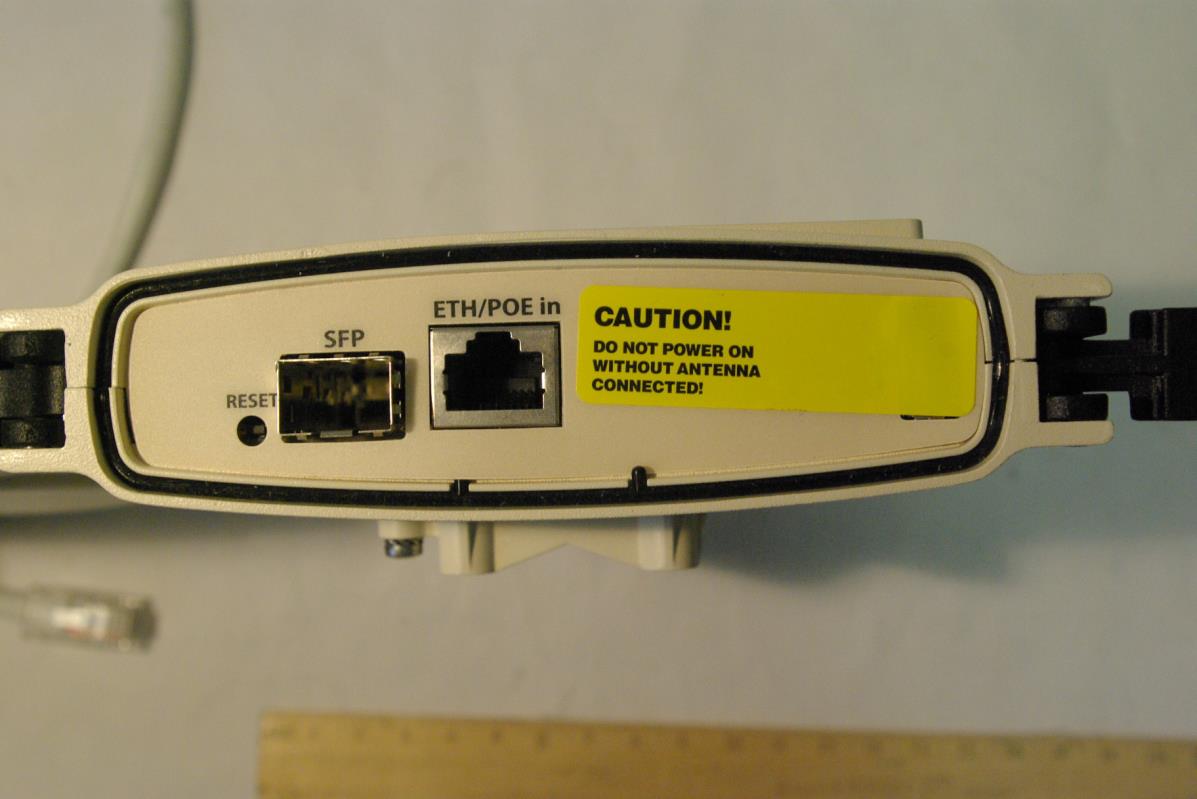

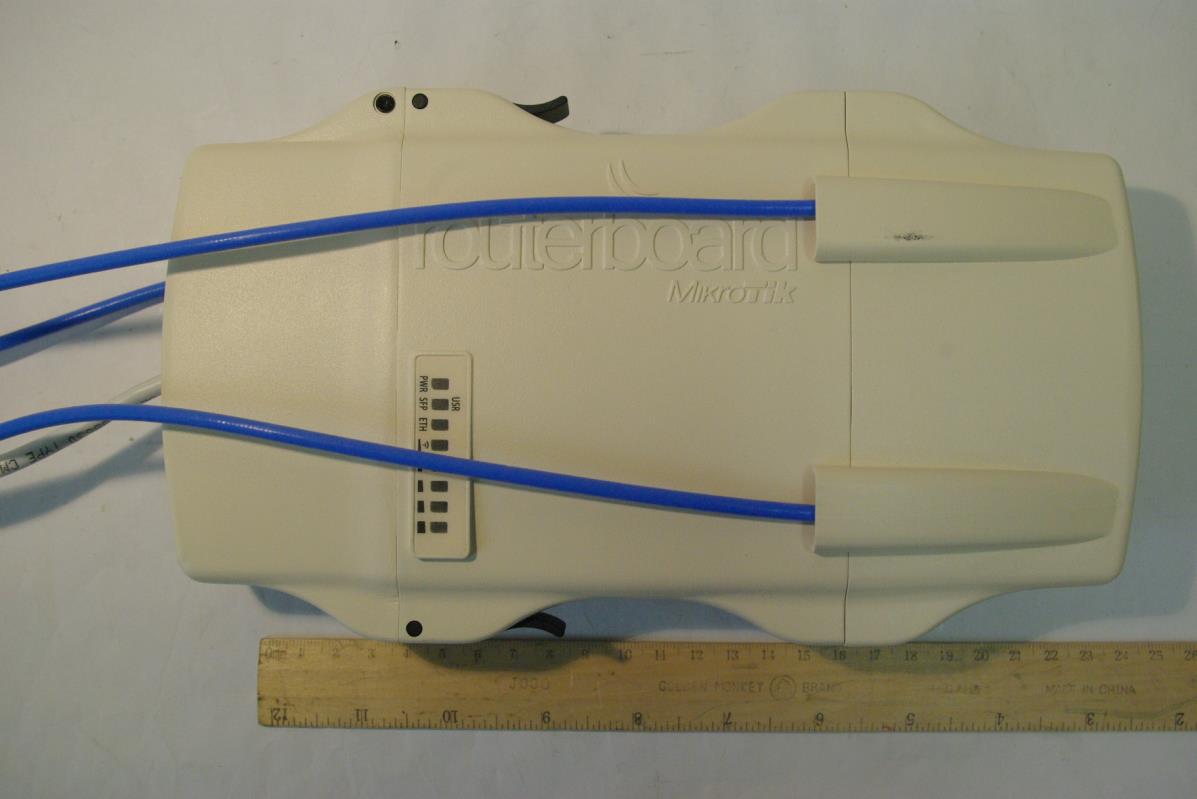

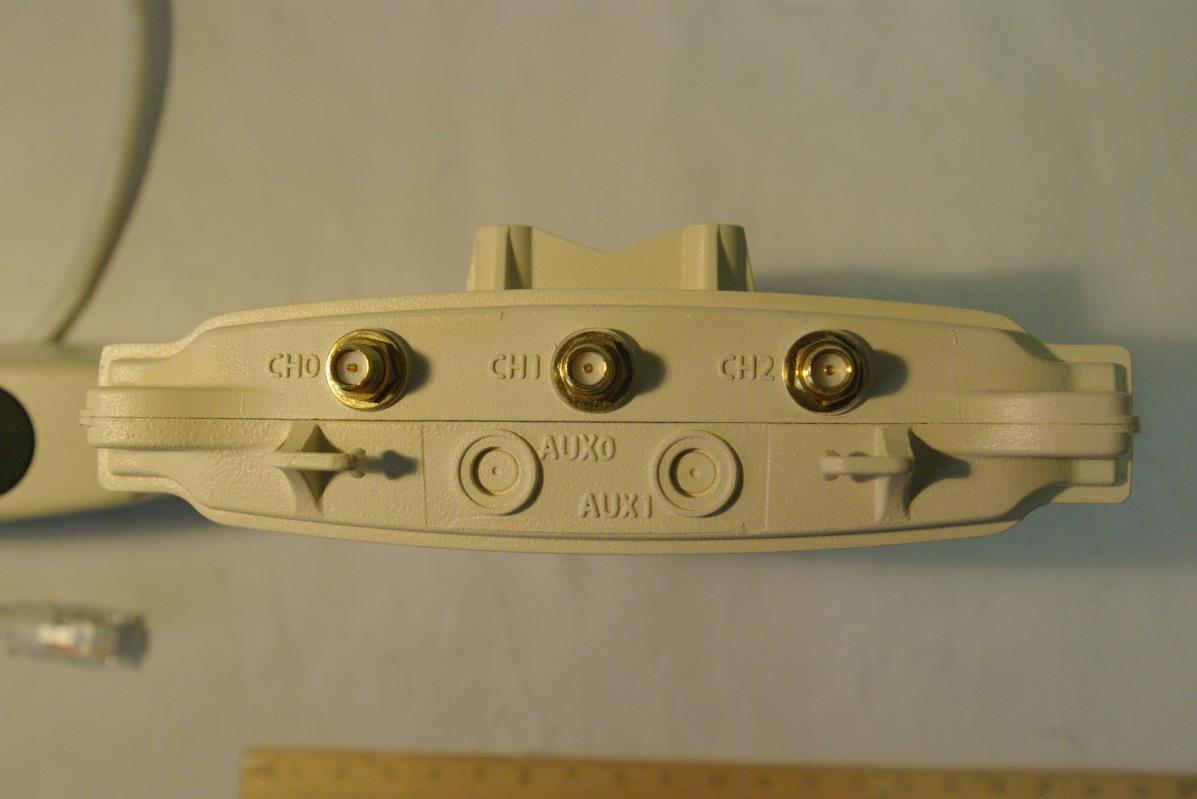

Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RB922UAGS-5HPacT-NM SN: 4A3202CHA990/420 Louisburg, KS 66053 Test #: 140611 FCC ID#: TV7RB922-5HPACT Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: June 30, 2014 Revision 1 File: ExtPho RB922UAGS5HPacTNM Page 1 of 2 External photographs of equipment under test Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RB922UAGS-5HPacT-NM SN: 4A3202CHA990/420 Louisburg, KS 66053 Test #: 140611 FCC ID#: TV7RB922-5HPACT Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: June 30, 2014 Revision 1 File: ExtPho RB922UAGS5HPacTNM Page 2 of 2

Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RouterBOARD 953GS-5HnT SN: 49C5028C45D2/421 Louisburg, KS 66053 Test #: 140605 FCC ID#: TV7RB953GS-5HNT Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: June 30, 2014 Revision 1 File: LabelSmpl RB953GS5HnT Page 1 of 1 Label and Placement

Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RB922UAGS-5HPacT-NM SN: 4A3202CHA990/420 Louisburg, KS 66053 Test #: 140611 FCC ID#: TV7RB922-5HPACT Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: June 30, 2014 Revision 1 File: IntPho RB922UAGS5HPacTNM Page 1 of 1 Internal photographs of equipment under test (Shield removed for photograph)

Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RB922UAGS-5HPacT-NM SN: 4A3202CHA990/420 Louisburg, KS 66053 Test #: 140611 FCC ID#: TV7RB922-5HPACT Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: June 30, 2014 Revision 1 File: RFExp RB922UAGS5HPacTNM Page 1 of 1

NVLAP Lab Code 200087-0 Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RB922UAGS-5HPacT-NM SN: 4A3202CHA990/420 Louisburg, KS 66053 Test #: 140611 FCC ID#: TV7RB922-5HPACT Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: July 7, 2014 Revision 1 File: Mikrotikls RB922UAGS5HPacTNM TstRpt 140611 Page 1 of 36 Submittal Application Report FOR GRANT OF CERTIFICATION FOR Model: RB922UAGS-5HPacT-NM 5745-5825 MHz Broadband Digital Transmission System FCC ID: TV7RB922-5HPACT FOR MIKROTIKLS SIA Pernavas 46 Riga, Latvia LV-1009 Test Report Number: 140611 Authorized Signatory: Scot D. Rogers NVLAP Lab Code 200087-0 Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RB922UAGS-5HPacT-NM SN: 4A3202CHA990/420 Louisburg, KS 66053 Test #: 140611 FCC ID#: TV7RB922-5HPACT Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: July 7, 2014 Revision 1 File: Mikrotikls RB922UAGS5HPacTNM TstRpt 140611 Page 2 of 36 Engineering Test Report for Grant of Certification Application FOR CFR 47, PART 15C - Intentional Radiators CFR 47 Paragraph 15.247 License Exempt Intentional Radiator For MIKROTIKLS SIA Pernavas 46 Riga, Latvia LV-1009 MIMO Broadband Digital Transmission System Model: RB922UAGS-5HPacT-NM Frequency Range 5745-5825 MHz FCC ID#: TV7RB922-5HPACT Test Date: June 11, 2014 Certifying Engineer: Scot D. Rogers Rogers Labs, Inc. 4405 West 259 th Terrace Louisburg, KS 66053 Telephone/Facsimile: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RB922UAGS-5HPacT-NM SN: 4A3202CHA990/420 Louisburg, KS 66053 Test #: 140611 FCC ID#: TV7RB922-5HPACT Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: July 7, 2014 Revision 1 File: Mikrotikls RB922UAGS5HPacTNM TstRpt 140611 Page 3 of 36 Table Of Contents TABLE OF CONTENTS .................................................................................................. 3 REVISIONS ..................................................................................................................... 4 FORWARD ..................................................................................................................... 5 OPINION / INTERPRETATION OF RESULTS ............................................................... 5 EQUIPMENT TESTED .................................................................................................... 5 APPLICATION FOR CERTIFICATION ........................................................................... 6 EQUIPMENT FUNCTION AND CONFIGURATION........................................................ 7 Equipment Configuration.................................................................................................................................... 7 APPLICABLE STANDARDS & TEST PROCEDURES .................................................. 8 EQUIPMENT TESTING PROCEDURES ........................................................................ 8 AC Line Conducted Emission Test Procedure .................................................................................................. 8 Radiated Emission Test Procedure ..................................................................................................................... 8 Diagram 1 Test arrangement for Conducted emissions ....................................................................................... 9 Diagram 2 Test arrangement for radiated emissions of tabletop equipment ...................................................... 10 Diagram 3 Test arrangement for radiated emissions tested on Open Area Test Site (OATS) ........................... 11 TEST SITE LOCATIONS .............................................................................................. 11 LIST OF TEST EQUIPMENT ........................................................................................ 12 UNITS OF MEASUREMENTS ...................................................................................... 13 ENVIRONMENTAL CONDITIONS................................................................................ 13 INTENTIONAL RADIATORS ........................................................................................ 13 Antenna Requirements ...................................................................................................................................... 13 Restricted Bands of Operation .......................................................................................................................... 13 Table 1 Radiated Emissions in Restricted Bands Data ...................................................................................... 14 Summary of Results for Radiated Emissions in Restricted Bands ................................................................ 14 AC Line Conducted Emissions Procedure ....................................................................................................... 15 Figure 1 AC Line Conducted Emissions Line 1 ................................................................................................ 16 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RB922UAGS-5HPacT-NM SN: 4A3202CHA990/420 Louisburg, KS 66053 Test #: 140611 FCC ID#: TV7RB922-5HPACT Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: July 7, 2014 Revision 1 File: Mikrotikls RB922UAGS5HPacTNM TstRpt 140611 Page 4 of 36 Figure 2 AC Line Conducted Emissions Line 2 ................................................................................................ 16 Table 2 AC Line Conducted Emissions Data (Highest Emissions Line L1) ......................................…

Text truncated - open the document above for the full version.

Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RouterBOARD 953GS-5HnT SN: 49C5028C45D2/421 Louisburg, KS 66053 Test #: 140605 FCC ID#: TV7RB953GS-5HNT Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: June 30, 2014 Revision 1 File: TSup RB953GS5HnT Page 1 of 4 Test setup photographs AC Line Conducted Emissions Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RouterBOARD 953GS-5HnT SN: 49C5028C45D2/421 Louisburg, KS 66053 Test #: 140605 FCC ID#: TV7RB953GS-5HNT Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: June 30, 2014 Revision 1 File: TSup RB953GS5HnT Page 2 of 4 Radiated Emissions Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RouterBOARD 953GS-5HnT SN: 49C5028C45D2/421 Louisburg, KS 66053 Test #: 140605 FCC ID#: TV7RB953GS-5HNT Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: June 30, 2014 Revision 1 File: TSup RB953GS5HnT Page 3 of 4 Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RouterBOARD 953GS-5HnT SN: 49C5028C45D2/421 Louisburg, KS 66053 Test #: 140605 FCC ID#: TV7RB953GS-5HNT Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: June 30, 2014 Revision 1 File: TSup RB953GS5HnT Page 4 of 4
