TV7RBGRV-A52HPNMIMO BROADBAND DIGITAL TRANSMISSION SYSTEM

Mikrotikls SIA
MIMO BROADBAND DIGITAL TRANSMISSION SYSTEM - FCC ID TV7RBGRV-A52HPN - Mikrotikls SIA
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Sep 11, 2013
Application Purpose
Original Equipment
Date of Application
Sep 11, 2013
Equipment Note
MIMO BROADBAND DIGITAL TRANSMISSION SYSTEM
Frequency Range
5755.00000000 - 5815.00000000
Company
Mikrotikls SIA
Country
Latvia

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Parts List/Tune Up Info

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

See www.routerboard.com for more information. Contact [email protected] for support questions. 05/09/13 RouterBOARD Groove Quick Setup Guide and Warranty Information The RouterBOARD Groove comes preinstalled in an outdoor case, with a built-­‐in wireless interface, an N-­‐Male antenna connector, and one 10/100 Ethernet connector which supports MDI-­‐X auto detection. The device is packaged with a 24V power adapter, a PoE injector and two mounting loops. Several models are available (dual band, single band, AP and CPE variants). First use 1. Connect the antenna to the N-­‐Male connector 2. Twist to open the Groove case, connect an Ethernet cable to the Ethernet port 3. Use the provided rubber insulator to put on the Ethernet cable, and push it into the case opening, so that the opening is tightly closed 4. The Groove accepts 8-­‐30V Passive PoE from a PoE injector 5. The default IP address from Ether1 is 192.168.88.1 for configuration Username is admin and there is no password 6. Depending on the antenna used, you must set it’s gain in the RouterOS software to ensure that EIRP meets the limit set by authorities. This is done in the Wireless menu. Powering The board accepts powering from the Ethernet port (Passive PoE): • Ethernet port accepts passive Power over Ethernet 8-­‐30V DC. Package contains a 24V adapter and a PoE injector. Maximum power consumption of the device is 4W. Booting process Initial connection has to be done via the Ethernet cable. Open 192.168.88.1 in your web browser, and choose “Webfig” for browser based configuration or “Winbox” for a Windows utility with the same functions. Username is admin and there is no password. In case IP connection is not available, Winbox can be used to connect to the MAC address of the device. More information here: http://wiki.mikrotik.com/wiki/First_time_startup In case you wish to boot the device from network, for example to use MikroTik Netinstall, hold the RESET button of the device when starting it until the LED light turns off, and Metal will start to look for Netinstall servers. Mounting The Groove is to be mounted vertically, so that the Ethernet cable points downwards. If you wish to tighten the Groove to a pole, you can do it with the provided mounting loops. The Groove comes bundled with two mounting loops -­‐ guide the loops around the Groove though the provided edge markings, and around the pole where it will be mounted. You should avoid connecting a loose Ethernet cable to the Ethernet port, secure the cable to a wall or the pole, so that the cable weight is not pulling the port. It is recommended to secure the Ethernet cable less than 2m from the Groove device. This is to ensure that the cable doesn't damage the port by it's weight, or doesn't fall out. See www.routerboard.com for more information. Contact [email protected] for support questions. 05/09/13 Expansion Slots and Ports • Built in 5GHz or 2GHz (or both) wireless device (depends on model), 1x1 MIMO • One 10/100 Ethernet port, supporting automatic cross/straight cable correction (Auto MDI/X), so you can use either straight or cross-­‐over cable for connecting to other network devices. The Ethernet port accepts 8-­‐30V DC powering from a passive PoE injector. Buttons and Jumpers • RouterOS reset jumper hole (no direct access, board has removed from case) – resets RouterOS software to defaults. Must short circuit the metallic sides of the hole (with a screwdriver, for example) and boot the device. Hold screwdriver in place until RouterOS configuration is cleared. • RouterBOOT reset button (access through the plastic door) has two functions: o Hold this button during boot time until LED light starts flashing, release the button to reset RouterOS configuration (same result as with reset hole) o Hold this button during boot time longer, until LED turns off, then release it to make the device look for Netinstall servers. Operating System Support Currently tested operating system is MikroTik RouterOS (starting from version v5.0). Copyright and Trademarks. Copyright MikroTikls SIA. This document contains information protected by copyright law. No part of it may be reproduced or transmitted in any form without prior written permission from the copyright holder. RouterBOARD, RouterOS, RouterBOOT and MikroTik are trademarks of MikroTikls SIA. All trademarks and registered trademarks appearing in this document are the property of their respective holders. Hardware. MikroTik warrants all RouterBOARD series equipment for the term of twelve (12) months from the shipping date to be free of defects in materials and workmanship under normal use and service, except in case of damage caused by mechanical, electrical or other accidental or intended damages caused by improper use or due to wind, rain, fire or other acts of nature. To return failed units to MikroTik, you must perform the following RMA (Return Merchandise Authorization) procedure. Follow the instructions below to save time, efforts, avoid costs, and improve the speed of the RMA process. 1. If you have purchased your product from a MikroTik Reseller, please contact the Reseller company regarding all warranty and repair issues, the following instructions apply ONLY if you purchased your equipment directly from MikroTik in Latvia. 2. We do not offer repairs for products that are not covered by warranty. Exceptions can be made for RB1000 series. 3. Out-­‐of-­‐warranty devices and devices not covered by warranty sent to Mikrotikls will be returned to the sender at sender's cost. RMA Instructions are located on our webpage here: http://rma.mikrotik.com This document is provided “as is” without a warranty of any kind, expressed or implied, including, but not limited to, the implied warranty of merchantability and fitness for a particular purpose. The manufacturer has made every effort to ensure the accuracy of the contents of this document, however, it is possible that it may contain technical inaccuracies, typographical o…

Text truncated - open the document above for the full version.

Cover Letter(s)

September 11, 2013 Timco Engineering, Inc. 849 NW State Road 45 P.O. Box 370 Newberry, Florida 32669 Re.: Professional Installation Attestation Equipment: FCC: TV7GRV-A52HPN To Whom It May Concern: MIKROTIK addresses the following items to ensure that the above referenced equipment is professionally installed: 1. The TV7GRV-A52HPN will only be sold by MIKROTIK or one of its authorized dealers. MIKROTIK and its authorized dealers will be under strict marketing control and will only market and sell the TV7GRV-A52HPN to professionals. 2. Professional installation is required for the TV7GRV-A52HPN and will be performed only by someone knowledgeable of its use. MIKROTIK will ensure that the TV7GRV-A52HPN is only marketed and sold to professionals. 3. The TV7GRV-A52HPN is not sold to the general public and is sold only for industrial or commercial use by professional installers. Sincerely, Edmunds Zvegincevs Mikrotikls SIA

Cover Letter(s)

September 11, 2013 Timco Engineering, Inc. 849 NW State Road 45 P.O. Box 370 Newberry, Florida 32669 Re.: Output Power Equipment: FCC: TV7GRV-A52HPN To Whom It May Concern: MIKROTIK addresses the following items to ensure that the above referenced equipment is reducing output power properly: 1.Device's output power is adjusted based on "antenna gain" setting encoded into device's memory. When it is 0dBi transmitter works at its maximum, when it is anything above 0dBi transmitter "decreases" output power if necessary to meet the EIRP limit set by FCC Part 15.247 2.Our software can reduce output power for every dB gain over 6 dBi. For eexample: Fixed Point to Point systems in 2.4GHz band: Reduce power 1dB for every 3dB exceeding 6dBi. Sincerely, Edmunds Zvegincevs Mikrotikls SIA

Cover Letter(s)

November 23, 2011 Federal Communications Commission Equipment Approval Services Post Office Box 358315 Pittsburgh, Pennsylvania 15215-5315 To Whom It May Concern: Please be advised that SIA "Mikrotikls" has authorized Scot Rogers of Rogers Labs, Inc. to act on behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters and submittals. All acts carried out by Rogers Labs, Inc. on our behalf shall have the same effects as our own. Rogers Labs, Inc. is authorized to receive and exchange data between our company and the Commission. This Authorization is made pursuant to Paragraph 2.911 of FCC Rules CFR 47. This Authorization is in effect until otherwise notified in writing. Name: Edmunds Zvegincevs Title: Project Engineer Signature of applicant: SIA "Mikrotīkls" VAT # LV40003286799 Billing addr.: Aizkraukles iela 23, LV-1006, Rīga Office addr.: Pērnavas iela 46, LV-1009, Rīga Phone: +371 7317700 Fax: +371 7317701

Cover Letter(s)

September 4, 2013 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Office of Engineering and Technology Federal Communications Commission Columbia, MD 21046 Applicant: Mikrotikls SIA Pernavas 46 Riga, Latvia LV-1009 Re: Confidentiality for submittal information regarding FCC ID number TV7GRV-A52HPN PRODUCT: Broadband Digital Transmission System operating under CFR47 part 15.247 Dear Sirs: Mikrotikls SIA requests that the material in the Schematics, Block Diagram, and Operational Description be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. In support of this request, Mikrotikls submits the following: Long Term Confidential Files Include Schematics File Name Conf Schem RBGroove52HPn.pdf Block diagram File Name Conf BlkDia RBGroove52HPn.pdf Operational Description File Name Conf OpDes RBGroove52HPn.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set forth in the Operational Description, block diagram, and Schematics, which are segregated from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: TV7GRV-A52HPN 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, (schematic diagrams) and any detail Parts List. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Mikrotik engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Mikrotikls SIA 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Mikrotikls SIA and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

Cover Letter(s)

September 4, 2013 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Federal Communications Commission Equipment Approval Services P.O. Box 35815 Pittsburgh, PA 15251-3315 Applicant: Mikrotikls SIA Pernavas 46 Riga, Latvia LV-1009 Equipment: FCC ID: TV7GRV-A52HPN FCC Rules: Part 15.247 Digital Transmission System approval Men: The form 731 and application have been electronically submitted and any attachments will be up loaded to your site to be used in obtaining grant of certification. Permanent Mikrotikls SIA requests that the material in the Parts List, Schematics, Block Diagram, and Operational Description be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. Schematics File Name Conf Schem RBGroove52HPn.pdf Block diagram File Name Conf BlkDia RBGroove52HPn.pdf Operational Description File Name Conf OpDes RBGroove52HPn.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

External Photos

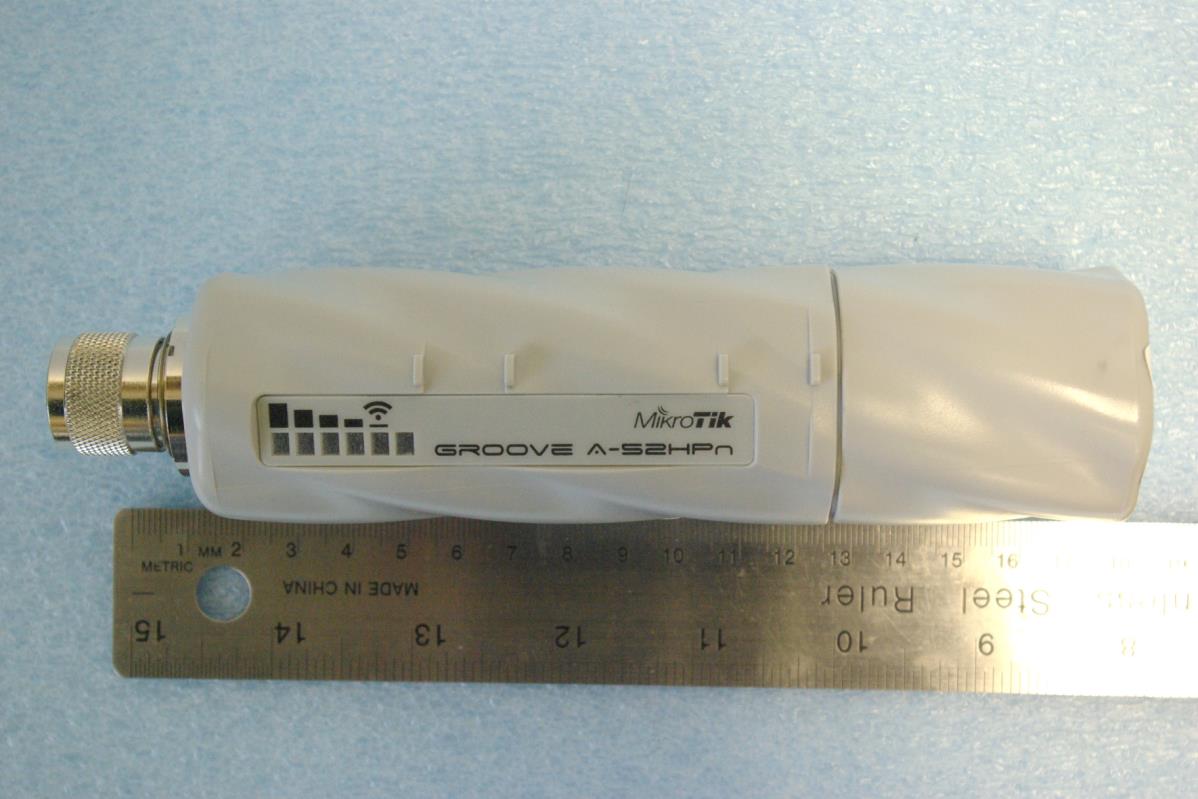

Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RBGrooveA 52HPn SN: 2BAB015524CB Louisburg, KS 66053 Test #: 130318 FCC ID#: TV7GRV-A52HPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: September 4, 2013 Revision 1 File: ExtPho RBGroove52HPn Page 1 of 2 External photographs of equipment under test Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RBGrooveA 52HPn SN: 2BAB015524CB Louisburg, KS 66053 Test #: 130318 FCC ID#: TV7GRV-A52HPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: September 4, 2013 Revision 1 File: ExtPho RBGroove52HPn Page 2 of 2

Internal Photos

Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RBGrooveA 52HPn SN: 2BAB015524CB Louisburg, KS 66053 Test #: 130318 FCC ID#: TV7GRV-A52HPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: September 4, 2013 Revision 1 File: IntPho RBGroove52HPn Page 1 of 2 Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RBGrooveA 52HPn SN: 2BAB015524CB Louisburg, KS 66053 Test #: 130318 FCC ID#: TV7GRV-A52HPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: September 4, 2013 Revision 1 File: IntPho RBGroove52HPn Page 2 of 2 Internal photographs of equipment under test (Shield removed for photograph)

Parts List/Tune Up Info

Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RBGrooveA 52HPn SN: 2BAB015524CB Louisburg, KS 66053 Test #: 130318 FCC ID#: TV7GRV-A52HPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: September 4, 2013 Revision 1 File: TunPro RBGroove52HPn Page 1 of 1 Tune-up Procedure Each unit is tested during unit production by measuring engineering defined parameters. The unit is then given pass/fail status based on the measured parameters. The pass/fail threshold is determined by engineering during product development. Samples passing testing continue through production and non-compliant units are removed.

RF Exposure Info

Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RBGrooveA 52HPn SN: 2BAB015524CB Louisburg, KS 66053 Test #: 130318 FCC ID#: TV7GRV-A52HPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: September 4, 2013 Revision 1 File: RFExp RBGroove52HPn Page 1 of 2 Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RBGrooveA 52HPn SN: 2BAB015524CB Louisburg, KS 66053 Test #: 130318 FCC ID#: TV7GRV-A52HPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: September 4, 2013 Revision 1 File: RFExp RBGroove52HPn Page 2 of 2

Test Report

NVLAP Lab Code 200087-0 Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RBGrooveA 52HPn SN: 2BAB015524CB Louisburg, KS 66053 Test #: 130318 FCC ID#: TV7GRV-A52HPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: September 9, 2013 Revision 2 File: Mikrotikls RBGrooveA52 TstRpt 130318 r2 Page 1 of 47 Submittal Application Report FOR GRANT OF CERTIFICATION FOR Model: RBGrooveA 52HPn 2412-2462 and 5745-5825 MHz Dual Band 802.11b/g/n and 802.11a/n Broadband Digital Transmission System FCC ID: TV7GRV-A52HPN FOR MIKROTIKLS SIA Pernavas 46 Riga, Latvia LV-1009 Test Report Number: 130318 Authorized Signatory: Scot D. Rogers NVLAP Lab Code 200087-0 Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RBGrooveA 52HPn SN: 2BAB015524CB Louisburg, KS 66053 Test #: 130318 FCC ID#: TV7GRV-A52HPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: September 9, 2013 Revision 2 File: Mikrotikls RBGrooveA52 TstRpt 130318 r2 Page 2 of 47 Engineering Test Report for Grant of Certification Application FOR CFR 47, PART 15C - Intentional Radiators CFR 47 Paragraph 15.247 License Exempt Intentional Radiator For MIKROTIKLS SIA Pernavas 46 Riga, Latvia LV-1009 Dual Band Broadband Digital Transmission System Model: RBGrooveA 52HPn Frequency Range 2412-2462 and 5745-5825 MHz FCC ID#: TV7GRV-A52HPN Test Date: March 18, 2013 Certifying Engineer: Scot D. Rogers Rogers Labs, Inc. 4405 West 259 th Terrace Louisburg, KS 66053 Telephone/Facsimile: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product certification, approval or endorsement by NVLAP, NIST, or any agency of the Federal Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RBGrooveA 52HPn SN: 2BAB015524CB Louisburg, KS 66053 Test #: 130318 FCC ID#: TV7GRV-A52HPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: September 9, 2013 Revision 2 File: Mikrotikls RBGrooveA52 TstRpt 130318 r2 Page 3 of 47 Table Of Contents TABLE OF CONTENTS .................................................................................................. 3 REVISIONS ..................................................................................................................... 5 FORWARD ..................................................................................................................... 6 OPINION / INTERPRETATION OF RESULTS ............................................................... 6 EQUIPMENT TESTED .................................................................................................... 6 APPLICATION FOR CERTIFICATION ........................................................................... 7 EQUIPMENT FUNCTION AND CONFIGURATION........................................................ 8 Equipment Configuration.................................................................................................................................... 8 APPLICABLE STANDARDS & TEST PROCEDURES .................................................. 9 EQUIPMENT TESTING PROCEDURES ........................................................................ 9 AC Line Conducted Emission Test Procedure .................................................................................................. 9 Diagram 1 Test arrangement for Conducted emissions ..................................................................................... 10 Radiated Emission Test Procedure ................................................................................................................... 11 Diagram 2 Test arrangement for radiated emissions of tabletop equipment ...................................................... 11 Diagram 3 Test arrangement for radiated emissions tested on Open Area Test Site (OATS) ........................... 12 TEST SITE LOCATIONS .............................................................................................. 13 UNITS OF MEASUREMENTS ...................................................................................... 13 ENVIRONMENTAL CONDITIONS................................................................................ 13 LIST OF TEST EQUIPMENT ........................................................................................ 14 INTENTIONAL RADIATORS ........................................................................................ 15 Antenna Requirements ...................................................................................................................................... 15 Restricted Bands of Operation .......................................................................................................................... 15 Table 1 General Radiated Emissions in Restricted Bands Data ........................................................................ 16 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RBGrooveA 52HPn SN: 2BAB015524CB Louisburg, KS 66053 Test #: 130318 FCC ID#: TV7GRV-A52HPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: September 9, 2013 Revision 2 File: Mikrotikls RBGrooveA52 TstRpt 130318 r2 Page 4 of 47 Table 2 Harmonic Radiated Emissions in Restricted Bands Data (ODH 24-13) ............................................... 17 Table 3 Harmonic Radiated Emissions in Restricted Bands Data (WLO-2450-15) .......................................... 18 Table 4 Harmonic Radiated Emissions in Restricted Bands Data (SA 24-90-17-WB) ..................................... 19 Table 5 Harmonic Radiated Emissions in Restricted Bands Data (WLP-2450-20) ........................................... 20 Table 6 Harmonic Radiated Emissions in Restricted Bands Data (24-HD-PFIP) ............................................. 21 Table 7 Harmonic Radiated Emissions in Restr…

Text truncated - open the document above for the full version.

Test Setup Photos

Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RBGrooveA 52HPn SN: 2BAB015524CB Louisburg, KS 66053 Test #: 130318 FCC ID#: TV7GRV-A52HPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: September 4, 2013 Revision 1 File: TSup RBGroove52HPn Page 1 of 9 Test setup photographs AC Line Conducted Emissions Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RBGrooveA 52HPn SN: 2BAB015524CB Louisburg, KS 66053 Test #: 130318 FCC ID#: TV7GRV-A52HPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: September 4, 2013 Revision 1 File: TSup RBGroove52HPn Page 2 of 9 Radiated Emissions Omni Antenna Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RBGrooveA 52HPn SN: 2BAB015524CB Louisburg, KS 66053 Test #: 130318 FCC ID#: TV7GRV-A52HPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: September 4, 2013 Revision 1 File: TSup RBGroove52HPn Page 3 of 9 Horizontal Omni Antenna Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RBGrooveA 52HPn SN: 2BAB015524CB Louisburg, KS 66053 Test #: 130318 FCC ID#: TV7GRV-A52HPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: September 4, 2013 Revision 1 File: TSup RBGroove52HPn Page 4 of 9 Panel Antenna Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RBGrooveA 52HPn SN: 2BAB015524CB Louisburg, KS 66053 Test #: 130318 FCC ID#: TV7GRV-A52HPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: September 4, 2013 Revision 1 File: TSup RBGroove52HPn Page 5 of 9 Sector Antenna Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RBGrooveA 52HPn SN: 2BAB015524CB Louisburg, KS 66053 Test #: 130318 FCC ID#: TV7GRV-A52HPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: September 4, 2013 Revision 1 File: TSup RBGroove52HPn Page 6 of 9 Grid Dish Antenna Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RBGrooveA 52HPn SN: 2BAB015524CB Louisburg, KS 66053 Test #: 130318 FCC ID#: TV7GRV-A52HPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: September 4, 2013 Revision 1 File: TSup RBGroove52HPn Page 7 of 9 Omni Antenna Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RBGrooveA 52HPn SN: 2BAB015524CB Louisburg, KS 66053 Test #: 130318 FCC ID#: TV7GRV-A52HPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: September 4, 2013 Revision 1 File: TSup RBGroove52HPn Page 8 of 9 Panel Antenna Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RBGrooveA 52HPn SN: 2BAB015524CB Louisburg, KS 66053 Test #: 130318 FCC ID#: TV7GRV-A52HPN Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: September 4, 2013 Revision 1 File: TSup RBGroove52HPn Page 9 of 9 Dish Antenna

Contact Information

Applicant

Edmunds Zvegincevs(Engineer, R&D)
[email protected]+371 67317700Fax: +371 67317701

Test Firm

Rogers Labs, a division of The Compatibility CntrPatrick Powell
[email protected]913-837-3214Fax: 913-837-3214

Technical Specifications

#Rule PartsFrequency RangePower Output
415C5.75 GHz - 5.82 GHz520.00 mW
Confidentiality
Long Term
Grant Notes
Power listed is conducted. This transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. This transmitter is restricted for use with the specific antenna(s) tested in this application for Certification. End-users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance. This device has a 20 MHz and 40 MHz bandwidth mode.
