TV7RBMAP2NDigital Transmission System

Mikrotikls SIA
Digital Transmission System - FCC ID TV7RBMAP2N - Mikrotikls SIA
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
May 15, 2014
Application Purpose
Original Equipment
Date of Application
May 15, 2014
Equipment Note
Digital Transmission System
Frequency Range
2422.00000000 - 2452.00000000
Company
Mikrotikls SIA
Country
Latvia

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

RouterBOARD mAP Quick Setup Guide and Warranty Information The mAP is a small AP device with 2 ethernet ports, Ether1 supports powering by PoE, ether 2 supports PoE output for powering another device. Connecting 1.Connect your Internet cable to port 1, and your PC to port 2. If using the mAP to power another router using the PoE output feature, connect the router to Ether 2, and use the built in wireless AP to configure the mAP 2.Set computer/router IP configuration to automatic (DHCP) 3.Wireless AP mode is enabled by default, you can connect to the SSID “MikroTik”. Log into your router from your web browser by opening 192.168.88.1 in the address bar 4.The Ether 2 port suports PoE output, with auto detection feature. This means you can connect Laptops and other non-PoE devices without damaging them. The PoE on Ether2 outputs approximately 2V below input voltage, and supports up to 0.5A (So provided 24V PSU will provide 22V/0.5A output to the Ether2 PoE port). Powering The device accepts powering from the power jack or from the first Ethernet port (Passive PoE): DC power jack (5.5mm outside and 2mm inside diameter, female, pin positive plug) accepts 8- 57V DC The first Ethernet port accepts 802.3af/at and passive Power over Ethernet accepts 8-57V DC. Some Gigabit PoE output devices might require crossover cable to power this device mAP can also be powered with the built in microUSB port, using the USB 5V power Under maximum load, the power consumption of this device is 4W (when not using PoE output) Booting process The device is preinstalled with MikroTik RouterOS software. It can be configured in several ways. This device doesn't come fitted with a Serial Port connector, so initial connection has to be done via the Ethernet cable. Connect to wireless SSID “MikroTik” and open 192.168.88.1 in your web browser. Username is admin and there is no password. In case IP connection is not available, Winbox can be used to connect to the MAC address of the device. More information here: http://wiki.mikrotik.com/wiki/First_time_startup In case you wish to boot the device from network, for example to use MikroTik Netinstall, hold the RESET button of the device when starting it until the LED light turns off, and Metal will start to look for Netinstall servers. In case you wish to boot the device from network, for example to use MikroTik Netinstall, hold the RESET button of the device when starting it until the LED light turns off, then release the button and the device will start looking for Netinstall servers. See www.routerboard.com for more information. Contact [email protected] for support questions By default, the device is preconfigured with a simple firewall on the WAN port, this configuration can be viewed when first connecting to the Router via Winbox. It will ask whether to keep this configuration or clean it to use your own. LAN/WLAN ports have DHCP server enabled. Extension Slots and Ports Two 10/100 Ethernet ports, supporting automatic cross/straight cable connection (Auto MDI/X), so you can use either straight or cross-over cables for connecting to other network devices. One Integrated Wireless 2.4GHz 802.11b/g/n 1x1 MIMO, Onboard PIF antennas, max gain 1.2dBi One microUSB 2.0 port Resetting the device In case you wish to return the device to its original configuration, you can use the RESET button which is located to the left of the Ethernet ports. Hold this button during boot time until LED lights start flashing, then release the button to reset RouterOS configuration. You can use this procedure if you have forgotten the password to access the device, or simply wish to return the unit to its default configuration state. Buttons and Jumpers RouterOS reset jumper hole (on the bottom of case, behind one of the rubber feet) – resets RouterOS software to defaults. Must short circuit the metallic sides of the hole (with a screwdriver, for example) and boot the device. Hold screwdriver in place until RouterOS configuration is cleared. RouterBOOT reset button (RESET, front panel) has two functions: Hold this button during boot time until LED light starts flashing, release the button to reset RouterOS configuration (same result as with RouterOS reset hole) Hold this button during boot time longer, until LED turns off, then release it to make the RouterBOARD look for Netinstall servers. Operating System Support Currently tested operating system is MikroTik RouterOS starting from version 6.7 Copyright and Warranty information Copyright MikroTikls SIA. This document contains information protected by copyright law. No part of it may be reproduced or transmitted in any form without prior written permission from the copyright holder. RouterBOARD, RouterOS, RouterBOOT and MikroTik are trademarks of MikroTikls SIA. All trademarks and registered trademarks appearing in this document are the property of their respective holders. Hardware. MikroTik warrants all RouterBOARD series equipment for the term of twelve (12) months from the shipping date to be free of defects in materials and workmanship under normal use and service, except in case of damage caused by mechanical, electrical or other accidental or intended damages caused by improper use or due to wind, rain, fire or other acts of nature. To return failed units to MikroTik, you must perform the following RMA (Return Merchandise Authorization) procedure. Follow the instructions below to save time, efforts, avoid costs, and improve the speed of the RMA process. See www.routerboard.com for more information. Contact [email protected] for support questions 1.If you have purchased your product from a MikroTik Reseller, please contact the Reseller company regarding all warranty and repair issues, the following instructions apply ONLY if you purchased your equipment directly from MikroTik in Latvia. 2.MikroTik does not offer repairs for products that are not covered by warranty. Exceptions can be made for: CCR1016-12G, CCR1016-12G-BU, CCR10…

Text truncated - open the document above for the full version.

Cover Letter(s)

November 23, 2011 Federal Communications Commission Equipment Approval Services Post Office Box 358315 Pittsburgh, Pennsylvania 15215-5315 To Whom It May Concern: Please be advised that SIA "Mikrotikls" has authorized Scot Rogers of Rogers Labs, Inc. to act on behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters and submittals. All acts carried out by Rogers Labs, Inc. on our behalf shall have the same effects as our own. Rogers Labs, Inc. is authorized to receive and exchange data between our company and the Commission. This Authorization is made pursuant to Paragraph 2.911 of FCC Rules CFR 47. This Authorization is in effect until otherwise notified in writing. Name: Edmunds Zvegincevs Title: Project Engineer Signature of applicant: SIA "Mikrotīkls" VAT # LV40003286799 Billing addr.: Aizkraukles iela 23, LV-1006, Rīga Office addr.: Pērnavas iela 46, LV-1009, Rīga Phone: +371 7317700 Fax: +371 7317701

Cover Letter(s)

May 13, 2014 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Office of Engineering and Technology Federal Communications Commission Columbia, MD 21046 Applicant: Mikrotikls SIA Pernavas 46 Riga, Latvia LV-1009 Re: Confidentiality for submittal information regarding FCC ID number TV7RBMAP2N PRODUCT: Broadband Digital Transmission System Module operating under CFR47 part 15.247 Dear Sirs: Mikrotikls SIA requests that the material in the Schematics, Block Diagram, and Operational Description be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. In support of this request, Mikrotikls submits the following: Long Term Confidential Files Include Schematics File Name Conf Schem RBMAP 2N .pdf Block diagram File Name Conf BlkDia RBMAP 2N .pdf Operational Description File Name Conf OpDes RBMAP 2N .pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set forth in the Operational Description, block diagram, and Schematics, which are segregated from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: TV7RBMAP2N 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, (schematic diagrams) and any detail Parts List. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Mikrotikls SIA engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Mikrotikls SIA. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Mikrotikls SIA and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

External Photos

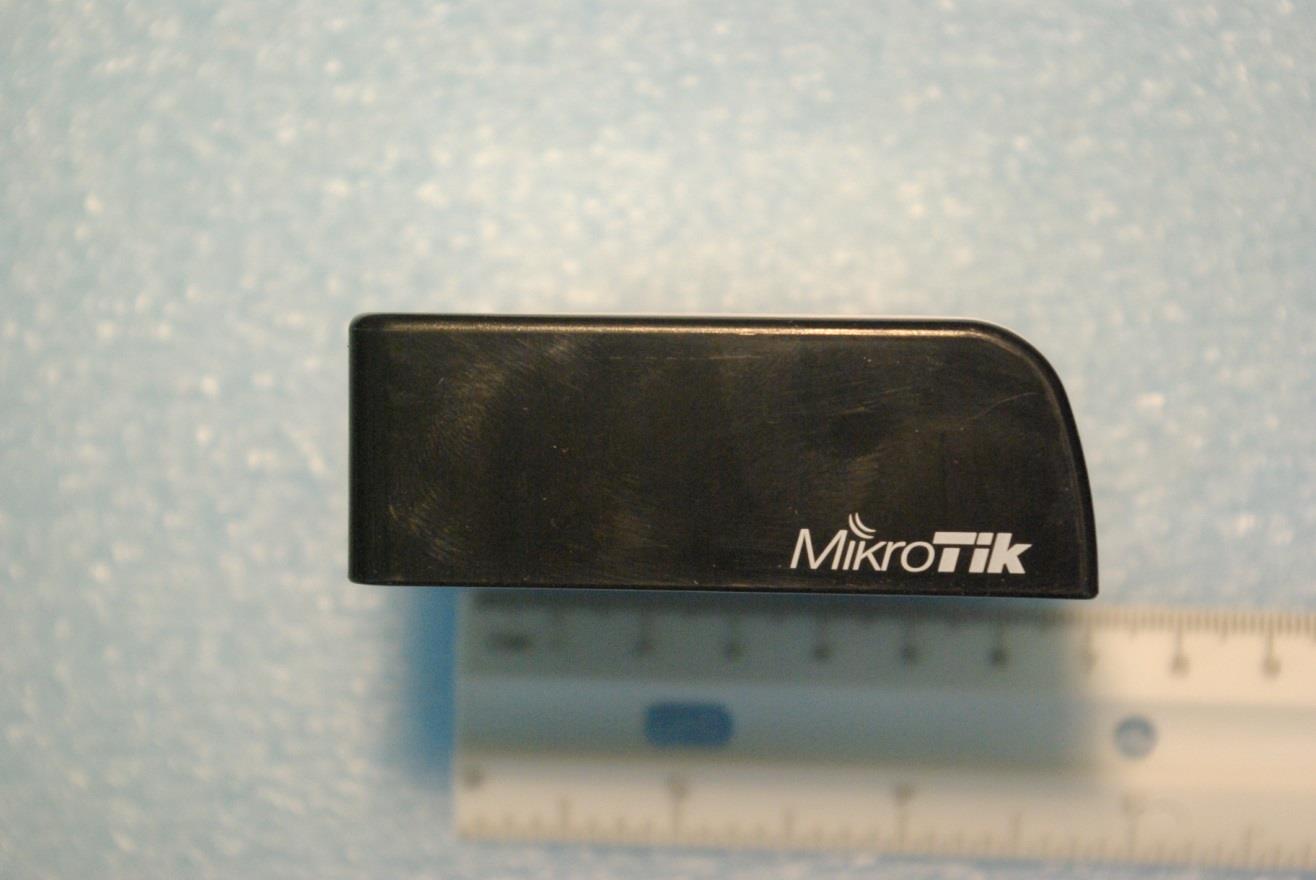

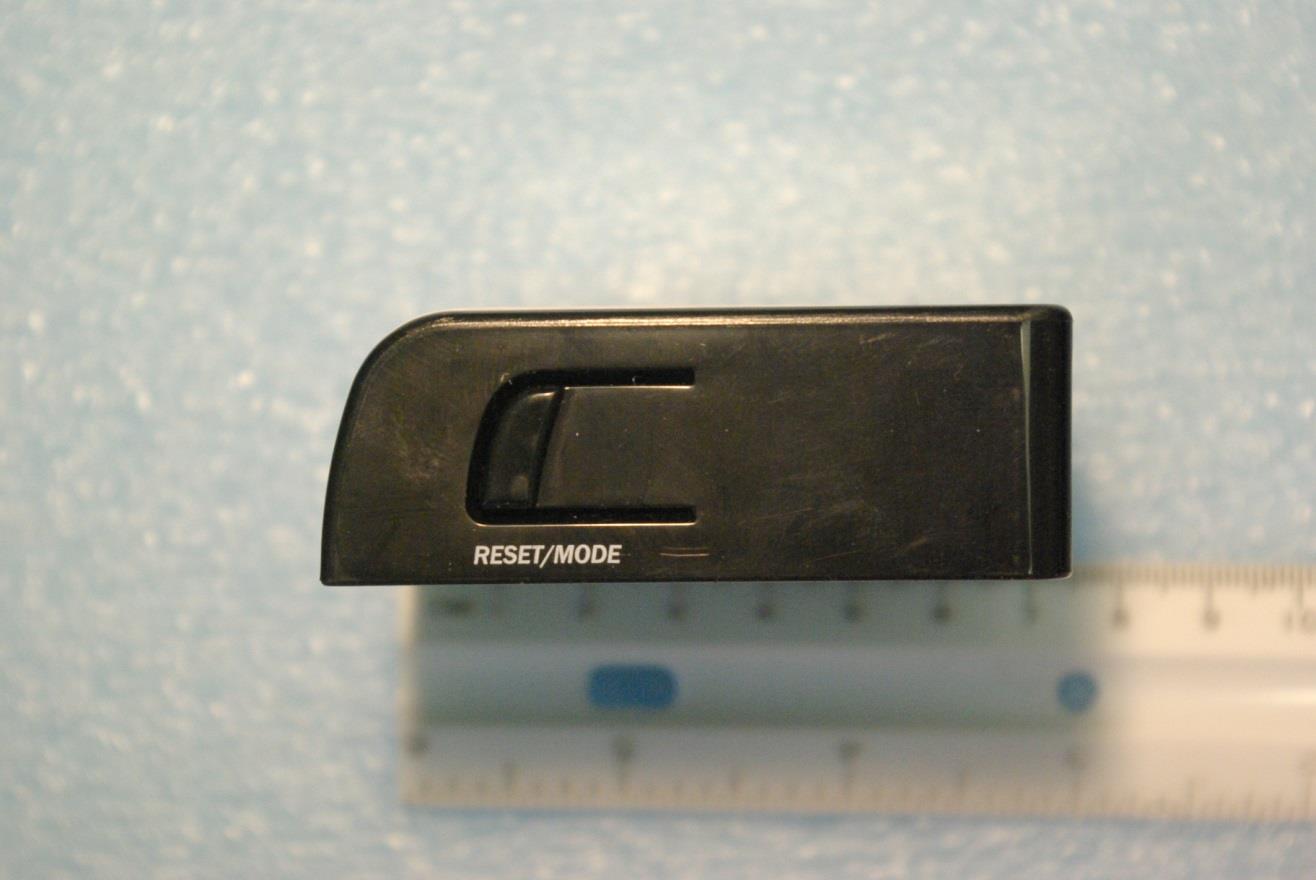

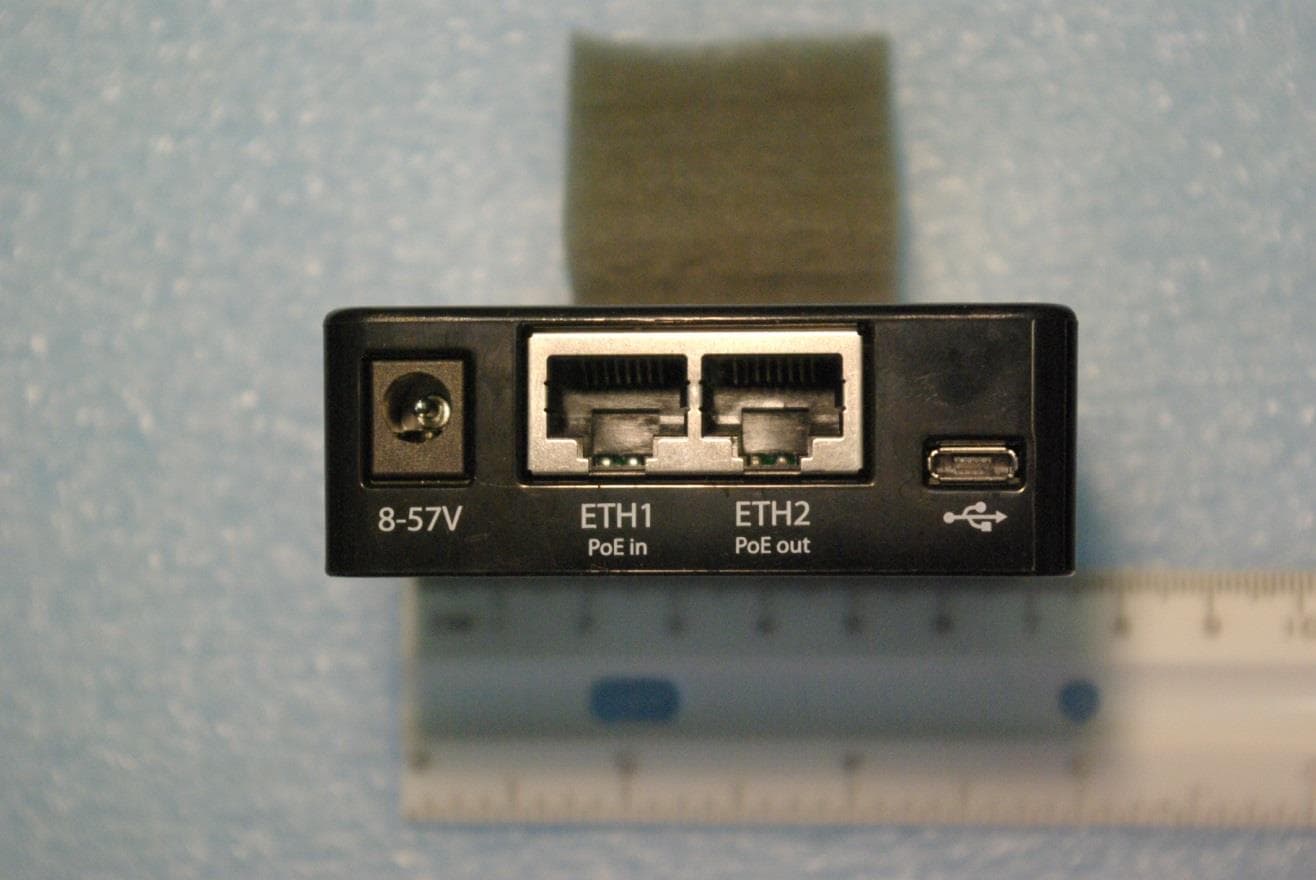

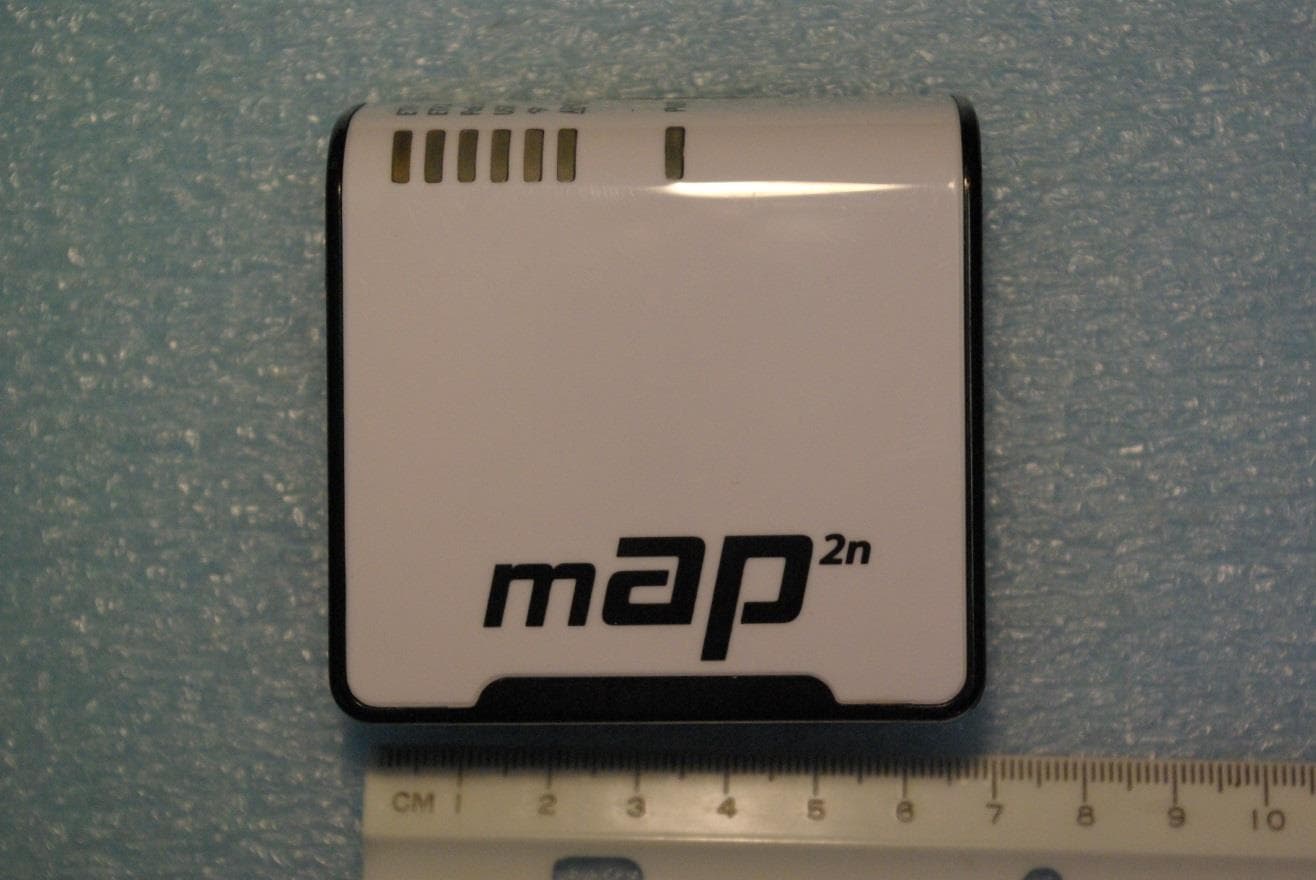

Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RBmAP 2n SN: 4B13044D71A3/409 Louisburg, KS 66053 Test #: 140422 FCC ID#: TV7RBMAP2N Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: May 13, 2014 Revision 1 File: ExtPho RBmAP 2n Page 1 of 2 External photographs of equipment under test Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RBmAP 2n SN: 4B13044D71A3/409 Louisburg, KS 66053 Test #: 140422 FCC ID#: TV7RBMAP2N Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: May 13, 2014 Revision 1 File: ExtPho RBmAP 2n Page 2 of 2

ID Label/Location Info

Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RBmAP 2n SN: 4B13044D71A3/409 Louisburg, KS 66053 Test #: 140422 FCC ID#: TV7RBMAP2N Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: May 13, 2014 Revision 1 File: LabelSmpl RBmAP 2n Page 1 of 1 Label and Placement

Internal Photos

Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RBmAP 2n SN: 4B13044D71A3/409 Louisburg, KS 66053 Test #: 140422 FCC ID#: TV7RBMAP2N Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: May 13, 2014 Revision 1 File: IntPho RBmAP 2n Page 1 of 1 Internal photographs of equipment under test

RF Exposure Info

Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RBmAP 2n SN: 4B13044D71A3/409 Louisburg, KS 66053 Test #: 140422 FCC ID#: TV7RBMAP2N Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: May 13, 2014 Revision 1 File: RFExp RBmAP 2n Page 1 of 1

Test Report

NVLAP Lab Code 200087-0 Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RBmAP 2n SN: 4B13044D71A3/409 Louisburg, KS 66053 Test #: 140422 FCC ID#: TV7RBMAP2N Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: May 14, 2014 Revision 1 File: Mikrotikls RBmAP 2n TstRpt 140422 Page 1 of 31 Submittal Application Report FOR GRANT OF CERTIFICATION FOR Model: RBmAP 2n 2412-2462 MHz Broadband Digital Transmission System FCC ID: TV7RBMAP2N FOR MIKROTIKLS SIA Pernavas 46 Riga, Latvia LV-1009 Test Report Number: 140422 Authorized Signatory: Scot D. Rogers NVLAP Lab Code 200087-0 Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RBmAP 2n SN: 4B13044D71A3/409 Louisburg, KS 66053 Test #: 140422 FCC ID#: TV7RBMAP2N Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: May 14, 2014 Revision 1 File: Mikrotikls RBmAP 2n TstRpt 140422 Page 2 of 31 Engineering Test Report for Grant of Certification Application FOR CFR 47, PART 15C - Intentional Radiators CFR 47 Paragraph 15.247 License Exempt Intentional Radiator For MIKROTIKLS SIA Pernavas 46 Riga, Latvia LV-1009 MIMO Broadband Digital Transmission System Model: RBmAP 2n Frequency Range 2412-2462 MHz FCC ID#: TV7RBMAP2N Test Date: April 22, 2014 Certifying Engineer: Scot D. Rogers Rogers Labs, Inc. 4405 West 259 th Terrace Louisburg, KS 66053 Telephone/Facsimile: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RBmAP 2n SN: 4B13044D71A3/409 Louisburg, KS 66053 Test #: 140422 FCC ID#: TV7RBMAP2N Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: May 14, 2014 Revision 1 File: Mikrotikls RBmAP 2n TstRpt 140422 Page 3 of 31 Table Of Contents TABLE OF CONTENTS .................................................................................................. 3 REVISIONS ..................................................................................................................... 4 FORWARD ..................................................................................................................... 5 OPINION / INTERPRETATION OF RESULTS ............................................................... 5 EQUIPMENT TESTED .................................................................................................... 5 APPLICATION FOR CERTIFICATION ........................................................................... 6 EQUIPMENT FUNCTION AND CONFIGURATION........................................................ 7 Equipment Configuration.................................................................................................................................... 7 APPLICABLE STANDARDS & TEST PROCEDURES .................................................. 8 EQUIPMENT TESTING PROCEDURES ........................................................................ 8 AC Line Conducted Emission Test Procedure .................................................................................................. 8 Radiated Emission Test Procedure ..................................................................................................................... 8 Diagram 1 Test arrangement for Conducted emissions ....................................................................................... 9 Diagram 2 Test arrangement for radiated emissions of tabletop equipment ...................................................... 10 Diagram 3 Test arrangement for radiated emissions tested on Open Area Test Site (OATS) ........................... 11 TEST SITE LOCATIONS .............................................................................................. 11 LIST OF TEST EQUIPMENT ........................................................................................ 12 UNITS OF MEASUREMENTS ...................................................................................... 13 ENVIRONMENTAL CONDITIONS................................................................................ 13 INTENTIONAL RADIATORS ........................................................................................ 13 Antenna Requirements ...................................................................................................................................... 13 Restricted Bands of Operation .......................................................................................................................... 13 Table 1 Radiated Emissions in Restricted Bands Data ...................................................................................... 14 Summary of Results for Radiated Emissions in Restricted Bands ................................................................ 14 AC Line Conducted Emissions Procedure ....................................................................................................... 15 Figure 1 AC Line Conducted Emissions Line 1 ................................................................................................ 16 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RBmAP 2n SN: 4B13044D71A3/409 Louisburg, KS 66053 Test #: 140422 FCC ID#: TV7RBMAP2N Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: May 14, 2014 Revision 1 File: Mikrotikls RBmAP 2n TstRpt 140422 Page 4 of 31 Figure 2 AC Line Conducted Emissions Line 2 ................................................................................................ 16 Table 2 AC Line Conducted Emissions Data (Highest Emissions Line L1) ..................................................... 17 Table 3 AC Line Conducted Emissions Data (Highest Emissions Line L2) ...........................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RBmAP 2n SN: 4B13044D71A3/409 Louisburg, KS 66053 Test #: 140422 FCC ID#: TV7RBMAP2N Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: May 13, 2014 Revision 1 File: TSup RBmAP 2n Page 1 of 2 Test setup photographs AC Line Conducted Emissions Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: RBmAP 2n SN: 4B13044D71A3/409 Louisburg, KS 66053 Test #: 140422 FCC ID#: TV7RBMAP2N Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: May 13, 2014 Revision 1 File: TSup RBmAP 2n Page 2 of 2 Radiated Emissions

Contact Information

Applicant

Edmunds Zvegincevs(Engineer, R&D)
[email protected]+371 67317700Fax: +371 67317701

Test Firm

Rogers Labs, a division of The Compatibility CntrPatrick Powell
[email protected]913-837-3214Fax: 913-837-3214

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.42 GHz - 2.45 GHz20.00 mW
Confidentiality
Long Term
Grant Notes
Power listed is conducted. The antenna installation and operating configurations of this transmitter, including any applicable antenna gain and cable loss must satisfy MPE categorical Exclusion Requirements of §2.1091. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has a 20 MHz and 40 MHz bandwidth mode.
