TV7SXT-5DDIGITAL TRANSMISSION SYSTEM

RouterBOARD SXT 5HnD Quick Setup Guide and Warranty Information The RouterBOARD SXT 5HnD comes as a complete set, and includes a built in 802.11n dual chain wireless device, and a dual polarization 16dBi antenna. It has one BASE-T 10/100 ethernet connector which supports MDI-X auto detection. The SXT 5HnD operates within 5740-5830 MHz frequency range. First use 1.Connect an ethernet cable to the ethernet port behind the small plastic door 2.The SXT accepts 24V Passive PoE from a PoE injector 3.The default IP address from LAN is 192.168.88.1 for configuration 4.Username is admin and there is no password Powering The board accepts powering from the ethernet port (Passive PoE): ●Ethernet port accepts passive Power over Ethernet 8- 30V DC. Package contains a 24V adapter. Maximum power consumption of the device is 7W. Booting process This device doesn't come fitted with a Serial Port connector, so initial connection has to be done via the Ethernet cable, using the MikroTik Winbox utility. Winbox should be used to connect to the default IP address of 192.168.88.1 with the username admin and no password. In case IP connection is not available, Winbox can also be used to connect to the MAC address of the device. More information here: http://wiki.mikrotik.com/wiki/First_time_startup In case you wish to boot the device from network, for example to use MikroTik Netinstall, hold the RESET button of the device when starting it until the LED LD600 light turns off (behind the small door), and SXT will start to look for Netinstall servers. Mounting With the clip pointed forward, slide the mounting bracket into the rail on the bottom of the case, until the clip clicks into place. The SXT comes bundled with a hose clamp - guide the clamp through the opening in the bracket and around the pole where it will be mounted. Tighten the hose clamp screw when alignment is complete. Two screw holes are provided as additional security agains accidental bracket movement. The SXT device has a sliding door, behind which the ethernet port, and the reset jumpers are located. This door can be also secured shut with a screw in the provided screw hole. Extension Slots and Ports ●One built in wireless card and one ethernet port. Buttons and Jumpers ●RouterOS reset jumper hole (access through the plastic door) – resets RouterOS software to defaults. Must short circuit the metallic sides of the hole (with a screwdriver, for example) and boot the device. Hold screwdriver in place until RouterOS configuration is cleared. ●RouterBOOT reset button (access through the plastic door) has two functions: ●Hold this button during boot time until LED light starts flashing, release the button to reset RouterOS configuration (same result as with reset hole) ●Hold this button during boot time longer, until LED turns off, then release it to make the device look for Netinstall servers. Operating System Support Currently tested operating system is MikroTik RouterOS (starting from version v4.11). See www.routerboard.com for more information. Contact [email protected] for support questions.rev. A (6-jan-2011) Copyright and Warranty Information Copyright and Trademarks. Copyright MikroTikls SIA. This manual contains information protected by copyright law. No part of it may be reproduced or transmitted in any form without prior written permission from the copyright holder. RouterBOARD, RouterOS, RouterBOOT and MikroTik are trademarks of MikroTikls SIA. All trademarks and registered trademarks appearing in this manual are the property of their respective holders. Hardware. MikroTikls SIA warrants all RouterBOARD series equipment for the term of fifteen (15) months from the shipping date to be free of defects in materials and workmanship under normal use and service, except in case of damage caused by mechanical, electrical or other accidental or intended damages caused by improper use or due to wind, rain, fire or other acts of nature. If you have purchased your product from a MikroTik Reseller, please contact the Reseller company regarding all warranty and repair issues, the following instructions apply ONLY if you purchased your equipment directly from MikroTik Latvia To return failed unit or units to MikroTikls you must perform the following RMA (Return Material Authorization) procedure. Follow the instructions below to save time, efforts, avoid costs, and improve the speed of the RMA process. Take into account that all goods have one year warranty. Instructions are located on our webpage here: http://rma.mikrotik.com Manual. This manual is provided “as is” without a warranty of any kind, expressed or implied, including, but not limited to, the implied warranty of merchantability and fitness for a particular purpose. The manufacturer has made every effort to ensure the accuracy of the contents of this manual, however, it is possible that it may contain technical inaccuracies, typographical or other errors. No liability is assumed for any inaccuracy found in this publication, nor for direct or indirect, incidental, consequential or other damages that may result from such an inaccuracy, including, but not limited to, loss of data or profits. Please report any inaccuracies found to [email protected] Federal Communication Commission Interference Statement (FCC ID: TV7SXT-5D) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off a…

Text truncated - open the document above for the full version.

SIA "Mikrotīkls" Aizkraukles iela 23, Rīga, LV-1006, Latvia Phone: +371 67317700 Fax: +371 67317701 September 4, 2008 Federal Communications Commission Equipment Approval Services Post Office Box 358315 Pittsburgh, Pennsylvania 15215-5315 To Whom It May Concern: Please be advised that SIA "Mikrotikls" has authorized Scot Rogers of Rogers Labs, Inc. to act on behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters and submittals. All acts carried out by Rogers Labs, Inc. on our behalf shall have the same effects as our own. Rogers Labs, Inc. is authorized to receive and exchange data between our company and the Commission. This Authorization is made pursuant to Paragraph 2.911 of FCC Rules CFR 47. This Authorization is in effect until otherwise notified in writing. Āris Jurkāns engineer, R&D SIA "Mikrotikls"

January 5, 2011 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Office of Engineering and Technology Federal Communications Commission Columbia, MD 21046 Applicant: Mikrotikls SIA Pernavas 46 Riga, Latvia LV-1009 Re: Confidentiality for submittal information regarding FCC ID number TV7SXT-5D PRODUCT: Broadband wireless Digital Transmission System operating under CFR47 part 15.247 Dear Sirs: Mikrotikls SIA requests that the material in the Schematic, block diagram, and Operational Description is withheld from public disclosure in accordance with Section 0.459 of the Commissions Rules, 47 C.F.R., following grant of the application. In support of this request, MIKROTIK submits the following: Long Term Confidential Files Include Schematics File Name Conf Schem SXT5D.pdf Block diagram File Name Conf BlkDia SXT5D.pdf Operational Description File Name Conf OpDes SXT5D.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set fourth in the Operational Description, block diagram, and Schematics, which are segregated from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: TV7SXT-5D 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, (schematic diagrams) and any detail Parts List. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 4. Expla The m equipm source 5. Expl a Disclo design unwar availab 6. Ident i The in availab 7. Ident i of the To th e While stand a pertain 8. Justi fi for pu This m freque techni desig n compr Should Thank Since r Scot R anation of the material for whi ment that is off es. anation of how osure would, in ned the equipm rranted insight ble to Mikrot ification of an nformation for ble to third par ification of wh information t e knowledge of the general th ards groups as w ns to certain sp fication of the ublic disclosur material should ently, disclosur ques that could n not be made a romise the appl d you require a k you for your c rely, Rogers degree to whi ich confidentia fered on a high w disclosure of n effect, give aw ment and the ma into the state o tikls SIA y measures ta which confide rties except pur hether the info to third partie f those preparin eory of operati well as in rule pecific impleme period during re: d not be disclos re of the design d have an adve available to un lications for w any further info consideration i ch the inform ality is sought i hly competitive f the informati way the fruits o anufacturing pr of the product d aken by the su ntial treatment rsuant to non-d ormation is av es: ng this applicat ion of this equi making procee entations of thi g which the su sed for at least n information w erse competitiv nauthorized per which the equipm ormation, pleas in this matter. mation concern is employed in e basis. Custom ion could resu of the labors of rocess. Disclo development, t ubmitting part t is sought is ke disclosure agre vailable to the tion, the inform ipment has bee edings of the F is radio techno ubmitting part 25 years. Whi would lead to in ve effect for ma rsons who migh ment will be em se contact the u ns a service tha the design and mers for this eq ult in substant f Mikrotik’s en osure would als thereby allowin ty to prevent u ept confidentia eements. public and t h mation has not en the subject o FCC, the protec ology. ty asserts that ile improvemen nsights into bo any years to co ht attempt to u mployed. undersigned. at is subject to d manufacture quipment have tial competitiv ngineering pers so offer compe ng competitors unauthorized al by Mikrotikl he extent of an been disclosed of numerous di ction sought is t the material nts in design a oth design and ome. As such, se knowledge o competition: of this transmi a variety of co ve harm: sonnel, who ha titors additiona s an advantage, disclosure: s SIA and not ny previous dis d publicly here isclosures in in narrowly draw should not be are made relativ manufacturing it is important of the design t o : itting ompeting ave al , not made sclosure etofore. ndustry and wn and available vely g that the o

January 5, 2011 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Federal Communications Commission Equipment Approval Services P.O. Box 35815 Pittsburgh, PA 15251-3315 Applicant: Mikrotikls SIA Pernavas 46 Riga, Latvia LV-1009 Equipment: FCC ID: TV7SXT-5D FCC Rules: Part 15.247 Single modular transmitter approval Gentlemen: The form 731 and application have been electronically submitted and any attachments will be up loaded to your web site to be used in obtaining a grant of certification. Permanent Mikrotikls SIA requests that the material in the following files be withheld from public disclosure in accordance with Section 0.459 of the Commission’s Rules, 47 C.F.R. 0.459, following grant of the application. Schematics File Name Conf Schem SXT5D.pdf Block diagram File Name Conf BlkDia SXT5D.pdf Operational Description File Name Conf OpDes SXT5D.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

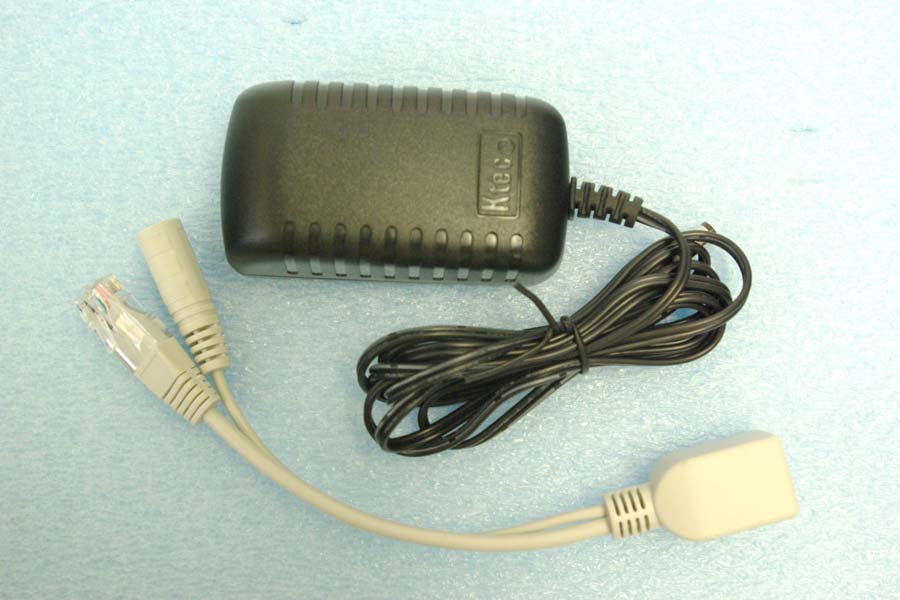

Rogers Labs, Inc. MIKROTIK 4405 W. 259th Terrace Model: SXT-5D FCC ID#: TV7SXT-5D Louisburg, KS 66053 Test #: 101119 SN: 290E015C58D7/042 Phone/Fax: (913) 837-3214 Test to: FCC (15.247) Date: January 4, 2011 Revision 1 File: ExtPho SXT5D Page 1 of 2 External photographs of equipment under test Rogers Labs, Inc. MIKROTIK 4405 W. 259th Terrace Model: SXT-5D FCC ID#: TV7SXT-5D Louisburg, KS 66053 Test #: 101119 SN: 290E015C58D7/042 Phone/Fax: (913) 837-3214 Test to: FCC (15.247) Date: January 4, 2011 Revision 1 File: ExtPho SXT5D Page 2 of 2

Rogers Labs, Inc. MIKROTIK 4405 W. 259th Terrace Model: SXT-5D FCC ID#: TV7SXT-5D Louisburg, KS 66053 Test #: 101119 SN: 290E015C58D7/042 Phone/Fax: (913) 837-3214 Test to: FCC (15.247) Date: January 4, 2011 Revision 1 File: LabelSmpl SXT5D Page 1 of 1 ID and Placement

Rogers Labs, Inc. MIKROTIK 4405 W. 259th Terrace Model: SXT-5D FCC ID#: TV7SXT-5D Louisburg, KS 66053 Test #: 101119 SN: 290E015C58D7/042 Phone/Fax: (913) 837-3214 Test to: FCC (15.247) Date: January 4, 2011 Revision 1 File: IntPho SXT5D Page 1 of 2 Internal photographs of equipment under test PCB without shield Back side of EUT PCB Rogers Labs, Inc. MIKROTIK 4405 W. 259th Terrace Model: SXT-5D FCC ID#: TV7SXT-5D Louisburg, KS 66053 Test #: 101119 SN: 290E015C58D7/042 Phone/Fax: (913) 837-3214 Test to: FCC (15.247) Date: January 4, 2011 Revision 1 File: IntPho SXT5D Page 2 of 2 EUT placement in enclosure PCB with shield

RouterBOARD SXT-5D 802.11a/n WLAN router Tuning procedure Each units TX and RX functionality is tested and judged with a pass/fail criteria during production. Units meeting the criteria continue through production and others are returned for diagnostics.

Rogers Labs, Inc. MIKROTIK 4405 W. 259th Terrace Model: SXT-5D FCC ID#: TV7SXT-5D Louisburg, KS 66053 Test #: 101119 SN: 290E015C58D7/042 Phone/Fax: (913) 837-3214 Test to: FCC (15.247) Date: January 5, 2011 Revision 1 File: RFExp SXT5D Page 1 of 1

NVLAP Lab Code 200087-0 Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: SXT-5D SN: 290E015C58D7/042 Louisburg, KS 66053 Test #: 101119 FCC ID#: TV7SXT-5D Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: January 5, 2011 Revision 1 File: Mikrotikls SXT-5DTestRpt Page 1 of 50 SUBMITTAL APPLICATION REPORT FOR GRANT OF CERTIFICATION FOR Model: SXT-5D 5740-5830MHz Broadband Digital Transmission System FOR MIKROTIKLS SIA Pernavas 46 Riga, Latvia LV-1009 Test Report Number: 101119 Authorized Signatory: Scot D. Rogers NVLAP L Rogers Labs 4405 W. 25 Louisburg, K Phone/Fax: Revision 1 Test Dat e Certifyin g This rep o This repo any agen ab Code 2000 8 s, Inc. 9th Terrace KS 66053 (913) 837-3214 C e: Nove g Engineer: ort shall not ort must not ncy of the U. 87-0 Mik Mo Tes Tes Fil e Engi F Gr CFR 47, P C Licens MI Broa F ember 19, 20 Scot D. R o Rogers La 4405 West Louisburg Telephone be reproduc be used by t S. Governm ROG 4405 Wes Louisburg Phone / F krotikls SIA del: SXT-5D t #: 101119 t to: CFR47 (15 e: Mikrotikls SX ineerin For Ap rant of PART 15 CFR 47 P se Exemp IKRO Pe Riga, L adband Digit Mod requency Ra FCC ID 10 ogers abs, Inc. t 259 th Terra g, KS 66053 e/Facsimile: ed except in the client to ment. OGERS st 259 th Terrac g, KS 66053 Fax (913) 837- .247) XT-5DTestRpt ng Tes pplicati Certif FOR 5C - Intent aragraph pt Intentio For OTIKL ernavas 46 Latvia LV-10 tal Transmis del: SXT-5D ange 5740-5 D#: TV7SXT ace (913) 837-3 n full, withou claim produ RS LAB ce -3214 st Repo ion of fication tional Rad 15.247 onal Radia LS SIA 009 ssion System D 830 MHz T-5D 214 ut the written uct endorsem ABS, I SN: 29 FCC I D Date: J Page 2 ort n diators ator A m n approval o ment by NVL INC. 0E015C58D7/04 D#: TV7SXT-5D anuary 5, 2011 of 50 of the laborat LAP, NIST, o 42 D tory. or NVLAP Lab Code 200087-0 Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: SXT-5D SN: 290E015C58D7/042 Louisburg, KS 66053 Test #: 101119 FCC ID#: TV7SXT-5D Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: January 5, 2011 Revision 1 File: Mikrotikls SXT-5DTestRpt Page 3 of 50 Table Of Contents TABLE OF CONTENTS .................................................................................................. 3 FORWARD ..................................................................................................................... 6 OPINION / INTERPRETATION OF RESULTS ............................................................... 6 ENVIRONMENTAL CONDITIONS.................................................................................. 6 EQUIPMENT TESTED .................................................................................................... 6 2.1033(B) APPLICATION FOR CERTIFICATION .......................................................... 7 APPLICABLE STANDARDS & TEST PROCEDURES .................................................. 8 EQUIPMENT FUNCTION AND CONFIGURATION ........................................................ 8 Equipment Configuration.................................................................................................................................... 9 TEST SITE LOCATIONS ................................................................................................ 9 UNITS OF MEASUREMENTS ........................................................................................ 9 EQUIPMENT CABLE CONFIGURATION AND TEST PROCEDURES ....................... 10 AC Line Conducted Emission Test Procedure ................................................................................................ 10 Radiated Emission Test Procedure ................................................................................................................... 10 LIST OF TEST EQUIPMENT ........................................................................................ 11 SUBPART C - INTENTIONAL RADIATORS ................................................................ 12 15.203 Antenna Requirements .......................................................................................................................... 12 15.205 Restricted Bands of Operation .............................................................................................................. 12 Radiated Emissions in Restricted Bands Data (worst-case) 15.205 .................................................................. 13 Summary of Results for Radiated Emissions in Restricted Bands 15.205 .................................................... 13 Statement of Modifications and Deviations ..................................................................................................... 13 15.207 AC Line Conducted Emissions Procedure ........................................................................................... 14 Figure One AC Line Conducted Emissions Line 1............................................................................................ 15 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Mikrotikls SIA 4405 W. 259th Terrace Model: SXT-5D SN: 290E015C58D7/042 Louisburg, KS 66053 Test #: 101119 FCC ID#: TV7SXT-5D Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: January 5, 2011 Revision 1 File: Mikrotikls SXT-5DTestRpt Page 4 of 50 Figure Two AC Line Conducted Emissions Line 2 ........................................................................................... 15 AC Line Conducted Emissions Data (7 Highest Emissions) 15.207 ................................................................. 16 Summary of Results for AC Line Conducted Emissions 15.207 .................................................................... 16 15.209 Radiated Emissions Procedure .............................................................................................................. 17 Figure Three General Radiated Emissions taken at 1 meter in screen room ..................................................... 18 Figure Four General Radiated Emissions taken at 1 meter in s…

Text truncated - open the document above for the full version.

Rogers Labs, Inc. MIKROTIK 4405 W. 259th Terrace Model: SXT-5D FCC ID#: TV7SXT-5D Louisburg, KS 66053 Test #: 101119 SN: 290E015C58D7/042 Phone/Fax: (913) 837-3214 Test to: FCC (15.247) Date: January 4, 2011 Revision 1 File: TSup SXT5D Page 1 of 2 Test setup photographs AC Line Conducted Emissions Rogers Labs, Inc. MIKROTIK 4405 W. 259th Terrace Model: SXT-5D FCC ID#: TV7SXT-5D Louisburg, KS 66053 Test #: 101119 SN: 290E015C58D7/042 Phone/Fax: (913) 837-3214 Test to: FCC (15.247) Date: January 4, 2011 Revision 1 File: TSup SXT5D Page 2 of 2 Radiated Emissions
