TV7SXTG-5HPNDDigital Transmission System

����������������������� ����������������������������� �������������������� ������������������������������� RB SXT G-­‐5HPnD-­‐HG Quick Setup Guide and Warranty Information The SXT G-­‐5HPnD-­‐HG comes as a complete set, and includes a built in 802.11n dual chain wireless device, and a dual polarization 16dBi high gain antenna. It has one Gigabit Ethernet connector which supports MDI-­‐X auto detection. First use 1. Connect an Ethernet cable to the port behind the small plastic door 2. The SXT accepts 24V Passive PoE from the supplied PoE injector 3. The default IP address from LAN is 192.168.88.1 for configuration 4. Username is admin and there is no password Powering The board accepts powering from the Ethernet port (Passive PoE) 8-­‐30V DC. Package contains a 24V adapter. Booting process RouterOS is the operating system of all RouterBOARD routers. Please see detailed configuration guide here: http://wiki.mikrotik.com/wiki/Category:Manual This device doesn't come fitted with a Serial Port connector, so initial connection has to be done via the Ethernet cable, using the MikroTik Winbox utility. Winbox should be used to connect to the default IP address of 192.168.88.1 with the username admin and no password. In case IP connection is not available, Winbox can also be used to connect to the MAC address of the device. More information here: http://wiki.mikrotik.com/wiki/First_time_startup In case you wish to boot the device from network, for example to use MikroTik Netinstall, hold the RESET button of the device when starting it until the LED LD600 light turns off (behind the small door), and SXT will start to look for Netinstall servers. Mounting With the clip pointed forward, slide the mounting bracket into the rail on the bottom of the case, until the clip clicks into place. The SXT comes bundled with a hose clamp -­‐ guide the clamp through the opening in the bracket and around the pole where it will be mounted. Tighten the hose clamp screw when alignment is complete. Two screw holes are provided as additional security against accidental bracket movement. The SXT device has a sliding door, behind which the Ethernet port and the reset jumpers are located. This door can be also secured shut with a screw in the provided screw hole. ����������������������� ����������������������������� �������������������� ������������������������������� Buttons and Jumpers �RouterOS reset jumper hole (access through the plastic door) – resets RouterOS software to de-­‐ faults. Must short circuit the metallic sides of the hole (with a screwdriver, for example) and boot the device. Hold screwdriver in place until RouterOS configuration is cleared. �RouterBOOT reset button (access through the plastic door) has two functions: üHold this button during boot time until LED light starts flashing, release the button to reset RouterOS configuration (same result as with reset hole) üHold this button during boot time longer, until LED turns off, and then release it to make the device look for Netinstall servers. Operating System Support Currently tested operating system is MikroTik RouterOS (starting from version v5). Copyright and Warranty Information Copyright and Trademarks. Copyright MikroTikls SIA. This manual contains information protected by copyright law. No part of it may be reproduced or transmitted in any form without prior written permission from the copy-­‐ right holder. RouterBOARD, RouterOS, RouterBOOT and MikroTik are trademarks of MikroTikls SIA. All trademarks and registered trademarks appearing in this manual are the property of their respective holders. Hardware. MikroTikls SIA warrants all RouterBOARD series equipment for the term of fifteen (15) months from the shipping date to be free of defects in materials and workmanship under normal use and service, except in case of damage caused by mechanical, electrical or other accidental or intended damages caused by improper use or due to wind, rain, fire or other acts of nature. If you have purchased your product from a MikroTik Reseller, please contact the Reseller company regarding all warranty and repair issues, the following instructions apply ONLY if you purchased your equipment directly from MikroTik Latvia To return failed unit or units to MikroTikls you must perform the following RMA (Return Material Authorization) procedure. Follow the instructions below to save time, efforts, avoid costs, and improve the speed of the RMA process. Take into account that all goods have one year warranty. Instructions are located on our webpage here: http://rma.mikrotik.com Manual. This manual is provided “as is” without a warranty of any kind, expressed or implied, including, but not limited to, the implied warranty of merchantability and fitness for a particular purpose. The manufacturer has made every effort to ensure the accuracy of the contents of this manual; however, it is possible that it may con-­‐ tain technical inaccuracies, typographical or other errors. No liability is assumed for any inaccuracy found in this publication, nor for direct or indirect, incidental, consequential or other damages that may result from such an inaccuracy, including, but not limited to, loss of data or profits. Please report any inaccuracies found to sup-­‐ [email protected] Federal Communication Commission Interference Statement (FCC ID: TV7SXTG-5HPND) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, whi…

Text truncated - open the document above for the full version.

November 23, 2011 Federal Communications Commission Equipment Approval Services Post Office Box 358315 Pittsburgh, Pennsylvania 15215-5315 To Whom It May Concern: Please be advised that SIA "Mikrotikls" has authorized Scot Rogers of Rogers Labs, Inc. to act on behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters and submittals. All acts carried out by Rogers Labs, Inc. on our behalf shall have the same effects as our own. Rogers Labs, Inc. is authorized to receive and exchange data between our company and the Commission. This Authorization is made pursuant to Paragraph 2.911 of FCC Rules CFR 47. This Authorization is in effect until otherwise notified in writing. Name: Edmunds Zvegincevs Title: Project Engineer Signature of applicant: SIA "Mikrotīkls" VAT # LV40003286799 Billing addr.: Aizkraukles iela 23, LV-1006, Rīga Office addr.: Pērnavas iela 46, LV-1009, Rīga Phone: +371 7317700 Fax: +371 7317701

February 8, 2014 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Office of Engineering and Technology Federal Communications Commission Columbia, MD 21046 Applicant: Mikrotikls SIA Pernavas 46 Riga, Latvia LV-1009 Re: Confidentiality for submittal information regarding FCC ID number TV7SXTG-5HPND PRODUCT: Broadband Digital Transmission System Module operating under CFR47 part 15.247 Dear Sirs: Mikrotikls SIA requests that the material in the Schematics, Block Diagram, and Operational Description be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. In support of this request, Mikrotikls submits the following: Long Term Confidential Files Include Schematics File Name Conf Schem RBSXTG5HPND.pdf Block diagram File Name Conf BlkDia RBSXTG5HPND.pdf Operational Description File Name Conf OpDes RBSXTG5HPND.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set forth in the Operational Description, block diagram, and Schematics, which are segregated from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: TV7SXTG-5HPND 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, (schematic diagrams) and any detail Parts List. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Mikrotikls SIA engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Mikrotikls SIA. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Mikrotikls SIA and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

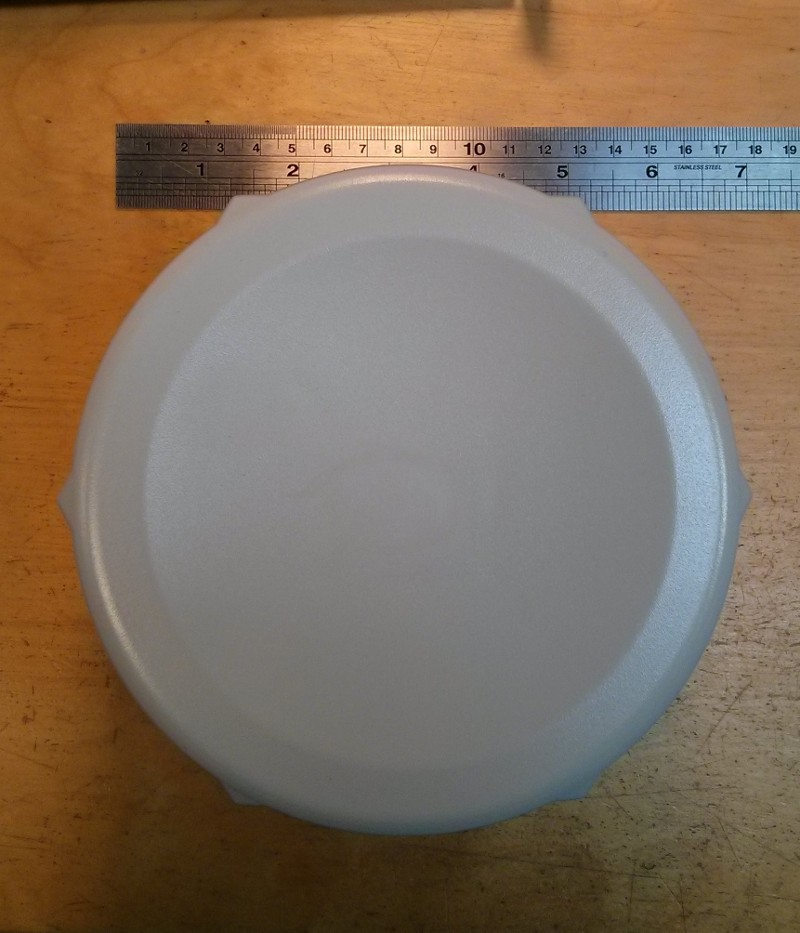

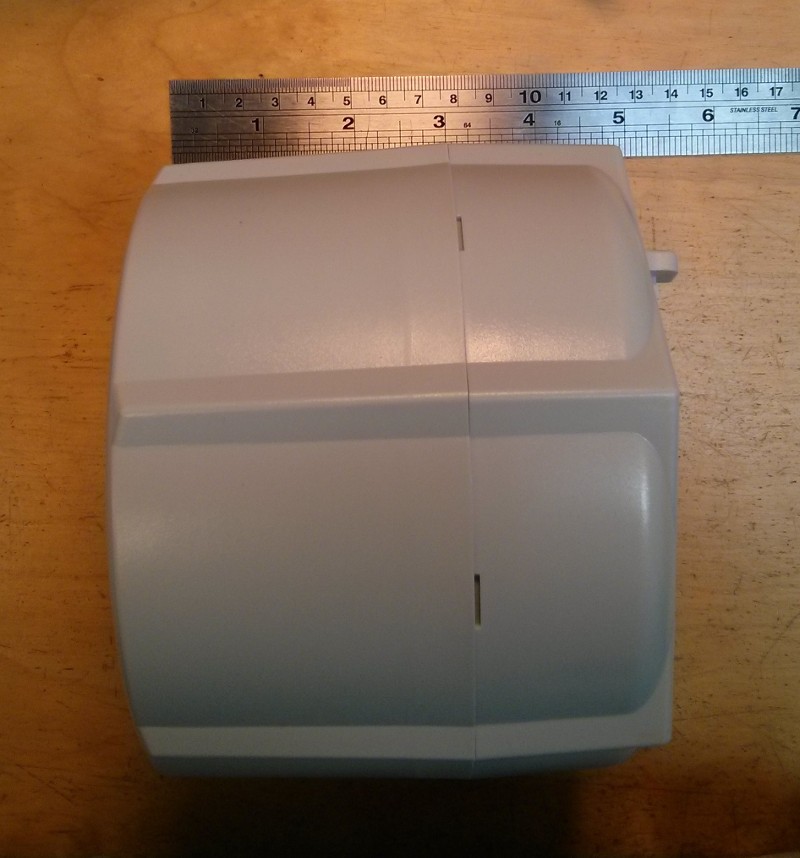

External photographs of equipment under test

Rogers Labs, Inc. Mikrotikls SIA SN’s: 464700000000 and 438002C7DF9B/316 4405 W. 259th Terrace Models: RouterBOARD SXT G-5HPnD-HG r2, RouterBOARD SXT G-5HPND-SA r2 Louisburg, KS 66053 Test #: 140120 FCC ID#: TV7SXTG-5HPND Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: February 11, 2014 Revision 1 File: LabelSmpl RBSXTG5HPND Page 1 of 1 Label and Placement Label Placement

Rogers Labs, Inc. Mikrotikls SIA SN’s: 464700000000 and 438002C7DF9B/316 4405 W. 259th Terrace Models: RouterBOARD SXT G-5HPnD-HG r2, RouterBOARD SXT G-5HPND-SA r2 Louisburg, KS 66053 Test #: 140120 FCC ID#: TV7SXTG-5HPND Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: February 11, 2014 Revision 1 File: IntPho RBSXTG5HPND Page 1 of 1 Internal photographs of equipment under test (Shield removed for photograph)

RouterBOARD SXTG-5HPnD-HG 802.11a/n WLAN router Tuning procedure Each units TX and RX functionality is tested and judged with a pass/fail criteria during production. Units meeting the criteria continue through production and others are returned for diagnostics.

Rogers Labs, Inc. Mikrotikls SIA SN’s: 464700000000 and 438002C7DF9B/316 4405 W. 259th Terrace Models: RouterBOARD SXT G-5HPnD-HG r2, RouterBOARD SXT G-5HPND-SA r2 Louisburg, KS 66053 Test #: 140120 FCC ID#: TV7SXTG-5HPND Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: February 11, 2014 Revision 1 File: RFExp RBSXTG5HPND Page 1 of 1

NVLAP Lab Code 200087-0 Rogers Labs, Inc. Mikrotikls SIA SN’s: 464700000000 and 438002C7DF9B/316 4405 W. 259th Terrace Models: RouterBOARD SXT G-5HPnD-HG r2, RouterBOARD SXT G-5HPND-SA r2 Louisburg, KS 66053 Test #: 140120 FCC ID#: TV7SXTG-5HPND Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: February 12, 2014 Revision 1 File: Mikrotikls RBSXTG5HPND TstRpt 140120 Page 1 of 34 Submittal Application Report FOR GRANT OF CERTIFICATION FOR Models: RouterBOARD SXT G-5HPnD-HG r2 and RouterBOARD SXT G-5HPND-SA r2 5745-5825 MHz Multiple Input Multiple Output (MIMO) Broadband Digital Transmission System FCC ID: TV7SXTG-5HPND FOR MIKROTIKLS SIA Pernavas 46 Riga, Latvia LV-1009 Test Report Number: 140120 Authorized Signatory: Scot D. Rogers NVLAP Lab Code 200087-0 Rogers Labs, Inc. Mikrotikls SIA SN’s: 464700000000 and 438002C7DF9B/316 4405 W. 259th Terrace Models: RouterBOARD SXT G-5HPnD-HG r2, RouterBOARD SXT G-5HPND-SA r2 Louisburg, KS 66053 Test #: 140120 FCC ID#: TV7SXTG-5HPND Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: February 12, 2014 Revision 1 File: Mikrotikls RBSXTG5HPND TstRpt 140120 Page 2 of 34 Engineering Test Report for Grant of Certification Application FOR CFR 47, PART 15C - Intentional Radiators CFR 47 Paragraph 15.247 License Exempt Intentional Radiator For MIKROTIKLS SIA Pernavas 46 Riga, Latvia LV-1009 MIMO Broadband Digital Transmission System Models: RouterBOARD SXT G-5HPnD-HG r2 and RouterBOARD SXT G-5HPND-SA r2 Frequency Range 5745-5825 MHz FCC ID#: TV7SXTG-5HPND Test Date: January 20, 2014 Certifying Engineer: Scot D. Rogers Rogers Labs, Inc. 4405 West 259 th Terrace Louisburg, KS 66053 Telephone/Facsimile: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Mikrotikls SIA SN’s: 464700000000 and 438002C7DF9B/316 4405 W. 259th Terrace Models: RouterBOARD SXT G-5HPnD-HG r2, RouterBOARD SXT G-5HPND-SA r2 Louisburg, KS 66053 Test #: 140120 FCC ID#: TV7SXTG-5HPND Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: February 12, 2014 Revision 1 File: Mikrotikls RBSXTG5HPND TstRpt 140120 Page 3 of 34 Table Of Contents TABLE OF CONTENTS .................................................................................................. 3 REVISIONS ..................................................................................................................... 4 FORWARD ..................................................................................................................... 5 OPINION / INTERPRETATION OF RESULTS ............................................................... 5 EQUIPMENT TESTED .................................................................................................... 5 APPLICATION FOR CERTIFICATION ........................................................................... 6 EQUIPMENT FUNCTION AND CONFIGURATION........................................................ 7 Equipment Configuration.................................................................................................................................... 7 APPLICABLE STANDARDS & TEST PROCEDURES .................................................. 8 EQUIPMENT TESTING PROCEDURES ........................................................................ 8 AC Line Conducted Emission Test Procedure .................................................................................................. 8 Radiated Emission Test Procedure ..................................................................................................................... 8 Diagram 1 Test arrangement for Conducted emissions ....................................................................................... 9 Diagram 2 Test arrangement for radiated emissions of tabletop equipment ...................................................... 10 Diagram 3 Test arrangement for radiated emissions tested on Open Area Test Site (OATS) ........................... 11 TEST SITE LOCATIONS .............................................................................................. 11 LIST OF TEST EQUIPMENT ........................................................................................ 12 UNITS OF MEASUREMENTS ...................................................................................... 13 ENVIRONMENTAL CONDITIONS................................................................................ 13 INTENTIONAL RADIATORS ........................................................................................ 13 Antenna Requirements ...................................................................................................................................... 13 Restricted Bands of Operation .......................................................................................................................... 14 Table 1 Radiated Emissions in Restricted Bands Data ...................................................................................... 14 Summary of Results for Radiated Emissions in Restricted Bands ................................................................ 14 AC Line Conducted Emissions Procedure ....................................................................................................... 15 Figure 1 AC Line Conducted Emissions Line 1 ................................................................................................ 16 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Mikrotikls SIA SN’s: 464700000000 and 438002C7DF9B/316 4405 W. 259th Terrace Models: RouterBOARD SXT G-5HPnD-HG r2, RouterBOARD SXT G-5HPND-SA r2 Louisburg, KS 66053 Test #: 140120 FCC ID#: TV7SXTG-5HPND Phone/Fax: (913) 837-3214 Test to…

Text truncated - open the document above for the full version.

Rogers Labs, Inc. Mikrotikls SIA SN’s: 464700000000 and 438002C7DF9B/316 4405 W. 259th Terrace Models: RouterBOARD SXT G-5HPnD-HG r2, RouterBOARD SXT G-5HPND-SA r2 Louisburg, KS 66053 Test #: 140120 FCC ID#: TV7SXTG-5HPND Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: February 11, 2014 Revision 1 File: TSup RBSXTG5HPND Page 1 of 2 Test setup photographs AC Line Conducted Emissions Rogers Labs, Inc. Mikrotikls SIA SN’s: 464700000000 and 438002C7DF9B/316 4405 W. 259th Terrace Models: RouterBOARD SXT G-5HPnD-HG r2, RouterBOARD SXT G-5HPND-SA r2 Louisburg, KS 66053 Test #: 140120 FCC ID#: TV7SXTG-5HPND Phone/Fax: (913) 837-3214 Test to: CFR47 (15.247) Date: February 11, 2014 Revision 1 File: TSup RBSXTG5HPND Page 2 of 2 Radiated Emissions
