TVO-LTR-NID-0001Loopless Trigger Radar

Gatsometer bv, I: www.gatso.nl, E: [email protected] Claes Tillyweg 2, 2031 CW, Postbus 4959, 2003 EZ Haarlem, T +31 (0) 23 525 50 50, F +31 (0) 23 527 69 61 GATSOMETER BV FCC ID: TVO-LTR-NID-0001 Loopless-Trigger-Radar Specifications Specification history File date company/name LTRspecsV11 06-03-2006 Gatsometer BV General description The general purpose of this Radar system is to detect vehicles. Both speed and distance of the vehicle are meas- ured. Also a trigger output signal is present for triggering a digital camera to get a photo of the vehicle. Absolute Maximum Ratings: Supply voltage: -16V...+16V (security against polarity change) Input voltage at RS422 inputs A and B: -7V...+12V Output current at RS422 outputs: short circuit proofed Operating temperature: -20...+70°C Storage temperature: -30...+100°C Precautions have to be taken against high humidity or water. All electrical interfaces are connected to 24V/600W trans.-supp-diodes. The supply voltage is secured against false polarity. Electrical Characteristics: Supply voltage: 9...16V Supply current: 170mA (typ.) Transmit frequency: 24.000...24.250GHz Transmit power: 20dBm (EIRP) Antenna pattern: horizontal: 3.5° (+/-1.75°) (typically) vertical: 15° (+/-7.5°) (typically) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

TNO Electronic Products & Services (EPS) B.V. Nederlandse Organisatie voor toegepast-natuurwetenschappelijk onderzoek / Netherlands Organisation for Applied Scientific Research Smidshornerweg 18 P.O. Box 15 9822 ZG Niekerk The Netherlands www.tno.nl T +31 594 505005 F +31 594 504804 E [email protected] Subject Cover letter Date April 19, 2006 Our reference 06K0211 Your reference - Page 1 of 1 Our General Terms and Conditions, as filed at the Chamber of Commerce in Groningen, are applicable to all orders given to TNO Electronic Products & Services (EPS) B.V. TNO Electronic Products & Services (EPS) B.V. is registered at the Chamber of Commerce in Groningen with no. 27247331. Return address: P.O. Box 15, 9822 ZG Niekerk, The Netherlands TCB Telefication BV Certification Department Edisonstraat 12a 6902 PK Zevenaar The Netherlands Dear Sir or Madam: On behalf of our customer Gatsometer B.V. we hereby would like to apply for FCC certification of the following device: FCC ID : PVO-LTR-NID-0001 Brand : Gatsometer Model : LTR Description : part 15.245 field disturbance sensor The following PDF files (exhibits) are electronically submitted: 1. Cover letter (this letter). 2. Request for confidentiality 3. Test report(s) in conformity with 47 CFR Part 15 4. Bill of materials 5. Circuit diagram 6. Block diagram 7. Operational description 8. Interior photographs 9. Exterior photographs 10. Test setup photographs 11. Authorization letter 12. User manual 13. Label information 14. Form 731 15. Antenna information Best regards, TNO Electronic Products & Services (EPS) B.V. J. Schuurmans, B.Sc.E.E Senior Engineer Telecom/EMC

TNO Electronic Products & Services (EPS) B.V. Nederlandse Organisatie voor toegepast-natuurwetenschappelijk onderzoek / Netherlands Organisation for Applied Scientific Research Smidshornerweg 18 P.O. Box 15 9822 ZG Niekerk The Netherlands www.tno.nl T +31 594 505005 F +31 594 504804 E [email protected] Subject Request for confidentiality Date April 19, 2006 Our reference 06K0210 Your reference - Page 1 of 1 Our General Terms and Conditions, as filed at the Chamber of Commerce in Groningen, are applicable to all orders given to TNO Electronic Products & Services (EPS) B.V. TNO Electronic Products & Services (EPS) B.V. is registered at the Chamber of Commerce in Groningen with no. 27247331. Return address: P.O. Box 15, 9822 ZG Niekerk, The Netherlands FCC TCB Dear Sir or Madam: Pursuant to sections 0.457 and 0.459 of the FCC rules we herewith request the following exhibits, related to the application for FCC ID: TVO-LTR-NID-0001, to be withheld from public inspection and to be kept confidential. The contents of these exhibits may not be disclosed to other parties than Gatsometer B.V. (the grantee) and TNO Electronic Products & Services (EPS) B.V.: 1. Bill of materials 2. Circuit diagram 3. Block diagram 4. theory of operation 5. Internal Photoís including those containted in the Antenna_information exhibit. The reason for this request for confidentiality is that the information contained in the exhibits as listed above has been classified as company confidential. Disclosure of any portion of this information to other parties would cause substantial competitive harm. None of the above information has been disclosed to the general public earlier. Best regards, TNO Electronic Products & Services (EPS) B.V. J. Schuurmans, B.Sc.E.E. Senior Engineer Telecom/EMC

Testing and certification of electric, electronic and radio equipment/installations including telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Project number: 05080101.p01 Page 1 of 7 PHOTOGRAPHS OF A LOOPLESS TRIGGER RADAR, BRAND GATSO, MODEL LTR. FCC listed Industry Canada : : 90828 IC3501 Description of EUT: Manufacturer: Brand mark: Model: Loopless Trigger Radar Gatsometer B.V. GATSO LTR Project number: 05080101.p01 Page 2 of 7 Description of test item Test item : Loopless Trigger Radar Manufacturer : Gatsometer B.V. Brand mark : GATSO Model : LTR Serial number(s) : -- Receipt number : 1 Receipt date : July 22, 2005 Applicant information Applicantís representative : Mr. W.A.L. Passchier Company : Gatsometer B.V. Address : Claes Tillyweg 2 Postal code : 2031 CW City : Haarlem PO-Box : 4959 Postal code : 2003 EZ City : Haarlem Country : The Netherlands Telephone number : +31 23 5255050 Telefax number : +31 23 5276961 This report is in conformity with NEN-EN-ISO/IEC 17025: 2000. This report shall not be reproduced, except in full, without the written permission of TNO Electronic Products & Services (EPS) B.V. The test results relate only to the item(s) tested. Description of EUT: Manufacturer: Brand mark: Model: Loopless Trigger Radar Gatsometer B.V. GATSO LTR Project number: 05080101.p01 Page 3 of 7 Table of contents 1 Photographs of the Loopless Trigger Radar ...........................................................................................................................4 1.1 RF module. .....................................................................................................................................................................4 1.2 RF module, exterior........................................................................................................................................................5 1.3 Power supply and interface unit, exterior .......................................................................................................................6 Description of EUT: Manufacturer: Brand mark: Model: Loopless Trigger Radar Gatsometer B.V. GATSO LTR Project number: 05080101.p01 Page 4 of 7 1 Photographs of the Loopless Trigger Radar 1.1 RF module. Description of EUT: Manufacturer: Brand mark: Model: Loopless Trigger Radar Gatsometer B.V. GATSO LTR Project number: 05080101.p01 Page 5 of 7 1.2 RF module, exterior. Description of EUT: Manufacturer: Brand mark: Model: Loopless Trigger Radar Gatsometer B.V. GATSO LTR Project number: 05080101.p01 Page 6 of 7 1.3 Power supply and interface unit, exterior Description of EUT: Manufacturer: Brand mark: Model: Loopless Trigger Radar Gatsometer B.V. GATSO LTR Project number: 05080101.p01 Page 7 of 7

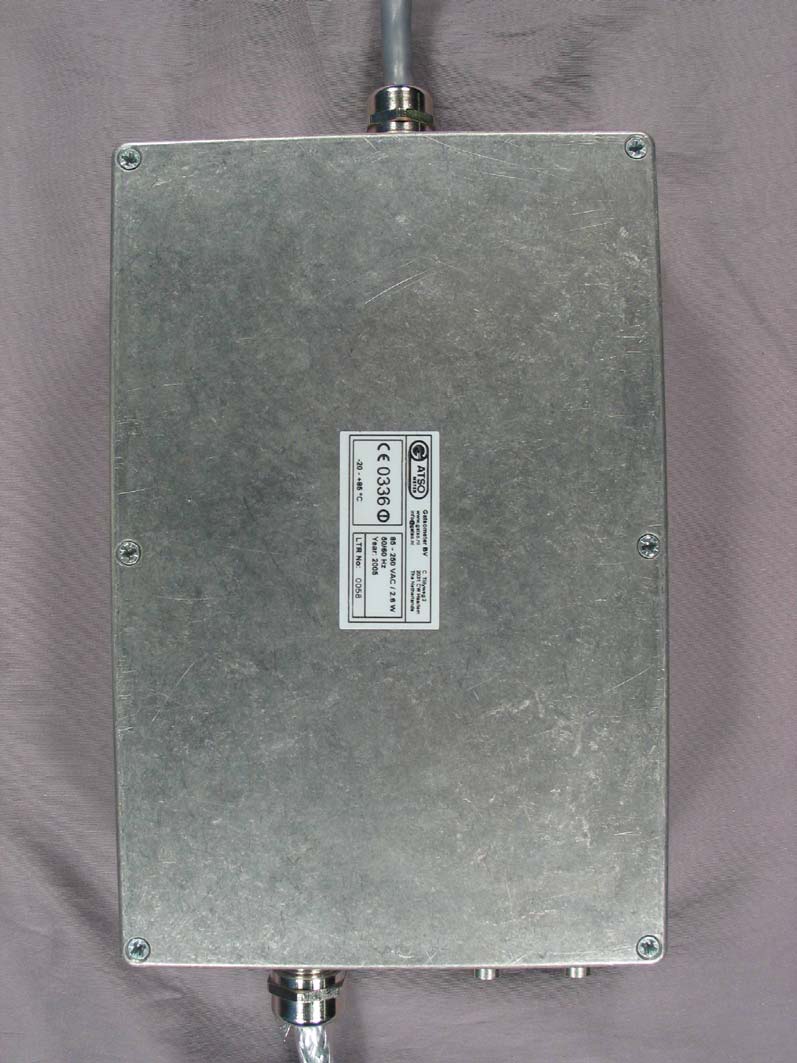

GATSOMETER BV FCC ID: TVO-LTR-NID-0001 TNO EPS T.a.v. dhr J. Schuurmans Smidshornerweg 18 9822 TL Niekerk Haarlem, 6 maart 2006 Betreft : stickers voor LTR behuizing Geachte heer Schuurmans, N.a.v. de FCC aanvraag een voorbeeld van de nieuwe stickers welke op de LTR behuizing geplakt zal worden. De afmeting van de sticker is 52*25mm. Het materiaal en de grootte zijn gelijk aan de sticker reeds op de LTR aanwezig. Hopende hiermee de documentatie te kunnen completeren, Met vriendelijke groeten, Wim Passchier Gatsometer BV Claes Tillyweg 2 2031 CW Haarlem Tel. 023-5255050 Description of EUT: Manufacturer: Brand mark: Model: Loopless Trigger Radar Gatsometer B.V. GATSO LTR 1 Power supply and interface unit, exterior, label location

Testing and certification of, consultancy and research concerning, electronic and electric appliances, systems, installations and telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Project number: 05080101.r03 Page 1 of 15 TEST REPORT CONCERNING THE COMPLIANCE OF AN LOOPLESS TRIGGER RADAR, BRAND GATSOMETER, MODEL LTR WITH 47 CFR PART 15 (2006-02-01). FCC listed Industry Canada VCCI registered : : : 90828 IC3501 R-1518, C-1598 Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 47 CFR Part 15 (2006-02-01) Loopless Trigger Radar Gatsometer B.V. GATSO LTR TVO-LTR-NID-0001 Project number 05080101.r03 Page 2 of 15 MEASUREMENT/TECHNICAL REPORT Gatsometer B.V. Model : LTR FCC ID: TVO-LTR-NID-0001 March 15, 2006 This report concerns: Original grant/certification Class 2 change Verification Equipment type: Field disturbance sensor operating in the band 24075 24175 MHz Deferred grant requested per 47 CFR 0.457(d)(1)(ii) ? Yes No n.a. Report prepared by: Name : J. Schuurmans, B.Sc.E.E. Company name : TNO Electronic Products & Services (EPS) B.V. Address : Smidshornerweg 18 Postal code/city : 9822 ZG Niekerk Mailing address : P.O. Box 15 Postal code/city : 9822 TL Niekerk Country : The Netherlands Telephone number : + 31 594 505 005 Telefax number : + 31 594 504 804 E-mail : [email protected] The data taken for this test and report herein was done in accordance with 47 CFR Part 15 and the measurement procedures of ANSI C63.4-2003. TNO Electronic Products & Services (EPS) B.V. at Niekerk, The Netherlands, certifies that the data is accurate and contains a true representation of the emission profile of the Equipment Under Test (EUT) on the date of the test as noted in the test report. I have reviewed the test report and find it to be an accurate description of the test(s) performed and the EUT so tested. Date: March 15, 2006 Signature: P.A.J.M. Robben, B.Sc.E.E. TNO Electronic Products & Services (EPS) B.V. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 47 CFR Part 15 (2006-02-01) Loopless Trigger Radar Gatsometer B.V. GATSO LTR TVO-LTR-NID-0001 Project number 05080101.r03 Page 3 of 15 Description of test item Test item : Loopless Trigger Radar Manufacturer : Gatsometer B.V. Brand : GATSO Model : LTR Serial number(s) : -- Revision : Not applicable Receipt date : July 22, 2005 Applicant information Applicant's representative : Mr. W.A.L. Passchier Company : Gatsometer B.V. Address : Claes Tillyweg Postal code : 2031 CW City : Haarlem PO-box : 4959 Postal code : 2003 EZ City : Haarlem Country : The Netherlands Telephone number : +31 23 5255050 Telefax number : +31 23 5276961 Test(s) performed Location : Niekerk Test(s) started : September 2, 2005 Test(s) completed : April 4, 2006 Purpose of test(s) : Equipment Authorisation (Certification). Test specification(s) : 47 CFR Part 15 (2006-02-01) Test engineers : H.J. Pieters Report written by : J. Schuurmans, B.Sc.E.E. Report date : April 19, 2006 This report is in conformity with NEN-EN-ISO/IEC 17025: 2000. This report shall not be reproduced, except in full, without the written permission of TNO Electronic Products & Services (EPS) B.V. The test results relate only to the item(s) tested. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 47 CFR Part 15 (2006-02-01) Loopless Trigger Radar Gatsometer B.V. GATSO LTR TVO-LTR-NID-0001 Project number 05080101.r03 Page 4 of 15 Table of contents 1 General information. ..............................................................................................................................................................5 1.1 Product description.........................................................................................................................................................5 1.1.1 Introduction. ...........................................................................................................................................................5 1.2 Related submittal(s) and/or Grant(s). .............................................................................................................................5 1.3 Tested system details......................................................................................................................................................5 1.3.1 Description of input and output ports. ....................................................................................................................6 1.4 Test methodology. ..........................................................................................................................................................6 1.5 Test facility.....................................................................................................................................................................6 1.6 Product labeling..............................................................................................................................................................6 2 System test configuration. ......................................................................................................................................................8 2.1 Justification. ...................................................................................................................................................................8 2.2 EUT mode of operation. .................................................................................................................................................8 2.3 Special accessories. ........................................................................................................................................................8 2.4 Equipment modifications.................…

Text truncated - open the document above for the full version.

FCC ID: TVO-LTR-NID-0001 Question of TCB: show evidence that transmitter emission stays within band edges. Answer: Below a max hold plot while Tx is tuned to extreme channels (lowest and highest channel) showing that band edges 24075 and 24175 are not exceeded. A Att 10 dB * RBW 1 MHz Offset 51.6 dB LVL * VBW 10 Hz SWT 12.5 sRef 20 dBm Center 24.1146 GHzSpan 50 MHz5 MHz/ *1 PK VIEW PRN 0 10 20 30 40 50 60 70 80 90 100 1 Marker 1 [T1 ] 6.86 dBm 24.114400000 GHz Date: 21.OCT.2005 17:21:26

Testing and certification of electric, electronic and radio equipment/installations including telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Web: www.eps.tno.nl Project number: 05102403.p03 Page 1 of 11 47 CFR PART 15 TEST SETUP PHOTOGRAPHS OF LOOPLESS TRIGGER RADAR, BRAND GATSOMETER, MODEL LTR, FCC ID TVO-LTR-NID-0001 FCC listed Industry Canada VCCI registered : : : 90828 IC3501 R-1518, C-1598 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Loopless Trigger Radar Gatsometer B.V. Gatsometer LTR TVO-LTR-NID-0001 Project number: 05080101.p03 Page 2 of 11 Description of test item Test item : Loopless Trigger Radar Manufacturer : Gatsometer B.V. Brand mark : GATSO Model : LTR Serial number(s) : -- Receipt number : 1 Receipt date : July 22, 2005 Applicant information Applicantís representative : Mr. W.A.L. Passchier Company : Gatsometer B.V. Address : Claes Tillyweg 2 Postal code : 2031 CW City : Haarlem PO-Box : 4959 Postal code : 2003 EZ City : Haarlem Country : The Netherlands Telephone number : +31 23 5255050 Telefax number : +31 23 5276961 This report is in conformity with NEN-EN-ISO/IEC 17025: 2000. This report shall not be reproduced, except in full, without the written permission of TNO Electronic Products & Services (EPS) B.V. The test results relate only to the item(s) tested. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Loopless Trigger Radar Gatsometer B.V. Gatsometer LTR TVO-LTR-NID-0001 Project number: 05080101.p03 Page 3 of 11 Table of contents 1 Test setup photographs of radiated emission measurements. .................................................................................................4 2 Test setup photographs of conducted emission measurements...............................................................................................9 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Loopless Trigger Radar Gatsometer B.V. Gatsometer LTR TVO-LTR-NID-0001 Project number: 05080101.p03 Page 4 of 11 1 Test setup photographs of radiated emission measurements. Photo 1: Radiated Emission measurement set up, rear view Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Loopless Trigger Radar Gatsometer B.V. Gatsometer LTR TVO-LTR-NID-0001 Project number: 05080101.p03 Page 5 of 11 Photo 2: Radiated Emission measurement set up, front view Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Loopless Trigger Radar Gatsometer B.V. Gatsometer LTR TVO-LTR-NID-0001 Project number: 05080101.p03 Page 6 of 11 1.1 Measurements on harmonic of the fundamental emission. Pictures below document the measurement session done at the Compact Range of the European Space Agency in Noordwijk, The Netherlands on April 4, 2006. Photo 3: Receiver set up Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Loopless Trigger Radar Gatsometer B.V. Gatsometer LTR TVO-LTR-NID-0001 Project number: 05080101.p03 Page 7 of 11 Photo 4: Measurement distance 1m. The polarisation was changed by turning the EUT antenna rather than the receive horn. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Loopless Trigger Radar Gatsometer B.V. Gatsometer LTR TVO-LTR-NID-0001 Project number: 05080101.p03 Page 8 of 11 Photo 5: The receive set up as seen from the frequency doubler/tripler assembly. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Loopless Trigger Radar Gatsometer B.V. Gatsometer LTR TVO-LTR-NID-0001 Project number: 05080101.p03 Page 9 of 11 2 Test setup photographs of conducted emission measurements Photo 6: Conducted Emission measurement set up Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Loopless Trigger Radar Gatsometer B.V. Gatsometer LTR TVO-LTR-NID-0001 Project number: 05080101.p03 Page 10 of 11 Photo 7: Conducted emission measurement set up Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Loopless Trigger Radar Gatsometer B.V. Gatsometer LTR TVO-LTR-NID-0001 Project number: 05080101.p03 Page 11 of 11 Photo 8: Conducted emission measurement set up
