1/15 USER MANUAL DD-43-06 USER MANUAL RT3 VERSION: V1.0 Gatsometer BV Claes Tillyweg 2 2031 CW, Haarlem P.O. Box 4959 2003 EZ, Haarlem Tel.: +31 (0) 23 525 50 50 Fax: +31 (0) 23 527 69 61 Mail: [email protected] Internet: www.gatsometer.com 2/15 DISCLAIMER Copyright © 2013 - Gatsometer BV - The Netherlands None of the materials provided on this technical manual may be used, reproduced or transmitted in any form or by any means, electronic or mechanical, including recording or the use of any information storage and retrieval system, without written permission from Gatsometer BV. If you received this technical manual in error, please notify Gatsometer BV immediately. The confidential nature of and/ or privilege in the technical manual enclosed is not waived or lost as a result of a mistake or error in this technical manual. Gatsometer BV accepts no liability whatsoever, whether it was caused by: 1. Accessing or other related actions to this manual. 2. Actions other than stated in this user manual Gatsometer BV assumes that all users understand risks involved within this user manual and/ or its attached materials. All components used can be replaced by factory approved equivalents. Drawings are subject to change without prior notice. Translation disclaimer The translation of this documents is done with the utmost care. However, Gatsometer B.V. does not accept any liability for the correctness and completeness of the compilation and content of this translation and the direct or indirect consequences of acting or failing to act based on these translations. It is not possible to derive any rights, of whatever nature, from the compilation and contents of the translations. In all cases, the original English document shall be decisive. All rights reserved. Compiled by Gatsometer BV. Please contact [email protected] for more information. Gatsometer follows the ROHS (Restriction of Hazardous Substances 2002/95/EC) and WEEE (Waste Electrical and Electronic Equipment) directives. For the customers in Europe To comply with European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE) this equipment must be recycled or disposed of properly. You can help preserve our environment by returning your used equipment to the distributor or the collection and recycling depot nearest to you. 3/15 FCC AND IC DECLARATIONS Compliance statement (part 15.19) This device complies with part 15 of the FCC Rules and to RSS210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning (part 15.21) Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This in particular is applicable for the antenna which has been delivered with the RF Exposure (OET Bulletin 65) To comply with FCC RF exposure requirements for mobile transmitting devices, this transmitter should only be used or installed at locations where there is at least 20cm separation distance between the antenna and all persons. Information to the User (Part 15.105 (b)) Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. 4/15 USER MANUAL RT3 VERSION: V1.0 Latest version is checked on 09 October 2013 REVISION REMARKS V0.9 First release, DD-43-06 V1.0 FCC disclaimer TABLE OF CONTENTS CHAPTER TITLE PAGE 1 INTRODUCTION 5 1.1 General description of RT3 radar 6 2 COMMAND SET 7\ 2.1 Set RF ON/OFF 8 2.2 Set Channel 1 9 2.3 Set Channel 2 10 2.4 Set Channel 3 11 2.5 Set Channel 4 12 3 POWER SUPPLY 13 3.1 Specifications 14 5/15 INTRODUCTION 6/15 The RT3 antenna is designed as measurement and detection unit for Gatso System solutions. This tracking radar operates in the K-band and uses modulation to detect range and speed to the several target in the radar beam. As part of a system, the RT3 is connected by one cable only. It provides both power and control from the system to the RT3. The control interface is designed on CANopen communication. The physical interface is performed by a CAN network. The system is in command over the radar and it will perform the RF settings when the system becomes operational. In this manual, both power supply and control set will be described in the following paragraphs. 7/15 COMMAND SET 8/15 Operational commands to control the RF section of the radar can be summarized into 2 functions: 1. Switch RF section ON / OFF 2. Set the frequency channel of the RF section Command ‘Switch RF section ON / OFF’ controls the RF transmitter output. When the system is operational, the RF is switched ON. During all other states, the RF is switched OFF. Command ‘Set frequency channel’ will select 1 of 4 available channels of the transmitter. In the section below, a photo of the spectrum analyzer show the signal when the RF is set to a channel. Note that only…

Text truncated - open the document above for the full version.

FCC INFORMATION (additional) Module integration instructions: This device is intended only for integration under the following conditions: (I).The antenna must be installed such that 20 cm is maintained between the antenna and users. (II). The transmitter module may not be co-located or operating in conjunction with any other transmitter or antenna. (III). The module shall be only used with the external antenna(s) that has been originally tested and certified with this module, custom design antennas may not be used without re-certification. As long the conditions above are met, further transmitter testing will not be required. However, the integrator is still responsible for testing the end-product ( ̈host ̈) towards any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). Validity of using the module certification: In the event that these conditions cannot be met, then the FCC authorization for this module in combination with the host equipment is no longer considered valid and the FCC ID of the module cannot be used on the final product. In these circumstances, the integrator will be responsible for re-evaluating the end-product (including this modular transmitter) and obtaining a separate FCC authorization. End product labeling: The final end-product must be labeled in a visible area with the following: “Contains FCC ID: TVO-RT3”. Information that must be placed in the end user manual: The integrator has to be aware not to provide information to the end user how to install or remove this RF module in the user's manual of the end-product which integrates this module. The end user manual of the final end-product shall include all required regulatory information/warning as shown in this manual. INDUSTRY CANADA INFORMATION (additional) This device complies with RSS-210 of the Industry Canada Rules. This class B digital apparatus complies with Canadian ICES-003 This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. The final end-product must be labeled in a visible area with the following: “Contains IC: 6271A-RT3”. AVIS D’INDUSTRIE CANADA (supplémentaire): Cet appareil est conforme à la norme CNR-210 des règlements d’Industrie Canada. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada Avis d’Industrie Canada sur l’exposition aux Rayonnements: Cet équipement doit être installé et utilisé à une distance minimale de 20 cm entre le radiateur et votre corps. Le produit final final doit être étiqueté dans un endroit visible par le texte suivant: "Contains IC: 6271A-RT3".

GATSO FCC Modular Approval Request Number:CF305 Version: V04 Date: 07-08-2012 To the FCC or FCC TCB handling this application Hereby we, Company name (grantee)Gatsometer BV AddresssClaes Tillyweg 2 ZIP / City / Country2031CW Haarlem, The Netherlands request to file for LMITED MODULAR APPROVAL since this module is exclusively to speed radar monitoring products produced by GATSO. The application for certification of this module is identified by: FCC ID:TVO-RT3 The table below contains the justification for modular approval of this equipment: Requirement per 15.212 and KDB 996369 D01 Module Certification Guide v01r03Explanation from grantee (do not write yes / no, but explain why it complies / how it is achieved) 1. The modular transmitter must have its own RF shielding.Yes, the module has its own shielding 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Yes, the module has buffered inputs 3. The modular transmitter must have its own power supply regulation.Yes, the module has its own power supply regulation. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. Yes, the module uses an integrated PCB antenna. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Yes, the module has been tested in a stand-alone fashion. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. Yes, the module has been labeled, and the user manual provides labeling instructions for the end- device in which the module is installed. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. Yes, the module complies with all specific rules and instructions are provided in the user manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. Yes, RF exposure is calculated at 20cm distance, in accordance with the fashion the device is used. Attestation (by grantee) City and Country:Date:Name: (this must be a person) Function:Signature: (or official company stamp) Enschede, The Netherlands 2013-11-05 Mark Koop (authorized) Manager

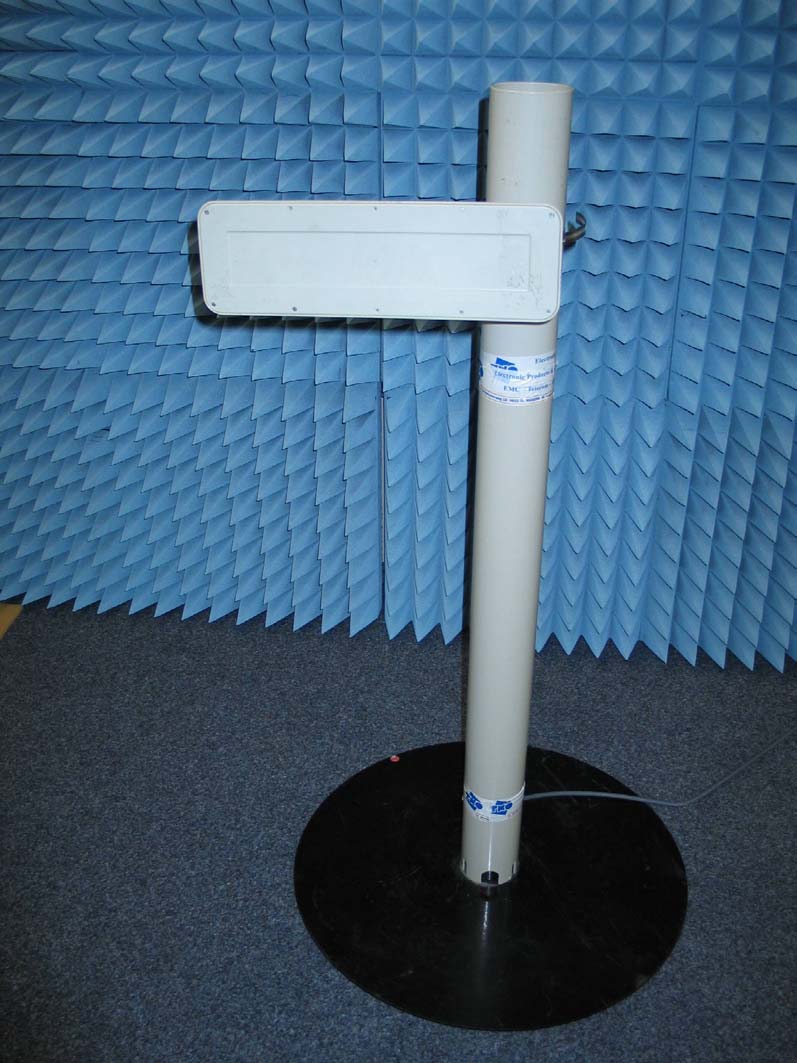

Testing and certification of electronic and electric appliances, systems, installations and telecommunication systems TÜV Rheinland EPS P.O. Box 37 9350 AA Leek (NL) Eiberkamp 10 9351 VT Leek (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 Internet: www.tuv-eps.com E-mail: [email protected] Project number: 12112103.p02 Page 1 of 7 PHOTOGRAPHS OF THE EXTERIOR OF A SPEED RADAR ANTENNA/FIELD DISTURBANCE SENSOR OPERATING IN THE FREQUENCYRANGE 24075 – 24175 MHz, BRAND Gatso, MODEL RT3 Radar 12112103.p02 October 10,2013 FCC listed Industry Canada R&TTE, LVD, EMC Notified Body : : : : 90828 2932G-2 1856 Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: FCC Part 15, RSS-Gen, RSS-210 SPEED RADAR ANTENNA/ FIELD DISTURBANCE SENSOR Gatsometer BV Gatso RT3 Radar TVO-RT3 6271A-RT3 Project number: 12112103.p02 Page 2 of 7 Description of test item Test item : Speed Radar Antenna / Field Disturbance Sensor operating in the range 24075-24175 MHz Manufacturer : Gatsometer BV Brand : Gatso Model : RT3 Radar Serial number(s) : 201301001992 FCC ID : TVO-RT3 IC : 6271A-RT3 Applicant information Applicant's representative : Mr. B. van de Pavert Company : Gatsometer BV Address : Claes Tillyweg 2 Postal code : 2031CW City : Haarlem Country : The Netherlands Telephone number : +31 23 5255050 Telefax number : +31 23 5276961 E-mail : [email protected] Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: FCC Part 15, RSS-Gen, RSS-210 SPEED RADAR ANTENNA/ FIELD DISTURBANCE SENSOR Gatsometer BV Gatso RT3 Radar TVO-RT3 6271A-RT3 Project number: 12112103.p02 Page 3 of 7 Table of contents 1 PHOTOGRAPHS OF THE EQUIPMENT. ....................................................................................................................... 4 1.1 EXTERNAL VIEW. ............................................................................................................................................................ 4 1.1.1 Top view ................................................................................................................................................................ 4 1.1.2 Rear view .............................................................................................................................................................. 5 1.1.3 Right side view ..................................................................................................................................................... 6 1.1.4 Left side view ........................................................................................................................................................ 6 1.2 UPPER SIDE VIEW .......................................................................................................................................................... 7 1.3 BOTTOM SIDE ................................................................................................................................................................. 7 Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: FCC Part 15, RSS-Gen, RSS-210 SPEED RADAR ANTENNA/ FIELD DISTURBANCE SENSOR Gatsometer BV Gatso RT3 Radar TVO-RT3 6271A-RT3 Project number: 12112103.p02 Page 4 of 7 1 Photographs of the equipment. 1.1 External view. 1.1.1 Top view Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: FCC Part 15, RSS-Gen, RSS-210 SPEED RADAR ANTENNA/ FIELD DISTURBANCE SENSOR Gatsometer BV Gatso RT3 Radar TVO-RT3 6271A-RT3 Project number: 12112103.p02 Page 5 of 7 1.1.2 Rear view Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: FCC Part 15, RSS-Gen, RSS-210 SPEED RADAR ANTENNA/ FIELD DISTURBANCE SENSOR Gatsometer BV Gatso RT3 Radar TVO-RT3 6271A-RT3 Project number: 12112103.p02 Page 6 of 7 1.1.3 Right side view 1.1.4 Left side view Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: FCC Part 15, RSS-Gen, RSS-210 SPEED RADAR ANTENNA/ FIELD DISTURBANCE SENSOR Gatsometer BV Gatso RT3 Radar TVO-RT3 6271A-RT3 Project number: 12112103.p02 Page 7 of 7 1.2 Upper Side view 1.3 Bottom Side

Label and label location The final FCC/IC production label of the certified module will at least include the following content: Example of host device labeling: GATSO Model: RT3 Radar FCC ID: TVO-RT3 IC: 6271A-RT3 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. GATSO Model: xxxxxxxx Contains FCC ID: TVO-RT3 Contains IC: 6271A-RT3 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Module position Host device

Testing and certification of electronic and electric appliances, systems, installations and telecommunication systems TÜV Rheinland EPS P.O. Box 37 9350 AA Leek (NL) Eiberkamp 10 9351 VT Leek (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 Internet: www.tuv-eps.com E-mail: [email protected] Project number: 12112103.p01 Page 1 of 9 PHOTOGRAPHS OF THE INTERIOR OF A SPEED RADAR ANTENNA/FIELD DISTURBANCE SENSOR OPERATING IN THE FREQUENCYRANGE 24075 – 24175 MHz, BRAND GATSO, MODEL RT3 Radar 12112103.p01 October 10,2013 FCC listed Industry Canada R&TTE, LVD, EMC Notified Body : : : : 90828 2932G-2 1856 Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: FCC Part 15, RSS-Gen, RSS-210 SPEED RADAR ANTENNA/ FIELD DISTURBANCE SENSOR Gatsometer BV Gatso RT3 Radar TVO-RT3 6271A-RT3 Project number: 12112103.p01 Page 2 of 9 Description of test item Test item : Speed Radar Antenna / Field Disturbance Sensor operating in the range 24075-24175 MHz Manufacturer : Gatsometer BV Brand : Gatso Model : RT3 Radar Serial number(s) : 201301001992 FCC ID : TVO-RT3 IC : 6271A-RT3 Applicant information Applicant's representative : Mr. B. van de Pavert Company : Gatsometer BV Address : Claes Tillyweg 2 Postal code : 2031CW City : Haarlem Country : The Netherlands Telephone number : +31 23 5255050 Telefax number : +31 23 5276961 E-mail : [email protected] Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: FCC Part 15, RSS-Gen, RSS-210 SPEED RADAR ANTENNA/ FIELD DISTURBANCE SENSOR Gatsometer BV Gatso RT3 Radar TVO-RT3 6271A-RT3 Project number: 12112103.p01 Page 3 of 9 Table of contents 1.1 OVERVIEW, OPENED EUT . ............................................................................................................................................ 4 1.2 OVERVIEW, OPENED EUT- TOP PCB REMOVED ........................................................................................................... 5 1.3 RF UNIT .......................................................................................................................................................................... 6 1.3.1 RF Unit view, all PCB’s removed. ..................................................................................................................... 6 1.3.2 RF Unit view, opened- shield removed. ........................................................................................................... 7 1.4 RF UNIT PCB ................................................................................................................................................................. 8 1.4.1 RF Unit PCB front view ....................................................................................................................................... 8 1.4.2 RF Unit PCB rear view- Planar Antenna .......................................................................................................... 9 Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: FCC Part 15, RSS-Gen, RSS-210 SPEED RADAR ANTENNA/ FIELD DISTURBANCE SENSOR Gatsometer BV Gatso RT3 Radar TVO-RT3 6271A-RT3 Project number: 12112103.p01 Page 4 of 9 1.1 Overview, opened EUT . Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: FCC Part 15, RSS-Gen, RSS-210 SPEED RADAR ANTENNA/ FIELD DISTURBANCE SENSOR Gatsometer BV Gatso RT3 Radar TVO-RT3 6271A-RT3 Project number: 12112103.p01 Page 5 of 9 1.2 Overview, opened EUT- Top PCB removed Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: FCC Part 15, RSS-Gen, RSS-210 SPEED RADAR ANTENNA/ FIELD DISTURBANCE SENSOR Gatsometer BV Gatso RT3 Radar TVO-RT3 6271A-RT3 Project number: 12112103.p01 Page 6 of 9 1.3 RF Unit 1.3.1 RF Unit view, all PCB’s removed. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: FCC Part 15, RSS-Gen, RSS-210 SPEED RADAR ANTENNA/ FIELD DISTURBANCE SENSOR Gatsometer BV Gatso RT3 Radar TVO-RT3 6271A-RT3 Project number: 12112103.p01 Page 7 of 9 1.3.2 RF Unit view, opened- shield removed. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: FCC Part 15, RSS-Gen, RSS-210 SPEED RADAR ANTENNA/ FIELD DISTURBANCE SENSOR Gatsometer BV Gatso RT3 Radar TVO-RT3 6271A-RT3 Project number: 12112103.p01 Page 8 of 9 1.4 RF Unit PCB 1.4.1 RF Unit PCB front view Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: FCC Part 15, RSS-Gen, RSS-210 SPEED RADAR ANTENNA/ FIELD DISTURBANCE SENSOR Gatsometer BV Gatso RT3 Radar TVO-RT3 6271A-RT3 Project number: 12112103.p01 Page 9 of 9 1.4.2 RF Unit PCB rear view- Planar Antenna

Testing and certification of electronic and electric appliances, systems, installations and telecommunication systems TÜV Rheinland EPS P.O. Box 37 9350 AA Leek (NL) Eiberkamp 10 9351 VT Leek (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Web: www.tuv-eps.com Project number: 12112103.fcc01 Page 1 of 22 TEST REPORT CONCERNING THE COMPLIANCE OF A SPEED RADAR ANTENNA/FIELD DISTURBANCE SENSOR OPERATING IN THE FREQUENCYRANGE 24075 – 24175 MHZ, BRAND GATSO, MODEL RT3 Radar WITH 47 CFR PART 15 (10-1-12 Edition) and RSS-Gen (issue 3, December 2010) and RSS-210 (Issue 8, December 2010) 12112103.fcc01 October 10,2013 FCC listed Industry Canada R&TTE, LVD, EMC Notified Body : : : : 90828 2932G-2 1856 Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: 47 CFR Part 15 and RSS SPEED RADAR ANTENNA/ FIELD DISTURBANCE SENSOR Gatsometer BV Gatso RT3 Radar TVO-RT3 6271A-RT3 Project number : 12112103.fcc01 Page 2 of 22 MEASUREMENT/TECHNICAL REPORT Gatso Model : RT3 Radar FCC ID: TVO-RT3 IC: 6271A-RT3 This report concerns: Original grant-Modular apporoval,certification Class 2 change Verification Equipment type: FDS Field Disturbance Sensor Report prepared by: Name : Richard van der Meer Company name : TÜV Rheinland EPS Address : Eiberkamp 10 Postal code/city : 9351VT Leek Mailing address : P.O. Box 37 Postal code/city : 9350AA Leek Country : The Netherlands Telephone number : + 31 594 505 005 Telefax number : + 31 594 504 804 E-mail : [email protected] The data taken for this test and report herein was done in accordance with 47 CFR Part 15 (10-1-12 Edition), RSS-Gen (issue 3, December 2010) and RSS-210 (Issue 8, December 2010) and the measurement procedures of ANSI C63.10-2009. TÜV Rheinland EPS at Leek, The Netherlands, certifies that the data is accurate and contains a true representation of the emission profile of the Equipment Under Test (EUT) on the date of the test as noted in the test report. I have reviewed the test report and find it to be an accurate description of the test(s) performed and the EUT so tested. Date: October 10, 2013 Signature: O. Hoekstra Senior Engineer Telecom TÜV Rheinland EPS Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: 47 CFR Part 15 and RSS SPEED RADAR ANTENNA/ FIELD DISTURBANCE SENSOR Gatsometer BV Gatso RT3 Radar TVO-RT3 6271A-RT3 Project number : 12112103.fcc01 Page 3 of 22 Description of test item Test item : Speed Radar Antenna / Field Disturbance Sensor operating in the range 24075-24175 MHz Manufacturer : Gatsometer BV Brand : Gatso Model : RT3 Radar Serial number : 201301001992 Revision : n.a. Applicant information Applicant's representative : Mr. B. van de Pavert Company : Gatsometer BV Address : Claes Tillyweg 2 Postal code : 2031CW City : Haarlem Country : The Netherlands Telephone number : +31 23 5255050 Telefax number : +31 23 5276961 E-mail : [email protected] Test(s) performed Location : Leek Test(s) started : July 26, 2013 Test(s) completed : August 12, 2013 Purpose of test(s) : Equipment Authorization (Original grant/certification) Test specification(s) : 47 CFR Part 15 (10-1-12 Edition) and RSS-GEN (ISSUE 3, DECEMBER 2010) AND RSS-210 (ISSUE 8, DECEMBER 2010). Test engineer(s) : R. van der Meer Report written by : R. van der Meer Report date : October 10, 2013 This report shall not be reproduced, except in full, without the written permission of TÜV Rheinland EPS. The test results relate only to the item(s) tested. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: 47 CFR Part 15 and RSS SPEED RADAR ANTENNA/ FIELD DISTURBANCE SENSOR Gatsometer BV Gatso RT3 Radar TVO-RT3 6271A-RT3 Project number : 12112103.fcc01 Page 4 of 22 Table of contents 1 General information. .............................................................................................................................................. 5 1.1 Product description. ........................................................................................................................................ 5 1.1.1 Introduction. ............................................................................................................................................ 5 1.2 Related submittal(s) and/or Grant(s). ............................................................................................................. 5 1.2.1 General. .................................................................................................................................................. 5 1.3 Tested system details. .................................................................................................................................... 5 1.3.1 Description of input and output ports. ..................................................................................................... 7 1.4 Test results summary ..................................................................................................................................... 8 1.5 Test methodology. .......................................................................................................................................... 9 1.6 Test facility. .................................................................................................................................................... 9 1.7 Test conditions. .............................................................................................................................................. 9 2 System test configuration. ................................................................................................................................... 10 2.1 Justification. .................................................................................................................................................. 10 2.2 EUT mode of operation. ...............................................................…
