TVRDSCS780Digital Still Camera

DSC-S750/S780 3-285-745-11(1) G:\SONY\PvPi\Cy- ber\E\000228M_CX60830_840_Inst\1009_CX60830840_IM\328574511DSCS750CA2\01GB- DSCS750CA2\010COV.fm master:Right © 2008 Sony Corporation3-285-745-11(1) Instruction Manual DSC-S750/S780 Digital Still Camera Operating Instructions Before operating the unit, please read this manual thoroughly, and retain it for future reference. For details on advanced operations, please read “Cyber- shot Handbook” (PDF) and “Cyber-shot Step-up Guide” on the CD-ROM (supplied) using a computer. GB 010COV.book Page 1 Wednesday, October 10, 2007 12:08 PM 2 DSC-S750/S780 3-285-745-11(1) G:\SONY\PvPi\Cy- ber\E\000228M_CX60830_840_Inst\1009_CX60830840_IM\328574511DSCS750CA2\01GB- DSCS750CA2\020REG.fm master:Left_Safety Owner’s Record The model and serial numbers are located on the bottom. Record the serial number in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product. Model No. DSC-S750/S780 Serial No. ______________________________ To reduce fire or shock hazard, do not expose the unit to rain or moisture. IMPORTANT SAFEGUARDS For your protection, please read these safety instructions completely before operating the appliance, and keep this manual for future reference. Carefully observe all warnings, precautions and instructions on the appliance, or the one described in the operating instructions and adhere to them. [Power Sources This set should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of electrical power supplied to your home, consult your dealer or local power company. For those sets designed to operate from battery power, or other sources, refer to the operating instructions. [Polarization This set may be equipped with a polarized ac power cord plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to have a suitable outlet installed. Do not defeat the safety purpose of the polarized plug by forcing it in. [Overloading Do not overload wall outlets, extension cords or convenience receptacles beyond their capacity, since this can result in fire or electric shock. [Object and Liquid Entry Never push objects of any kind into the set through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the set. [Attachments Do not use attachments not recommended by the manufacturer, as they may cause hazards. WARNING For Customers in the U.S.A. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. Use 010COV.book Page 2 Wednesday, October 10, 2007 12:08 PM 3 DSC-S750/S780 3-285-745-11(1) G:\SONY\PvPi\Cy- ber\E\000228M_CX60830_840_Inst\1009_CX60830840_IM\328574511DSCS750CA2\01GB- DSCS750CA2\020REG.fm master:Right [Cleaning Unplug the set from the wall outlet before cleaning or polishing it. Do not use liquid cleaners or aerosol cleaners. Use a cloth lightly dampened with water for cleaning the exterior of the set. [Water and Moisture Do not use power-line operated sets near water – for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc. [Power-Cord Protection Route the power cord so that it is not likely to be walked on or pinched by items placed upon or against them, paying particular attention to the plugs, receptacles, and the point where the cord exits from the appliance. [Accessories Do not place the set on an unstable cart, stand, tripod, bracket, or table. The set may fall, causing serious injury to a child or an adult, and serious damage to the set. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer. [Ventilation The slots and openings in the cabinet are provided for necessary ventilation. To ensure reliable operation of the set, and to protect it from overheating, these slots and openings must never be blocked or covered. – Never cover the slots and openings with a cloth or other materials. – Never block the slots and openings by placing the set on a bed, sofa, rug, or other similar surface. – Never place the set in a confined space, such as a bookcase, or built-in cabinet, unless proper ventilation is provided. – Do not place the set near or over a radiator or heat register, or where it is exposed to direct sunlight. [Lightning For added protection for this set during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the set due to lightning and power-line surges. [Damage Requiring Service Unplug the set from the wall outlet and refer servicing to qualified service personnel under the following conditions: – When the power cord or plug is damaged or frayed. – If liquid has been spilled or objects have fallen into the set. – If the set has been exposed to rain or water. – If the set has been subject to excessive shock by being dropped, or the cabinet has been damaged. – If the set does not operate normally when following the operating instructions. Adjust only those controls that are specified in the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the set to normal operation. – When the set exhibits a distinct change in performance – this indicates a need for service. [S…

Text truncated - open the document above for the full version.

21 DSC-S750/S780 3-285-745-11(1) G:\SONY\PvPi\Cy- ber\E\000228M_CX60830_840_Inst\1009_CX60830840_IM\328574511DSCS750CA2\01GB- DSCS750CA2\050MEN.fm master:Right Changing the settings – Menu/Setup 1Recording: Turn on the camera, then set the mode dial. Playback: Press (Playback). Different items are available depending on the position of the mode dial and Recording/Playback mode. 2Press MENU to display the menu. 3Select the desired menu item with b/B on the control button. • If the desired item is invisible, keep pressing b/B until the item appears on the screen. • Select an item in playback mode, and press z. 4Select a setting with v/V. The setting you select is zoomed and set. 5Press MENU to turn off the menu. Control button  MENU button  Mode dial (Playback) button z button [To select a Setup item Press and hold MENU, or select (Setup) in step 3 and then press B. Select the item to set with v/V/b/B, then press z. 010COV.book Page 21 Wednesday, October 10, 2007 12:08 PM 22 DSC-S750/S780 3-285-745-11(1) G:\SONY\PvPi\Cy- ber\E\000228M_CX60830_840_Inst\1009_CX60830840_IM\328574511DSCS750CA2\01GB- DSCS750CA2\050MEN.fm master:Left For details on the operation 1 page 21 Menu items The available menu items vary depending on the mode setting (shooting/viewing), and the mode dial position in the shooting mode. Only the available items are displayed on the screen. Shooting menu Face DetectionDetects the faces of your subjects and adjusts focus, etc. COLOR (Color Mode)Changes the vividness of the image or adds special effects. EVAdjusts Exposure. 9 (Focus)Changes the focus method. (Metering Mode)Selects the metering mode. WB (White Bal)Adjusts the color tones. ISOSelects a luminous sensitivity. Mode (REC Mode)Selects the continuous shooting method. (Flash Level)Adjusts the amount of flash light. (Sharpness)Adjusts the sharpness of the image. (Setup)Changes Setup items. Viewing menu (Folder)Selects the folder for viewing images. - (Protect)Prevents accidental erasure. DPOFAdds a Print order mark. (Print)Prints images using a PictBridge compliant printer. (Slide)Plays back a series of images. (Resize)Changes the image size of a recorded image. (Rotate)Rotates a still image. (Setup)Changes Setup items. TrimmingRecords an enlarged image (Available only for playback zoom). 010COV.book Page 22 Wednesday, October 10, 2007 12:08 PM 23 DSC-S750/S780 3-285-745-11(1) G:\SONY\PvPi\Cy- ber\E\000228M_CX60830_840_Inst\1009_CX60830840_IM\328574511DSCS750CA2\01GB- DSCS750CA2\050MEN.fm master:Right For details on the operation 1 page 21 Setup items Camera Digital ZoomSelects the digital zoom mode. Function GuideDisplays the description of functions when you operate the camera. Red Eye ReductionReduces the red-eye phenomenon when using the flash. Auto ReviewDisplays the recorded image on the screen for approximately two seconds immediately after shooting a still image. Internal Memory Tool FormatFormats the internal memory. Memory Stick Tool FormatFormats the “Memory Stick Duo”. Create REC. FolderCreates a folder in a “Memory Stick Duo” for recording images. Change REC. FolderChanges the folder currently used for recording images. CopyCopies all images in the internal memory to a “Memory Stick Duo”. Setup1 BeepSelects the sound produced when you operate the camera. LanguageSelects the language to be used in the menu items, warnings, and messages. InitializeInitializes the setting to the default setting. Setup2 USB ConnectSelects the USB mode to be used when connecting the camera to a computer or a PictBridge compliant printer using the dedicated USB cable. Video OutSets the video signal output according to the TV color system of the connected video equipment. Clock SetSets the date and time. 010COV.book Page 23 Wednesday, October 10, 2007 12:08 PM 24 DSC-S750/S780 3-285-745-11(1) G:\SONY\PvPi\Cy- ber\E\000228M_CX60830_840_Inst\1009_CX60830840_IM\328574511DSCS750CA2\01GB- DSCS750CA2\060PC.fm master:Left Enjoying your computer You can view images shot with the camera on a computer. By using the software in the CD- ROM (supplied), you can enjoy still images and movies from the camera more than ever. For details, refer to “Cyber-shot Handbook” in the CD-ROM (supplied). Supported Operating Systems for USB connection and application software (supplied) * 64-bit editions and Starter (Edition) are not supported. • Your computer must be pre-installed with an OS listed above. OS upgrades are not supported. • If your OS does not support USB connections, use a commercially available Memory Stick Reader/Writer. • For further details on the operating environment of “Picture Motion Browser” Cyber-shot application software, refer to “Cyber-shot Handbook.” For Windows usersFor Macintosh users USB connection Windows 2000 Professional SP4, Windows XP* SP2, Windows Vista* Mac OS 9.1/9.2/ Mac OS X(v10.1 to v10.4) Application software “Picture Motion Browser” Windows 2000 Professional SP4, Windows XP* SP2, Windows Vista* not compatible 010COV.book Page 24 Wednesday, October 10, 2007 12:08 PM 25 DSC-S750/S780 3-285-745-11(1) G:\SONY\PvPi\Cy- ber\E\000228M_CX60830_840_Inst\1009_CX60830840_IM\328574511DSCS750CA2\01GB- DSCS750CA2\060PC.fm master:Right Viewing “Cyber-shot Handbook” “Cyber-shot Handbook” in the CD-ROM (supplied) explains how to use the camera in detail. Adobe Reader is required to view it. [For Windows users 1Turn on your computer, and insert the CD- ROM (supplied) into the CD-ROM drive. The screen below appears. When you click the [Cyber-shot Handbook] button, the screen for copying “Cyber-shot Handbook” appears. 2Follow the on-screen instructions to copy. • When you install “Cyber-shot Handbook,” the “Cyber-shot Step-up Guide” will be installed automatically. 3After the installation is complete, double- click the shortcut created on the desktop. [For Macintosh users 1Turn on your computer, and insert the CD- ROM (supplied) into the CD-ROM drive. 2Select the [Handbook] folder and copy “Handbook.pdf” stored in the [GB] folder…

Text truncated - open the document above for the full version.

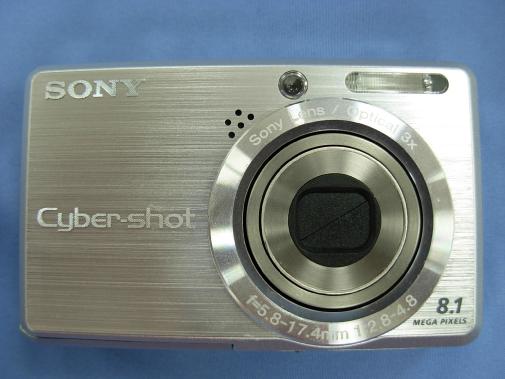

Report No： 07C032R-ITUSP01V02 Page: 62 of 89 5. Attachment ÿ EUT Photograph (1) EUT Photo (2) EUT Photo Report No： 07C032R-ITUSP01V02 Page: 63 of 89 (3) EUT Photo (4) EUT Photo Report No： 07C032R-ITUSP01V02 Page: 64 of 89 (5) EUT Photo (6) EUT Photo Report No： 07C032R-ITUSP01V02 Page: 65 of 89 (7) EUT Photo (8) EUT Photo Report No： 07C032R-ITUSP01V02 Page: 66 of 89 (9) EUT Photo (10) EUT Photo Report No： 07C032R-ITUSP01V02 Page: 67 of 89 (11) EUT Photo (12) EUT Photo

Hon Hai Precision Industry Co., Ltd. Nei-Hu Branch Office 1~11 F., No.32, Ji-hu Rd., Nei-hu, Taipei 114, Taiwan, R.O.C. FCC ID.: TVRDSCS780 FCC ID AND DoC Label

Report No： 07C032R-ITUSP01V02 Page: 68 of 89 (13) EUT Photo (14) EUT Photo Report No： 07C032R-ITUSP01V02 Page: 69 of 89 (15) EUT Photo (16) EUT Photo Report No： 07C032R-ITUSP01V02 Page: 70 of 89 (17) EUT Photo (18) EUT Photo Report No： 07C032R-ITUSP01V02 Page: 71 of 89 (19) EUT Photo (20) EUT Photo Report No： 07C032R-ITUSP01V02 Page: 72 of 89 (21) EUT Photo (22) EUT Photo Report No： 07C032R-ITUSP01V02 Page: 73 of 89 (23) EUT Photo (24) EUT Photo Report No： 07C032R-ITUSP01V02 Page: 74 of 89 (25) EUT Photo (26) EUT Photo Report No： 07C032R-ITUSP01V02 Page: 75 of 89 (27) EUT Photo (28) EUT Photo Report No： 07C032R-ITUSP01V02 Page: 76 of 89 (29) EUT Photo (30) EUT Photo Report No： 07C032R-ITUSP01V02 Page: 77 of 89 (31) EUT Photo Report No： 07C032R-ITUSP01V02 Page: 78 of 89 (32) EUT Photo Report No： 07C032R-ITUSP01V02 Page: 79 of 89 (33) EUT Photo Report No： 07C032R-ITUSP01V02 Page: 80 of 89 (34) EUT Photo (35) EUT Photo Report No： 07C032R-ITUSP01V02 Page: 81 of 89 (36) EUT Photo (37) EUT Photo Report No： 07C032R-ITUSP01V02 Page: 82 of 89 (38) EUT Photo (39) EUT Photo Report No： 07C032R-ITUSP01V02 Page: 83 of 89 (40) EUT Photo (41) EUT Photo Report No： 07C032R-ITUSP01V02 Page: 84 of 89 (42) EUT Photo (43) EUT Photo Report No： 07C032R-ITUSP01V02 Page: 85 of 89 (44) EUT Photo (45) EUT Photo Report No： 07C032R-ITUSP01V02 Page: 86 of 89 (46) EUT Photo (47) EUT Photo Report No： 07C032R-ITUSP01V02 Page: 87 of 89 (48) EUT Photo (49) EUT Photo Report No： 07C032R-ITUSP01V02 Page: 88 of 89 (50) EUT Photo (51) EUT Photo Report No： 07C032R-ITUSP01V02 Page: 89 of 89 (52) EUT Photo (53) EUT Photo

Report No： 07C032R-ITUSP01V02 Page: 10 of 89 1.5. EUT Exercise Software Test Mode Mode 1: Slide show 1 Setup EUT and Monitor as shown on 1.4. 2 Play REC file (black loop). 3 Turn on the power. 4 Select play key. 5 Press MENU. 6 Press left key to select play OK. 7 Select START OK. 8 Show word of slide show on LCD display. 9 Test. Test Mode Mode 2: REC 1 Setup EUT and Monitor as shown on 1.4. 2 The lens of EUT was covered with black tape. 3 Turn on the power of all equipment. 4 Press REC key. 5 Save black file. Test Mode Mode 3: USB (Data Transmit) 1 Setup EUT and PC as shown on 1.4. 2 Loop transmit REC file with USB cable. 3 Turn on the power. 4 Write DSC file to PC for example. Test Mode Mode 4: Preview 1 Setup EUT and Monitor as shown on 1.4. 2 The lens of EUT was covered with black tape. 3 Turn on the power of all equipment. 4 Select capture preview mode. 5 Test.

Test Report Product Name ： Digital Still Camera Model No. ： DSC-S780 FCC ID ： TVRDSCS780 Applicant ： Hon Hai Precision Industry Co., Ltd. Nei-Hu Branch Office Address ： 1~11 F., No.32, Ji-hu Rd., Nei-hu, Taipei 114, Taiwan, R.O.C. Date of Receipt ： 2007/11/28 Issued Date ： 2007/12/13 Report No. ： 07C032R-ITUSP01V02 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by CNLA, NVLAP, NIST or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 07C032R-ITUSP01V02 Page: 2 of 89 Test Report Certification Issued Date : 2007/12/13 Report No. : 07C032R-ITUSP01V02 Product Name : Digital Still Camera Applicant : Hon Hai Precision Industry Co., Ltd. Nei-Hu Branch Office Address : 1~11 F., No.32, Ji-hu Rd., Nei-hu, Taipei 114, Taiwan, R.O.C. Manufacturer : Hon Hai Precision Industry Co., Ltd. Nei-Hu Branch Office Model No. : DSC-S780 Rated Voltage : AC 120 V / 60 Hz EUT Voltage : AC 120 V / 60 Hz Trade Name : SONY Applicable Standard : FCC CFR Title 47 Part 15 Subpart B: 2006 Class B, CISPR 22: 2006 Test Result : Complied Performed Location : Hsinchu EMC Laboratory N0. 75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 Documented By : (Sandy Chuang / Engineering Adm. Specialist) Reviewed By : (John Lee / Assistant Engineer) Approved By : ( Arthur Liu / Deputy Manager) Report No： 07C032R-ITUSP01V02 Page: 3 of 89 Laboratory Information We , QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited by the following accreditation Bodies in compliance with ISO 17025, EN 45001 and Guide 25: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site : http://tw.quietek.com/modules/myalbum/ The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No. 5, Ruei-Shu Valley, Ruei-Ping Tsuen, Lin-Kou Shiang, Taipei, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Taiwan R.O.C. : BSMI, DGT, CNLA Germany : TUV Rheinland Norway : Nemko, DNV USA : FCC, NVLAP Japan : VCCI 0914 1313 Report No： 07C032R-ITUSP01V02 Page: 4 of 89 TABLE OF CONTENTS Description Page 1. General Information................................................................................................5 1.1. EUT Description.....................................................................................................5 1.2. Mode of Operation..................................................................................................6 1.3. Tested System Details............................................................................................7 1.4. Configuration of Tested System..............................................................................8 1.5. EUT Exercise Software.........................................................................................10 2. Technical Test.......................................................................................................11 2.1. Summary of Test Result........................................................................................11 2.2. List of Test Equipment..........................................................................................11 2.3. Measurement Uncertainty.....................................................................................12 2.4. Test Environment..................................................................................................12 3. Conducted Emission.............................................................................................13 3.1. Test Specification..................................................................................................13 3.2. Test Setup............................................................................................................13 3.3. Limit......................................................................................................................13 3.4. Test Procedure.....................................................................................................14 3.5. Test Result............................................................................................................15 3.6. Test Photograph...................................................................................................31 4. Radiated Emission................................................................................................35 4.1. Test Specification..................................................................................................35 4.2. Test Setup............................................................................................................35 4.3. Limit......................................................................................................................36 4.4. Test Procedure.....................................................................................................37 4.5. Test Result............................................................................................................38 4.6. Test Photograph.............................…

Text truncated - open the document above for the full version.

Report No： 07C032R-ITUSP01V02 Page: 31 of 89 3.6. Test Photograph Test Mode : Mode 1: Slide show Description : Front View of Conducted Emission Test Setup Test Mode : Mode 1: Slide show Description : Back View of Conducted Emission Test Setup Report No： 07C032R-ITUSP01V02 Page: 32 of 89 Test Mode : Mode 2: REC Description : Front View of Conducted Emission Test Setup Test Mode : Mode 2: REC Description : Back View of Conducted Emission Test Setup Report No： 07C032R-ITUSP01V02 Page: 33 of 89 Test Mode : Mode 3: USB (Data Transmit) Description : Front View of Conducted Emission Test Setup Test Mode : Mode 3: USB (Data Transmit) Description : Back View of Conducted Emission Test Setup Report No： 07C032R-ITUSP01V02 Page: 34 of 89 Test Mode : Mode 4: Preview Description : Front View of Conducted Emission Test Setup Test Mode : Mode 4: Preview Description : Back View of Conducted Emission Test Setup c Report No： 07C032R-ITUSP01V02 Page: 54 of 89 4.6. Test Photograph Test Mode : Mode 1: Slide show Description : Front View of Radiated Emission Test Setup Test Mode : Mode 1: Slide show Description : Back View of Radiated Emission Test Setup Report No： 07C032R-ITUSP01V02 Page: 55 of 89 Test Mode : Mode 1: Slide show Description : Front View of Radiated Emission Test Setup (Horn) Test Mode : Mode 1: Slide show Description : Back View of Radiated Emission Test Setup (Horn) Report No： 07C032R-ITUSP01V02 Page: 56 of 89 Test Mode : Mode 2: REC Description : Front View of Radiated Emission Test Setup Test Mode : Mode 2: REC Description : Back View of Radiated Emission Test Setup Report No： 07C032R-ITUSP01V02 Page: 57 of 89 Test Mode : Mode 2: REC Description : Front View of Radiated Emission Test Setup (Horn) Test Mode : Mode 2: REC Description : Back View of Radiated Emission Test Setup (Horn) Report No： 07C032R-ITUSP01V02 Page: 58 of 89 Test Mode : Mode 3: USB (Data Transmit) Description : Front View of Radiated Emission Test Setup Test Mode : Mode 3: USB (Data Transmit) Description : Back View of Radiated Emission Test Setup Report No： 07C032R-ITUSP01V02 Page: 59 of 89 Test Mode : Mode 3: USB (Data Transmit) Description : Front View of Radiated Emission Test Setup (Horn) Test Mode : Mode 3: USB (Data Transmit) Description : Back View of Radiated Emission Test Setup (Horn) Report No： 07C032R-ITUSP01V02 Page: 60 of 89 Test Mode : Mode 4: Preview Description : Front View of Radiated Emission Test Setup Test Mode : Mode 4: Preview Description : Back View of Radiated Emission Test Setup Report No： 07C032R-ITUSP01V02 Page: 61 of 89 Test Mode : Mode 4: Preview Description : Front View of Radiated Emission Test Setup (Horn) Test Mode : Mode 4: Preview Description : Back View of Radiated Emission Test Setup (Horn)
