TVV-PN-CPP-A-1422802.11 b/g Wireless Router

Local servers Add Local Server, just top 7 lines is different, after other line, you can refer to “Access Control Rule”. DMZ Host Port Triggering ADD Port Trigger Rule. Edit Service Server Ports And the “opened ports” like as server ports Remote Administration You can define the remote management rule by those rules. IP/Hostname Filtering Advanced Filtering Security Log Router is recording system message in the Log like as queue. You can use it to compare something you have to check. 3-5. Web Filtering ITEM Activation Enable or disable “web filtering” function. Filtering Policy Press “Add a LAN computer”, it show what’s computer you want to set, one by one. And, If you selected policy “Home”, you can check which filter you need. Policy “Employee”, it’s the same as Home, and you can change it. Home and Employee detail setting check list.--- Advanced options The function can block all traffic to the specific URL address. Statistics It is summarize traffic percentage 3-6. Advanced ITEM DNS server Dynamic DNS IP Address Distribution Network Objects Routing Users To add New user Date and Time Time Server address input.

Schedule Rules To do New Scheduler Entry In the button line, a New Time Segment Entry shall be entry to enter New... again to do Hour Range Edit Firmware upgrade / Now the service has not on going. So upgrade firmware from Internet is unavailable. But you can upgrade it from Computer by Wired, Ethernet. Please do not use wireless LAN to do upgrading processing! Universal Plug and Play System settings MAC cloning You can hide your true MAC address in the WAN side to the NET, press Clone My MAC Address, it will be changeable to what’s your type in. (CAUTION: Some NET application environment is required your true MAC or your networking will be unstable or unusable.) Diagnostics Remote Administration File server Printer server Restore defaults Restart Technical information 3-7. SYSTEM Monitoring ITEM 3-8. Logout ITEM If you press item Logout, you will be logout directly. And the window will show that. Warring notice: Our Products are followed CE and FCC regulation by Laws or requirement in rules by local country Government. Please use this product in normal condition. AVOID water or liquid and other (unmoral vapor, solid something) in or into or on product. AVOID steam into product. Be careful Product where the place is. Considering that to keep off “Fire accident”, especially the Power Adapter. Keep product in adequately ventilated condition in operating. Tested to comply with FCC standards. For Home or Office use. FCC Caution 1.The device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference. (2)This device must accept any interference received, including interference that may cause undesired operation. 2.FCC RF Radiation Exposure Statement: The equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. 3.This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 4.Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. FCC statement in User's Manual (for class B) "Federal Communications Commission (FCC) Statement This Equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.

Statement of Compliance Letter FCC ID : TVV-PN-CPP-A-1422 Product : 802.11b/g Wireless Router Model : PN-CPP-A-1422u To whom it may concern: We, the undersigned, hereby certify that we responsible to comply with the relevant provisions of the following : (1) Radiated Emission Suggestion: a. Add the EMI PARTITION to cover the Mini-PCI connector. b. Add the copper foil,1 st :(25mm*25mm*0.04mm thickness) and 2 nd :( 25mm*50mm*0.04mm thickness) to cover the Mini PCI connector. c. Add the CORE,(big diameter 14mm*width 7mm*small diameter 8mm) let the Antenna cable to band the core one circle. (2) We confirming the above modifications made will be sold in the further production and in each unit under this FCC ID. This authorization is valid until further written notice from: Date:01/18/2006

Mike Kuo From: daphne.liang [[email protected]] Sent: Tuesday, January 17, 2006 1:38 AM To: Mike Kuo Cc: [email protected]; lucy.tsai Subject: Re ： FW: Pronto Networks , FCC ID: TVV-PN-CPP-A-1422, Assessment NO.: AN06T5428, Notice#1-- Updated(0117) Attachments: MIWLGRL_SCH(950117).pdf; PN-CPP-A-1422u_Report(RP1)-1_950117.pdf; MIWLGRL-BLOCK (950117).pdf; PN-CPP-A-1422u_External Photo(950117).pdf; PN-CPP-A-1422u_Internal Photo(950117).pdf; PN-CPP-A-1422u_User Guide(0113)-3(950117).pdf  1/22/2006 Dear Mike: Thank you for your e-mail. Please find the belowing reply and find the attached files for updated(950117). As the urgent case,would you please help our client to get this certificate tomorrow if there is no any problems?? Thank you for your best support. BEST REGARDS Daphne Liang / 梁鈺如 1/17/2006 Certification Team Leader / R&D and Certification Dept. ============================================= Compliance Certification Services Inc. Rm.258, Bldg.17, No.195, Sec.4, Chung Hsing Rd.,Chutung,Hsinchu,Taiwan,R.O.C. Tel: 886-3-5910068 EXT: 502 Fax: 886-3-5825720 E-mail: [email protected] URL: http://www.ccsemc.com.tw Question #1: Schematic diagram does not contain RF section, please provide it. Ans: Please find the attached for RF SCH(950117). Question #2: Page 48 of test report, the information presented in the "Mike Kuo" <[email protected]> 2006/01/17 03:38 PM 收件人： "daphne.liang" <[email protected]> 副本抄送： <[email protected]> 主旨： FW: Pronto Networks , FCC ID: TVV-PN-CPP-A-1422, Assessment NO.: AN06T5428, Notice#1 Mark and Height section are not correct. Please make necessary correction. Ans: Please find the attached for updated test report(950117) of page 48. Question #3: Per the internal photos, the WLAN module installed in this AP is an approved module, FCC ID:NLF-MIWLGRL. Based upon FCC data base, the highest output power certified under this module is different than the measured output power in this application. Please explain. Ans: Sorry for confused you. Would you please disregard the internal photo with the WLAN module because this one is apply for host system. And Internal photo(940117) has been replaced with new one. (Removed the module FCC ID Label.) Question #4: Per the functional block diagram, there are two TX/RX diversity antennas but actually there is only installed and used. Please make necessary correction on the block diagram. Ans: Please find the attached for updated Block(950117). Question #5: Please remove the power adapter photo of Sys1298-1812-WBU since it is not complied with U.S. specification. Ans: Please find the attached for updated test report(950117) of page 4. Question #6: Please submit channel power plot for B mode at high channel to replace the one on page 25. Ans: Please find the attached for updated test report(950117) of page 25. Question #7: Please include section 15.105 user information in the user manual. Ans: Please find the attached for updated User's manual(950117) of last page. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.  1/22/2006

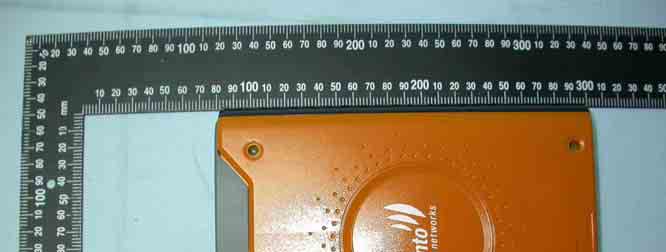

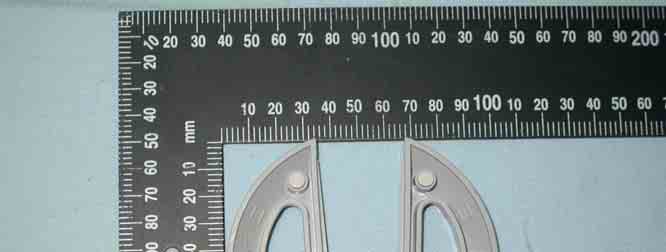

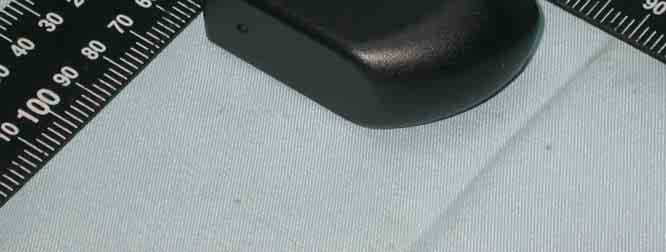

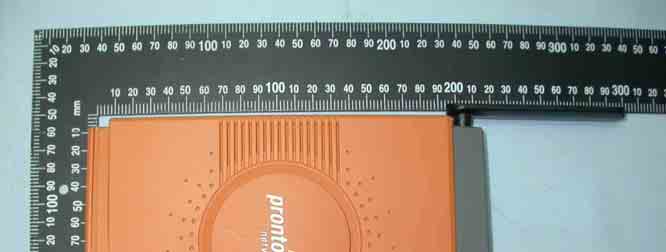

Compliance Certification Services Inc. Report No.：51128301-FCC Page 1 of 28 External Photo Model : PN-CPP-A-1422u Compliance Certification Services Inc. Report No.：51128301-FCC Page 2 of 28 Compliance Certification Services Inc. Report No.：51128301-FCC Page 3 of 28 Compliance Certification Services Inc. Report No.：51128301-FCC Page 4 of 28 Compliance Certification Services Inc. Report No.：51128301-FCC Page 5 of 28 Compliance Certification Services Inc. Report No.：51128301-FCC Page 6 of 28 External Photo Model : PN-CPP-A-1422 Compliance Certification Services Inc. Report No.：51128301-FCC Page 7 of 28 External Adapter Photo Model : SYS1298-1812-W2 Compliance Certification Services Inc. Report No.：51128301-FCC Page 8 of 28 Compliance Certification Services Inc. Report No.：51128301-FCC Page 9 of 28

Label Here

Compliance Certification Services Inc. Report No.：51128301-FCC Page 10 of 28 Internal Photo Model : PN-CPP-A-1422u Compliance Certification Services Inc. Report No.：51128301-FCC Page 11 of 28 Compliance Certification Services Inc. Report No.：51128301-FCC Page 12 of 28 Compliance Certification Services Inc. Report No.：51128301-FCC Page 13 of 28 Compliance Certification Services Inc. Report No.：51128301-FCC Page 14 of 28 Compliance Certification Services Inc. Report No.：51128301-FCC Page 15 of 28 Compliance Certification Services Inc. Report No.：51128301-FCC Page 16 of 28 Compliance Certification Services Inc. Report No.：51128301-FCC Page 17 of 28 Compliance Certification Services Inc. Report No.：51128301-FCC Page 18 of 28 Compliance Certification Services Inc. Report No.：51128301-FCC Page 19 of 28 Internal Photo Model : PN-CPP-A-1422 Compliance Certification Services Inc. Report No.：51128301-FCC Page 20 of 28 Compliance Certification Services Inc. Report No.：51128301-FCC Page 21 of 28 Compliance Certification Services Inc. Report No.：51128301-FCC Page 22 of 28 Compliance Certification Services Inc. Report No.：51128301-FCC Page 23 of 28 Compliance Certification Services Inc. Report No.：51128301-FCC Page 24 of 28 Compliance Certification Services Inc. Report No.：51128301-FCC Page 25 of 28 Compliance Certification Services Inc. Report No.：51128301-FCC Page 26 of 28 Compliance Certification Services Inc. Report No.：51128301-FCC Page 27 of 28 Internal Adapter Photo Model : SYS1298-1812-W2 Compliance Certification Services Inc. Report No.：51128301-FCC Page 28 of 28

APPROVAL SHEET CUSTOMER MODEL NO.: JOYMAX MODEL NO.: IML-611XIPXX-113 DESCRIPTION:2.4GHz Right Angle Antenna REV.:00 DATE.:2005/01/17 Joymax ApprovalCustomer Approval Tel:+886-3-4335698 Fax:+886-3-4335798 . 4335799 E-Mail:[email protected] No.5, Dong Yuan Rd.2, Jhongli Industrial Park, Jhongli City, Tao Yuan, Taiwan, R.O.C. Http://www.joymax.com.tw 5 CUSTOMER : Item Page 1. Antenna specification 2. Drawing 3. Test report Electrical test 4. Connector 1.37 6 I-PEX Packing PE 5. Cable specification . Index. 1-1 2-1 3-1 4-1 5-1 ContentDateRev. Modification History: 2005/01/1700 Model. IML-611XIPXX-113 Description Antenna Specifications 1-1 1)This is a right angle antenna.It's useful for the ISM Band. Electrical Properties 1) Frequency Range 2) Impedance 3) V.S.W.R. 4) Return Loss 5) Gain 6) Polarization 7) Electrical Wavelength 2.4~2.4835 GHz 50 ohm nominal 2.0 -10dB 1.5dBi Vertical 1/4 Dipole Mechanical Properties 1) 2 ) Antenna Base Cable ) Connector 3 Antenna Cover 4) 1.37 IPEX Polycarbonate Polycarbonate Electrical Properties Test Report Electrical Test Return loss V.S.W.R. 3-1 ¼Z-COM Model. IML-611XIPXX-113 Connector 4-1 I-PEX Cable 5-1 1.37

Compliance Certification Services Inc. FCC ID：TVV-PN-CPP-A-1422 Report No.：51128301-RP1 Page 1 of 72 FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4 : 2003 TEST REPORT For 802.11b/g Wireless Router Model : PN-CPP-A-1422u Data Applies To : PN-CPP-A-1422 Trade Name : Pronto Networks Issued for Pronto Networks 4637 Chabot Drive, Suite#350 Pleasanton, California 94588 USA Issued by Compliance Certification Services Inc. Hsinchu Lab. Rm. 258, Bldg. 17, NO.195, Sec.4 Chung HsingRd., ChuTung Chen, Hsinchu, Taiwan 310, R.O.C TEL: (03) 591-0068 FAX: (03) 582-5720 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services Inc. FCC ID：TVV-PN-CPP-A-1422 Report No.：51128301-RP1 Page 2 of 72 TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION........................................................................................... 3 2. EUT DESCRIPTION.................................................................................................................. 4 2.1 DESCRIPTION OF EUT & POWER.................................................................................... 4 3. DESCRIPTION OF TEST MODES .......................................................................................... 5 4. TEST METHODOLOGY............................................................................................................5 5. FACILITIES AND ACCREDITATIONS .................................................................................. 5 5.1 FACILITIES .......................................................................................................................... 5 5.2 EQUIPMENT ........................................................................................................................ 5 5.3 LABORATORY ACCREDITATIONS LISTINGS................................................................... 6 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ................................................................ 6 6. CALIBRATION AND UNCERTAINTY .................................................................................... 7 6.1 MEASURING INSTRUMENT CALIBRATION ..................................................................... 7 6.2 MEASUREMENT UNCERTAINTY....................................................................................... 7 7. SETUP OF EQUIPMENT UNDER TEST................................................................................ 8-9 8. APPLICABLE LIMITS AND TEST RESULTS ....................................................................... 10 8.1 6dB BANDWIDTH ................................................................................................................ 10-15 8.2 99% BANDWIDTH ............................................................................................................... 16-21 8.3 MAXIMUM PEAK OUTPUT POWER ................................................................................. 22-27 8.4 MAXIMUM PERMISSIBLE EXPOSURE ............................................................................. 28-29 8.5 AVERAGE POWER............................................................................................................... 30-31 8.6 POWER SPECTRAL DENSITY ............................................................................................ 32-37 8.7 CONDUCTED SPURIOUS EMISSION................................................................................ 38-42 8.8 RADIATED EMISSIONS ...................................................................................................... 43 8.8.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS ................................................ 43-46 8.8.2 WORST-CASE RADIATED EMISSION BELOW 1 GHz ................................................ 47 8.8.3 TRANSMITTER RADIATED EMISSION ABOVE 1 GHz............................................... 48-53 8.8.4 RESTRICTED BAND EDGES ........................................................................................ 54-61 8.9 POWERLINE CONDUCTED EMISSIONS .......................................................................... 62-65 9. ANTENNA REQUIREMENT .................................................................................................... 66 9.1 STANDARD APPLICABLE................................................................................................... 66 9.2 ANTENNA CONNECTED CONSTRUCTION ...................................................................... 66 APPENDIX SETUP PHOTOS....................................................................................................... 67-72 Compliance Certification Services Inc. FCC ID：TVV-PN-CPP-A-1422 Report No.：51128301-RP1 Page 3 of 72 1. TEST REPORT CERTIFICATION Applicant ： Pronto Networks Address ： 4637 Chabot Drive, Suite#350 Pleasanton, California 94588 USA Equipment Under Test ： 802.11b/g Wireless Router Model ： PN-CPP-A-1422u Data Applies To ： PN-CPP-A-1422 Trade Name ： Pronto Networks Tested Date ： November 28, 2005 ~ January 13, 2006 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C : 2004 AND ANSI C63.4 : 2003 No non-compliance noted WE HEREBY CERTIFY THAT: The measurements shown in the attachment were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. We assume full responsibility for the accuracy and completeness of these measurements and vouch for the qualifications of all persons taking them. Compliance Certification Services Inc. FCC ID：TVV-PN-CPP-A-1422 Report No.：51128301-RP1 Page 4 of 72 2. EUT DESCRIPTION 2.1 DESCRIPTION OF EUT & POWER Product Name 802.11b/g Wireless Router Model Number PN-CPP-A-1422u Data Applies To PN-CPP-A-1422 Frequency Range IEEE 802.11b…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID：TVV-PN-CPP-A-1422 Report No.：51128301-RP1 Page 67 of 72 APPENDIX SETUP PHOTOS RADIATED RF MEASUREMENT SETUP Model : PN-CPP-A-1422u Compliance Certification Services Inc. FCC ID：TVV-PN-CPP-A-1422 Report No.：51128301-RP1 Page 68 of 72 Compliance Certification Services Inc. FCC ID：TVV-PN-CPP-A-1422 Report No.：51128301-RP1 Page 69 of 72 Model : PN-CPP-A-1422 Compliance Certification Services Inc. FCC ID：TVV-PN-CPP-A-1422 Report No.：51128301-RP1 Page 70 of 72 Compliance Certification Services Inc. FCC ID：TVV-PN-CPP-A-1422 Report No.：51128301-RP1 Page 71 of 72 POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP Model : PN-CPP-A-1422u Compliance Certification Services Inc. FCC ID：TVV-PN-CPP-A-1422 Report No.：51128301-RP1 Page 72 of 72 RF PORT CONDUCTED MEASURE SETUP
