ProntoPoint - SC PN-PPSC-A-1412-10 Technical Specifications 1 Standard 2.4GHz unlicensed ISM radio band Frequency band 2.4 – 2.4835GHz Wireless LAN 802.11 b/g ,Support super G Data rate 54Mbps with fallback rates of 11, 5.5, 2, and 1M bps Power output 30 mW-100 mW (1) Range 300 feet (2) Antenna 2dBi detachable SMA antenna Physical Specification Dimension 145mm x 132mm x 41mm (HxWxD) Weight 260 gms Operating Environment Operating temperature -20∞C to 50∞C Storage temperature -30∞C to 70∞C Operating humidity 10% to 80% Hardware Features CPU 4KC 173MHz MIPS based Memory 32 MB Flash ROM 4 MB Power Supply Type 12vDC (Can Range from 24V to 48V) Interfaces ∑ 1 x 10/100 Mbps Ethernet ports for WAN connection ∑ 1 x 10/100 Mbps Ethernet ports for LAN connections Key Features ∑ IEEE 802.11b/g Access Point and Router ∑ Bandwidth management / QoS controls ∑ Remote management via SOAP/SSH ∑ Offline time out / Idle time out ∑ White listed sites ∑ Maximum concurrent users allowed – 10 ∑ Block internet LAN access ∑ IP spoofing check ∑ Prevent inter user communication ∑ Web configuration ∑ Centralized remote updates ∑ Customizable login & registration portals ∑ Inter-WISP roaming ∑ Zero Configuration Auto Authentication for clients with URL preservation ∑ Short URL for logout ∑ WAN internet connection type DHCP / static IP / PPPoE ∑ Access control list Networking ∑ DNS redirection ∑ DHCP server and client ∑ NAT (RFC 1631) with port forwarding ∑ Internet uplink (DHCP, static IP, PPPoE) with auto-detection IP multicast ∑ QoS support (policy-based) ∑ Internet uplink media (cable, DSL, satellite, leased lines) ∑ ICMP ∑ ARP ∑ DMZ port Security ∑ Secure HTML login page (SSL) ∑ IP Routing with NAT, port-forwarding, firewall filters ∑ 64/128 bit RC4 WEP LED Indicators Power, Diagnostic, LAN, WAN, WLAN Management ∑ Plug-n-play device (minimal configuration required in field) ∑ Web-based management via OSS ∑ Command Line Interface (CLI) ∑ Real-time session list ∑ Transparent network connectivity for users regardless of static IP or DHCP ∑ User traffic accounting ∑ LAN Printer support ∑ Idle user monitoring User Authentication and Accounting ∑ Login page based authentication ∑ MAC Id-based authentication ∑ Radius authentication ∑ LDAP authentication ∑ Logout window timer control ∑ User monitoring (including with personal firewall) ∑ SMS authentication ∑ Both time and data based accounting Local Services Presentation ∑ Customized login page ∑ Walled garden Regulatory Approvals & Certification ∑ FCC tested to comply with FCC standards for home and office use ∑ CE Mark Bandwidth Throughput for LAN: ∑ TCP window size: 230K ∑ TCP throughput: on an average of 12Mbps Throughput for WAN: ∑ TCP window size: 230K ∑ TCP throughput: on an average of 9Mbps on Atheros wireless card ∑ LAN without SLV ∑ LAN with SLV and without QoS ∑ LAN with SLV and QoS ∑ WAN without SLV Miscellaneous MTBF: 50,000 hours Warranty 90 days Pronto Networks Corporate Headquarters 4637 Chabot Drive, Suite 206 Pleasanton, CA 94588 925 227 5500 For more information: www.prontonetworks.com [email protected] COMPLIANCE INFORMATION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

2.4G 2dBi Antenna Frequency：2.4G-2.5GHz; Gai：2dBi; Impednce: 50 ohms; SWR：1.92 Max; Polarization: Vertical; Connector: RP SMA Male; Scanner System Felix D:\data\1944D.DF1 Friday, April 25, 2008 02:37:41:PM Far Field Patterns Frequency: 2.4500 Linear: 0-deg Cut 2.0 -3.0 -8.0 -13.0 -18.0 -23.0 -28.0 -33.0 MIN -44.1AVE -7.0MAX 1.7 90 -90 (270) 0 180 Scanner System Felix D:\data\1944D.DF1 Friday, April 25, 2008 02:37:05:PM Far Field Patterns Frequency: 2.4000 Linear: 0-deg Cut 2.0 -3.0 -8.0 -13.0 -18.0 -23.0 -28.0 -33.0 MIN -46.0AVE -7.5MAX 1.0 90 -90 (270) 0 180 Scanner System Felix D:\data\1944D.DF1 Friday, April 25, 2008 02:37:29:PM Far Field Patterns Frequency: 2.4000 Linear: 90-deg Cut 3.0 -2.0 -7.0 -12.0 -17.0 -22.0 -27.0 -32.0 MIN 0.7AVE 1.5MAX 2.3 90 -90 (270) 0 180 Scanner System Felix D:\data\1944D.DF1 Friday, April 25, 2008 02:37:52:PM Far Field Patterns Frequency: 2.4500 Linear: 90-deg Cut 3.0 -2.0 -7.0 -12.0 -17.0 -22.0 -27.0 -32.0 MIN 0.7AVE 1.4MAX 2.1 90 -90 (270) 0 180 Scanner System Felix D:\data\1944D.DF1 Friday, April 25, 2008 02:38:04:PM Far Field Patterns Frequency: 2.5000 Linear: 0-deg Cut 2.0 -3.0 -8.0 -13.0 -18.0 -23.0 -28.0 -33.0 MIN -42.2AVE -7.3MAX 1.7 90 -90 (270) 0 180 Scanner System Felix D:\data\1944D.DF1 Friday, April 25, 2008 02:38:15:PM Far Field Patterns Frequency: 2.5000 Linear: 90-deg Cut 3.0 -2.0 -7.0 -12.0 -17.0 -22.0 -27.0 -32.0 MIN 0.7AVE 1.4MAX 2.2 90 -90 (270) 0 180 RRR RRR RR RRR RRR RR RRR R RRR RRR RR RRR ∅ RRR RR EDR RR RCK RCR RO RER RR+ 3R% RF RCO ROR :R RRC KRRR RRR RR RRE DRN RC KER RRC料 RC OR OR: RRR CKRRE ERC OR OR: RRR CKRRR 78R 108±1 9 0 ° 87±1 CON NEC RO R RRR RRR C( dow n)R COR RER RR RRE RRR RRR C( up) RRD ORE CRR RER 1 A ITEM NO.NO. 6 5 432 4 7 32 A 1 A4 DRAWING APPROVAL C DESCRIPTION B BILL OF MATERIAL 1PC1SET1PC2PCS1PC1PC1PC SIZE: QT'Y THREE PLACE DECIMAL .XXXHOLE DIA. VARIATION .XX ANGULAR DIMENSION (ENG) D ±0.05 N/A±5 SCALE: THIRD ANGLE PROJECTION TOLERANCES UNLESS OTHERWISE SPECIFIED APPD: ONE PLACE DECIMAL .XTWO PLACE DECIMAL .XX ±0.3 ±0.10 CHK:DWN: 30.7±1.0 2.4 ~ 2.5GHz ANTENNA EXC REV: GCP & EXCELTEK Antenna R-P-SMA male connector 2.4GHz ELECTRONICS LTD. C0053 UNIT: SHEET: mm CUS REV: E 1 1 OF F N/A ITEM: CUS: 01 4 3 10.0 3 2 1 4 6 5 7 C B D 2 01 EE DESCRIPTION F REV 2006-02-22 1 DATE 9.999 999 ∅ N/A PIN BRASS PLATED BLACK NICKEL NOTE OR EQUIVALENTOR EQUIVALENTOR EQUIVALENTOR EQUIVALENTOR EQUIVALENTOR EQUIVALENTOR EQUIVALENT 7.7∅ FIRST RECEIVED NOTES: 1)VSWR: 2.4-2.5GHz ≤2.0 2)Impedance:50 ohm. 3)Polarization: Vertical. 4)Operating temperature range -30°C to+70°C. CUS P/N. EXK P/N. C0053-ANG0004

Pronto Networks (FCC ID :TVV-PN-PPSC-A-10) 20 09-12-2 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: This device can connect to a personal computer during normal operation, and as such it is also considered a class B personal computer peripheral subject to the DoC procedure. The device was tested by Compliance Certification Services Inc. in No. 81-1, Lane 210, Bade 2nd Rd., Lujhu Township, Taoyuan County, Taiwan.The report number is KS091109B02-EF Sincerely, ------------------------------- Name: Nandu Desai Title: VP-Products Tel: +1 925-336-1617 E-mail: [email protected] Date: 2009-12-2

Pronto Networks 4637 Chabot Drive , Suite#206 Pleasanton , California , CA 94588 USA Date: 2009-12-02 Subject: Ad Hoc Mode Function Declaration FCC ID: TVV-PN-PPSC-A-10 To Whom it may concern, This device is acting as master and operating on 2.4GHz band. Ad Hoc function is available on client mode and not able to work on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Name: Nandu Desai Title: VP-Products Tel: +1 925-336-1617 E-mail: [email protected] Date: 2009-12-2

Pronto Networks Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: TVV-PN-PPSC-A-10 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Best Regards Sincerely, __________________ Name: Nandu Desai Title: VP-Products Tel: +1 925-336-1617 E-mail: [email protected] Date:2009-12-2

Pronto Networks 2009-12-2 FCC ID :TVV-PN-PPSC-A-10 De ar Sir, I hereby have entrusted the following person to be a proxy regarding applicaton for Type Certification. Compliance Certification Services Inc. Address: No.10 WeiyeRd, Innovation park, Eco&Tec, DevelopmentZone, Kunshan City, Jiangsu, P.R.C Name: Miro Job Title: Manager Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: Pronto Networks/ PN-PPSC-A-1412-10 FCC ID: TVV-PN-PPSC-A-10 Product Name: Pronto Point Service Controller Signature Name: Nandu Desai Title: VP-Products Tel: +1 925-336-1617 E-mail: [email protected] Date: 2009-12-2

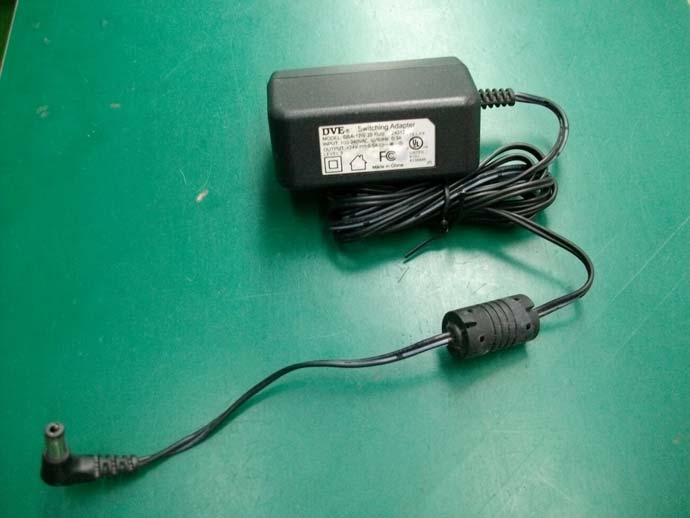

Compliance Certification Services (Kunshan) Inc. Report No.: KS091109B02 FCC ID: TVV-PN-PPSC-A-10 Date of Issue:December 3, 2009 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services (Kunshan) Inc. Report No.: KS091109B02 FCC ID: TVV-PN-PPSC-A-10 Date of Issue:December 3, 2009 Compliance Certification Services (Kunshan) Inc. Report No.: KS091109B02 FCC ID: TVV-PN-PPSC-A-10 Date of Issue:December 3, 2009 Compliance Certification Services (Kunshan) Inc. Report No.: KS091109B02 FCC ID: TVV-PN-PPSC-A-10 Date of Issue:December 3, 2009 Power Supply Compliance Certification Services (Kunshan) Inc. Report No.: KS091109B02 FCC ID: TVV-PN-PPSC-A-10 Date of Issue:December 3, 2009

LABEL LOCATION

Compliance Certification Services (Kunshan) Inc. Report No.: KS091109B02 FCC ID: TVV-PN-PPSC-A-10 Date of Issue:December 3, 2009 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services (Kunshan) Inc. Report No.: KS091109B02 FCC ID: TVV-PN-PPSC-A-10 Date of Issue:December 3, 2009 Compliance Certification Services (Kunshan) Inc. Report No.: KS091109B02 FCC ID: TVV-PN-PPSC-A-10 Date of Issue:December 3, 2009 Compliance Certification Services (Kunshan) Inc. Report No.: KS091109B02 FCC ID: TVV-PN-PPSC-A-10 Date of Issue:December 3, 2009 Compliance Certification Services (Kunshan) Inc. Report No.: KS091109B02 FCC ID: TVV-PN-PPSC-A-10 Date of Issue:December 3, 2009

Compliance Certification Services (Kunshan) Inc. Report No.: KS091109B02 FCC ID: TVV-PN-PPSC-A-10 Date of Issue:December 3, 2009 RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Pronto Point Service Controller Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE 802.11b mode: 18.99 dBm IEEE 802.11g mode: 14.62 dBm IEEE 802.11 Super g mode: 14.12 dBm Antenna gain (Max) Dipole Antenna 2.00dBi gain (Max) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 18.99dBm (79.25mW) at 2412MHz (with 1.5849numeric antenna gain.); 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm2 even if the calculation indicates that the power density would be larger. Compliance Certification Services (Kunshan) Inc. Report No.: KS091109B02 FCC ID: TVV-PN-PPSC-A-10 Date of Issue:December 3, 2009 TEST RESULTS No non-compliance noted. Calculation Given d GP E ×× = 30 & 3770 2 E S = Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services (Kunshan) Inc. Report No.: KS090903B02 Date of Issue:October13, 2009 EUT output power = 79.25mW Numeric Antenna gain = 1.5849 Æ Power density = 0.0250 mW / cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Compliance Certification Services Inc. Report No.: KS091109B02-RP FCC ID: TVV-PN-PPSC-A-10 Date of Issue:December 3, 2009 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Page 1 Total Page: 69 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Pronto Point Service Controller Model: PN-PPSC-A-1412-10 Trade Name: Proto Networks Issued to Pronto Networks 4637 Chabot Drive，Suite#206 Pleasanton，California，CA 94588 USA Prepared by COMPLIANCE CERTIFICATION SERVICES (KUNSHAN) INC. 10#Weiye Rd, Innovation Park Eco. & Tec. Development Zone Kunshan city JiangSu, (215300) CHINA TEL: 86-512-57355888 FAX: 86-512-57370818 Compliance Certification Services Inc. Report No.: KS091109B02-RP FCC ID: TVV-PN-PPSC-A-10 Date of Issue:December 3, 2009 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 EUT CONFIGURATION..................................................................................................................................5 EUT EXERCISE.............................................................................................................................................5 GENERAL TEST PROCEDURES......................................................................................................................5 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS..................................................................6 DESCRIPTION OF TEST MODES.....................................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 MEASURING INSTRUMENT CALIBRATION...............................................................................................8 5. FACILITIES AND ACCREDITATIONS ..........................................................................................9 FACILITIES..................................................................................................................................................9 EQUIPMENT.................................................................................................................................................9 LABORATORY ACCREDITATIONS AND LISTING...........................................................................................9 TABLE OF ACCREDITATIONS AND LISTINGS..............................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................11 SETUP CONFIGURATION OF EUT................................................................................................................11 SUPPORT EQUIPMENT ........................................................................................................................11 7. FCC PART 15.247 REQUIREMENTS.............................................................................................12 6DB BANDWIDTH......................................................................................................................................12 PEAK POWER.............................................................................................................................................18 AVERAGE POWER.....................................................................................................................................20 PEAK POWER SPECTRAL DENSITY.............................................................................................................25 SPURIOUS EMISSIONS ..........................................................................................................................32 RADIATED EMISSIONS .......................................................................................................................41 POWERLINE CONDUCTED EMISSIONS........................................................................................................67 Compliance Certification Services Inc. Report No.: KS091109B02-RP FCC ID: TVV-PN-PPSC-A-10 Date of Issue:December 3, 2009 Page 3 Rev. 00 TEST RESULT CERTIFICATION Applicant: Pronto Networks 4637 Chabot Drive，Suite#206 Pleasanton，California，CA 94588 USA Equipment Under Test: Pronto Point Service Controller Tr a d e N a m e : Pronto Networks Model: PN-PPSC-A-1412-10 Date of Test: November 18,2009 ~ December 3,2009 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Miro Chueh Lin Zhang EMC Manager EMC Section Manager Compliance Certification Service Inc. Compliance Certification Service Inc. Compliance Certification Services Inc. Report No.: KS091109B02-RP FCC ID: TVV-PN-PPSC-A-10 Date of Issue:December 3, …
