TW5GA8209900MHz Wireless Baby Monitor

900MHZ

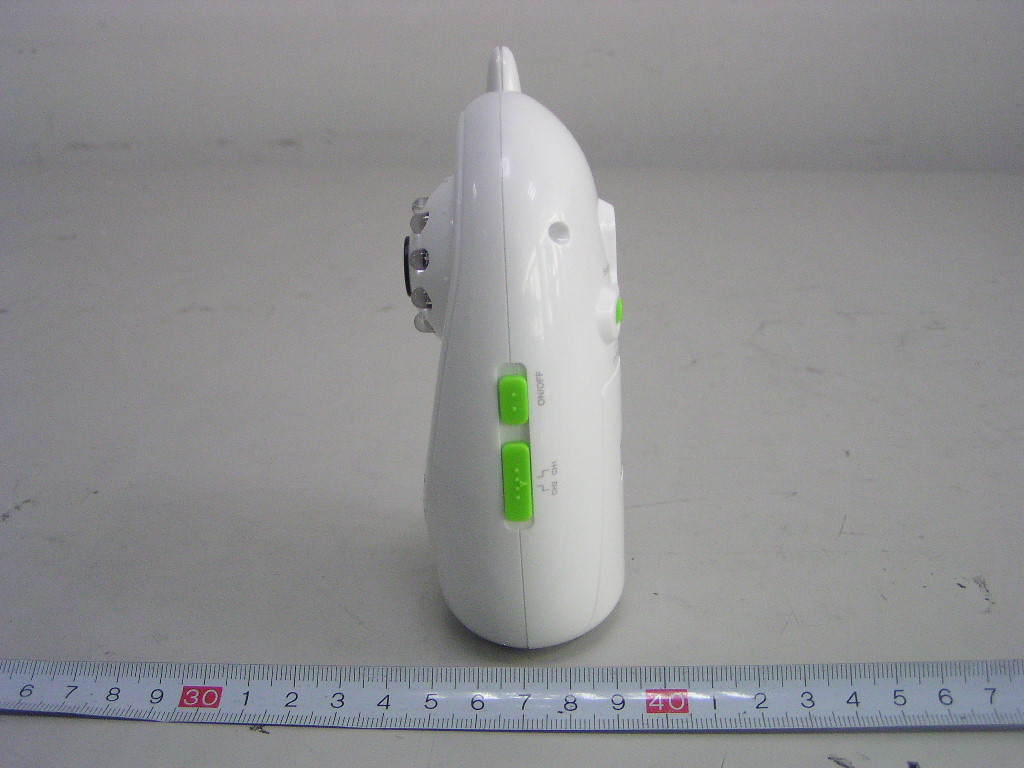

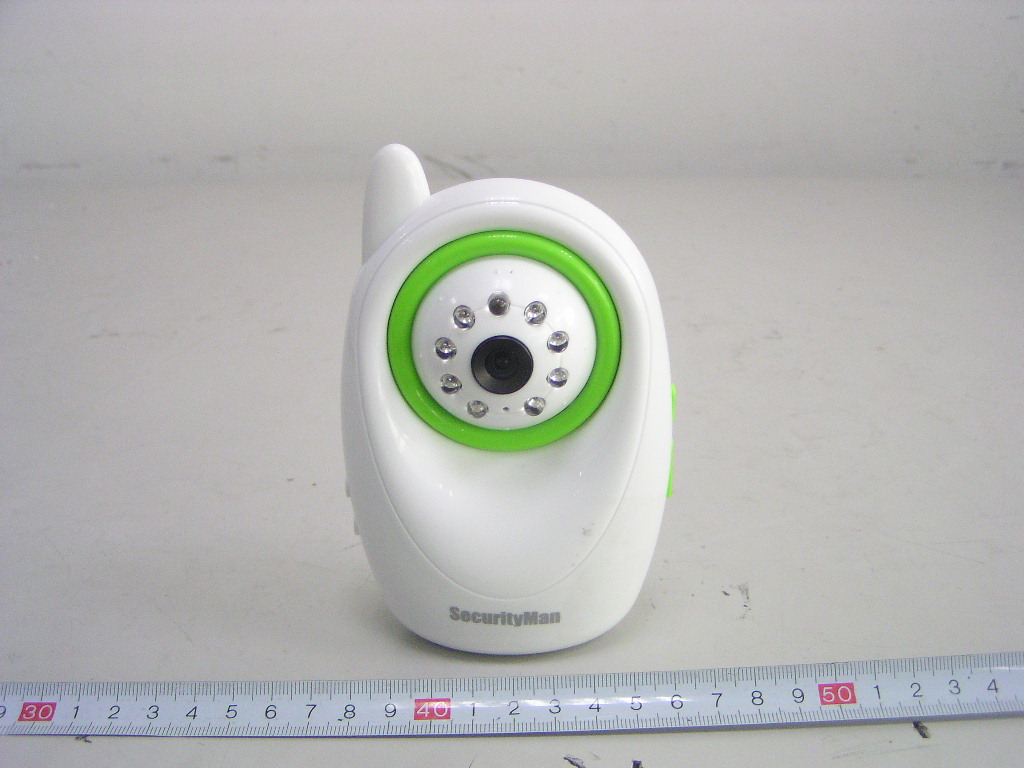

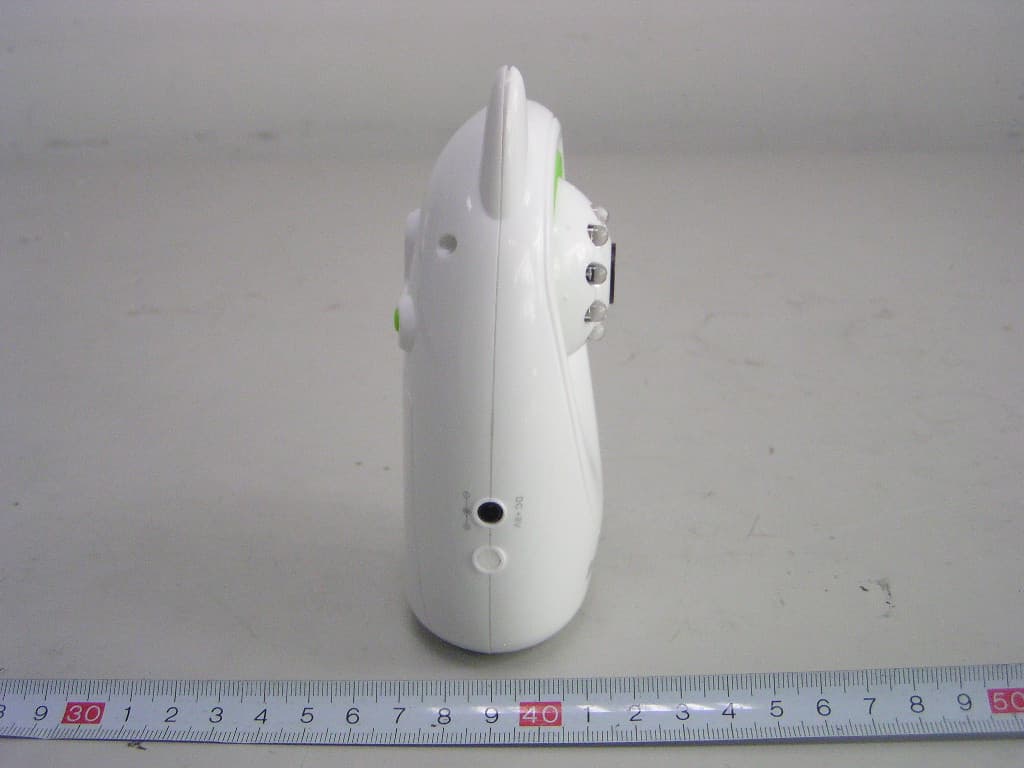

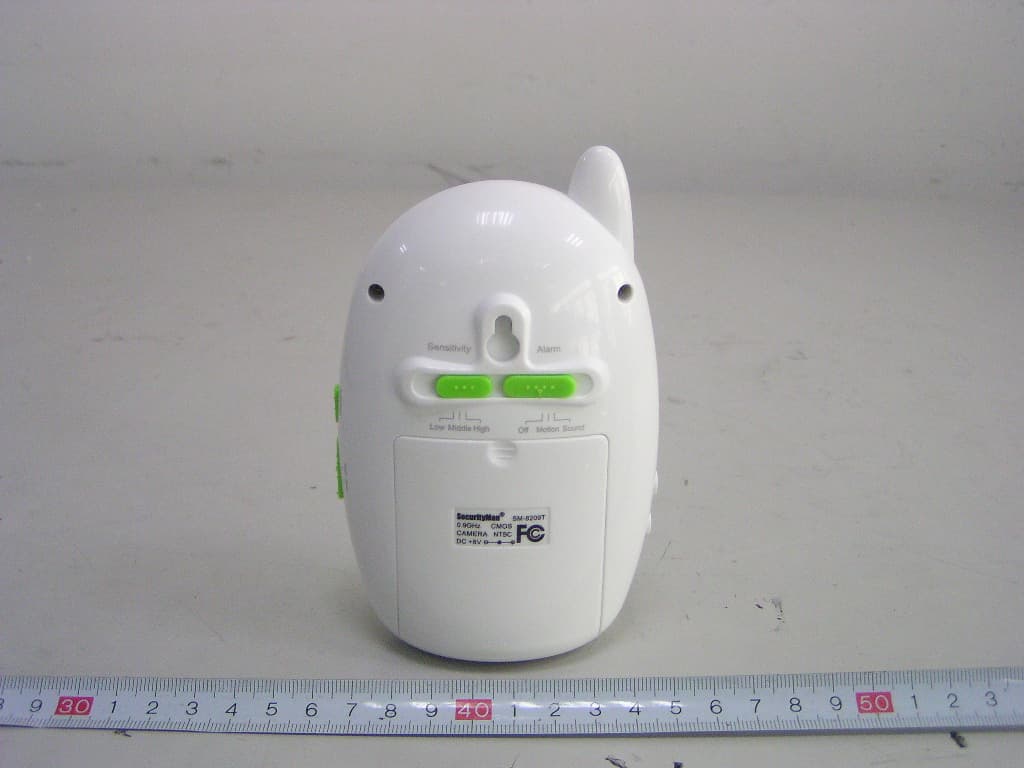

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Left Side View EUT – Right Side View Adapter View

EXHIBIT A - FCC ID LABELING AND LOCATION Suggested FCC ID Label Suggested FCC ID Location FCC ID: TW5GA8209

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT-Uncovered View (1) EUT-Uncovered View (2) EUT-Camera Top View EUT-Camera Bottom View EUT-Camera Uncovered View EUT-Camera Board Components View EUT-Camera Board Circuits View EUT-Main Board Circuits View EUT-Main Board Components View EUT-Control Board Components View EUT-Control Board Circuits View

Circuit description The transmitter is made up of two parts:Audio and video unit and RF unit,the audio signal from MIC is amplified the modulated by the audio carry frequency oscillator,the modulated carry frequency is added in the VT of voltage controlled oscillator VCO2,the video signal from CMOS camera pass through the sharp network,also is added in the VT of VCO2,another signal is added in the VT of VCO2 is the error voltage output of loop filter of PLL which is programmed by CPU(U1),the channel date is decided by the encode switch of CPU’s peripheries,the feed back signal from voltage controlled oscillator VCO2 is compared with reference crystal oscillator,the error frequency of oscillator VCO2 can be corrected,the Carry frequency modulated of audio&video has been power amplified by Q2,filitered when through the band pass filter to make the higher harmonica of signal reduce to lower level,the purer signal is emitted by antenna.

GP12TA02.sch-1 - Fri Aug 10 17:26:09 2007

Note: This test report is for the customer shown above and their specific product only. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Shenzhen) This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. FCC PART 15.249 EMI MEASUREMENT AND TEST REPORT For Shenzhen Gospell Smarthome Electronic Co., Ltd West, 5F/Block2, Vision (SZ) Park, South HI-Tech Park, Nanshan, Shenzhen, P.R. of China FCC ID: TW5GA8209 This Report Concerns: Original Report Equipment Type: 900MHz Wireless Baby Monitor Test Engineer: Phoenix Liu Report No.: RSZ07112802 Test Date: 2007-12-29 to 2008-01-04 Report Date: 2008-01-08 Reviewed By: EMC Manager: Green Xu Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 Shenzhen Gospell Smarthome Electronic Co., Ltd FCC ID: TW5GA8209 Report No.: RSZ 07112802.doc Page 2 of 25 FCC PART 15.249 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 EXTERNAL I/O CABLE..................................................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 SUMMARY OF TEST RESULTS ...............................................................................................................................7 §15.203 - ANTENNA REQUIREMENT......................................................................................................................8 APPLICABLE STANDARD..............................................................................................................................................8 ANTENNA CONNECTOR CONSTRUCTION......................................................................................................................8 §15.207 - CONDUCTED EMISSIONS ........................................................................................................................9 MEASUREMENT UNCERTAINTY....................................................................................................................................9 EUT SETUP..................................................................................................................................................................9 EMI TEST RECEIVER SETUP.......................................................................................................................................10 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 TEST PROCEDURE......................................................................................................................................................10 TEST RESULTS SUMMARY..........................................................................................................................................10 TEST DATA................................................................................................................................................................11 PLOT(S) OF TEST DATA..............................................................................................................................................12 §15.205(A) §15.209(A) §15.249(A) §15.249(D) - RADIATED EMISSIONS ...........................................................17 APPLICABLE STANDARD............................................................................................................................................17 MEASUREMENT UNCERTAINTY..................................................................................................................................17 TEST EQUIPMENT SETUP............................................................................................................................................17 EUT SETUP................................................................................................................................................................18 TEST EQUIPMENT LIST AND DETAILS..............…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions – Side View Radiated Emissions – Front View (30-1000 MHz) Radiated Emissions - Rear View (30-1000 MHz) Radiated Emissions - Front View (Above 1000 MHz) Radiated Emissions - Rear View (Above 1000 MHz)
