TW5GB8843-GB8849Wireless Inspection Camera

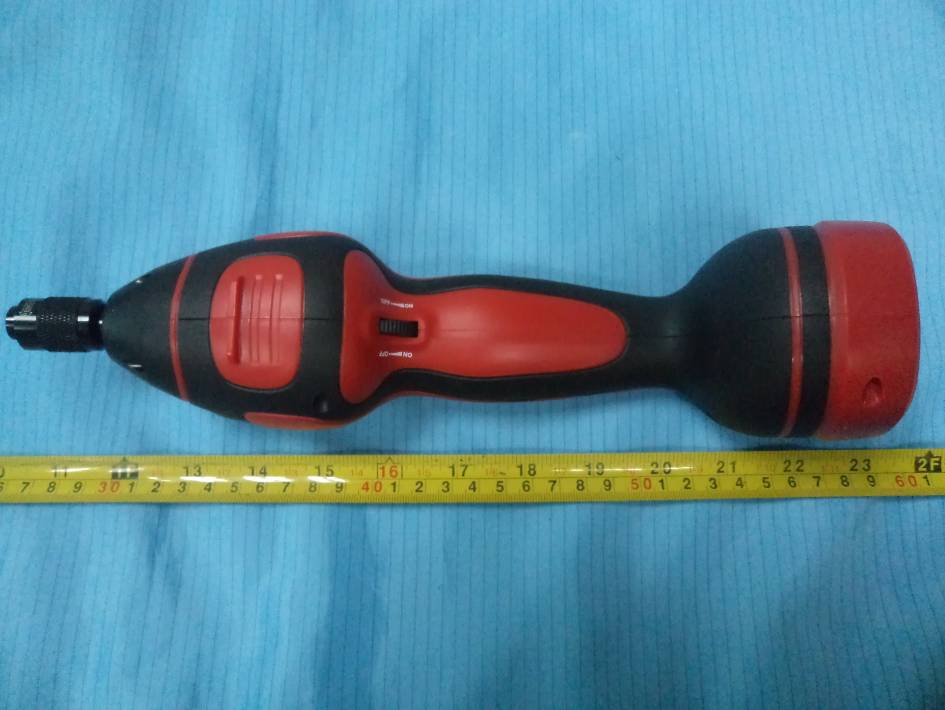

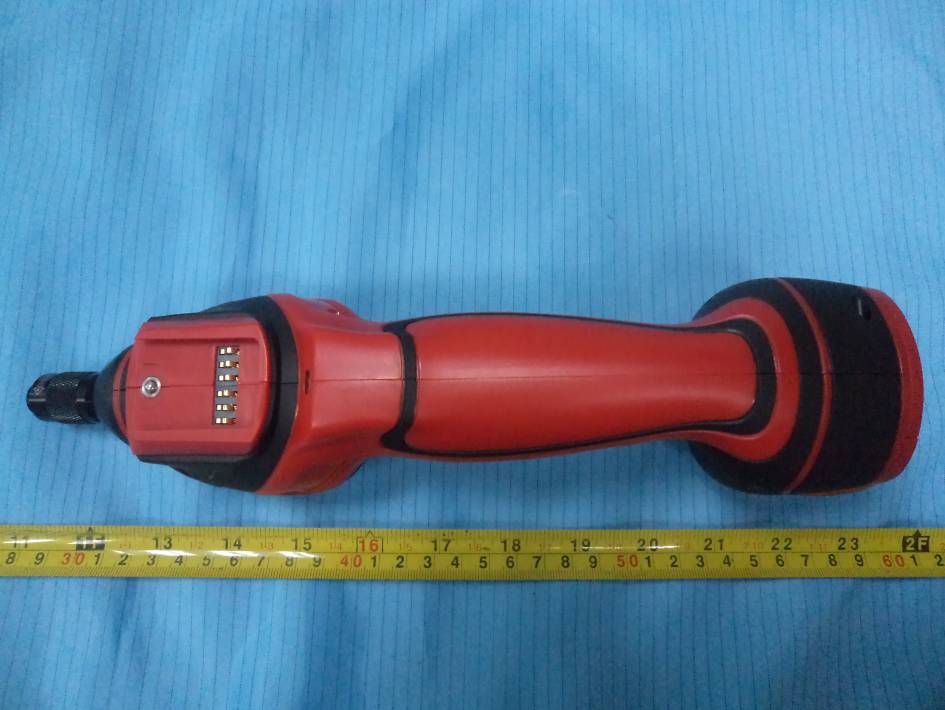

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT with the Accessories View EUT - Top View EUT - Bottom View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Battery off View EUT – Cover off View EUT – Main Board Top View EUT – Main Board Top Shielding off View Antenna EUT –Main Board Bottom View EUT – Connector Board Top View EUT – Connector Board Bottom View

circuit description Modulation model:FM Frequency Channel: 2468MHz； Transmitter part is made up of two parts: camera and transmitter; it was supplied by four AA standard battery, then through the power regulator circuit, get a steady 3.3V DC voltage,supply to the transmitter module and CMOS, The video signal can be collected by image sensor, then be processed by video processor (VC0703); finally, video signal through the video cable arrived at 2.4GHz transmitter module, then was added to the carrier frequency band in MCU and shall be sent out by antenna.

R20 330R R21 24R R22 2.7K K1 C23 10uF/10V R26 1K D4 C28 10uF/10V J3 C33 100uF/16V C32 100uF/6.3V R29120R C34 0.1uF C31 0.1uF C35 0.1uF C21 0.1uF GND VOUTVIN U9 IT6206A33V 3V3 CVBS_IN RF_IN Q7 3906 L1675R TOU GND AL AR NC VIDEO GND VCC CH1 CH2 CH3 GND RFOUT U6 2.4G_GB6203 C51 0.1uF R31 NC R46 NC R84 NC Q19 SI2301 Q20 3904 R23 10K R25 10K C1 100uF/16V C5 100uF/16V L2 100uH C13 100pF R5 0R L6 100uH 1 2 3 4 5 6 J8 CON-6 Q1 SI2301 R1 100K C4 10uF/10V C6 100pF L1BEAD L3BEAD L4 BEAD B3 601 GND 1 M1 MH-1 1 M2 MH-1 B4601 C2 100pF VCC GND1 CVBS_GND LED_PWR LED PWR_SW RF_PWR GND_SYS L7BEAD R2 0 VCC_IN 1 VIA1 VIA13 1 VIA2 VIA13 1 VIA3 VIA13 1 VIA4 VIA13 1 VIA5 VIA13 1 V1 VIA5D L5 75R VDD VDD TOU_CON VDD_RF VDD CVBS LED CVBS E3V3 CVBS TOU_CON VDD_RF LED VDD VBAT E3V3 1 of 2 EC: TITLE: VERSION: REV: DOC NO: FOR ITEM DATA SEE PRINTED REPORT Goscam Electronic CO.,LTD DEV To Sensor To 2.4GModule To Monitor LED Switch 0.12 L5 change to 47R 2011-5-29 1 2 3 4 5 1 2 3 4 1 32 B E C 1 2 3 4 5 6 7 8 9 10 11 12 B E C 1 2 3 4 5 6 1 2 3 1 1 1 1 1 1 1 1 1 2 34 ABCD 4 3 2 1 D CBA R20 10K C21470nF C24100nF C2333pF Y18MHz C2233pF SPI_SE R30 10K R33 10K R34 10K R35 10K CH0CH1CH2 3.3V 3.3V C391uF 3.3V C71 5.6pF C124.7uF R14 1.2K R13 80.6R C194.7uF R1947K R16 76.8R R10 22K R05 1K R153.3K C1168pF VT Video R22100K C2047nFR21 110R C131uF C184.7uF 3.3V 3.3V C0110pF R0239R L18.2nH 3.3V C636pF +5V 3.3V C6210uFC6110nF IN 1 GND 2 EN 3 BP 4 OUT 5 U2RT9167A-33PB BX BX R36 10K R25 NP C6010uF R5324K R0110R 1 3 2 F1LF2012-B2R4FAA L32.7nH L24.7nH C021pF C0310pF VCOVDD 1 VT 2 GND 3 CP 4 AVT2 5 ACP2 6 AOUT2 7 AVDD2 8 AOUT1 9 NC 10 AVT1 11 ACP1 12 AVDD1 13 VDD 14 SPI_SE 15 BCR 16 REG1D8 17 PD_REG1D8 18 XTAL1 19 XTAL2 20 VDD33 21 SPICLK/CS0 22 SPILE/CS1 23 SPIDATA/CS2 24 BX 25 SYNVSS 26 RFGND2 27 PAOUT2 28 PAOUT1 29 RFGND1 30 PAVDD 31 NC 32 GND 33 U1 RTC6701 For +10dBm C0310pF

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Shenzhen). This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report contains data that are not covered by the NVLAP accreditation and are marked with an asterisk “★” (Rev.2) FCC PART 15.249 TEST REPORT For Shenzhen Gospell Smarthome Electronic Co., Ltd. 5Floor/Block 2, Vision (SZ) Park, Hi-Tech Industrial Park, Shenzhen, Guangdong, China FCC ID: TW5GB8843-GB8849 Report Type: Original Report Product Type: Wireless Inspection Camera Test Engineer: Eric Lee Report Number: RSZ110802003-00 Report Date: 2011-08-31 Checked By: Bruce Zhang EMC Engineer Reviewed By: Merry Zhao EMC Engineer Test Laboratory: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ110802003-00 FCC Part15.249 Page 2 of 18 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 SUPPORT EQUIPMENT LIST AND DETAILS....................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 SUMMARY OF TEST RESULTS ...............................................................................................................................6 FCC§15.203 - ANTENNA REQUIREMENT..............................................................................................................7 APPLICABLE STANDARD..............................................................................................................................................7 ANTENNA CONNECTOR CONSTRUCTION......................................................................................................................7 FCC §15.205, §15.209 & §15.249 - RADIATED EMISSIONS ..................................................................................8 APPLICABLE STANDARD..............................................................................................................................................8 MEASUREMENT UNCERTAINTY....................................................................................................................................8 TEST EQUIPMENT SETUP..............................................................................................................................................8 EUT SETUP..................................................................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 CORRECTED AMPLITUDE & MARGIN CALCULATION...................................................................................................9 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 TEST RESULTS SUMMARY..........................................................................................................................................10 TEST DATA................................................................................................................................................................10 FCC§15.215(C) – 20 DB EMISSION BANDWIDTH...............................................................................................16 APPLICABLE STANDARD............................................................................................................................................16 TEST PROCEDURE......................................................................................................................................................16 TEST EQUIPMENT LIST AND DETAILS........................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emissions - Front View (Below 1 GHz) Radiated Emissions - Rear View (Below 1 GHz) Radiated Emissions - Front View (Above 1 GHz) Radiated Emissions - Rear View (Above 1 GHz)
