TW5GB8863Wireless Inspection Camera with Color LCD Monitor

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

Shenzhen Gospell Smarthome Electronic Co., Ltd. Date : 2012-05-24 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Shenzhen Gospell Smarthome Electronic Co., Ltd., hereby authorize John Zhi (TUV SUD China Group-Shenzhen), to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 2013-05-24. Sincerely, Company Officer: Telephone Number: 86-755-26716688 Email: [email protected]

Shenzhen Gospell Smarthome Electronic Co., Ltd. Date : 2012-05-24 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID:TW5GB8863 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules,Shenzhen Gospell Smarthome Electronic Co., Ltd.hereby requests permanent confidential treatment of information accompanying this application as outlined below: [Common exhibits for which confidentiality is requested are: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation] Shenzhen Gospell Smarthome Electronic Co., Ltd. also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of(up to 180 days): 2012-11-24 [Common exhibits for which short-term confidentiality is requested are: Internal Photos External Photos User Manual Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Telephone Number: 86-755-26716688 Email:[email protected]

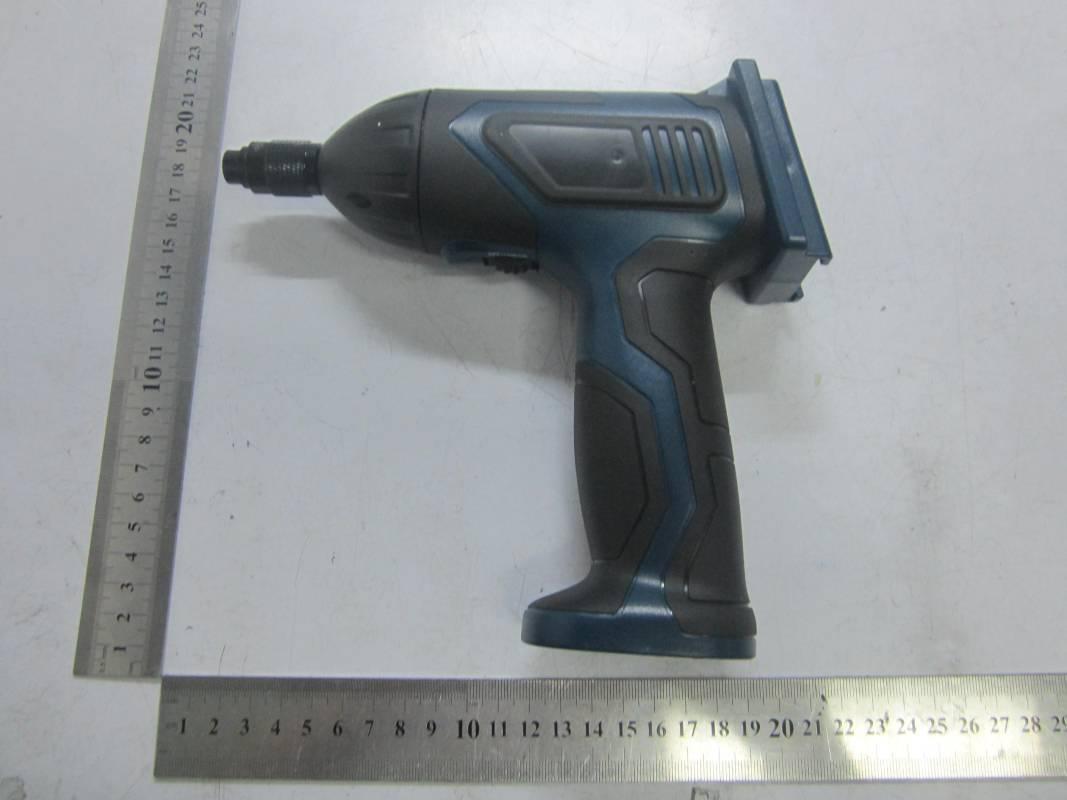

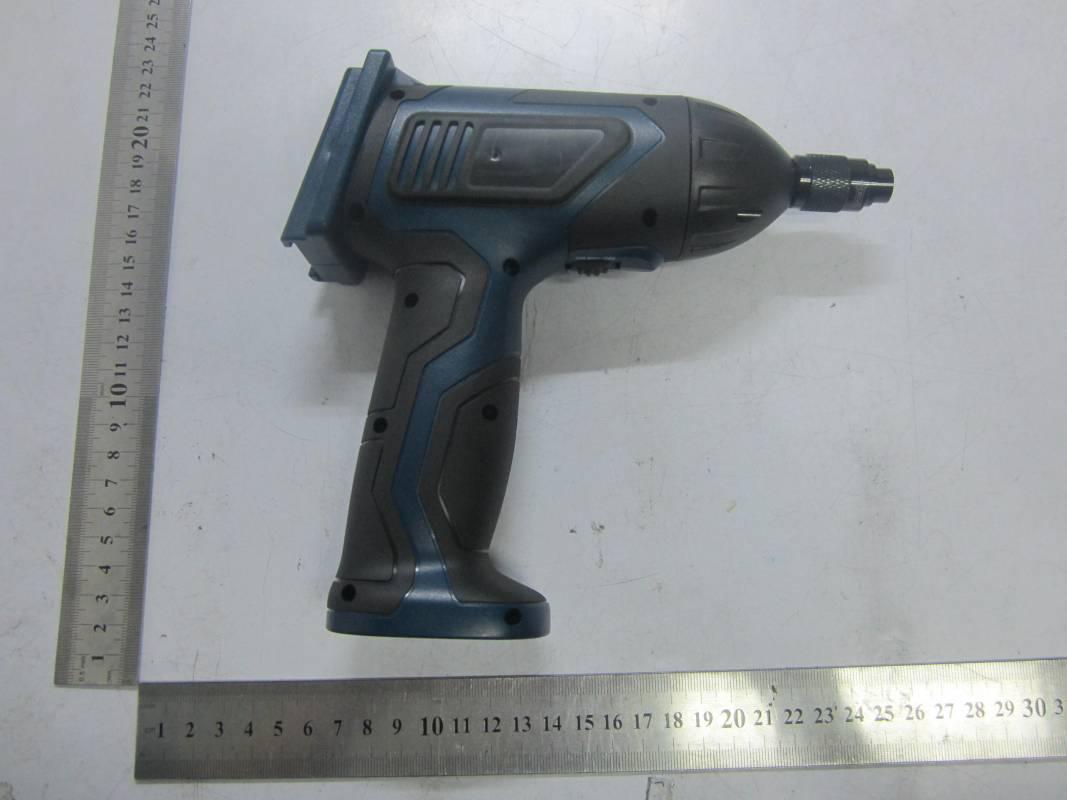

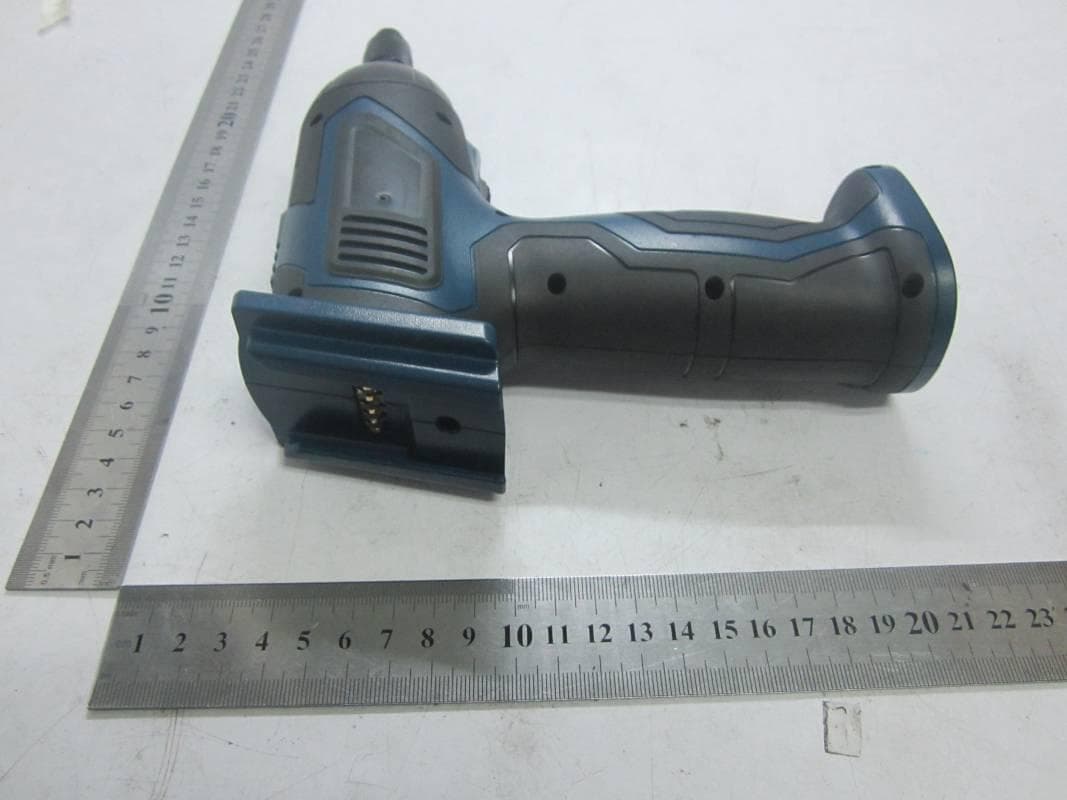

Report No.:68.870.12.009.01F APPENDIX B – External of EUT Page 1 of 2 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. Report No.:68.870.12.009.01F APPENDIX B – External of EUT Page 2 of 2 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. Camera Tube

Label and Label location

Report No.:68.870.12.009.01F APPENDIX C – Internal of EUT Page 1 of 4 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. Report No.:68.870.12.009.01F APPENDIX C – Internal of EUT Page 2 of 4 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. Report No.:68.870.12.009.01F APPENDIX C – Internal of EUT Page 3 of 4 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. Camera Report No.:68.870.12.009.01F APPENDIX C – Internal of EUT Page 4 of 4 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. Tube

TEST REPORT Date: 2012-05-25 Report No.: 68.870.12.009.01F Page 1 of 20 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. Applicant: Shenzhen Gospell Smarthome Electronic Co., Ltd. 5Floor/Block 2, Vision (SZ) Park, Hi-Tech Industrial Park, Shenzhen City, P.R China Description of Samples:Model name: Wireless Inspection Camera with Color LCD monitor Brand name: --- Model no.:WIC5200, WIC5100 FCCID: TW5GB8863 Date Samples Received:2012-05-03 Date Tested:2012-05-04 to 2012-05-24 Investigation Requested:FCC Part 15 Subpart C, Section 15.249 Conclusions:The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks:---- Checked by:Approved by:- Ray CheungJeff Pong Project EngineerOperation Manager Wireless & Telecom departmentWireless & Telecom department Report No.: 68.870.12.009.01F Page 2 of 20 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. CONTENT: Cover Page 1 of 20 Content Page 2 of 20 1.0General Details 1.1Test Laboratory Page 3 of 20 1.2Applicant Details Page 3 of 20 1.3Equipment Under Test [EUT] Page 4 of 20 1.4 Equipment Modification Page 4 of 20 1.5 Related Submittal(s) Grants Page 4 of 20 2.0Technical Details 2.1Investigations Requested Page 5 of 20 2.2Test Standards and Results Summary Page 5 of 20 3.0Test Methodology 3.1Radiated Emission Page 6 of 20 3.2Field Strength Calculation Page 6 of 20 3.3Conducted Emission Page 6 of 20 4.0Test Results 4.1FieldStrength ofFundamentaland Harmonics Page 7-9 of 20 4.2Spurious Radiated Emission Page 10-12 of 20 4.3Out of Band Emissions Page 13-14 of 20 4.4Bandwidth Measurement Page 15-17 of 20 4.5Conducted Emission Page 17-19 of 20 5.0List of Measurement Equipments Page 20 of 20 Appendix A Photos of Test Setup Appendix B External EUT Photos Appendix C Internal EUT Photos Report No.: 68.870.12.009.01F Page 3 of 20 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. 1.0General Details 1.1Test Laboratory SEM Test Compliance Services Co., Ltd. EMC Laboratory registered by FCC with FCC Registration Number: 994117 Test By˖ Susan Su 1.2Applicant Details Applicant Shenzhen Gospell Smarthome Electronic Co., Ltd. 5Floor/Block 2, Vision (SZ) Park, Hi-Tech Industrial Park, Shenzhen City, P.R China Manufacturer GOSPELL SMARTHOME ELECTRONIC CO.,LTD. F/12, F518 Idea Land, Baoyuan Road, Baoan Central Area, Shenzhen City, P.R China Report No.: 68.870.12.009.01F Page 4 of 20 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. 1.3Equipment Under Test [EUT] Description of EUT Model Name:Wireless Inspection Camera with Color LCD monitor Brand Name: N/A Model Number: WIC5200, WIC5100 FCCID:TW5GB8863 Rating:DC5V,1500mA Antenna Type:Omni-directional Antenna Operated Frequency:2468 MHz No. of Channel:1 Accessories and Auxiliary Equipment:Color LCD Monitor EUT Exercising Software:None General Operation of EUT The Equipment Under Test (EUT) is a transmitter of Wireless Inspection Camera with Color LCD monitor operated at 2.4GHz. As per Client Declaration,WIC5200 and WIC5100Utilize the identical circuit design, PCB layout, shielding and interface, only the associated receiver are different. So we use WIC5200 as a representative model to perform all testing. 1.4Equipment Modification No modification was made to the tested unit by TUV SUD Great China. 1.5Related Submittal(s) Grants This is a single application of certification for this transmitter. Report No.: 68.870.12.009.01F Page 5 of 20 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4: 2003. 2.2Test Standards and Results Summary Tables EMISSION Results Summary Test ConditionFCC Test RequirementTest Result PassFailedN/A Field Strength of Fundamental and Harmonics Part 15.249 (a),(e) Spurious Radiated Emission Part 15.249 (d) Part 15.209 Part 15.205 Out of Band Emissions Part 15.249 (d) Bandwidth Measurement Part 15.215 (c) Conducted Emission Part 15.207 Note: N/A - Not Applicable Report No.: 68.870.12.009.01F Page 6 of 20 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. 3.0Test Methodology 3.1Radiated Emission The sample was placed 0.8m above the ground plane on a standard emission test site *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. 3.2Field Strength Calculation The field strength at 3 m was established by adding the meter reading of the spectrum analyzer to the factors associated with antenna correction factor, cable loss, preamplifiers and filter attenuation. The equation is expressed as follow: FS = R + System Factor System Factor = AF + CF + FA – PA Where FS = Net Field Strength in dBuV/m at 3 meters. R = Reading of Spectrum Analyzer / Test Receiver in dBuV. AF = Antenna Factor in dB. CF = Cable Attenuation Factor in dB. FA = Filter Attenuation Factor in dB. PA = Preamplifier Factor in dB. FA and PA are only be used for the measuring frequency above 1 GHz. 3.3Co…

Text truncated - open the document above for the full version.

Report No.:68.870.12.009.01F APPENDIX A – Photos of Test Setup Page 1 of 2 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. Conducted Emission Report No.:68.870.12.009.01F APPENDIX A – Photos of Test Setup Page 2 of 2 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. Radiated Emission
