Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: TW5GD9901 Project No. : 1306C254 Equipment : 2.4GHz Digital wireless RearView camera Model : GD9901 Applicant : Shenzhen Gospell Smarthome Electronic Co., Ltd Address : 5Floor/Block 2, Vision (SZ) Park, Hi-Tech, Industrial Park, Shenzhen, China According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FA X : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Ant. Brand name Model Name Antenna Type Connector Gain (dBi) 1 N/A N/A Dipole N/A 2.0 TEST RESULTS EUT： 2.4GHZ Digital Wireless RearView Camera Model Name GD9901 Temperature： 25 °C Relative Humidity： 58 % Pressure： 1009 hPa Test Voltage ： DC 24V Test Mode ： CH01/ CH13 /CH24 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 Limit of Power Density (S) (mW/cm) 2 Te s t Result ) 2.0 1.5849 12.56 18.0302 0.00568788 1 Complies 2.0 1.5849 12.67 18.4927 0.00583378 1 Complies 2.0 1.5849 12.96 19.7697 0.00623664 1 Complies

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1306C254 Page 1 of 62 FCC Radio Test Report FCC ID: TW5GD9901 This report concerns (check one): Original Grant Class II Change Issued Date : Jul. 24, 2013 Project No. : 1306C254 Equipment : 2.4GHZ Digital Wireless RearView Camera Model Name : GD9901 Applicant : ShenZhen Gospell Smarthome Electronic Co., Ltd. Address : East of 01st-04st Floor, Block A,No.1 Industrial park, Feng Huang Gang, South of No.1 Baotian Road, Xixiang Street, Bao’an District, Shenzhen City, Guangdong Province 518126, P.R.China. Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Jul. 01, 2013 Date of Test: Jul. 01, 2013~ Jul. 23, 2013 Testing Engineer : ( David Mao) Technical Manager : (Leo Hung) Authorized Signatory: (Steven Lu) NEUTRON ENGINEERING INC. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China.523792 TEL : +86-769-8318-3000 FAX : +86-769-8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1306C254 Page 2 of 62 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of CHINA, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1306C254 Page 3 of 62 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 10 3.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 3.5 DESCRIPTION OF SUPPORT UNITS 12 4 . EMC EMISSION TEST 13 4.1 CONDUCTED EMISSION MEASUREMENT 13 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 13 4.1.3 TEST PROCEDURE 14 4.1.4 DEVIATION FROM TEST STANDARD 14 4.1.5 TEST SETUP 14 4.1.6 EUT OPERATING CONDITIONS 14 4.1.7 TEST RESULTS 15 4.2 RADIATED EMISSION MEASUREMENT 16 4.2.1 RADIATED EMISSION LIMITS 16 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 17 4.2.3 TEST PROCEDURE 19 4.2.4 DEVIATION FROM TEST STANDARD 19 4.2.5 TEST SETUP 20 4.2.6 EUT OPERATING CONDITIONS 21 4.2.7 TEST RESULTS (BETWEEN30 – 1000 MHZ) 22 4.2.8 TEST RESULTS (ABOVE 1000 MHZ) 29 5 . NUMBER OF HOPPING CHANNEL 41 5.1 APPLIED PROCEDURES / LIMIT 41 5.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 41 5.1.2 TEST PROCEDURE 41 5.1.3 DEVIATION FROM STANDARD 41 5.1.4 TEST SETUP 41 5.1.5 EUT OPERATION CONDITIONS 41 5.1.6 TEST RESULTS 42 6 . AVERAGE TIME OF OCCUPANCY 43 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1306C254 Page 4 of 62 Table of Contents Page 6.1 APPLIED PROCEDURES / LIMIT 43 6.1.1 MEASUREMENT INSTRUMENTS LIST 43 6.1.2 TEST PROCEDURE 43 6.1.3. TEST SETUP LAYOUT 43 6.1.4. TEST DEVIATION 43 6.1.5. EUT OPERATION DURING TEST 43 6.1.6. TEST RESULTS 44 7 . HOPPING CHANNEL SEPARATION MEASUREMENT 46 7.1 APPLIED PROCEDURES / LIMIT 46 7.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 46 7.1.2 TEST PROCEDURE 46 7.1.3 DEVIATION FROM STANDARD 46 7.1.4 TEST SETUP 46 7.1.5 EUT OPERATION CONDITIONS 46 7.1.6 TEST RESULTS 47 8 . BANDWIDTH TEST 49 8.1 APPLIED PROCEDURES / LIMIT 49 8.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 49 8.1.2 TEST PROCEDURE 49 8.1.3 DEVIATION FROM STANDARD 49 8.1.4 TEST SETUP 49 8.1.5 EUT OPERATION CONDITIONS 49 8.1.6 TEST RESULTS 50 9 . PEAK OUTPUT POWER TEST 52 9.1 APPLIED PROCEDURES / LIMIT 52 9.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 52 9.1.2 TEST PROCEDURE 52 9.1.3 DEVIATION FROM STANDARD 52 9.1.4 TEST SETUP 52 9.1.5 EUT OPERATION CONDITIONS 52 9.1.6 TEST RESULTS 53 10 . ANTENNA CONDUCTED SPURIOUS EMISSION 55 10.1 APPLIED PROCEDURES / LIMIT 55 10.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 55 10.1.2 TEST PROCEDURE 55 10.1.3 DEVIATION FROM STANDARD 55 10.1.4 TEST SETUP 55 10.1.5 EUT OPERATION CONDITIONS 55 10.1.6 TEST RESULTS 56 11 . EUT PHOTOS 62 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1306C254 Page 5 of 62 1. CERTIFICATION Equipment : 2.4GHZ Digital Wireless RearView Camera Brand Name : N/A Model Name : GD9901 Applicant : ShenZhen Gospell Smarthome Electronic Co., Ltd. Manufacturer : ShenZhen Gospell Smarthome Electronic Co., Ltd. Address : East of 01st-04st Floor, Block A,No.1 Industrial park, Feng Huang Gang, South of No.1 Baotian Road, Xixiang Street, Bao’an District, Shenzhen City, Guangdong Province 518126, P.R.China. Factory : ShenZhen Gospell Smarthome Electronic Co., Ltd. Address : East of 01st-04st Floor, Block A,No.1 Industrial park, Feng Huang Gang, South of No.1 Baotian Road, Xixiang Street, Bao’an District, Shenzhen City, Guangdong Province 518126, P.R.China. Date of Test : Jul. 01, 2013~ Jul. 23, 2013 Test Item : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart …

Text truncated - open the document above for the full version.

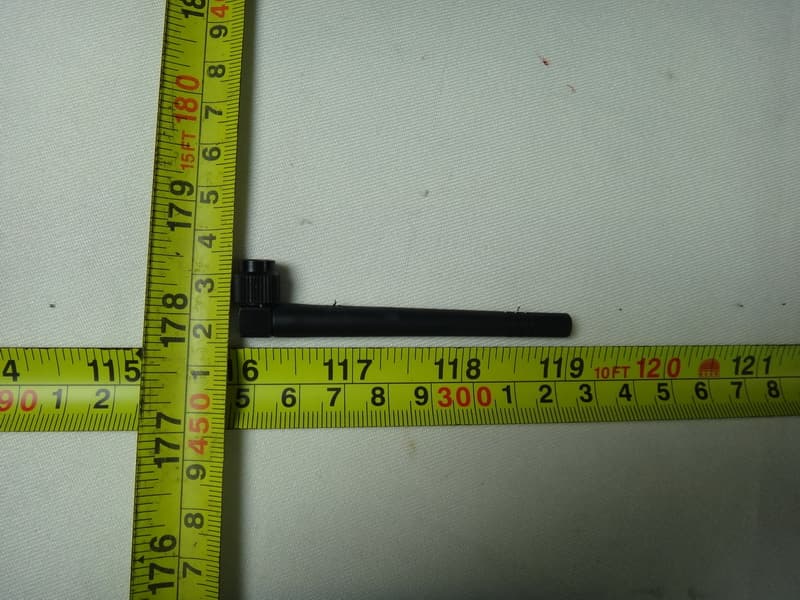

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1306C254 Page 62 of 62 11. EUT PHOTOS Radiated Measurement Photos
