TW5GP-7152.4GHz WIRELESS REMOTE CONTROL CAMERA KIT

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

868.2MHz/915.2M Hz RF (LA4221) 2.4GHz Receiving Module TDA2822 Amplifier Speaker MCU Video Signal Processing and LCD Driver LCD Displayer 9V Adaptor Or 4*1.5v Batteries MB3800 NTSC/PAL Switching Vcom Signal Amplifier Audio Signal Channel Switch Code Signal and Control Data Data LCD Driver VFR NPC Vcom Vcom Video Signal Remote antenna 2.4GHz antenna

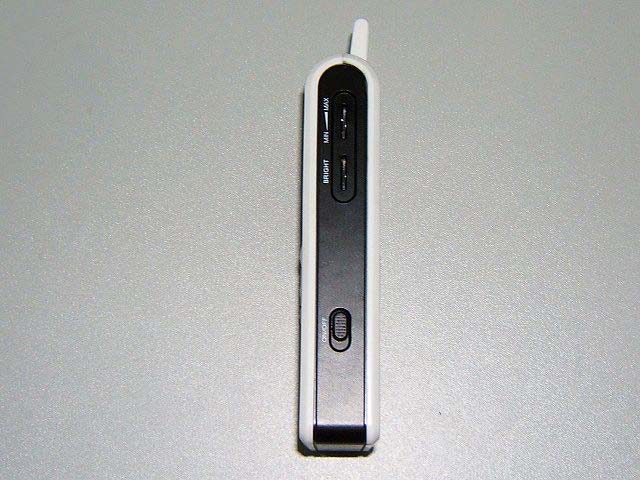

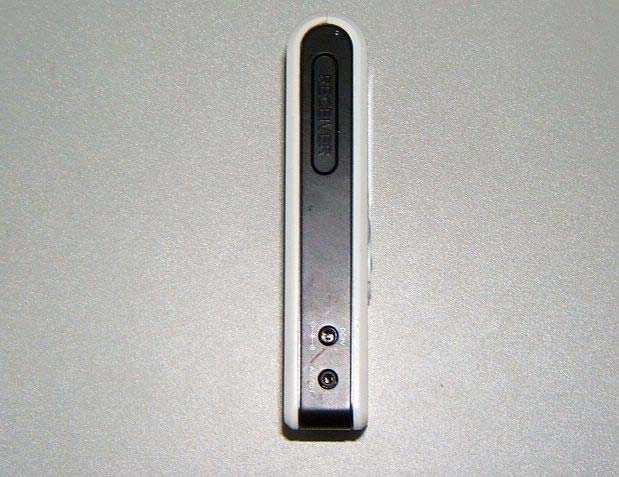

Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06050002 FCC ID: TW5GP-715 DATE: 06/30/2006 Page 18 Rev. 00 To p Vi e w o f E U T Bottom View of EUT Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06050002 FCC ID: TW5GP-715 DATE: 06/30/2006 Page 19 Rev. 00 Front View of EUT Back View of EUT Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06050002 FCC ID: TW5GP-715 DATE: 06/30/2006 Page 20 Rev. 00 Left View of EUT Right View of EUT

Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06050002 FCC ID: TW5GP-715 DATE: 06/30/2006 Page 21 Rev. 00 Internal of EUT– Open Internal of EUT– 1 Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06050002 FCC ID: TW5GP-715 DATE: 06/30/2006 Page 22 Rev. 00 Internal of EUT– 2 Internal of EUT– 3 Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06050002 FCC ID: TW5GP-715 DATE: 06/30/2006 Page 23 Rev. 00 Internal of EUT–4 Internal of EUT–5 Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06050002 FCC ID: TW5GP-715 DATE: 06/30/2006 Page 24 Rev. 00 Internal of EUT–6 Internal of EUT–7

Theory of Operation The MCU generates the Remote control code and control data .The code and the data are carried by the Remote Control Frequency Signal .The Remote Control Frequency Signal 915MHz is transmitted by the remote antenna, and it will be received by the corresponding antenna of GP-860T. The MCU has 6 functions: 1.Control the remote antenna; 2.Channel Switch; 3.Communicate with the Video Signal Processing and LCD Driver; 4.Trasport data to the Video Signal Processing and LCD Driver; 5.Receive VFR orders from the Video Signal Processing and LCD Driver; 6.NTSC/PAL Switching (NPC).

Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06050002 FCC ID: TW5GP-715 DATE: 06/30/2006 Page 1 of 27 Rev. 00 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF 2.4 GHz Wireless Remote Control Camera Kit FCC ID: TW5GP-715 MODEL No.: GP-715 BRAND NAME: GOSCAM REPORT NO: WE06050002 ISSUE DATE: JUNE 30, 2006 Prepared for SHENZHEN GOSPELL SMARTHOME ELECTRONIC CO., LTD 5/W,BLOCK 2, VISION BUSINESS PARK,SOUTH KEJI ROAD, SOUTHERN HI-TECH PARK, NANSHAN,SHENZHEN, P. R . C H I N A Prepared by SHENZHEN HUATONGWEI INTERNATIONAL INSPECTION CO., LTD d.b.a. SHENZHEN HUATONGWEI INTERNATIONAL INSPECTION CO., LTD HUATONGWEI BUILDING, KEJI RD. 12 S., HIGH-TECH PARK, NANSHAN DISTRICT, SHENZHEN, GUANGDONG , P.R.CHINA TEL: 86-755-26748099 FAX: 86-755-26748089 Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06050002 FCC ID: TW5GP-715 DATE: 06/30/2006 Page 2 Rev. 00 VERIFICATION OF COMPLIANCE Applicant: Shenzhen Gospell Smarthome Electronic Co.,Ltd. 5/W, Block 2, Vision Business park,South Keji Road, Southern Hi-tech Park, Nanshan, Shenzhen, P.R. China. Product Description: 2.4 GHz Wireless Remote Control Camera Kit Brand Name: GOSCAM Model Number: GP-715 Serial Number: N/A File Number: WE06050002 Date of Test: June 20, 2006 ~ June 28,2006 We hereby certify that: The above equipment was tested by SHENZHEN HUA TONG WEI INTERNATIONAL INSPECTION CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.227. The test results of this report relate only to the tested sample identified in this report. Approved By Reviewed By Jimmy Li / Executive Manager Tracy Qi / Testing Engineer SHENZHEN HUA TONG WEI SHENZHEN HUA TONG WEI INTERNATIONAL INSPECTION CO., LTD INTERNATIONAL INSPECTION CO., LTD Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06050002 FCC ID: TW5GP-715 DATE: 06/30/2006 Page 3 Rev. 00 Ta b l e o f C o n t e n t s 1. GENERAL INFORMATION............................................................................................................ 4 1.1 PRODUCT DESCRIPTION........................................................................................................................4 1.2 RELATED SUBMITTAL(S) / GRANT (S) ...................................................................................................4 1.3 TEST METHODOLOGY...........................................................................................................................4 1.4 TEST FACILITY.....................................................................................................................................4 1.5 SPECIAL ACCESSORIES.........................................................................................................................4 1.6 EQUIPMENT MODIFICATIONS................................................................................................................5 1.7. LABORATORY ACCREDITATIONS AND LISTINGS....................................................................................5 2. SYSTEM TEST CONFIGURATION............................................................................................... 6 2.1 EUT CONFIGURATION..........................................................................................................................6 2.2 EUT EXERCISE.....................................................................................................................................6 2.3 TEST PROCEDURE.................................................................................................................................6 2.4 LIMITATION..........................................................................................................................................6 2.5 CONFIGURATION OF TESTED SYSTEM...................................................................................................7 3. SUMMARY OF TEST RESULTS .................................................................................................... 8 4. DESCRIPTION OF TEST MODES................................................................................................. 8 5. CONDUCTED EMISSIONS TEST.................................................................................................. 9 5.1 MEASUREMENT PROCEDURE: ...............................................................................................................9 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ........................................................................9 5.3 MEASUREMENT EQUIPMENT USED:.....................................................................................................10 5.4 MEASUREMENT RESULT: ....................................................................................................................10 6. RADIATED EMISSION TEST....................................................................................................... 11 6.1 MEASUREMENT PROCEDURE..............................................................................................................11 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .......................................................................11 6.3 MEASUREMENT EQUIPMENT USED: ....................................................................................................12 6.4 FIELD STRENGTH CALCULATION........................................................................................................12 6.5 MEASUREMENT RESULTS....................................................................................................................13 7. OCCUPIED BANDWIDTH ....................................…

Text truncated - open the document above for the full version.

Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06050002 FCC ID: TW5GP-715 DATE: 06/30/2006 Page 16 Rev. 00 Radiated Emission Setup Photo Conducted Emission Setup Photo
