TW5GP-860T2.5GHz WIRELESS REMOTE CONTROL CAMERA KIT

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

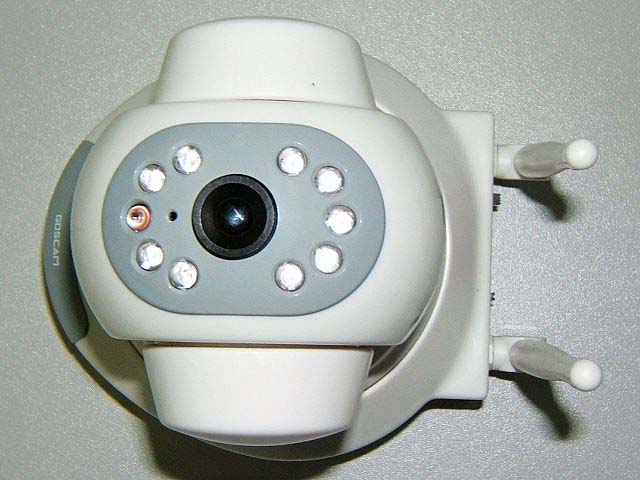

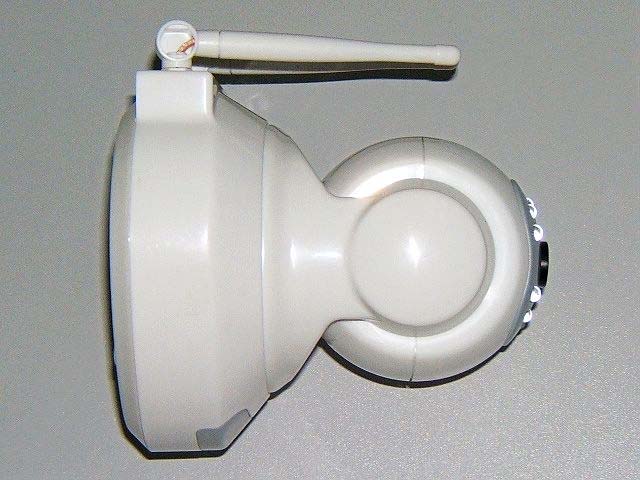

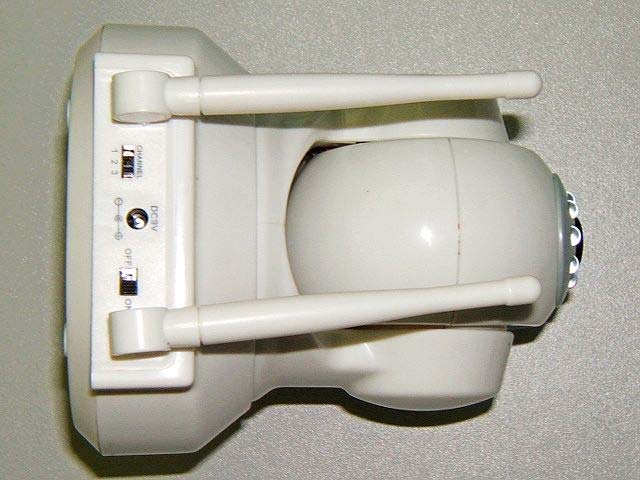

Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06060005 FCC ID: TW5GP-860T DATE: 06/26/2006 Page 21 Rev. 00 To p Vi e w o f E U T Bottom View of EUT Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06060005 FCC ID: TW5GP-860T DATE: 06/26/2006 Page 22 Rev. 00 Front View of EUT Back View of EUT Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06060005 FCC ID: TW5GP-860T DATE: 06/26/2006 Page 23 Rev. 00 Left View of EUT Right View of EUT

Model Name: GP-860T Made in China FCC ID: TW5GP-860T This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06060005 FCC ID: TW5GP-860T DATE: 06/26/2006 Page 25 Rev. 00 Internal of EUT– Open Internal of EUT– 1 Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06060005 FCC ID: TW5GP-860T DATE: 06/26/2006 Page 26 Rev. 00 Internal of EUT– 2 Internal of EUT– 3 Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06060005 FCC ID: TW5GP-860T DATE: 06/26/2006 Page 27 Rev. 00 Internal of EUT– 4 Internal of EUT– 5 Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06060005 FCC ID: TW5GP-860T DATE: 06/26/2006 Page 28 Rev. 00 Internal of EUT–6 Internal of EUT–7 Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06060005 FCC ID: TW5GP-860T DATE: 06/26/2006 Page 29 Rev. 00 Internal of EUT–8 Internal of EUT–9 Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06060005 FCC ID: TW5GP-860T DATE: 06/26/2006 Page 30 Rev. 00 Internal of EUT–10

Theory of Operation The 9V/1.5A adaptor powers the whole circuit. The 3.3V voltage is regulated by LM1117 voltage reglator. The 5V voltage is regulated by LM7805 voltage reglator. The 9V voltage passes through the Power Filter and supports the Step Motor Driver. The Camera gathers the A/V signal and transport it to the 2.4GHz TX module. The A/V signal will be modulated by the module and transmitted by the 2.4GHz Un-direction antenna. The IA4320 receives the remote control signal from the remote antenna. Then it communicates with the Microcontrol STC89LE51RC. The Microcontrol gives orders to the Step Motor Driver to make the Camera rotate.

V860TV04.sch-1 - Fri Feb 24 15:01:29 2006

Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06060005 FCC ID: TW5GP-860T DATE: 06/26/2006 Page 1 of 27 Rev. 00 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF 2.4 GHz Wireless Remote Control Camera Kit FCC ID: TW5GP-860T MODEL No.: GP-860T BRAND NAME: GOSCAM REPORT NO: WE06060005 ISSUE DATE: JUNE 26, 2006 Prepared for SHENZHEN GOSPELL SMARTHOME ELECTRONIC CO., LTD 5/W,BLOCK 2, VISION BUSINESS PARK,SOUTH KEJI ROAD, SOUTHERN HI-TECH PARK, NANSHAN,SHENZHEN, P.R. CHINA Prepared by SHENZHEN HUATONGWEI INTERNATIONAL INSPECTION CO., LTD d.b.a. SHENZHEN HUATONGWEI INTERNATIONAL INSPECTION CO., LTD HUATONGWEI BUILDING, KEJI RD. 12 S., HIGH-TECH PARK, NANSHAN DISTRICT, SHENZHEN, GUANGDONG , P.R.CHINA TEL: 86-755-26748099 FAX: 86-755-26748089 Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06060005 FCC ID: TW5GP-860T DATE: 06/26/2006 Page 2 Rev. 00 VERIFICATION OF COMPLIANCE Applicant: Shenzhen Gospell Smarthome Electronic Co.,Ltd. 5/W, Block 2, Vision Business park,South Keji Road, Southern Hi-tech Park, Nanshan, Shenzhen, P.R. China. Product Description: 2.4 GHz Wireless Remote Control Camera Kit Brand Name: GOSCAM Model Number: GP-860T Serial Number: N/A File Number: WE06060005 Date of Test: June 15, 2006 ~ June 26,2006 We hereby certify that: The above equipment was tested by SHENZHEN HUA TONG WEI INTERNATIONAL INSPECTION CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.227. The test results of this report relate only to the tested sample identified in this report. Approved By Reviewed By Jimmy Li / Executive Manager Tracy Qi / Testing Engineer SHENZHEN HUA TONG WEI SHENZHEN HUA TONG WEI INTERNATIONAL INSPECTION CO., LTD INTERNATIONAL INSPECTION CO., LTD Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06060005 FCC ID: TW5GP-860T DATE: 06/26/2006 Page 3 Rev. 00 Ta b l e o f C o n t e n t s 1. GENERAL INFORMATION............................................................................................................ 4 1.1 PRODUCT DESCRIPTION............................................................................................................................. 4 1.2 RELATED SUBMITTAL(S) / GRANT (S) ....................................................................................................... 4 1.3 TEST METHODOLOGY................................................................................................................................4 1.4 TEST FACILITY........................................................................................................................................... 4 1.5 SPECIAL ACCESSORIES.............................................................................................................................. 4 1.6 EQUIPMENT MODIFICATIONS.................................................................................................................... 5 1.7. LABORATORY ACCREDITATIONS AND LISTINGS....................................................................................... 5 2. SYSTEM TEST CONFIGURATION............................................................................................... 6 2.1 EUT CONFIGURATION...............................................................................................................................6 2.2 EUT EXERCISE.......................................................................................................................................... 6 2.3 TEST PROCEDURE...................................................................................................................................... 6 2.4 LIMITATION............................................................................................................................................... 6 2.5 CONFIGURATION OF TESTED SYSTEM....................................................................................................... 7 3. SUMMARY OF TEST RESULTS .................................................................................................... 8 4. DESCRIPTION OF TEST MODES................................................................................................. 8 5. CONDUCTED EMISSIONS TEST.................................................................................................. 9 5.1 MEASUREMENT PROCEDURE:.................................................................................................................... 9 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ........................................................................... 9 5.3 MEASUREMENT EQUIPMENT USED: ......................................................................................................... 10 5.4 MEASUREMENT RESULT:......................................................................................................................... 10 6. RADIATED EMISSION TEST....................................................................................................... 11 6.1 MEASUREMENT PROCEDURE................................................................................................................... 11 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .......................................................................... 11 6.3 MEASUREMENT EQUIPMENT USED: ........................................................................................................ 12 6.4 FIELD STRENGTH CALCULATION............................................................................................................. 12 6.5 MEASUREMENT RESULTS......................................................................…

Text truncated - open the document above for the full version.

Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE06060005 FCC ID: TW5GP-860T DATE: 06/26/2006 Page 19 Rev. 00 Radiated Emission Setup Photo Conducted Emission Setup Photo
