TWNZF01-CWIRELESS MODULE

NINGBO YOUWON TECHNOLOGY ELECTRONICS CO., LTD ADDRESS ：#928, XUEYUAN ROAD, LUGANG VILLAGE, GAOQIAO TOWN, NINGBO TELE PHONE：0574 88046201 FAX：0574-88046202 ZF01-C Wireless Module Operation Manual Figure 1. ZF01-C wireless module z Features： 1． Providing RS-422 interface，highly integrated，can connect with transceiver equipment directly. 2. Low power RF transmission：Maximum transmit power 10mW 3. GFSK/FSK modulation mode 4. Crystal frequency stabilization. 5. High-efficiency forward error correction channel encoding technology is used. z Main Application Areas： 1. AMR – Automatic Meter Reading 2. Wireless alarm and security systems 3. Wireless POS, PDA 4. Long-distance non-contact RF smart cards, RFID tags. 5. Wireless Field Bus、wireless conference voting system NINGBO YOUWON TECHNOLOGY ELECTRONICS CO., LTD ADDRESS ：#928, XUEYUAN ROAD, LUGANG VILLAGE, GAOQIAO TOWN, NINGBO TELE PHONE：0574 88046201 FAX：0574-88046202 z Main Technical Specifications： RF channels 433.050MHz modulation mode GFSK baud rate 9600bps output power 10mW Interface data format UART ,8E1/8N1 data format Power supply DC 3.6V---5V overall dimensions 70 X 45 X 17 mm Figure2. interface and sizes NINGBO YOUWON TECHNOLOGY ELECTRONICS CO., LTD ADDRESS ：#928, XUEYUAN ROAD, LUGANG VILLAGE, GAOQIAO TOWN, NINGBO TELE PHONE：0574 88046201 FAX：0574-88046202 z Interface Description： ZF01-C wireless module can be directly connected to RS-422 equipment by RS-422 port,shown as Figure3. A B PC Wireless communication channel setting RF MCU TTL to USB Antenna USB USB A B PC RF MCU TTL to USB Antenna USB USB RS-422 equipment RS-422 equipment RS422 RS422 RS422 RS422 RS422 RS422 Figure3. ZF01-C wireless communication application diagram z Channel setting There is one group of 5-bit short-circuiter wire (JP2) as shown in Figure 2, defined as A、 B 、C、D、E respectively，A and B are used for setting channels，so there are 4 channels can be set . “0”= short , “1”= open A B channel frequency(MHz) 1 1 4 433.050 NINGBO YOUWON TECHNOLOGY ELECTRONICS CO., LTD ADDRESS ：#928, XUEYUAN ROAD, LUGANG VILLAGE, GAOQIAO TOWN, NINGBO TELE PHONE：0574 88046201 FAX：0574-88046202 z FCC Notices 1. Any changes or modifications not expressly approved by the party responsible for compliancecould void the user’s authority to operate the equipment. 2. This device complies with Part 15 of the FCC Rules. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

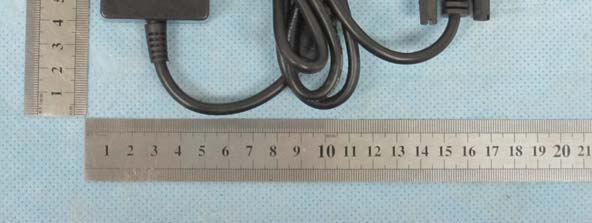

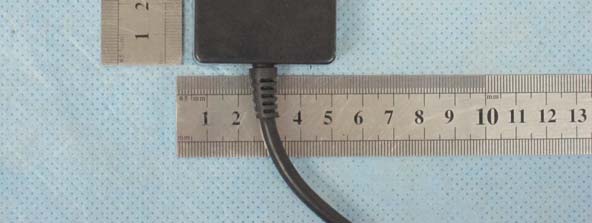

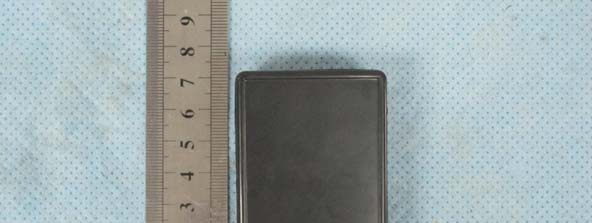

External Photos of the EUT

Lable and Label Location

Internal Photos of the EUT

FCC TEST REPORT 47 CFR FCC Part 15 Subpart C & 15.231 FCC ID .............................................: TWNZF01-C Report Reference No......................: WE10050015 Compiled by ( position+printed name+signature)..: File administrators Wenliang Li Supervised by ( position+printed name+signature)..: Test Engineer Xiankun Ding Approved by ( position+printed name+signature)..: Manager Jimmy Li Date of issue.....................................: May 25, 2010 Testing Laboratory Name..............: Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................: Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name............................: Pro-Lite, Inc. Address ............................................: 3505 Cadillac Ave. Building D Manufacturer’s name.....................: NINGBO YOUWON TECHNOLOGY ELECTRONICS CO., LTD Address ............................................: #928, XUEYUAN ROAD, LUGANG VILLAGE, GAOQIAO TOWN, NINGBO Test specification: Standard ...........................................: 47 CFR FCC Part 15 Subpart C & 15.231 ANSI C63.4: 2009 TRF Originator..................................: Shenzhen Huatongwei International Inspection CO., Ltd Master TRF.......................................: Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader’s interpretation of the reproduced material due to its placement and context. Equipment Under Test...................: Wireless Module Trade Mark .......................................: / Model/Type reference.......................: ZF01-C Listed Models ..................................: / Result................................................: Complied V1.0 Page 2 of 30 Report No.: WE10050015 FCC ID: TWNZF01-C Shenzhen Huatongwei International Inspection Co., Ltd T E S T R E P O R T Test Report No. : WE10050015 May 25, 2010 Date of issue Equipment under Test : Wireless Module Model /Type : ZF01-C Listed Models : / Applicant : Pro-Lite, Inc. Address : 3505 Cadillac Ave. Building D Manufacturer : NINGBO YOUWON TECHNOLOGY ELECTRONICS CO., LTD Address : #928, XUEYUAN ROAD, LUGANG VILLAGE, GAOQIAO TOWN, NINGBO SUMMARY OF STANDARDS AND RUSELT No. Test Item Test Standards and Procedure Result 1 AC Conducted Emission FCC Subpart 15C§15.207 ANSI C63.4: 2009§13.3 Complied 2 Radiated Emission FCC Subpart 15C§15.209 FCC Subpart 15C§15.231(e) ANSI C63.4: 2009§13.4 Complied 3 Deactivation Time FCC Subpart 15C§15.231(e) Complied 4 20dB Bandwidth FCC Subpart 15C§15.231(c) ANSI C63.4: 2009§13.7 Complied 5 Antenna Requirement FCC Subpart 15C§15.203 Complied NOTE: 1) The detailed test rusult please see section 4. 2) The test report merely corresponds to the test sample. 3) It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 30 Report No.: WE10050015 FCC ID: TWNZF01-C Shenzhen Huatongwei International Inspection Co., Ltd Contents 1. TEST STANDARDS .................................................................. 4 2. SUMMARY............................................................................. 5 2.1. General Remarks 5 2.2. Equipment Under Test Power Supply 5 2.3. Short description of the Equipment under Test (EUT) 5 2.4. EUT operation mode 5 2.5. Configuration of Tested System 6 2.6. Related Submittal(s) / Grant (s) 6 2.7. Modifications 6 3. TEST ENVIRONMENT............................................................... 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 8 3.4. Statement of the measurement uncertainty 8 3.5. Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS ............................................ 10 4.1. AC Conducted Emission 10 4.2. Radiated Emission 13 4.3. Deactivation Time 20 4.4. 20dB Bandwidth 22 4.5. Antenna Requirement 24 5. TEST SETUP PHOTOS OF THE EUT .......................................... 26 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 28 V1.0 Page 4 of 30 Report No.: WE10050015 FCC ID: TWNZF01-C Shenzhen Huatongwei International Inspection Co., Ltd 1. TEST STANDARDS The tests were performed according to following standards: 47 CFR FCC Part 15 Subpart C & 15.231 – Intentional Radiators & Periodic operation in the band 40.66–40.70 MHz and above 70 MHz ANSI C63.4: 2009 – American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40GHz V1.0 Page 5 of 30 Report No.: WE10050015 FCC ID: TWNZF01-C Shenzhen Huatongwei International Inspection Co., Ltd 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : May 18, 2010 Testing commenced on : May 20, 2010 Testing concluded on : May 23, 2010 2.2. Equipment Under Test Power Supply Power supply voltage : ○ 120V / 60 Hz ○ 115V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) DC 5V from PC 2.3. Short description of the Equipment under Test (EUT) Product Name : Wireless Module Model Number : ZF01-C Operation Frequency : 433.05 MHz Modulation Technology : GFSK Transmitter Type : Periodic Transmitter Sample Type : Prototype Cable Length : 100 cm For more details, refer to the user’s manual. 2.4. EUT operation mode The EUT has been tested under typical operating mode (TX mode). V1.0 Page 6 of 30 Report No.: WE10050015 FCC ID: TWNZF01-C Shenzhen Huatongwei International Inspection Co., Ltd 2.5. Configuration of Tested System Equipment Used in Tested System No. Equipment Manufacturer Model No. Serial No. 1 Notebook DELL PP01L 2F485A00 2 Printer HP Las…

Text truncated - open the document above for the full version.

Test Setup Photos of the EUT
