TWS-WAP-001R2In Wall Box Access Point

Copyright Notice Copyright © 2005-2015 Handlink Technologies Inc. All rights reserved. No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission. Disclaimer We shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product. We reserve the right to change the product specification without notice. Information in this document may change without notice. Trademarks Microsoft Win98, Windows 2000 and WinXP are registered trademarks of Microsoft Corporation. General: All other brand and product names mentioned herein may be registered trademarks of their respective owners. Customers should ensure that their use of this product does not infringe upon any patent rights. Trademarks mentioned in this publication are used for identification purposes only and are properties of their respective companies. In Wall Box Access Point 2 Table of Contents 1 Introduction ------------------------------------------------------------------------------------------------------------4 1-1 Package Contents---------------------------------------------------------------------------------------------------4 1-2 Features----------------------------------------------------------------------------------------------------------------5 1-3 Precautions------------------------------------------------------------------------------------------------------------5 1-4 Outlook------------------------------------------------------------------------------------------------------------------5 1-4-1 Rear Panel---------------------------------------------------------------------------------------------------7 1-5 Technical Specifications -------------------------------------------------------------------------------------------7 1-5-1 Hardware Specifications ---------------------------------------------------------------------------------7 1-5-2 Software Specifications ----------------------------------------------------------------------------------8 2 Installation ----------------------------------------------------------------------------------------------------------- 10 2-1 Installation Requirements---------------------------------------------------------------------------------------- 11 2-2 Getting Start--------------------------------------------------------------------------------------------------------- 12 3 Configuring the In Wall Access Point ----------------------------------------------------------------------------- 15 3-1 Internet Settings ---------------------------------------------------------------------------------------------------- 17 3-2 Wireless -------------------------------------------------------------------------------------------------------------- 20 3-2-1 Wireless Basic Setting---------------------------------------------------------------------------------- 20 3-2-2 Wireless Advanced Setting---------------------------------------------------------------------------- 21 3-2-3 Multi-SSID Settings ------------------------------------------------------------------------------------- 22 3-3 Advanced ------------------------------------------------------------------------------------------------------------ 24 3-3-1 Management ---------------------------------------------------------------------------------------------- 24 3-3-2 Daily Report ----------------------------------------------------------------------------------------------- 26 3-3-3 FTP ---------------------------------------------------------------------------------------------------------- 27 3-3-4 SNMP ------------------------------------------------------------------------------------------------------- 28 3-4 System Tool --------------------------------------------------------------------------------------------------------- 29 3-4-1 Configuration---------------------------------------------------------------------------------------------- 29 3-4-2 Firmware --------------------------------------------------------------------------------------------------- 30 3-4-3 Ping Command ------------------------------------------------------------------------------------------- 32 3-4-4 Restart ------------------------------------------------------------------------------------------------------ 32 Appendix A Signal Connection Arrangements -------------------------------------------------------------------- 33 In Wall Box Access Point 3 Appendix B Regulations/EMI Compliance ------------------------------------------------------------------------- 34 LIMITED WARRANTY--------------------------------------------------------------------------------------------------- 35 In Wall Box Access Point 4 1 Introduction The WAP-001 Access Device revolutionizes the way wireless and wired IP-based services are delivered to hospitality and residential properties. The WAP-001 integrates wired and wireless connectivity into a small unit that can be quickly and discretely installed in a standard wall box. The WAP-001 provides Two Ethernet ports, a 2.4GHz 802.11b/g/n wireless access point. The WAP-001 requires a single powered cable drop to unlock its utility and, through the reduction in cabling, switch ports, and power-sourcing equipment, the WAP-001 represents the best value for the delivery of next generation entertainment services. 1-1 Package Contents Please inspect your package. The following items should be included: WAP-001 z One In Wall Box Access Point z One UTP Ethernet/Fast Ethernet cable (Cat.5 Twisted-pair) (10cm) z One Wall fixed plate z One Quick Installation Guide z One CD Contents If any of the above items are damaged or missing, please contact your dealer immediately. In Wall Box Access Point 5 1-2 Features z Wireless data rates up to 300Mbps z Comprehensive security 64/128-bit WEP encryption WPA encryption WPA2 encryption z Intellig…

Text truncated - open the document above for the full version.

Top Antenna Discription:2400~2500 MHz Chamber: RT-SATIMO STARLAB Scanning: 1X With Test Cable (D1.13mm; L100 mm; IPEX) Efficiency Avg. Gain Peak Gain XY-plane YZ-plane ZX-plane XY-plane YZ-plane ZX-plane 240037%-4.41.5-4.2-3.7-6.4-0.9-0.5-1.8 245038%-4.32.0-4.0-3.6-5.9-0.30.1-1.4 250041%-3.92.3-3.6-3.4-5.50.40.5-1.0 XY-planeYZ-planeZX-plane Bottom Antenna Discription:2400~2500 MHz Chamber: RT-SATIMO STARLAB Scanning: 1X With Test Cable (D1.13mm; L100 mm; IPEX) Efficiency Avg. Gain Peak Gain XY-plane YZ-plane ZX-plane XY-plane YZ-plane ZX-plane 240040%-4.00.5-3.4-3.1-5.7-0.40.3-3.0 245039%-4.10.3-3.3-3.0-5.70.00.3-2.3 250040%-4.00.3-3.3-2.8-5.6-0.10.3-2.1 XY-planeYZ-planeZX-plane Frequency (MHz) 3D V+H Avg. GainV+H Peak Gain Frequency (MHz) 3D V+H Avg. GainV+H Peak Gain PORT1 Top Antenna PORT2 Bottom Antenna

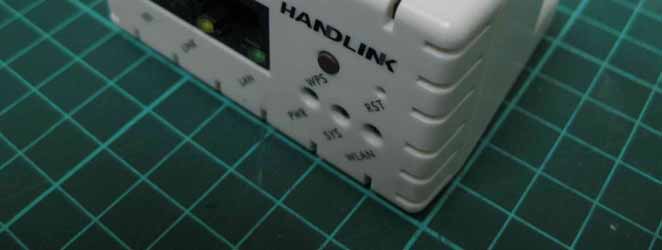

Report No.T140207S01 Page 1 of 2 External Photo Report No.T140207S01 Page 2 of 2

Report No.T140207S01 Page 1 of 7 Internal Photo Report No.T140207S01 Page 2 of 7 Report No.T140207S01 Page 3 of 7 Report No.T140207S01 Page 4 of 7 Report No.T140207S01 Page 5 of 7 Report No.T140207S01 Page 6 of 7 Report No.T140207S01 Page 7 of 7

FCC ID : TWS-WAP-001R2 Report No.T140207S01-RP1 Page 1 / 2 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX I MAXIMUM PERMISSIBLE EXPOSURE According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate theenvironment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b)LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 CALCULATIONS Given d G×P×30 =E & 3770 E =S 2 Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 d3770 G×P×30 =S Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 22 d G×P ×0796.0= 100/d×3770 G×1000/P×30 =S Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm2 FCC ID : TWS-WAP-001R2 Report No.T140207S01-RP1 Page 2 / 2 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. LIMIT Power Density Limit, S=1.0mW/cm 2 TEST RESULTS Mode Chain Antenna Gain (dBi) Minimum separation distance (cm) Output Power (dBm) Total Output Power (dBm) Numeric antenna gain (mW) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) IEEE 802.11b 0 2.3 20 21.63 21.63 1.7 1.00 0.049150 IEEE 802.11g 0 2.3 20 25.07 25.07 1.7 1.00 0.108573 0 2.3 20 23.05 1.7 IEEE 802.11n HT20 1 2.3 20 23.34 26.21 1.7 1.00 0.141119 0 2.3 20 20.85 1.7 IEEE 802.11n HT40 1 2.3 20 21.03 23.95 1.7 1.00 0.083916 Remark: For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.

FCC ID : TWS-WAP-001R2 Report No.T140207S01-RP1 Page 1 / 102 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4:2009 TEST REPORT For In Wall Box Access Point Model : WAP-001(Rev.2) Trade Name : Handlink Issued for Handlink Technologies Inc. 4F,NO.3,PROSPERITY RD.1,SCIENCE-BASED INDUSTRIAL PARK,HSINCHU 300,TAIWAN,R.O.C. Issued by Compliance Certification Services Inc. Hsinchu Lab. NO. 989-1 Wen Shan Rd., Shang Shan Village, Qionglin Shiang Hsinchu County 30741, Taiwan, R.O.C TEL: +886-3-5921698 FAX: +886-3-5921108 http://www.ccsrf.com E-Mail : [email protected] Issued Date: February 27, 2014 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results of this report relate only to the tested sample identified in this report. FCC ID : TWS-WAP-001R2 Report No.T140207S01-RP1 Page 2 / 102 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 02/27/2014 Initial Issue All Page 102 Michelle Chiu FCC ID : TWS-WAP-001R2 Report No.T140207S01-RP1 Page 3 / 102 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 6 4. TEST METHODOLOGY ............................................................................................... 7 5. FACILITIES AND ACCREDITATION ........................................................................... 7 5.1 FACILITIES ............................................................................................................ 7 5.2 ACCREDITATIONS................................................................................................ 7 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 8 6. SETUP OF EQUIPMENT UNDER TEST......................................................................9-10 7. FCC PART 15.247 REQUIREMENTS.......................................................................... 11 7.1 6dB BANDWIDTH .................................................................................................. 11-24 7.2 MAXIMUM PEAK OUTPUT POWER..................................................................... 25-27 7.3 AVERAGE POWER ............................................................................................... 28-30 7.4 POWER SPECTRAL DENSITY............................................................................. 31-45 7.5 CONDUCTED SPURIOUS EMISSION .................................................................. 46-64 7.6 RADIATED EMISSION........................................................................................... 65-97 7.7 CONDUCTED EMISSION ......................................................................................98-102 FCC ID : TWS-WAP-001R2 Report No.T140207S01-RP1 Page 4 / 102 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 1. TEST REPORT CERTIFICATION Applicant Handlink Technologies Inc. Address 4F,NO.3,PROSPERITY RD.1,SCIENCE-BASED INDUSTRIAL PARK,HSINCHU 300,TAIWAN,R.O.C. Equipment Under Test In Wall Box Access Point Model WAP-001(Rev.2) Trade Name Handlink Tested Date February 07 ~ 27, 2014 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C AND ANSI C63.4:2009 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Sb. Lu Gundam Lin Sr. Engineer Sr. Engineer FCC ID : TWS-WAP-001R2 Report No.T140207S01-RP1 Page 5 / 102 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 2. EUT DESCRIPTION Product Name In Wall Box Access Point Model Number WAP-001(Rev.2) Identify Number T140207S01 Received Date February 07, 2014 Frequency Range IEEE 802.11b/g, 802.11n HT20 : 2412MHz ~ 2462MHz IEEE 802.11n HT40 : 2422MHz ~ 2452MHz IEEE 802.11b : 21.63 dBm (0.1455 W) IEEE 802.11g : 25.07 dBm (0.3214 W) IEEE 802.11n HT20 : 26.21 dBm (0.4177 W) Transmit Power IEEE 802.11n HT40 : 23.95 dBm (0.2484 W) Channel Spacing IEEE 802.11b/g, 802.11n HT20/HT40 : 5MHz IEEE 802.11b/g, 802.11n HT20: 11 Channels Channel Number IEEE 802.11n HT40 : 7 Channels IEEE 802.11b : 11, 5.5, 2, 1 Mbps IEEE 802.11g : 54, 48, 36, 24, 18, 12, 9, 6 Mbps IEEE 802.11n HT20 : 144.4, 130, 117, 115.6, 104, 86.7, 78, 72.2, 65, 58.5, 57.8, 52, 43.3, 39, 28.9, 26, 21.7, 19.5, 14.4, 13, 7.2, 6.5Mbps Transmit Data Rate IEEE 802.11n HT40 : 300, 270, 243, 240, 216, 180, 162, 150, 135, 121.5, 120, 108, 90, 81, 60, 54, 45, 40.5, 30, 27, 15, 13.5Mbps IEEE 802.11b : DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g : OFDM (64QAM, 16QAM, QPSK, BPSK) Type of Modulation IEEE 802.11n HT20/40 : OFDM (64QAM, 16QAM, QPSK, BPSK) Antenna Type PCB Antenna × 2, Antenna …

Text truncated - open the document above for the full version.

FCC ID : TWS-WAP-001R2 Report No.T140207S01-RP1 Page 1 / 3 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX II SETUP PHOTOS RADIATED EMISSION SETUP Below 1 GHz FCC ID : TWS-WAP-001R2 Report No.T140207S01-RP1 Page 2 / 3 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Above 1 GHz FCC ID : TWS-WAP-001R2 Report No.T140207S01-RP1 Page 3 / 3 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP
