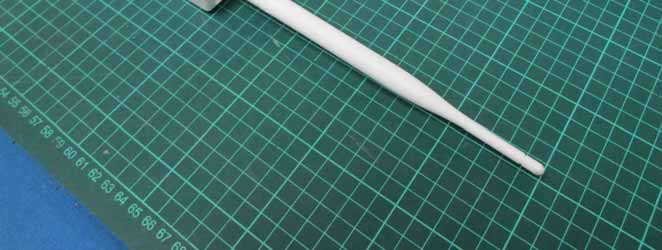

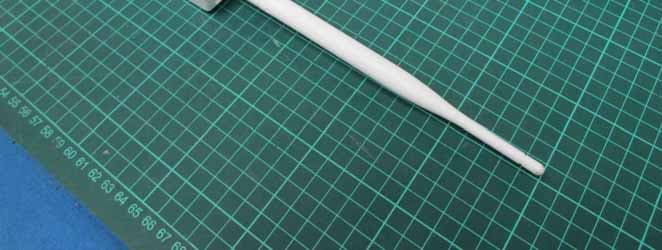

www.tsky.com.tw Contents Item Description Page 1. Cover 1 2. Contents 2 3. Specification 3 4. Drawing 4 5 Test Report 5~11 6. RoHS 12~50 www.tsky.com.tw Specification .Electrical Properties : 1. Frequency : 2.4GHz ~ 2.5GHz 2. Impedance : 50Ω 3. Return Loss : ≦ -10dB 4. Peak Gain : 5dBi .Physical Properties : 1. Antenna Cover : TPEE 2. Antenna Base : PBT+PC 3. Connector : SMA MALE-RP 4. Operation temperature : ‐20°C~+65°C 5. Storage temperature : ‐30°C~ +75°C Return Loss & VSWR Gain Pattern Gain Pattern Gain Pattern Gain Pattern Gain Pattern Gain Pattern

RF_160, Issue 03 Declaration of Authorization We Name: Handlink Technologies Inc. Address: 4F, No. 3 PROSPERRITY RD. 1, SCIENCE-BASED INDUSTRIAL PARK HSINCHU 300, TAIWAN(R.O.C.) City: HSINCHU 300 Country: Taiwan (R.O.C.) Declare that: Name Representative of agent: Winnie Chen Agent Company name: Compliance Certification Services Inc. Address: No.989-1 Wen Shan Rd., Shang Shan Village,Qionglin Township, City: Hsinchu County 30741, Country Taiwan, R.O.C is authorized to apply for Certification of the following product(s): Product description: Type designation: Trademark: Handlink on our behalf. Date:2014-8-21 Signature: ... ............................ Name/Title: Hsiang-Hui Chang/ Engineer Company Name: Handlink Technologies Inc. Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

DECLARATION OF CONFORMITY (DoC) Equipment: Trademark(s) and Model(s): FCC ID in case other parts of this equipment are subject to certification: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The following test reports are subject to this declaration: Test report number:T140725S01Issue date:2014-08-18 Test Lab: Compliance Certification Services Inc. Company name: Name/Title (legal representative): Hsiang-Hui Chang/ Engineer Address: E-mail: [email protected] Date: 2014-08-21 Signature:

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: Handlink Technologies Inc. Address : 4F,NO.3,PROSPERITY RD.1,SCIENCE-BASED INDUSTRIAL PARK,HSINCHU 300,TAIWAN,R.O.C. City: HSINCHU 300 Country: Taiwan (R.O.C.) To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: TWS-WG-701 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: 2014-8-21 Name and signature of applicant: Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

Handlink Technologies Inc. Date: 2014-8-21 Product Name: Model: To Whom It May Concern: Due to the business consideration, we hereby declare that our product have as following difference Model DC Power adapter Power by PoE USB WANLAN1~4 R‐300NP Handlink Router V V WG‐701 CoolbeeWiFi Ultimate Hotspot V X V V V WG‐606 Handlink Wireless Subscriber Gateway V X V V V AP‐300NP Handlink Access Point X V X V V Sincerely, Name / Position: Hsiang-Hui Chang/ Engineer Company: Handlink Technologies Inc. Address: 4F,NO.3,PROSPERITY RD.1,SCIENCE-BASED INDUSTRIAL PARK,HSINCHU 300,TAIWAN,R.O.C. Tel: +886-3-564-5166#271 E-mail: [email protected]

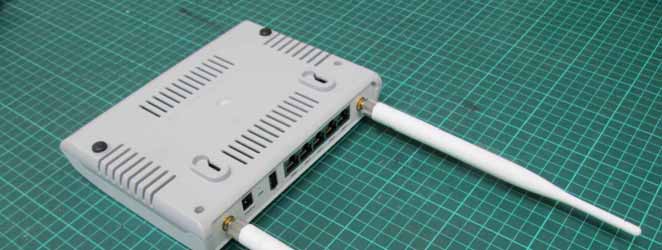

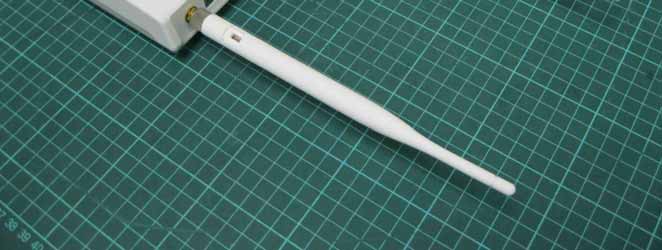

Report No.T140725S01 Page 1 of 12 External Photo(Model:R-300NP) Report No.T140725S01 Page 2 of 12 Report No.T140725S01 Page 3 of 12 External Photo(Model:WG-701) Report No.T140725S01 Page 4 of 12 Report No.T140725S01 Page 5 of 12 External Photo(Model:WG-606) Report No.T140725S01 Page 6 of 12 Report No.T140725S01 Page 7 of 12 External Photo(Model:AP-300NP) Report No.T140725S01 Page 8 of 12 Report No.T140725S01 Page 9 of 12 Power Adapter(Model: PSA18R-120P) Report No.T140725S01 Page 10 of 12 Report No.T140725S01 Page 11 of 12 Power Adapter(Model: UP0121A-12PA) Report No.T140725S01 Page 12 of 12

Power input(額定電壓電流): Adapter: 12Vdc / 1A PoE: 48Vdc / 0.4A FCC ID : TWS-WG-701 Model Number(型號) : R-300NP Wireless Router 無線路由器(WIFI) Made in Taiwan 台灣製造 DXXXXX CCAFXXXXXXXXXX R01 IEEE 802.3at Compliance

Report No.T140725S01 Page 1 of 9 Internal Photo Report No.T140725S01 Page 2 of 9 Report No.T140725S01 Page 3 of 9 Report No.T140725S01 Page 4 of 9 Report No.T140725S01 Page 5 of 9 Report No.T140725S01 Page 6 of 9 Report No.T140725S01 Page 7 of 9 Report No.T140725S01 Page 8 of 9 Report No.T140725S01 Page 9 of 9

Compliance Certification Services Inc. Report No.: T140725S01-RP1-1 Date of Issue: August 21, 2014 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Wireless Router Model R-300NP Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11n HT40: 2.422GHz ~ 2.452GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification 2.4GHz: Antenna Gain :5.00 dBi (Numeric gain 3.16) Maximum output power IEEE 802.11b Mode: 17.45 dBm (55.590 mW) IEEE 802.11g Mode: 25.67 dBm (368.978 mW) IEEE 802.11n HT 20 Mode: 26.77 dBm (475.335 mW) IEEE 802.11n HT 40 Mode: 25.39 dBm (345.939 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T140725S01-RP1-1 Date of Issue: August 21, 2014 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2014/08/21 Initial Issue ALL Michelle Chiu Compliance Certification Services Inc. Report No.: T140725S01-RP1-1 Date of Issue: August 21, 2014 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E ×× = 30 & 377 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 22 0796.0 100/377 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T140725S01-RP1-1 Date of Issue: August 21, 2014 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Ch.Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm2) 112412~246255.595200.05531 IEEE 802.11g mode: Ch.Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm2) 112412~2462 368.9785200.36711 IEEE 802.11n HT20 mode: Ch.Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm2) 112412~2462 475.3355200.47301 IEEE 802.11n HT40 mode: Ch.Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm2) 72422~2452 345.9395200.34421

FCC ID : TWS-WG-701 Report No.T140725S01-RP1 Page 1 / 117 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. FCC 47 CFR PART 15 SUBPART C AND ANSI C63.10:2009 TEST REPORT For Wireless Router Model : R-300NP Data Applies To : WG-701 ; WG-606 ; AP-300NP Issued for Handlink Technologies Inc. 4F,NO.3,PROSPERITY RD.1,SCIENCE-BASED INDUSTRIAL PARK,HSINCHU 300,TAIWAN,R.O.C. Issued by Compliance Certification Services Inc. Hsinchu Lab. NO. 989-1 Wen Shan Rd., Shang Shan Village, Qionglin Shiang Hsinchu County 30741, Taiwan, R.O.C TEL: +886-3-5921698 FAX: +886-3-5921108 http://www.ccsrf.com E-Mail : [email protected] Issued Date: August 21, 2014 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results of this report relate only to the tested sample identified in this report. FCC ID : TWS-WG-701 Report No.T140725S01-RP1 Page 2 / 117 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 08/21/2014 Initial Issue All Page 117 Michelle Chiu FCC ID : TWS-WG-701 Report No.T140725S01-RP1 Page 3 / 117 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 7 4. TEST METHODOLOGY ............................................................................................... 9 5. FACILITIES AND ACCREDITATION ........................................................................... 9 5.1 FACILITIES ............................................................................................................ 9 5.2 ACCREDITATIONS ................................................................................................ 9 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 10 6. SETUP OF EQUIPMENT UNDER TEST ...................................................................... 11 7. FCC PART 15.247 REQUIREMENTS .......................................................................... 13 7.1 6dB BANDWIDTH .................................................................................................. 13 7.2 MAXIMUM PEAK OUTPUT POWER ..................................................................... 27 7.3 AVERAGE POWER ............................................................................................... 30 7.4 POWER SPECTRAL DENSITY ............................................................................. 33 7.5 CONDUCTED SPURIOUS EMISSION .................................................................. 48 7.6 RADIATED EMISSION ........................................................................................... 67 7.7 CONDUCTED EMISSION ...................................................................................... 103 APPENDIX I SETUP PHOTOS ........................................................................................ 110 FCC ID : TWS-WG-701 Report No.T140725S01-RP1 Page 4 / 117 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 1. TEST REPORT CERTIFICATION Applicant Handlink Technologies Inc. Address 4F,NO.3,PROSPERITY RD.1,SCIENCE-BASED INDUSTRIAL PARK,HSINCHU 300,TAIWAN,R.O.C. Equipment Under Test Wireless Router Model R-300NP Data Applies To WG-701 ; WG-606 ; AP-300NP Tested Date July 25 ~ August 12, 2014 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C AND ANSI C63.10:2009 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Sb. Lu Gundam Lin Sr. Engineer Sr. Engineer FCC ID : TWS-WG-701 Report No.T140725S01-RP1 Page 5 / 117 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 2. EUT DESCRIPTION Product Name Wireless Router Model Number R-300NP Identify Number T140725S01 Received Date July 25, 2014 Frequency Range IEEE 802.11b/g, 802.11gn HT20 : 2412MHz ~ 2462MHz IEEE 802.11gn HT40 : 2422MHz ~ 2452MHz Transmit Power IEEE 802.11b : 17.45 dBm (0.0556 W) IEEE 802.11g : 25.67 dBm (0.3690 W) IEEE 802.11gn HT20 : 26.77 dBm (0.4753 W) IEEE 802.11gn HT40 : 25.39 dBm (0.3459 W) Channel Spacing IEEE 802.11b/g, 802.11gn HT20/HT40 : 5 MHz Channel Number IEEE 802.11b/g, 802.11gn HT20: 11 Channels IEEE 802.11gn HT40 : 7 Channels Transmit Data Rate IEEE 802.11b : 11, 5.5, 2, 1 Mbps IEEE 802.11g : 54, 48, 36, 24, 18, 12, 9, 6 Mbps IEEE 802.11gn HT20 : 144.4, 130, 117, 115.6, 104, 86.7, 78, 72.2, 65, 58.5, 57.8, 52, 43.3, 39, 28.9, 26, 21.7, 19.5, 14.4, 13, 7.2, 6.5Mbps IEEE 802.11gn HT40 : 300, 270, 243, 240, 216, 180, 162, 150, 135, 121.5, 120, 108, 90, 81, 60, 54, 45, 40.5, 30, 27, 15, 13.5Mbps Type of Modulation IEEE 802.11b : DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g : OFDM (64QAM, 16QAM, QPSK, BPSK…
