TWV-SXL1WIRELESS PROGRAMMER

Sierra Wireless, ULC
WIRELESS PROGRAMMER - FCC ID TWV-SXL1 - Sierra Wireless, ULC
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Apr 11, 2011
Application Purpose
Original Equipment
Date of Application
Apr 11, 2011
Equipment Note
WIRELESS PROGRAMMER
Frequency Range
906.00000000 - 906.00000000
Company
Sierra Wireless, ULC
Country
Canada

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 | Page Proprietary and Confidential Revised 10-11-11 SXL1 Asset Tracking Solution 5116-21-00772| Revision 1.0 SXL1 USERS MANUAL 2 | Page Proprietary and Confidential Revised 10-11-11 3 | Page Proprietary and Confidential Revised 10-11-11 Table of Contents SXL1.................................................................................................................................................5 Connecting the SXL1 to the Computer.................................................................................................5 SXL1_Programmer Software...............................................................................................................5 Standard Reporting Tab...............................................................................................................7 Motion Reporting Tab.................................................................................................................10 Triggered Reporting Tab.............................................................................................................11 Testing Tab...............................................................................................................................12 Info Tab.....................................................................................................................................13 Profiles Tab...............................................................................................................................14 Operational Standards......................................................................................................................14 Mounting Provisions...................................................................................................................14 Power Standards Outline...................................................................................................................14 New Battery Installation..............................................................................................................15 Battery Replacement..................................................................................................................15 Battery Counter Reset................................................................................................................15 Battery Voltage..........................................................................................................................15 Battery Low Threshold................................................................................................................15 Power Supply / Battery Life.........................................................................................................15 Configuration Connector..................................................................Error! Bookmark not defined. USB Port........................................................................................Error! Bookmark not defined. Environmental Performance Standards...................................................Error! Bookmark not defined. SXL1 Serial Message Protocol..........................................................................................................16 Serial Protocol..................................................................................................................................16 Serial CRC Algorithm.................................................................................................................17 Serial Sensor Messages Supported...................................................................................................17 Remote Data Command (message type 0x04)....................................................................................18 Remote Sensor Alarm Command (message type 0x05)......................................................................18 SXL1 On-Air Message Protocol.........................................................................................................18 Location Message Format.................................................................................................................19 Message Type (Byte 1)..............................................................................................................19 Position (Bytes 2-8)....................................................................................................................20 Status (Byte 9)...........................................................................................................................20 Battery Status (Bits 2:0)..............................................................................................................20 Report Mode (Bit 3)....................................................................................................................20 Alarm Indication (Bit 4)...............................................................................................................20 Message Cause (Bits 8:5)...........................................................................................................20 Engine Run Time (Bit 9).............................................................................................................21 Configuration Change (Bit 10).....................................................................................................21 Message Count (Bits 13:11)........................................................................................................21 Motion State (Bit 14)..................................................................................................................21 GPS 2D/3D (Bit 15)....................................................................................................................21 Remote Message.............................................................................................................................21 Termination Message..............…

Text truncated - open the document above for the full version.

Cover Letter(s)

Confidentiality Request March 30, 2011 Timco Engineering PO Box 370 Newberry, FL 32669 RE : FCC ID: TWV- SXL1 Dear Application Examiner: With regards to the exhibits submitted in support of the application for FCC ID: TWV-SXL1, please classify the following as confidential under the provision of 47 CFR 0.459: -Schematics: File Name: 10-0191.Numerex.SXL-1.SXL1 CONFIDENTIAL Schematic 1_3_2 w_hilt.pdf -Block diagram: File Name: 10-0191.Numerex.SXL1.CONFIDENTIAL Block Diagram v2.pdf -Theory of Operation: File Name: 10-0191.Numerex.SXL1.CONFIDENTIAL Theory of Operation.pdf These exhibits contain technical information that Numerex Corporation deems to be sensitive and proprietary. Therefore this information cannot be published. If this information were to be made public it could be used to the disadvantage of the applicant in the marketplace. Sincerely, Sandi McEnery US Tech (Authorized Agent for Numerex Corp.) 3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com

Cover Letter(s)

3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com April 6, 2011 Timco Engineering 849 NW State Road 45 Newberry, Florida 32669 SUBJECT: TIMCO-TCB/Request for additional info - NUMEREX CORPORATION - FCC ID: TWV-SXL1 REFERENCE: JOB 676UC11 Dear Application Examiner: This EUT contains multiple transmitters capable of operating simultaneously. It has been tested and found to have met all pertinent requirements of Intermodulation Testing. This EUT was tested with all transmitters operating simultaneously and found to have met the requirements of 47 CFR Part 15 and Part 25. A Part 25 verification report is available upon request. Regards, George Yang US Tech (Agent for Numerex, Corp.)

Cover Letter(s)

3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com February 16, 2011 Timco Engineering 849 NW State Road 45 Newberry, Florida 32669 SUBJECT: TIMCO-TCB/Request for additional info - NUMEREX CORPORATION - FCC ID: TWV-SXL1-P REFERENCE: JOB 226UC11 Dear Application Examiner: The IBM T-48 Laptop Computer Support Equipment used in the test configuration for the Numerex SXL1-P has FCC Part 15 DoC approval. Best Regards, Sandi McEnery US Tech (Agent for Numerex)

External Photos

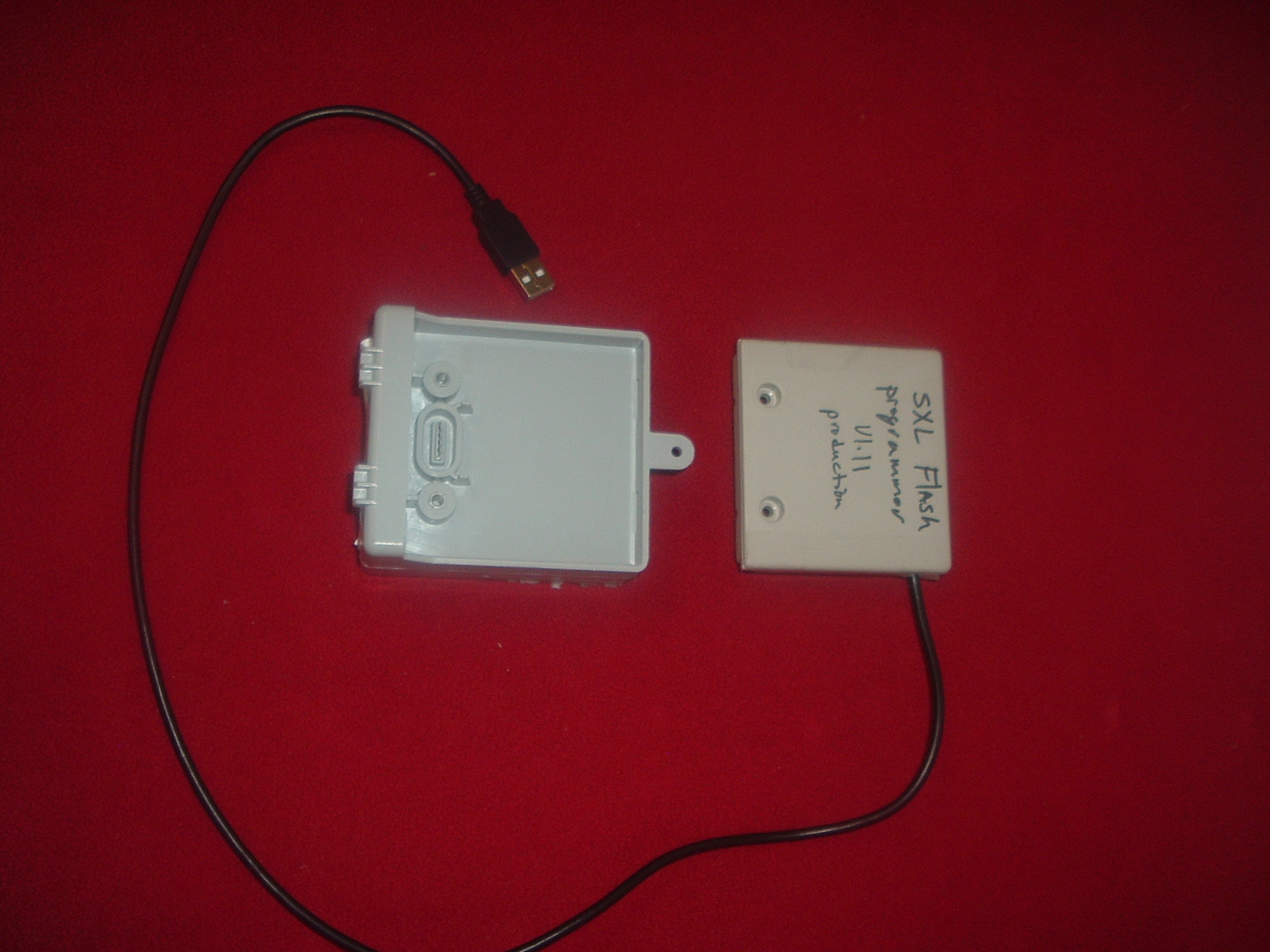

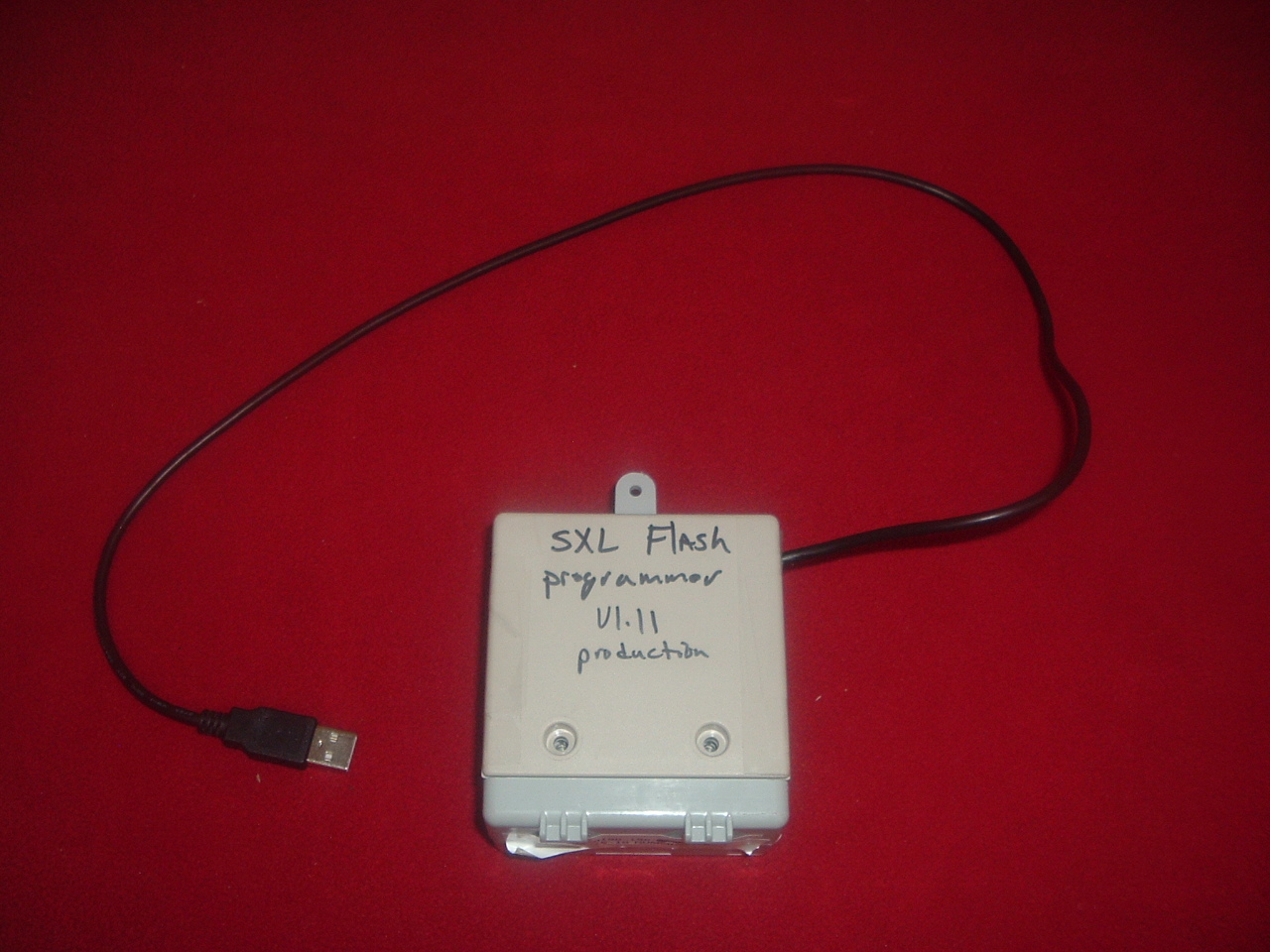

US Tech FCC ID:TVW-SXL1 Test Report: 10-0191 Date: March 30, 2011 Model: SXL1 Customer: Numerex Corp. Page 1 of 3 Photograph 1 – EUT Front US Tech FCC ID:TVW-SXL1 Test Report: 10-0191 Date: March 30, 2011 Model: SXL1 Customer: Numerex Corp. Page 2 of 3 Photograph 2 – EUT Back US Tech FCC ID:TVW-SXL1 Test Report: 10-0191 Date: March 30, 2011 Model: SXL1 Customer: Numerex Corp. Page 3 of 3 Photograph 3 – EUT with program pack detached
