TWV002557XNetwork Access Module

Sierra Wireless, ULC
Network Access Module - FCC ID TWV002557X - Sierra Wireless, ULC
Click to zoom

Application Details

Equipment Class
PCB - PCS Licensed Transmitter
Date of Grant
Oct 30, 2007
Application Purpose
Original Equipment
Date of Application
Oct 29, 2007
Equipment Note
Network Access Module
Frequency Range
1850.20000000 - 1909.80000000
Company
Sierra Wireless, ULC
Country
Canada

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗
↗

RF Exposure Info

↗

Test Report

↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

DIGICELL ® ANYNET N ETWORK ACCESS MODULE Product ID # 19-25133-040/-041 INSTALLATION AND U SER’S GUIDE Network Status Service Comm Activity Input 1 Standard S3 off, S4 off Input 1 Pulse Ctr S3 off, S4 on Input 1 Timed Bell S3 on, S4 off Input 1 Sampled Siren S3 on, S4 on Network Interface Network Service Cellemetry ® GPRS SMS 1xRTT TCP/IP RS-232 Ethernet CDMA GSM AMPS Network Access Module DigiCell ® Any NET S/N 9200920999 19-25133-070 307V100B + - + - + - + - OUTPUT 1 OUTPUT 2 + - Dated 05/30/07 © 2007 by Numerex Guide 00-25580-040 No part of this publication may be reproduced or used in any form without permission in writing from Numerex. This includes electronic or mechanical means, such as photocopying, recording, or information storage and retrieval systems. The material in this manual is subject to change without notice. Numerex reserves the right to make changes to any software or product to improve reliability, function or design. Uplink is a servicemark, DigiCell and Cellemetry are registered trademarks of Numerex Corp. Other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. TABLE OF CONTENTS Warranty Information & Liability Waiver ..................... 1 Technical Support ........................................................ 2 Description .................................................................. 3 Installation Steps ........................................................ 4 Unit Wiring .................................................................. 6 Optional DB25 Connector ............................................ 9 Antenna Specification .................................................. 9 FCC & Industry Canada Regulatory Compliance ......... 10 1 WARRANTY INFORMATION & LIABILITY WAIVER The Company's Products Are Subject To The Following Limited Warranty: The company's products are warranted against defects in materials and workmanship for a period of one (1) year following the date of purchase, under normal use and ser- vice. The company's obligation under this limited warranty is limited to repairing or re- placing with reconditioned parts, at its option, any product proven to be defective in materials or workmanship under normal use and service. The company shall have no obligation if its products are altered or improperly repaired or serviced by any party other than the company. Except as set forth herein, the company's products are deliv- ered without warranty of any kind, whether express or implied, including any warranty of merchantability and any warranty that the company's products are fit for any partic- ular purpose. In no event shall company be liable for actions of third parties which may affect the performance of its products or other factors outside company's control which may require installation of additional equipment or affect the performance of the products. THE EXTERNAL ANTENNAS USED FOR THIS MODULE MUST PROVIDE A SEPARATION DISTANCE OF AT LEAST 20 CM FROM ALL PERSONS AND MUST NOT BE CO-LOCATED OR OPERATING IN CONJUNCTION WITH ANY OTHER ANTENNA OR TRANSMITTER . WARNING: Unauthorized antennas, modifications, or attachments could impair call quality, damage the Module, or result in violation of FCC regulations. Do not use the Module with a damaged antenna. Please contact your local authorized dealer for an- tenna replacement. IMPORTANT! Read these safety guidelines prior to using your Module. Failure to follow these rules and guidelines may be dangerous and/or illegal. 2 TECHNICAL SUPPORT Technical support is available Monday through Friday 8:00 AM to 8:00 PM ET excluding hol- idays. Before calling technical support please ensure you have read the installation guide com- pletely. Technical support requires you to provide: • Login name •Password •Serial number of the unit These items are required in order to assist you. UPLINK Technical Support 1600 Parkwood Circle, Suite 500 Atlanta, GA 30339 888-9-Uplink Fax: 770-693-3501 For Customer Support, call 888-987-5465, or visit www.uplink.com 3 DESCRIPTION DigiCell AnyNET ® Network Access Modules are comprised of various radio modules support- ing multiple digital radio technologies. Supported technologies include GSM and CMDA. Supported services include SMS for either GSM or CDMA. Support is also provided for expansion to broadband wireless. In addition, a variant of this Module can be configured with an IP communications module providing 10/100 Ethernet connectivity. All modules feature an RS-232 serial port that can be used to program the unit and execute firmware flash upgrades in the field. The port also provides serial connectivity to auxiliary devices, including SCADA systems and alarm panels. This AnyNET Module is an always on multi-purpose FCC certified device capable of sending and receiving digital data over the GSM Network. The operating frequencies are in the 850 MHz and 1900 bands. The Module can be powered using a nominal 12 VDC supply and the transmitter is capable of operating as a Class 4 device (2 Watt output) on 850 MHz and a Class 1 device (1 Watt output) on 1900MHz. The unit typically comes with a dual band quarter-wave antenna with frequency bands of 850 MHz and 1900 MHz. The Module’s four discrete inputs are triggered by DC voltage signals. The pulse counter can be set to report on demand, or it can be set to report and reset. The pulse counter automatically reports when the counter overflows and the power input reports a low battery condition of less than 10.2 VDC. Numerex Network Operations Center Multi-mode/ Multi-path Network Access Module security monitoring mobile tracking environmental alarms vending intelligence asset management M2M Fixed and Mobile Applications M2M Customers Internet M2M Solution Partners Cellular Network 4 INSTALLATION STEPS 1.For new customers, establish an account with Uplink by visiting the www.uplink.com website and requesting a new account. 2.The AnyNE…

Text truncated - open the document above for the full version.

Cover Letter(s)

PICS Usage Authorization FCC USAGE AUTHORIZATION From Wavecom for Numerex Q24CL001 AUTHORIZATION Wavecom SA hereby authorises RFI Global Services Ltd on behalf of Numerex Inc to use Wavecom SA documents held on file for the Wavecom module FCC ID O9EQ24CL001, to support the application of Numerex FCC Listing TWW002557X." October 10, 2007 Signature Date Peter Cotterill Certification Manager Printed Name: Title page: 1 This confidential document is the property of Wavecom and may not be copied or circulated without permission

Cover Letter(s)

October 16, 2007 RFI Global Services Ltd. 10455 N Central Expressway Suite 109 Dallas, TX 75231 Request for Confidentiality Wavecom Inc FCC Certification To Whom It May Concern: In accordance with 0.459 of CFR 47, Wavecom SA hereby requests confidentiality of the following attachments used in support of Numerex FCC Application, ID TWW002557X, using integrated Wavecom module FCCID 09EQ24CL001: 1) Electrical Schematics of the Circuitry 2) Block Diagram 3) Operational description 4) Tuning Procedure 5) BoM Parts list These documents contain detailed system and equipment description and related information about the Wavecom Q24 product, which Wavecom considers to be proprietary, confidential, and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Wavecom considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. This information is NOT to be shared with the customer, Numerex; it is solely provided for FCC filing purposes of the AnyNet product and should be filed under confidentiality with the FCC. Sincerely, Name: Peter Cotterill Title: Certification/Qualification Manager Company: Wavecom

ID Label/Location Info

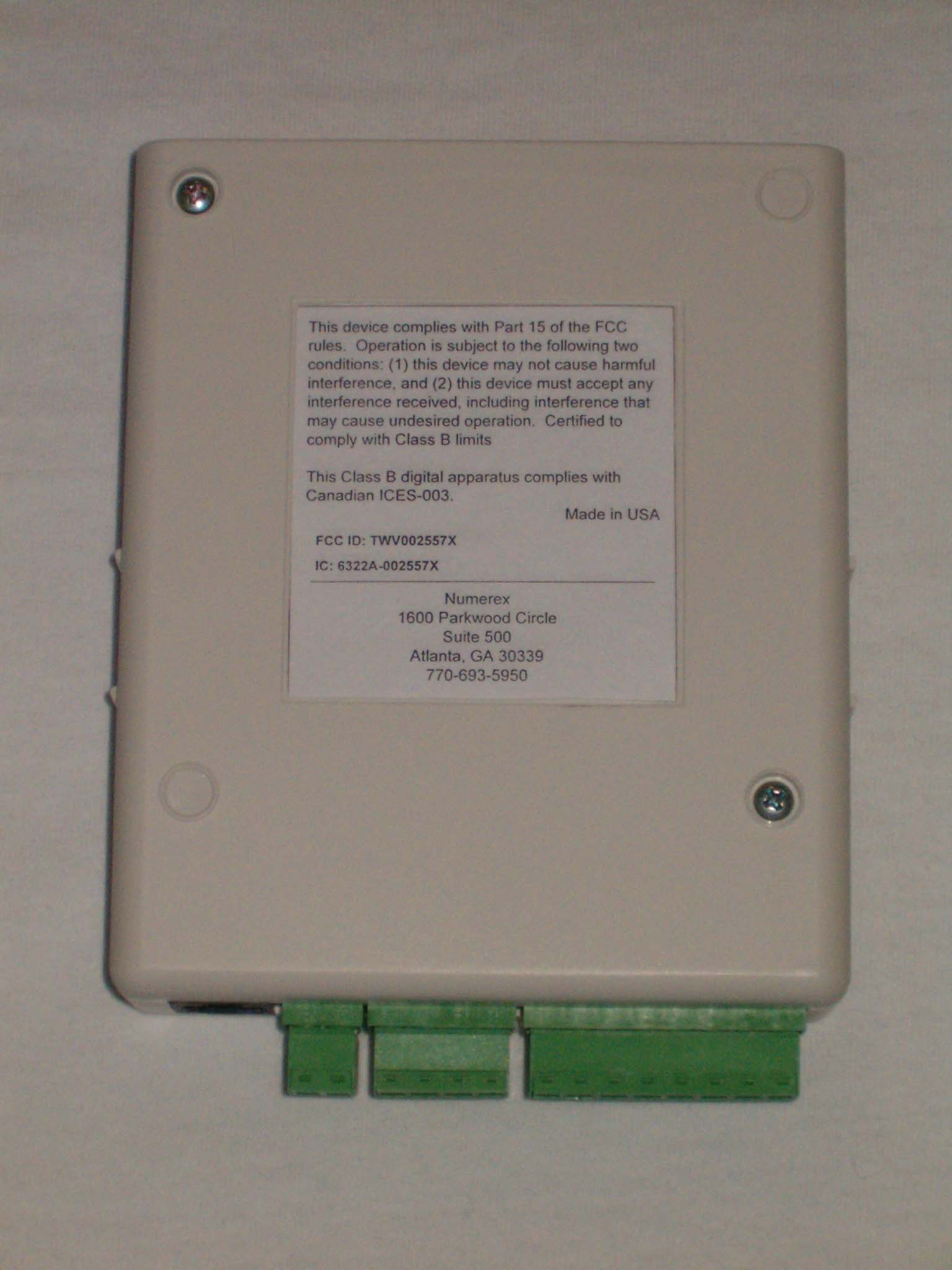

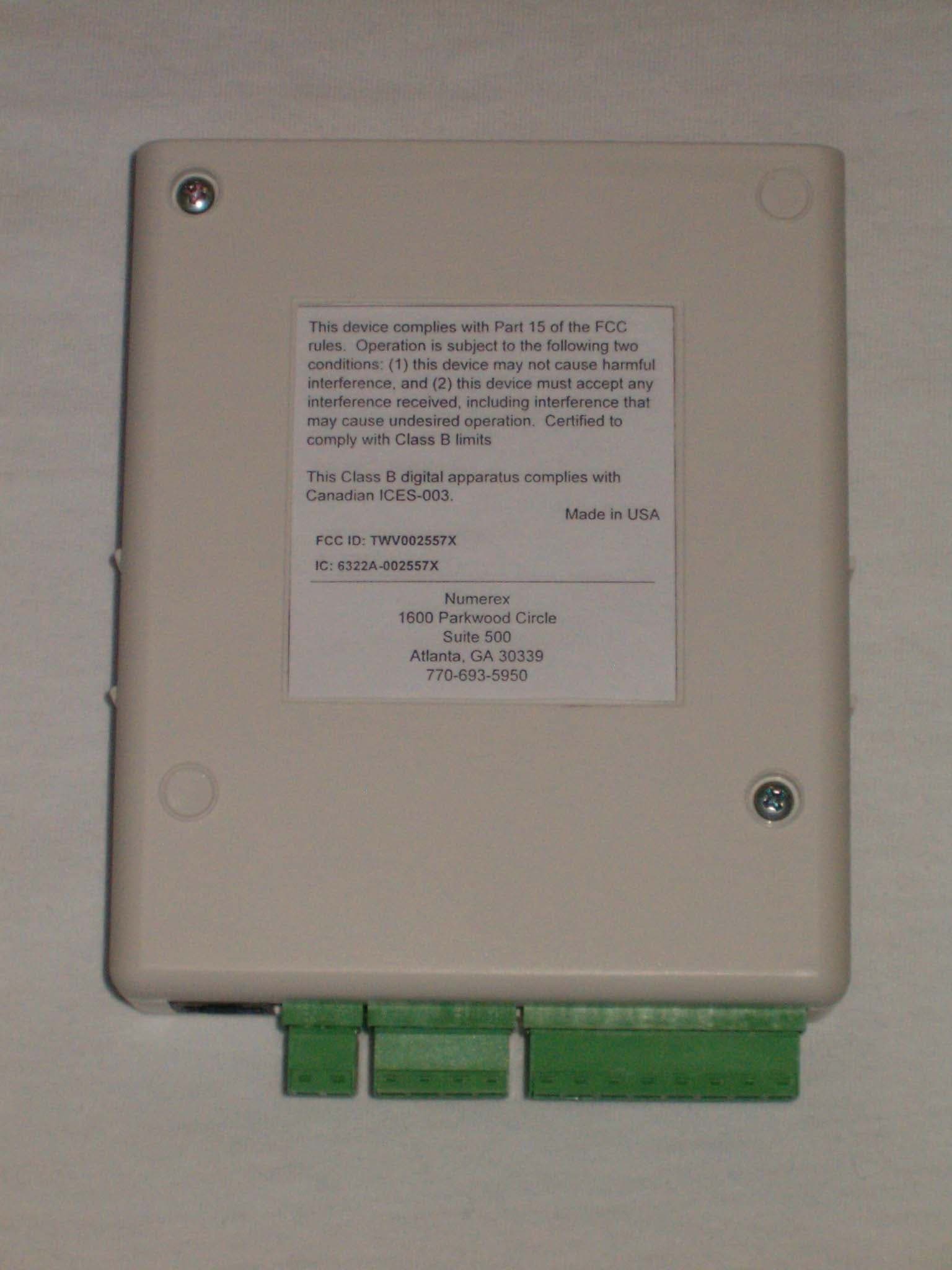

00-25594-010 B Rev A AnyNET Classic July 12, 2007 Sheet 1 of 1 Size Label, Unit Bottom B ACDE 1234 1234 B ACDE General Notes 1 - All measurements are +/- 0.010 inches Rev A Date 7/12/07 ECO 087 Reason Initial Release Eng NP Revision History 2.30 Notes:1. Print to scale on cl ear mylar with mat finish 2. Black Ink with protective coating 3. Type Font - Arial4. Do not print border Scale: 2:1 2.42 This device complies with Part 15 of the FCCrules. Operation is subj ect to the following two conditions: (1) this device may not cause harmful interference, and (2) this de vice must accept any interference received, in cluding interference that may cause undesired operation. Certified tocomply with Class B limitsThis Class B digital apparatus complies withCanadian ICES-003. Made in USA Numerex 1600 Parkwood Circle Suite 500 Atlanta, GA 30339 770-693-5950 FCC ID: TWV002557XIC: 6322A-002557X If order is sent to Japan, please make label to read, “Made in Japan.” B 8/2/07 089 Modify FCC, IC ID #s NP
