TX2-RTL8852CE11ax RTL8852CE Combo module

RTL8852CE User’s Manual (REALTEK RTL8852CE) 802.11ax RTL8852CE Combo module Preliminary Version 2021/12/16 Realtek Semiconductor Corp. No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Tel.: +886-3-578-0211. Fax: +886-3-577-6047 www.realtek.com RTL8852CE User’s Manual CONTENT ENVIRONMENTAL .......................................................................................................................... 3 OPERATING ............................................................................................................................................ 3 STORAGE ................................................................................................................................................ 3 MTBF CACULATION .............................................................................................................................. 3 WARNING .......................................................................................................................................... 4 Japan Statement ........................................................................................... 12 CE/UK Statement ......................................................................................... 12 RTL8852CE User’s Manual ENVIRONMENTAL Operating Operating Temperature: -20°C to +70 °C Relative Humidity: 5-90% (non-condensing) Storage Temperature: -40°C to +80°C (non-operating) Relevant Humidity: 5-95% (non-condensing) MTBF caculation Over 150,000hours RTL8852CE User’s Manual Warning Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device and its antenna(s) must not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. Referring to the multi-transmitter policy, multiple-transmitter(s) and module(s) can be operated simultaneously without C2PC. RTL8852CE User’s Manual Operations in the 5.15-5.25GHz band are restricted to indoor usage only. FCC regulations restrict the frequency 5850-5895MHz operation of this device to indoor use only. The operation of this device is prohibited on oil platforms, cars, trains, boats, and aircraft, except that operation of this device is permitted in large aircraft while flying above 10,000 feet. This device meets all the other requirements specified in Part 15E, Section 15.407 of the FCC Rules. § 15.407(d)(2) Operation of transmitters in the 5.925-7.125 GHz band is prohibited for control of or communications with unmanned aircraft systems. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This module is intended for OEM integrators only. Per FCC KDB 996369 D03 OEM Manual v01 guidance, the following conditions must be strictly followed when using this certified module: KDB 996369 D03 OEM Manual v01 rule sections: 2.2 List of applicable FCC rules This module has been tested for compliance to FCC Part 15 2.3 Summarize the specific operational use conditions The module is tested for standalone mobile RF exposure use condition. Any other usage conditions such as co-location with other transmitter(s) or being used in a portable condition will need a separate reassessment through a class II permissive change application or new certification. 2.4 Limited module procedures Not applicable. 2.5 Trace antenna designs Not applicable. RTL8852CE User’s Manual 2.6 RF exposure considerations This equipment complies with FCC mobile radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body. If the module is installed in a portable host, a separate SAR evaluation is required to confirm compliance with relevant FCC portable RF exposure rules. 2.7 Antennas The following antennas have been certified for use with this module; antennas of the same type with equal or lower gain may also be used with this module. The antenna must be installed such that 20 cm can be maintained between the antenna and users. Ant. Brand Model Name Antenna Type Gain (dBi) WLAN 2.4GHz WLAN 5GHz / 6GHz Bluetooth 1 ARISTOTLE RFA-27-JP378-4B-200 Monopole 3.38 4.86 3.38 2 ARISTOTLE RFA-27-JP326-MHF4300 PIFA 3.50 5.00 3.50 3 ARISTOTLE RFA-27-C38H1-MHF4300 Dipole 3.00 5.00 3.00 4 ARISTOTLE RFA-57-JP697-4B-300 Monopole - -5.00…

Text truncated - open the document above for the full version.

Realtek Semiconductor Corp. No. 2,Innovation Road II, Hsinchu Science Park, Hsinchu 300,Taiwan Professional Installation Declaration Date: 2022/6/7 FCC ID：TX2-RTL8852CE To Whom It May Concern: Please be advised that due to the unique Market and function targeted by this product, this product will need special trained professional in configuring and installing the product. We hereby declare that the product will be distributed through controlled distribution channel which has special trained professional to install this product and will not be sold directly to the general public through retail store. Respectfully, Applicant’s company name : Realtek Semiconductor Corp. Applicant’s company address : No. 2,Innovation Road II, Hsinchu Science Park, Hsinchu 300,Taiwan Signature : Name and Job Title : Dana Liaw / Project Manager E-Mail : danaliaw @realtek.com Tel : 03-5780211#13164 Fax : 03-5776598

Realtek Semiconductor Corp. No. 2,Innovation Road II, Hsinchu Science Park, Hsinchu 300,Taiwan Power of Attorney Date: 2022/6/7 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Hsinchu Laboratory Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. FCC ID: TX2-RTL8852CE Respectfully, Applicant’s company name : Realtek Semiconductor Corp. Applicant’s company address : No. 2,Innovation Road II, Hsinchu Science Park, Hsinchu 300,Taiwan Signature : Name and Job Title : Dana Liaw / Project Manager E-Mail : [email protected] Tel : 03-5780211#13164 Fax : 03-5776598

Module Approval Request Letter Date: 2022/7/18 Subject: Module Approval FCC ID: TX2‐RTL8852CE To Whom It May Concern: We, Sporton International Inc. Hsinchu Laboratory, are authorized by Realtek Semiconductor Corp. to have their state‐of‐the‐art device approved under module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in CFR47 Part 15.212 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip RTL8852CE. 3. The requirement of power supply regulation: The power regulator has been integrated in chip RTL8852CE. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand‐alone test configuration: Please reference exhibition Test Configuration Photo for the stand‐alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Hsinchu Laboratory Company Address : No.8, Ln. 724, Bo’ai St., Zhubei City, Hsinchu County 302010, Taiwan (R.O.C.) Signature : Name : Leo Huang Job Title : Manager

Realtek Semiconductor Corp. No. 2,Innovation Road II, Hsinchu Science Park, Hsinchu 300,Taiwan Confidential Letter Date: 2022/7/20 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID：TX2-RTL8852CE To Whom It May Concern: Long Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request confidential treatment of information accompanying this application as outlined below: ● Block Diagrams ● Schematics ● Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We understand that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Short Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request short-term confidential treatment of information accompanying this application as outlined below until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: ● External Photos ● Internal Photos ● Test Setup photos ● Users Manuals Respectfully, Applicant’s company name : Realtek Semiconductor Corp. Applicant’s company address : No. 2,Innovation Road II, Hsinchu Science Park, Hsinchu 300,Taiwan Signature : Name and Job Title : Dana Liaw / Project Manager E-Mail : [email protected] Tel : 03-5780211#13164 Fax : 03-5776598

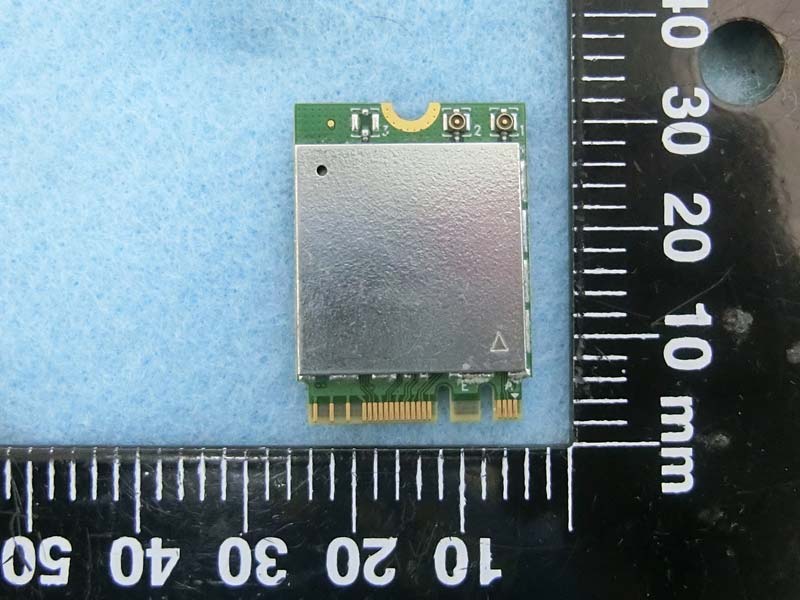

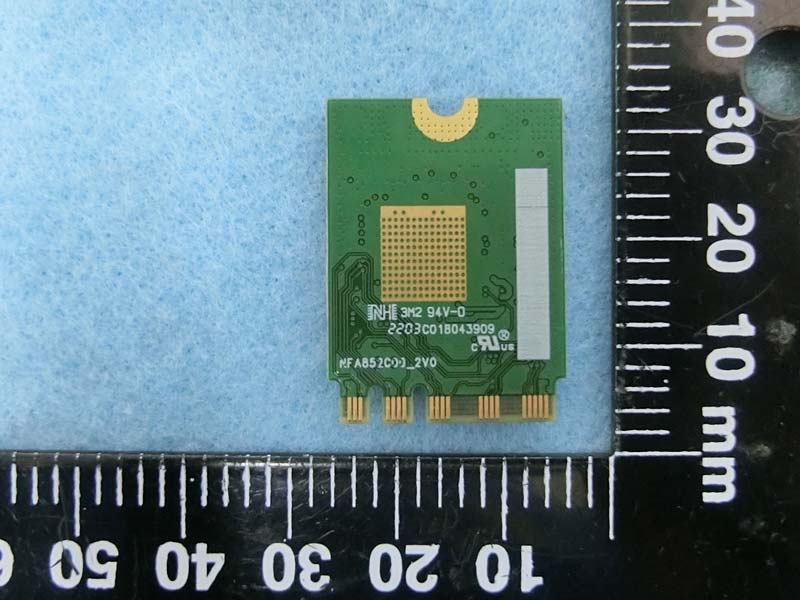

PHOTOGRAPHS OF EUT Report No. : EP1N0223 Sporton International Inc. Hsinchu Laboratory Page Number : 1 of 8 TEL : 886-3-656-9065 Issued Date : Jun. 02, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP Brand Name: REALTEK Model Name: RTL8852CE PHOTOGRAPHS OF EUT Report No. : EP1N0223 Sporton International Inc. Hsinchu Laboratory Page Number : 2 of 8 TEL : 886-3-656-9065 Issued Date : Jun. 02, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP1N0223 Sporton International Inc. Hsinchu Laboratory Page Number : 3 of 8 TEL : 886-3-656-9065 Issued Date : Jun. 02, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP1N0223 Sporton International Inc. Hsinchu Laboratory Page Number : 4 of 8 TEL : 886-3-656-9065 Issued Date : Jun. 02, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP Port 2 Port 1 Ant. 1 PHOTOGRAPHS OF EUT Report No. : EP1N0223 Sporton International Inc. Hsinchu Laboratory Page Number : 5 of 8 TEL : 886-3-656-9065 Issued Date : Jun. 02, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP1N0223 Sporton International Inc. Hsinchu Laboratory Page Number : 6 of 8 TEL : 886-3-656-9065 Issued Date : Jun. 02, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP Ant. 2 PHOTOGRAPHS OF EUT Report No. : EP1N0223 Sporton International Inc. Hsinchu Laboratory Page Number : 7 of 8 TEL : 886-3-656-9065 Issued Date : Jun. 02, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP Ant. 3 PHOTOGRAPHS OF EUT Report No. : EP1N0223 Sporton International Inc. Hsinchu Laboratory Page Number : 8 of 8 TEL : 886-3-656-9065 Issued Date : Jun. 02, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP

Label location For FCC：

PHOTOGRAPHS OF EUT Report No. : EP1N0223 Sporton International Inc. Hsinchu Laboratory Page Number : 1 of 2 TEL : 886-3-656-9065 Issued Date : Jun. 02, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP Brand Name: REALTEK Model Name: RTL8852CE PHOTOGRAPHS OF EUT Report No. : EP1N0223 Sporton International Inc. Hsinchu Laboratory Page Number : 2 of 2 TEL : 886-3-656-9065 Issued Date : Jun. 02, 2022 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP

RADIO EXPOSURE TEST REPORT Report No. : FA1N0223 TEL : 886-3-656-9065 Page Number : 2 of 14 FAX : 886-3-656-9085 Issued Date : Nov. 28, 2022 Report Template No.: CB-A1_1 Ver1.1 Report Version : 05 Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result................................................................................................................................... 4 1 General Description ............................................................................................................................. 5 1.1 EUT General Information ....................................................................................................................... 5 1.2 Antenna Information ............................................................................................................................... 6 1.3 Accessories ............................................................................................................................................ 9 1.4 Testing Location ..................................................................................................................................... 9 2 Maximum Permissible Exposure ...................................................................................................... 10 2.1 Limit of Maximum Permissible Exposure ............................................................................................. 10 2.2 MPE Calculation Method ...................................................................................................................... 10 2.3 MPE Exemption .................................................................................................................................... 11 2.4 Calculated Result and Limit .................................................................................................................. 12 Photographs of EUT v01 RADIO EXPOSURE TEST REPORT Report No. : FA1N0223 TEL : 886-3-656-9065 Page Number : 3 of 14 FAX : 886-3-656-9085 Issued Date : Nov. 28, 2022 Report Template No.: CB-A1_1 Ver1.1 Report Version : 05 History of this test report Report No. Version Description Issued Date FA1N0223 01 Initial issue of report Jul. 18, 2022 FA1N0223 02 Revising the information on section 2.2 and 2.4. Jul. 29, 2022 FA1N0223 03 Revising the Laboratory address. Sep. 07, 2022 FA1N0223 04 Revising Antenna Information Nov. 07, 2022 FA1N0223 05 Revising the information on section 2.2 and 2.4. Nov. 28, 2022 RADIO EXPOSURE TEST REPORT Report No. : FA1N0223 TEL : 886-3-656-9065 Page Number : 4 of 14 FAX : 886-3-656-9085 Issued Date : Nov. 28, 2022 Report Template No.: CB-A1_1 Ver1.1 Report Version : 05 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 2 - Exposure evaluation PA SS - Declaration of Conformity: 1. The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. It’s means measurement values may risk exceeding the limit of regulation standards, if measurement uncertainty is include in test results. 2. The measurement uncertainty please refer to report ”Measurement Uncertainty”. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Reviewed by: Sam Chen Report Producer: Sandy Chuang RADIO EXPOSURE TEST REPORT Report No. : FA1N0223 TEL : 886-3-656-9065 Page Number : 5 of 14 FAX : 886-3-656-9085 Issued Date : Nov. 28, 2022 Report Template No.: CB-A1_1 Ver1.1 Report Version : 05 1 General Description 1.1 EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type 2.4GHz WLAN 2400-2483.5 2412-2472 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) VHRT: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 5GHz WLAN 5150-5250 5250-5350 5470-5725 5725-5850 5725-5895 5180-5250 5250-5320 5500-5720 5745-5825 5815-5885 802.11a/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ac: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 6GHz WLAN 5925-7125 5955-7115 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) Bluetooth 2400-2483.5 2402-2480 BR / EDR: FHSS (GFSK / π/4-DQPSK / 8DPSK) LE: GFSK RADIO EXPOSURE TEST REPORT Report No. : FA1N0223 TEL : 886-3-656-9065 Page Number : 6 of 14 FAX : 886-3-656-9085 Issued Date : Nov. 28, 2022 Report Template No.: CB-A1_1 Ver1.1 Report Version : 05 1.2 Antenna Information Ant. Port Brand Model Name Antenna Type Connector Gain (dBi) WLAN 2.4GHz WLAN 5GHz / 6GHz Bluetooth 1 1/2 1/2 1 ARISTOTLE RFA-27-JP378-4B-200 Monopole I-PEX Note 1 2 1/2 1/2 1 ARISTOTLE RFA-27-JP326-MHF4300 PIFA I-PEX 3 1/2 1/2 1 ARISTOTLE RFA-27-C38H1-MHF4300 Dipole I-PEX 4 - 1/2 - ARISTOTLE RFA-57-JP697-4B-300 Monopole I-PEX Note 1 Ant. Port Gain (dBi) WLAN 2.4GHz WLAN 5GHz / 6GHz Bluetooth WLAN 2.4GHz WLAN 5GHz / 6GHz Bluetooth 1 1/2 1/2 1 3.38 4.86 3.38 2 1/2 1/2 1 3.50 5.00 3.50 3 1/2 1/2 1 3.00 5.00 3.00 4 - 1/2 - - -5 - Note 2: The above information was declared by manufacturer. Note 3: For Conducted measurement Test: Only the highest gain antenna “Ant. 2” was selected to perform the test and recorded in this report. <For WLAN 2.4GHz function> For IEEE 802.11b/g/n/VHT/ax (1TX/2RX): For Conducted: The EUT supports the antenna with TX diversity functions. Both Port 1 and Port 2 support transmit and receive functions, but only one of them will be used at one time. The Port 1 generated the worst case, so it was selected to test and record in the report. Port 1 and Port 2 could receive simultaneously For Radiated: The…

Text truncated - open the document above for the full version.

8F, No.63, Juguang Rd, Zhonghe Dist, New Taipei City 235, Taiwan, R.O.C. Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Antenna type is Dipole Wi‐Fi 6 Antenna RFA‐27‐C38H1‐MHF4300 Specifications Frequency 2400‐2500 MHz 5150‐7125 MHz Peak gain 3 dBi 5 dBi Average gain 0.7 dBi 0 dBi VSWR 2.0 : 1 Max. 2.0 : 1 Max. Polarization Linear, vertical Impedance 50 Ω Connector IPEX MHF4 Cable Ø1.13 L:300mm Environment & Mechanical Characteristics Temperature ‐ 10°C to +55°C Humidity 95％ @ 25°C VSWR Revise6 8F, No.63, Juguang Rd, Zhonghe Dist, New Taipei City 235, Taiwan, R.O.C. Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw ZX YZ XY Radiation Pattern 8F, No.63, Juguang Rd, Zhonghe Dist, New Taipei City 235, Taiwan, R.O.C. Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Gain Table

8F, No.63, Juguang Rd, Zhonghe Dist, New Taipei City 235, Taiwan, R.O.C. Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Antenna type is PIFA Wi‐Fi 6 Antenna RFA‐27‐JP326‐MHF4300 Specifications Frequency 2400‐2500 MHz 5150‐7125 MHz Peak gain 3.5 dBi 5 dBi Average gain ‐2.04 dBi ‐2.4 dBi VSWR 2.0 : 1 Max. 2.0 : 1 Max. Polarization Linear, vertical Impedance 50 Ω Dimensions 30.2x16mm Antenna Material FR4 Connector IPEX MHF4 Cable Ø1.13 L:300mm Environment & Mechanical Characteristics Temperature ‐ 10°C to +55°C Humidity 95％ @ 25°C VSWR Revise4 8F, No.63, Juguang Rd, Zhonghe Dist, New Taipei City 235, Taiwan, R.O.C. Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Radiation Pattern 2400 MHz 2450 MHz 2500 MHz XY Plane (+X = 0¢X, +Y = +90¢X) / Elevation = 90 ¢X 0  90   180  -90  -25 dB -15 dB -5 dB 5 dB YZ Plane (+Z = 0¢X, +Y = +90¢X) / Azimuth = 90 ¢X 0  90   180  -90  -25 dB -15 dB -5 dB 5 dB ZX Plane (+Z = 0¢X, +X = +90¢X) / Azimuth = 0 ¢X 0  90   180  -90  -25 dB -15 dB -5 dB 5 dB 8F, No.63, Juguang Rd, Zhonghe Dist, New Taipei City 235, Taiwan, R.O.C. Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Radiation Pattern 5150 MHz 5210 MHz 5290 MHz 5350 MHz 5475 MHz 5530 MHz 5600 MHz 5610 MHz 5690 MHz 5725 MHz 5750 MHz 5765 MHz 5825 MHz 5875 MHz XY Plane (+X = 0¢X, +Y = +90¢X) / Elevation = 90 ¢X 0  90   180  -90  -25 dB -15 dB -5 dB 5 dB YZ Plane (+Z = 0¢X, +Y = +90¢X) / Azimuth = 90 ¢X 0  90   180  -90  -25 dB -15 dB -5 dB 5 dB ZX Plane (+Z = 0¢X, +X = +90¢X) / Azimuth = 0 ¢X 0  90   180  -90  -25 dB -15 dB -5 dB 5 dB 8F, No.63, Juguang Rd, Zhonghe Dist, New Taipei City 235, Taiwan, R.O.C. Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Radiation Pattern 6000 MHz 6055 MHz 6135 MHz 6215 MHz 6295 MHz 6375 MHz 6455 MHz 6535 MHz 6615 MHz 6695 MHz 6775 MHz 6855 MHz 6935 MHz 7015 MHz 7075 MHz XY Plane (+X = 0¢X, +Y = +90¢X) / Elevation = 90 ¢X 0  90   180  -90  -25 dB -15 dB -5 dB 5 dB YZ Plane (+Z = 0¢X, +Y = +90¢X) / Azimuth = 90 ¢X 0  90   180  -90  -25 dB -15 dB -5 dB 5 dB ZX Plane (+Z = 0¢X, +X = +90¢X) / Azimuth = 0 ¢X 0  90   180  -90  -25 dB -15 dB -5 dB 5 dB 8F, No.63, Juguang Rd, Zhonghe Dist, New Taipei City 235, Taiwan, R.O.C. Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Gain Table

8F, No.63, Juguang Rd, Zhonghe Dist, New Taipei City 235, Taiwan, R.O.C. Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Antenna type is Monopole Wi‐Fi 6E Antenna RFA‐27‐JP378‐4B‐200 Specifications Frequency 2400‐2500 MHz 5150‐7125 MHz Peak gain 3.38 dBi 4.86 dBi Average gain ‐1.18 dBi ‐1.46 dBi VSWR 2.0 : 1 Max. 2.0 : 1 Max. Polarization Linear, vertical Impedance 50 Ω Dimensions 32x20mm Antenna Material FR4 Connector IPEX MHF4 Cable Ø1.13 L:200mm Environment & Mechanical Characteristics Temperature ‐ 10°C to +55°C Humidity 95％ @ 25°C VSWR 8F, No.63, Juguang Rd, Zhonghe Dist, New Taipei City 235, Taiwan, R.O.C. Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Radiation Pattern 2400 MHz 2450 MHz 2500 MHz XY Plane (+X = 0¢X, +Y = +90¢X) / Elevation = 90 ¢X 0  90   180  -90  -25 dB -15 dB -5 dB 5 dB YZ Plane (+Z = 0¢X, +Y = +90¢X) / Azimuth = 90 ¢X 0  90   180  -90  -25 dB -15 dB -5 dB 5 dB ZX Plane (+Z = 0¢X, +X = +90¢X) / Azimuth = 0 ¢X 0  90   180  -90  -25 dB -15 dB -5 dB 5 dB 8F, No.63, Juguang Rd, Zhonghe Dist, New Taipei City 235, Taiwan, R.O.C. Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Radiation Pattern 5150 MHz 5210 MHz 5290 MHz 5350 MHz 5475 MHz 5530 MHz 5600 MHz 5610 MHz 5690 MHz 5725 MHz 5750 MHz 5765 MHz 5825 MHz 5875 MHz 5975 MHz XY Plane (+X = 0¢X, +Y = +90¢X) / Elevation = 90 ¢X 0  90   180  -90  -25 dB -15 dB -5 dB 5 dB YZ Plane (+Z = 0¢X, +Y = +90¢X) / Azimuth = 90 ¢X 0  90   180  -90  -25 dB -15 dB -5 dB 5 dB ZX Plane (+Z = 0¢X, +X = +90¢X) / Azimuth = 0 ¢X 0  90   180  -90  -25 dB -15 dB -5 dB 5 dB 8F, No.63, Juguang Rd, Zhonghe Dist, New Taipei City 235, Taiwan, R.O.C. Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Radiation Pattern 6000 MHz 6055 MHz 6135 MHz 6215 MHz 6295 MHz 6375 MHz 6455 MHz 6535 MHz XY Plane (+X = 0¢X, +Y = +90¢X) / Elevation = 90 ¢X 0  90   180  -90  -25 dB -15 dB -5 dB 5 dB YZ Plane (+Z = 0¢X, +Y = +90¢X) / Azimuth = 90 ¢X 0  90   180  -90  -25 dB -15 dB -5 dB 5 dB ZX Plane (+Z = 0¢X, +X = +90¢X) / Azimuth = 0 ¢X 0  90   180  -90  -25 dB -15 dB -5 dB 5 dB 8F, No.63, Juguang Rd, Zhonghe Dist, New Taipei City 235, Taiwan, R.O.C. Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Radiation Pattern 6615 MHz 6695 MHz 6775 MHz 6855 MHz 6935 MHz 7015 MHz 7075 MHz 7125 MHz XY Plane (+X = 0¢X, +Y = +90¢X) / Elevation = 90 ¢X 0  90   180  -90  -25 dB -15 dB -5 dB 5 dB YZ Plane (+Z = 0¢X, +Y = +90¢X) / Azimuth = 90 ¢X 0  90   180  -90  -25 dB -15 dB -5 dB 5 dB ZX Plane (+Z = 0¢X, +X = +90¢X) / Azimuth = 0 ¢X 0  90   180  -90  -25 dB -15 dB -5 dB 5 dB 8F, No.63, Juguang Rd, Zhonghe Dist, New Taipei City 235, Taiwan, R.O.C. Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Gain Table 2400.003.35 2450.003.26 2500.003.38 Frequency (MHz) Peak Gain 5150.004.70 5210.004.73 5290.004.81 5350.004.71 5475.004.46 5530.004.34 5600.004.56 5610.004.62 5690.004.17 5725.004.78 5750.004.17 5765.004.30 5825.004.57 5875.004.36 5975.004.53 6000.004.84 6055.004.75 6135.004.69 6215.004.54 6295.004.63 6375.004.77 6455.004.78 6535.004.67 6615.004.60 6695.004.43 6775.004.58 6855.004.86 6935.004.57 7015.004.84 7075.004.71 7125.004.58 Frequency (MHz) Peak Gain

8F , No.63, Juguang Rd, Zhonghe Dist, New Taipei City 235, Taiwan, R.O.C. Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Antenna type : monopole RFA‐57‐JP697‐4B‐300 Specifications Frequency 5150‐5895 MHz 5925‐7125 MHz Peak gain ‐5 dBi ‐5 dBi VSWR 2.0 : 1 Max. 2.0 : 1 Max. Polarization Linear, vertical Impedance 50 Ω Dimensions 38x24.5mm Antenna Material FR4 Connector IPEX MHF4 Cable Ø1.13 L:300mm Environment & Mechanical Characteristics Temperature ‐ 10°C to +55°C Humidity 95％ @ 25°C VSWR 8F, No.63, Juguang Rd, Zhonghe Dist, New Taipei City 235, Taiwan, R.O.C. Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Radiation Pattern 8F, No.63, Juguang Rd, Zhonghe Dist, New Taipei City 235, Taiwan, R.O.C. Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Radiation Pattern 8F, No.63, Juguang Rd, Zhonghe Dist, New Taipei City 235, Taiwan, R.O.C. Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Frequency (MHz) Peak Gain 5150.00 -5.64 5250.00 -5.66 5350.00 -5.67 5470.00 -5.39 5600.00 -5.41 5725.00 -5.00 5785.00 -5.45 5850.00 -5.42 5925.00 -5.00 6000.00 -4.93 6125.00 -4.91 6225.00 -4.51 6325.00 -3.74 6425.00 -4.36 6525.00 -3.77 6625.00 -3.36 6725.00 -3.20 6875.00 -3.96 6925.00 -3.59 7000.00 -3.64 7125.00 -4.30 Gain Table

RADIO TEST REPORT Report No. : FR1N0223AC TEL : 886-3-656-9065 Page Number : 2 of 33 FAX : 886-3-656-9085 Issued Date : Nov. 07, 2022 Report Template No.: CB-A10_5 Ver1.3 Report Version : 04 Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result ................................................................................................................................... 4 1 General Description ............................................................................................................................. 5 1.1 Information .............................................................................................................................................. 5 1.2 Applicable Standards ........................................................................................................................... 10 1.3 Testing Location Information ................................................................................................................ 10 1.4 Measurement Uncertainty .................................................................................................................... 11 2 Test Configuration of EUT ................................................................................................................. 12 2.1 Test Channel Mode .............................................................................................................................. 12 2.2 The Worst Case Measurement Configuration ...................................................................................... 13 2.3 EUT Operation during Test .................................................................................................................. 15 2.4 Accessories .......................................................................................................................................... 15 2.5 Support Equipment ............................................................................................................................... 16 2.6 Test Setup Diagram ............................................................................................................................. 17 2.7 Transmi…
