TX2-RTL8922D11be RTL8922D M.2 1216 Combo module

Report No.: MFBBUI-WTW-P26020159 Page No. 1 / 13 Report Format Version: 7.1.0 Reference No.: BBUI-WTW-P26020159 RF EXPOSURE REPORT CERTIFICATE OF CONFORMITY FCC Rule Part: FCC Part 2 (Section 2.1091) Report No.: MFBBUI-WTW-P26020159 FCC ID: TX2-RTL8922D Product: 11be RTL8922D M.2 1216 Combo module Brand: REALTEK Model No.: RTL8922D Received Date: 2026/2/9 Test Date: 2026/6/23 Issued Date: 2026/7/27 Applicant: Realtek Semiconductor Corp. Address: No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan Test Location: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan FCC Registration / Designation Number: 723255 / TW2022 Approved by: , Date: 2026/7/27 May Chen / Manager This test report consists of 13 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. Prepared by: Vito Lung / Specialist This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our- business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Report No.: MFBBUI-WTW-P26020159 Page No. 2 / 13 Report Format Version: 7.1.0 Reference No.: BBUI-WTW-P26020159 Table of Contents Release Control Record ....................................................................................................................................................... 3 1 Certificate .................................................................................................................................................................... 4 2 Applicable RF Exposure Limit .................................................................................................................................. 5 3 Test Results ................................................................................................................................................................ 7 4 Conclusion ................................................................................................................................................................ 12 5 Information of the Testing Laboratories ................................................................................................................ 13 Report No.: MFBBUI-WTW-P26020159 Page No. 3 / 13 Report Format Version: 7.1.0 Reference No.: BBUI-WTW-P26020159 Release Control Record Issue No. Description Date Issued MFBBUI-WTW-P26020159 Original release. 2026/7/27 Report No.: MFBBUI-WTW-P26020159 Page No. 4 / 13 Report Format Version: 7.1.0 Reference No.: BBUI-WTW-P26020159 1 Certificate Product: 11be RTL8922D M.2 1216 Combo module Brand: REALTEK Test Model: RTL8922D Sample Status: Engineering sample Applicant: Realtek Semiconductor Corp. Test Date: 2026/6/23 FCC Rule Part: FCC Part 2 (Section 2.1091) Standard: KDB 447498 D04 Interim General RF Exposure Guidance v01 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s RF characteristics under the conditions specified in this report. Report No.: MFBBUI-WTW-P26020159 Page No. 5 / 13 Report Format Version: 7.1.0 Reference No.: BBUI-WTW-P26020159 2 Applicable RF Exposure Limit § 1.1310 Radiofrequency radiation exposure limits. (a) Specific absorption rate (SAR) shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in § 1.1307(b) of this part within the frequency range of 100 kHz to 6 GHz (inclusive). (b) The SAR limits for occupational/controlled exposure are 0.4 W/kg, as averaged over the whole body, and a peak spatial-average SAR of 8 W/kg, averaged over any 1 gram of tissue (defined as a tissue volume in the shape of a cube). Exceptions are the parts of the human body treated as extremities, such as hands, wrists, feet, ankles, and pinnae, where the peak spatial-average SAR limit for occupational/controlled exposure is 20 W/kg, average…

Text truncated - open the document above for the full version.

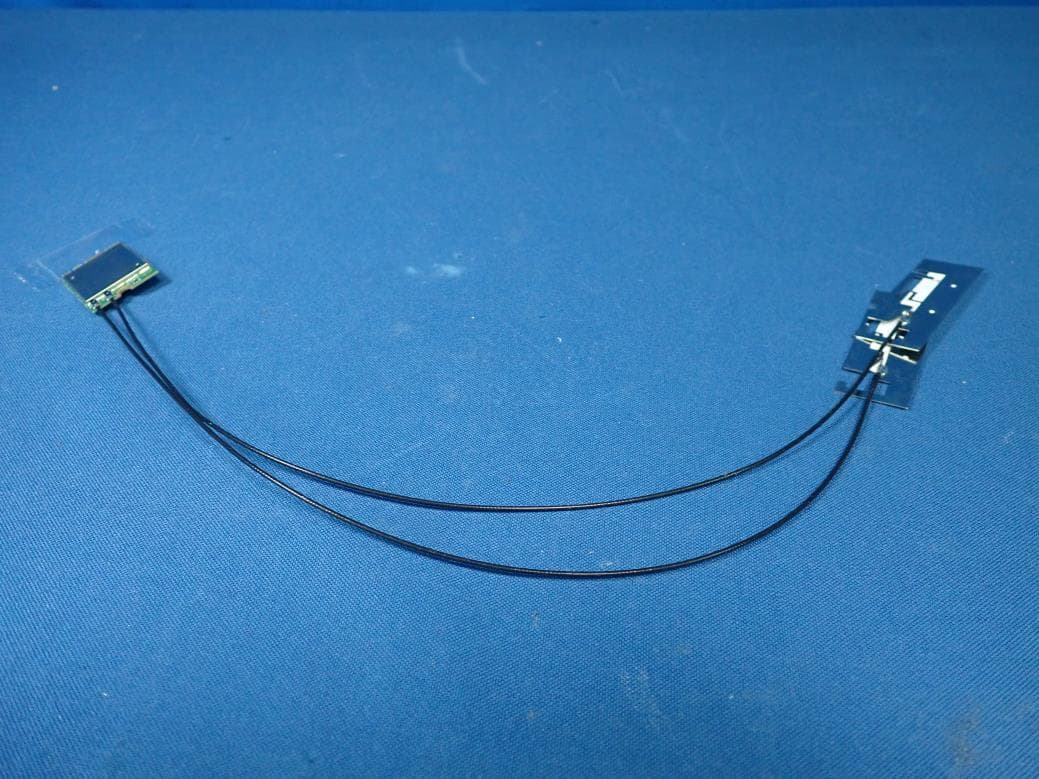

-1- Copyright © 2010Realtek Semiconductor Corp. www.realtek.com RTK-ANT-0022 PIFA measurement report Jeany Ling May 18, 2023 •Report History -2- Copyright © 2010Realtek Semiconductor Corp. www.realtek.com RTK-ANT-0022 PIFA measurement report Test ItemsTestDateTest Engineer S-Parametermeasurement2021.12.20Jeany Radiationpatterns measurement2022.01.27Jeany •Antenna Specifications -3- Copyright © 2010Realtek Semiconductor Corp. www.realtek.com RTK-ANT-0022 PIFA measurement report CategorySpecifications Frequency2400-2480MHz5150-7125MHz Peak gain3.4dBi5.0dBi AntennabrandREALTEK PartnumberRTK-ANT-0022 AntennatypePIFA PolarizationLinear Impedance50Ω Dimensions35 x 7 x 6 mm 3 ConnectorIPEX MHF4 Cable Ф1.37 L: 300mm •Equipment List -4- Copyright © 2010Realtek Semiconductor Corp. www.realtek.com RTK-ANT-0022 PIFA measurement report Equipment Description ManufacturerIdentification no. Current calibration date Next calibration date EMC AnalyzerAgilentE7405A2021/12/212023/12/20 SignalgeneratorAgilentE8257D2021/01/212023/01/20 Microwavesystem amplifier Keysight83017A2022/03/172023/03/16 PowersupplyKeysight87421AN/AN/A PositioncontrollerChanceMostCM100N/AN/A HornantennaETS-Lindgren3117N/AN/A •Test Software -5- Copyright © 2010Realtek Semiconductor Corp. www.realtek.com RTK-ANT-0022 PIFA measurement report DescriptionManufacturerIdentification no. MeasurementsoftwareREALTEKRadiation plotterv3.0 •Antenna Structure -6- Copyright © 2010Realtek Semiconductor Corp. www.realtek.com RTK-ANT-0022 PIFA measurement report Unit: mm 70 50 33 7 6 3D view Top view Front view Side view 35 RTK-ANT-0022 PIFA measurement report •Return Loss 234568 Frequency (GHz) 40 30 20 10 0 Return Loss ( dB ) 10-dB BW2.30 ~ 2.56 GHz5.01 ~ 7.85 GHz 7 •Test procedure –The AUT was placed upon a turn-table above a foam. –At each frequency, the AUT was rotated 360°. –Rotated AUT to each test plane (xy-plane, yz-plane and xz-plane). –Measurements were performed for both horizontal and vertical polarization. RTK-ANT-0022 PIFA measurement report Foam AUT Turn-table Horn antenna Shielded Anechoic Chamber Position controller Amplifier Spectrum Analyzer Antenna Mast Signal generator •Applicable test method –The individual antenna gain was measured as indicated in this report. –Here is a 2D radiation pattern measurement method. –The Horn antenna is first fixed for horizontal polarization. –The AUT will then be rotated 360 degree of phi rotation. –Capture measured data with 4-degree step angle from the Horn antenna. –The Horn antenna will then be changed for vertical polarization measurement, and the process repeated. –Change the AUT position to XY-plane, YZ-plane and XZ-plane placement. RTK-ANT-0022 PIFA measurement report •Test Setup Photo RTK-ANT-0022 PIFA measurement report Horn AUT Shielded anechoic chamber -z •Radiation Patterns –Frequency : 2400MHz, 2450MHz, 2480MHz, 5150MHz, 5250MHz, 5350MHz, 5470MHz, 5725MHz, 5850MHz, 5895MHz, 5925MHz, 6425MHz, 6525MHz, 6875MHz and 7125MHz –Test plane : xy-plane, xz-plane and yz-plane –Input power : SG 0dBm –Place: RTK 4F chamber –Horn h: horizontal polarization –Horn v: vertical polarization RTK-ANT-0022 PIFA measurement report y x SG AUT Horn -z xy-plane SG AUT Horn y xz-plane SG AUT Horn x yz-plane RTK-ANT-0022 PIFA measurement report horizontal Pol.Peakavg. h+2.5-1.6 Pol.peakavg. v-1.2-5.3 xy-plane yz-plane Pol.peakavg. v+1.9-1.4 Pol.peakavg. h+3.4-2.2 Pol.peakavg. v-2.0-7.2 Pol.peakavg. h+2.2-1.7 xz-plane •Radiation Patterns –2400 MHz vertical RTK-ANT-0022 PIFA measurement report horizontal Pol.Peakavg. h+3.0-2.9 Pol.peakavg. v-1.1-5.0 xy-plane yz-plane Pol.peakavg. v+1.5-1.6 Pol.peakavg. h+2.8-2.7 Pol.peakavg. v-1.3-7.0 Pol.peakavg. h+2.7-2.7 xz-plane •Radiation Patterns –2450 MHz vertical RTK-ANT-0022 PIFA measurement report horizontal Pol.Peakavg. h+3.1-3.7 Pol.peakavg. v-1.0-5.0 xy-plane yz-plane Pol.peakavg. v+1.1-1.4 Pol.peakavg. h+1.9-3.6 Pol.peakavg. v-1.3-6.9 Pol.peakavg. h+2.5-2.6 xz-plane •Radiation Patterns –2480 MHz vertical RTK-ANT-0022 PIFA measurement report horizontal Pol.Peakavg. h+1.5-3.2 Pol.peakavg. v-1.8-4.7 xy-plane yz-plane Pol.peakavg. v+0.7-4.2 Pol.peakavg. h+4.9-1.9 Pol.peakavg. v+3.5-1.9 Pol.peakavg. h+1.7-2.8 xz-plane •Radiation Patterns –5150 MHz vertical RTK-ANT-0022 PIFA measurement report horizontal Pol.Peakavg. h+1.2-3.1 Pol.peakavg. v-1.5-3.9 xy-plane yz-plane Pol.peakavg. v+1.1-4.5 Pol.peakavg. h+4.8-2.0 Pol.peakavg. v+3.5-1.9 Pol.peakavg. h+3.0-3.2 xz-plane •Radiation Patterns –5250 MHz vertical RTK-ANT-0022 PIFA measurement report horizontal Pol.Peakavg. h+2.1-2.6 Pol.peakavg. v-1.8-4.4 xy-plane yz-plane Pol.peakavg. v+0.4-4.4 Pol.peakavg. h+4.7-1.8 Pol.peakavg. v+3.5-2.0 Pol.peakavg. h+2.9-3.3 xz-plane •Radiation Patterns –5350 MHz vertical RTK-ANT-0022 PIFA measurement report horizontal Pol.Peakavg. h+0.9-3.5 Pol.peakavg. v-2.2-5.1 xy-plane yz-plane Pol.peakavg. v-0.6-5.4 Pol.peakavg. h+3.2-3.0 Pol.peakavg. v+2.3-3.4 Pol.peakavg. h+1.8-4.5 xz-plane •Radiation Patterns –5470 MHz vertical RTK-ANT-0022 PIFA measurement report horizontal Pol.Peakavg. h+1.2-3.4 Pol.peakavg. v-0.9-3.7 xy-plane yz-plane Pol.peakavg. v+1.9-2.8 Pol.peakavg. h+3.9-2.5 Pol.peakavg. v+4.8-1.0 Pol.peakavg. h+3.2-3.7 xz-plane •Radiation Patterns –5725 MHz vertical RTK-ANT-0022 PIFA measurement report horizontal Pol.Peakavg. h+0.9-3.1 Pol.peakavg. v-0.5-3.5 xy-plane yz-plane Pol.peakavg. v+1.8-2.7 Pol.peakavg. h+4.8-2.1 Pol.peakavg. v+5.0-0.7 Pol.peakavg. h+3.9-2.9 xz-plane •Radiation Patterns –5850 MHz vertical RTK-ANT-0022 PIFA measurement report horizontal Pol.Peakavg. h+1.3-2.8 Pol.peakavg. v-0.8-3.2 xy-plane yz-plane Pol.peakavg. v+1.6-2.7 Pol.peakavg. h+5.0-1.8 Pol.peakavg. v+4.9-1.2 Pol.peakavg. h+4.2-2.7 xz-plane •Radiation Patterns –5895 MHz vertical RTK-ANT-0022 PIFA measurement report horizontal Pol.Peakavg. h+1.2-3.2 Pol.peakavg. v-1.0-4.1 xy-plane yz-plane Pol.peakavg. v+0.8-3.0 Pol.peakavg. h+4.8-2.0 Pol.peakavg. v+4.9-0.8 Pol.peakavg. h+3.8-3.0 xz-plane •Radiation Patterns –59…

Text truncated - open the document above for the full version.

Report No.: RFBBUI-WTW-P26020159-9 Page No. 1 / 124 Report Format Version: 7.2.4 Reference No.: BBUI-WTW-P26020159 TEST REPORT CERTIFICATE OF CONFORMITY Standard: 47 CFR FCC Part 15, Subpart C (Section 15.247) 47 CFR FCC Part 15, Subpart E (Section 15.407) Report No.: RFBBUI-WTW-P26020159-9 FCC ID: TX2-RTL8922D Product: 11be RTL8922D M.2 1216 Combo module Brand: REALTEK Model No.: RTL8922D Received Date: 2026/2/9 Test Date: 2026/6/23 ~ 2026/7/23 Issued Date: 2026/7/29 Applicant: Realtek Semiconductor Corp. Address: No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan Test Location: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan FCC Registration / Designation Number: 723255 / TW2022 Approved by: , Date: 2026/7/29 Wen Yu / Assistant Manager This test report consists of 124 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. Prepared by: Vito Lung / Specialist This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our- business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Report No.: RFBBUI-WTW-P26020159-9 Page No. 2 / 124 Report Format Version: 7.2.4 Reference No.: BBUI-WTW-P26020159 Table of Contents Release Control Record ....................................................................................................................................................... 3 1 Certificate .................................................................................................................................................................... 4 2 Summary of Test Results .......................................................................................................................................... 5 2.1 Measurement Uncertainty ........................................................................................................................................ 5 2.2 Supplementary Information ...................................................................................................................................... 5 3 General Information ................................................................................................................................................... 6 3.1 General Description of EUT ..................................................................................................................................... 6 3.2 Antenna Description of EUT ..................................................................................................................................... 7 3.3 Test Mode Applicability and Tested Channel Detail .................................................................................................. 8 3.4 Test Program Used and Operation Descriptions .................................................................................................... 11 3.5 Connection Diagram of EUT and Peripheral Devices ............................................................................................ 11 3.6 Configuration of Peripheral Devices and Cable Connections ................................................................................ 12 4 Test Instruments ...................................................................................................................................................... 13 4.1 Unwanted Emissions below 1 GHz ........................................................................................................................ 13 4.2 Unwanted Emissions above 1 GHz ........................................................................................................................ 14 4.3 Conducted Out of Band Emissions ........................................................................................................................ 14 5 Limits of Test Items .................................................................................................................................................. 15 5.1 Unwanted Emissions below 1 GHz ....................................…

Text truncated - open the document above for the full version.

Report No.: RFBBUI-WTW-P26020159-3 Pa ge No. 1031 / 1152 Report Format Version: 7.2.1 Reference No.: BBUI-WTW-P26020159 Frequency Range 5.825 GHz ~ 7.3 GHz Detector Function & Bandwidth PK: RB=1 MHz, VB=3 MHz, DET=Peak AV: RB=1 MHz, VB=10 Hz, DET=Peak 802.11be (EHT160) 996+484-tone MRU Channel 15 Horizontal (Peak) Horizontal (Average) Vertical (Peak) Vertical (Average) Report No.: RFBBUI-WTW-P26020159-3 Page No. 1032 / 1152 Report Format Version: 7.2.1 Reference No.: BBUI-WTW-P26020159 802.11be (EHT160) 996+484-tone MRU Channel 207 Horizontal (Peak) Horizontal (Average) Vertical (Peak) Vertical (Average) Report No.: RFBBUI-WTW-P26020159-3 Page No. 1033 / 1152 Report Format Version: 7.2.1 Reference No.: BBUI-WTW-P26020159 Frequency Range 5.825 GHz ~ 7.3 GHz Detector Function & Bandwidth PK: RB=1 MHz, VB=3 MHz, DET=Peak AV: RB=1 MHz, VB=10 Hz, DET=Peak 802.11be (EHT160) 996+484+242-tone MRU Channel 15 Horizontal (Peak) Horizontal (Average) Vertical (Peak) Vertical (Average) Report No.: RFBBUI-WTW-P26020159-3 Page No. 1034 / 1152 Report Format Version: 7.2.1 Reference No.: BBUI-WTW-P26020159 802.11be (EHT160) 996+484+242-tone MRU Channel 207 Horizontal (Peak) Horizontal (Average) Vertical (Peak) Vertical (Average) Report No.: RFBBUI-WTW-P26020159-3 Page No. 1035 / 1152 Report Format Version: 7.2.1 Reference No.: BBUI-WTW-P26020159 Mode A Standard 1TSU_Plot of Band Edge Standard client Mode A (PIFA) 1Tx Frequency Range 5.825 GHz ~ 7.3 GHz Detector Function & Bandwidth PK: RB=1 MHz, VB=3 MHz, DET=Peak AV: RB=1 MHz, VB=10 Hz, DET=Peak 802.11a Channel 1 Horizontal (Peak) Horizontal (Average) Vertical (Peak) Vertical (Average) Report No.: RFBBUI-WTW-P26020159-3 Page No. 1036 / 1152 Report Format Version: 7.2.1 Reference No.: BBUI-WTW-P26020159 1Tx NSS1 Frequency Range 5.825 GHz ~ 7.3 GHz Detector Function & Bandwidth PK: RB=1 MHz, VB=3 MHz, DET=Peak AV: RB=1 MHz, VB=10 Hz, DET=Peak 802.11be (EHT20) Channel 1 Horizontal (Peak) Horizontal (Average) Vertical (Peak) Vertical (Average) Report No.: RFBBUI-WTW-P26020159-3 Page No. 1037 / 1152 Report Format Version: 7.2.1 Reference No.: BBUI-WTW-P26020159 Frequency Range 5.825 GHz ~ 7.3 GHz Detector Function & Bandwidth PK: RB=1 MHz, VB=3 MHz, DET=Peak AV: RB=1 MHz, VB=10 Hz, DET=Peak 802.11be (EHT40) Channel 3 Horizontal (Peak) Horizontal (Average) Vertical (Peak) Vertical (Average) Report No.: RFBBUI-WTW-P26020159-3 Page No. 1038 / 1152 Report Format Version: 7.2.1 Reference No.: BBUI-WTW-P26020159 Frequency Range 5.825 GHz ~ 7.3 GHz Detector Function & Bandwidth PK: RB=1 MHz, VB=3 MHz, DET=Peak AV: RB=1 MHz, VB=10 Hz, DET=Peak 802.11be (EHT80) Channel 7 Horizontal (Peak) Horizontal (Average) Vertical (Peak) Vertical (Average) Report No.: RFBBUI-WTW-P26020159-3 Page No. 1039 / 1152 Report Format Version: 7.2.1 Reference No.: BBUI-WTW-P26020159 Frequency Range 5.825 GHz ~ 7.3 GHz Detector Function & Bandwidth PK: RB=1 MHz, VB=3 MHz, DET=Peak AV: RB=1 MHz, VB=10 Hz, DET=Peak 802.11be (EHT160) Channel 15 Horizontal (Peak) Horizontal (Average) Vertical (Peak) Vertical (Average) Report No.: RFBBUI-WTW-P26020159-3 Page No. 1040 / 1152 Report Format Version: 7.2.1 Reference No.: BBUI-WTW-P26020159 Mode A Standard 1TRU,MRU_Plot of Band Edge Standard client Mode A (PIFA) 1Tx NSS1 (RU, MRU) Frequency Range 5.825 GHz ~ 7.3 GHz Detector Function & Bandwidth PK: RB=1 MHz, VB=3 MHz, DET=Peak AV: RB=1 MHz, VB=10 Hz, DET=Peak 802.11be (EHT20) 26-tone RU Channel 1 Horizontal (Peak) Horizontal (Average) Vertical (Peak) Vertical (Average) Report No.: RFBBUI-WTW-P26020159-3 Page No. 1041 / 1152 Report Format Version: 7.2.1 Reference No.: BBUI-WTW-P26020159 Frequency Range 5.825 GHz ~ 7.3 GHz Detector Function & Bandwidth PK: RB=1 MHz, VB=3 MHz, DET=Peak AV: RB=1 MHz, VB=10 Hz, DET=Peak 802.11be (EHT20) 52-tone RU Channel 1 Horizontal (Peak) Horizontal (Average) Vertical (Peak) Vertical (Average) Report No.: RFBBUI-WTW-P26020159-3 Page No. 1042 / 1152 Report Format Version: 7.2.1 Reference No.: BBUI-WTW-P26020159 Frequency Range 5.825 GHz ~ 7.3 GHz Detector Function & Bandwidth PK: RB=1 MHz, VB=3 MHz, DET=Peak AV: RB=1 MHz, VB=10 Hz, DET=Peak 802.11be (EHT20) 106-tone RU Channel 1 Horizontal (Peak) Horizontal (Average) Vertical (Peak) Vertical (Average) Report No.: RFBBUI-WTW-P26020159-3 Page No. 1043 / 1152 Report Format Version: 7.2.1 Reference No.: BBUI-WTW-P26020159 Frequency Range 5.825 GHz ~ 7.3 GHz Detector Function & Bandwidth PK: RB=1 MHz, VB=3 MHz, DET=Peak AV: RB=1 MHz, VB=10 Hz, DET=Peak 802.11be (EHT20) 52+26-tone MRU Channel 1 Horizontal (Peak) Horizontal (Average) Vertical (Peak) Vertical (Average) Report No.: RFBBUI-WTW-P26020159-3 Page No. 1044 / 1152 Report Format Version: 7.2.1 Reference No.: BBUI-WTW-P26020159 Frequency Range 5.825 GHz ~ 7.3 GHz Detector Function & Bandwidth PK: RB=1 MHz, VB=3 MHz, DET=Peak AV: RB=1 MHz, VB=10 Hz, DET=Peak 802.11be (EHT20) 106+26-tone MRU Channel 1 Horizontal (Peak) Horizontal (Average) Vertical (Peak) Vertical (Average) Report No.: RFBBUI-WTW-P26020159-3 Page No. 1045 / 1152 Report Format Version: 7.2.1 Reference No.: BBUI-WTW-P26020159 Frequency Range 5.825 GHz ~ 7.3 GHz Detector Function & Bandwidth PK: RB=1 MHz, VB=3 MHz, DET=Peak AV: RB=1 MHz, VB=10 Hz, DET=Peak 802.11be (EHT80) 484+242-tone MRU Channel 7 Horizontal (Peak) Horizontal (Average) Vertical (Peak) Vertical (Average) Report No.: RFBBUI-WTW-P26020159-3 Pa ge No. 1046 / 1152 Report Format Version: 7.2.1 Reference No.: BBUI-WTW-P26020159 Frequency Range 5.825 GHz ~ 7.3 GHz Detector Function & Bandwidth PK: RB=1 MHz, VB=3 MHz, DET=Peak AV: RB=1 MHz, VB=10 Hz, DET=Peak 802.11be (EHT160) 996+484-tone MRU Channel 15 Horizontal (Peak) Horizontal (Average) Vertical (Peak) Vertical (Average) Report No.: RFBBUI-WTW-P26020159-3 Page No. 1047 / 1152 Report Format Version: 7.2.1 Reference No.: BBUI-WTW-P26020159 Frequency Range 5.825 GHz ~ 7.3 GHz Detector Function & Bandwidth PK: RB=1 MHz, VB=3 MHz, DET=Peak AV: RB=1 MHz, VB=10 Hz, DET=Peak 802.11be (EHT160) 996+484…

Text truncated - open the document above for the full version.

Report No.: RFBBUI-WTW-P26020159-3 Page No. 653 / 1152 Report Format Version: 7.2.1 Reference No.: BBUI-WTW-P26020159 RF Mode 802.11a Channel CH 93 ：6415 MHz Frequency Range 1 GHz ~ 40 GHz Detector Function & Bandwidth PK: RB=1 MHz, VB=3 MHz, DET=Peak AV: RB=1 MHz, VB=10 Hz, DET=Peak Input Power (System) 120 Vac, 60 Hz Environmental Conditions 26 °C, 73% RH Tested By Louis Yang Antenna Polarity & Test Distance : Horizontal at 3 m No Frequency (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 *6415.00 113.7 PK 1.13 H 346 107.5 6.2 2 *6415.00 103.3 AV 1.13 H 346 97.1 6.2 3 #12830.00 47.9 PK 88.2 -40.3 2.08 H 316 33.4 14.5 4 #12830.00 35.8 AV 68.2 -32.4 2.08 H 316 21.3 14.5 5 19245.00 37.2 PK 74.0 -36.8 3.54 H 159 41.0 -3.8 6 19245.00 25.4 AV 54.0 -28.6 3.54 H 159 29.2 -3.8 Antenna Polarity & Test Distance : Vertical at 3 m No Frequency (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 *6415.00 112.1 PK 2.67 V 31 105.9 6.2 2 *6415.00 102.7 AV 2.67 V 31 96.5 6.2 3 #12830.00 46.5 PK 88.2 -41.7 3.88 V 357 32.0 14.5 4 #12830.00 34.1 AV 68.2 -34.1 3.88 V 357 19.6 14.5 5 19245.00 37.9 PK 74.0 -36.1 2.79 V 312 41.7 -3.8 6 19245.00 25.0 AV 54.0 -29.0 2.79 V 312 28.8 -3.8 Remarks: 1. Emission Level(dBuV/m) = Raw Value(dBuV) + Correction Factor(dB/m) 2. Correction Factor(dB/m) = Antenna Factor(dB/m) + Cable Factor(dB) – Pre-Amplifier Factor(dB) 3. Margin value = Emission Level – Limit value 4. The other emission levels were very low against the limit. 5. " * ": Fundamental frequency, the limit was restricted at the RF Output Power. 6. " # ": The radiated frequency is out of the restricted band. Report No.: RFBBUI-WTW-P26020159-3 Page No. 654 / 1152 Report Format Version: 7.2.1 Reference No.: BBUI-WTW-P26020159 RF Mode 802.11a Channel CH 97 ：6435 MHz Frequency Range 1 GHz ~ 40 GHz Detector Function & Bandwidth PK: RB=1 MHz, VB=3 MHz, DET=Peak AV: RB=1 MHz, VB=10 Hz, DET=Peak Input Power (System) 120 Vac, 60 Hz Environmental Conditions 26 °C, 73% RH Tested By Louis Yang Antenna Polarity & Test Distance : Horizontal at 3 m No Frequency (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 *6435.00 113.2 PK 1.13 H 351 107.0 6.2 2 *6435.00 103.0 AV 1.13 H 351 96.8 6.2 3 #12870.00 47.1 PK 88.2 -41.1 2.12 H 306 32.4 14.7 4 #12870.00 35.0 AV 68.2 -33.2 2.12 H 306 20.3 14.7 5 19305.00 37.3 PK 74.0 -36.7 3.62 H 156 41.0 -3.7 6 19305.00 25.2 AV 54.0 -28.8 3.62 H 156 28.9 -3.7 Antenna Polarity & Test Distance : Vertical at 3 m No Frequency (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 *6435.00 112.0 PK 2.64 V 21 105.8 6.2 2 *6435.00 102.8 AV 2.64 V 21 96.6 6.2 3 #12870.00 45.9 PK 88.2 -42.3 3.90 V 337 31.2 14.7 4 #12870.00 33.4 AV 68.2 -34.8 3.90 V 337 18.7 14.7 5 19305.00 38.4 PK 74.0 -35.6 2.88 V 301 42.1 -3.7 6 19305.00 25.5 AV 54.0 -28.5 2.88 V 301 29.2 -3.7 Remarks: 1. Emission Level(dBuV/m) = Raw Value(dBuV) + Correction Factor(dB/m) 2. Correction Factor(dB/m) = Antenna Factor(dB/m) + Cable Factor(dB) – Pre-Amplifier Factor(dB) 3. Margin value = Emission Level – Limit value 4. The other emission levels were very low against the limit. 5. " * ": Fundamental frequency, the limit was restricted at the RF Output Power. 6. " # ": The radiated frequency is out of the restricted band. Report No.: RFBBUI-WTW-P26020159-3 Page No. 655 / 1152 Report Format Version: 7.2.1 Reference No.: BBUI-WTW-P26020159 RF Mode 802.11a Channel CH 105 ：6475 MHz Frequency Range 1 GHz ~ 40 GHz Detector Function & Bandwidth PK: RB=1 MHz, VB=3 MHz, DET=Peak AV: RB=1 MHz, VB=10 Hz, DET=Peak Input Power (System) 120 Vac, 60 Hz Environmental Conditions 26 °C, 73% RH Tested By Louis Yang Antenna Polarity & Test Distance : Horizontal at 3 m No Frequency (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 *6475.00 114.1 PK 1.11 H 360 107.7 6.4 2 *6475.00 103.7 AV 1.11 H 360 97.3 6.4 3 #12950.00 47.7 PK 88.2 -40.5 2.08 H 320 33.0 14.7 4 #12950.00 35.4 AV 68.2 -32.8 2.08 H 320 20.7 14.7 5 19425.00 36.7 PK 74.0 -37.3 3.63 H 137 40.5 -3.8 6 19425.00 25.1 AV 54.0 -28.9 3.63 H 137 28.9 -3.8 Antenna Polarity & Test Distance : Vertical at 3 m No Frequency (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 *6475.00 112.3 PK 2.69 V 26 105.9 6.4 2 *6475.00 103.1 AV 2.69 V 26 96.7 6.4 3 #12950.00 46.0 PK 88.2 -42.2 3.88 V 328 31.3 14.7 4 #12950.00 33.4 AV 68.2 -34.8 3.88 V 328 18.7 14.7 5 19425.00 38.1 PK 74.0 -35.9 2.86 V 317 41.9 -3.8 6 19425.00 24.7 AV 54.0 -29.3 2.86 V 317 28.5 -3.8 Remarks: 1. Emission Level(dBuV/m) = Raw Value(dBuV) + Correction Factor(dB/m) 2. Correction Factor(dB/m) = Antenna Factor(dB/m) + Cable Factor(dB) – Pre-Amplifier Factor(dB) 3. Margin value = Emission Level – Limit value 4. The other emission levels were very low against the limit. 5. " * ": Fundamental frequency, the limit was restricted at the RF Output Power. 6. " # ": The radiated frequency is out of the restricted band. Report No.: RFBBUI-WTW-P26020159-3 Page No. 656 / 1152 Report Format Version: 7.2.1 Reference No.: BBUI-WTW-P26020159 RF Mode 802.11a Channel CH 113 ：6515 MHz Frequency Range 1 GHz ~ 40 GHz Detector Function & Bandwidth PK: RB=1 MHz, VB=3 MHz, DET=Peak AV: RB=1 MHz, VB=10 Hz, DET=Peak Input Power (System) 120 Vac, 60 Hz Environmental Conditions 26 °C, 73% RH Tested By Louis Yang Antenna Polarity & Test Distance : Horizontal at 3 m No Frequency (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 *6515.00 114.1 PK 1.06 H 335 107.4 6.…

Text truncated - open the document above for the full version.
