TXG-ZD1211B-QF-EIEEE 802.11 a+b+g (dual band) mini card

Ver 0.3 ZyDAS WLAN Solution Doc. No.WLANUS1211 ZyDAS Confidential Information 1 2006/4/14 ZyDAS WLAN Solution ZDWlan_1211 User Guide Version 0.3 ZyDAS ZyDAS Technology Corporation Ver 0.3 ZyDAS WLAN Solution Doc. No.WLANUS1211 ZyDAS Confidential Information 2 2006/4/14 ZDWlan_1211 User Guide 1. How to Install ZD1211 driver and ZDWlan Utility: 1.1 Install: Phase 1 1.1.1 Copy the driver package (ex: 1211USB_Install_4214.exe) to any directory of NoteBooK (or PC). The 1211USB_Install_4214.exe can be used at ZD1211 Chip Set Only. It can be run on the Win98, WinME, Win2000 or WinXP OS. Figure 1-1 1.1.2 Click the package “1211USB_Install_4116.exe” then appear the installation page shown as “Figure 1-1”. Ver 0.3 ZyDAS WLAN Solution Doc. No.WLANUS1211 ZyDAS Confidential Information 3 2006/4/14 Figure 1-2 1.1.3 Press the “next” icon of Figure 1-1, then the page shown as “Figure 1-2”. Select “ZD1211 Config Tool” or “ZD1211 Diver” or all of them to install by checking the items. Ver 0.3 ZyDAS WLAN Solution Doc. No.WLANUS1211 ZyDAS Confidential Information 4 2006/4/14 Figure 1-3 1.1.4 Press the “next ” icon of Figure 1-2, then the page shown as “Figure 1-3”. Press the “Continue Anyway ” button of Figure 1-3, to finish the first phase installation. 1.1.5 After finishing the phase 1 installation of the driver, the NoteBooK (or PC) with Win98 or WinME OS shall be restarted, but Win2000 or WinXP OS doesn’t need to be restarted. Ver 0.3 ZyDAS WLAN Solution Doc. No.WLANUS1211 ZyDAS Confidential Information 5 2006/4/14 1.2 Install: Phase 2 Figure 1-4 1.2.1 Insert the Wireless Card to slot of NB, then appear the installation page shown as “Figure 1-4”. For installing the driver automatically, please check the automation item. Ver 0.3 ZyDAS WLAN Solution Doc. No.WLANUS1211 ZyDAS Confidential Information 6 2006/4/14 Figure 1-5 1.2.2 When the automation item of “Figure 1-4” is selected, press “Next” button of the page, then the “Hardware Installation” page shown as “Figure 1-5”. Ver 0.3 ZyDAS WLAN Solution Doc. No.WLANUS1211 ZyDAS Confidential Information 7 2006/4/14 Figure 1-6 1.2.3 Press the “Continue Anyway ” button of Figure 1-5, then the page “Found New Hardware Wizard” shown as “Figure 1-6”. - Press the “Finish” button of “Figure 1-6” to finish the package installation. Ver 0.3 ZyDAS WLAN Solution Doc. No.WLANUS1211 ZyDAS Confidential Information 8 2006/4/14 2. How to use the ZDWlan Utility: ( Station) 2.1 If you use the WinXP OS , the “Zero Configuration” of WinXP will be disable first , then ZDWlan Utility can be used. Figure 2-1 2.2 Open the ZDWlan Utility from “ Start menu bar \Program List \ ZyDAS 1211 Tool “. The Window is shown as “Figure 2-1”. The adapter can be set at “Station” or “Access Point” Mode from the Mode drop down menu. Station mode is selected for the item. - You can site survey the neighboring SSID site by pressing the “Refresh”, then sites name and signals strength of available SSID sites are shown on the “Available Network” field. - Double click the SSID site from “Available Network” field, and the SSID can be connected directly. - The information of the SSID is shown on the “ Current Network Ver 0.3 ZyDAS WLAN Solution Doc. No.WLANUS1211 ZyDAS Confidential Information 9 2006/4/14 Information”. - Show the BSSID of connecting AP on the “Link Status” filed. - “Signal Strength” and “Link Quality” shown on diagrammatic curve, and described with percentage. - Record the number of Tx frames on the filed of “Tx Frame”. - Record the number of Rx frames on the filed of “Rx Frame”. Ver 0.3 ZyDAS WLAN Solution Doc. No.WLANUS1211 ZyDAS Confidential Information 10 2006/4/14 . Figure 2-2 2.3 Click “ More Setting “ icon of Figure 2-1 to enter “More setting “ window. The window is shown as “ Figure 2-2 ”. 2.3.1 “General Connection Setting” group: - Read the current status from the group if the “Change” button is not pressed. - Press “Change” button for modifying the status, when the modification is finished, press “Apply” to save it. The button “Change” and “Apply” is alternately shown on the same position. - Modify the SSID name from the “SSID” field. When use the item, the “any “will be unchecked previously. - Change the channel by drop down menu “ Channel”. When use the item, the Ad_Hoc Mode will be set previously. . - Select the transmission rate by “ Tx Rate” drop down menu. Ver 0.3 ZyDAS WLAN Solution Doc. No.WLANUS1211 ZyDAS Confidential Information 11 2006/4/14 - Select the “Ad_Hoc” or “Infrastructure” Mode by the “Network Type” drop down menu. - Select the “Enable WEP” or “Disable WEP” by the “Encryption” drop down menu. - Select the “Open System” , “Shared Key” mode or “Auto” from the “Authentication Mode” drop down menu. Figure 2-3 Ver 0.3 ZyDAS WLAN Solution Doc. No.WLANUS1211 ZyDAS Confidential Information 12 2006/4/14 Figure 2-4 2.3.2 Encryption Setting : 2.3.2.1 Press “WEP Encryption Setting” to enter the “WEP Key Setting” page shown as Figure 2-3. - Select the “Open System” , “Shared Key” mode or “Auto” from the “authentication Mode” drop down menu. - Press the “Change” button to modify the contents of “WEP Key setting”, when it is finished, press “Apply” to save it. The button “Change” and “Apply” is alternately shown on the same position. - Select which key length 64,128 or 256 bits will be modified or used by “Key Length” item. - Select which key set will be use by the field of “Default Key ID” Modify the 4 sets key depending on the selected key length on the field of “Key Value”. The key value is used the hexadecimal format. Ver 0.3 ZyDAS WLAN Solution Doc. No.WLANUS1211 ZyDAS Confidential Information 13 2006/4/14 - Select which key format “hexadecimal” or “ASCII” will be used from the “Key Format” . 2.3.2.2 Press “WPA Encryption Setting” to enter the “WPA Setting” page shown as Figure 2-4. - You can select the WPA authentication protocol “TLS” , “PEAP” or “TTLS” from “Protocol” filed. - “TLS” Setting: you don’t fill out the User name and Password field, but the Certificate need…

Text truncated - open the document above for the full version.

Transmitter Modular Approval Letter Date: April 14, 2006 Federal Communications Commission Re: Application Modular Approval Certification for FCC ID: TXG-ZD1211B-QF-E Gentlemen: The following attestation addresses the eight requirements to support Modular approval as required by the FCC Public Notice DA 00-1407” Part 15 Unlicensed Modular Transmitter Approval” 1 The modular transmitter has its own RF shielding.(Refer to “Internal Photograph Exhibit”) 2 The modular transmitter has buffered modulation/data inputs. All inputs to the modules are buffered through the radio circuitry. (Refer to “Block Diagram and Schematics Exhibit”) 3 The modular transmitter has its own power supply regulator.(Refer to “Block Diagram and Schematics Exhibit ”and Bill of Materials Exhibit”) 4 The modular transmitter has an antenna that complies with section 15.203 of the FCC rules. It has a UFL type of connector at the transmitter end and is Printed to the antenna (depending on OEM configuration). Also the antenna will be internal in the OEM host equipment and inaccessible to the user.(Refer to “Operational Description Exhibit” and “Antenna Specification Exhibit”) 5 The modular transmitter was tested outside of a host desktop computer using a PCI extender card. The PCI extender card allows the transmitter to be placed outside of the chassis of the host desktop computer.(Refer to “Test Configuration”in Compliance Certificaiton Services Inc. test report and to “External Photograph Exhibit”) 6 The modular transmitter will be labeled with it own FCC ID. Also, the OEM host computer manufacturer will be informed to display a label referring to the enclosed module. The exterior habel will read as follows: “Contains Transmitter Module FCC ID: TXG-ZD1211B-QF-E” or “Contains TX FCCID: TXG-ZD1211B-QF-E” (Refer to “Label Information Exhibit”) 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations.(Refer to“User’s Guide Exhibit) 8 The modular transmitter meets the MPE calculations of 47 CFR 1.1307(b)(1) (Refer to “RF Exposure Exhibit”.)

Company : ZyDAS Technology Corporation Model : ZD1211B-QF-E Product : IEEE 802.11 a+b+g (dual band) mini card IEEE 802.11 a+b+g (dual band) mini card Model: ZD1211B-QF-E FCC ID: TXG-ZD1211B-QF-E This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N Made in Taiwan Label Here

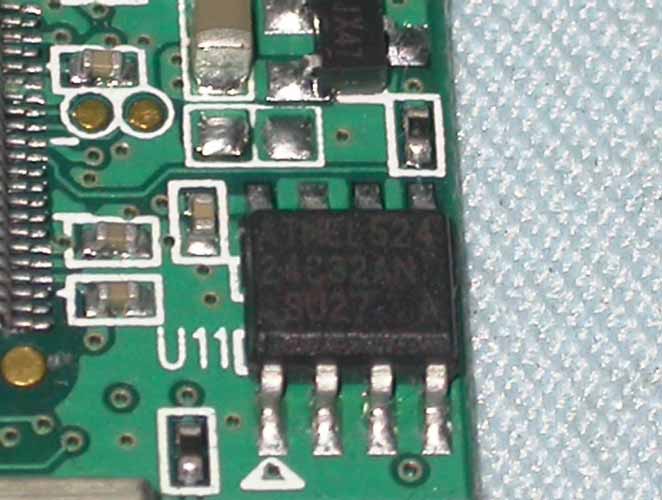

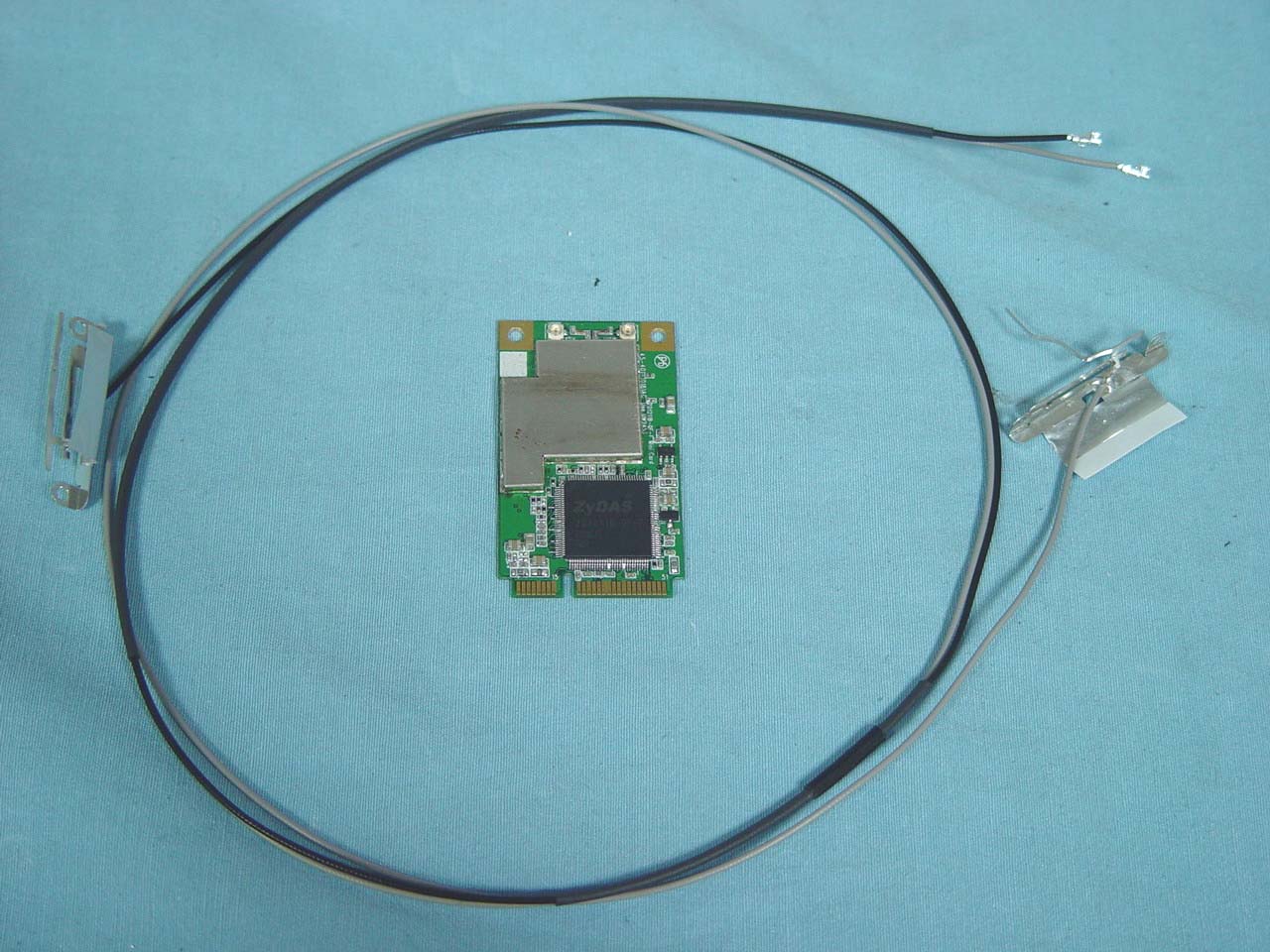

Compliance Certification Services Inc. Report No.60111302 Page 4 of 8 Internal Photo Compliance Certification Services Inc. Report No.60111302 Page 5 of 8 Compliance Certification Services Inc. Report No.60111302 Page 6 of 8 Compliance Certification Services Inc. Report No.60111302 Page 7 of 8 Compliance Certification Services Inc. Report No.60111302 Page 8 of 8

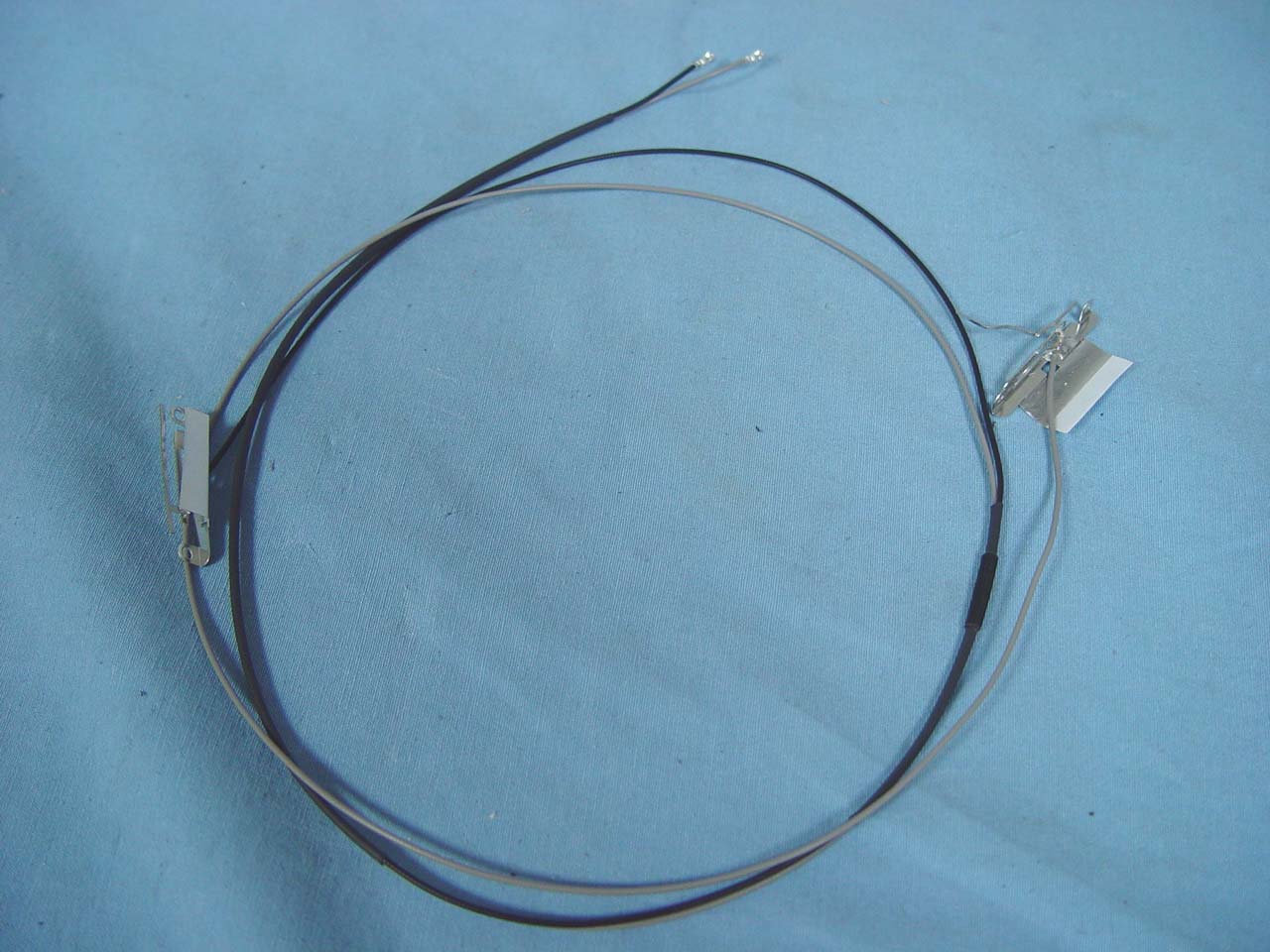

H H I I G G H H - - T T E E K K REV. A 2005/12/29 page:0 A A n n t t e e n n n n a a T T e e s s t t i i n n g g R R e e p p o o r r t t G G i i b b b b o o n n Prepared by Approved by JAMES HIGH-TEK HARNESS ENTERPRISE H H I I G G H H - - T T E E K K REV. A 2005/12/29 page:1 General Information z Measurement Resume Date Engineer 2.4~2.5 GHz 5.15~5.35 GHz 5.47~5.725 GHz 5.725~5,825 GHz 2005/12/29 JAMES z Antenna specifications: maximum size, unit: mm PIFA Type Length Width Height Cable length MAIN 590 AUX 785 z Measurement Setup & Environment Temp. Humidity Instrument System Entry 20 50% VNA HP8753ES, 7x4x4 m anechoic chamber NSI antenna measurement system VSWR, Return, Radiation pattern H H I I G G H H - - T T E E K K REV. A 2005/12/29 page:2 Coordinate Definition H H I I G G H H - - T T E E K K REV. A 2005/12/29 page:3 Spectrum Allocation in worldwide WLAN 62 3 5 802.11b 2.4~2.5GHz GHz U-NII 5.15~5.35GHz U-NII 5.725~5.825GHz Global US MMAC HiSWANa 5.15~5.25GHz Japan Hyperlan/2 5.15~5.35GHz Hyperlan/2 5.47~5.725GH z Europe 802.11b band 802.11a+Hyperlan/2 band H H I I G G H H - - T T E E K K REV. A 2005/12/29 page:4 Return Loss & VSWR Main-Antenna Frequency (GHz) -50 -40 -30 -20 -10 0 Retu r n Loss (dB) 2 4 6 8 10 VSWR 0 1 2 3 4 5 6 Aux-Antenna Frequency (GHz) -50 -40 -30 -20 -10 0 Retu r n Loss (dB) 2 4 6 8 10 VSWR 0 1 2 3 4 5 6 Note: the three green points represent the main data we want(i.e. 2.4, 2.45 and 2.5 GHz) both at each curve. 2.4~2.5 GHz Center freq. @MHz 2450 5850 Beam Width @MHz 150 freq. Return Loss(dB) VSWR 2.40 GHz -13.86 1.54 2.45 GHz -14.14 1.50 2.50 GHz -14.52 1.47 5.15 GHz -16.46 1.36 5.25 GHz -18.07 1.29 5.35 GHz -17.42 1.32 5.47 GHz -14.39 1.48 5.59 GHz -13.42 1.54 5.72 GHz -12.52 1.61 5.78 GHz -13.96 1.52 5.85 GHz -10.45 1.85 2.4~2.5 GHz Center freq. @MHz 2450 5850 Beam Width @MHz 200 freq. Return Loss(dB) VSWR 2.40 GHz -12.60 1.62 2.45 GHz -14.35 1.47 2.50 GHz -11.66 1.70 5.15 GHz -13.18 1.59 5.25 GHz -13.07 1.59 5.35 GHz -17.73 1.31 5.47 GHz -19.74 1.21 5.59 GHz -25.09 1.11 5.72 GHz -17.20 1.34 5.78 GHz -18.82 1.27 5.85 GHz -13.96 1.52 H H I I G G H H - - T T E E K K REV. A 2005/12/29 page:5 Main antenna: 2400 MHz 0 45 90 135 180 225 270 315 0 -40-30-20-100 (GHz) Average Gain And Peak Gain (On Azimuth Plane) X-Y Plane V Peak Gain (dBi) -0.55 V Avg Gain (dBi) -4.75 H Peak Gain (dBi) 2.62 H Avg Gain (dBi) -3.61 Total Avg. Gain (dBi)-1.93 Avg Peak Gain (dBi)2.67 H H I I G G H H - - T T E E K K REV. A 2005/12/29 page:6 Main antenna: 2450 MHz 0 45 90 135 180 225 270 315 0 -40-30-20-100 (GHz) Average Gain And Peak Gain (On Azimuth Plane) X-Y Plane V Peak Gain (dBi) -1.98 V Avg Gain (dBi) -5.72 H Peak Gain (dBi) 1.69 H Avg Gain (dBi) -3.61 Total Avg. Gain (dBi)-2.43 Avg Peak Gain (dBi)1.74 H H I I G G H H - - T T E E K K REV. A 2005/12/29 page:7 Main antenna: 2500 MHz 0 45 90 135 180 225 270 315 0 -40-30-20-100 (GHz) Average Gain And Peak Gain (On Azimuth Plane) X-Y Plane V Peak Gain (dBi) -2.77 V Avg Gain (dBi) -6.30 H Peak Gain (dBi) 0.73 H Avg Gain (dBi) -3.98 Total Avg. Gain (dBi)-3.02 Avg Peak Gain (dBi)0.84 H H I I G G H H - - T T E E K K REV. A 2005/12/29 page:8 Aux antenna: 2400 MHz 0 45 90 135 180 225 270 315 0 -40-30-20-100 (GHz) Average Gain And Peak Gain (On Azimuth Plane) X-Y Plane V Peak Gain (dBi) -1.73 V Avg Gain (dBi) -5.72 H Peak Gain (dBi) 1.11 H Avg Gain (dBi) -4.32 Total Avg. Gain (dBi)-2.94 Avg Peak Gain (dBi)1.14 Note: horizontal polarization plots in the red line and vertical polarization in the blue one The green line means the average gain of vertical and horizontal polarization H H I I G G H H - - T T E E K K REV. A 2005/12/29 page:9 Aux antenna: 2450 MHz 0 45 90 135 180 225 270 315 0 -40-30-20-100 (GHz) Average Gain And Peak Gain (On Azimuth Plane) X-Y Plane V Peak Gain (dBi) 0.22 V Avg Gain (dBi) -4.84 H Peak Gain (dBi) 0.96 H Avg Gain (dBi) -4.18 Total Avg. Gain (dBi)-2.43 Avg Peak Gain (dBi)1.06 H H I I G G H H - - T T E E K K REV. A 2005/12/29 page:10 Aux antenna: 2500 MHz 0 45 90 135 180 225 270 315 0 -40-30-20-100 (GHz) Average Gain And Peak Gain (On Azimuth Plane) X-Y Plane V Peak Gain (dBi) 0.57 V Avg Gain (dBi) -5.33 H Peak Gain (dBi) -0.34 H Avg Gain (dBi) -4.87 Total Avg. Gain (dBi)-3.01 Avg Peak Gain (dBi)0.68 H H I I G G H H - - T T E E K K REV. A 2005/12/29 page:11 Main antenna: 5150 MHz 0 45 90 135 180 225 270 315 0 -40-30-20-100 (GHz) Average Gain And Peak Gain (On Azimuth Plane) X-Y Plane V Peak Gain (dBi) -1.71 V Avg Gain (dBi) -5.93 H Peak Gain (dBi) 1.05 H Avg Gain (dBi) -5.06 Total Avg. Gain (dBi)-3.49 Avg Peak Gain (dBi)1.14 H H I I G G H H - - T T E E K K REV. A 2005/12/29 page:12 Main antenna: 5250 MHz 0 45 90 135 180 225 270 315 0 -40-30-20-100 (GHz) Average Gain And Peak Gain (On Azimuth Plane) X-Y Plane V Peak Gain (dBi) 0.52 V Avg Gain (dBi) -5.64 H Peak Gain (dBi) 0.47 H Avg Gain (dBi) -4.73 Total Avg. Gain (dBi)-3.17 Avg Peak Gain (dBi)0.63 H H I I G G H H - - T T E E K K REV. A 2005/12/29 page:13 Main antenna: 5350 MHz 0 45 90 135 180 225 270 315 0 -40-30-20-100 (GHz) Average Gain And Peak Gain (On Azimuth Plane) X-Y Plane V Peak Gain (dBi) 2.28 V Avg Gain (dBi) -4.11 H Peak Gain (dBi) 2.08 H Avg Gain (dBi) -3.87 Total Avg. Gain (dBi)-2.00 Avg Peak Gain (dBi)3.10 H H I I G G H H - - T T E E K K REV. A 2005/12/29 page:14 Aux antenna: 5150 MHz 0 45 90 135 180 225 270 315 0 -40-30-20-100 (GHz) Average Gain And Peak Gain (On Azimuth Plane) X-Y Plane V Peak Gain (dBi) -1.03 V Avg Gain (dBi) -7.15 H Peak Gain (dBi) 1.07 H Avg Gain (dBi) -6.50 Total Avg. Gain (dBi)-4.74 Avg Peak Gain (dBi)1.13 H H I I G G H H - - T T E E K K REV. A 2005/12/29 page:15 Aux antenna: 5250 MHz 0 45 90 135 180 225 270 315 0 -40-30-20-100 (GHz) Average Gain And Peak Gain (On Azimuth Plane) X-Y Plane V Peak Gain (dBi) -2.03 V Avg Gain (dBi) -8.43 H Peak Gain (dBi) 1.93 H Avg Gain (dBi) -5.48 Total Avg. Gain (dBi)-4.65 Avg Peak Gain (dBi)2.22 H H I I G G H H - - T T E E K K REV. A 2005/12/29 page:16 Aux antenna: 5350 MHz 0 45 90 135 180 225 270 …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc.FCC IDTXG-ZD1211B-QF-E Report No.60111302-RP1 Page 1 of 83 FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4 : 2003 TEST REPORT For IEEE 802.11 a+b+g (dual band) mini card Model : ZD1211B-QF-E Trade Name : ZyDAS Issued for ZyDAS Technology Corporation 2F, No. 15, Industry E. Rd. IV, Hsinchu Science Park, Hsinchu, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. Hsinchu Lab. Rm. 258, Bldg. 17, NO.195, Sec.4 Chung HsingRd., ChuTung Chen, Hsinchu, Taiwan 310, R.O.C TEL: (03) 591-0068 FAX: (03) 582-5720 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services Inc.FCC IDTXG-ZD1211B-QF-E Report No.60111302-RP1 Page 2 of 83 TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION........................................................................................... 3 2. EUT DESCRIPTION.................................................................................................................. 4 2.1 DESCRIPTION OF EUT & POWER.................................................................................... 4 3. DESCRIPTION OF TEST MODES .......................................................................................... 5 4. TEST METHODOLOGY............................................................................................................6 5. FACILITIES AND ACCREDITATIONS .................................................................................. 6 5.1 FACILITIES .......................................................................................................................... 6 5.2 EQUIPMENT ........................................................................................................................ 6 5.3 LABORATORY ACCREDITATIONS LISTINGS................................................................... 6 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ................................................................ 7 6. CALIBRATION AND UNCERTAINTY .................................................................................... 8 6.1 MEASURING INSTRUMENT CALIBRATION ..................................................................... 8 6.2 MEASUREMENT UNCERTAINTY....................................................................................... 8 7. SETUP OF EQUIPMENT UNDER TEST................................................................................ 9-10 8. APPLICABLE LIMITS AND TEST RESULTS ....................................................................... 11 8.1 6dB BANDWIDTH ................................................................................................................ 11-18 8.2 99% BANDWIDTH ............................................................................................................... 19-26 8.3 MAXIMUM PEAK OUTPUT POWER ................................................................................. 27-34 8.4 MAXIMUM PERMISSIBLE EXPOSURE ............................................................................. 35-36 8.5 AVERAGE POWER............................................................................................................... 37-38 8.6 POWER SPECTRAL DENSITY ............................................................................................ 39-46 8.7 CONDUCTED SPURIOUS EMISSION................................................................................ 47-53 8.8 RADIATED EMISSIONS ...................................................................................................... 54 8.8.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS............................................. 54-57 8.8.2 WORST-CASE RADIATED EMISSION BELOW 1 GHz ............................................ 58 8.8.3 TRANSMITTER RADIATED EMISSION ABOVE 1 GHz ........................................... 59-67 8.8.4 RESTRICIED BAND EDGES...................................................................................... 68-75 8.9 POWERLINE CONDUCTED EMISSIONS .......................................................................... 76-79 9. ANTENNA REQUIREMENT .................................................................................................... 80 9.1 STANDARD APPLICABLE................................................................................................... 80 9.2 ANTENNA CONNECTED CONSTRUCTION ...................................................................... 80 APPENDIX SETUP PHOTOS....................................................................................................... 81-83 Compliance Certification Services Inc.FCC IDTXG-ZD1211B-QF-E Report No.60111302-RP1 Page 3 of 83 1. TEST REPORT CERTIFICATION Applicant ZyDAS Technology Corporation Address 2F, No. 15, Industry E. Rd. IV, Hsinchu Science Park, Hsinchu, Taiwan, R.O.C. Equipment Under Test IEEE 802.11 a+b+g (dual band) mini card Model ZD1211B-QF-E Trade Name ZyDAS Tested Date January 11 ~ February 06, 2006 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C:2004 AND ANSI C63.4:2003 No non-compliance noted WE HEREBY CERTIFY THAT: The measurements shown in the attachment were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. We assume full responsibility for the accuracy and completeness of these measurements and vouch for the qualifications of all persons taking them. Compliance Certification Services Inc.FCC IDTXG-ZD1211B-QF-E Report No.60111302-RP1 Page 4 of 83 2. EUT DESCRIPTION 2.1 DESCRIPTION OF EUT & POWER Product Name IEEE 802.11 a+b+g (dual band) mini card Model Number ZD1211B-QF-E IEEE 802.11a (DTS Band) : 5725MHz ~ 5850MHz Frequency Range IEEE 802.11b/g (DTS Band) : 2412MHz ~ 2…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc.FCC IDTXG-ZD1211B-QF-E Report No.60111302-RP1 Page 81 of 83 APPENDIX SETUP PHOTOS RADIATED RF MEASUREMENT SETUP Compliance Certification Services Inc.FCC IDTXG-ZD1211B-QF-E Report No.60111302-RP1 Page 82 of 83 POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP Compliance Certification Services Inc.FCC IDTXG-ZD1211B-QF-E Report No.60111302-RP1 Page 83 of 83 RF PORT CONDUCTED MEASURE SETUP
