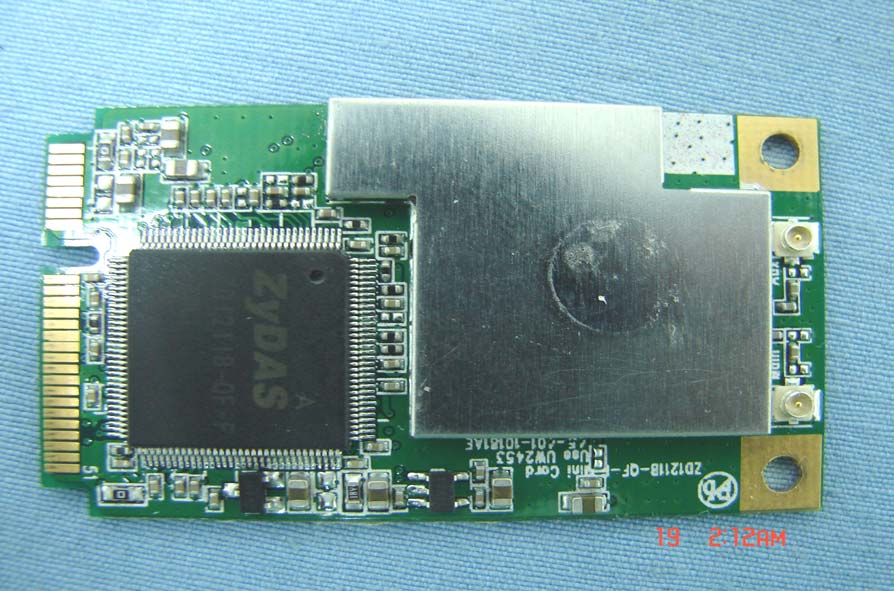

TXG-ZD1211B-QF-F2IEEE 802.11b+g Mini Card

Ver 0.3 ZyDAS WLAN Solution Doc. No.WLANUS1211 ZyDAS Confidential Information 1 2006/8/24 84 ZyDAS WLAN Solution ZDWlan_1211B-QF-F User Guide Version 2 ZyDAS ZyDAS Technology Corporation Ver 0.3 ZyDAS WLAN Solution Doc. No.WLANUS1211 ZyDAS Confidential Information 2 2006/8/24 ZDWlan_1211B-QF-F User Guide 1. How to Install ZD1211B-QF-F driver and ZDWlan Utility: 1.1 Install: Phase 1 1.1.1 Copy the driver package (ex: 1211USB_Install_4214.exe) to any directory of NoteBooK (or PC). The 1211USB_Install_4214.exe can be used at ZD1211B-QF-F Chip Set Only. It can be run on the Win98, WinME, Win2000 or WinXP OS. Figure 1-1 1.1.2 Click the package “1211USB_Install_4116.exe” then appear the installation page shown as “Figure 1-1”. Ver 0.3 ZyDAS WLAN Solution Doc. No.WLANUS1211 ZyDAS Confidential Information 3 2006/8/24 Figure 1-2 1.1.3 Press the “next” icon of Figure 1-1, then the page shown as “Figure 1-2”. Select “ZD1211 Config Tool” or “ZD1211 Diver” or all of them to install by checking the items. Ver 0.3 ZyDAS WLAN Solution Doc. No.WLANUS1211 ZyDAS Confidential Information 4 2006/8/24 Figure 1-3 1.1.4 Press the “next ” icon of Figure 1-2, then the page shown as “Figure 1-3”. Press the “Continue Anyway ” button of Figure 1-3, to finish the first phase installation. 1.1.5 After finishing the phase 1 installation of the driver, the NoteBooK (or PC) with Win98 or WinME OS shall be restarted, but Win2000 or WinXP OS doesn’t need to be restarted. Ver 0.3 ZyDAS WLAN Solution Doc. No.WLANUS1211 ZyDAS Confidential Information 5 2006/8/24 1.2 Install: Phase 2 Figure 1-4 1.2.1 Insert the Wireless Card to slot of NB, then appear the installation page shown as “Figure 1-4”. For installing the driver automatically, please check the automation item. Ver 0.3 ZyDAS WLAN Solution Doc. No.WLANUS1211 ZyDAS Confidential Information 6 2006/8/24 Figure 1-5 1.2.2 When the automation item of “Figure 1-4” is selected, press “Next” button of the page, then the “Hardware Installation” page shown as “Figure 1-5”. Ver 0.3 ZyDAS WLAN Solution Doc. No.WLANUS1211 ZyDAS Confidential Information 7 2006/8/24 Figure 1-6 1.2.3 Press the “Continue Anyway ” button of Figure 1-5, then the page “Found New Hardware Wizard” shown as “Figure 1-6”. - Press the “Finish” button of “Figure 1-6” to finish the package installation. Ver 0.3 ZyDAS WLAN Solution Doc. No.WLANUS1211 ZyDAS Confidential Information 8 2006/8/24 2. How to use the ZDWlan Utility: ( Station) 2.1 If you use the WinXP OS , the “Zero Configuration” of WinXP will be disable first , then ZDWlan Utility can be used. Figure 2-1 2.2 Open the ZDWlan Utility from “ Start menu bar \Program List \ ZyDAS 1211 Tool “. The Window is shown as “Figure 2-1”. The adapter can be set at “Station” or “Access Point” Mode from the Mode drop down menu. Station mode is selected for the item. - You can site survey the neighboring SSID site by pressing the “Refresh”, then sites name and signals strength of available SSID sites are shown on the “Available Network” field. - Double click the SSID site from “Available Network” field, and the SSID can be connected directly. - The information of the SSID is shown on the “ Current Network Ver 0.3 ZyDAS WLAN Solution Doc. No.WLANUS1211 ZyDAS Confidential Information 9 2006/8/24 Information”. - Show the BSSID of connecting AP on the “Link Status” filed. - “Signal Strength” and “Link Quality” shown on diagrammatic curve, and described with percentage. - Record the number of Tx frames on the filed of “Tx Frame”. - Record the number of Rx frames on the filed of “Rx Frame”. Ver 0.3 ZyDAS WLAN Solution Doc. No.WLANUS1211 ZyDAS Confidential Information 10 2006/8/24 . Figure 2-2 2.3 Click “ More Setting “ icon of Figure 2-1 to enter “More setting “ window. The window is shown as “ Figure 2-2 ”. 2.3.1 “General Connection Setting” group: - Read the current status from the group if the “Change” button is not pressed. - Press “Change” button for modifying the status, when the modification is finished, press “Apply” to save it. The button “Change” and “Apply” is alternately shown on the same position. - Modify the SSID name from the “SSID” field. When use the item, the “any “will be unchecked previously. - Change the channel by drop down menu “ Channel”. When use the item, the Ad_Hoc Mode will be set previously. . - Select the transmission rate by “ Tx Rate” drop down menu. Ver 0.3 ZyDAS WLAN Solution Doc. No.WLANUS1211 ZyDAS Confidential Information 11 2006/8/24 - Select the “Ad_Hoc” or “Infrastructure” Mode by the “Network Type” drop down menu. - Select the “Enable WEP” or “Disable WEP” by the “Encryption” drop down menu. - Select the “Open System” , “Shared Key” mode or “Auto” from the “Authentication Mode” drop down menu. Figure 2-3 Ver 0.3 ZyDAS WLAN Solution Doc. No.WLANUS1211 ZyDAS Confidential Information 12 2006/8/24 Figure 2-4 2.3.2 Encryption Setting : 2.3.2.1 Press “WEP Encryption Setting” to enter the “WEP Key Setting” page shown as Figure 2-3. - Select the “Open System” , “Shared Key” mode or “Auto” from the “authentication Mode” drop down menu. - Press the “Change” button to modify the contents of “WEP Key setting”, when it is finished, press “Apply” to save it. The button “Change” and “Apply” is alternately shown on the same position. - Select which key length 64,128 or 256 bits will be modified or used by “Key Length” item. - Select which key set will be use by the field of “Default Key ID” Modify the 4 sets key depending on the selected key length on the field of “Key Value”. The key value is used the hexadecimal format. Ver 0.3 ZyDAS WLAN Solution Doc. No.WLANUS1211 ZyDAS Confidential Information 13 2006/8/24 - Select which key format “hexadecimal” or “ASCII” will be used from the “Key Format” . 2.3.2.2 Press “WPA Encryption Setting” to enter the “WPA Setting” page shown as Figure 2-4. - You can select the WPA authentication protocol “TLS” , “PEAP” or “TTLS” from “Protocol” filed. - “TLS” Setting: you don’t fill out the User name and Password field,…

Text truncated - open the document above for the full version.

Helen Zhao Subject: FW: FW: ZyDAS Technology Corporation, FCC ID: TXG-ZD1211B-QF-F2, Assessment NO.: AN06T6087, Notice#1 9/7/2006 From: amanda.wu Sent: Thursday, September 07, 2006 12:34 AM To: Helen Zhao Subject: Re:FW: ZyDAS Technology Corporation, FCC ID: TXG-ZD1211B-QF-F2, Assessment NO.: AN06T6087, Notice#1 Dear Helen: Please see my reply, thank you. Best Regard, Amanda -----Original Message----- From: Helen Zhao Sent: Monday, August 28, 2006 5:03 PM To: Helen Zhao Subject: ZyDAS Technology Corporation, FCC ID: TXG-ZD1211B-QF-F2, Assessment NO.: AN06T6087, Notice#1 Question #1: For MATIC antenna, please clarify antenna gain. The first page of the spec indicates peak gain <= 4dBi, >= -3dBi. But page 13 indicates peak gain at 2.4G band is -3.42 dBi(max), while avg gain is -2.67dBi (max). Please clarify also explain why average gain is even higher than peak gain. Ans: Client has admitted their error on the previous ANT spec., they re-provide a new antennd spec., the test report had been revised(for Mitac) Question #2: The FCC ID label format shows "Contains TX FCC ID: TXG-ZD1211B-QF-F2", but does not indicate the location. To avoid confusion, please submit two labels, one is the label that will be affixed on the module, one is the label what will be affixed on the end product. Ans: The label format and location had been revised. Best Regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

Modular Approval Request Letter August 23, 2006 Compliance Certification Services 561F Monterey Rd., Morgan Hill, CA 95037, USA To Whom It May Concern: Please be advised that IEEE 802.11 b+g mini card , with the FCC ID: TXG-ZD1211B-QF-F2 would be certified as the Modular Approval with the Mobile device classification. User shall be informed that keeping at least 20cm safe separation away the device. We also assure the device complies with the requirements listed in the Public Notice DA-00-1407, details are listed as follows: 1. The modular transmitter must have its own RF shielding: Reply: The radio portion of this module has been shielded, please see exhibition External Photo. 2. The modular transmitter must have buffered modulation / data inputs: Reply: The EUT has buffered data inputs, it is integrated in chip 3. The modular transmitter must have its own power supply regulation: Reply: The transceiver which will influence the frequency radiation, have to be 2.8V DC powered. The minicard interface provides 3.3VDC, so there is regulator in front of transceiver, the part number of this regulator is R1114N281D. 4. The modular transmitter must comply with the antenna requirements of the Section 15.203 and 15.204(c): Reply: The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the External and Internal Photos. 5. The modular transmitter must be tested in a stand-alone configuration: Reply: The EUT was tested in a stand-alone configuration via a PCMCIA to mini-PCI extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. The modular transmitter must be labeled with its own FCC ID number: Reply: That is label show “Contains FCC ID: TXG-ZD1211B-QF-F2”in the end product. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements: Reply: The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. The modular transmitter must comply with any applicable RF exposure requirements: Reply: For mobile configuration only. Refer to MPE calculation in the test report. RF Exposure is addressed in the RF exposure exhibition. Should you have any question, please don’t hesitate to ask us. Best regards, Sincerely Yours, Reggie Hsieh/ Marketing & Sales Department/Account Manager ZyDAS Technology Corporation

2F,No.15,Industry E. Rd. IV,Hsinchu Science Park, Hsin-Chu,300,Taiwan, R.O.C. Telephone no886-3-5773309Fax no August 23, 2006 Federal Communications Commission Authorization and Evaluation Division FCC ID: TXG-ZD1211B-QF-F2 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, / Marketing & Sales Department/Account Manager ZyDAS Technology Corporation

Date: August 23, 2006 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) Make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d) Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) Use certification only to indicate the products are certified as being in conformity with specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) Keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, / Marketing & Sales Department/Account Manager ZyDAS Technology Corporation

Compliance Certification Services Inc. Report No: 60810201 Date of Issue: August 22, 2006 Page 1 Total Page: 3 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 60810201 Date of Issue: August 22, 2006 Page 2 Rev.00 Wistron ANT MITAC ANT

211B-QF-F ver.2 LABEL.ufo

Compliance Certification Services Inc. Report No: 60810201 Date of Issue: August 22, 2006 Page 3 Rev.00 INTERNAL PHOTOGRAPHS OF EUT

JOINSOON ELECTRONICS MFG. CO., LTD INDEX 1.Coverage .................................................................................... 1 2.Quick Reference Date........................................................................2 3.Product Drawing............................................................................. ..3 4. Test Results....................................................................................4~6 5. Antenna Testing Conditions.............................................................. 7~12 6. Antenna Packaging...........................................................................13 7. Material Identification.....................................................................14~30 (APPROVAL SHEET NO.) APP-Q060024 (RELEASED DATE) (DESCRIPTION) NoteBook DualBand PIFA Antenna (FILE NO.) IA-060085 (REV) A (ENGINEER) (QC. CHK.) (ENG. CHK.) JOINSOON ELECTRONICS MFG. CO., LTD. QUICK REFERENCE DATA Antenna Patch Dimension 3.9*4.4*4.85 mm Antenna LCD Cable Length 570mm, Color BLACK Connector JPC Peak Gain -3.0Peak Gain4.0 dBi VSWR Polarization Linear Impedance 50 Operating Temperature -40~90 Maximum Power 1W 2 JOINSOON ELECTRONICS MFG. CO., LTD. ELECTRICAL TEST 3 JOINSOON ELECTRONICS MFG. CO., LTD. Test results 1. Return Loss 4 Antenna Application Placement Cable dia. F mm Connector 8858I Wireless Left up 0.7DS-PBE 1.13 JPC Return Loss Antenna Center freg. @MHz BW @MHz 2.4GHz 2.45GHz 2.5GHz 8858I 2450 390 -18.32 -23.49 -20.87 Return Loss Antenna Center freg. @MHz BW @MHz 4.9GHz 5.15GHz 5.35GHz 5.47GHz 5.725GHz 5.875GH 8858I 5250 210 -17.52 -27.81 -15.18 -16.16 -19.78 -19.18 JOINSOON ELECTRONICS MFG. CO., LTD. 2. VSWR 5 VSWR Antenna Center freg. @MHz BW @MHz 2.4GHz 2.45GHz 2.5GHz 8858I 2450 396 1.235 1.263 1.609 VSWR Antenna Center freg. @MHz BW @MHz 4.9GHz 5.15GHz 5.35GHz 5.47GHz 5.725GHz 5.875GH 8858I 5250 215 1.669 1.338 1.054 1.097 1.254 1.518 JOINSOON ELECTRONICS MFG. CO., LTD. 3.Smith Chart 8858I 6 JOINSOON ELECTRONICS MFG. CO., LTD. Antenna Testing Conditions: y z x x z y 7 JOINSOON ELECTRONICS MFG. CO., LTD. Free Space 1. Radiation Pattern of E Plane (Azimuth) -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 2400 MHz H V H + V -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 2450 MHz H V H + V -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 2500 MHz H V H + V JOINSOON ELECTRONICS MFG. CO., LTD. -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 4900 MHz H V H + V -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 5150 MHz H V H + V -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 5250 MHz H V H + V JOINSOON ELECTRONICS MFG. CO., LTD. -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 5350 MHz H V H + V -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 5475 MHz H V H + V -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 5600 MHz H V H + V JOINSOON ELECTRONICS MFG. CO., LTD. -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 5725 MHz H V H + V -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 5850 MHz H V H + V 11 JOINSOON ELECTRONICS MFG. CO., LTD. 1. Peak Gain&Ave.Gain Antenna Peak Gain (dBi) Ave. Gain (dBi) 2.4GHz 2.45GHz 2.5GHz 2.4GHz 2.45GHz 2.5GHz L SIDE 0.26 -0.66 -1.67 -2.63-2.94 -3.67 Antenna Peak Gain (dBi) 4.9GHz 5.15GHz 5.25GHz 5.35GHz 5.47GHz 5.60GHz 5.725GHz 5. 85GHz L SIDE -1.76 -1.31 -0.35 -0.18-1.13 -1.70 -2.63 -2.36 Antenna Ave. Gain (dBi) 4.9GHz 5.15GHz 5.25GHz 5.35GHz 5.47GHz 5.725GHz 5.60GHz5. 85GHz L SIDE -2.88 -2.65 -2.16 -2.14 -2.60 -2.43 -4.50-4.56 12 JOINSOON ELECTRONICS MFG. CO., LTD. Antenna Packaging 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

High High - - strength high strength high - - performance both performance both - - sided adhesive tape sided adhesive tape Advantages Both-sided adhesive tape containing base material with stronger adhesion than conventional tape Basic structure Superior initial adhesiveness This is the next generation of adhesive tape, whose impact on the global environment is small, because, unlike conventional tape, organic solvents are not used at coating. Specifications Name Acryl adhesive (About 55 μm) Thickness (About 40 μm) (About 55 μm) (About 120 μm) Nonwovenfabric Acryl adhesive Release film Main component of the adhesive Acrylic resin Adhesive thickness (incl. base material) 0.15 mm Color Base material Transparent and colorless Shape Stamped products Rolled products Nonwoven fabric Note:This report is based on our reliable experiments. However, it does not mean that the performance described in this report is guaranteed. Use the products under your responsibility after sufficiently studying the intended use and service condition of the products. N/2cm 9.9313.014.116.8 Peeling strength Adherend 0.60.40.3 Gap (mm) 806040 Measurement temperature Characteristics 1.Peeling strength (180°peeling) yTape width: 20 mm yBonding condition: One stroke with 2 kg roller yLeave the specimen for one day at room temperature. yAtmosphere for measurement: 23°C ±5°C, 65% ±10% yPeeling speed: 300 mm/min. yBacking material: 25 μm PET Fig. 1 Measurement method for 180°peeling Adhesive with 20 mm width 25mPET Peeling speed: 300 mm/min. Adherend ° Weight: 1 kg Backing material: 25 μm PET SUS304 Adhesive sample: 25 ×25 mm Fig. 2 Measurement method of tenacity 2.Tenacity yThe area of tape attached: 25 ×25 mm yAdherend: SUS304 yBonding condition: One stroke with 2 kg roller yLoad: 1 kg yMeasure the gap (mm) after one hour. 3. Ball Tack (J. Dow method) 7 to 8Ball Tack (Ball No.) Marking and Labeling System Materials Component Pressure sensitive laminating adhesives: NP203, NP203W. For bonding aluminum (thickness.007 to 0.020 in), polycarbonate (thickness.019 to.079 in) and acrylic (thickness.019 to.079 in) to acrylonitrile butadiene styrene (ABS) plastic, maximum surface temperature 80 C (176 F), minimum temperature -40 C (-40 F). Suitable where exposed indoors to high humidity and occasional exposure to water. NP303, NP303W. For bonding aluminum (thickness.007 to 0.020 in), polycarbonate (thickness.019 to.079 in) and acrylic (thickness.019 to.079 in) to acrylonitrile butadiene styrene (ABS) plastic, maximum surface temperature 80 C (176 F), minimum temperature -40 C (-40 F). Suitable where exposed indoors to high humidity and occasional exposure to water. G4000, G9303S, T3500, T3500S, T3500SW, T3500W. For bonding aluminum (thickness.007 to 0.020 in), polycarbonate (thickness.019 to.079 in) and acrylic (thickness.019 to.079 in) to acrylonitrile butadiene styrene (ABS) plastic, maximum surface temperature 80 C (176 F), minimum temperature -40 C (-40 F). Suitable where exposed indoors to high humidity and occasional exposure to water. T4000, T4000W. For bonding aluminum (thickness.007 to 0.020 in), polycarbonate (thickness.019 to.079 in) and acrylic (thickness.019 to.079 in) to acrylonitrile butadiene styrene (ABS) plastic, maximum surface temperature 80 C (176 F), minimum temperature -40 C (-40 F). Suitable where exposed indoors to high humidity and occasional exposure to water. T4000B, T4000BW. For bonding aluminum (thickness.007 to 0.020 in), polycarbonate (thickness.019 to.079 in) and acrylic (thickness.019 to.079 in) to acrylonitrile butadiene styrene (ABS) plastic, maximum surface temperature 80 C (176 F), minimum temperature -40 C (-40 F). Suitable where exposed indoors to high humidity and occasional exposure to water. T4500B, T4500BW. For bonding aluminum (thickness.007 to 0.020 in), polycarbonate (thickness.019 to.079 in) and acrylic (thickness.019 to.079 in) to acrylonitrile butadiene styrene (ABS) plastic, maximum surface temperature 80 C (176 F), minimum temperature -40 C (-40 F). PGGU2.MH15431 Marking and Labeling System Materials Component Page Bottom Questions? Previous Page Guide Information SONY CHEMICALS CORP MH15431 KANUMA FACTORY 18 SATSUKI-CHO KANUMA-SHI TOCHIGI-KEN 322-8501, JAPAN QMFZ2.E96146 Plastics - Component Page Bottom Questions? Plastics - Component Guide Information ROGERS INOAC CORP E96146 INOAC BLDG 2-4-14 GINZA CHUO-KU TOKYO 104-0061, JAPAN H D Min. H H R T I V 4 C Thk Flame W A Elec Mech T 9 T Material Dsg Color mm Class I I Imp Str R 5 I Polyurethane (PUR), furnished as pellets. MH-32 (c) BK 1.5 HBF   50 50 50    BK 3.0 HBF   50 50 50    MS-32 (d) BK 1.5 HBF   50 50 50    BK 3.0 HBF   50 50 50    Polyurethane (PUR), furnished as sheets. MH-24 (i) BK 4.0 HBF   50 50 50    BK 6.0 HBF   50 50 50    ML-24 (g) BK 4.0 HBF   50 50 50    BK 6.0 HBF   50 50 50    MS-24 (h) BK 4.0 HBF   50 50 50    BK 6.0 HBF   50 50 50    MX-48 (f) BK 1.4 HBF   50 50 50    BK 2.0 HBF   50 50 50    Polyurethane (PUR), furnished as sheets or rolls. MH-48 (f) BK 1.3 HBF   50 50 50    BK 3.0 HBF   50 50 50    Polyurethane (PUR), Foam, furnished as pellets. ML-32 (d) BK 1.5 HBF   50 50 50    BK 3.0 HBF   50 50 50    Polyurethane (PUR), Foam, furnished as sheets. MS-40 (e) BK 1.5 HBF   50 50 50    BK 3.0 HBF   50 50 50    Polyurethane (PUR), foam, designated "PORON" furnished as sheets. MO-48 (a) BK 1.5 HBF         4.0 HBF         U-32 (b) NC, YL, BK 1.3 HBF         6.8 HBF         (a)-Density range: 0.46-0.51 g/cc. (b)-Density range: 0.28-0.36 g/cc. (c)-Density range: 0.29-0.35 g/cc (d)-Density range: 0.29-0.34 g/cc (e)-Density range: 0.32-0.43 g/cc (f)-Density Range: 0.44-0.55 g/cc. (g)-Density Range: 0.20-0.29 g/cc. (h)-Density Range: 0.21-0.27 g/cc. (i)-Density Range: 0.21-0.29 g/cc. Marking: Company name or trademark and material designation on container, wrapper or finished part. Page Top No…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 60810201-RP1 FCC ID: TXG-ZD1211B-QF-F2 Date of Issue: August 21, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 58 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For IEEE 802.11b+g mini card Trade Name: ZyDAS Model: ZD1211B-QF-F ver.2 Issued to ZyDAS Technology Corporation 2F,No.15,Industry E. Rd. IV, Hsinchu Science Part, Hsinchu,Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 60810201-RP1 FCC ID: TXG-ZD1211B-QF-F2 Date of Issue: August 21, 2006 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................8 4.2 MEASUREMENT EQUIPMENT USED.........................................................................................8 5. FACILITIES AND ACCREDITATIONS ..........................................................................................9 5.1 FACILITIES .........................................................................................................................................9 5.2 EQUIPMENT........................................................................................................................................9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................11 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................11 6.2 SUPPORT EQUIPMENT ...............................................................................................................11 7. FCC PART 15.247 REQUIREMENTS.............................................................................................12 7.1 6DB BANDWIDTH.............................................................................................................................12 7.2 PEAK POWER....................................................................................................................................16 7.3 AVERAGE POWER............................................................................................................................20 7.4 BAND EDGES MEASUREMENT ................................................................................................24 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................33 7.6 SPURIOUS EMISSIONS ................................................................................................................37 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................51 APPENDIX I RADIO FREQUENCY EXPOSURE ...............................................................................54 APPENDIX II PHOTOGRAPHS OF TEST SETUP .............................................................................56 Compliance Certification Services Inc. Report No.: 60810201-RP1 FCC ID: TXG-ZD1211B-QF-F2 Date of Issue: August 21, 2006 Page 4 Rev. 00 2. EUT DESCRIPTION Product IEEE 802.11b+g mini card Trade Name ZyDAS Model Number ZD1211B-QF-F ver.2 Model Discrep…
