TZ8PKG-RSE3DVD ENTERTAINMENT SYSTEM

PRECAUTIONS Product Cleaning Use a soft dry cloth for periodic cleaning of the product. For more severe stains, please dampen the cloth with water only. Anything else has the chance of dissolving the paint or damaging the plastic. Temperature Do not operate your unit in ambient temperature above +70°C (+158°F) or below -20°C (-4°F). Moisture Condensation You may notice the disc playback sound wavering due to condensation. If this happens, remove the disc from the player and wait about an hour for the moisture to evaporate. Damaged Disc Do not attempt to play cracked, warped, or damaged discs. Playing a bad disc could severely damage the playback mechanism. Maintenance If you have problems, do not attempt to repair the unit yourself. Return it to your Alpine dealer or the nearest Alpine Service Station for servicing. Characteristics of LCD Panel • After turning the system off, a slight ghost of the image will remain temporarily. This is an effect peculiar to LCD technology and is normal. • Under cold temperature conditions, the screen may lose contrast temporarily. After a short warm-up period, it will return to normal. • The LCD panel is manufactured using an extremely high precision manufacturing technology. Its effective pixel ratio is over 99.99%. This means that 0.01% of the pixels could be either always ON or OFF. Using Wireless Headphones If ACC or the monitor’s power source is turned off, a loud noise is produced through the headphones. Be sure to remove the wireless headphones from your ears before you turn the monitor off. Never Attempt the Following Do not grip or pull out the disc while it is being pulled back into the player by the automatic reloading mechanism. Do not attempt to insert a disc into the unit when the unit power is off. Inserting Discs Your player accepts only one disc at a time for playback. Do not attempt to load more than one disc. Make sure the label side is facing up when you insert the disc. Press to eject any disc that is inserted incorrectly. Playing a disc while driving on a very bumpy road may result in skips, but this will not scratch the disc or damage the player. New Discs As a protective measure to prevent the disc from jamming, press to eject any disc with irregular surface or inserted incorrectly. When a new disc is inserted into the player and ejected after initial loading, using your finger, feel around the inside of the center hole and outside edge of the disc. If you feel any small bumps or irregularities, this could inhibit proper loading of the disc. To remove the bumps, rub the inside edge of the hole and outside edge of the disc with a ball-point pen or other such instrument, then insert the disc again. Center Hole Bumps Center Hole New Disc Outside (Bumps) Irregular Shaped Discs Be sure to use round shaped discs only for this unit and never use any special shaped discs. Use of special shaped discs may cause damage to the mechanism. Correct Handling Do not drop the disc while handling. Hold the disc so you will not leave fingerprints on the surface. Do not affix tape, paper, or gummed labels to the disc. Do not write on the disc. CORRECT INCORRECTCORRECT Dome Light Switch Dome light switch turns on/off the dome light. When the switch is set to Door, the dome light turns on when the door is open IR Transmitter and Receiver IR transmitter sends the sound to the Headphone. IR receiver receives the signal from the remote control. Eject Button Pressing Eject button unloads Disc. If the ignition key is set to ACC or ON, a disc can be removed even when the power is OFF. Basic Operations V I D E O Disc-in slot EJECT Left side ENT Front Control Keys DIMMER Visual Mode DVD, AUX1, AUX2 POWER MUTE MONITOR SETUP Remote Control Turning Power ON/OFF The power state of the monitor is memorized when Ignition/ACC is turned off. When Ignition/ACC is turned back on, the monitor returns to the memorized power state (either ON or OFF), including DVD playback position. Front Control Keys 1 Press POWER to turn ON. 2 To turn off the power, press and hold POWER again. • While the power is ON, press POWER to activate the Mute function. Remote Control 1 Press POWER to turn ON. 2 To turn off the power, press POWER again. Getting Started Overhead Monitor Front Control Keys White LED Dome Light Panel Open Switch FM Modulator Dome Light Switch Front Passenger Play/Pause and Power LCD Monitor Panel Power Eject Button IR Transmitter and Receiver Disc-In Slot LCD Monitor Panel This is a 10.1 inch, Wide VGA, Active Matrix LCD. In addition, an Infrared Wireless Headphone Transmitter is located on top of the LCD panel. Monitor Open Button Press Monitor Open Button to release the Monitor Panel. The Panel will drop down slightly allowing you to fully open to its 90 degree or greater position. To close, firmly press the LCD Monitor Panel back up into the housing until a click is heard. White LED Dome Light White LED Dome Light illuminates when Dome Light Switch is on. Front Control Keys Blue, back-lit button illuminates when the overhead monitor main power is on. DVD overhead monitor and other devices can be controlled by using these buttons. Front Passenger Control Buttons : FM modulator ON/OFF switch The monitor’s DVD sound is transmitted to the radio’s FM Tuner, when FM button is on. The radio must be tuned to the proper frequency. The FM transmitter function in the System menu must be ON to use the FM modulator. : Play/pause and power switch The front passenger can play/pause the DVD. It also allows turning on the unit. The unit can be turned off by pressing and holding this switch. • During ACC OFF or while the disc is being loaded (“LOADING” is displayed), the disc will not be ejected even if you press . Audio Mute Function Front Control Keys 1 While the power is ON, press POWER to activate the Mute function. 2 Press POWER again turn it OFF the Mute function. Remote Control Press MUTE to turn it ON and OFF. Adjusting the Volume Volume can be controlled from the headphone …

Text truncated - open the document above for the full version.

RF_160, Issue 02 Declaration of Authorization We Name: Evervictory Electronic Company Limited Address: Chu-Chi Management District, Hu-men Town City: Dong Guan Country: China Declare that: Name Representative of agent: Ms. Cathy Wang Agent Company name: Neutron Engineering, Inc. Address: No.3 Jinshagang 1 st Road, Shixia, Dalang Town City: Dongguan Country: China is authorized to apply for Certification of the following product(s): Product description: DVD ENTERTAINMENT SYSTEM Type designation: PKG-RSE3DVD Trademark: Alpine on our behalf. Date: 2013-11-04 City: Dong Guan Name: XING LI Function: General Manager Signature:  . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

Neutron Engineering Inc. Project No.: 1309C280 Page 2 of 14 Neutron Engineering Inc. Project No.: 1309C280 Page 3 of 14 Neutron Engineering Inc. Project No.: 1309C280 Page 4 of 14

Label Location

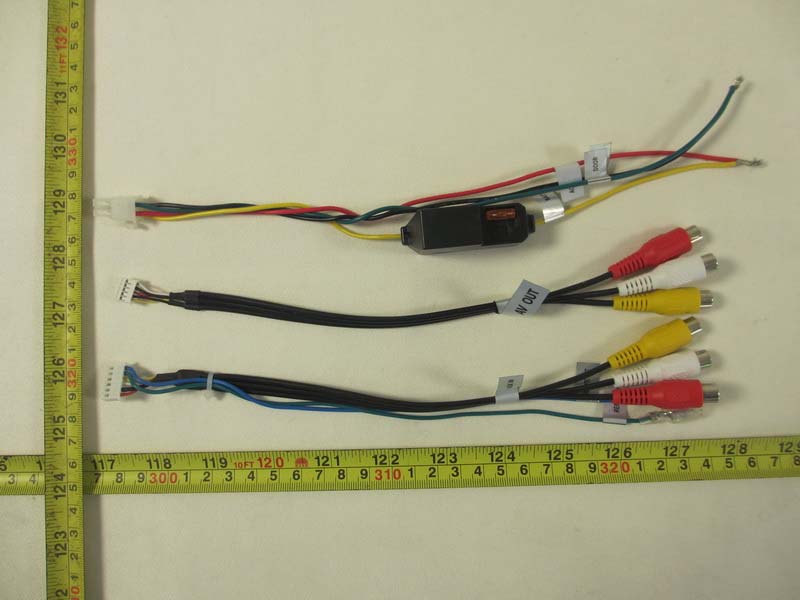

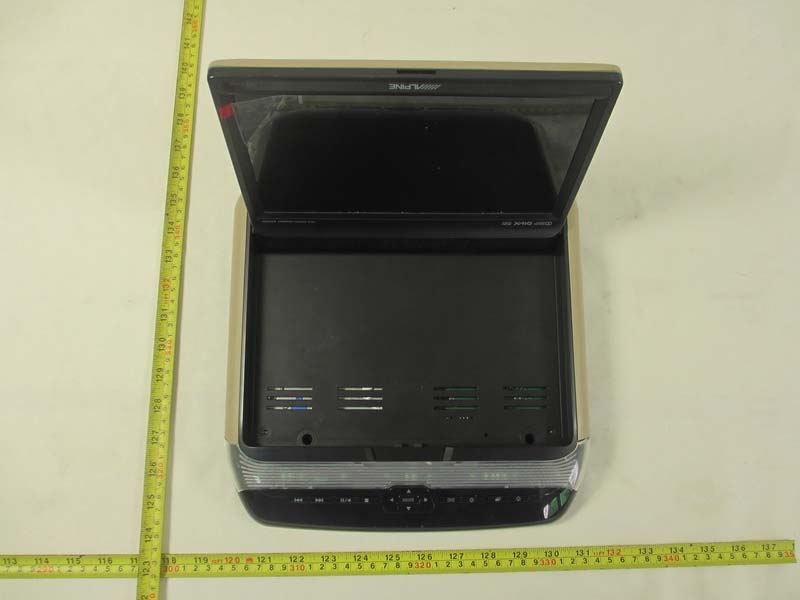

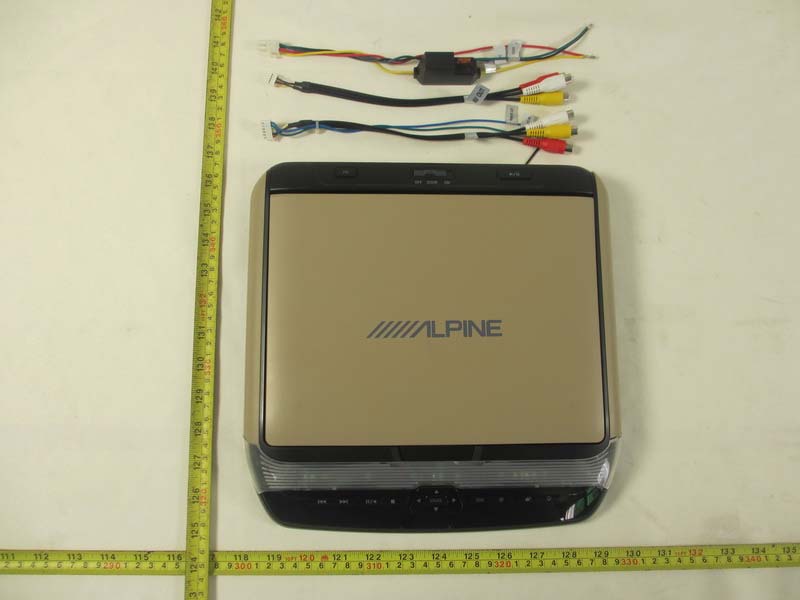

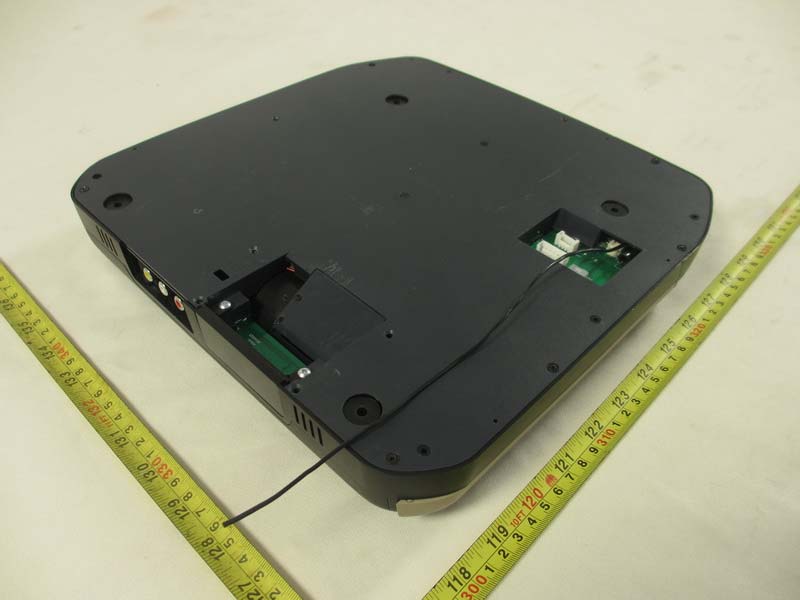

Neutron Engineering Inc. Project No.: 1309C280 Page 5 of 14 Neutron Engineering Inc. Project No.: 1309C280 Page 6 of 14 Neutron Engineering Inc. Project No.: 1309C280 Page 7 of 14 Neutron Engineering Inc. Project No.: 1309C280 Page 8 of 14 Neutron Engineering Inc. Project No.: 1309C280 Page 9 of 14 Neutron Engineering Inc. Project No.: 1309C280 Page 10 of 14 Neutron Engineering Inc. Project No.: 1309C280 Page 11 of 14 Neutron Engineering Inc. Project No.: 1309C280 Page 12 of 14 Neutron Engineering Inc. Project No.: 1309C280 Page 13 of 14 Neutron Engineering Inc. Project No.: 1309C280 Page 14 of 14

Report No.: NEI-FICP-1-1309C280 Page 1 of 30 Neutron Engineering Inc. Radio Test Report FCC ID: TZ8PKG-RSE3 IC: 6385A-PKG-RSE3 This report concerns (check one): Original Grant Class II Change Issued Date : Oct. 29, 2013 Project No. : 1309C280 Equipment : DVD ENTERTAINMENT SYSTEM Model Name : PKG-RSE3DVD Applicant : Evervictory Electronic Company Limited Address : Chu Chi Management District, Hu Men Town, Dong-Guan City, Guang-Dong Province, P.R. China Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Oct. 08, 2013 Date of Test: Oct. 08, 2013~ Oct. 28, 2013 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL: 0769-8318-3000 FAX: 0769-8319-6000 Report No.: NEI-FICP-1-1309C280 Page 2 of 30 Neutron Engineering Inc. Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: NEI-FICP-1-1309C280 Page 3 of 30 Neutron Engineering Inc. Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 3.4 DESCRIPTION OF SUPPORT UNITS 12 4 . EMC EMISSION TEST 13 4.1 RADIATED EMISSION MEASUREMENT 13 4.1.1 RADIATED EMISSION LIMITS 13 4.1.2 MEASUREMENT INSTRUMENTS LIST 14 4.1.3 TEST PROCEDURE 14 4.1.4 DEVIATION FROM TEST STANDARD 14 4.1.5 TEST SETUP 15 4.1.6 EUT OPERATING CONDITIONS 15 4.1.7 TEST RESULTS 16 4.2 FIELD STRENGTH OF FUNDAMENTAL AND BAND EDGE EMISSIONS MEASUREMENT 21 4.2.1 LIMITS OF FIELD STRENGTH OF FUNDAMENTAL AND BAND EDGE EMISSIONS MEASUREMENT 21 4.2.2 MEASURING INSTRUMENTS AND SETTING 21 4.2.3 TEST PROCEDURE 21 4.2.4 TEST SETUP LAYOUT 21 4.2.5 TEST DEVIATION 21 4.2.7 TEST RESULTS 22 5 . BANDWIDTH REQUIREMENT 27 5.1 LIMITS OF EMISSION BAND MEASUREMENT 27 5.1.1 MEASUREMENT INSTRUMENTS LIST 27 5.1.2 TEST PROCEDURE 27 5.1.3 TEST SETUP LAYOUT 27 5.1.4 TEST DEVIATION 27 5.1.5 EUT OPERATION DURING TEST 27 5.1.6 TEST RESULT OF 20dB SPECTRUM BANDWIDTH 28 6 . EUT TEST PHOTO 30 Report No.: NEI-FICP-1-1309C280 Page 4 of 30 Neutron Engineering Inc. REPORT ISSUED HISTORY Issued No. Description Issued Date NEI-FICP-1-1309C280 Original Issue. Oct. 29, 2013 - - - Report No.: NEI-FICP-1-1309C280 Page 5 of 30 Neutron Engineering Inc. 1. CERTIFICATION Equipment : DVD ENTERTAINMENT SYSTEM Brand Name : Alpine Model Name : PKG-RSE3DVD Applicant : Evervictory Electronic Company Limited Manufacturer : Evervictory Electronic Company Limited Address : Chu Chi Management District, Hu Men Town, Dong-Guan City, Guang-Dong Province, P.R. China Factory : Evervictory Electronic Company Limited Address : Chu Chi Management District, Hu Men Town, Dong-Guan City, Guang-Dong Province, P.R. China Date of Test : Oct. 08, 2013~ Oct. 28, 2013 Test Item : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C (15.239)/ ANCI C63.4: 2009 Canada RSS-210:2010 RSS-GEN Issue 3, Dec 2010 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FICP-1-1309C280) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: NEI-FICP-1-1309C280 Page 6 of 30 Neutron Engineering Inc. 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): (Antenna to EUT distance is 3 m) FCC Part15, Subpart C / Canada RSS-210 Standard(s) Test Item Limit Frequency Range (MHz) Judgment FCC IC 15.207 RSS-GEN Issue 3, Dec 2010 7.2.4 Conducted EmissionClass B 0.15 - 30 N/A 15.209 RSS-210, Issue 8, Annex 8, Section 8.5 Radiated EmissionClass B 30-1000 PASS 15.239 RSS-210, Issue 8, A2.8 Radiated Emission 250 V/m (48dBV/m) @ 3m 88~108 PASS NOTE: (1)”N/A” denotes test is not applicable in this test report. Report No.: NEI-FICP-1-1309C280 Page 7 of 30 Neutron Engineering Inc. 2.1 TEST FACILITY The test facilities used to collect the test data in this report is DG-CB03 at the location of No.3,Jinshagang 1st Road, Shixia, Dalang Town, Dong Guan, China.523792 Neutron's test firm number for FCC: 319330 Neutron's test firm number for IC: 4428B-1 2.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended un…

Text truncated - open the document above for the full version.

Report No.: NEI-FICP-1-1309C280 Page 34 of 34 Neutron Engineering Inc. 6. EUT TEST PHOTO Radiated Measurement Photos
