TZ8TR7092CS9.2� TFT LCD Monitor with DVD Player

9.2” TFT LCD Monitor with DVD Player TR-7092CS User manual Please read it carefully before you operate this player Welcome Thank you for buying the Roof Mount LCD Monitor with DVD player. Please read this manual carefully before using the Roof Mount LCD Monitor with DVD player in order to get the most out of all the features and functions. Keep this manual in a safe place, as it can be a valuable tool in helping you to understand all the features and functions. Contents Safety information.........................................................................1 DVD player features .....................................................................3 Setting up your DVD player ..........................................................9 Using your DVD player .................................................................14 Basic Operation ..........................................................................16 System setup ................................................................................21 Troubleshooting ............................................................................25 Specifications................................................................................26 Maintaining ...................................................................................27 Safety information λ Do not operate the unit in any way other than described within this manual. Failure to follow the instructions within the manual will invalidate your warranty. λ SAFETY FIRST! Do not install the display where it may (i) obstruct the driver’s vision, (ii) impair the performance of any of the vehicle’s operating systems or safety features, including airbags, or (iii) impair the driver’s ability to safely operate the vehicle. λ When using the system, make sure you are firmly secured by your seat belt to ensure you do not accidentally hit your head on the screen during sudden braking or other incidents. If you are ever in an accident, injuries can be more severe if the seat belt is not properly buckled. λ Do not attempt to install or service your display by yourself. Installation 1 or servicing of the display by persons without training and experience in electronic equipment and automotive accessories may be dangerous and could expose you to the risk of electric shock or other hazards. λ Be careful not to drain the car battery while using the unit with the car engine stopped. To avoid draining the battery, it is suggested that the vehicle engine always is running while using the unit. λ Do not disassemble or alter the unit in any way. Failure to do so can cause damage to the unit and invalid the warranty. λ Never clean the surface of the screen with chemical solvent or corrosive detergent, which may cause permanent damage to the TFT LCD screen. λ Avoid installing the unit wherever is under direct sunlight or near hot air vent. Please note that the normal working temperature of the unit is between -5°C to +50°C. If the internal temperature of the vehicle is extremely high, a short cooling down period is necessary before operating the unit. υ If the temperature inside the car is very low and the monitor is used soon after switching on the heater, moisture may form on the panel of the unit. Turn off the unit immediately! Failure to do so may cause the internal components to short. Allow the unit to rest for about one hour to allow the condensation to disappear before continue operation. λ In extremely cold temperatures, the movement of the picture may be slow and the picture may be dark. It is not a malfunction. The unit will work normally once it reaches its operating temperature. λ Do not drop or hit the LCD panel with a hard object, as it may cause permanent damage to the LCD panel. Should LCD panel break, avoid touching glass and fluid. If do, please clean it with plenty of water and ask for medical attention immediately. λ Due to different car specifications, please kindly ensue that the display monitor is properly located and not obstructing the air-conditioning vent. λ Avoid inserting any foreign objects into the slot of the disc Player. Failure to observe this may cause malfunction due to the precise mechanism of this unit. λ Protect your disc. When you leave the car, be sure to eject the disc from this unit and store it separately away from direct sun light. λ Heat and humidity may damage the disc and you may not be able to play it again. λ Use the supplied screws to fix the monitor Metal Mounting Plate. 2 DVD player features This player is a Roof Mount 9.2" TFT-LCD Color Display with DVD player that can be used as a stand-alone display, or can be integrated into a mobile multimedia system. This player has the following features: λ 9.2" TFT-LCD color monitor (16:9) λ Roof Mounting Application λ Pixel(dots):800RGB(W)x480(H) λ Wide Viewing angle(up/down/left/right):45/55/65/65 λ NTSC and PAL Compatible λ Adjustable Color/Contrast/Brightness/Tint λ Manual Viewing Angle Adjustment Vertical Adjustable: up/down>150 0 λ White LED Dome Light λ Automotive Startup Protection λ Built-in IR Transmitter for IR Wireless Headphone λ IR Remote Control λ On Screen Display λ 2xAV Input λ 1xAV Output λ Slot-in DVD mechanism λ Capability to read: DVD Format /DVD±R/DVD±RW/CD-DA/CD-RW/MP3/SVCD Note: Multi-session CDs and 320kbps WMA files can not be played on this player. DVD VIDEO FEATURES This unit provides the following functions in addition to high image quality and sound quality of DVD video: Multi-sound Function DVD audio can store up to 8 languages for one film. This allows for the selection of language of ones preference. Multi-angle Function A DVD video that is filmed from multiple angle which allows you choosing to view from different perspectives. 3 Subtitle Function A DVD video can record subtitles for up to 32 languages to choose from. DISC PLAYBACK This DVD player can play the following formats. About CD Extra discs A CD Extra disc is a disc in which a total of two sessions have been…

Text truncated - open the document above for the full version.

David Waitt From: Generic Office of Engineering Technology [[email protected]] Sent: Friday, June 29, 2007 12:13 PM To: [email protected] Subject: Response to Inquiry to FCC (Tracking Number 485486) 6/29/2007 Inquiry: Date: 29 June 2007 Application ID (ATCB5106) Application ID (ATCB5112) PREMIT BUT ASK Guidance Gentlemen I am seeking guidance on the above TWO referenced PERMIT BUT ASK applications The devices are ceiling mounted automotive DVD players with drop down LCD screens. The only difference between the two units is the size of the LCD. (9.2 vs 15.4 in) The devices transmits the DVD audio to the auto FM radio on a user selectable frequency (every 200kHz) between 88.1 MHz to 89.9 MHz. The lab has verified that the device will not tune outside of the above frequencies. The devices meet the average and peak radiated emissions requirements of 15.239 The BW is less than 200kHz, verified on L-M-H frequencies Out of band emissions are below 15.209 The devices were tested on a turntable in a chamber The devices were tested on 88.1, 88.9 and 89.9 MHz The devices are installed by attaching a bracket to the interior, and then attaching the DVD player to the bracket The units were tested while playing a typical DVD movie The antenna of the devices is integral and is a coil Best Regards, Dw8 Response: The data passes the permit but ask. Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add any additional information pertaining to this inquiry. 6/29/2007

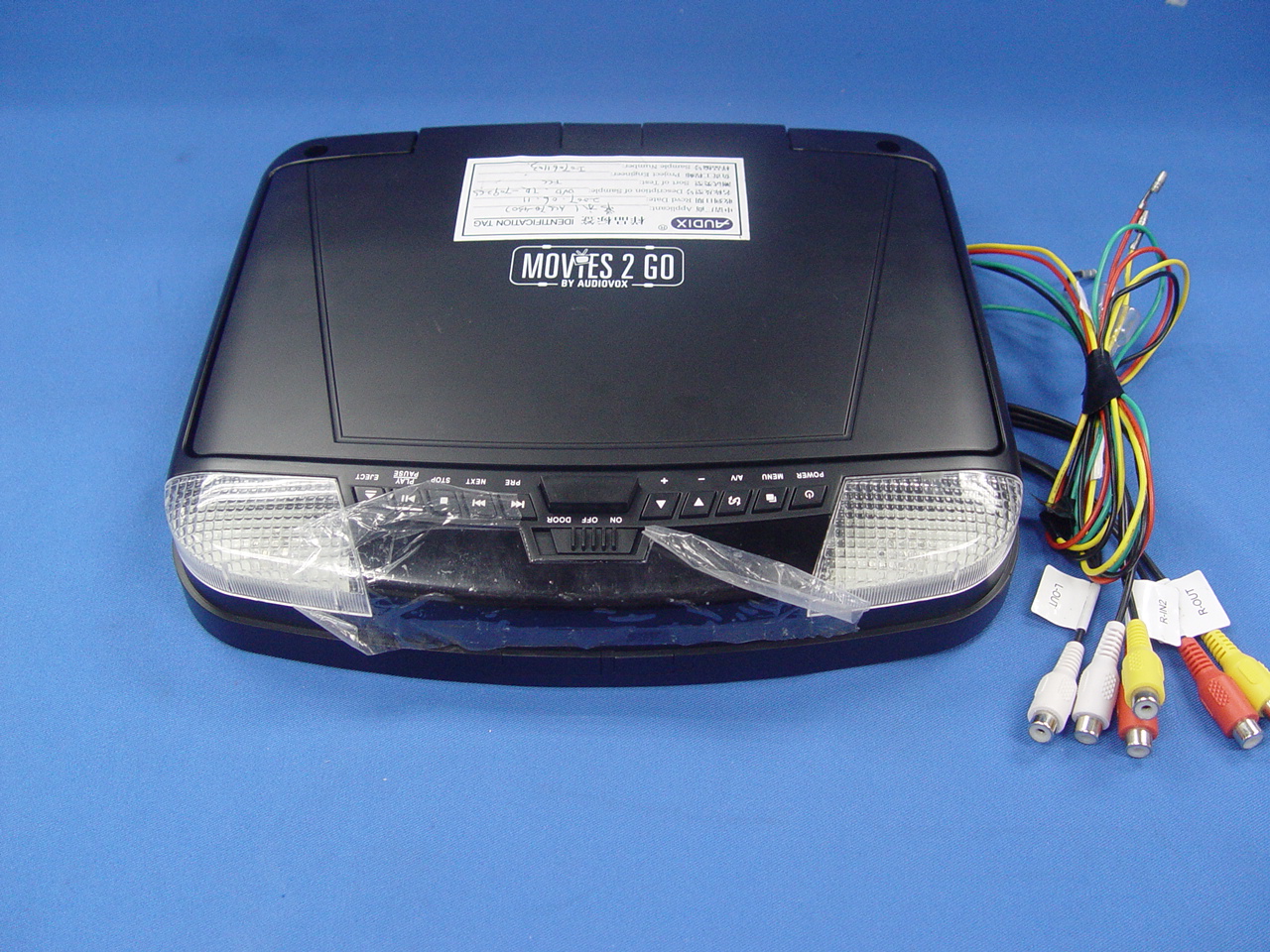

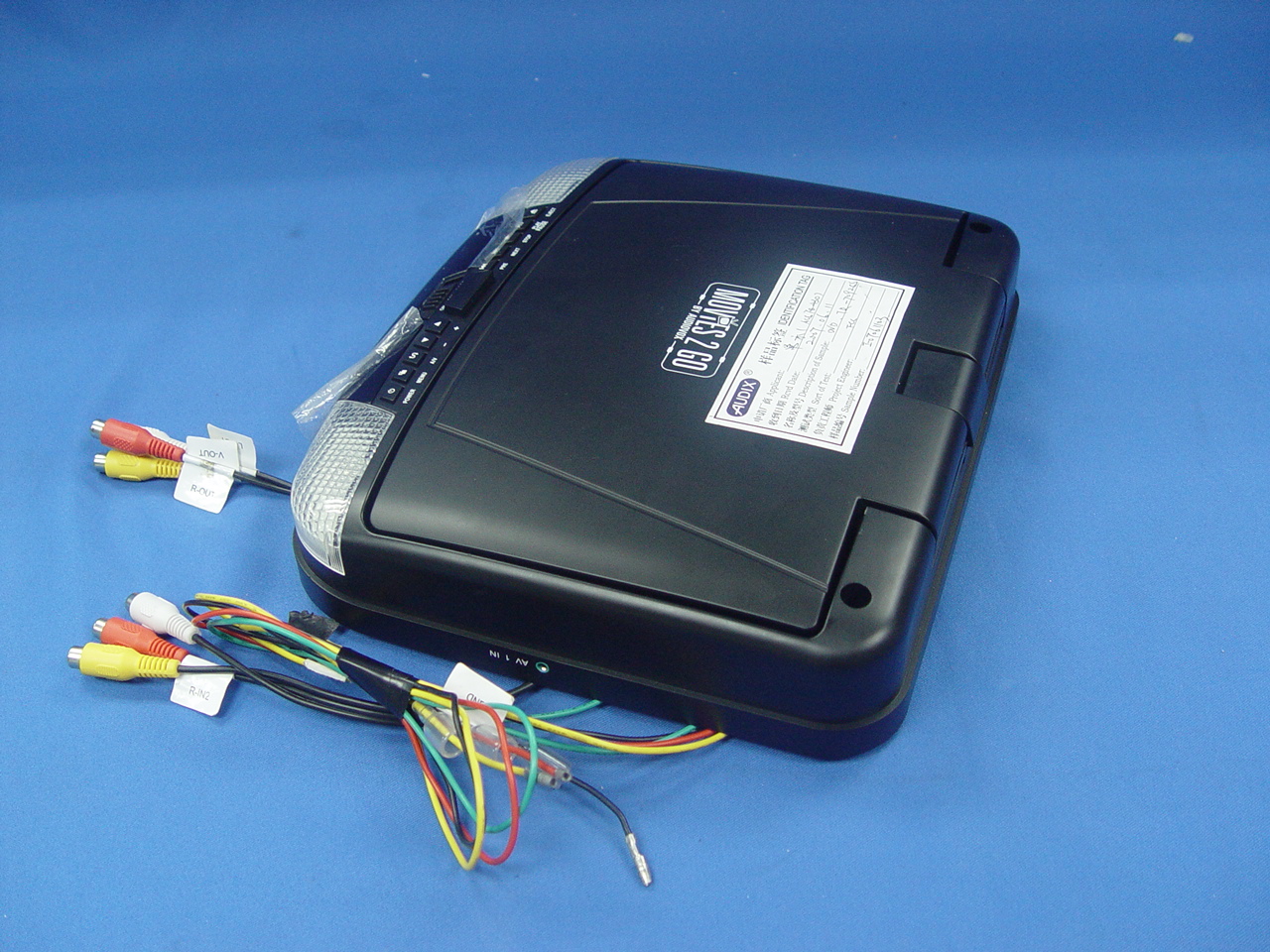

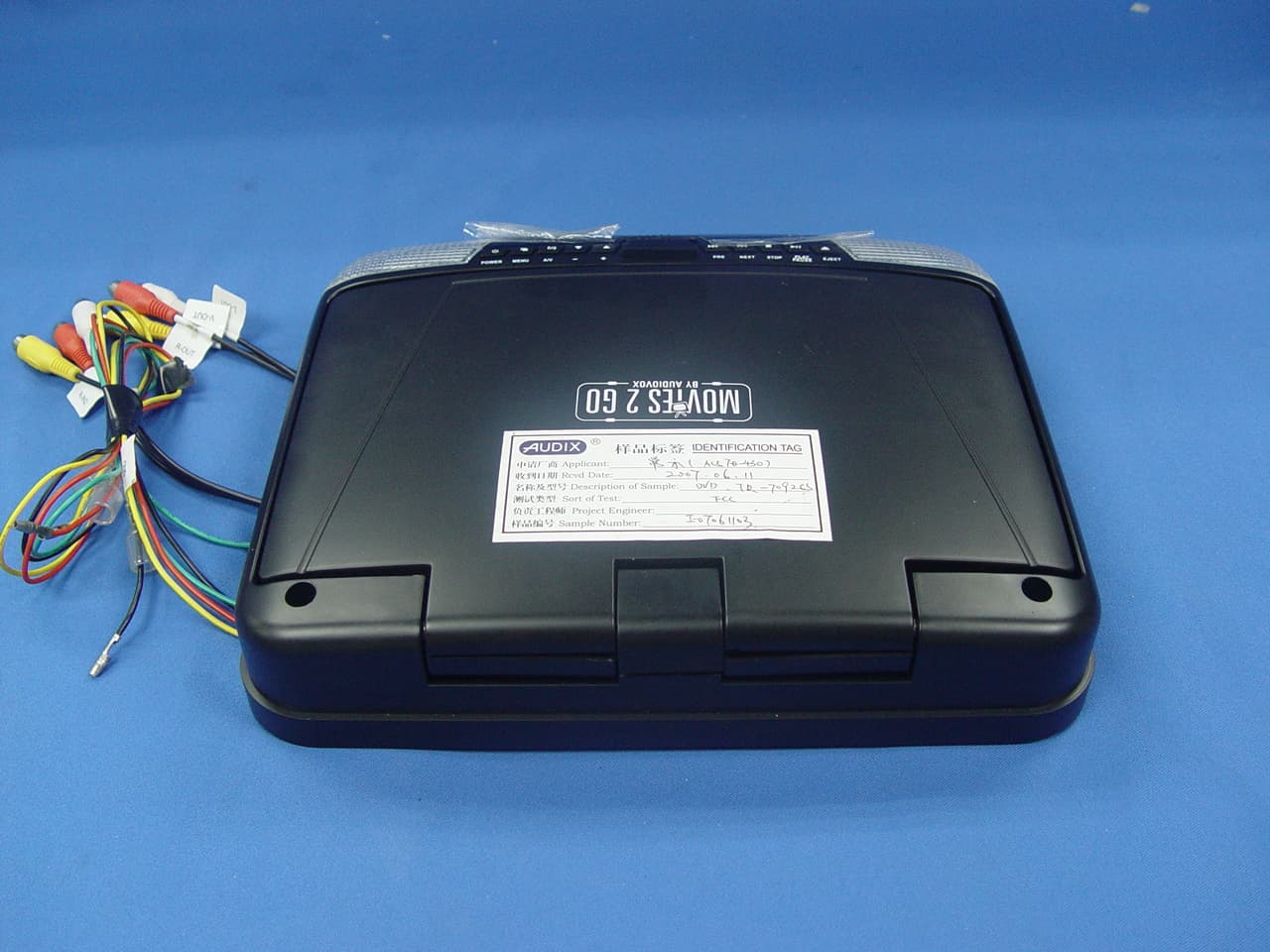

Page 6 Evervictory Electronic Company Limited Roof Mount LCD Monitor with DVD Player Combo FCC ID:TZ8TR7092CS Photographs Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT Page 7 Evervictory Electronic Company Limited Roof Mount LCD Monitor with DVD Player Combo FCC ID:TZ8TR7092CS Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT

Page 8 Evervictory Electronic Company Limited Roof Mount LCD Monitor with DVD Player Combo FCC ID:TZ8TR7092CS Figure 5 Inside of the EUT Figure 6 Inside of the EUT Label Location

!! Page 9 ! Evervictory Electronic Company Limited ! Roof Mount LCD Monitor with DVD Player Combo FCC ID:TZ8TR7092CS ! ! Figure 5 Inside of the EUT Figure 6 Inside of the EUT Label Location !! Page : ! Evervictory Electronic Company Limited ! Roof Mount LCD Monitor with DVD Player Combo FCC ID:TZ8TR7092CS ! ! Figure 7 Inside of the EUT Figure 8 Inside of the EUT !! Page 21 ! Evervictory Electronic Company Limited ! Roof Mount LCD Monitor with DVD Player Combo FCC ID:TZ8TR7092CS ! ! Figure 9 Inside of the EUT Figure 10 Inside of the EUT !! Page 22 ! Evervictory Electronic Company Limited ! Roof Mount LCD Monitor with DVD Player Combo FCC ID:TZ8TR7092CS ! ! Figure 11 Inside of the EUT Figure 12 Inside of the EUT !! Page 23 ! Evervictory Electronic Company Limited ! Roof Mount LCD Monitor with DVD Player Combo FCC ID:TZ8TR7092CS ! ! Figure 13 Inside of the EUT Figure 14 Inside of the EUT !! Page 24 ! Evervictory Electronic Company Limited ! Roof Mount LCD Monitor with DVD Player Combo FCC ID:TZ8TR7092CS ! ! Figure 15 Inside of the EUT Figure 16 Inside of the EUT !! Page 25 ! Evervictory Electronic Company Limited ! Roof Mount LCD Monitor with DVD Player Combo FCC ID:TZ8TR7092CS ! ! Figure 17 Inside of the EUT Figure 18 Inside of the EUT !! Page 26 ! Evervictory Electronic Company Limited ! Roof Mount LCD Monitor with DVD Player Combo FCC ID:TZ8TR7092CS ! ! Figure 19 Inside of the EUT Figure 20 Inside of the EUT !! Page 27 ! Evervictory Electronic Company Limited ! Roof Mount LCD Monitor with DVD Player Combo FCC ID:TZ8TR7092CS ! ! Figure 21 Inside of the EUT Figure 22 Inside of the EUT !! Page 28 ! Evervictory Electronic Company Limited ! Roof Mount LCD Monitor with DVD Player Combo FCC ID:TZ8TR7092CS ! ! Figure 23 Inside of the EUT Figure 24 Inside of the EUT !! Page 29 ! Evervictory Electronic Company Limited ! Roof Mount LCD Monitor with DVD Player Combo FCC ID:TZ8TR7092CS ! ! Figure 25 Inside of the EUT Figure 26 Inside of the EUT

FCC ID:TZ8TR7092CS Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07259 APPLICATION FOR CERTIFICATION On Behalf of Evervictory Electronic Company Limited Roof Mount LCD Monitor with DVD Player Combo Model Number: TR-7092CS Prepared for : Evervictory Electronic Company Limited Chu Chi management district, Humen town, Dongguan city, Guangdong province, China Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F07259 Date of Test ： Jun.21, 2007 Date of Report ： Jun.25, 2007 FCC ID:TZ8TR7092CS Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07259 TABLE OF CONTENTS Description Page Test Report Declaration 1. SUMMARY OF STANDARDS AND RESULTS .................................................................. 1-1 1.1. Description of Standards and Results.............................................................................................1-1 2. GENERAL INFORMATION .................................................................................................. 2-1 2.1. Description of Device (EUT) .........................................................................................................2-1 2.2. Test Facility....................................................................................................................................2-2 2.3. Test Uncertainty .............................................................................................................................2-2 3. POWER LINE CONDUCTED EMISSION TEST................................................................ 3-1 4. RADIATED EMISSION TEST ............................................................................................... 4-1 4.1. Test Equipment ..............................................................................................................................4-1 4.2. Block Diagram of Test Setup .........................................................................................................4-1 4.3. Radiated Emission Limit 30~1000MHz.........................................................................................4-2 4.4. EUT Configuration on Test............................................................................................................4-2 4.5. Operating Condition of EUT..........................................................................................................4-2 4.6. Test Procedure................................................................................................................................4-3 4.7. Radiated Emission Test Results .....................................................................................................4-3 5. BANDWIDTH TEST................................................................................................................ 5-1 5.1. Test Equipment ..............................................................................................................................5-1 5.2. Test Information .............................................................................................................................5-1 5.3. Test Results ....................................................................................................................................5-1 6. DEVIATION TO TEST SPECIFICATIONS ........................................................................ 6-1 7. PHOTOGRAPHS OF TEST.................................................................................................... 7-1 FCC ID:TZ8TR7092CS Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07259 1-1 1. SUMMARY OF STANDARDS AND RESULTS 1.1. Description of Standards and Results The EUT have been tested according to the applicable standards as referenced below. EMISSION Description of Test Item Standard Limits Results Conducted Emission Test FCC Part 15: 15.207 ANSI C63.4: 2003 Part C Limit N/A Radiated Emission Test FCC Part 15: 15.239 ANSI C63.4: 2003 Part C Limit PASS Bandwidth Test FCC Part 15: 15.239 Part C Limit PASS N/A is an abbreviation for Not Applicable. FCC ID:TZ8TR7092CS Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07259 2-1 2. GENERAL INFORMATION 2.1. Description of Device (EUT) Description : Roof Mount LCD Monitor with DVD Player Combo Model Number : TR-7092CS Working Frequency : 88.1MHz to 89.9MHz manually adjusted with 0.2MHz separation by press up/down buttons. Applicant : Evervictory Electronic Company Limited Chu Chi management district, Humen town, Dongguan city, Guangdong province, China Manufacturer : Evervictory Electronic Company Limited Chu Chi management district, Humen town, Dongguan city, Guangdong province, China Date of Test : Jun.21, 2007 Note: We selected 88.1MHz, 89.1MHz and 89.9MHz for all test. FCC ID:TZ8TR7092CS Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07259 2-2 2.2. Test Facility Site Description 3m Anechoic Chamber : Jun. 13, 2006 File on Federal Communication Commission Registration Number: 90454 3m & 10m Anechoic Chamber : Jan.31, 2007 File on Federal Communication Commission Registration Number: 794232 EMC Lab. : Accredited by DATech, German Registration Number: DAT-P-091/99-01 Feb. 02, 2006 Accredited by NVLAP, USA NVLAP Code: 200372-0 Apr. 01, 2006 2.3. Test Uncertainty No. Item Uncertainty Remark 1. Uncertainty for Radiated Emission Test 3.14dB 3m Chamber 2. Uncertainty for Bandwidth Emission Test 0.42×10 -6 dB FCC ID:TZ8TR7092CS Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07259 3-1 3. POWER LINE CONDUCTED EMISSION TEST According to Paragraph (f) of FCC Part 15C , Tests to demonstrate compliance with the conducted limits are not required for devices which only employ battery power for operation and which do not operate from the AC power lines or contain provisions for operation while connected to the AC power lines. FCC ID:TZ8TR7092CS Page…

Text truncated - open the document above for the full version.

FCC ID:TZ8TR7092CS Page 7-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07259 7. PHOTOGRAPHS OF TEST X position FCC ID:TZ8TR7092CS Page 7-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07259 Y position FCC ID:TZ8TR7092CS Page 7-3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07259 Z position
