TZI-BB804336Big Blue Media Tower

804336_INS_Big Blue Media TowerSize:5”Wx4.75”H_Output:100%_Prints:1/1,Blk WORKING NAME AND ESSENCE Big Blue TM Media Tower ESSENCE STATEMENT HERE FPO 1 TABLE OF CONTENTS Warnings and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Location of Parts and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 CAUTION • TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER . THERE ARE NO SERVICEABLE PARTS INSIDE . • TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE . The lightning flash with arrow-head symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the unit’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock . The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the unit . IMPORTANT SAFETY INSTRUCTIONS All the safety and operating instructions should be read, heeded, adhered to and followed before the unit is operated . 804336_INS_Big Blue Media TowerSize:5”Wx4.75”H_Output:100%_Prints:1/1,Blk SAFETY AND HANDLING INFORMATION For maximum product life, do not drop, throw or crush the speaker . Do not expose it to humidity, dust, or operating temperatures outside 32°F to 113°F (0°C to 45°C) . SAVE THESE INSTRUCTIONS! DANGER To reduce the risk of electric shock, burns, fire or injury: 1 . Do not use while bathing or in a shower . 2 . Do not place or store unit where it can fall or be pulled into a tub or sink . 3 . Do not place in, drop or submerge in water or other liquid . 4 . Do not reach for a unit that has fallen into water . Unplug it immediately . 5 . Care should be taken so that objects do not fall and liquids are not spilled onto the unit . WARNING 1 . Close supervision is necessary when this appliance/product is used by or near children or mentally disabled individuals . 2 . Use this unit only for its intended use as described in this manual . 3 . Unplug this unit during lightning storms or when unused for long periods of time . 4 . Never drop or insert an object into any opening . 5 . Protect the power cord from being walked on or pinched, particularly at plug outlets, convenience receptacles and the point where it exits the unit . 3 6 . Do not allow cord to touch hot surfaces . Wrap cord loosely around the unit when storing . 7 . The unit should be situated away from direct sunlight or heat sources such as radiators, electric heaters, heat registers, stoves, or other units (including amplifiers) that produce heat . Avoid placing on top of stereo equipment that radiates heat . 8 . Never block the air openings of the unit with materials such as clothing, plastic bags or papers, or place it on a soft surface such as a bed or couch, where the air openings may be blocked . 9 . Do not overload the electrical outlet . Use the power source only as indicated . 10 . Do not carry this unit by its cord or use the cord as a handle . 11 . Never operate this unit if it has a damaged cord or plug, if it is not working properly, or if it has been dropped or damaged, or dropped into water . If the unit’s power supply cord or plug is damaged, do not attempt to fix it yourself . 12 . To avoid the risk of electric shock, do not disassemble or attempt to repair the unit . Incorrect repair can cause risk of electric shock or injury to persons when the unit is used . 13 . Do not operate in the presence of explosive and/or flammable fumes . 14 . Never remove the plug from the outlet by pulling the power cord . 4 804336_INS_Big Blue Media TowerSize:5”Wx4.75”H_Output:100%_Prints:1/1,Blk 5 FCC INFORMATION This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC Rules . These limits are designed to provide reasonable protection against harmful interference in a residential installation . This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications . However, there is no guarantee that interference will not occur in a particular installation . If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna . • Increase the distance between the equipment and receiver . • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected . • Consult the dealer or an experienced radio/TV technician for help . This equipment complies with Part 15 of the FCC Rules . Operation is subject to the following two conditions: 1 . This equipment may not cause harmful interference . 2 . This equipment must accept any interference received, including interference that may cause undesired operation . Modifications not authorized by the manufacturer may void the user’s authority to operate this device . 6 804336_INS_Big Blue Media TowerSize:5”Wx4.75”H_Output:100%_Prints:1/1,Blk LOC…

Text truncated - open the document above for the full version.

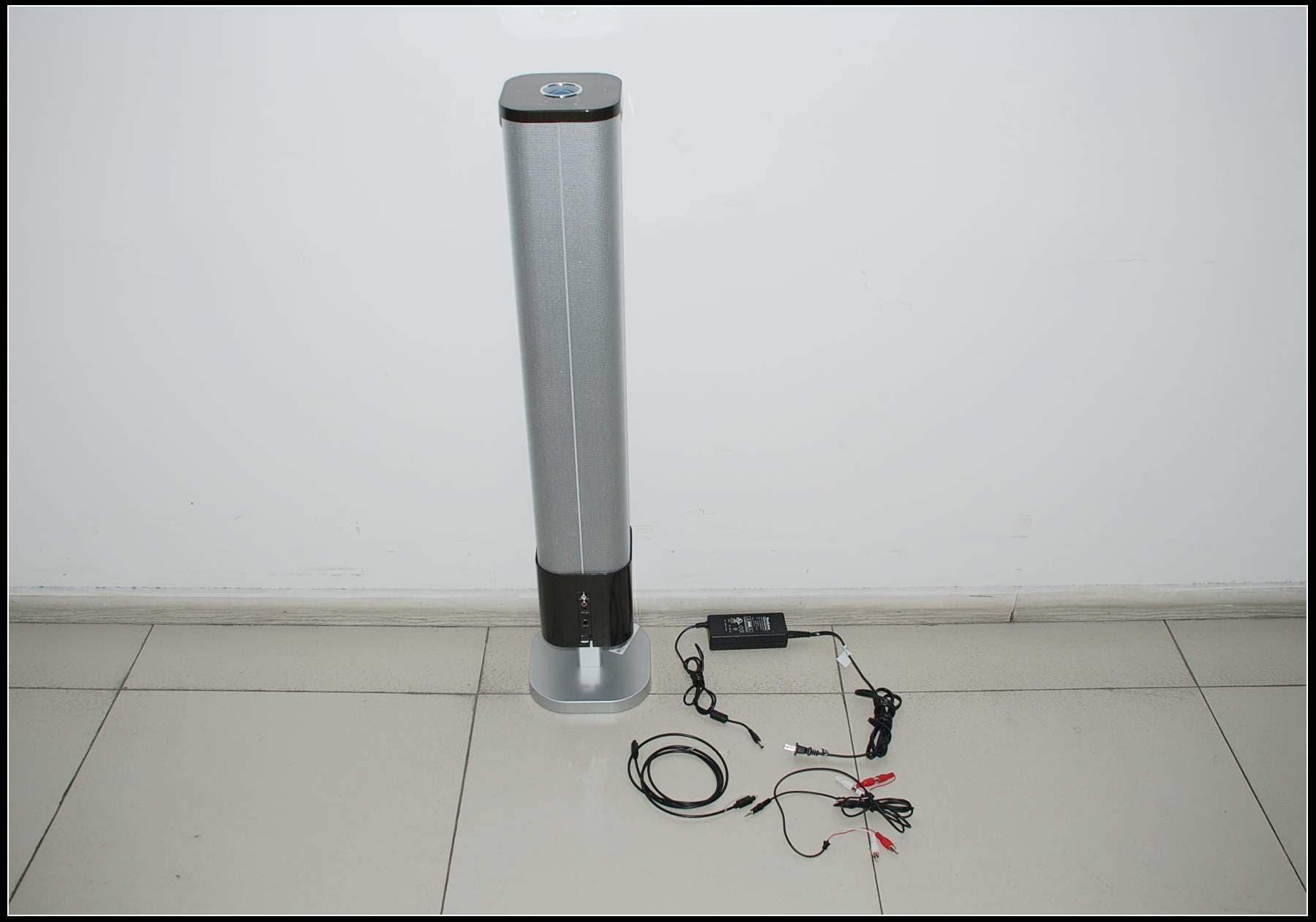

External Photos

Internal Photos

SGS-CSTC Standards Technical Services Co., Ltd. Application No..: GZEM1209004042RF Page: 1 of 2 FCC ID: TZI-BB804336 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. RF Exposure Compliance Requirement 1. Standard requirement Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. (a) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S)(mW/cm 2 ) Averaging Times ׀E׀ 2 , ׀H׀ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S)(mW/cm 2 ) Averaging Times ׀E׀ 2 , ׀H׀ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- F/1500 30 1500-100000 -- -- 1.0 30 Note: f=frequency in MHz; *Plane-wave equivalent power density SGS-CSTC Standards Technical Services Co., Ltd. Application No..: GZEM1209004042RF Page: 2 of 2 FCC ID: TZI-BB804336 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 2. MPE Calculation Method E (V/m)=(30*P*G) 0.5 /d Power Density: Pd(W/m 2 )=E 2 /377 E=Electric Field (V/m) P=Peak RF output Power (W) G=EUT Antenna numeric gain (numeric) d= Separation distance between radiator and human body (m) The formula can be changed to Pd= (30*P*G)/(377*d 2 ) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. 3. Calculated Result and Limit (1) Normal mode: Frequency (MHz) Antenna Gain (Numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2402 1.00 0.32 1.076 0.00021 1.00 Complies 2441 1.00 0.12 1.028 0.00020 1.00 Complies 2480 1.00 0.46 1.112 0.00022 1.00 Complies (2) EDR mode: Frequency (MHz) Antenna Gain (Numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2402 1.00 -0.88 0.817 0.00016 1.00 Complies 2441 1.00 -1.00 0.794 0.00016 1.00 Complies 2480 1.00 -0.39 0.914 0.00018 1.00 Complies

SGS-CSTC Standards Technical Services Co., Ltd. 198 Kezhu Road, Scient ech Park, Gu angzh ou Econ omic & Technolo gical Developm ent District, Guan gzhou , China 5106 63 Telephon e: +86 (0) 20 82155555 Fax: +86 (0) 2 0 82 0750 59 Email: ee.guangzhou@sg s.co m Report No.: GZEM120900404201 Page: 1 of 67 FCC ID: TZI-BB804336 Authorized Signature: Strong Yao Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only 1 Cover Page TEST REPORT Application No.: GZEM1209004042RF Applicant: Arts Electronics Co., Ltd. FCC ID: TZI-BB804336 Product Name: Big Blue Media Tower Product Description: Bluetooth speaker with 2.4 GHz as carrier Model No.: 804336, BBS37 ♣ ♣ Please refer to section 3 of this report for details Trade Mark: Brookstone Standards: 47 CFR PART 15 Subpart C: 2011 section 15.247 Date of Receipt: 2012-09-25 Date of Test: 2012-09-25 to 2012-10-15 Date of Issue: 2012-10-17 Test Result : Pass* * In the configuration tested, the EUT detailed in this report complied with the standards specified above. Please refer to section 3 of this report for further detail. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: GZEM120900404201 Page: 2 of 67 FCC ID: TZI-BB804336 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 2 Version Revision Record Version Chapter Date Modifier Remark 00 2012-10-17 Original Authorized for issue by: Tested By 2012-09-25 to 2012-10-15 (Ryan Yang) /Signature Date Prepared By 2012-10-17 (Ryan Yang) /Signature Date Checked By 2012-10-17 (Strong Yao) /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Report No.: GZEM120900404201 Page: 3 of 67 FCC ID: TZI-BB804336 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 3 Test Summary Test Test Requirement Test method Result Antenna Requirement FCC PART 15 C section 15.247 (c) and Section 15.203 FCC PART 15 C section 15.247 (c) and Section 15.203 PASS Occupied Bandwidth FCC PART 15…

Text truncated - open the document above for the full version.

Test Setup Photos Radiated Spurious Emission Test Setup Below 1GHz: Above 1GHz: Conducted Emission Test Setup
