TZI-WF1015Internet radio with FM and alarm clock

INSTRUCTION MANUAL Wi-Fi Internet Radio MODEL: MS-2275INT 1 2 6. Read these instructions careful ly and keep them in a safe place . Do not use this appliance near water.Clean only with a soft dry cloth.Only use attachments/accessories s pecified by the manufacturer. Unplug this unit during lighten ing storms or when not in use. Refer all servicing to a quali fied service personnel. Servicing is required when the appliance is damaged in any way.This appliance shall not be expos ed to dripping or splashing wa ter. No object filled with liquids suc h as vases shall be placed on the appliance. Do not place naked flame sources such as candles on the applian ce. Make sure all electrical connecti ons are properly made in accor dance with the manufacturer’s instructions. Switch off and unplug from the mains before chang ing any connections. Make sure the mains cord is r outed so that it is not likely to be walked on, or subjected to water and heat.Do not obstruct the vents whic h such things as newspapers, tabl ecloths, curtains and so on. Do not operate the appliance if you are in doubt about it worki ng normally, or if it is damaged in any way.Make sure the is adequate ventilation space around the applianc e, at least 10 cm at the sides and on the top.Lower the volume before using headphones with this unit, then g radually increase the volume to a comfortable level. Listening to music at a high volume and for a prolonged period of time can cause damage to hearing.Always unplug from the mains when not in use. IMPORTANT SAFETY INSTRUCTIONS 1.2.3.4.5.7.8.9.10.11.12.13.14.15.16. WarningRead these electrical safety instructions carefully before connecting the AC adaptor to the mains Electrical Information This unit is supplied with an AC mains adaptor.This AC mains adaptor is designed to oper ate on AC 100-240V, 50/60Hz supply only. Connecting it to any other power sources may damage the unit.The AC mains adaptor is designed for indoor use only.The AC mains adaptor is a sealed unit. There are no us er serviceable parts inside and it does not require any electrical adjustments.Do not attempt to open the AC mains adaptor.If the AC mains adaptor is not suitable for your sock et, or becomes damaged, it must be replaced and disposed of in a safe and env ironmentally protective way. Always refer to qualified personnel.Periodically inspect the AC mains ad aptor for damage. Do not use if faults or damages are found. Refer to qualified personel. YOUR FM/INTERNET RADIO IntroductionWith this unit, you can enjoy both FM radio and Wi-Fi Internet radio, is a way of broadcasting radio digitally through a network of transmitters. It provides you with more choice, better sound quality and more information. What’s in the boxCheck and identify the contents of your package:• Main unit• AC adaptor• User manual The user is cautioned that changes or modifications not expressly appr oved by the party responsible for compliance could void the user's authority to operate the equipment.This equipment complies with FCC’s radiation exposure limits set fort h for an uncontrolled environment. The antenna(s) used for this transmitter must be installed and operated to provide a separation distance of at least 20 cm from all persons and must not be colloc ated or operating in conjunction with any other antenna or transmitter. Installers must ensure that 20cm se paration distance will be maintained between the device (excluding its handset) and users. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in ac cordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to r adio or television reception, which can be determined by turning the equipment off and on, the user is encourage d to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit differ ent from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Current selection Current input More selections available 3 4 LOCATION OF UNIT CONTROLS TOP AND FRONT VIEWREAR VIEW1. Speaker2. DOWN/UP Knob3. LCD Display4. MENU Button5. FAV Button6. MODE Button7. ON/OFF Button 8. FM Antenna Rod9. Headphone Jack10. AUX IN Jack11. AUX OUT Jack12. Internet Port13. DC Socket 12 34567 9 10 11 12 13 8 Press the ON/OFF button to turn the unit ON or OFF. Turning on or off the unit GENERAL CONTROLS The display window shows the playback screen, brow se screen, settings screen, messages etc. What appears on the window varies depending on the function you are using. Using the menusPress MODE, there are 4 mode to select:To select mode Internet radioFMAux inMusic archive Use the DOWN/UP knob to make choices and input information. To navigate in the menus: Moves up - Rotate the DOWN/UP knob clockwise on the main unitMoves down - Rotate the DOWN/UP knob counter-clockwise on the main unit OK - Press the DOWN/UP knob to confirm selected option Audio controls Rotate the DOWN/UP knob on the main unit to adjust sound level during playback. The current volume shows on the display temporarily before returning to the previous display. When sound is cut, “” shows on the display. To retort the sound output, rotate the DOWN/UP knob clockwise. DisplayThe dot-matrix display is a dynamic and intuitive inte rface that provides many necessary information during operation. Some of the key displays are illustrated below…

Text truncated - open the document above for the full version.

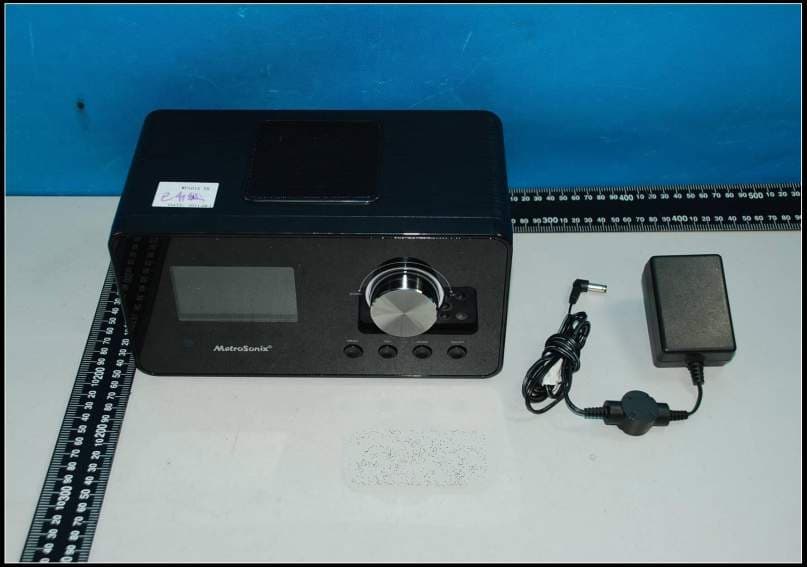

External Photos

Internal Photos

SGS-CSTC Standards Technical Services Co., Ltd. Application No..: GZEM1108003121AV Page: 1 of 2 FCC ID: TZI-WF1015 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. RF Exposure Compliance Requirement 1. Standard requirement Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. (a) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S)(mW/cm 2 ) Averaging Times ׀E׀ 2 , ׀H׀ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S)(mW/cm 2 ) Averaging Times ׀E׀ 2 , ׀H׀ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/500 30 1500-100000 1.0 30 Note: f=frequency in MHz; *Plane-wave equivalent power density SGS-CSTC Standards Technical Services Co., Ltd. Application No..: GZEM1108003121AV Page: 2 of 2 FCC ID: TZI-WF1015 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 2. MPE Calculation Method E (V/m)=(30*P*G) 0.5 /d Power Density: Pd(W/m 2 )=E 2 /377 E=Electric Field (V/m) P=Peak RF output Power (W) G=EUT Antenna numeric gain (numeric) d= Separation distance between radiator and human body (m) The formula can be changed to Pd= (30*P*G)/(377*d 2 ) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. 3. Calculated Result and Limit (1)802.11b 11Mbps data rate: Frequency (MHz) Antenna Gain (Numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2412 1.78 16.60 45.709 0.0161704 1 Complies 2437 1.78 16.35 43.152 0.0152658 1 Complies 2462 1.78 14.41 27.606 0.0097661 1 Complies (2) 802.11g 54Mbps data rate: Frequency (MHz) Antenna Gain (Numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2412 1.78 18.57 71.945 0.0254519 1 Complies 2437 1.78 18.53 71.285 0.0252185 1 Complies 2462 1.78 17.24 52.966 0.0187379 1 Complies

SGS-CSTC Standards Technical Services Co., Ltd. 198 Kezhu Road, Scientech Park, Guangzhou Economic & Technology Development District, Guangzhou, China 510663 Tel: +86 20 82155555 Fax: +86 20 82075059 Email: [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 Report No.: GZEM110800312101 Page: 1 of 77 FCC ID: TZI-WF1015 Authorized Signature: Strong Yao Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only 1 Cover Page TEST REPORT Application No.: GZEM1108003121AV Applicant: Arts Electronics Co., Ltd. FCC ID: TZI-WF1015 Product Name: Internet radio with FM and alarm clock Product Description: Internet radio with 2.4 GHz as carrier Model No.: MS-INT2275 Trade Mark: MetroSonix Standards: FCC PART 15 Subpart C: 2010 section 15.247 Date of Receipt: 2011-08-22 Date of Test: 2011-08-22 to 2011-09-01 Date of Issue: 2011-09-09 Test Result : Pass* * In the configuration tested, the EUT detailed in this report complied with the standards specified above. Please refer to section 3 of this report for further detail. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: GZEM110800312101 Page: 2 of 77 FCC ID: TZI-WF1015 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 2 Version Revision Record Version Chapter Date Modifier Remark 00 2011-09-09 Original Authorized for issue by: 2011-08-22 to 2011-09-01 Tested By (Daniel He) /Signature Date 2011-09-09 Prepared By (Daniel He) /Signature Date 2011-09-09 Checked By (Strong Yao) /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Report No.: GZEM110800312101 Page: 3 of 77 FCC ID: TZI-WF1015 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 3 Test Summary Test Test Requirement Test method Result Antenna Requirement FCC PART 15 C section 15.247 (c) and Section 15.203 FCC PART 15 C section 15.247 (c) and Section 15.203 PASS 6 dB Bandwidth FCC PART 15 C section 15.247 (…

Text truncated - open the document above for the full version.

Test Setup Photos Radiated Spurious Emission Test Setup Below 1GHz: Above 1GHz: Conducted Emission Test Setup
