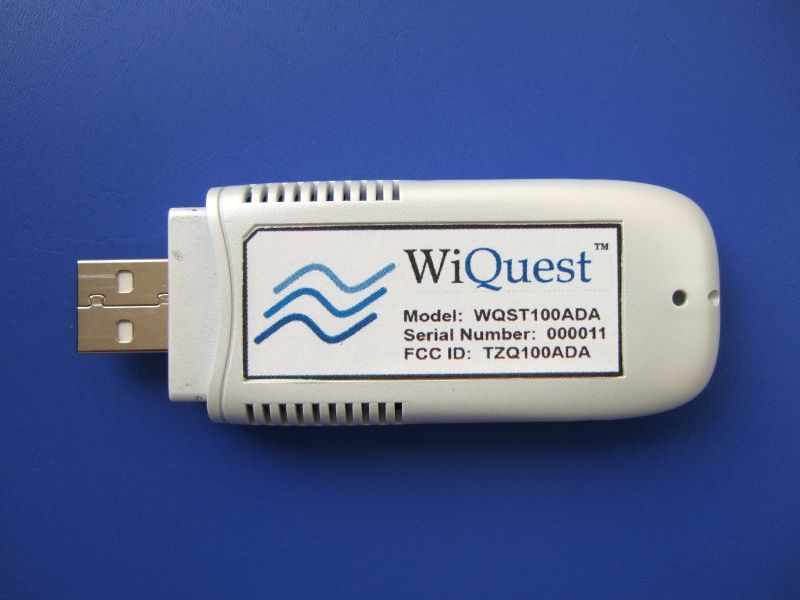

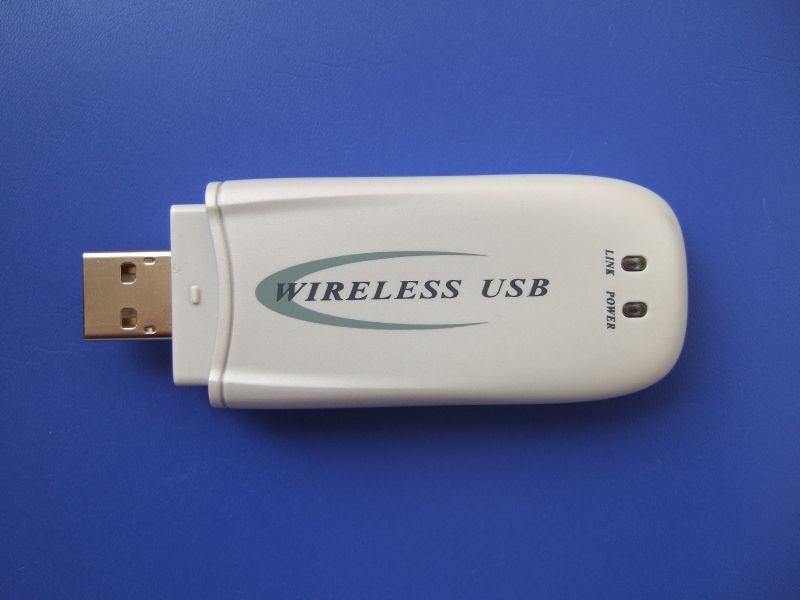

TZQ100ADAWireless USB Dongle

601 Century Parkway, Suite 110 Allen, Texas 75013 www.WiQuest.com WQST100ADA Wireless USB Adapter Reference Design Users Guide Version 0.1 WiQuest Communications, Inc. WQST100ADA UG 601 Century Parkway, Suite 110 Allen, Texas 75013 www.WiQuest.com 1 WQST100ADA Reference Design Users Guide WQST100ADA UG Revision 0.1, February 15, 2006 CONTENTS : RIGHTS.......................................................................................................................................................................................... 2 REGULATORY NOTICES........................................................................................................................................................ 3 INTRODUCTION.......................................................................................................................................................................... 4 1 WQST100ADA FEATURES.............................................................................................................................................. 4 1.1 HARDWARE FEATURES............................................................................................................................................... 4 1.2 SYSTEM REQUIREMENTS............................................................................................................................................ 4 2 INSTALLING THE WQST100ADA USB ADAPTER DRIVER AND SOFTWARE................................................................. 4 2.1 INSTALLING THE WQST100ADA WIRELESS USB DRIVER....................................................................................... 4 2.2 INSTALLING THE USB DRIVERS AND THE EVK CONTROL CENTER (ECC)............................................................... 5 2.3 CONNECT THE WQST100ADA USB ADAPTER HARDWARE............................................................................... 10 3 EVK CONTROL CENTER (ECC)...................................................................................................................................... 13 3.1 RUNNING THE EVK CONTROL CENTER APPLICATION............................................................................................. 14 3.2 SELECT THE HOST INTERFACE................................................................................................................................... 14 3.2.1 SELECT THE DEVICE IDENTIFIER (ADDRESS) AND TIME FREQUENCY CODE # ........................................................ 14 3.2.2 TRANSMIT WINDOW................................................................................................................................................... 15 3.2.3 RECEIVE WINDOW..................................................................................................................................................... 17 4 APPENDIX A: TROUBLESHOOTING.................................................................................................................................. 19 4.1 THE USB ADAPTER IS NOT FUNCTIONAL................................................................................................................. 19 4.2 I CAN’T CONNECT TO THE USB ADAPTER............................................................................................................... 19 www.WiQuest.com 2 WQST100ADA Reference Design Users Guide WQST100ADA UG Revision 0.1, February 15, 2006 Rights Rights to use this documentation are set forth in the License Agreement included with the WQST100ADA USB Adapter module. © WiQuest Communications, Inc. 2006. All rights reserved. All right, title and interest, copyrights, patents, know-how, trade secrets, and other intellectual property relating to this publication and to the WQST100ADA product are proprietary products of WiQuest Communications, Inc. (“WiQuest”). Any and all other trademarks, product names, and other intellectual property rights are the sole property of their respective owners. If this guide is distributed with software that includes an end user agreement, this guide, as well as the software describe in it, is furnished under license and may be used in accordance with the terms of such license. Except as permitted by such license, no part of this guide may be reproduced, stored in a retrieval system, or transmitted, in any form, or by any means, electronic, mechanical, recording, or otherwise, without the prior written permission of WiQuest Communications, Inc. Please note that the content in this guide is protected under copyright law even if it is not distributed with software that includes an end user license agreement. The content of this guide is furnished for information al use only and does not form part of any quotation or contract. It is subject to change without notice, and should not be construed as a commitment by WiQuest Communications, Inc. WiQuest Communications, Inc. assumes no responsibility or liability for any errors or inaccuracies that may appear in the information content contained in this guide. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. WiQuest™ and WiDV™ are registered trademarks of WiQuest Communications, Inc.. No right, license, or interest to such trademark is granted hereunder. www.WiQuest.com 3 WQST100ADA Reference Design Users Guide WQST100ADA UG Revision 0.1, February 15, 2006 Regulatory Notices This equipment may only be operated indoors. Operation outdoors is in violation of 47 U.S.C. 301 and could subject the operator to serious legal penalties. This device complied with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. THIS DEVICE MUST BE INSTALLED IN A LOCATION THAT IS NOT ACCESIBLE TO THE GENERAL PUBLIC. INST…

Text truncated - open the document above for the full version.

FEDERAL COMMUNICATIONS COMMISSION Laboratory Division 7435 Oakland Mills Road Columbia, MD 21046 April 21, 2006 WiQuest Communications Inc. 915 Enterprise Allen, TX 75013 Attention:Jovica Jovanovski Re:Application dated March 14, 2006 and received March 14, 2006 Equipment Class: UWB-Ultra Wideband Transmitter FCC ID: TZQ100ADA Dear Sir or Madam: The application for the above equipment is hereby DISMISSED pursuant to Section 2.917(a) of the Commission's Rules. The referenced application is filed under 15.517(a) which allows for indoor use only. However, the device may be connected to a laptop/notebook which operates without AC power via battery. Indoor operation cannot be assured in this case. FCC 47 CFR Section 15.517 (a)(1) states that indoor UWB devices, by the nature of their design, must be capable of operation only indoors. The necessity to operate with a fixed indoor infrastructure, e.g., a transmitter that must be connected to the AC power lines, may be considered sufficient to demonstrate this. If you elect to refile for equipment authorization you must submit a currently dated and originally signed Form 731, accompanied by the appropriate filing fee pursuant to Section 1.1103, and all data required by the Rule sections applicable to the equipment. Please be advised that resubmitted applications are not given priority in processing. You are cautioned that importation and marketing of equipment in the United States bearing the referenced FCC Identifier is prohibited by Section 2.803 of the Rules. Violation of this regulation may subject you to penalties provided in Sections 501 and 502 of the Communications Act of 1934, as amended. Sincerely, Steven Dayhoff Electronics Engineer Equipment Authorization Branch

WiQuest Communications, Inc. 601 Century Parkway, Suite 110 Allen, Texas 75013 The New Frontier of Wireless Main: +1 214-547-1600 www.wiquest.com Fax: +1 214-547-1606 Request for Confidentiality February 22, 2006 Chief, Authorizations Branch Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Re: WiQuest Communications, Inc. FCC Certification Application FCC ID: TZQ100ADA To Whom It May Concern: Please be advised that the following exhibits are to be held confidential on behalf of WiQuest Communications, Inc. • Schematics • Block Diagrams • Bill of Materials (BOM) • Internal Photos of the unit submitted for tests This application contains technical information that WiQuest Communications considers to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Jovica Jovanovski Hardware Core Technology Manager WiQuest Communications, Inc.

WiQuest Communications, Inc. 601 Century Parkway, Suite 110 Allen, Texas 75013 The New Frontier of Wireless Main: +1 214-547-1600 www.wiquest.com Fax: +1 214-547-1606 Request for Confidentiality February 22, 2006 Chief, Authorizations Branch Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Re: WiQuest Communications, Inc. FCC Certification Application FCC ID: TZQ100ADA To Whom It May Concern: Please be advised that the following exhibits are to be held confidential on behalf of WiQuest Communications, Inc. • Schematics • Block Diagrams • Bill of Materials (BOM) • Internal Photos of the unit submitted for tests This application contains technical information that WiQuest Communications considers to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Matthew B. Shoemake President and CEO WiQuest Communications, Inc.

WiQuest Communications, Inc. 601 Century Parkway, Suite 110 Allen, Texas 75013 The New Frontier of Wireless Main: +1 214-547-1600 www.wiquest.com Fax: +1 214-547-1606 TDK Test Services Authorization February 22, 2006 Chief, Authorizations Branch Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Re: WiQuest Communications, Inc. FCC Certification Application FCC ID: TZQ100ADA To Whom It May Concern: Please be advised that TDK Test Services is authorized to act on behalf of WiQuest Communications, Inc. for the purposes of applying for FCC Certification for the Wireless USB Adapter (“Dongle”). Sincerely, Matthew B. Shoemake President and CEO WiQuest Communications, Inc.

WiQuest Communications, Inc. 601 Century Parkway, Suite 110 Allen, Texas 75013 The New Frontier of Wireless Main: +1 214-547-1600 www.wiquest.com Fax: +1 214-547-1606 WQST100ADA – Theory of Operation WiQuest’s Wireless USB external adapter (“USB dongle”) is a cost-effective, highly-integrated design that provides wireless UWB high-speed services for wired USB devices. With this reference design, WiQuest enables equipment manufacturers to build a complete Device Wired Adapter (DWA) or Host Wired Adapter (HWA) solution from one common reference platform. The adapter design provides a complete end-to-end solution based on the Certified Wireless USB specification from the USB-IF while leveraging WiQuest breakthrough wireless performance. The adapter reference design is shipped as a complete package including both hardware and software support. The hardware information includes a working adapter sample along with schematics, layout source files, a detailed bill-of-material, design manual, user’s guide, and a quick-start guide. The software package includes a Host Wired Adapter (HWA) driver/firmware and DWA firmware along with the WiQuest Microsoft Windows-based utility which supports device discovery, multiple association options, field upgrade functionality, and comprehensive diagnostics. The WiQuest Wireless USB Adapter is designed around WiQuest’s WQST110 and WQST101, the industry’s leading high-performance ultrawideband (UWB) chipset. The WQST110 includes a WiMedia-based ultrawideband media access controller (MAC) and physical layer (PHY) baseband processor. The WQST101 is a direct conversion UWB RF transceiver. These two devices and related components fit into a standard USB external adapter form factor. WiQuest Communications Wireless USB Adapter/”Dongle” (WQST100ADA) Reference Design is an Ultrawideband (UWB) WiMedia Mode 1-compliant device that operates in the 3168-4752MHz Band group. The WiQuest EVK transmits WiMedia UWB signal that has instantaneous bandwidth (BW) greater than 500MHz, or fractional occupied BW greater than 20 percent. The 1584MHz wide band represents 40 percent bandwidth (fractional bandwidth equals 2*(Fh-Fl)/(Fh+Fl), where Fh is upper boundary and Fl is lower boundary). Band Group 1 is divided into 3 individual bands, each 528MHz wide, with center frequencies of 3432MHz, 3960MHz and 4488MHz, respectively. The WiQuest EVK transmits either by hopping between the 3 bands or stationary on each band. FCC Part 15 regulation in Subpart F, Section 15.517 and 15.519 specifies maximum average Equivalent Iso-tropically Radiated Power (EIRP) of – 41.3dBm (53.9dBuV/m) measured using a resolution bandwidth of 1MHz. EIRP in dBm could be converted to a field strength, in dBuV/m at 3 meters, by adding 95.2dB. Since the WiQuest Wireless USB Dongle (WQST100ADA) occupies approximately 1584MHz while hopping (528MHz instantaneously) the average transmitted power is on the order of -9.3dBm (or -14dBm when not hopping). The 528MHz wide signal is composed of 122 modulated Orthogonal Frequency Division Multiplexed (OFDM) sub-carriers.

All services undertaken are subject to the following general policy. Reports are submitted for exclusive use of the client to whom they are addressed. Their significance is subject to the adequacy and representative character of the samples and to the comprehensiveness of the tests, examinations or surveys made. This report shall not be reproduced except in full, without written consent of TDK RF Systems Inc. This report must not be used to claim product endorsement by A2LA, NVLAP nor any other agency of the US Government. Compliance report of WQST100ADA Customer: WiQuest Communication Inc. Date: August 31, 2006 TDK Report: 050906WQRev1 Test performed by: TDK R&D Corporation 1101 Cypress Creek Rd Cedar Park, TX 78613 Technician Checked by Radiated 30 MHz to 40 GHz A. Medina K. Yata Conducted 150 KHz to 30 MHz K. Yata K. Yata Report P. Carson R. Sutton This document contains confidential information and cannot be disclosed outside of Wisair or any affiliated company in whole or in part without the express written permission of TDK RF Systems Inc. WiQuest-WQST100ADA-Test-Report - v2.2 2 1. Executive Summary An EMC evaluation to determine compliance of the WQST100ADA with requirements of FCC 47 CFR Part 15, Subpart F Section 15.519 was conducted. All references are to the most current version of the Code of Federal Regulations 47 that is currently in effect. In accordance with §2.1033, the following data is presented in support of the Certification of the WQST100ADA. The client should retain a copy of this document on file for at least 5 years after the manufacturing of the product has been discontinued. Test Description FCC 47 CFR Section Compliance Operational Limitations 15.519 (a) The client has been notified of these limitations. In normal operating mode the transmitter will only send data when associated with a receiver. See section 5 for detail UWB Bandwidth 15.503, 15.519 (b) Yes Radiated Emissions 15.519 (c), 15.209 (a) Yes Radiated Emissions in GPS Bands 15.519 (d) Yes Peak Emissions within a 50 MHz Bandwidth 15.519 (e) Yes 3 2. Task Description 2.1. Scope Reference FCC ET Docket No. 98-153, FCC 02-48 First R&O; FCC 47 CFR, Part 15, Subpart A; FCC 47 CFR, Part 15, Subpart B; FCC 47 CFR, Part 15, Subpart C; FCC 47 CFR, Part 15, Subpart F FCC ET Docket No. 04-352, Petition for Waiver of the Part 15 UWB Regulations Filed by MBOA-SIG (Adopted: March 10, 2005) Title Revision of Part 15 of the Commission’s Rules Regarding Ultra-Wideband Transmissions Systems; Code of Federal Regulations, Part 15 Subpart A: General Code of Federal Regulations, Part 15 Subpart B: Unintentional Radiators Code of Federal Regulations, Part 15 Subpart C: Intentional Radiators Code of Federal Regulations, Part 15 Subpart F: Ultra-Wideband Operation Purpose of Test To gain FCC Certification Authorization for technical requirements for Indoor UWB Systems operating between 3.1 GHz and 10.6 GHz. Test Procedures The tests were conducted in accordance with the following documents: FCC ET Docket 98-153, FCC 02-48 First R&O ANSI C63.4: 2001: Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz FCC Code of Federal Regulations 47, Part 15 Subpart A: General FCC ET Docket No. 04-352, Petition for Waiver of the Part 15 UWB Regulations Filed by MBOA-SIG (Adopted: March 10, 2005) General Procedures FCC Code of Federal Regulations 47, Part 2 Frequency Allocations and Radio Treaty Matter: General Rules and Regulations Classification of EUT Hand-Held Ultra-Wideband System 4 2.2. Related Submittal(s)/Grant(s) None 2.3. Test Plan Reference Publication Year Title FCC 47 CFR, Part 15, Subpart A 10/2004 Code of Federal Regulations, Part 15 Subpart A: General FCC 47 CFR, Part 15, Subpart B 10/2004 Code of Federal Regulations, Part 15 Subpart B: Unintentional Radiators FCC 47 CFR, Part 15, Subpart C 10/2004 Code of Federal Regulations, Part 15 Subpart C: Intentional Radiators FCC 47 CFR, Part 15, Subpart F 10/2004 Code of Federal Regulations, Part 15 Subpart F: Ultra-Wideband Operation FCC ET Docket 98- 153, FCC 02-48 First R&O 04/2002 Revision of Part 15 of the Commission’s Rules Regarding Ultra- Wideband Transmissions Systems: First Report & Order ANSI C63.4 01/2001 Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz FCC ET Docket No. 04- 352 3/2005 Petition for Waiver of the Part 15 UWB Regulations Filed by MBOA-SIG 2.4. Client Information APPLICANT Name: WiQuest Communication Inc Address: 915 Enterprise Blvd Suite 200 Allen, TX 75013 Contact Person: Jovica Jovanovski MANUFACTURER Name: WiQuest Communications Inc Address: 915 Enterprise Blvd Suite 200 Allen, TX 75013 Contact Person: Matthew B. Shoemake 5 2.5. Equipment Under Test (EUT) The following information (with the exception of the date information) has been supplied by the applicant. The test results in this report pertain only to the item tested. General Brand Name Ultra-Wideband Evaluation Kit Product Name Wireless USB Adapter Reference Design Model Name or Number WQST100ADA Serial Number 000011 Type of Equipment UWB Radio Transmitter Input Power Supply Type PC USB 2.0 Port Classification Hand-Held Ultra-Wideband System Technical Power Supply Requirements Powered through USB port of host PC RF Output Rating -42 dBm EIRP @ 3 meters Operating Frequency Range 3100 MHz to 4800 MHz RF Output Impedance 50 Ω Channel Spacing N/A Pulse Width N/A Pulse Repetition Frequency N/A 10 dB Bandwidth >500 MHz Modulation/Constellation Multiband OFDM Oscillators’ Frequencies 48 MHz EUT Ports USB Antenna Connector Type Internal Antenna Description Omni directional linear polarized planar Logistics EUT Receive Date February 24, 2006 EUT Receive Condition Good Test Start Date February 28, 2006 Test Completion Date August 28, 2006 6 2.5.1. Support Equipment Description Manufacturer Model No. Serial No. FCC ID AC Power Adapter Dell HP-OQ…

Text truncated - open the document above for the full version.
