TZQWQ110MCWireless USB Mini Card Module

Before You Begin Before you begin the installation of the products, please check to make sure that the following items are included in your package. Operating Systems Requirements: Windows VISTA (32/64-bit) or Windows XP Check Your Package Contents Wireless USB Mini Card Firmware, Drivers and Utilities CD This Guide will take you step-by-step through several key setup features before using your Wireless USB Mini Card. This guide covers: • Package Contents • Hardware Diagrams • Software Installation • Driver installation for the Wireless USB Mini Card • Security Setup • Firmware upgrade Wireless USB Mini Card (WQ110MC) Quick Installation Guide Before inserting your wireless USB Mini-card, insert the CD into your notebook PC. The installation will start automatically. Select “Next” when you are prompted by the Welcome screen. Select “Finish”. 1 2 3 4 7 Select “Install” to begin the installation process. 5 Select “I accept...”, then “Next” when prompted to accept the terms of the License Agreement. Wireless USB Mini Card Now that the basic software is installed, the next steps will guide you through the simple procedure to load the driv-ers for the Wireless USB Mini Card. For future updates, the software will automatically detect if the drivers need to be loaded. For future updates, you should always perform the fi rmware updates as described in this document. User’s Guide Software Installation Guide Overview Next Steps Enter the appropriate info rmation as requested and se- lect “Next”. 6 When prompted select “Continue Anyway”. Select “Finish”. Wireless USB Mini-car d Driver Install 8 FCC Label Insert the Wireless USB Mini Card into the PC WPAN slot. Connect the blue antenna cable to the connector on the Wireless USB Mini Card. Place the cover and tighten the screws. The WiQuest Control Center (WiCC) application will detect the Wireless USB Mini Card as new hardware A pop-up notification will be presented in the bot- tom, right corner of your desktop. 9 WiCC will automatically start the driver install. Se-lect “Continue Anyway” for each of the 4 drivers. 10 WiCC will present a bubble message when the in-stallation of the driver for the Mini Card is complete. 11 Wireless USB Mini-Card Quick Installation Guide, Page 2 WQST110-MC-WUSB-QIG V051507 DECLARATION OF CONFORMITY WITH FCC RULES FOR ELECTROMAGNETIC COMPATIBILITY We, WiQuest Communications, Inc., 915 Enterprise Blvd, Suite 200, Allen, TX 75013, declare under our sole responsi-bility that the product FCC ID:TZQWQ110MC to which this declaration relates: Complies wi th Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this de-vice must accept any interference received, including inter-ference that may cause undesired operation. FCC Statement FCC 47 CFR Section 15.519 (a) (1) A UWB device operating under the provisions of this section shall transmit only when it is sending information to an as- sociated receiver. The UWB intentional radiator shall cease transmission within 10 seconds unless it receives an ac-knowledgement from the associated receiver that its trans-mission is being received. An acknowledgment of reception must continue to be received by the UWB intentional radia-tor at least every 10 seconds or the UWB device must cease transmitting. FCC 47 CFR Section 15.519 (a) (2) The use of antennas mounte d on outdoor structures, e.g. , antennas mounted on the outside of a building or on a tele-phone pole, or any fixed outdoors infrastructure is prohib-ited. Antennas may be mounted only on the hand held UWB device. FCC 47 CFR Section 15.519 (a) (3) UWB devices operating under the provisions of this section may operate indoors or outdoors. Operational Limitations FCC Label on the Wireless USB Mini-Card FCC ID:TZQWQ110MC Exterior FCC Label on the PC IMPORTANT: Please remove the FCC label supplied with the kit and affix it to the bottom side of the Notebook. Contains Transmitter Module FCC ID: TZQWQ110MC

~WiQuesfM TDKTest ServicesAuthorization May15,2007 Chief,AuthorizationsBranch FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 Rc: WiQuestCommunications,Inc. FCCCertificationApplication FCC10: TZQWQllOMC To WhomIt MayConcern: WiQuestCommunications,Inc. 915 EnterpriseBh'd.,Suite200 Allen,Texas75013 Pleasebe advisedthat TDKTestServicesis authorizedto act on behalfof WiQuestCommunications, Inc. for the purposesof applyingfor FCCCertificationfor the WiQuestWirelessUSBMiniCard. Jovicaanovski Director,HardwareDevelopment WiQuestCommunications,Inc. 915 EnterpriseBlvd.Suite200 Allen,TX 75013 Tel. 214.547.I600 x 122 TheNewFrontierof Wireless www.\\.iQuest.com Main:+1214.547.1600 Fax:+1 214.547.1606

~WiQuesfM Requestfor Confidentiality May16,2007 Chief,AuthorizationsBranch FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 Re:WiQuestCommunications,Inc. FCCCertificationApplication FCC10: TZQWQllOMC To WhomIt MayConcern: WiQuestCommunications,Inc. 915 EnterpriseBlnl,Suite200 Allen,Texas75013 Pleasebe advisedthat the followingexhibitsarc to be heldconfidentialon behalfof WiQuest Communications,Inc. • Schematics • BlockDiagrams • Bill of Materials(BOM) Thisapplicationcontainstechnicalinformationthat WiQuestCommunicationsconsidersto be trade secretsand proprietary.If madepublic,the informationmightbe usedto the disadvantageof the applicantin the marketplace. Thankyou for yourattentionto this matter. Sincerely, i:"",,,,,k; Director,HardwareDevelopment WiQuestCommunications,Inc. 915 EnterpriseBlvd.Suite200 Allen,TX 75013 Tel. 214.547.1600xl22 TheNewfrontierof Wireless www,\\'iQucst,q>m !'.lain:+1 214-547-1600 Fax:+1 214-547-1606

~WiQuesfM CoverLetterRequestingModularApproval May15,2007 Chief,AuthorizationsBranch FcdcralCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 WiQuestCommunications,Inc. 915 EnterpriseBlvd,Suite200 Allen,Texas750 13 Re:WiQuestCommunications,Inc. CoverLettcrRequestingModularApproval FCCID: TZQWQIIOMC To WhomIt MayConcern: The purposeof this coverIctteris to requestmodularapprovalfromthe FederalCommunications Commission(FCC)for the WiQuestCommunicationsMiniCard. WiQuestCommunicationsInc. is addrcssingthe eightrcquirementsin our applicationfor Modular TransmitterAuthorization,per the FCCSecondReportand OrderFCC07-56SectionA - "SingleUnit ModularTransmitters." I. The modulartransmittermusthaveits ownRF shielding.Thisis intendedto ensurethat the moduledocsnot haveto rely uponthe shieldingprovidedby the deviceinto whichit is installed in orderfor all modulartransmitteremissionsto complywithPart15 limits.It is alsointendedto preventcouplingbetweenthe RF circuitryof the moduleand any wiresor circuitsin the device into whichthe moduleis installed.Suchcouplingmayresultin non-compliantoperation. The 'Module'to be consideredfor certificationconsistsof a PCBassemblyand associated antenna/cableassembly.Thesetwo assembliestogethercomprisethe 'Module.'The images belowshowthe SingleSidedPCBassemblywithall of the associatedcomponentsunderan RF shield.In addition,all RF Tracesare routedon top layerunderthe RF shielding. TheNewFrontierof Wireless www.\X.iQuest.com ;\Iain:+1214-547-1600 Fax:+1214-547-1606 ~WiQuesfM \X'iQuestCommunications,Inc. 915 EnterpriseBlvd,Suite200 Allen,Texas75013 WiQuestModulePCB assemblyBottomSide WiQuestModulePCB assemblyTopSide • • • REV XOI Made InChin' eN .QXKI44-1]740-7)!-Q127 • • • WiQuestModulePCB assembly 2. The modulartransmittermusthavebufferedmodulation/datainputs(if suchinputsarc provided) to ensurethat the modulewill complywithPart15 requirementsunderconditionsof excessive dataratesor over.modulation. The WiQuestWirelessUSBMiniCardhas DifferentialI/O buffersfor the USBModulation/data inputson the WQSTIIOIe. 3. The modulartransmittermusthaveits ownpowersupplyregulation.Thisis intendedto ensure that the modulewill complywithPart15 requirementsregardlessof the designof the power supplyingcircuitryin the deviceinto whichthe moduleis installed. The WiQuestWirelessUSBMiniCardis suppliedwith3.3 Voltson the PClEMiniCardHost connector.The WiQuestWirelessUSBMiniCardhas its ownpowersupplyregulation. 4. The modulartransmittermustcomplywiththe antennarequirementsof Section15.203and 15.204(c).The antennamusteitherbe permanentlyattachedor employa "unique"antenna coupler(at all connectionsbetweenthe moduleand the antenna,includingthe cable).Any antennausedwiththe modulemustbe approvedwiththe module,eitherat the timeof initial authorizationor througha ClassII permissivechange.The "professionalinstallation"provision of Section15.203maynot be appliedto modules. Fourantennaswereinitiallytestedfor approvalwiththe WiQuestWirclessUSBMiniCard. Eachantennawas testedfor bothout.of.bandand in.bandemissions. TheNewFrontierof Wireless www,\\'jOllcst.C()m Main:+1214-547-1600 Fax:+1214-547-1606 ~WiQuesfM WiQuestCommunications,Inc. 915 EnterpriseBlvd,Suite200 Allen,Texas75013 The AntennaAssembliesfor the four differentantennas(antennaelementand cable)associated withthe WiQuestWirelessUSBMiniCardarc identicalto the onesthat arc to be usedinsidethe NotebookPc. The Antennawill be pennanentlyattachedto the WiQuestWirelessUSBMiniCardusinga uniqueantennareceptacleand matingconnectoron the AntennaAssembly. 5. The modulartransmittermustbe testedin a stand-aloneconfiguration,i.e.,the modulemustnot bc insideanotherdeviceduringtesting.Thisis intendedto demonstratethat the moduleis capableof complyingwithPart15 emissionslimitsregardlessof the deviceinto whichit is eventuallyinstalled.Unlessthe transmittermodulewill be batterypowered,it mustcomplywith the AC line conductedrequirementsfoundin Section15.207.AC or DC powerlinesand data input/outputlinesconnectedto the modulemustnot containferritcs,unlesstheywill be marketedwiththe module(sec Section15.27(a)).The lengthof theselinesshallbe lengthtypical of actualusc or, if that lengthis unknown,at least10 centimetersto insurethat thereis no couplingbetweenthe caseof the moduleand supportingequipment.Anyaccessories, peripherals,or supportequipmentconnectedto the moduleduringtestingshallbe unmodifiedor commerciallyavailable(sec Section15.3 I(i». The WiQuestWirelessUSBMiniCardwas testedin stand-aloneconfigurationusingthe Wi QuestTestFixture.As shownbclowthe Testfixtureis usedto communicateto the MiniCard Modulevia the USB2.0 bus (Modulation/dataInputs)and provide3.3 Voltsto the connector. PowerSupplysectlOl'"1. This area of the Test Fixtureconvertsthe wall mountpowersupplyto 3.3V- in a similarfashion as a NotebookPC would Convertto 33Vto supplyto 1the Modulevia the StandardConnectorshown on the Tesl Flklure PowerSupplyand ModulahonInputsfor the WiOueslmodule.The connec1oron the Tesl fixtureis Identicalto the connectorthat wiHbe used. in the NotebookPC when thiS moduleIS Installed. The WIQueslModulehas bufferedUSBModulahon data inputson the WaST110IC. The connection\0 the Notebook PC is Et)(ercisedthroughthe USBConnectoron the Test Fixture. The W.QuestModule1$I suppliedWIth 3.3V on the test fixtureor the FinalNotebookI PC (Enclosure),The WtOU6SI I . Modulehas tis own power supplyregulationAll partsare on lop side of lhe PC board and all partsare underthe R Shielding TheNewFrontierof Wireless www.\\.jQuesI.com Main:+1214-547-1600 Fax:+1214-547-1606 ~WiQuesfM WiQuestCommunications,Inc. 915 EnterpriseBlvd,Suite200 Allen,Texas75013 6. The modulartransmittermustbe labeledwithits ownFCC10 number,and,if the FCC10 is not visiblewhenthe moduleis installedinsideanotherdevice,thenthe outsideof the deviceinto whichthe moduleis installedmustalso displaya labelreferringto the enclosedmodule.This exteriorlabelcan usc wordingsuchas the following:"ContainsTransmitterModuleFCC1…

Text truncated - open the document above for the full version.

FCC ID:TZQWQ110MC FCC ID:TZQWQ110MC Exterior FCC Label on the PC IMPORTANT: Please remove the FCC label supplied with the kit and affix it to the bottom side of the Notebook. Contains Transmitter Module FCC ID: TZQWQ110MC

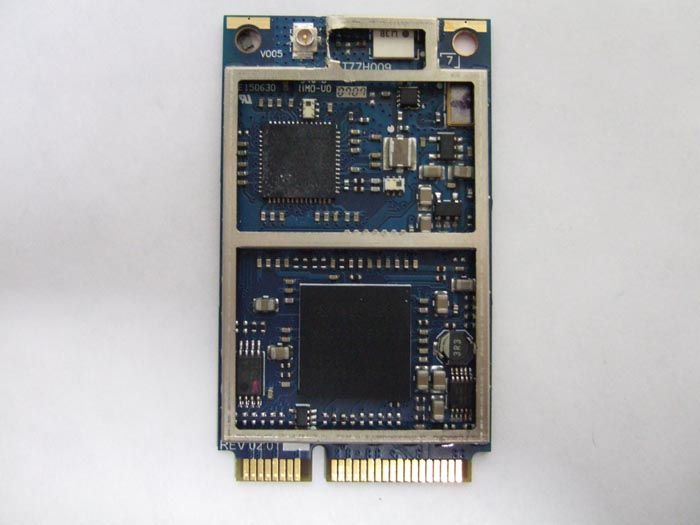

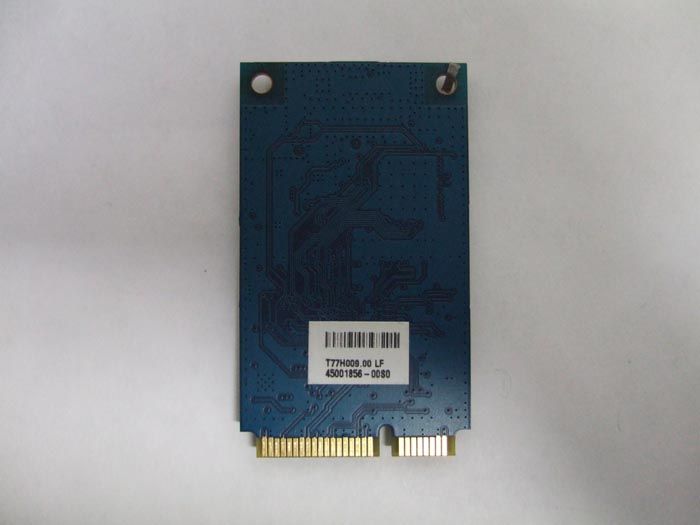

WiQuest Communications, Inc. 915 Enterprise Blvd., Suite 200 Allen, Texas 75013 The New Frontier of Wireless Main: +1 214-547-1600 www.WiQuest.com Fax: +1 214-547-1606 WiQuest Wireless USB Mini Card (WQ110MC) – Theory of Operation WiQuest’s Wireless USB Mini Card is a cost-effective, highly-integrated design that provides wireless UWB high-speed services for wired USB devices. With this reference design, WiQuest enables equipment manufacturers to build a complete and integrated solution from one common reference platform. The WiQuest Wireless USB Mini Card design provides a complete end-to-end solution based on the Certified Wireless USB specification from the USB-IF while leveraging WiQuest breakthrough wireless performance. The Wireless USB Mini Card reference design kit is shipped as a complete package including both hardware and software support. The hardware information includes a working Mini Card sample along with schematics, layout source files, a detailed bill-of-material, design manual, user’s guide, and a quick-start guide. The software package includes a Host Wired Adapter (HWA) driver/firmware and DWA firmware along with the WiQuest Microsoft Windows-based utility which supports device discovery, multiple association options, field upgrade functionality, and comprehensive diagnostics. The WiQuest Wireless USB Mini Card is designed around WiQuest’s WQST110 and WQST101, the industry’s leading high-performance ultrawideband (UWB) chipset. The WQST110 includes a WiMedia-based ultrawideband media access controller (MAC) and physical layer (PHY) baseband processor. The WQST101 is a direct conversion UWB RF transceiver. WiQuest Communications Wireless USB Mini Card Reference Design is an Ultrawideband (UWB) WiMedia Mode 1-compliant device that operates in the 3168-4752MHz Band group. The WiQuest Wireless USB Mini Card transmits WiMedia UWB signal that has instantaneous bandwidth (BW) greater than 500MHz, or fractional occupied BW greater than 20 percent. The 1584MHz wide band represents 40 percent bandwidth (fractional bandwidth equals 2*(Fh-Fl)/(Fh+Fl), where Fh is upper boundary and Fl is lower boundary). Band Group 1 is divided into 3 individual bands, each 528MHz wide, with center frequencies of 3432MHz, 3960MHz and 4488MHz, respectively. The WiQuest Wireless USB Mini Card Module transmits either by hopping between the 3 bands or stationary on each band. FCC Part 15 regulation in Subpart F, Section 15.519 specifies maximum average Equivalent Iso-tropically Radiated Power (EIRP) of –41.3dBm (53.9dBuV/m) measured using a resolution bandwidth of 1MHz. EIRP in dBm could be converted to a field strength, in dBuV/m at 3 meters, by adding 95.2dB. Since the WiQuest Wireless USB Mini Card occupies approximately 1584MHz while hopping (528MHz instantaneously) the average transmitted power is on the order of -9.3dBm (or -14dBm when not hopping). The 528MHz wide signal is composed of 122 modulated Orthogonal Frequency Division Multiplexed (OFDM) sub-carriers.

1 Antenna Regulatory Information
Product type
UWB antenna
Model number
Corsica/ Sapporo
Revision
A00
Manufacturer Part No. :
QT0391-11-000-R
Dell Part No. :
Amphenol Shanghai Amphenol Airwave Communication Electronics Co., LTD No.689 Shennan Road, Minhang 201108, Shang-hai, China Template Revision 052107 2 1. Specifications Antenna Specifications Remark: Peak Gains include all system losses (connector, cable, etc) Cable Specifications UWB antenna Cable Parameters LCD Side Base Side Total Length (mm) 111.5 mm 137.5 mm 249 mm Loss (Including Connectors) (dB, 4GHz) 0.75 dB Color: Blue OD: 1.32~1.37 mm Description (Color, Diameter, Manufacturer) Vendor: GBE R4 Antenna Type (Material, Technology) IFA Flex, Inverted-F Antenna (IFA) Antenna Model Number DELL Corsica/ Sapporo Operating Frequency Range(s) BG1: 3.168~4.752 GHz BG1: 2.78 dBi Peak Gain (dBi) BG3: N/A Radio Connector Type Hirose U.FL-LP-88 or IPEX 20308-111R-32/ 20363-111R-37 or equivalent connector Mid-Line Connector Type (If Applicable) N/A 3 2. Antenna Assembly 3. Antenna Assembly Installed in The Notebook 4 4. Mechanical Drawing of Antennas 5 5. Gain Patterms - BG1: 6

1 Antenna Regulatory Information z Product type z UWB antenna z Model number z Corsica / Sapporo z Revision z A01 z Manufacturer Part No. : z ANT0578 (ANTP0103-C0097-0) z Dell Part No. : z DQ6NT057800 NISSEI ELECTRIC CO., LTD 1509 Okubo-Cho, Hamamatsu-City, Shizuoka-Pref, 432-8006 Japan TEL +81-53-485-4705 / FAX +81-53-485-5109 2 1. Specifications Antenna Specifications Remark: Peak Gains include all system losses (connector, cable, etc) Cable Specifications UWB antenna Cable Parameters LCD Side Base Side Total Length (mm) N/A N/A 249 Loss (Including Connectors) (dB, 4GHz) 0.88 Color: Blue OD: 1.37 mm Description (Color, Diameter, Manufacturer) NISSEI ELECTRIC CO., LTD. Antenna Type (Material, Technology) IFA Antenna Model Number ANT0578 Operating Frequency Range(s) BG1: 3.168~4.752 GHz BG1: 2.81dBi Peak Gain (dBi) BG3: N/A Radio Connector Type Hirose U.FL-LP-88 Mid-Line Connector Type (If Applicable) N/A 3 2. Antenna Assembly 3. Antenna Assembly Installed in The Notebook UWB Antenna 4 4. Mechanical Drawing of Antennas 5 5. Gain Patterms - BG1: 3168 MHz 3432 MHz 3696 MHz 3960 MHz 4224 MHz 4488 MHz 4752 MHz 0 MHz 0 MHz 0 MHz 0 MHz 0 MHz -2.41-4.68-2.61-4.09-4.52-0.56-2.940.000.000.000.000.00 -1.021.912.122.812.782.812.040.000.000.000.000.00 0.012.372.502.902.853.802.093.013.013.013.013.01 -9.63-10.44-8.34-10.87-10.05-7.89-10.840.000.000.000.000.00 -5.22-3.78-3.16-3.14-1.27-2.24-3.520.000.000.000.000.00 -3.88-2.93-2.01-2.47-0.73-1.20-2.783.013.013.013.013.01 3168 MHz 3432 MHz 3696 MHz 3960 MHz 4224 MHz 4488 MHz 4752 MHz 0 MHz 0 MHz 0 MHz 0 MHz 0 MHz Horizontal Ave gain (dBi) Vertical Ave gain (dBi) Hori+Vert Ave gain (dBi) Frequency Horizontal peak gain (dBi) Vertical peak gain (dBi) Hori+Vert peak gain (dBi) -40 -30 -20 -10 0 0° 90° 180° 270° Horizontal Vertical Hori+Vert -40 -30 -20 -10 0 0° 90° 180° 270° Horizontal Vertical Hori+Vert -40 -30 -20 -10 0 0° 90° 180° 270° Horizontal Vertical Hori+Vert -40 -30 -20 -10 0 0° 90° 180° 270° Horizontal Vertical Hori+Vert -40 -30 -20 -10 0 0° 90° 180° 270° Horizontal Vertical Hori+Vert -40 -30 -20 -10 0 0° 90° 180° 270° Horizontal Vertical Hori+Vert -40 -30 -20 -10 0 0° 90° 180° 270° Horizontal Vertical Hori+Vert -40 -30 -20 -10 0 0° 90° 180° 270° Horizontal Vertical Hori+Vert -40 -30 -20 -10 0 0° 90° 180° 270° Horizontal Vertical Hori+Vert -40 -30 -20 -10 0 0° 90° 180° 270° Horizontal Vertical Hori+Vert -40 -30 -20 -10 0 0° 90° 180° 270° Horizontal Vertical Hori+Vert -40 -30 -20 -10 0 0° 90° 180° 270° Horizontal Vertical Hori+Vert

1 Antenna Regulatory Information z Product type z UWB antenna z Model number z Gilligan z Revision z Rev.1 z Manufacturer Part No. : z AMP8P-700012 z Dell Part No. : z ADVANCED-CONNECTEK INC. B1,No. 205, Sec.3, Bei-Hsin Rd., Hsin-Tien Taipei, Taiwan, R.O.C TEL：886-2-8913-1939 FAX：886-2-8913-2538 Http：//www.acon.com Template Revision 052107 2 1. Specifications Antenna Specifications Remark: Peak Gains include all system losses (connector, cable, etc) Cable Specifications UWB antenna Cable Parameters LCD Side Base Side Total Length (mm) N/A N/A 118 Loss (Including Connectors) (dB, 4GHz) 0.6 Color: Blue OD: 1.32~1.37 mm Description (Color, Diameter, Manufacturer) Kurabe/Hitachi/Sumitomo Antenna Type (Material, Technology) PIFA Antenna Model Number Gilligan Operating Frequency Range(s) 3.168~4.752 GHz BG1: UWB 1.8 Peak Gain (dBi) BG3: N/A Radio Connector Type Hirose U.FL-LP-88 or IPEX 20308-111R-32/ 20363-111R-37 or equivalent connector Mid-Line Connector Type (If Applicable) N/A 3 2. Antenna Assembly UWB Antenna 3. Antenna Assembly Installed in The Notebook UWB Antenna 4 4. Mechanical Drawing of Antennas 5 6 5. Gain Patterns UWB Antenna H-Pol. (Peak.) 0.4 dBi H-Pol. (Peak.)0.7 dBi V-Pol. (Peak.) 1.2 dBi V-Pol. (Peak.)-1.4 dBi H+V. (Peak.) 3.8 dBi H+V. (Peak.)2.7 dBi H-Pol. (Avg.) -4.8 dBi H-Pol. (Avg.)-4.4 dBi V-Pol. (Avg.) -7.1 dBi V-Pol. (Avg.)-8.8 dBi H+V. (Avg.) -2.8 dBi H+V. (Avg.) -3.1 dBi H-Pol. (Peak.) 0.5 dBi H-Pol. (Peak.)1.1 dBi V-Pol. (Peak.) -1.4 dBi V-Pol. (Peak.)-1.7 dBi H+V. (Peak.) 2.6 dBi H+V. (Peak.)2.9 dBi H-Pol. (Avg.) -5.8 dBi H-Pol. (Avg.)-5.4 dBi V-Pol. (Avg.) -7.5 dBi V-Pol. (Avg.)-8.2 dBi H+V. (Avg.) -3.5 dBi H+V. (Avg.) -3.6 dBi H-pol.V-pol.H+V Fre. = 3168 MHz Fre. = 3300 MHz Fre. = 3432 MHz Fre. = 3564 MHz 7 H-Pol. (Peak.) 0.6 dBi H-Pol.(Peak.)1.7 dBi V-Pol. (Peak.) -2.3 dBi V-Pol.(Peak.)0.5 dBi H+V. (Peak.) 2.3 dBi H+V. (Peak.)4.1 dBi H-Pol. (Avg.) -4.5 dBi H-Pol. (Avg.)-1.6 dBi V-Pol. (Avg.) -8.8 dBi V-Pol. (Avg.)-6.7 dBi H+V. (Avg.) -3.1 dBi H+V. (Avg.)-1.1 dBi H-Pol. (Peak.) 1.7 dBi H-Pol. (Peak.)1.8 dBi V-Pol. (Peak.) 1.4 dBi V-Pol. (Peak.)0.2 dBi H+V. (Peak.) 4.5 dBi H+V. (Peak.)4.0 dBi H-Pol. (Avg.) -2.2 dBi H-Pol. (Avg.)-2.6 dBi V-Pol. (Avg.) -6.4 dBi V-Pol. (Avg.)-7.5 dBi H+V. (Avg.) -0.8 dBi H+V. (Avg.) -1.3 dBi H-pol. V-pol.H+V Fre. = 3696 MHz Fre. = 3828 MHz Fre. = 3960 MHz Fre. = 4029 MHz 8 H-Pol. (Peak.) 1 dBi H-Pol. (Peak.)1.6 dBi V-Pol. (Peak.) 0.2 dBi V-Pol. (Peak.)-1.9 dBi H+V. (Peak.) 3.6 dBi H+V. (Peak.)3.2 dBi H-Pol. (Avg.) -2.6 dBi H-Pol. (Avg.)-3.3 dBi V-Pol. (Avg.) -8.1 dBi V-Pol. (Avg.)-8.9 dBi H+V. (Avg.) -1.5 dBi H+V. (Avg.) -2.3 dBi H-Pol. (Peak.) 1.6 dBi H-Pol.(Peak.)1.8 dBi V-Pol. (Peak.) -0.1 dBi V-Pol.(Peak.)-1.2 dBi H+V. (Peak.) 3.8 dBi H+V. (Peak.)3.5 dBi H-Pol. (Avg.) -2.1 dBi H-Pol. (Avg.)-2.6 dBi V-Pol. (Avg.) -7.4 dBi V-Pol. (Avg.)-8.1 dBi H+V. (Avg.) -1.0 dBi H+V. (Avg.)-1.5 dBi H-pol.V-pol.H+V Fre. = 4224 MHz Fre. = 4356 MHz Fre. = 4620 MHz Fre. = 4752 MHz

1 Antenna Regulatory Information
Product type
UWB antenna
Model number
Gilligan/ Yabizu
Revision
A00
Manufacturer Part No. :
QT0381-11-000-R
Dell Part No. :
Amphenol Shanghai Amphenol Airwave Communication Electronics Co., LTD No.689 Shennan Road, Minhang 201108, Shang-hai, China Template Revision 052107 2 1. Specifications Antenna Specifications Remark: Peak Gains include all system losses (connector, cable, etc) Cable Specifications UWB antenna Cable Parameters LCD Side Base Side Total Length (mm) 8 mm 120 mm 128 mm Loss (Including Connectors) (dB, 4GHz) 0.39 dB Color: Blue OD: 1.32~1.37 mm Description (Color, Diameter, Manufacturer) GBE R4 Antenna Type (Material, Technology) IFA Flex, Inverted-F Antenna (IFA) Antenna Model Number DELL Gilligan/ Yebisu Operating Frequency Range(s) BG1: 3.168~4.752 GHz BG1: 2.91 dBi Peak Gain (dBi) BG3: N/A Radio Connector Type Hirose U.FL-LP-88 or IPEX 20308-111R-32/ 20363-111R-37 or equivalent connector Mid-Line Connector Type (If Applicable) N/A 3 2. Antenna Assembly 3. Antenna Assembly Installed in The Notebook 4 4. Mechanical Drawing of Antennas 5 5. Gain Patterms - BG1: 6

All services undertaken are subject to the following general policy. Reports are submitted for exclusive use of the client to whom they are addressed. Their significance is subject to the adequacy and representative character of the samples and to the comprehensiveness of the tests, examinations or surveys made. This report shall not be reproduced except in full, without written consent of TDK R&D Corporation. This report must not be used to claim product endorsement by A2LA, NVLAP nor any other agency of the US Government. Compliance Report of WiQuest Wireless USB Mini Card UWB Module WQ110MC Customer: WiQuest Communication Inc. Date: May 15, 2007 TDK Report: TTS-TR-T112-003 Test performed by: TDK R&D Corporation 1101 Cypress Creek Rd Cedar Park, TX 78613 Technician Checked by Radiated 30 MHz to 40 GHz A. Medina K. Yata Report A. Medina P. Carson This document contains confidential information and cannot be disclosed outside of WiQuest or any affiliated company in whole or in part without the express written permission of TDK R&D Corporation. TTS-TR-T112-003 page 2 of 53 1. Executive Summary An EMC evaluation to determine compliance of the WiQuest Wireless USB Mini Card UWB Module WQ110MC and multiple antennas with requirements of FCC 47 CFR Part 15, Subpart F Section 15.519 was conducted. All references are to the most current version of the Code of Federal Regulations 47 that are currently in effect. In accordance with §2.1033, the following data is presented in support of the Certification of the Modular WiQuest Wireless USB Mini Card and antennas. The client should retain a copy of this document on file for at least 5 years after the manufacturing of the product has been discontinued. Test Description FCC 47 CFR Section Compliance Operational Limitations 15.519(a) The client has been notified of these limitations. In normal operating mode the transmitter will only send data when associated with a receiver. See section 5 for detail UWB Bandwidth 15.519(b) Yes Radiated Emissions 15.519(c), 15.209 Yes Radiated Emissions in GPS Bands 15.519(d) Yes Peak Emissions within a 50 MHz Bandwidth 15.519(e) Yes Labelling Requirements 15.19/15.212 Yes Report prepared by Approved by Armando Medina Kunio Yata May 8, 2007 May 16, 2007 Page 3 of 53 2. Task Description 2.1. Scope Reference FCC ET Docket No. 98-153, FCC 02-48 First R&O; FCC 47 CFR, Part 15, Subpart A; FCC 47 CFR, Part 15, Subpart B; FCC 47 CFR, Part 15, Subpart C; FCC 47 CFR, Part 15, Subpart F FCC ET Docket No. 04-352, Petition for Waiver of the Part 15 UWB Regulations Filed by MBOA-SIG (Adopted: March 10, 2005) FCC Second R&O 07-56A1 Part 15 unlicensed modular transmitter approval 47 CFR 15.212 Title Revision of Part 15 of the Commission’s Rules Regarding Ultra-Wideband Transmissions Systems; Code of Federal Regulations, Part 15 Subpart A: General Code of Federal Regulations, Part 15 Subpart B: Unintentional Radiators Code of Federal Regulations, Part 15 Subpart C: Intentional Radiators Code of Federal Regulations, Part 15 Subpart F: Ultra-Wideband Operation Purpose of Test To gain FCC Certification for technical requirements for Handheld UWB Modular Systems operating between 3.1 GHz and 10.6 GHz. Test Procedures The tests were conducted in accordance with the following documents: FCC ET Docket 98-153, FCC 02-48 First R&O, FCC 07-56A1 ANSI C63.4: 2003: Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz FCC Code of Federal Regulations 47, Part 15 Subpart A: General FCC ET Docket No. 04-352, Petition for Waiver of the Part 15 UWB Regulations Filed by MBOA-SIG (Adopted: March 10, 2005) General Procedures FCC Code of Federal Regulations 47, Part 2 Frequency Allocations and Radio Treaty Matter: General Rules and Regulations Classification of EUT Hand Held Ultra-Wideband Module Page 4 of 53 2.2. Related Submittal(s)/Grant(s) As required in FCC 07-56A1 and 47 CFR 15.212 a cover letter requesting modular approval is included in the application for equipment authorization. 2.3. Test Plan Reference Publication Year Title FCC 47 CFR, Part 15, Subpart A 10/2004 Code of Federal Regulations, Part 15 Subpart A: General FCC 47 CFR, Part 15, Subpart B 10/2004 Code of Federal Regulations, Part 15 Subpart B: Unintentional Radiators FCC 47 CFR, Part 15, Subpart C 10/2004 Code of Federal Regulations, Part 15 Subpart C: Intentional Radiators FCC 47 CFR, Part 15, Subpart F 10/2004 Code of Federal Regulations, Part 15 Subpart F: Ultra-Wideband Operation FCC ET Docket 98-153, FCC 02-48 First R&O 04/2002 Revision of Part 15 of the Commission’s Rules Regarding Ultra- Wideband Transmissions Systems: First Report & Order ANSI C63.4 01/2004 Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz FCC ET Docket No. 04- 352 3/2005 Petition for Waiver of the Part 15 UWB Regulations Filed by MBOA-SIG FCC 47 CFR, Part 15, Subpart C 04/2007 Part 15.212 unlicensed Modular Transmitter Approval 2.4. Client Information APPLICANT Name: WiQuest Communication Inc. Address: 915 Enterprise Blvd Suite 200 Allen, TX 75013 Contact Person: Jovica Jovanovski MANUFACTURER Name: WiQuest Communication Inc. Address: 915 Enterprise Blvd Suite 200 Allen, TX 75013 Contact Person: Jovica Jovanovski Page 5 of 53 2.5. Equipment Under Test (EUT) The following information (with the exception of the date information) has been supplied by the applicant. The test results in this report pertain only to the item tested. General Brand Name Ultra wideband adapter Product Name WiQuest Wireless USB Mini Card Model Name or Number WQ110MC Serial Number CN-0XK844-13740-738-0035 Type of Equipment UWB Radio Transmitter Input Power Supply Type PCI-E Mini Card port Classification Hand held Ultra-Wideband module system Antenna Type Coax Length (in) Amphenol Corsica Inverse F 6 Amphenol Gilligan Inverse F 6 Acon Gilligan Inverse F 11 Nissei Corsica Inverse …
