U2BRL039T8SRadio control

Radiolink Electronic Limited
Radio control - FCC ID U2BRL039T8S - Radiolink Electronic Limited
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Mar 02, 2020
Application Purpose
Original Equipment
Date of Application
Feb 23, 2020
Equipment Note
Radio control
Frequency Range
2408.00000000 - 2477.60000000
Company
Radiolink Electronic Limited
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

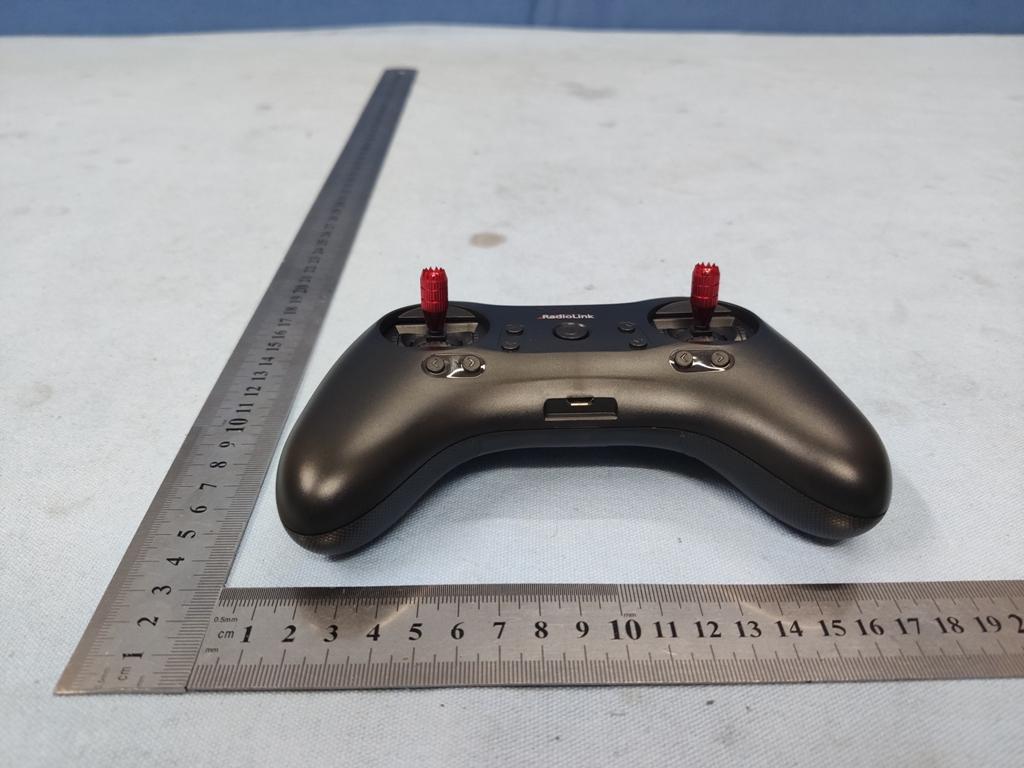

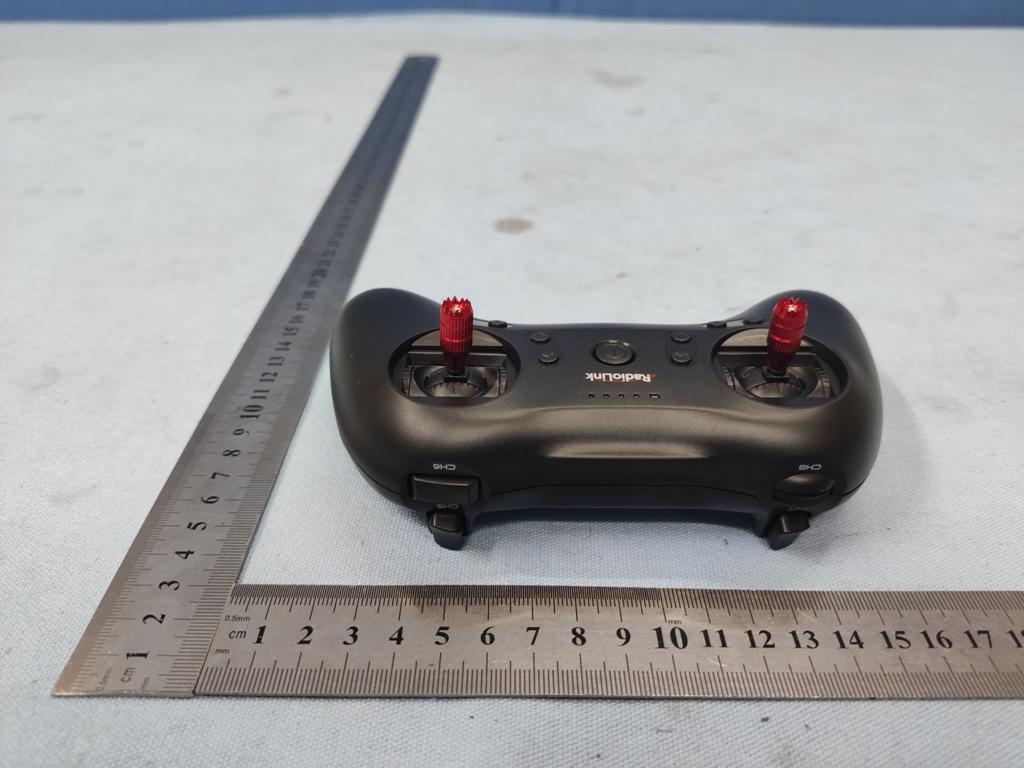

ID Label/Location Info

↗
↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Radiolink Electronic Ltd www.radiolink.com T8S (FHSS) 8-Channel Remote Controller Android App Parameter Setting via Bluetooth Connection User Manual Compatible with Fixed-wings/Gliders/Multirotors/Cars/Boats CE FCC RoHS * Please be kindly noted that this manual will be updated regularly and please visit RadioLink official website to download the latest version. Radiolink Electronic Ltd www.radiolink.com Thank you for purchasing RadioLink 8-channel remote controller T8S. To fully enjoy the benefits of this product and ensure safety, please read the manual carefully and set up the device as instructed steps. If any problems found during the operation process, either way listed below can be used as online tech support. 1. Send mails to [email protected] or [email protected] and we will answer your question at the earliest. 2. PM us on our Facebook page or leave comments on our Youtube page 3. If the product is purchased from the local distributor, you can also ask them for support and repair as prefer. All manuals and firmwares are available on RadioLink official website www.radiolink.com and more tutorials are uploaded. Or follow our Facebook and Youtube homepage to stay tuned with our latest news. SAFETY PRECAUTIONS  Never operate models during adverse weather conditions. Poor visibility can cause disorientation and loss of control of pilots’model.  Never use this product in a crowd or illegal areas.  Always check all servos and their connections prior to each run.  Always be sure about turning off the receiver before the transmitter.  To ensure the best radio communication, please enjoy the flight/driving at the space without interference such as high voltage cable, communication base station or launching tower. WARNING This product is not a toy and is NOT suitable for children under the age of 18. Adults should keep the product out of the reach of children and exercise caution when operating this product in the presence of children. Water or moisture may enter the transmitter inside through gaps in the antenna or joystick and cause model instability, even out of control. If running in the wet weather(such as game) is inevitable, always use plastic bags or waterproof cloth to cover the transmitter. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency Radiolink Electronic Ltd www.radiolink.com energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Packing List No. Items Qty Unit 1 TX T8S 1 Piece 2 RX R8EF 1 Piece 3 Throttle-Stick Spring Retainer 1 Piece Radiolink Electronic Ltd www.radiolink.com Content Chapter 1 Introduction ....................................................................................................................................... 1 1.1 Installation of Remote Control ....................................................................................................................... 1 1.1.1 Installation Receiver Antenna ............................................................................................................. 1 1.1.2 Transmitter Battery Charging .............................................................................................................. 2 1.2 T8S Basic Setup ............................................................................................................................................ 2 1.2.1 Compatible Receivers ......................................................................................................................... 3 1.2.2 Binding ................................................................................................................................................ 3 1.2.3 Signal Switch between SBUS&PPM and PWM ................................................................................ 3 1.2.4 T8S Gimbals Calibration ..................................................................................................................... 3 Chapter 2 Firmware Upgrade .............................................................................................................................. 4 Chapter 3 Parameters Setup via Mobile.............................................................................................................. 6 3.1 Android APP Installation.............................................................................................................................. 6 3.2 Connection via Bluetooth ............................................................................................................................ 7 3.3 Parameters Setup Menu .....…

Text truncated - open the document above for the full version.

Cover Letter(s)

DATE : 2020-01-15 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Jason Wu of Global United Technology Services Co., Ltd.and No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Radiolink Electronic Limited and 3/F,BLD2,FuGuo industrial park,KaiFeng North Road, MeiLin, Shenzhen, China Signature: Name: Bo Xie Title: General Manager Company: Radiolink Electronic Limited

Cover Letter(s)

Radiolink Electronic Limited DATE : 2020-01-15 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: U2BRL039T8S Product Name: Radio control Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name: Bo Xie Title: General Manager Company: Radiolink Electronic Limited

ID Label/Location Info

Label Location

RF Exposure Info

FCC ID: U2BRL039T8S RF Exposure Evaluation According to KDB 447498 and part 2.1093,Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f (GHz) ] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f (GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, Max Power (dBm) Maximum tune-up (dbm) Max tune-up (mW) Frequency (MHz) Min. distance(mm) Calc. thresholds limit 7.61 8 6.31 2477.6 5 1.99 3.0 Contains FCC ID: 2AOT2SH-BLEM01, The maximum BLE output power is 0.00073W. 0.73X√2.480 /5 =0.23 The maximum simultaneously transmission is 1.99+0.23=2.22<3.0 S o, it compliance.

Test Report

Global United Technology Services Co., Ltd. Report No.: GTS201912000283F01 TEST REPORT Applicant: Radiolink Electronic Limited Address of Applicant: 3/F,BLD2,FuGuo industrial park,KaiFeng North Road, MeiLin, Shenzhen, China Manufacturer/Factory: Radiolink Electronic Limited Address of Manufacturer/Factory: 3/F,BLD2,FuGuo industrial park,KaiFeng North Road, MeiLin, Shenzhen, China Equipment Under Test (EUT) Product Name: Radio control Model No.: T8S FCC ID: U2BRL039T8S Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: December 26, 2019 Date of Test: December 27, 2019-January 15, 2020 Date of report issued: January 15, 2020 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Authorized Signature: Robinson Lo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 43 Report No.: GTS201912000283F01 2 Version Version No. Date Description 00 January 15, 2020 Original Prepared By: Date: January 15, 2020 Project Engineer Check By: Date: January 15, 2020 Reviewer Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 43 Report No.: GTS201912000283F01 3 Contents Page 1 COVER PAGE ................................................................................................................................................ 1 2 VERSION ........................................................................................................................................................ 2 3 CONTENTS .................................................................................................................................................... 3 4 TEST SUMMARY ........................................................................................................................................... 4 4.1 MEASUREMENT UNCERTAINTY .................................................................................................................. 4 5 GENERAL INFORMATION ............................................................................................................................ 5 5.1 GENERAL DESCRIPTION OF EUT ............................................................................................................... 5 5.2 TEST MODE .............................................................................................................................................. 7 5.3 TEST FACILITY .......................................................................................................................................... 7 5.4 TEST LOCATION ....................................................................................................................................... 7 5.5 OTHER INFORMATION REQUESTED BY THE CUSTOMER ............................................................................... 7 5.6 DESCRIPTION OF SUPPORT UNITS ............................................................................................................. 7 5.7 DEVIATION FROM STANDARDS ................................................................................................................... 7 5.8 ABNORMALITIES FROM STANDARD CONDITIONS ......................................................................................... 7 5.9 ADDITIONAL INSTRUCTIONS ....................................................................................................................... 7 6 TEST INSTRUMENTS LIST ........................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA .......................................................................................... 10 7.1 ANTENNA REQUIREMENT ......................................................................................................................... 10 7.2 CONDUCTED EMISSIONS ......................................................................................................................... 11 7.3 CONDUCTED PEAK OUTPUT POWER ........................................................................................................ 14 7.4 20DB EMISSION BANDWIDTH .................................................................................................................. 16 7.5 CARRIER FREQUENCIES SEPARATION ...................................................................................................... 18 7.6 HOPPING CHANNEL NUMBER .................................................................................................................. 20 7.7 DWELL TIME ........................................................................................................................................... 21 7.8 BAND EDGE ........................................................................................................................................... 23 7.8.1 Conducted Emission Method ........................................................................................................... 23 7.8.2 Radiated Emission Method .............................................................................................................. 25 7.9 SPURIOUS EMISSION ............................................................................................................................... 30 7.9.1 Conducted Emission Method ........................................................................................................... 30 7.9.2 Radiated Emission Method ..............…

Text truncated - open the document above for the full version.

Test Setup Photos

Radiated Emission Conducted Emissions

Contact Information

Applicant

Bo Xie(General Manager)
[email protected]+86-755-8836-1717Fax: +86-755-8836-0925

Test Firm

Global United Technology Services Co. Ltd.Robinson Lo
[email protected]86-0-755-2779-8480Fax: 86-0-755-27798960

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.48 GHz5.77 mW
Confidentiality
Long Term
Grant Notes
Power output listed is conducted
