1. Status Menu 1.1. System Status The System Status screen provides a real-time summary of AN100/300 settings and performance. Figure 1. System Status Menu Path Status, System 1.1.1. System Information The System Information screen provides basic information about the AN100/300. Figure 2. System Information Path Status, System, System Information Parameters • System Name – Name assigned to the system. • Service Tag – An internal tracking number used to track every product sold by SnapAV . • Firmware Version – The current version of firmware running on the AN100/300. • Management VLAN ID – The VLAN through which a user can access the web interface of the AN100/300. 1.1.2. Wireless Information The Wireless Information screen provides basic information about the radio sections of the AN100/300. Figure 3. Wireless Information Path Status, System, Wireless Information Parameters NOTE: The WAP100 will indicate settings and information for the 2.4Ghz Channel. The WAP300 will indicate settings and information for the 2.4GHz and 5GHz Channels. • MAC Address – Device Media Access Control (MAC) Address. The 2.4GHz and 5GHz sections section each have individual MAC Addresses. • Number of Networks – Number of active wireless networks (i.e. SSIDs) configured on the device. • Number of Connected Clients – Number of currently connected wireless clients on all configured networks. • Operation Mode – Indicates that the AN100/300 is setup as an Access Point. • TX – Live counter of data, in bytes, transmitted on the respective radio interface. • RX – Live counter of data, in bytes, received on the respective radio interface. 1.1.3. LAN Information The LAN Information screen provides basic information about the AN100/300 LAN connection to a connected network device. Figure 4. LAN Information Path Status, System, LAN Information Parameters • Speed – Indicates current LAN speed between the AN100/300 and connected network device. • MAC Address – The LAN MAC Address serves as the device MAC Address. • Duplex – Indicates the current negotiated duplex setting between the AN100/300 and connected network device. • TX – Live counter of data, in bytes, transmitted to the connected network device via LAN connection. • RX – Live counter of data, in bytes, received from the connected network device via LAN connection. • IP Address – AN100/300 IP Address. • Subnet Mask – AN100/300 subnet mask. • Default Gateway – Router IP Address. • Primary DNS – Indicates the Primary DNS for the AN100/300. • Secondary DNS – Indicates the Secondary DNS for the AN100/300. 1.1.4. System Log The System Log indicates AN100/300 activity in regard to configuration, connections, security conditions, etc. The window will update when the System Status Page is opened. Figure 5. System Log Path Status, System, System Log Parameters • System Log – The System Log indicates AN100/300 activity in regard to configuration, connections, security conditions, etc. The window will update when the System Status Page is opened. Configuration Instructions • Save Log – Click to view the log as a text file or save the log for future reference. • Clear Log – Click Clear Log to permanently delete to contents of the System Log 1.2. Wireless Interface The Wireless Interface Status screen provides a detailed look at AN100/300 wireless settings and performance for radio status and settings, Wireless Network configuration and connected client status. Figure 6. Wireless Interface Status Path Status, Wireless Interface 1.2.1. Radio Status The Radio Status screen provides a detailed look at AN100/300 radio settings and performance. Figure 7. Radio Status Path Status, Wireless Interface, Radio Status Parameters NOTE: The WAP100 will indicate settings and information for the 2.4Ghz Channel. The WAP300 will indicate settings and information for the 2.4GHz and 5GHz Channels. • Interface Status – Indicates whether the 2.4/5GHz Wireless Interface is Enabled or Disabled. • Operation Mode – Indicates the current function of the AN100/300 2.4/5GHz Wireless Interface. (Access Point) • Wireless Mode – Indicates the Wireless Mode for the 2.4/5GHz Wireless Interface. (802.11b/g/n; 802.11a/n) • Channel Bandwidth – Indicates the bandwidth of the AN100/300 operating channel. (20MHz or 40MHz) • Channel Selection – Indicates the channel selection mode of the AN100/300 2.4/5GHz Wireless Interface. (Auto or Manual) • Operating Channel – Indicates the selected channel for the AN100/300 2.4/5GHz Wireless Interface. • Channel Frequency – Indicates the frequency of the selected channel for the AN100/300 2.4/5GHz Wireless Interface. • TX – Live counter of data, in bytes, transmitted on each radio interface. • RX – Live counter of data, in bytes, received on each radio interface. 1.2.2. Wireless Network The Wireless Network screen provides a detailed look at general AN100/300 wireless network settings. Figure 8. Wireless Network Status Path Status, Wireless Interface, Wireless Network Parameters NOTE: The WAP100 will indicate settings and information for the 2.4Ghz Channel. The WAP300 will indicate settings and information for the 2.4GHz and 5GHz Channels. • Wireless Network(SSID) – Indicates the network name (SSID) of a AN100/300 wireless network. • Enabled – Indicates that a AN100/300 wireless network is Enabled/Disabled (transmitting/receiving). • Interface – Indicates the Operating Channel of an AN100/300 wireless network. • Security – Indicates the security mode selected for a AN100/300 wireless network. • VLAN ID – Indicates the VLAN ID a for a AN100/300 wireless network. • MAC Address – MAC Address of the AN100/300 2.4/5GHz wireless section. • Broadcast SSID – Indicates whether the network SSID is visible to other network devices and Wi-Fi discovery tools. • Station Separation – Indicates whether AN100/300 client devices connected to different SSIDs can communicate with each other. 1.2.3. Connected Clients The Wireless Interface Status screen provides a detailed look at AN100/300 connected w…

Text truncated - open the document above for the full version.

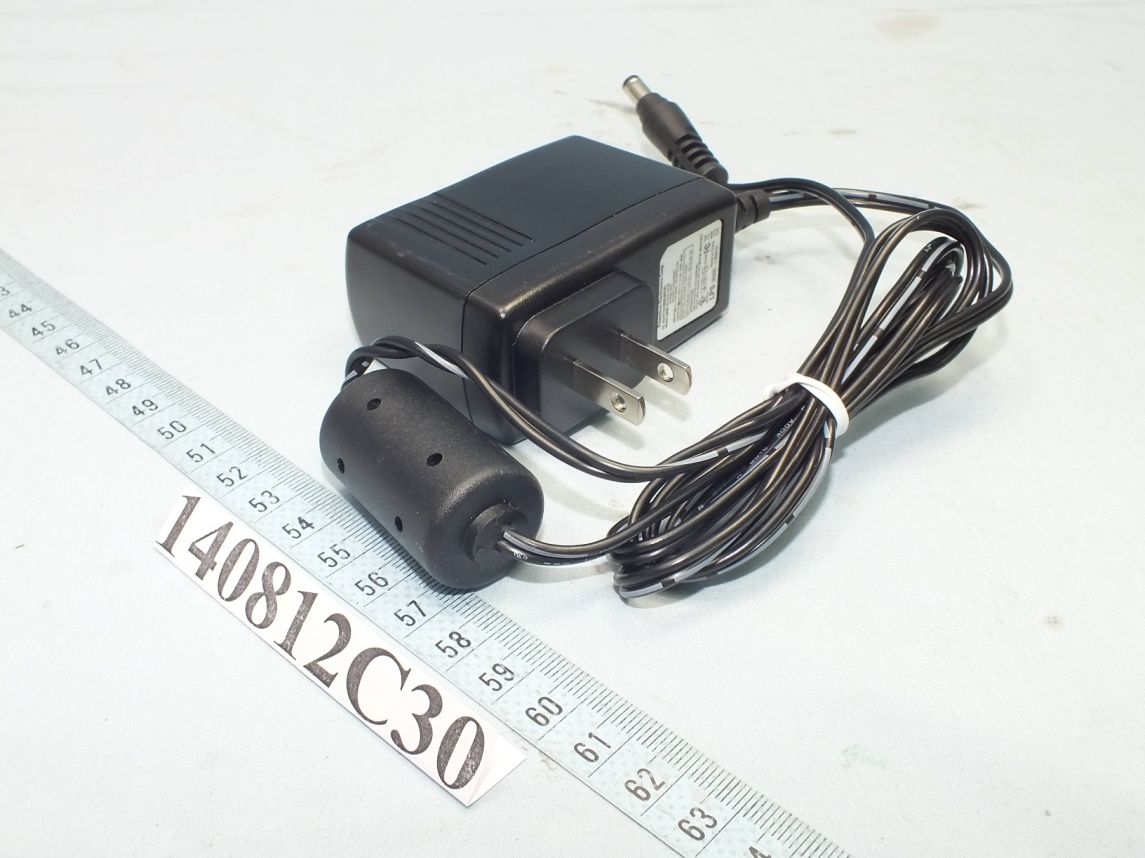

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12

FCC ID: U2M-AN300APIN Report No.: RF140812C30 Operational Description This device is an Araknis Networks 300-series Dual-Band Concurrent Wireless-N Indoor Access Point, which operates in 2.4GHz & 5.0GHz band; the maximum data rate could be up to 300 Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by 12Vdc adapter or 48Vdc POE. The EUT is used PIFA antenna with IPEX connector. The other instruction, please have a look at the user’s manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: SA120531C10H 1 of 6 Report Format Version 5.0.1 Reference No.: 140812C30 RF EXPOSURE REPORT REPORT NO.: SA120531C10H MODEL NO.: AN-300-AP-I-N FCC ID: U2M-AN300APIN RECEIVED: Aug. 12, 2014 TESTED: Sep. 09 ~ Sep. 10, 2014 ISSUED: Sep. 10, 2014 APPLICANT: Senao Networks, Inc. ADDRESS: 3F, No. 529, Chung Cheng Rd., Hsintien, New Taipei City, R.O.C ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Report No.: SA120531C10H 2 of 6 Report Format Version 5.0.1 Reference No.: 140812C30 TABLE OF CONTENTS RELEASE CONTROL RECORD .............................................................................................................. 3 1. CERTIFICATION ........................................................................................................................... 4 2. RF EXPOSURE ............................................................................................................................. 5 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ...................................................... 5 2.2 MPE CALCULATION FORMULA .................................................................................................. 5 2.3 CLASSIFICATION ......................................................................................................................... 5 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ............................................... 6 Report No.: SA120531C10H 3 of 6 Report Format Version 5.0.1 Reference No.: 140812C30 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA120531C10H Original release Sep. 10, 2014 Report No.: SA120531C10H 4 of 6 Report Format Version 5.0.1 Reference No.: 140812C30 1. CERTIFICATION PRODUCT: Araknis Networks 300-series Dual-Band Concurrent Wireless-N Indoor Access Point MODEL: AN-300-AP-I-N BRAND: Araknis Networks APPLICANT: Senao Networks, Inc. TESTED: Sep. 09 ~ Sep. 10, 2014 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1091) KDB 447498 D03 IEEE C95.1 The above equipment (Model: AN-300-AP-I-N) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE :Sep. 10, 2014 Polly Chien / Specialist APPROVED BY : , DATE :Sep. 10, 2014 Ken Liu / Senior Manager Report No.: SA120531C10H 5 of 6 Report Format Version 5.0.1 Reference No.: 140812C30 2. RF EXPOSURE 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 CLASSIFICATION The antenna of this product, under normal use condition, is at least 21cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA120531C10H 6 of 6 Report Format Version 5.0.1 Reference No.: 140812C30 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 29.91 5.01 21 0.559 1 5180-5240 16.40 5.01 21 0.025 1 5745-5825 28.68 5.01 21 0.422 1 *Directional gain = 2.0dBi + 10log(2) = 5.01dBi CONCULSION: Both of the WLAN 2.4G & 5.0G can transmit simultaneously, the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density WLAN 2.4G + WLAN 5.0G = 0.559 + 0.422 = 0.981 Therefore, the maximum calculation of this situation is 0.981, which is less than the “1” limit.

Report No.: RF120531C10H 1 of 98 Report Format Version 5.2.1 Reference No.: 140812C30 FCC TEST REPORT (15.247) REPORT NO.: RF120531C10H MODEL NO.: AN-300-AP-I-N FCC ID: U2M-AN300APIN RECEIVED: Aug. 12, 2014 TESTED: Sep. 09 ~ Sep. 10, 2014 ISSUED: Sep. 10, 2014 APPLICANT: Senao Networks, Inc. ADDRESS: 3F, No. 529, Chung Cheng Rd., Hsintien, New Taipei City, R.O.C ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF120531C10H 2 of 98 Report Format Version 5.2.1 Reference No.: 140812C30 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................................ 5 1. CERTIFICATION ......................................................................................................................... 6 2. SUMMARY OF TEST RESULTS ................................................................................................ 7 2.1 MEASUREMENT UNCERTAINTY .............................................................................................. 7 3. GENERAL INFORMATION ......................................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ........................................................................................... 8 3.2 DESCRIPTION OF TEST MODES ........................................................................................... 10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ........................................... 11 3.3 DUTY CYCLE OF TEST SIGNAL ............................................................................................. 16 3.4 DESCRIPTION OF SUPPORT UNITS ..................................................................................... 18 3.4.1 CONFIGURATION OF SYSTEM UNDER TEST ...................................................................... 19 3.5 GENERAL DESCRIPTION OF APPLIED STANDARDS .......................................................... 20 4. TEST TYPES AND RESULTS (FOR 2.4GHz BAND) ............................................................... 21 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT .................................................. 21 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................ 21 4.1.2 TEST INSTRUMENTS .............................................................................................................. 22 4.1.3 TEST PROCEDURES .............................................................................................................. 23 4.1.4 DEVIATION FROM TEST STANDARD .................................................................................... 24 4.1.5 TEST SETUP ............................................................................................................................ 24 4.1.6 EUT OPERATING CONDITIONS ............................................................................................. 25 4.1.7 TEST RESULTS ....................................................................................................................... 26 4.2 CONDUCTED EMISSION MEASUREMENT ........................................................................... 40 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................................................ 40 4.2.2 TEST INSTRUMENTS .............................................................................................................. 40 4.2.3 TEST PROCEDURES .............................................................................................................. 41 4.2.4 DEVIATION FROM TEST STANDARD .................................................................................... 41 4.2.5 TEST SETUP ............................................................................................................................ 41 4.2.6 EUT OPERATING CONDITIONS ............................................................................................. 41 4.2.7 TEST RESULTS ....................................................................................................................... 42 4.3 6dB BANDWIDTH MEASUREMENT ........................................................................................ 46 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .................................................…

Text truncated - open the document above for the full version.

Report No.: RF120531C10H-1 1 of 55 Report Format Version 5.2.1 Reference No.: 140812C30 FCC TEST REPORT (15.407) REPORT NO.: RF120531C10H-1 MODEL NO.: AN-300-AP-I-N FCC ID: U2M-AN300APIN RECEIVED: Aug. 12, 2014 TESTED: Sep. 09 ~ Sep. 10, 2014 ISSUED: Sep. 10, 2014 APPLICANT: Senao Networks, Inc. ADDRESS: 3F, No. 529, Chung Cheng Rd., Hsintien, New Taipei City, R.O.C ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF120531C10H-1 2 of 55 Report Format Version 5.2.1 Reference No.: 140812C30 TABLE OF CONTENTS RELEASE CONTROL RECORD .............................................................................................. 4 1. CERTIFICATION ...................................................................................................... 5 2. SUMMARY OF TEST RESULTS.............................................................................. 6 2.1 MEASUREMENT UNCERTAINTY ........................................................................... 6 3. GENERAL INFORMATION ...................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ........................................................................ 7 3.2 DESCRIPTION OF TEST MODES .......................................................................... 8 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL .......................... 9 3.3 DUTY CYCLE OF TEST SIGNAL .......................................................................... 11 3.4 DESCRIPTION OF SUPPORT UNITS ................................................................... 15 3.4.1 CONFIGURATION OF SYSTEM UNDER TEST .................................................... 16 3.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................ 17 4. TEST TYPES AND RESULTS ................................................................................ 18 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................ 18 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .............. 18 4.1.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS ......... 18 4.1.3 TEST INSTRUMENTS ........................................................................................... 19 4.1.4 TEST PROCEDURES ............................................................................................ 20 4.1.5 DEVIATION FROM TEST STANDARD .................................................................. 20 4.1.6 TEST SETUP ......................................................................................................... 21 4.1.7 EUT OPERATING CONDITION ............................................................................. 22 4.1.8 TEST RESULTS ..................................................................................................... 23 4.2 CONDUCTED EMISSION MEASUREMENT ......................................................... 33 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ...................................... 33 4.2.2 TEST INSTRUMENTS .........................…
