U2M-CAP7250AGAccess Point

Quick Installation Guide CAP7250AG/CAP7252AG/CAP7253AG Wireless-AC+ABGN Long Range Ceiling Mount Dual Concurrent AP Please verify contents of the box before continuing to set up the CAP7250AG/CAP7252AG/CAP7253AG.  CAP7250AG/CAP7252AG/CAP7253AG Access Point  12V/2A 100V~240V Power Adaptor  Mounting Bracket  Wall/Ceiling Mounting Hardware Kit  T-Rail Mounting Hardware Kit *CAP7250AG is 3x3 concurrent 3x3 MIMO access point *CAP7252AG is 2x2 MIMO internal ANT access point *CAP7253AG is 2x2 MIMO external ANT access point Connecting the CAP7250AG/CAP7252AG/CAP7253AG 1) Ensure that the computer in use has an Ethernet Card (RJ-45 Ethernet Port). For more information, verify with User Manual. 2) Connect one end of the Category 5e Ethernet cable into RJ-45 port of the CAP7250AG/CAP7252AG/CAP7253AG and the other end to the RJ-45 port on the computer that will use the CAP7250AG/CAP7252AG/CAP7253AG. Ensure that the cable is securely connected to both the CAP7250AG/CAP7252AG/CAP7253AG and the Computer. 3) Connect the Power DC Inlet to the DC-IN port of the CAP7250AG/CAP7252AG/CAP7253AG and the Power to the electrical out. Note: CAP7250AG/CAP7252AG/CAP7253AG supports both IEEE 802.3at PoE(Power over Ethernet) and regular power adapter. You should use either one as the power source. Please do not apply both at the same time. IP address configuration 1) After ensuring the EnGenius device is powered on and plugged in, ensure that your computer is on. 2) For the next steps, refer to your Operating System User Manual. 3) Once your computer is on, ensure that your TCP/IP is set to On or Enabled. (In the control panel, double click Network Connections and then double click on the connection of your Network Interface Card (NIC). Select Internet Protocol (TCP/IP) and then click on the Properties button.) 4) If your PC is already on a computer network, ensure that you have set it to a Static IP Address on the interface (or Ethernet card that will use the CAP7250AG/CAP7252AG/CAP7253AG) as 192.168.1.21 and the Subnet Mask address as 255.255.255.0. (Select Use the following IP Address radio button). Once the computer has been prepared, proceed to setting up the CAP7250AG/CAP7252AG/CAP7253AG. CAP7250AG/CAP7252AG/CAP7253AG Setup 1) To configure CAP7250AG/CAP7252AG/CAP7253AG, open a web browser (example: Microsoft Internet Explorer, Mozilla Firefox, Google Chrome, etc.). 2) In the address bar of the web browser, enter 192.168.1.2 (the default IP address of the CAP7250AG/CAP7252AG/CAP7253AG) and hit enter. 3) A login screen will appear. By default, the username of the CAP7250AG/CAP7252AG/CAP7253AG is admin and the password is admin. Enter the current username and password of the CAP7250AG/CAP7252AG/CAP7253AG and then click Login. Refer to the CAP7250AG/CAP7252AG/CAP7253AG user manual on how to change the username and password. 4) After clicking Login with the correct username and password, the CAP7250AG/CAP7252AG/CAP7253AG Main Menu will appear. If you are successful, proceed to setting up the wireless connection. http://192.168.1.2 Switching Between Operating Modes This device can operate in the following modes: Access Point, WDS AP, WDS Bridge and Repeater. A. Click on the Operation Mode link under the System navigation drop-down menu. B. Operating Mode: Select an operating mode from the list (Access Point, WDS AP, WDS Bridge or Repeater) and then click on the Apply button. C. All basic setup is completed. Note: The wireless connection is not secure. To setup security on the CAP7250AG/CAP7252AG/CAP7253AG, refer to the CAP7250AG/CAP7252AG/CAP7253AG User Manual. Mounting the CAP7250AG/CAP7252AG/CAP7253AG Using the provided hardware, the CAP7250AG/CAP7252AG/CAP7253AG can be attached to a ceiling or wall. To attach the CAP7250AG/CAP7252AG/CAP7253AG to a ceiling or wall using the mounting bracket: 1) Attach the mounting bracket to the wall or ceiling using the provided wall/ceiling mounting hardware kit. 2) Insert the provided short screws into the bottom cover of the CAP7250AG/CAP7252AG/CAP7253AG. Leave enough of the screws exposed to ensure that the unit can be attached to the mounting bracket. If extra space is required, use the provided spacers and long screws from the T-Rail mounting hardware kit to increase the space between the unit and the mounting bracket. 3) Mount the CAP7250AG/CAP7252AG/CAP7253AG on the mounting bracket by rotating the unit clockwise about 90 degrees to secure it in place. To attach the CAP7250AG/CAP7252AG/CAP7253AG to a ceiling using the provided T-rail connectors: 1) Attach the T-rail connectors to the bottom cover of the CAP7250AG/CAP7252AG/CAP7253AG using the provided short screws. Two sizes of T-rail connectors are included in the mounting hardware kit: 15/16in (2.38cm) and 9/16in (1.43cm). If extra space is required to accommodate drop ceiling tiles, use the provided spacers and long screws. 2) Line up the connected T-rail connectors with an appropriately sized rail and press the unit onto the rail until it snaps into place. Note: To protect your CAP7250AG/CAP7252AG/CAP7253AG, use the Kensington security slot to attach a cable lock (cable lock is not included). Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pur suant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does caus e harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following mea…

Text truncated - open the document above for the full version.

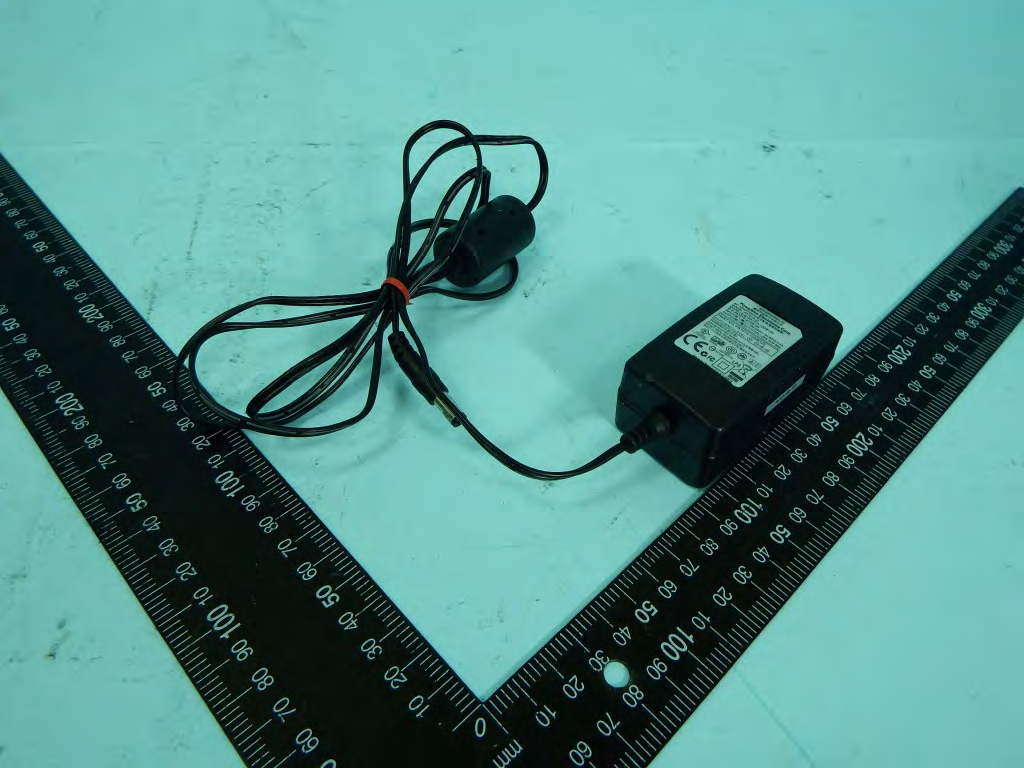

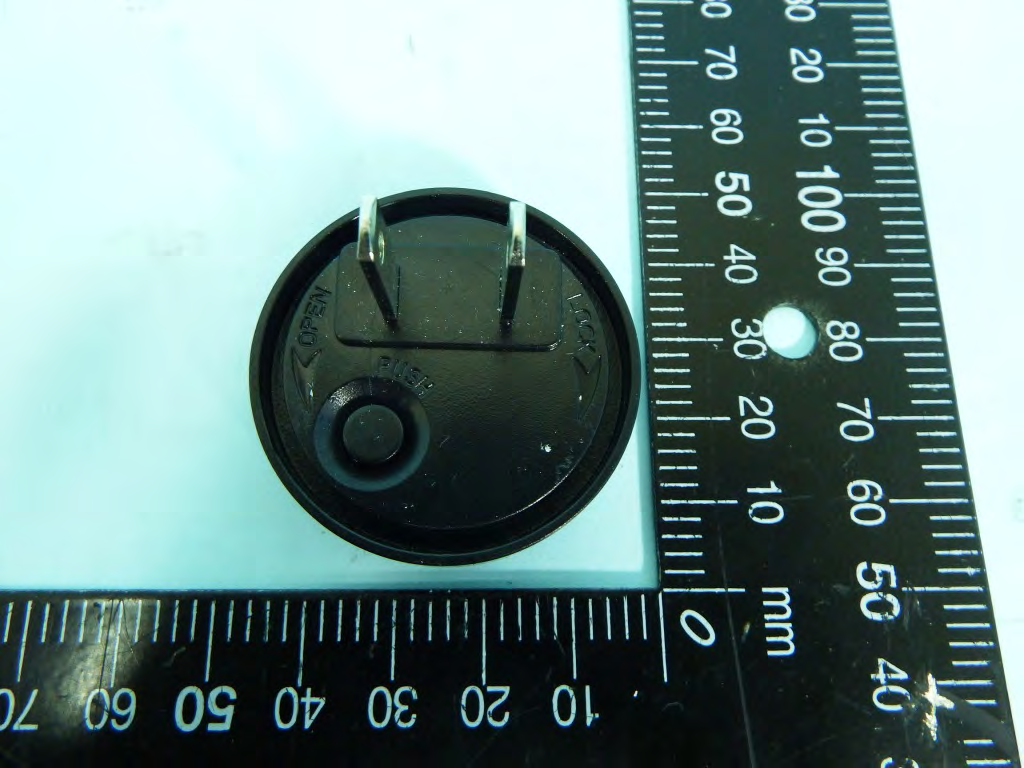

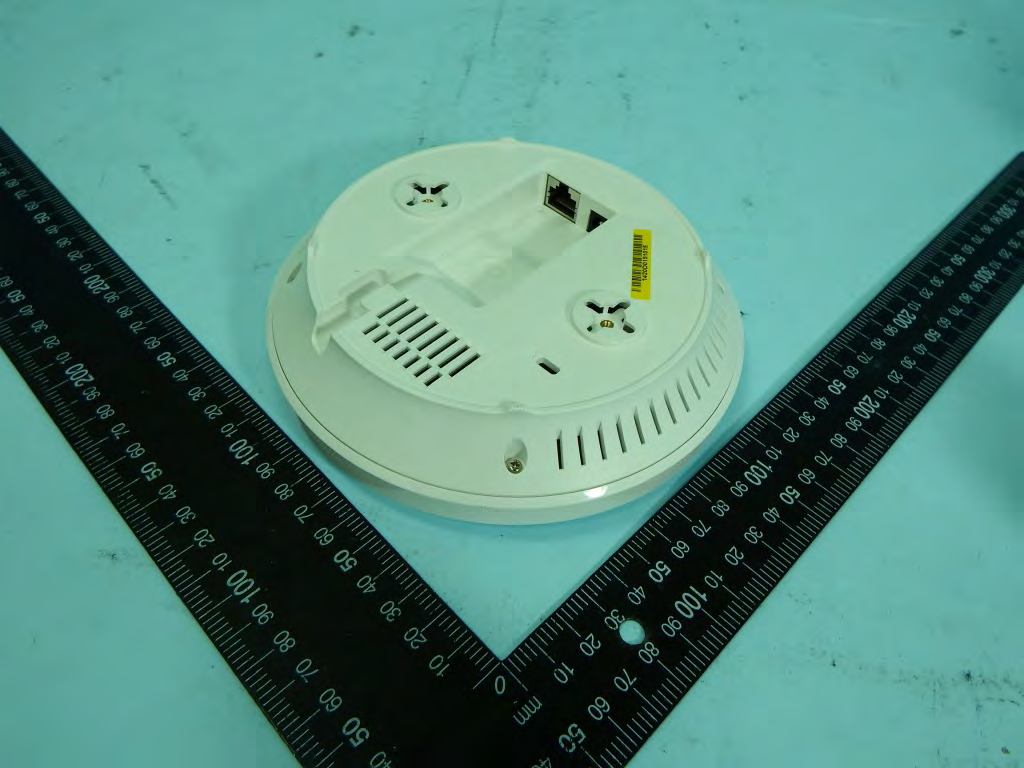

FCC Test Report Report No. : FR441445 SPORTON International Inc. PAGE NUMBER : B1 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Sep. 03, 2014 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC Test Report Report No. : FR441445 SPORTON International Inc. PAGE NUMBER : B2 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Sep. 03, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : FR441445 SPORTON International Inc. PAGE NUMBER : B14 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Sep. 03, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : FR441445 SPORTON International Inc. PAGE NUMBER : B15 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Sep. 03, 2014 FAX : 886-3-327-0973

FCC Test Report Report No. : FR441445 SPORTON International Inc. PAGE NUMBER : B4 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Sep. 03, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : FR441445 SPORTON International Inc. PAGE NUMBER : B5 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Sep. 03, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : FR441445 SPORTON International Inc. PAGE NUMBER : B6 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Sep. 03, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : FR441445 SPORTON International Inc. PAGE NUMBER : B7 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Sep. 03, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : FR441445 SPORTON International Inc. PAGE NUMBER : B8 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Sep. 03, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : FR441445 SPORTON International Inc. PAGE NUMBER : B9 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Sep. 03, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : FR441445 SPORTON International Inc. PAGE NUMBER : B10 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Sep. 03, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : FR441445 SPORTON International Inc. PAGE NUMBER : B11 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Sep. 03, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : FR441445 SPORTON International Inc. PAGE NUMBER : B12 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Sep. 03, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : FR441445 SPORTON International Inc. PAGE NUMBER : B13 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Sep. 03, 2014 FAX : 886-3-327-0973

RF Exposure Report Report No. :FA441445 SPORTON INTERNATIONAL INC. Page No. : 1 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Maximum Permissible Exposure 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1,842 / f 4.89 / f (900/ f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1,500 F/300 6 1,500-100,000 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1,500 F/1500 30 1,500-100,000 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   RF Exposure Report Report No. :FA441445 SPORTON INTERNATIONAL INC. Page No. : 2 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure RF General Information 5150~5250MHz Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) 5150-5250 a 5180-5240 36-48 [4] 3 24.22 5150-5250 n (HT20) 5180-5240 36-48 [4] 3 24.72 5150-5250 n (HT40) 5190-5230 38-46 [2] 3 27.47 5150-5250 ac (VHT20) 5180-5240 36-48 [4] 3 24.65 5150-5250 ac (VHT40) 5190-5230 38-46 [2] 3 27.48 5150-5250 ac (VHT80) 5210 42 [1] 3 18.93 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. RF General Information 5725 MHz – 5850 MHz Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) 5725-5850 a 5745-5825 149-165 [5] 3 25.87 5725-5850 n(HT20) 5745-5825 149-165 [5] 3 25.91 5725-5850 n(HT40) 5755-5795 151-159 [2] 3 28.33 5725-5850 ac(VHT20) 5745-5825 149-165 [5] 3 27.77 5725-5850 ac(VHT40) 5755-5795 151-159 [2] 3 28.03 5725-5850 ac(VHT80) 5775 155 [1] 3 17.28 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. RF General Information 2400 MHz – 2483.5 MHz Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) 2400-2483.5 b 2412-2462 1-11 [11] 3 26.08 2400-2483.5 g 2412-2462 1-11 [11] 3 24.34 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 3 23.75 2400-2483.5 n (HT40) 2422-2452 3-9 [7] 3 21.44 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. RF Exposure Report Report No. :FA441445 SPORTON INTERNATIONAL INC. Page No. : 3 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode N TX RF Output Power (dBm) DG (dBi) EIRP Power PD (S) (mW/cm²) 11N-HT40 3 28.33 4.85 33.18 0.414 11b 3 26.08 3.95 30.03 0.200 Co-location Total 0.614 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains

FCC Test Report Report No. : FR441445 SPORTON INTERNATIONAL INC. Page No. : 1 of 10 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 CO-LOCATION 1.1 Transmitter Radiated Unwanted Emissions 1.1.1 Transmitter Radiated Unwanted Emissions Limit Restricted Band Emissions Limit Frequency Range (MHz) Field Strength (uV/m) Field Strength (dBuV/m)Measure Distance (m) 0.009~0.490 2400/F(kHz) 48.5 - 13.8 300 0.490~1.705 24000/F(kHz) 33.8 - 23 30 1.705~30.0 30 29 30 30~88 100 40 3 88~216 150 43.5 3 216~960 200 46 3 Above 960 500 54 3 Note 1: Test distance for frequencies at or above 30 MHz, measurements may be performed at a distance other than the limit distance provided they are not performed in the near field and the emissions to be measured can be detected by the measurement equipment. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse of linear distance for field-strength measurements, inverse of linear distance-squared for power-density measurements). Note 2: Test distance for frequencies at below 30 MHz, measurements may be performed at a distance closer than the EUT limit distance; however, an attempt should be made to avoid making measurements in the near field. When performing measurements below 30 MHz at a closer distance than the limit distance, the results shall be extrapolated to the specified distance by either making measurements at a minimum of two or more distances on at least one radial to determine the proper extrapolation factor or by using the square of an inverse linear distance extrapolation factor (40 dB/decade). The test report shall specify the extrapolation method used to determine compliance of the EUT. Un-restricted Band Emissions Limit RF output power procedure Limit (dB) Peak output power procedure 20 Average output power procedure 30 Note 1: If the peak output power procedure is used to measure the fundamental emission power to demonstrate compliance to requirements, then the peak conducted output power measured within any 100 kHz outside the authorized frequency band shall be attenuated by at least 20 dB relative to the maximum measured in-band peak PSD level. Note 2: If the average output power procedure is used to measure the fundamental emission power to demonstrate compliance to requirements, then the power in any 100 kHz outside of the authorized frequency band shall be attenuated by at least 30 dB relative to the maximum measured in-band average PSD level. 1.1.2 Measuring Instruments Refer a test equipment and calibration data table in this test report. FCC Test Report Report No. : FR441445 SPORTON INTERNATIONAL INC. Page No. : 2 of 10 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Test Procedures Test Method Measurements may be performed at a distance other than the limit distance provided they are not performed in the near field and the emissions to be measured can be detected by the measurement equipment. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse of linear distance for field-strength measurements, inverse of linear distance-squared for power-density measurements). Measurements in the frequency range 10 GHz - 18GHz are typically made at a closer distance 1m, because the instrumentation noise floor is typically close to the radiated emission limit. Measurements in the frequency range above 18 GHz - 25GHz are typically made at a closer distance 0.5m, because the instrumentation noise floor is typically close to the radiated emission limit. The average emission levels shall be measured in [duty cycle ≥ 98 or duty factor]. For the transmitter unwanted emissions shall be measured using following options below: Refer as FCC KDB 558074, clause 10.1 for unwanted emissions into non-restricted bands. Refer as FCC KDB 558074, clause 10.2 for unwanted emissions into restricted bands. Refer as FCC KDB 558074, clause 10.2.3.3 and 8.2.1 Option 1 (spectral trace averaging) Refer as FCC KDB 558074, clause 10.2.3.3 and 8.2.1 Option 2 (slow sweep speed). Refer as ANSI C63.10, clause 4.2.3.2.3 (Reduced VBW). VBW ≥ 1/T, where T is pulse time. Refer as ANSI C63.10, clause 4.2.3.2.4 average value of pulsed emissions. Refer as FCC KDB 558074, clause 10.2.3.2 and 8.1.1 measurement procedure peak limit. Refer as FCC KDB 558074, clause 10.2.3.1 measurement procedure Quasi-Peak limit. For radiated measurement, refer as FCC KDB 558074, clause 10.2.1. Refer as ANSI C63.10, clause 6.4 for radiated emissions below 30 MHz and test distance is 3m. Refer as ANSI C63.10, clause 6.5 for radiated emissions 30 MHz to 1 GHz and test distance is 3m. Refer as ANSI C63.10, clause 6.6 for radiated emissions above 1GHz. For 1 GHz to 40 GHz, test distance is 3m. For conducted and cabinet radiation measurement, refer as FCC KDB 558074, clause 10.2.2. For conducted unwanted emissions into non-restricted bands (relative emission limits). Devices with multiple transmit chains: Refer as FCC KDB 662911, when testing out-of-band and spurious emissions against relative emission limits, tests may be performed on each output individually without summing or adding 10 log(N) if the measurements are made relative to the in-band emissions on the individual outputs. For conducted unwanted emissions into restricted bands (absolute emission limits). Devices with multiple transmit chains using options given below: (1) Measure and sum the spectra across the outputs or (2) Measure and add 10 log(N) dB FCC KDB 558074 FCC Test Report Report No. : FR441445 SPORTON INTERNATIONAL INC. Page No. : 3 of 10 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.4 Test Setup Transmitter Radiated Unwanted Emissions Below 1GHz Magnetic field tests shall be performed in the frequency range of 9 kHz to 3…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR441445AN SPORTON INTERNATIONAL INC. Page No. : 2 of 101 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Accessories and Support Equipment ..................................................................................................... 8 1.3 Testing Applied Standards ..................................................................................................................... 8 1.4 Testing Location Information .................................................................................................................. 8 1.5 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION OF EUT ...................................................................................................... 10 2.1 The Worst Case Modulation Configuration .......................................................................................... 10 2.2 The Worst Case Power Setting Parameter .......................................................................................... 10 2.3 The Worst Case Measurement Configuration ...................................................................................... 11 2.4 Test Setup Diagram ............................................................................................................................. 12 3 TRANSMITTER TEST RESULT .......................................................................................................... 14 3.1 AC Power-line Conducted Emissions .................................................................................................. 14 3.2 Emission Bandwidth ............................................................................................................................. 17 3.3 RF Output Power .................................................................................................................................. 21 3.4 Peak Power Spectral Density ............................................................................................................... 26 3.5 Transmitter Bandedge Emissions ........................................................................................................ 31 3.6 Transmitter Unwanted Emissions......................................................................................................... 37 3.7 Frequency Stability ............................................................................................................................... 98 4 TEST EQUIPMENT AND CALIBRATION DATA .............................................................................. 100 FCC Test Report Report No. : FR441445AN SPORTON INTERNATIONAL INC. Page No. : 3 of 101 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Result 1.1.2 15.203 Antenna Requirement Complied 3.1 15.207 AC Power-line Conducted Emissions Complied 3.2 15.407(a) Emission Bandwidth Complied 3.3 15.407(a) RF Output Power (Maximum Conducted Output Power) Complied 3.4 15.407(a) Peak Power Spectral Density Complied 3.5 15.407(b) Transmitter Bandedge Emissions Complied 3.6 15.407(b) Transmitter Unwanted Emissions Complied 3.7 15.407(g) Frequency Stability Complied FCC Test Report Report No. : FR441445AN SPORTON INTERNATIONAL INC. Page No. : 4 of 101 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR441445AN Rev. 01 Initial issue of report Sep. 03, 2014 FCC Test Report Report No. : FR441445AN SPORTON INTERNATIONAL INC. Page No. : 5 of 101 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) Co-location 5150-5250 a 5180-5240 36-48 [4] 3 24.22 Yes 5725-5850 5745-5825 149-165 [5]3 25.87 Yes 5150-5250 n (HT20) 5180-5240 36-48 [4] 3 / 3 24.72 / 24.65 Yes 5725-5850 ac (VHT20) 5745-5825 149-165 [5]3 / 3 25.91 / 27.77 Yes 5150-5250 n (HT40) 5190-5230 38-46 [2] 3 / 3 27.47 / 27.48 Yes 5725-5850 ac (VHT40) 5755-5795 151-159 [2]3 / 3 28.33 / 28.03 Yes 5150-5250 ac (VHT80) 5210 48 [1] 3 18.93 Yes 5725-5850 5775 155 [1] 3 17.28 Yes Note 1: RF output power specifies that Maximum Conducted Output Power. Note 2: 802.11a/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation. Note 3: 802.11ac uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM, 256QAM modulation. Note 4: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) FCC Test Report Report No. : FR441445AN SPORTON INTERNATIONAL INC. Page No. : 6 of 101 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.2 Antenna Information Antenna Category Integral antenna (antenna permanently attached) Temporary RF connector provided No temporary RF connector provided Transmit chains bypass antenna and soldered temporary RF connector provided for connected measurement. In case of conducted measurements the transmitter shall be connected to the measuring equipment via a suitable attenuator and correct for all losses in the RF path. Antenna General Information No. Ant. Cat. Ant. Type Gain (dBi) 1 Integral PIFA 4.66 2 Integral PIFA 5.00 3 Integral PIFA 4.87 Remark: This EUT only suppots 3TX and CDD f…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR441445AC SPORTON INTERNATIONAL INC. Page No. : A1 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. Test Photos FCC Test Report Report No. : FR441445AC SPORTON INTERNATIONAL INC. Page No. : A2 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Photographs of Conducted Emissions Test Configuration Mode 1 FRONT VIEW REAR VIEW FCC Test Report Report No. : FR441445AC SPORTON INTERNATIONAL INC. Page No. : A3 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 SIDE VIEW FCC Test Report Report No. : FR441445AC SPORTON INTERNATIONAL INC. Page No. : A4 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR441445AC SPORTON INTERNATIONAL INC. Page No. : A5 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz Mode 2 FRONT VIEW REAR VIEW FCC Test Report Report No. : FR441445AC SPORTON INTERNATIONAL INC. Page No. : A6 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions above 1GHz Mode 1 FRONT VIEW REAR VIEW
