U2M-CAP7252AGWireless 802.11 ac/a/b/g/n Access Point

Quick Installation Guide CAP7250AG/CAP7252AG/CAP7253AG Wireless-AC+ABGN Long Range Ceiling Mount Dual Concurrent AP Please verify contents of the box before continuing to set up the CAP7250AG/CAP7252AG/CAP7253AG.  CAP7250AG/CAP7252AG/CAP7253AG Access Point  12V/2A 100V~240V Power Adaptor  Mounting Bracket  Wall/Ceiling Mounting Hardware Kit  T-Rail Mounting Hardware Kit *CAP7250AG is 3x3 concurrent 3x3 MIMO access point *CAP7252AG is 2x2 MIMO internal ANT access point *CAP7253AG is 2x2 MIMO external ANT access point Connecting the CAP7250AG/CAP7252AG/CAP7253AG 1) Ensure that the computer in use has an Ethernet Card (RJ-45 Ethernet Port). For more information, verify with User Manual. 2) Connect one end of the Category 5e Ethernet cable into RJ-45 port of the CAP7250AG/CAP7252AG/CAP7253AG and the other end to the RJ-45 port on the computer that will use the CAP7250AG/CAP7252AG/CAP7253AG. Ensure that the cable is securely connected to both the CAP7250AG/CAP7252AG/CAP7253AG and the Computer. 3) Connect the Power DC Inlet to the DC-IN port of the CAP7250AG/CAP7252AG/CAP7253AG and the Power to the electrical out. Note: CAP7250AG/CAP7252AG/CAP7253AG supports both IEEE 802.3at PoE(Power over Ethernet) and regular power adapter. You should use either one as the power source. Please do not apply both at the same time. IP address configuration 1) After ensuring the EnGenius device is powered on and plugged in, ensure that your computer is on. 2) For the next steps, refer to your Operating System User Manual. 3) Once your computer is on, ensure that your TCP/IP is set to On or Enabled. (In the control panel, double click Network Connections and then double click on the connection of your Network Interface Card (NIC). Select Internet Protocol (TCP/IP) and then click on the Properties button.) 4) If your PC is already on a computer network, ensure that you have set it to a Static IP Address on the interface (or Ethernet card that will use the CAP7250AG/CAP7252AG/CAP7253AG) as 192.168.1.21 and the Subnet Mask address as 255.255.255.0. (Select Use the following IP Address radio button). Once the computer has been prepared, proceed to setting up the CAP7250AG/CAP7252AG/CAP7253AG. CAP7250AG/CAP7252AG/CAP7253AG Setup 1) To configure CAP7250AG/CAP7252AG/CAP7253AG, open a web browser (example: Microsoft Internet Explorer, Mozilla Firefox, Google Chrome, etc.). 2) In the address bar of the web browser, enter 192.168.1.2 (the default IP address of the CAP7250AG/CAP7252AG/CAP7253AG) and hit enter. 3) A login screen will appear. By default, the username of the CAP7250AG/CAP7252AG/CAP7253AG is admin and the password is admin. Enter the current username and password of the CAP7250AG/CAP7252AG/CAP7253AG and then click Login. Refer to the CAP7250AG/CAP7252AG/CAP7253AG user manual on how to change the username and password. 4) After clicking Login with the correct username and password, the CAP7250AG/CAP7252AG/CAP7253AG Main Menu will appear. If you are successful, proceed to setting up the wireless connection. http://192.168.1.2 Switching Between Operating Modes This device can operate in the following modes: Access Point, WDS AP, WDS Bridge and Repeater. A. Click on the Operation Mode link under the System navigation drop-down menu. B. Operating Mode: Select an operating mode from the list (Access Point, WDS AP, WDS Bridge or Repeater) and then click on the Apply button. C. All basic setup is completed. Note: The wireless connection is not secure. To setup security on the CAP7250AG/CAP7252AG/CAP7253AG, refer to the CAP7250AG/CAP7252AG/CAP7253AG User Manual. Mounting the CAP7250AG/CAP7252AG/CAP7253AG Using the provided hardware, the CAP7250AG/CAP7252AG/CAP7253AG can be attached to a ceiling or wall. To attach the CAP7250AG/CAP7252AG/CAP7253AG to a ceiling or wall using the mounting bracket: 1) Attach the mounting bracket to the wall or ceiling using the provided wall/ceiling mounting hardware kit. 2) Insert the provided short screws into the bottom cover of the CAP7250AG/CAP7252AG/CAP7253AG. Leave enough of the screws exposed to ensure that the unit can be attached to the mounting bracket. If extra space is required, use the provided spacers and long screws from the T-Rail mounting hardware kit to increase the space between the unit and the mounting bracket. 3) Mount the CAP7250AG/CAP7252AG/CAP7253AG on the mounting bracket by rotating the unit clockwise about 90 degrees to secure it in place. To attach the CAP7250AG/CAP7252AG/CAP7253AG to a ceiling using the provided T-rail connectors: 1) Attach the T-rail connectors to the bottom cover of the CAP7250AG/CAP7252AG/CAP7253AG using the provided short screws. Two sizes of T-rail connectors are included in the mounting hardware kit: 15/16in (2.38cm) and 9/16in (1.43cm). If extra space is required to accommodate drop ceiling tiles, use the provided spacers and long screws. 2) Line up the connected T-rail connectors with an appropriately sized rail and press the unit onto the rail until it snaps into place. Note: To protect your CAP7250AG/CAP7252AG/CAP7253AG, use the Kensington security slot to attach a cable lock (cable lock is not included). Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - R…

Text truncated - open the document above for the full version.

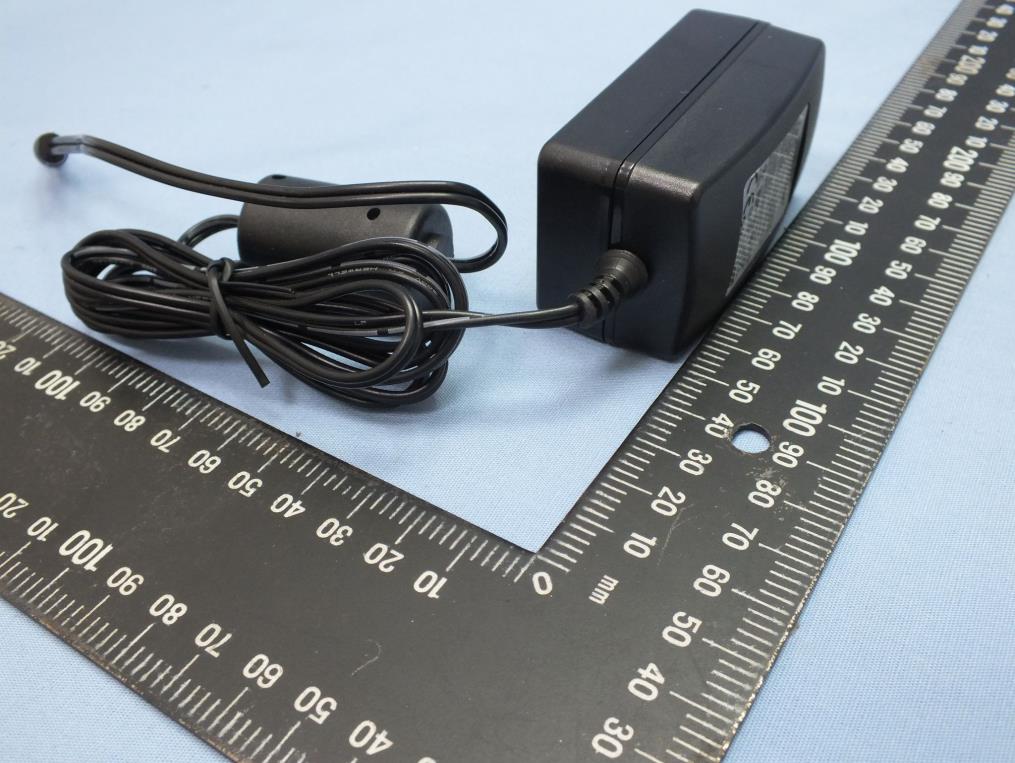

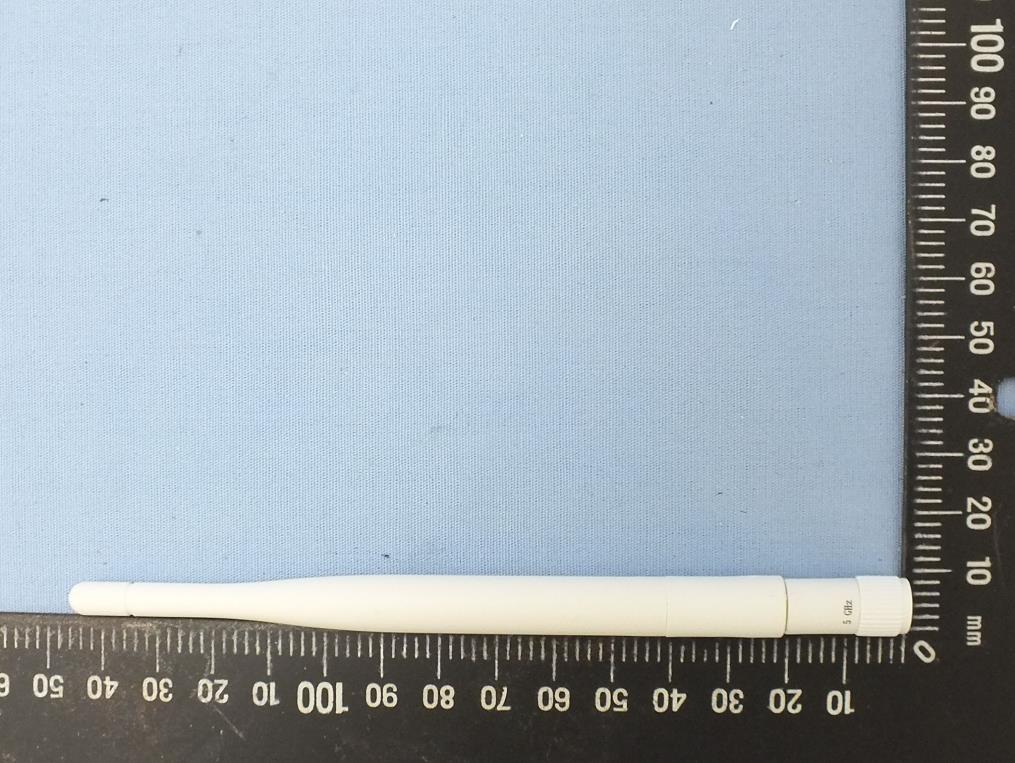

Report No. : EP441605 SPORTON International Inc. Page No. : 1 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Photographs of EUT For internal antenna Report No. : EP441605 SPORTON International Inc. Page No. : 2 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP441605 SPORTON International Inc. Page No. : 3 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP441605 SPORTON International Inc. Page No. : 4 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP441605 SPORTON International Inc. Page No. : 5 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP441605 SPORTON International Inc. Page No. : 6 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 For external antenna Report No. : EP441605 SPORTON International Inc. Page No. : 7 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP441605 SPORTON International Inc. Page No. : 8 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP441605 SPORTON International Inc. Page No. : 9 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP441605 SPORTON International Inc. Page No. : 10 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP441605 SPORTON International Inc. Page No. : 11 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973

Label Location

Report No. : EP441605 SPORTON International Inc. Page No. : 12 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 For internal antenna Report No. : EP441605 SPORTON International Inc. Page No. : 13 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP441605 SPORTON International Inc. Page No. : 14 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP441605 SPORTON International Inc. Page No. : 15 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP441605 SPORTON International Inc. Page No. : 16 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP441605 SPORTON International Inc. Page No. : 17 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP441605 SPORTON International Inc. Page No. : 18 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP441605 SPORTON International Inc. Page No. : 19 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP441605 SPORTON International Inc. Page No. : 20 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP441605 SPORTON International Inc. Page No. : 21 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP441605 SPORTON International Inc. Page No. : 22 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP441605 SPORTON International Inc. Page No. : 23 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP441605 SPORTON International Inc. Page No. : 24 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP441605 SPORTON International Inc. Page No. : 25 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP441605 SPORTON International Inc. Page No. : 26 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 For external antenna Report No. : EP441605 SPORTON International Inc. Page No. : 27 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP441605 SPORTON International Inc. Page No. : 28 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP441605 SPORTON International Inc. Page No. : 29 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP441605 SPORTON International Inc. Page No. : 30 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP441605 SPORTON International Inc. Page No. : 31 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP441605 SPORTON International Inc. Page No. : 32 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP441605 SPORTON International Inc. Page No. : 33 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP441605 SPORTON International Inc. Page No. : 34 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP441605 SPORTON International Inc. Page No. : 35 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP441605 SPORTON International Inc. Page No. : 36 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP441605 SPORTON International Inc. Page No. : 37 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP441605 SPORTON International Inc. Page No. : 38 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP441605 SPORTON International Inc. Page No. : 39 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP441605 SPORTON International Inc. Page No. : 40 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP441605 SPORTON International Inc. Page No. : 41 of 41 TEL : 886-3-327-3456 FAX : 886-3-327-0973

RF Exposure Report Report No. : FA441605 SPORTON INTERNATIONAL INC. Page No. : 1 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Maximum Permissible Exposure 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 RF Exposure Report Report No. : FA441605 SPORTON INTERNATIONAL INC. Page No. : 2 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1500-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.4 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note 1: ƒ is frequency in MHz. Note 2: For the applicable limit, see IC RSS-102 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   RF Exposure Report Report No. : FA441605 SPORTON INTERNATIONAL INC. Page No. : 3 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Antenna Frequency Range (MHz) RF Output Power (dBm) Antenna Gain (dBi) EIRP Power (dBm) PD (S) (mW/cm²) Limit (mW/cm²) Internal Antenna 2400-2483.5 26.53 3.52 30.05 0.201 1 5150-5250 27.58 5.40 32.98 0.395 1 5725-5850 25.94 5.68 31.62 0.289 1 External Antenna 2400-2483.5 25.85 4.42 30.27 0.212 1 5150-5250 28.15 3.18 31.33 0.270 1 5725-5850 25.76 2.95 28.71 0.148 1 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. MPE of Co-location evaluation: 2.4 and 5GHz can transmit at the same time, MPE evaluation is as below formula PD1 / Limit1 + PD2 / Limit 2 + ..... < 1 PD = Power density For internal antenna MPE of 2.4 + 5GHz = 0.201 / 1 + 0.395 / 1 = 0.596 < 1 For external antenna MPE of 2.4 + 5GHz = 0.212 / 1 + 0.270 / 1 = 0.482 < 1

FCC Test Report Report No. : FR441605ANB1 SPORTON INTERNATIONAL INC. Page No. : 1 of 85 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 FCC Test Report Equipment : Wireless 802.11 ac/a/b/g/n Access Point Brand Name : Senao Networks Model No. : CAP7252AG, CAP7253AG FCC ID : U2M-CAP7252AG Standard : 47 CFR FCC Part 15.407 Operating Band : 5150 MHz – 5250 MHz FCC Classification : NII Applicant : Senao Networks, Inc. 3F, No. 529, Chung Cheng Rd., Hsintien, Taipei, Taiwan, R.O.C The product sample received on Apr. 16, 2014 and completely tested on Aug. 27, 2014. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: James Fan / Assistant Manager FCC Test Report Report No. : FR441605ANB1 SPORTON INTERNATIONAL INC. Page No. : 2 of 85 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Accessories and Support Equipment ..................................................................................................... 7 1.3 Testing Applied Standards ..................................................................................................................... 8 1.4 Testing Location Information .................................................................................................................. 8 1.5 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION OF EUT....................................................................................................... 10 2.1 The Worst Case Modulation Configuration .......................................................................................... 10 2.2 The Worst Case Power Setting Parameter .......................................................................................... 10 2.3 The Worst Case Measurement Configuration ...................................................................................... 11 2.4 Test Setup Diagram ............................................................................................................................. 13 3 TRANSMITTER TEST RESULT .......................................................................................................... 14 3.1 AC Power-line Conducted Emissions .................................................................................................. 14 3.2 Emission Bandwidth ............................................................................................................................. 23 3.3 RF Output Power .................................................................................................................................. 26 3.4 Peak Power Spectral Density ............................................................................................................... 30 3.5 Transmitter Radiated Unwanted Emissions and Band Edge ............................................................... 34 3.6 Frequency Stability ............................................................................................................................... 81 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 84 APPENDIX A. TEST PHOTOS ............................................................................................................... A1-A12 FCC Test Report Report No. : FR441605ANB1 SPORTON INTERNATIONAL INC. Page No. : 3 of 85 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.3 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.374MHz 46.93 (Margin 1.47dB) - AV 52.37 (Margin 6.03dB) - QP FCC 15.207 Complied 3.2 15.407(a) Emission Bandwidth Bandwidth [MHz] 20M: 31.01 / 40M: 48.23 80M: 93.22 Information only Complied 3.3 15.407(a) RF Output Power (Maximum Conducted (Average) Output Power) Power [dBm] 5150-5250MHz: 28.15 Power [dBm] 5150-5250MHz: 30 Complied 3.4 15.407(a) Peak Power Spectral Density PPSD [dBm/MHz] 5150-5250MHz: 15.76 PPSD [dBm/MHz] 5150-5250MHz: 17 Complied 3.5 15.407(b) Transmitter Unwanted Emissions and Band Edge Restricted Bands [dBuV/m at 3m]: 5150.00MHz 73.00 (Margin 1.00dB) - PK Non-Restricted Bands: ≤ -27dBm (68.3dBuV/m@3m) Restricted Bands: FCC 15.209 Complied 3.6 15.407(g) Frequency Stability 7.0481 ppm Signal shall remain in-band Complied FCC Test Report Report No. : FR441605ANB1 SPORTON INTERNATIONAL INC. Page No. : 4 of 85 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Revision History Report No. Version Description Issued Date FR441605ANB1 Rev. 01 Initial issue of report Oct. 03, 2014 FCC Test Report Report No. : FR441605ANB1 SPORTON INTERNATIONAL INC. Page No. : 5 of 85 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 1 General Description 1.1 Information 1.1.1 Feature of Equipment under Test The following models are provided to this EUT. Brand Name Model Name Product Name Description Senao Networks CAP7252AG Wireless 802.11 ac/a/b/g/n Access Point Internal PIFA antenna CAP7253AG External Dipole antenna 1.1.2 RF General Information RF General Information Frequency Range …

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR441605ANB4 SPORTON INTERNATIONAL INC. Page No. : 1 of 87 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 FCC Test Report Equipment : Wireless 802.11 ac/a/b/g/n Access Point Brand Name : Senao Networks Model No. : CAP7252AG, CAP7253AG FCC ID : U2M-CAP7252AG Standard : 47 CFR FCC Part 15.407 Operating Band : 5725 MHz – 5850 MHz FCC Classification : NII Applicant : Senao Networks, Inc. 3F, No. 529, Chung Cheng Rd., Hsintien, Taipei, Taiwan, R.O.C The product sample received on Apr. 16, 2014 and completely tested on Aug. 27, 2014. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: James Fan / Assistant Manager FCC Test Report Report No. : FR441605ANB4 SPORTON INTERNATIONAL INC. Page No. : 2 of 87 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Accessories and Support Equipment ..................................................................................................... 7 1.3 Testing Applied Standards ..................................................................................................................... 8 1.4 Testing Location Information .................................................................................................................. 8 1.5 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION OF EUT....................................................................................................... 10 2.1 The Worst Case Modulation Configuration .......................................................................................... 10 2.2 The Worst Case Power Setting Parameter .......................................................................................... 10 2.3 The Worst Case Measurement Configuration ...................................................................................... 11 2.4 Test Setup Diagram ............................................................................................................................. 13 3 TRANSMITTER TEST RESULT .......................................................................................................... 14 3.1 AC Power-line Conducted Emissions .................................................................................................. 14 3.2 Emission Bandwidth ............................................................................................................................. 23 3.3 RF Output Power .................................................................................................................................. 28 3.4 Peak Power Spectral Density ............................................................................................................... 32 3.5 Transmitter Radiated Unwanted Emissions and Band Edge ............................................................... 36 3.6 Frequency Stability ............................................................................................................................... 83 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 86 APPENDIX A. TEST PHOTOS ............................................................................................................... A1-A12 FCC Test Report Report No. : FR441605ANB4 SPORTON INTERNATIONAL INC. Page No. : 3 of 87 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.3 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.375MHz 47.04 (Margin 1.35dB) – AV 52.56 (Margin 5.83dB) – QP FCC 15.207 Complied 3.2 15.407(a) Emission Bandwidth 26dB Bandwidth [MHz] 20M: 45.51 / 40M: 61.91 80M: 93.91 6dB Bandwidth [MHz] 20M: 16.35 / 40M: 36.41 80M: 75.83 Information only for 26dB bandwidth 500kHz for 6dB bandwidth Complied 3.3 15.407(a) RF Output Power (Maximum Conducted (Average) Output Power) Power [dBm] 5725-5850MHz: 25.94 Power [dBm] 5725-5850MHz: 30 Complied 3.4 15.407(a) Peak Power Spectral Density PPSD [dBm/MHz] 5725-5850MHz: 11.42 PPSD [dBm/500kHz] 5725-5850MHz: 30 Complied 3.5 15.407(b) Transmitter Unwanted Emissions and Band Edge Restricted Bands [dBuV/m at 3m]: 5725.00MHz 77.20 (Margin 1.00dB) – PK 5715.00MHz 73.00 (Margin 1.00dB) – PK 5850.00MHz 77.20 (Margin 1.00dB) – PK 5715.00MHz 53.00 (Margin 1.00dB) – AV Non-Restricted Bands: ≤ -27dBm (68.2dBuV/m@3m) Restricted Bands: FCC 15.209 Complied 3.6 15.407(g) Frequency Stability 6.6171 ppm Signal shall remain in-band Complied FCC Test Report Report No. : FR441605ANB4 SPORTON INTERNATIONAL INC. Page No. : 4 of 87 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Revision History Report No. Version Description Issued Date FR441605ANB4 Rev. 01 Initial issue of report Oct. 03, 2014 FCC Test Report Report No. : FR441605ANB4 SPORTON INTERNATIONAL INC. Page No. : 5 of 87 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 1 General Description 1.1 Information 1.1.1 Feature of Equipment under Test The following models are provided to this EUT. Brand Name Mode…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR441605CO SPORTON INTERNATIONAL INC. Page No. : 1 of 16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 CO-LOCATION 1.1 Transmitter Unwanted Emissions 1.1.1 Transmitter Unwanted Emissions Limit Restricted Band Emissions Limit Frequency Range (MHz) Field Strength (uV/m) Field Strength (dBuV/m) Measure Distance (m) 0.009~0.490 2400/F(kHz) 48.5 - 13.8 300 0.490~1.705 24000/F(kHz) 33.8 - 23 30 1.705~30.0 30 29 30 30~88 100 40 3 88~216 150 43.5 3 216~960 200 46 3 Above 960 500 54 3 Note 1: Test distance for frequencies at or above 30 MHz, measurements may be performed at a distance other than the limit distance provided they are not performed in the near field and the emissions to be measured can be detected by the measurement equipment. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse of linear distance for field-strength measurements, inverse of linear distance-squared for power-density measurements). Note 2: Test distance for frequencies at below 30 MHz, measurements may be performed at a distance closer than the EUT limit distance; however, an attempt should be made to avoid making measurements in the near field. When performing measurements below 30 MHz at a closer distance than the limit distance, the results shall be extrapolated to the specified distance by either making measurements at a minimum of two or more distances on at least one radial to determine the proper extrapolation factor or by using the square of an inverse linear distance extrapolation factor (40 dB/decade). The test report shall specify the extrapolation method used to determine compliance of the EUT. Un-restricted Band Emissions Limit RF output power procedure Limit (dB) Peak output power procedure 20 Average output power procedure 30 Note 1: If the peak output power procedure is used to measure the fundamental emission power to demonstrate compliance to requirements, then the peak conducted output power measured within any 100 kHz outside the authorized frequency band shall be attenuated by at least 20 dB relative to the maximum measured in-band peak PSD level. Note 2: If the average output power procedure is used to measure the fundamental emission power to demonstrate compliance to requirements, then the power in any 100 kHz outside of the authorized frequency band shall be attenuated by at least 30 dB relative to the maximum measured in-band average PSD level. 1.1.2 Measuring Instruments Refer a test equipment and calibration data table in this test report. FCC Test Report Report No. : FR441605CO SPORTON INTERNATIONAL INC. Page No. : 2 of 16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Test Procedures Test Method Measurements may be performed at a distance other than the limit distance provided they are not performed in the near field and the emissions to be measured can be detected by the measurement equipment. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse of linear distance for field-strength measurements, inverse of linear distance-squared for power-density measurements). For the transmitter unwanted emissions shall be measured using following options below: Refer as ANSI C63.10, clause 4.2.3.2.3 (Reduced VBW). VBW ≥ 1/T, where T is pulse time. Refer as KDB 558074, clause 12.2.3 measurement procedure peak limit. For radiated measurement, refer as ANSI C63.10, Refer as ANSI C63.10, clause 6.4 for radiated emissions from below 30 MHz. Refer as ANSI C63.1…

Text truncated - open the document above for the full version.
